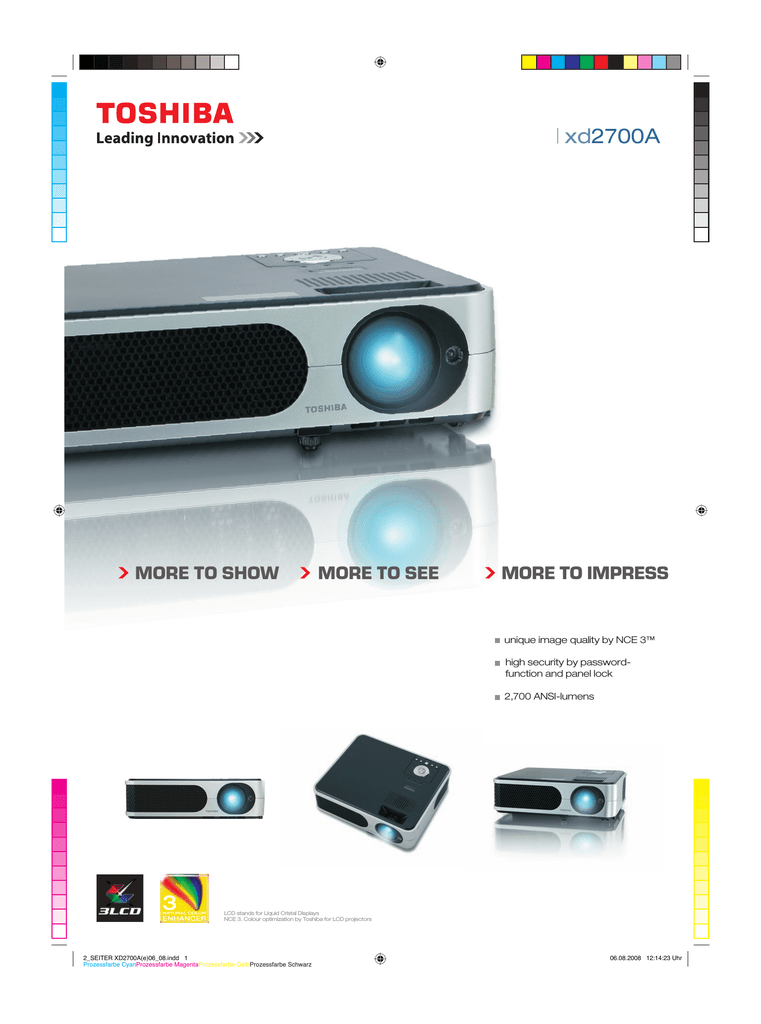

Toshiba xd2700a Datasheet

| xd2700A
MORE TO SHOW
MORE TO SEE
MORE TO IMPRESS
unique image quality by NCE 3™
high security by passwordfunction and panel lock
2,700 ANSI-lumens
LCD stands for Liquid Cristal Displays
NCE 3. Colour optimization by Toshiba for LCD projectors
2_SEITER XD2700A(e)06_08.indd 1
Prozessfarbe CyanProzessfarbe
CyanProzessfarbe MagentaProzessfarbe
MagentaProzessfarbe GelbProzessfarbe
GelbProzessfarbe Schwarz
06.08.2008 12:14:23 Uhr
| xd2700A
Display
0.63” LCD Chip
Resolution
XGA 1,024 x 768
Brightness
2,700 ANSI-lumens
Colour reproduction
16.7 mio. colours
Contrast
600:1
Projection format
4:3 switchable to 16:9
Lamp
220 W (TLPLW11)
Maximal lamp life
up to max. 2,000 hours /
Lens
F = 1.6 - 1.89 / f = 18.6 - 22.3 mm,
Zoom
1.2 x
up to 3,000 hours in Eco mode
manual focus and zoom
Frequency (hor./vert.)
16 - 106 kHz / 50 - 85 Hz
Projection
front, rear and ceiling
Digital keystone correction
auto vertical +/- 30°
Picture size (diagonal)
0.84 - 7.62 m
Projection offset
93 %
Input signals
NTSC / PAL / SECAM, 480i, 480p,
576i, 576p, 720p, 1,080i, VGA, SVGA,
XGA, WXGA, SXGA, UXGA (compr.)
Inputs
2 x RGB (D-sub 15), S-video, composite
video (1 x RCA), RGB audio (1 x stereo mini
jack), video audio (1 x RCA L/R)
Outputs
1 x RGB (D-sub 15), switch in/out,
Serial interface
RS-232C (mini DIN 8pin)
Power supply
AC 100 - 240 V, 50/60 Hz
audio (1 x Stereo Mini Jack)
Loudspeaker
1 W mono
Dimensions (W x H x D)
288 x 92 x 247 mm
Weight
2.8 kg
Operation noise
ECO Mode 29 dB / normal 34 dB
Specials
auto keystone correction, password,
instant shut down, NCE 3™, panel lock,
black board-function, user logo capture,
digital zoom, DDC compatible
Accessories
remote control with batteries, owners
manual (CD ROM), RGB- and power-cable,
softcase
ceiling mount, spare lamp, camera c001
Menu guidance
14 languages
July 2008 • Subject to modifications and errors
Options
www.toshiba-projectors.com
Toshiba Europe GmbH · Projection & Display Technology
Phone: ++49-2131-158-01 · Fax: ++49-2131-158-835
e-mail: [email protected]
