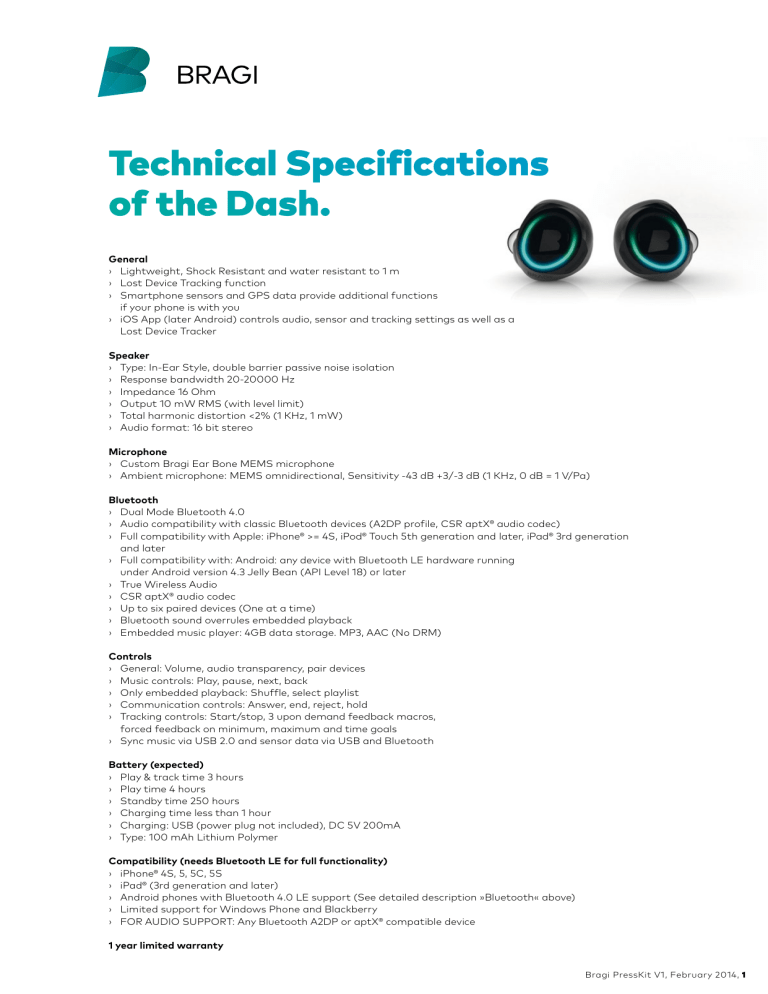

Technical Specifications of the Dash.

Technical Specifications of the Dash.
Technical Specifications
of the Dash.
General
› Lightweight, Shock Resistant and water resistant to 1 m
› Lost Device Tracking function
› Smartphone sensors and GPS data provide additional functions
if your phone is with you
› iOS App (later Android) controls audio, sensor and tracking settings as well as a
Lost Device Tracker
Speaker
› Type: In-Ear Style, double barrier passive noise isolation
› Response bandwidth 20-20000 Hz
› Impedance 16 Ohm
› Output 10 mW RMS (with level limit)
› Total harmonic distortion <2% (1 KHz, 1 mW)
› Audio format: 16 bit stereo
Microphone
› Custom Bragi Ear Bone MEMS microphone
› Ambient microphone: MEMS omnidirectional, Sensitivity -43 dB +3/-3 dB (1 KHz, 0 dB = 1 V/Pa)
Bluetooth
› Dual Mode Bluetooth 4.0
› Audio compatibility with classic Bluetooth devices (A2DP profile, CSR aptX® audio codec)
› Full compatibility with Apple: iPhone® >= 4S, iPod® Touch 5th generation and later, iPad® 3rd generation and later
› Full compatibility with: Android: any device with Bluetooth LE hardware running
under Android version 4.3 Jelly Bean (API Level 18) or later
› True Wireless Audio
› CSR aptX® audio codec
› Up to six paired devices (One at a time)
› Bluetooth sound overrules embedded playback
› Embedded music player: 4GB data storage. MP3, AAC (No DRM)
Controls
› General: Volume, audio transparency, pair devices
› Music controls: Play, pause, next, back
› Only embedded playback: Shuffle, select playlist
› Communication controls: Answer, end, reject, hold
› Tracking controls: Start/stop, 3 upon demand feedback macros,
forced feedback on minimum, maximum and time goals
› Sync music via USB 2.0 and sensor data via USB and Bluetooth
Battery (expected)
› Play & track time 3 hours
› Play time 4 hours
› Standby time 250 hours
› Charging time less than 1 hour
› Charging: USB (power plug not included), DC 5V 200mA
› Type: 100 mAh Lithium Polymer
Compatibility (needs Bluetooth LE for full functionality)
› iPhone® 4S, 5, 5C, 5S
› iPad® (3rd generation and later)
› Android phones with Bluetooth 4.0 LE support (See detailed description »Bluetooth« above)
› Limited support for Windows Phone and Blackberry
› FOR AUDIO SUPPORT: Any Bluetooth A2DP or aptX® compatible device
1 year limited warranty
Bragi PressKit V1, February 2014, 1
