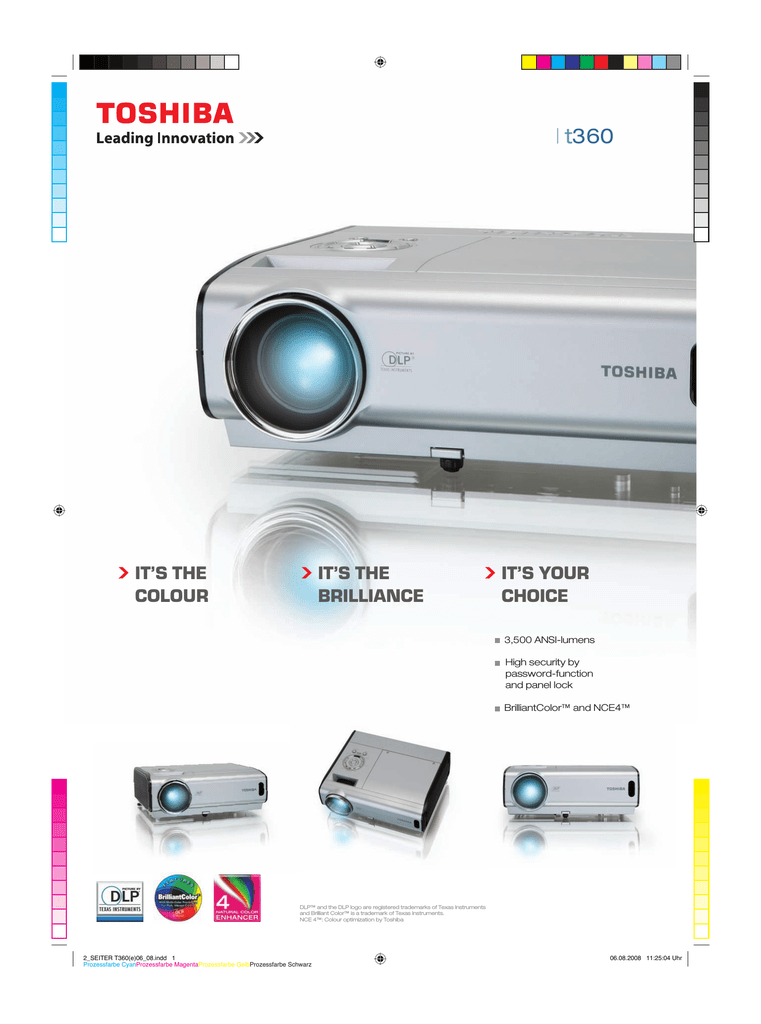

Toshiba t360 Datasheet

| t360
IT’S THE
COLOUR
IT’S THE
BRILLIANCE
IT’S YOUR
CHOICE
3,500 ANSI-lumens
High security by
password-function
and panel lock
BrilliantColor™ and NCE4™
DLP™ and the DLP logo are registered trademarks of Texas Instruments
and Brilliant Color™ is a trademark of Texas Instruments.
NCE 4™: Colour optimization by Toshiba
2_SEITER T360(e)06_08.indd 1
Prozessfarbe CyanProzessfarbe
CyanProzessfarbe MagentaProzessfarbe
MagentaProzessfarbe GelbProzessfarbe
GelbProzessfarbe Schwarz
06.08.2008 11:25:04 Uhr
| t360
Display
0.7” DMD™ Chip
Resolution
XGA 1,024 x 768
Brightness
3,500 ANSI-lumens
Colour reproduction
16.7 mio. colours
Contrast
2,000:1
Projection format
4:3 switchable to 16:9
Lamp
220 W (TLPLW23)
Max. lamp life
up to max. 2,000 hours/
Lens
F = 2.3 - 2.47 / f = 22.97- 27.56 mm,
Zoom
1.2 x
Frequency (hor./vert.)
15 - 120 kHz / 50 - 150 Hz
up to max. 3,000 hours in ECO mode
manual focus and zoom
Projection
front, rear and ceiling
Digital keystone correction
auto vertical +/- 40°
Picture size (diagonal)
1.02 - 7.62 m
Projection offset
100 %
Input signals
NTSC / PAL / SECAM, 480i, 480p, 576i, 576p, 720p, 1,080i,
Inputs
1 x RGB (D-sub 15), 1 x DVI-I (HDCP), component (Y/Cb/Cr)
1,080p, VGA, SVGA, XGA, WXGA, SXGA, UXGA (compr.)
via RGB, S-video, composite video (1 x RCA), RGB audio
(2 x stereo mini jack), video / S-video audio (1 x RCA L/R)
Outputs
1 x RGB, audio (1 x stereo mini jack)
Serial interface
RS-232C (D-sub 9pin)
Power supply
AC 100 - 240 V, 50/60 Hz
Loudspeaker
1 W mono
Dimensions (W x H x D)
338 x 128 x 280 mm
Weight
4.2 kg
Operation noise
ECO Mode 29 dB / normal 33 dB
Specials
auto setup, auto keystone correction, NCE 4™,instant
shut down, buzzer, user logo capture, password, black
board-function, panel lock, digital zoom, DDC compatible
Accessories
remote control with laserpointer and batteries, mouse
remote receiver, softcase, owners manual (CD-ROM),
RGB- and power-cable
Options
ceiling mount, spare lamp, camera c001
Menu guidance
22 languages: English, French, German, Italian, Spanish,
Portuguese, Russian, Swedish, Turkish, Polish, Japanese, Chinese (simple/traditional), Korean, Indonesian,
Danish, Czech, Hungarian, Dutch, Finnish, Norwegian,
Picture size
Projection distance
1.02 m
1.52 m
2.54 m
5.08 m
7.62 m
1.29 m
1.96 - 2.36 m
3.30 - 3.97 m
6.65 - 7.99 m
12.01 m
July 2008 • subject to modifications and errors
Greek, Rumanian
www.toshiba-projectors.com
Toshiba Europe GmbH
Projection & Display Technology
Phone: ++49-2131-158-01 · Fax: ++49-2131-158-835
e-mail: [email protected]
