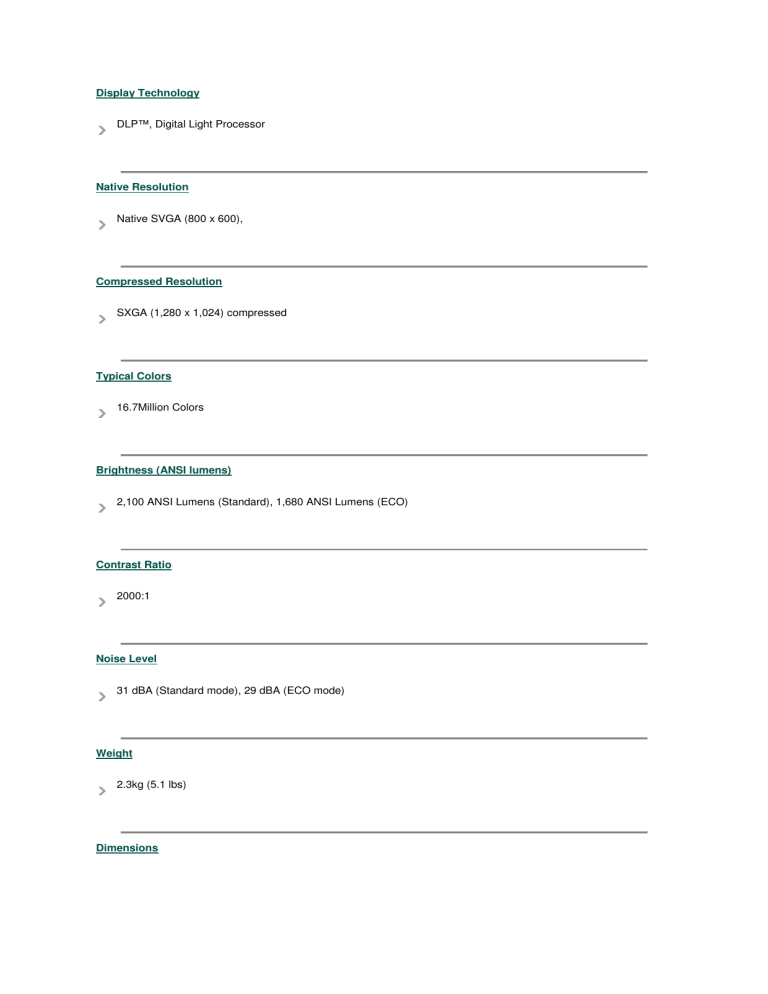

Display Technology
DLP™, Digital Light Processor
Native Resolution
Native SVGA (800 x 600),
Compressed Resolution
SXGA (1,280 x 1,024) compressed
Typical Colors
16.7Million Colors
Brightness (ANSI lumens)
2,100 ANSI Lumens (Standard), 1,680 ANSI Lumens (ECO)
Contrast Ratio
2000:1
Noise Level
31 dBA (Standard mode), 29 dBA (ECO mode)
Weight
2.3kg (5.1 lbs)
Dimensions
256 x 198 x 92 mm (10.1" x 7.8" x 3.6")
Design Aesthetics
Robust Silver Magnesium Alloy Top, Black Front and Bottom Cover
Computer Compatibility:
IBM PC and Compatibles, Apple Macintosh, iMac, and VESA Standards SXGA, XGA, SVGA, VGA (resizing)
Video Compatibility
NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/K/K1/L), HDTV (720p, 1080i), EDTV (480p, 576p), SDTV
(480i, 576i)
Aspect Ratio:
4:3 Native, 16:9 Compatible
Horizontal Scan Rate:
31 - 79 kHz
Vertical Scan Rate:
50 - 85 Hz
Projection Distance:
3.94’ (1.2m) ~ 39.4'(12m)
Projection Screen Size (Diagonal):
27.5" (0.7m) ~ 330" (8.4m)
Keystone Correction:
+/- 15 Degrees
Audio
One Internal Speaker, 2 Watts
Lamp Life
2,000 Hours (standard) - 3,000 Hours (ECO)
Lamp Type
200 W User Replaceable NSH Lamp
Power Consumption:
250 Watts
I/O Connectors
1 HDB 15-Pin D-Sub (VGA/Component/HDTV), 1 3.5mm Audio Mini Jack, 1 Composite Video RCA Jack, 1 SVideo Mini DIN, 1 USB Connector for Remote Computer Control
Bundled Accessories:
AC Power Cord, VGA Cable (15pin D-Sub), Composite Video Cable (RCA), S-Video Cable, VGA (D-Sub) to
Component / HDTV Adapter, USB Cable, Audio Cable (Mini to Mini Phone Jack), Remote Control with Laser
Pointer, Batteries x 2 for Remote Controller, Quick Start Guide (CD-ROM), Warranty card, Lens Cap, Carrying
Case
Up-grade Options
Replacement lamp
Warranty
Acer projectors support a 2 year carry-in warranty and 90 days warranty for the lamp.
