Pissarro DPF-131 UK
English

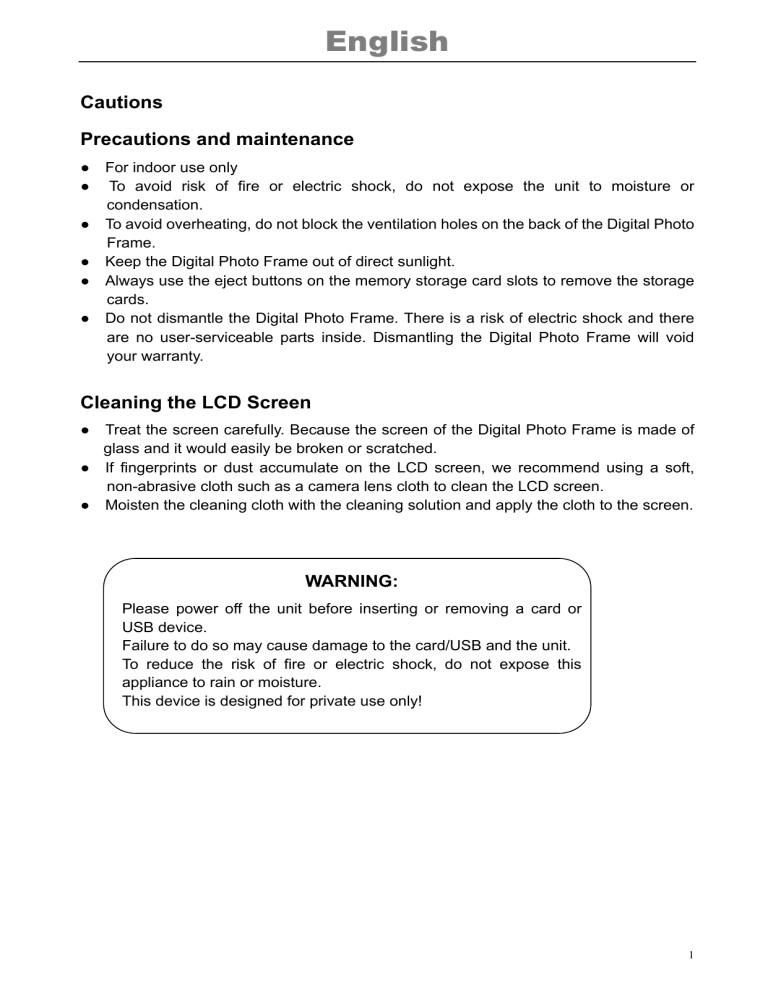

Cautions
Precautions and maintenance
●
●
●
●
●
●
For indoor use only
To avoid risk of fire or electric shock, do not expose the unit to moisture or
condensation.
To avoid overheating, do not block the ventilation holes on the back of the Digital Photo
Frame.
Keep the Digital Photo Frame out of direct sunlight.
Always use the eject buttons on the memory storage card slots to remove the storage
cards.
Do not dismantle the Digital Photo Frame. There is a risk of electric shock and there
are no user-serviceable parts inside. Dismantling the Digital Photo Frame will void
your warranty.
Cleaning the LCD Screen
●
Treat the screen carefully. Because the screen of the Digital Photo Frame is made of
glass and it would easily be broken or scratched.
● If fingerprints or dust accumulate on the LCD screen, we recommend using a soft,
non-abrasive cloth such as a camera lens cloth to clean the LCD screen.
● Moisten the cleaning cloth with the cleaning solution and apply the cloth to the screen.
WARNING:
Please power off the unit before inserting or removing a card or
USB device.
Failure to do so may cause damage to the card/USB and the unit.
To reduce the risk of fire or electric shock, do not expose this
appliance to rain or moisture.
This device is designed for private use only!
1
English
Introduction:
Thank you for your purchase of the Digital Photo Frame. It is designed to allow quick and
easy view of photos taken from your digital camera, mobile phone, or from a memory
storage card. Please read this User Manual carefully to learn the correct way to use the
Digital Photo Frame.
Features:
1. Support picture format: JPEG, BMP,PNG
2. Support audio format: MP3
3. Support video format: MPEG1,MPEG2,MPEG4,H264,RM,RMVB,MOV,MJPEG,
DIVX,AVI,MPG,DAT,VOB, MKV,MP4, Xvid
4. Support memory card: SD/SDHC/MMC
5. Connectors: USB 2.0/HDMI IN /AV IN
6. Build-in 4GB internal memory
7. Built-in stereo speakers (2x 2.5 Watt)
8. Image-display mode: slideshow, zoom, rotate function
9. Slide show with background music and adjustable speed
10. Auto start of slideshow, music, videos, photos and music (selectable)
11. Support scrolling the subtitles during playback of photo, music and movie files
12. Brightness, contrast and saturation adjustable
13. Built-in clock and calendar with slide show
Packaging Check List:
1. Digital photo frame
2. AC/DC adapter
3. Remote control
4. User manual
5. Warranty card
2
1 piece
1 piece
1 piece
1 piece
1 piece
English
CONTENTS
1.1. Remote Control ............................................................................................ 4
1.2. Installing & Replacing the Battery ................................................................ 4
2.1. Press key on stand of the frame................................................................... 5
2.2. Left and right side of frame........................................................................... 5
3. Getting Started ................................................................................................ 5
4. Operating Instruction ....................................................................................... 6
5. Main Menu ...................................................................................................... 6
5.1. Photo/Music/Video Mode ............................................................................. 7
5.2. Photo Playback ............................................................................................ 7
5.3. Music Playback ............................................................................................ 7
5.4. Video Playback ............................................................................................ 8
5.5. Delete function ............................................................................................. 8
5.6. Copy function ............................................................................................... 8
6. Scroll Subtitle function ..................................................................................... 9
7. Input Source .................................................................................................. 10
8. Calendar ....................................................................................................... 10
9. Setup Menu ................................................................................................... 10
10. Technical Specifications .............................................................................. 11
11. Troubleshooting Guide ................................................................................ 13
3
English
1.1.Remote Control
1) Mute─Silence the voice temporarily
2) SOURCE─Press to select input Source
3) POWER ─Switch On/Off.
4) PHOTO – Press to play pictures
5) MUSIC – Press to play music
6) VIDEO ─Press to play Video.
7)
─Play/pause: Press to start playback in
stop or pause modes, and press again to pause.
8) Exit─Return to upper page
9)  ─Navigation left
10) ─Navigation right
11)─Navigation up
12)─Navigation down
13) Enter-─Press to confirm
14) Setup ─Enter setup mode
15) Toolbar ─Enter info bar or delete photo,
music, video file
16) VOL + ─Turn up the volume
17) VOL - ─Turn down the volume.
18)
─Fast back when playing Music or
Video.
19)
─Fast forward when playing Music or
Video
20)
─Previous music or video file
21)
─Next music or video file
1.2.Installing & Replacing the Battery
Place the upside of the remote control down,
press down on the ridged area of the battery
cover and pull towards you to remove the tray.
Place one CR2025 lithium button-cell battery
on the tray with the positive “+” side facing you.
Reinsert the tray.
4
English
2.1.Press key on stand of the frame
1. POWER On/Off
2. EXIT
Input Source (Long Press)
3. PLAY/PAUSE/OK
TOOLBAR (Long Press)
4. VOL+/RIGHT
NEXT (Long Press)
5. VOL-/LEFT
PREVIOUS (Long Press)
g
2.2.Left and right side of frame
1. SD/ SDHC/ MMC CARD
2. USB 2.0
3. HDMI IN
4. DC IN
5. AV IN
3. Getting Started
3.1 Plug one end of the included AC adapter into a standard 90-240V AC electrical outlet
and the other end into the DC in of the frame.
3.2. Remove the protective film covering the LCD.
3.3. Remove the plastic battery insulator from the battery compartment and make sure the
remote control has a battery inside. Please refer to “Installing & Replacing Battery” if you
need a new battery.
5
English
4. Operating Instruction
When the frame is switched on for the
very first time, a menu for the selection
of the default language appears. Please
select the desired language and
confirm with the "ENTER"-Button.
To open the "Language-Selection"
again, please use the "Reset” Function
in the Menu " Setup".
After turning on the unit, it will show the
startup picture, than a video from the
built-in memory will play automatically.
5. Main Menu
It supports SD/ SDHC/ MMC card, USB 2.0,HDMI IN and AV IN .Press Exit twice when
video is playing to access card select interface(USB, Built-in memory and memory
card),Press Exit again to access to the main menu(Photo, Music, Video, Calendar and
Setup).
Remark: Make sure there are supported picture, music and video files in the Card or USB
device.
6
English
5.1.Photo/Music/Video Mode
Highlight Photo, Music or Video from
the main menu, Press ENTER to Select
USB, Built-in memory or memory card,
then press ENTER again to access to
thumbnail mode, press
to
select the file you want to play and
press ENTER to confirm.
Remarks:
1. Frame can organize 900 pictures per Folder. If more than 900 pictures on your card you
need to split them in several Folders.
2. Only the Files from the selected Folder can be played back.
5.2. Photo Playback
When slideshow is playing,press
TOOLBAR to show Information Bar,
and select following items by
:
Play/Pause, Prev, Next, Stop,
R_ALL/R_None/R_ONE/Random,
Music, Playlist, Info, Rotate
clockwise, Rotate anticlockwise, Zoom
In, Zoom Out, Move View, then press
ENTER to operate.
5.3.Music Playback
When music is playing , press
TOOLBAR to show Information Bar,
and select following items by
:
Play/Pause, FB, FF, Prev, Next, Stop,
R_ALL/R_None/R_ONE/Random,
Mute, Playlist, Info, Goto Time, then
press ENTER to operate.
.
7
English
5.4. Video Playback
When video is playing, press
TOOLBAR to show Information Bar,
and select following items by
:
Play/Pause, FB, FF, Prev, Next, Stop,
R_ALL/R_None/R_ONE/Random, Set
AB, Playlist, Info, SlowF, StepF,
Goto Time, Zoom In, Zoom Out,
Move View, then press ENTER to
operate.
5.5.Delete function
It supports delete pictures, music and
videos. Enter Photo, Music or Video,
select USB, Built-in memory or memory
card, than access to thumbnail mode.
Use
to select the file you
want to delete, press TOOLBAR to
enter into Delete interface and press
ENTER to confirm.
5.6.Copy function
It supports copy pictures, music and video files from USB device to built-in memory.
Insert a USB disk with the needed files, enter into Setup interface, select “copy” in the list,
and press “ENTER” to enter confirming interface, select “Yes” by
and press “ENTER”
to start copying. It will show a progress bar. After copy successfully, the DPF will auto play
files from the built in memory.
8
English
Remarks:
1. Files (Music, Video or Pictures) can only be copied from an USB-Device, not from an
SD-Card.
2. Don’t use Folders for the files on your USB device if you want to copy them to the
internal memory.
3. Please remind that all files of the internal memory are deleted when you copy new files.
6. Scroll Subtitle function
The Frame supports scrolling the subtitles during playback of photo, music and movie files.
The setting method is as below:
a) Create a TXT file
b) Save the TXT file with the code format “Unicode” and named “SCROLL.TXT”
c) Edit the content of scroll subtitle in the TXT and save.
d) Copy the TXT file to USB disk or Memory card.
e) Insert the USB disk or Memory card, it will show the subtitles when playing photo,
music or video files in the device.
Remarks:
1. Please make sure the files that should display the scroll text are in the same
folder as the .TXT file.
2. If you want to display new subtitles, please unplug the adapter to clear the memory,
otherwise the DPF still display the previous scroll subtitle.
9
English
7. Input Source
It supports HDMI In and AV In.
Connect the device (HDMI OUT/AV
OUT) with the HDMI/AV interface.
Press SOURCE and select input
source by
to choose “HDMI” or
“AV ” accordingly, select “DMP” to exit.
8. Calendar
Select Calendar from the main menu,
press ENTER to access, the calendar
is displayed and any photos on the
connected memory are shown as a
slideshow to the side. Browse the
calendar by using
.
9. Setup Menu
Select Setup from the main menu,
press ENTER to access, press
to select the item you want to change,
press
on the sub-item to choose
and confirm.
9.1 OSD Language: German, English, French, Italian, Spanish, Dutch, Portuguese, Czech,
Polish, Danish, Hungarian, Greek, Norwegian, Swedish, Finnish
9.2 Slideshow Time: 3S/5S/10S/30S/60S
9.3 Slideshow Mode: Off/On
10
English
9.4 Repeat Mode: All/One/Off/Random
9.5 Display Mode: Auto, Fit, Full,
9.6 Set time/date: Date, Month, Year, Hour, Minute, Second.
9.7 Brightness: Use
to select from 0 (lowest) to 100 (highest)
9.8 Contrast: Use
to select from 0 (lowest) to 100 (highest)
9.9 Saturation: Use
to select from 0 (lowest) to 100 (highest)
9.10 Software Update (USB): Upgrade software by USB disk (Need Firmware)
9.11 Auto Power Frequency: Every Day, Off
Select “on“ to setup auto power on/off time.
9.12 Auto Play: Photo, Music, Video, Photo+ Music, off
9.13 Scroll Subtitle: Black, White, Red, Blue, Green, Off
9.14 Auto Play Media Type: USB, Memory.
9.15 Set time format: Off, HHMM, HHMMSS, DDMMYY HHMM, DDMMYY HMS
(It is for the Time bar when playing picture, Music, Video files.)
9.16 Copy
9.17 Reset Setting
10. Technical Specifications





Screen Parameter:
Size: 13.3 inch
Resolution: 1920*1080 Pixel
Aspect Ratio: 16:9
Brightness: 200-250cd/m2
Contrast:600:1
Viewing Angle: wide viewing angle (IPS View)
Memory | Card Slot
Internal: 4 GB | Slot for SD/SDHC/MMC memory cards
Connectors:
USB 2.0 | HDMI IN | AV IN
Adapter:
Input AC100~240V,50/60Hz,Output DC 9V/1.5A
Media Information
11
English
12
English

Conformity
The Manufacturer hereby declares that the CE marking was applied to the
Rollei Pissarro DPF 131 in accordance with the basic requirements and other relevant
provisions of the following CE Directives:
2011/65/EC RoHs Directive
2004/108/EC Low Voltage Directive
1999/5/EG R&TTE Directive
2006/95/EEC LVD Directive
2009/125/EG EuP Directive
2002/96/EG WEEE Directive
The EC Declaration of Conformity can be requested from the address specified on the
Warranty card.
11. Troubleshooting Guide
If you are having problems with your player, please consult both this guide and manual.If
you need further assistance, please contact Technical Support.
 No power:
Please check whether the plug is inserted correctly.
 Remote control no function:
Please check whether the battery has power (the battery can be used for half a year in
normal conditions). Replace with new battery if necessary.
 Can not read the CARD or USB:
Please confirm whether there is storage in the card or USB device.
Empty devices cannot be read.
 Can not play the file:
Please confirm if the file format is compatible with the player.
 Display too bright or too dark:
Please adjust the brightness or contrast in the setup menu.
 The color is light or no color:
Please adjust the color and contrast setup.
 No sound:
Please check whether the volume is correct and the player is not in Mute mode.
13
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
