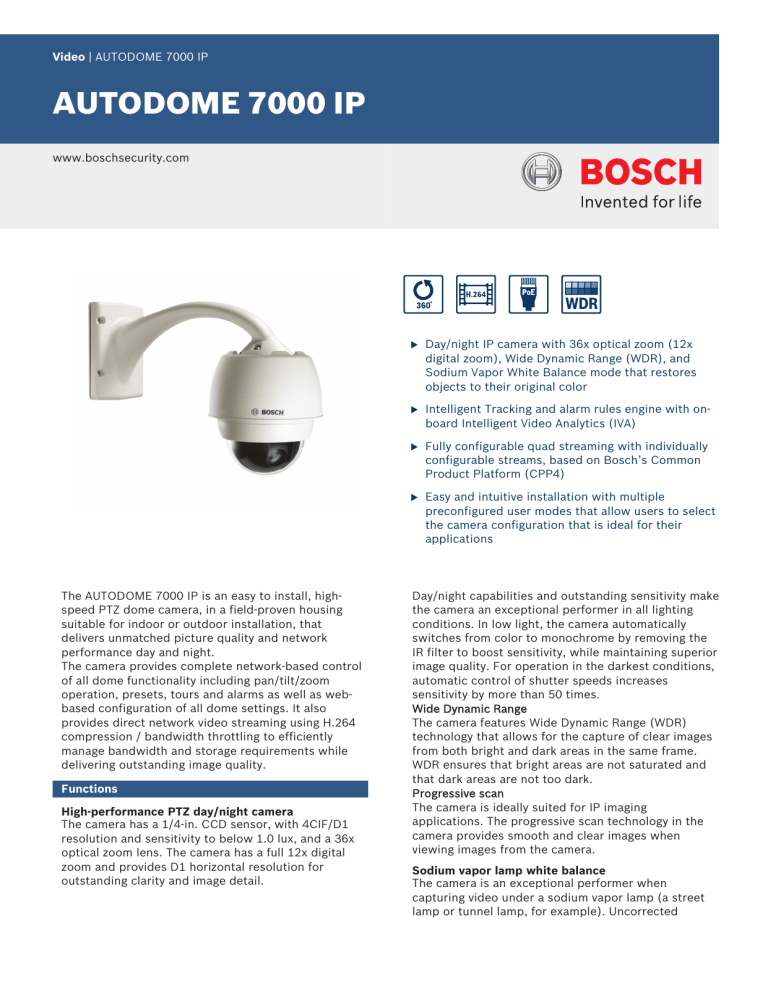

Video | AUTODOME 7000 IP
AUTODOME 7000 IP
www.boschsecurity.com
The AUTODOME 7000 IP is an easy to install, highspeed PTZ dome camera, in a field-proven housing
suitable for indoor or outdoor installation, that
delivers unmatched picture quality and network
performance day and night.
The camera provides complete network-based control
of all dome functionality including pan/tilt/zoom
operation, presets, tours and alarms as well as webbased configuration of all dome settings. It also
provides direct network video streaming using H.264
compression / bandwidth throttling to efficiently
manage bandwidth and storage requirements while
delivering outstanding image quality.
Functions
High-performance PTZ day/night camera
The camera has a 1/4-in. CCD sensor, with 4CIF/D1
resolution and sensitivity to below 1.0 lux, and a 36x
optical zoom lens. The camera has a full 12x digital
zoom and provides D1 horizontal resolution for
outstanding clarity and image detail.
u
Day/night IP camera with 36x optical zoom (12x
digital zoom), Wide Dynamic Range (WDR), and
Sodium Vapor White Balance mode that restores
objects to their original color
u
Intelligent Tracking and alarm rules engine with onboard Intelligent Video Analytics (IVA)
u
Fully configurable quad streaming with individually
configurable streams, based on Bosch’s Common
Product Platform (CPP4)
u
Easy and intuitive installation with multiple
preconfigured user modes that allow users to select
the camera configuration that is ideal for their
applications
Day/night capabilities and outstanding sensitivity make
the camera an exceptional performer in all lighting
conditions. In low light, the camera automatically
switches from color to monochrome by removing the
IR filter to boost sensitivity, while maintaining superior
image quality. For operation in the darkest conditions,
automatic control of shutter speeds increases
sensitivity by more than 50 times.
Wide Dynamic Range
The camera features Wide Dynamic Range (WDR)
technology that allows for the capture of clear images
from both bright and dark areas in the same frame.
WDR ensures that bright areas are not saturated and
that dark areas are not too dark.
Progressive scan
The camera is ideally suited for IP imaging
applications. The progressive scan technology in the
camera provides smooth and clear images when
viewing images from the camera.
Sodium vapor lamp white balance
The camera is an exceptional performer when
capturing video under a sodium vapor lamp (a street
lamp or tunnel lamp, for example). Uncorrected
2 | AUTODOME 7000 IP
images under these conditions have a yellowish tint,
which can make identification difficult. In the Sodium
Vapor White Balance mode, the camera automatically
compensates for the light from a sodium vapor lamp to
restore objects to their original color.
Virtual masking
The camera offers Virtual Masking, which gives users
flexibility to mask parts of the scene which should not
be considered for flow analysis to trigger Intelligent
Tracking. This allows users to mask from IVA/Tracking
any background motion (moving trees, pulsating lights,
and busy roads) in the scene without blocking the
motion from the video.
Intelligence
With built-in video content analysis, the AUTODOME
reinforces the Intelligence-at-the-Edge concept where
edge devices become increasingly intelligent.
The AUTODOME comes with Bosch’s Intelligent Video
Analysis (IVA) built-in. IVA is state-of-the-art intelligent
video analysis that reliably detects, and analyzes
moving objects while suppressing unwanted alarms
from spurious sources in the image.
The IVA functionality built into the AUTODOME is able
to detect idle and removed objects as well as loitering,
multiple line crossing, and trajectories. IVA also
supports BEV (Bird’s Eye View) People counting.
Assisted Self Calibration and configurable detection
filters improve reliability and reduce operator work
load.
Intelligent Tracking
The camera utilizes the built-in Intelligent Video
Analytics (IVA) to follow an individual or an object
continuously. Objects detected by IVA when the
camera is in a stationary position activate the
Intelligent Tracking feature, which controls the pan/
tilt/zoom actions of the camera to keep the tracked
object in the scene.
The new Intelligent Tracking is based on robust flow
detection algorithms which can reliably track moving
objects even under challenging scenes.
The tracking and detection reliability can be enhanced
further with virtual masking for scenes with a lot of
background motion such as trees or other objects
creating constant motion in the scene.
The camera supports three modes for Intelligent
Tracking:
Auto mode: When configured in this mode, the camera
actively analyzes the video to detect any moving
object. If it detects movement, it begins to track the
object. This mode is most useful for scenarios where
normally no motion is expected.
One Click mode: In this mode, users can click an
object moving in the live video image to enable the
camera to track the movement of the selected object.
This mode is most useful for scenarios where normal
scene activity is expected.
IVA-triggered mode: In this mode, the camera
continuously analyzes the scene for IVA alarms or IVA
rule violations. If an IVA rule is violated, it triggers the
advanced tracking feature of the camera to start
following the object / person that triggered the alarm.
This unique combination of robust IVA and Intelligent
Tracking allows the camera to track moving objects of
interest without getting distracted by other moving
objects in the scene.
PTZ drive and mechanism
The AUTODOME 7000 supports 256 pre-positions and
two styles of Guard Tours: Preset and Record/
Playback. Users can configure the preset standard tour
with as many as 256 sequential pre-positions, with a
configurable dwell time between pre-positions. The
AUTODOME Series also provides support for two
recorded tours, which are recorded macros of an
operator’s movements, including pan, tilt, and zoom
activities, and can be played back with the click of a
button.
Pan and tilt preset repeatability are accurate to within
±0.1 degrees to ensure that the correct scene is
captured every time. The camera delivers variable pan/
tilt speeds from a crawl speed of only 0.1 degrees per
second to a full 400 degrees per second. The camera
is capable of pan speeds of 400 degrees per second
and tilt speeds of 300 degrees per second between
prepositions. The camera provides a tilt angle 18
degrees above the horizon, and a pan range of up to
360 degrees continuous rotation.
The AutoScaling (proportional zoom) and AutoPivot
(automatically rotates and flips the camera) features
ensure optimal control.
Five (5) pre-programmed user modes
Five pre-programmed but configurable user modes,
optimized with the best settings for a variety of typical
applications, make camera programming on-site easy
and user-friendly. Users select from the menu the
mode that best defines the environment in which the
camera is installed:
• Outdoor – general day-to-night changes with sun
highlights and street lighting
• Indoor – general day-to-night changes without sun
highlights and street lighting
• Low light –optimized for sufficient details at low light
• Motion – monitoring traffic or fast moving objects;
motion artifacts are minimized
• Vibrant – enhanced contrast color reproduction and
sharpness
Users have the ability to customize these modes, if
necessary, for the specific requirements of the site.
Image Stabilization
As PTZ cameras continue to improve their optical
zoom capabilities, image stabilization becomes critical
to eliminate movement caused by unstable camera
mounts. A mere quarter-inch of movement of the
3 | AUTODOME 7000 IP
camera mount can shift the field of view by more than
20 feet when the camera is zoomed to a high value.
This can render images unusable.
Image stabilization algorithms reduce camera shake in
both the vertical and horizontal axis, resulting in
exceptional image clarity (pixel displacement up to +/10% for frequencies up to 10 Hz). Bosch’s unique
image stabilization solution does not reduce camera
sensitivity, unlike competitive systems.
Superior privacy masking
The camera provides 24 individual, easy to configure
privacy masks, with up to 8 displayed in the same
scene. As the camera is zoomed, each mask changes
size smoothly and quickly, ensuring that the covered
object cannot be seen in most cases.
Comprehensive streaming capabilities on Bosch’s
Common Product Platform (CPP4)
The camera has an advanced, efficient H.264 encoder
(CPP4) embedded for DVD-quality streaming video
and very efficient streaming and network capabilities.
The new platform supports simultaneous streaming of
individually configurable SD streams (H.264 and MJPEG), and allows a choice of SD resolution.
Advanced networking capabilities
The AUTODOME offers advanced capabilities so you
can configure the camera to take advantage of the
latest networking technology.
The AUTODOME offers Quality of Service (QoS)
configuration options to ensure fast network response
to PTZ data and images. Quality of Service (QoS) is
the set of techniques to manage network resources.
QoS manages the delay, delay variation (jitter),
bandwidth, and packet loss parameters to guarantee
the ability of a network to deliver predictable results.
QoS identifies the type of data in a data packet and
divides the packets into traffic classes that can be
prioritized for forwarding.
The AUTODOME also supports the IPv6 internet-layer
protocol for packet-switched internetworking across
multiple IP networks. IPv6 uses 128-bit addresses
(IPv4 uses 32-bit addressing), which allows for many
more devices and users on the internet as well as
extra flexibility in allocating addresses and efficiency
for routing traffic.
Ease of installation and servicing
The camera has been designed for quick and easy
installation; a key feature from Bosch CCTV products.
All housings feature recessed screws and latches for
increased tamper resistance.
Indoor/outdoor pendant housings are rated to provide
IP66 protection and offer an operating temperature
range down to -40 °C (-40 °F). The indoor/outdoor
pendant comes fully assembled with a sunshield and
ready for wall or pipe applications with the proper
mounting hardware (sold separately). You can easily
convert the outdoor pendant for indoor applications
by removing the sunshield.
Bosch offers a full complement of hardware and
accessories (sold separately) for wall, corner, mast,
roof, and pipe mounts for indoor and outdoor
environments, which allow the camera to be adapted
easily to individual site requirements.
ONVIF conformant
The AUTODOME Series conforms to the ONVIF Profile
S specification allowing easy integration with the
conformant devices and VMS.
For more information about ONVIF, visit
www.onvif.org.
The camera conforms to the ONVIF (Open Network
Video Interface Forum) specification which guarantees
interoperability between network video products
regardless of manufacturer. ONVIF conformant devices
are able to exchange live video, audio, metadata and
control information. They are automatically discovered
and connected to network applications such as video
management systems.
Fiber Optic Kit
Bosch offers the optional VG4-SFPSCKT, a unique
media converter module for use with various Bosch
devices. This media converter module is designed to
accept a wide-range of 10/100 Mbps SFP modules for
use with Multimode or Single-mode optical fiber with
LC or SC connectors.
The media converter module along with the SFP
module is user-installed directly into the camera‘s
power supply box to provide an integrated fiber optic
solution.
Unsurpassed reliability
As with all Bosch products, the camera has been
subjected to the industry’s most comprehensive and
demanding battery of endurance tests such as HALT
(highly accelerated life testing) to make sure it will
hold up through years of use. And of course, it comes
with Bosch’s industry-leading 3-year warranty.
Access security
Various security levels are available for accessing the
network, the camera, and the data channels. As well
as password protection with three levels, 802.1x
authentication using a RADIUS (Remote Authentication
Dial In User Service) server is supported. To secure
Web browser access, use HTTPS with a SSL certificate
stored in the camera. For total data protection, the
video and audio communication channels can be
independently AES encrypted with 128-bit keys by
installing the optional encryption site license.
Easy upgrade
Remotely upgrade the camera whenever new firmware
becomes available. This ensures up-to-date products,
thus protecting investment with little effort.
4 | AUTODOME 7000 IP
Certifications and approvals
Day Mode
Electromagnetic
Compatibility (EMC)
Complies with FCC Part 15, ICES-003, and
CE regulations, including latest versions of
EN 50130-4,
EN 55022:2006 inc. AL:2007,
EN 61000-3-3,
EN 61000-6-1,
EN 61000-6-2, and
EN 50121-4 (Railway applications)
SensUp Off
(NTSC: 1/60s
PAL: 1/50s)
0.66 lux
(0.061 fc)
1.4 lux
(0.13 fc)
SensUp On
(NTSC: 1/4s, 15X;
PAL 1/3s, 16.7X)
0.04 lux
(0.0037 fc)
0.1 lux
(0.0092 fc)
Product Safety
Complies with UL, CE, CSA, EN, and IEC
Standards 60950-1 & 22
SensUp Off
0.104 lux
(0.0097 fc)
0.209 lux
(0.0194 fc)
ONVIF Conformance
EN 50132-5-2
SensUp On
(NTSC: 1/4s, 15X;
PAL 1/3s, 16.7X)
0.0052 lux
(0.0005 fc)
0.0103 lux
(0.001 fc)
Night Mode
Electronic Shutter Speed
NTSC: 1/4 to 1/10,000 sec., 20
steps
PAL: 1/3 to 1/10,000 sec., 20
steps
Wide Dynamic Range (WDR)
92 dB (50 dB with WDR Off)
Signal-to-Noise Ratio (SNR)
>50 dB (Weighting ON)
Technical specifications
Backlight Compensation
On/Off
Camera 36x Day/Night
White Balance
ATW, Indoor, Outdoor, AWB Hold,
Extended ATW, Manual, Outdoor
Auto, Sodium Lamp Auto, Sodium
Lamp
Day/Night
Monochrome, Color, Auto
Stabilization
On/Off
Notice
Conformity to EN 50130-4
One of the following power supply units is
required to conform to the EN 50130-4 standard:
VG4-A-PSU0, VG4-A-PSU1, VG4-A-PSU2, VG4-APA0, VG4-A-PA1, or VG4-A-PA2.
Imager
1/4 in.-type Exview HAD CCD (progressive
scan)
Effective Picture
Elements
PAL: Approx. 440,000; 752(H) x 582(V)
NTSC: Approx. 380,000; 768 (H) x 494 (V)
Lens
36x Zoom (3.4–122.4 mm) F1.6 to F4.5
Focus
Automatic with manual override
bubble adds 0.09 f-stop loss (90% light transmission). Tinted bubble adds 0.47 f-stop loss (60% light transmission).
Iris
Automatic with manual override
Camera 36x Day/Night
Zoom Movement Speed
1. Unless otherwise stated, test conditions are: F1.6; shutter = NTSC 1/60s, PAL 1/50s; max AGC; no bubble. Clear
NTSC
PAL
• Optical WIDE / Optical TELE –
Focus Tracking ON
4.0 sec.
4.0 sec.
• Optical WIDE / Optical TELE –
Focus Tracking OFF
2.7 sec.
• Optical WIDE / Digital TELE
6.0 sec.
• Digital WIDE / Digital TELE
2.1 sec.
Imager
1/4 in.-type Exview HAD CCD (progressive
scan)
Effective Picture
Elements
PAL: Approx. 440,000; 752(H) x 582(V)
NTSC: Approx. 380,000; 768 (H) x 494 (V)
Lens
36x Zoom (3.4–122.4 mm) F1.6 to F4.5
6.2 sec.
Focus
Automatic with manual override
2.3 sec.
Iris
Automatic with manual override
2.7 sec.
Optical Zoom Field of View
(FOV)
1.7° to 57.8°
Minimum Working Distance
320 mm (wide) to 1500 mm (tele)
Gain Control
Zoom Movement Speed
NTSC
PAL
• Optical WIDE / Optical TELE –
Focus Tracking ON
4.0 sec.
4.0 sec.
Auto/Manual/Max.
(–3 dB to 28 dB, 2 dB steps)
• Optical WIDE / Optical TELE –
Focus Tracking OFF
2.7 sec.
2.7 sec.
Synchronization
Line-Lock (–120° to 120° vertical
phase adjust) or internal crystal
• Optical WIDE / Digital TELE
6.0 sec.
6.2 sec.
Aperture Correction
Horizontal and vertical
• Digital WIDE / Digital TELE
2.1 sec.
2.3 sec.
Digital Zoom
12x
Sensitivity (typical) 1
30 IRE
50 IRE
Optical Zoom Field of View
(FOV)
1.7° to 57.8°
Minimum Working Distance
320 mm (wide) to 1500 mm (tele)
5 | AUTODOME 7000 IP
Gain Control
Auto/Manual/Max.
(–3 dB to 28 dB, 2 dB steps)
Synchronization
Line-Lock (–120° to 120° vertical
phase adjust) or internal crystal
Aperture Correction
Horizontal and vertical
Digital Zoom
12x
Sensitivity (typical) 1
30 IRE
50 IRE
Day Mode
SensUp Off
(NTSC: 1/60s
PAL: 1/50s)
0.66 lux
(0.061 fc)
1.4 lux
(0.13 fc)
SensUp On
(NTSC: 1/4s, 15X;
PAL 1/3s, 16.7X)
0.04 lux
(0.0037 fc)
0.1 lux
(0.0092 fc)
Night Mode
Electrical
Input Voltage
21-30 VAC, 50/60 Hz; (class II)
High PoE (with Bosch NPD-6001A Midspan)
Power Consumption,
typical
60 W / 69 VA (heaters on)
or
24 W / 44 VA (heaters off) 5
Surge Suppression
Protection on
Alarm Inputs
Peak current 17 A, peak power 300 W
(8/20 μs)
Protection on
Alarm Outputs
Peak current 2 A, peak power 300 W
(8/20 μs)
Protection on
Relay Output
Peak current 7.3 A, peak power 600 W
(10/1000 μs)
Protection on Power
Input (Dome)
Peak current 7.3 A, peak power 600 W
(10/1000 μs)
SensUp Off
0.104 lux
(0.0097 fc)
0.209 lux
(0.0194 fc)
Protection on Power
Output (Arm Power
Supply)
Peak current 21.4 A, peak power 1500 W
(10/1000 μs)
SensUp On
(NTSC: 1/4s, 15X;
PAL 1/3s, 16.7X)
0.0052 lux
(0.0005 fc)
0.0103 lux
(0.001 fc)
10/100 Ethernet
Data Lines
Peak current 14 A, peak power 200 W
(8/20 μs)
Electronic Shutter Speed
NTSC: 1/4 to 1/10,000 sec., 20
steps
PAL: 1/3 to 1/10,000 sec., 20
steps
Wide Dynamic Range (WDR)
92 dB (50 dB with WDR Off)
Signal-to-Noise Ratio (SNR)
>50 dB (Weighting ON)
Backlight Compensation
On/Off
White Balance
ATW, Indoor, Outdoor, AWB Hold,
Extended ATW, Manual, Outdoor
Auto, Sodium Lamp Auto, Sodium
Lamp
Day/Night
Monochrome, Color, Auto
Stabilization
On/Off
Software Control
Camera Setup/
Control
Via web browser (such as Internet Explorer
version 7.0 or later), Bosch Configuration
Manager, Bosch Video Management System
(BVMS), Bosch Recording Station (BRS), or
Bosch Video Client (BVC)
Software Update
Network firmware upload
Network
Video
compression
H.264 (ISO/IEC 14496‑10), M‑JPEG
Encoding / Streaming
H.264
MJPEG
Scenario
1. Unless otherwise stated, test conditions are: F1.6; shutter = NTSC 1/60s, PAL 1/50s; max AGC; no bubble. Clear
Stream 1
Stream 2
Stream 3
Stream 4
1
[email protected]
[email protected]
I-frame
only from
Stream 1
[email protected]
2
[email protected]
Copy of
Stream 1
I-frame
only from
Stream 1
[email protected]
3
Downscaled
stream
Downscaled
stream
I-frame
only from
Stream 1
Downscaled
stream from
Stream 1
bubble adds 0.09 f-stop loss (90% light transmission). Tinted bubble adds 0.47 f-stop loss (60% light transmission).
Mechanical
Pan Range
360° cont.
Tilt Angle
18° above horizon
Pre-position Speed
Pan: 400°/s
Tilt: 300°/s
Pan/Tilt Modes
• Turbo Mode
(Manual Control)
• Normal Mode
Preset
Accuracy
Pan: 0.1°/s – 400°/s
Tilt: 0.1°/s – 300°/s
GOP Structure
IP, IBP, IBBP
0.1°/s-120°/s
Data Rate
9.6 kbps to10 Mbps (per stream)
± 0.1° typ.
Overall IP Delay
240 ms
Resolution (Horizontal x Vertical, PAL/NTSC)
6 | AUTODOME 7000 IP
• 4CIF/D1
704 x 576/480 (25/30 ips, or 50/60 fields/s
for interlaced fields)
• CIF
352 x 288/240 (25/30 ips, or 50/60 fields/s
for interlaced fields)
Ethernet
10-Base T/100 Base-TX, auto-sensing, half/full
duplex, RJ45
Protocols
IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP,
IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet,
ARP, DHCP, SNTP, SNMP (V1, MIB II), 802.1x,
DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de,
no-ip.com), SMTP, iSCSI, UPnP (SSDP),
DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP,
digest authentication
Advanced
Networking
IPv6, QoS
Audio
• SFP-25, SFP-26
Weight (all SFP
modules)
63.8 x 13.5 x 8.5 mm (2.5 x 0.5 x 0.3 in.)
0.23 kg (.05 lb)
Type
Connector
Wavelength
(transmit /
receive)
Max. Distance
SFP-2
MMF
Duplex LC
1310 nm /
1310 nm
2 km
(1.2 miles)
SFP-3
SMF
Duplex LC
1310 nm /
1310 nm
20 km
(12.4 miles)
SFP-25
MMF
Single SC
1310 nm /
1550 nm
2 km
(1.2 miles)
SFP-26
MMF
Single SC
1550 nm /
1310 nm
2 km
(1.2 miles)
Fiber Compatibility
• Standard
G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC, 16 kHz sampling rate
• Signal-toNoise Ratio
>50 dB
• Audio
Streaming
Bidirectional (full duplex)
Fiber Optic Kit
Optical Fiber
Compatibility, MMF
50/125 µm MMF. For 50/125 µm fiber,
subtract 4 dB from the specified optical
budget value. Must meet or exceed fiber
standard ITU-T G.651.
Optical Fiber
Compatibility, SMF
8–10/125 µm SMF. Must meet or exceed
fiber standard ITU-T G.652.
Optical Distance
Specifications
Specified transmission distances are limited to
the optical loss of the fiber and any additional
loss introduced by connectors, splices, and
patch panels. The modules are designed to
operate over the entire optical loss budget
range, so they do not require a minimum loss
in order to operate.
VG4-SFPSCKT
Description
Fiber Optic Ethernet Media Converter kit5.
Requires a small form-factor pluggable (SFP)
module (sold separately).
Data Interface
Ethernet
Data Rate
10/100 Mbps
IEEE 802.3 Compliant
Full Duplex or Half Duplex Electrical Port
Full Duplex Optical Port
Compatible Receiver
CNFE2MC
Installation
Installed inside a VG4-A-PA0, VG4-A-PA1,
VG4-A-PA2, VG4‑A‑PSU1, or a VG4‑A‑PSU2
power supply box with supplied mounting
hardware
5. Kit available separately and must be installed inside the AUTODOME power supply box.
SFP Modules
Description
Interchangeable modules available for use with
MMF or SMF optical fiber.
Data Interface
Ethernet
Data Rate
10/100 Mbps
IEEE 802.3 Compliant
Miscellaneous
Sectors/Titling
16 independent sectors with a 20-character
title/sector
Masking
24 individually configurable privacy masks
Pre-positions
256, each with a 20-character title
Guard Tours
Two (2) types of tours:
• Recorded tours – two (2)
• Preset tour – one (1), consisting of up to
256 scenes, consecutively
Supported
Languages
English, Chinese, Dutch, French, German,
Italian, Japanese, Polish, Portuguese, and
Spanish
User Connections
Power, Camera
RJ-45 10/100 Base-TX Ethernet (High
Power-over-Ethernet (High PoE)) or PoE+
(IEEE 802.3at, class 4 standard)
21-30 VAC, 50/60 Hz
Power, Heater
RJ-45 10/100 Base-TX Ethernet (High
Power-over-Ethernet (High PoE))
21-30 VAC, 50/60 Hz
Video and Control
RJ-45 10/100 Base-TX Ethernet
Mechanical
Dimensions (LxWxH)
• SFP-2 and SFP-3
55.5 x 13.5 x 8.5 mm (2.2 x 0.5 x 0.3 in.)
7 | AUTODOME 7000 IP
Alarm Inputs (7)
Alarm Outputs (4)
Audio
2 supervised; 5 non-supervised
Programmable for “normally open” or
"normally closed"
1 dry contact relay; 3 open collector/
transistor outputs
32 VDC @ 150 ma max.
1 x mono line in, 1 x mono line out
• Signal line in
12 kOhm typical, 1 Vrms max
• Signal line out
1 Vrms at 1.5 kOhm, typical
Environmental
Ingress Protection
Rating/Standard
NEMA 4X
Operating Temp.
Optional Mounting Plates for Arm Mounts
Corner Mounting Plate
VG4-A-9542
Mast (Pole) Mounting Plate
VG4-A-9541
Pendant Pipe Mounts
Pipe Mount Cap
VG4-A-9543
Pendant Roof Mounts
Roof (Parapet) Mount
VGA-ROOF-MOUNT
(VG4-A-9543 Pipe Mount Cap required. Available separately.)
Optional Mounting Plates for Roof Mounts
IP667
Flat Roof Adapter for Parapet Mount
• Access to Hazardous parts
• Ingress of solid foreign objects
(falling dirt, circulating dust,
settling dust)
• Ingress of water (dripping and
light splashing, hosedown and
splashing)
• Corrosive agents
-40°C to 55°C
(-40°F to 131°F)
or
-10°C to 55°C
(14°F to 131°F)6
LTC 9230/01
Power Supplies
High PoE Midspan 60W, single port, AC in
NPD-6001A
Outdoor Power Supply Box, no transformer
VG4-A-PSU0
Outdoor Power Supply Box (120/230 VAC
Transformer)
VG4-A-PSU1 /
VG4-A-PSU2
Fiber Optic Kit
VG4-SFPSCKT
Dimensional Drawings
22.86
[0.90]
86.7
[3.42]
Storage Temp.
-40°C to 60°C
(-40°F to 140°F)
Humidity
0% to 100% relative, condensing
299.4
[11.79]
Construction
Dimensions
Weight
Bubble Size
See dimensional drawings
189.0
[7.44]
3.06 kg (6.75 lb)
Construction Material
Cast aluminum
• Bubble
Pendant: High-resolution acrylic or
rugged polycarbonate
188.0
[7.40]
549.6
[21.64]
532.1
[20.95]
469.1
[18.47]
153.1 mm diameter (6.03 in.)
• Housing
R 76.6
[3.01]
224.0
[8.82]
158.0
[6.22]
169.9
[6.69]
11.0
[0.43]
160.0
[6.30]
Standard Color
White (RAL 9003)
Standard Finish
Powder coated, sand finish
366.9
[14.44]
201.2
[7.92]
216.4
[8.52]
233.0
[9.17]
189.0
[7.44]
R 76.6
[3.01]
224.0
[8.82]
Mounts/Accessories
mm
[in.]
AUTODOME 7000 Dimensions – Pendant, Pipe
Pendant Arm Mounts
Wall Arm (No Transformer)
VG4-A-PA0
Wall Arm (120/230 VAC Transformer)
VG4-A-PA1 /
VG4-A-PA2
Pendant Arm with Wiring
VGA-PEND-ARM
Mounting plate for VGA-PEND-ARM
VGA-PEND-WPLATE
Trim skirt for VG4 Series Power Supplies
VG4-A-TSKIRT
1 Power supply box and
sunshield
4 Power supply box
2 Sunshield removed
5 Trim skirt
3 Mounting plate
186.1
[7.33]
134.6
[5.30]
8 | AUTODOME 7000 IP
Ordering information
VG5-7001-E1PC4 AUTODOME 7000 IP 36x Indoor/
Outdoor Pendant PAL with Clear Bubble
AUTODOME 7000 Day/Night IP camera, PAL, with SD
resolution, 36X optical zoom, Indoor/Outdoor pendant
and clear bubble. Features include Intelligent Tracking
and alarm rules engine with on-board Intelligent Video
Analytics (IVA), multiple pre-programmed user modes,
Wide Dynamic Range (WDR), Sodium Vapor White
Balance mode, and easy and intuitive installation.
Order number VG5-7001-E1PC4
Represented by:
Americas:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
[email protected]
www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
[email protected]
www.boschsecurity.com
© Bosch Security Systems 2014 | Data subject to change without notice
13067477515 | en, V2, 20. Jun 2014
Asia-Pacific:
Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6571 2808
Fax: +65 6571 2699
[email protected]
www.boschsecurity.asia
China:
America Latina:
Bosch (Shanghai) Security Systems Ltd. Robert Bosch Ltda Security Systems Division
201 Building, No. 333 Fuquan Road
Via Anhanguera, Km 98
North IBP
CEP 13065-900
Changning District, Shanghai
Campinas, Sao Paulo, Brazil
200335 China
Phone: +55 19 2103 2860
Phone +86 21 22181111
Fax: +55 19 2103 2862
Fax: +86 21 22182398
[email protected]
www.boschsecurity.com.cn
www.boschsecurity.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
