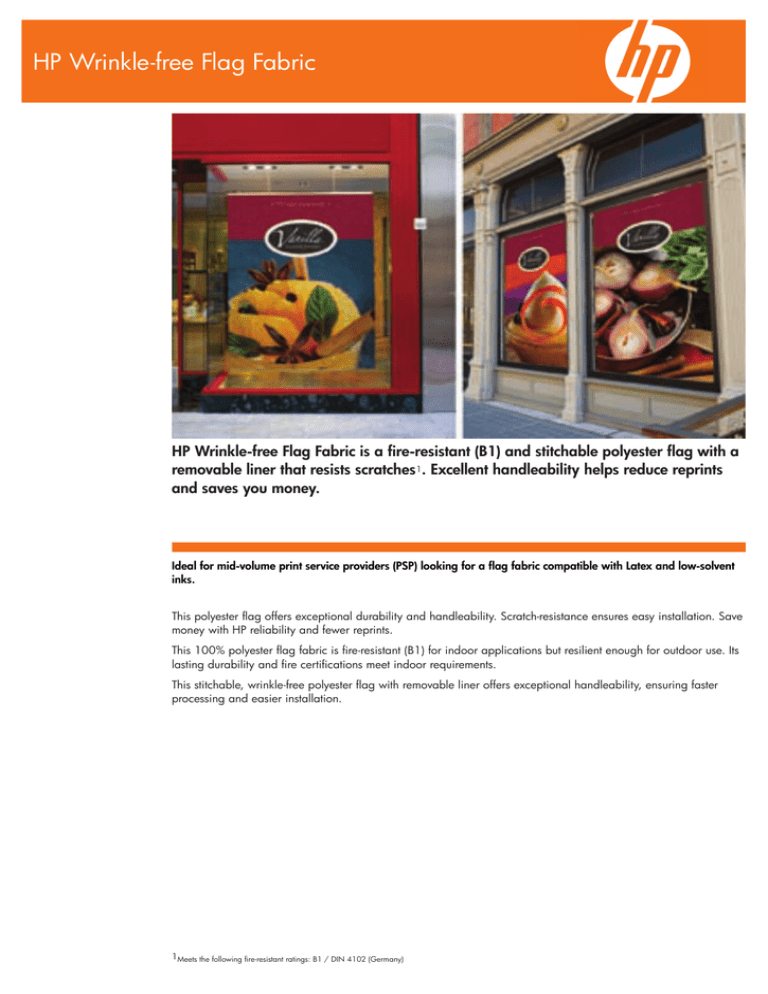

HP Wrinkle-free Flag Fabric
HP Wrinkle-free Flag Fabric is a fire-resistant (B1) and stitchable polyester flag with a
removable liner that resists scratches1. Excellent handleability helps reduce reprints
and saves you money.
Ideal for mid-volume print service providers (PSP) looking for a flag fabric compatible with Latex and low-solvent
This polyester flag offers exceptional durability and handleability. Scratch-resistance ensures easy installation. Save
money with HP reliability and fewer reprints.
This 100% polyester flag fabric is fire-resistant (B1) for indoor applications but resilient enough for outdoor use. Its
lasting durability and fire certifications meet indoor requirements.
This stitchable, wrinkle-free polyester flag with removable liner offers exceptional handleability, ensuring faster
processing and easier installation.
1Meets the following fire-resistant ratings: B1 / DIN 4102 (Germany)
HP Wrinkle-free Flag Fabric
For compatibility information, please refer to the latest Large Format Supplies Compatibility chart on www.hp.com/go/designjet/supplies
For the latest ICC/media profiles, please visit www.hp.com/go/designjet/supplies (click on ICC profiles and select your printer). For non-post script
printers see your external RIP vendor.
Product specifications
Tear resistant
Tensile strength
Operating temperature
Operating humidity
Lightfastness (Indoor Commercial Window)
Low-solvent Ink
Flame Retardant
Dry time
Shelf time
Storage temperature
Storage humidity
Country of origin
Ordering information
120 g/m² (without liner), 180 g/m² (with liner) per ISO 536 Test Method
10.6 mil/270 microns (without liner), 12.4 mil/315 microns (with liner) per ISO 534 Test Method
Lacquering possible
Sew, grommeting, D-rings
>16 MD / >30 CD oer ASTM D1004 Test Method
>300 MD / >600 CD per TAPPI T-494 Test Method
15 to 35° C
30 to 80% RH
Greater than 3 years (with Latex, HP 790 and HP 780 ink supplies). For details: http://www.hp.com/go/supplies/printpermanence.
Yes, B1 / DIN 4102 (Germany)
Less than 5 minutes (@ 23°C, 50% RH)
1 year, unopened in original packaging
5 to 40° C
5 to 95% RH
Product of Germany
Product Numbers
Roll sizes
965 mm x 40 m
1550 mm x 40 m
2642 mm x 50 m
HP large format printing material is guaranteed against manufacturing flaws and defects and is designed to resist printer jams when used properly. If for any reason the users
are unsatisfied with HP large format printing material they should contact their HP reseller.
© 2008 Hewlett-Packard Development Company, L.P.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For more information about HP Large Format Printing Material,
Published in EMEA 4AA2-1598 EEE
UPC codes
