Philips BDP7200 Datasheet

Philips BDP7200 Datasheet

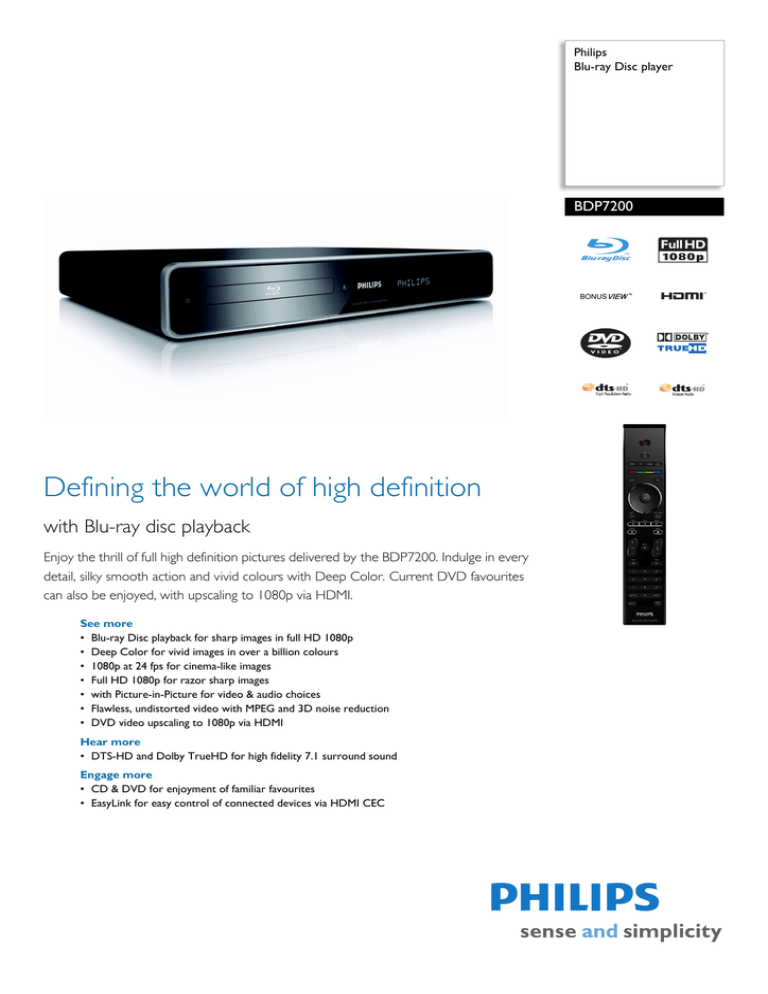

Philips
Blu-ray Disc player
BDP7200
Defining the world of high definition
with Blu-ray disc playback
Enjoy the thrill of full high definition pictures delivered by the BDP7200. Indulge in every
detail, silky smooth action and vivid colours with Deep Color. Current DVD favourites
can also be enjoyed, with upscaling to 1080p via HDMI.
See more
• Blu-ray Disc playback for sharp images in full HD 1080p
• Deep Color for vivid images in over a billion colours
• 1080p at 24 fps for cinema-like images
• Full HD 1080p for razor sharp images
• with Picture-in-Picture for video & audio choices
• Flawless, undistorted video with MPEG and 3D noise reduction
• DVD video upscaling to 1080p via HDMI
Hear more
• DTS-HD and Dolby TrueHD for high fidelity 7.1 surround sound
Engage more
• CD & DVD for enjoyment of familiar favourites
• EasyLink for easy control of connected devices via HDMI CEC
BDP7200/12
Blu-ray Disc player
Specifications
Product highlights
Picture/Display
• D/A converter: 12 bit/150 MHz
• Picture enhancement: Progressive Scan, Video
upscaling, High Def (720p, 1080i, 1080p)
• Aspect ratio: 16:9, 4:3
Sound
• D/A converter: 24-bit, 192 kHz
• Dynamic Range (1 kHz): 100 dB
• Frequency response: (20 kHz) ±0.5 dB (Max./Min.
2ch, DVD) Hz
• Signal to noise ratio: 120 dB
• Sound System: Dolby Digital, DTS
Video Playback
• Playback Media: CD-R/CD-RW, DVD-Video,
DVD-R/-RW, CD, DVD+R/+RW, DVD, BD
Video, BD-R/RE 2.0, BD-ROM
• Compression formats: MPEG2, H.264, VC-1
• Video disc playback system: NTSC, PAL
• Disc Playback Modes: A-B Repeat, Angle, Disc
Menu, Pause, Repeat, Resume Playback from Stop,
Skip, Search forward/reverse, Slow Forward,
Standard Play, Zoom
• DVD Region: 2
• Picture Quality Enhancements: Video upscaling
• Video Enhancement: Progressive Scan, Video
Upscaling
Audio Playback
• Playback Media: MP3-CD, CD-R/RW, CD, MP3DVD
• Compression format: MP3, PCM, Dolby Digital,
DTS
• Multi-channel decoding: Dolby Digital
Still Picture Playback
• Playback Media: CD-R/RW, DVD+R/+RW, DVD-
R/-RW
• Picture compression format: JPEG
• Picture enhancement: Slideshow, Rotate, Zoom,
High Definition Resolution
Multimedia Applications
• Playback Formats: JPEG Still pictures, MP3
Connectivity
• Rear Connections: Analogue audio Left/Right out,
Analogue audio multi-channel out, Component
Video output, Composite video (CVBS) output,
Digital coaxial out, HDMI output
Convenience
• On-Screen Display languages: Dutch, English,
French, German, Italian, Portuguese, Spanish
• Child Protection: Parental Control
Accessories
• Included Accessories: Audio Cable, Quick start
guide, IFU/User Manual, Product Registration
Card, 2 x AA Batteries, Remote Control, HDMI
cable
• IFU/User Manual: English, French, German,
Spanish, Dutch, Italian, Portuguese
Electricity
• Power supply: 110-240V, 50 Hz
• Power consumption: 30 W
• Standby power consumption: 0.2 W
Dimensions
• Set dimensions (W x H x D): 435 x 70 x 348 mm
• Set weight: 4.2 kg
• Packaging dimensions (W x H x D):
543 x 178 x 458 mm
• Weight incl. Packaging: 6.4 kg
•
Blu-ray Disc playback
Blu-ray Discs have the capacity to carry high definition
data, along with pictures in the 1920 x 1080 resolution
that defines full high definition images. Scenes come to
life as details leap at you, movements smoothen and
images turn crystal clear. Blu-ray also delivers
uncompressed surround sound — so your audio
experience becomes unbelievably real. The high storage
capacity of Blu-ray Discs also allow a host of interactive
possibilities to be built in. Seamless navigation during
playback and other exciting features such as pop-up
menus bring a whole new dimension to home
entertainment.
Bonus View
With Bonus View, you can enjoy picture-in-picture with
audio choices. A second, smaller window that runs a
separate video sequence appears over the main picture.
You can then choose whether you want to listen to what's
going on in the smaller window or in the larger one. This
allows you to enjoy many special features that are often
included in Blu-ray Disc movies. For example, you can
watch and listen to the director's comments in the smaller
window whilst he points to scenes or actors in the main
picture.
Full HD 1080p
Blu-ray Discs have the capacity to carry high definition
data, along with pictures in the 1920 x 1080 resolution
that defines full high definition images. This can only
mean you get the best possible TV picture quality
available today — so prepare to feast your eyes.
Deep Color
The real world is not limited by colours — practically any
hue can occur in any shade, in any luminosity. What you
see on your TV screen is a different matter, so images
often don't look true to life. Deep Color recreates the
natural world on your TV screen, bringing to you the
millions and millions of colours that occur in reality —
and taking your viewing experience to new heights.
1080p at 24 fps
Bring a true cinema experience into your living room, with
24 frames-per-second video. Original films are all
recorded at this frame rate, providing an ambience and
image texture that is so unique. Philips Blu-ray Disc
players are equipped to bring you 24fps directly from Bluray Discs - giving you sensational cinema-like high
definition images that will astound you.
EasyLink
EasyLink lets you control multiple devices with one
remote. It uses HDMI CEC industry-standard protocol to
share functionality between devices through the HDMI
cable. With one touch of a button, you can operate all
your connected HDMI CEC-enabled equipment
simultaneously. Functions like standby and play can now
be carried out with absolute ease.
Flawless, undistorted video
Cameras taking still and moving images pick up
aberrations (or noise) from a variety of sources. These,
though not individually visible, contribute to poor picture
quality. The MPEG and 3D noise reduction feature cleans
the picture up — so you can be assured of crystal clear
images every time.
Issue date 2008-10-15
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 2.0.4
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 42009
EAN: 87 12581 44103 6
www.philips.com
DVD video upscaling
HDMI 1080p upscaling delivers images that are crystal
clear. DVD movies in standard definition can now be
enjoyed in high definition resolution - ensuring more
details and more true-to-life pictures. Progressive Scan
(represented by "p" in "1080p') eliminates the line
structure prevalent on TV screens, again ensuring
relentlessly sharp images. To top it off, HDMI makes a
direct digital connection that can carry uncompressed
digital HD video as well as digital multi-channel audio,
without conversions to analogue - delivering perfect
picture and sound quality, completely free from noise.
