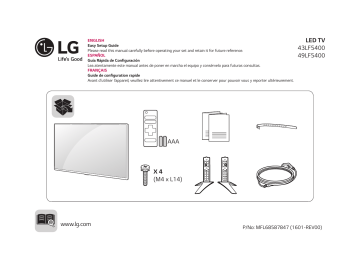

AAA X 4 (M4 x L14) www.lg.com LED TV 43LF5400 49LF5400

AAA X 4 (M4 x L14) www.lg.com LED TV 43LF5400 49LF5400

ENGLISH

Easy Setup Guide

Please read this manual carefully before operating your set and retain it for future reference.

ESPAÑOL

Guía Rápida de Configuración

Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.

FRANÇAIS

Guide de configuration rapide

Avant d’utiliser l’appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter ultérieurement.

LED TV

43LF5400

49LF5400

AAA

X 4

(M4 x L14) www.lg.com

P/No: MFL68587847 (1601-REV00)

1

ENGLISH

Read

Safety & Reference.

ESPAÑOL

Leer

Seguridad y Consultas.

FRANÇAIS

Lisez

Sécurité et références.

2 3 4

1

3

2

4

0 1 2

ENGLISH

MODELS

With stand

Dimensions (W x H x D)

Without stand

Weight

With stand

Without stand

Power requirement

Current Value / Power consumption

ESPAÑOL / FRANÇAIS

MODELOS

MODÈLES

Dimensiones

(Ancho x altura x profundidad)

Dimensions (L x H x P)

Peso

Poids

Con base

Avec support

Sin base

Sans support

Con base

Avec support

Sin base

Sans support

Potencia requerida

Alimentation

Corriente de consumo / Consumo de la potencia

Valeur courante / Consommation électrique

43LF5400

(43LF5400-UE)

971 x 624 x 198 (mm)

38.2 x 24.5 x 7.7 (inches)

971 x 575 x 58.7 (mm)

38.2 x 22.6 x 2.3 (inches)

9.8 kg (21.6 lbs)

9.5 kg (20.9 lbs)

1.0 A / 60 W

49LF5400

(49LF5400-UE)

1,103 x 698 x 198 (mm)

43.4 x 27.4 x 7.7 (inches)

1,103 x 650 x 58.7 (mm)

43.4 x 25.5 x 2.3 (inches)

13.4 kg (29.5 lbs)

13.1 kg (28.8 lbs)

AC 100 - 240 V ~ 50 / 60 Hz

1.15 A / 70 W

43LF5400

(43LF5400-UE)

971 x 624 x 198 (mm)

38,2 x 24,5 x 7,7 (pulgadas / po)

971 x 575 x 58,7 (mm)

38,2 x 22,6 x 2,3 (pulgadas / po)

9,8 kg (21,6 libras / lb)

9,5 kg (20,9 libras / lb)

49LF5400

(49LF5400-UE)

1 103 x 698 x 198 (mm)

43,4 x 27,4 x 7,7 (pulgadas / po)

1 103 x 650 x 58,7 (mm)

43,4 x 25,5 x 2,3 (pulgadas / po)

13,4 kg (29,5 libras / lb)

13,1 kg (28,8 libras / lb)

AC 100 - 240 V ~ 50 / 60 Hz

1,0 A / 60 W 1,15 A / 70 W

(For USA and Canada only)

(Para Estados Unidos y Canadá)

This product qualifies for ENERGY

STAR® in the factory default (Home configuration) setting. Changing the factory default settings or enabling other features may increase power consumption that could exceed the limits necessary to quality for ENERGY STAR®. Refer to ENERGYSTAR.gov for more information on the ENERGY STAR® program.

(Pour les États-Unis et le Canada)

Ce produit est conforme aux normes

ENERGY STAR® lorsque le « réglage d’usine par défaut (Résidentiel) » est sélectionné. Modifier les réglages d’usine par défaut ou activer d’autres fonctionnalités augmente la consommation d’énergie qui pourrait alors dépasser les limites de la qualification ENERGY STAR®. Consultez le site

ENERGYSTAR.gov pour en savoir plus au sujet du programme ENERGY STAR®.

OWNER’S MANUAL

Safety and Reference

Please read this manual carefully before operating your TV and retain it for future reference.

32LH510B 43LF5100

49LF5100

43LF5400

49LF5400

*MFL68663707*

www.lg.com

P/NO : MFL68663707 (1601-REV00)

2

Important Safety Instructions

Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product.

WARNING/CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK). NO

USER SERVICEABLE PARTS INSIDE. REFER TO

QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the device.

WARNING/CAUTION

- TO REDUCE THE RISK OF FIRE AND ELECTRIC

SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE.

WARNING

If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

CAUTION

If you ignore the caution message, you may be slightly injured or the product may be damaged.

NOTE

The note helps you understand and use the product safely. Please read the note carefully before using the product.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Do not press strongly upon the panel with a hand or a sharp object such as a nail, pencil, or pen, or make a scratch on it.

• CAUTION concerning the Power Cord

(Can differ by country):

Check the specification page of this owner’s manual to be certain concerning current requirements. Do not connect too many devices to the same AC power outlet as this could result in fire or electric shock. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire.

Periodically examine the cord of your device, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the device, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the device. Do not move the TV with the power cord plugged in. Do not use a damaged or loose power cord. Be sure do grasp the plug when unplugging the power cord. Do not pull on the power cord to unplug the TV.

Warning - To reduce the risk of fire or electrical shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands. Do not install this product near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning.

• Do not stick metal objects or any other conductive material into the power cord. Do not touch the end of the power cord while it is plugged in.

• Keep the packing anti-moisture material or vinyl packing out of the reach of children.

Anti-moisture material is harmful if swallowed.

If swallowed, induce vomiting and go to the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

• Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g., on shelves above the unit).

3

4

Grounding

(Except for devices which are not grounded.)

Ensure that you connect the earth ground wire to prevent possible electric shock (i.e., a TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet). If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightning rods, or gas pipes.

Circuit Breaker

Power Supply

• As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off.

• Do not attempt to modify this product in any way without written authorization from LG

Electronics. Unauthorized modification could void the user’s authority to operate this product.

Outdoor Antenna Grounding

(Can differ by country):

If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur. Be sure the antenna system is grounded to provide some protection against voltage surges and built-up static charges.

Section 810 of the National Electrical Code (NEC) in the U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

Antenna grounding according to the National

Electrical Code, ANSI/NFPA 70

Ground Clamp

Electric Service

Equipment

Ground Clamp

NEC: National Electrical Code

Antenna Lead in Wire

Antenna Discharge Unit

(NEC Section 810-20)

Grounding Conductor

(NEC Section 810-21)

Power Service Grounding

Electrode System

(NEC Art 250, Part H)

Cleaning

When cleaning, unplug the power cord and wipe gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the

TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners, or benzene.

Moving

Make sure the product is turned off, unplugged, and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press or put stress on the front panel of the TV.

Ventilation

Install your TV where there is proper ventilation.

Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials while plugged. Do not install in excessively dusty places.

• If you smell smoke or other odors coming from the TV, unplug the power cord and contact an authorized service center.

• If water or another substance enters the product (like an AC adapter, power cord, or TV), disconnect the power cord and contact the service center immediately. Otherwise, this may result in fire or electric shock.

• Use only an authorized AC adapter and power cord approved by LG Electronics.

Otherwise, this may result in fire, electric shock, malfunction, or product deformation.

• Never disassemble the AC adapter or power cord. This may result in fire or electric shock.

• Handle the adapter carefully to avoid dropping

• Do not allow an impact shock, any objects to fall

• or striking it. An impact could damage the adapter.

• Keep the product away from direct sunlight.

• Never touch this apparatus or antenna during a lightning storm.

• When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables on the back of the TV.

into the product, and do not drop anything onto the screen.

DISCONNECTING THE DEVICE FROM THE MAIN

POWER

The power plug is the disconnecting device.

In case of an emergency, the power plug must remain readily accessible.

• Make sure the power cord is connected securely to the power plug on the TV.

Batteries

Store the accessories (battery, etc.) in a safe location out of the reach of children.

• This apparatus uses batteries. In your community there might be regulations that require you to dispose of these batteries properly due to environmental considerations. Please contact your local authorities for disposal or recycling information.

• Do not dispose of batteries in a fire.

• Do not short circuit, disassemble, or allow the batteries to overheat.

• Do not use high voltage electrical equipment near the TV (e.g., a bug zapper).

This may result in product malfunction.

Dot Defect

The panel is a high technology product with resolution of two million to six million pixels.

In a very few cases, you could see fine dots on the screen while you’re viewing the TV. Those dots are deactivated pixels and do not affect the performance and reliability of the TV.

Generated Sound

Cracking noise A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required.

Electrical circuit humming/panel buzzing

A low level noise is generated from a highspeed switching circuit, which supplies a large amount of current to operate a product. It varies depending upon the product. This generated sound does not affect the performance and reliability of the product.

• Take care not to touch the ventilation openings.

When watching the TV for a long period, the ventilation openings may become hot. This does not affect the performance of the product or cause defects in the product.

• Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.

• If the TV feels cold to the touch, there may be a small flicker when it is turned on. This is normal; there is nothing wrong with TV. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots.

However, they have no adverse effect on the TV’s performance. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

• Displaying a still image for a prolonged period of time may cause an image sticking. Avoid displaying a fixed image on the TV screen for a extended length of time.

5

6

Preparing

NOTE

• Image shown may differ from your TV.

• Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

• The available menus and options may differ from the input source or product model that you are using.

• New features may be added to this TV in the future.

• The items supplied with your product may vary depending upon the model.

• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.

• For an optimal connection, HDMI cables and

USB devices should have bezels less than 10 mm

(0.39 inches) thick and 18 mm (0.7 inches) width.

• Use an extension cable that supports USB 2.0 if the USB cable or USB flash drive does not fit into your TV’s USB port.

• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.

• Recommended HDMI cable types

- High-Speed HDMI®/™ cable

- High-Speed HDMI®/™ cable with Ethernet

B

B

A A

*A 10 mm (0.39 inches)

*B 18 mm (0.7 inches)

• How to use the ferrite core

(Depending upon model)

- Use the ferrite core to reduce the electromagnetic interference in the power cord.

Wind the power cord on the ferrite core once.

[Cross Section of Ferrite Core]

[to a wall plug] [to the TV]

CAUTION

• Do not use any unapproved items to ensure the safety and lifespan of the product.

• Any damages or injuries by using unapproved items are not covered by the warranty.

• Some models appear to have a thin film on the screen. It is actually part of the screen; do not remove it.

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

• Make sure that the screws are fastened tightly.

(If they are not fastened securely enough, the TV may tilt forward after being installed.)

• Do not fasten the screws with excessive force otherwise they may be worn out and become loose.

Lifting and Moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

• It is recommended to move the TV in the box or packing material that the TV originally came in.

• Before moving or lifting the TV, disconnect the power cord and all cables.

• When holding the TV, the screen should face away from you to avoid damage.

• Hold the top and bottom of the TV frame firmly.

Make sure not to hold the transparent part, speaker, or speaker grille area.

10 cm (+ / - 2 cm)

• Use at least two people to move a large TV.

• When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.

• When transporting the TV, keep the TV upright; never turn the TV on its side or tilt towards the left or right.

• When handling the TV, be careful not to damage the protruding buttons.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.

• Do not place the product on the floor with its front facing down without padding. Failure to do so may result in damage to the screen.

• Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV may occur.

(Depending upon model)

Using the Joystick Button

(Depending upon model)

You can operate the TV by pressing the button or moving the joystick left, right, up, or down.

NOTE

• LF51/LH51 series does not have a Joystick button but it only has a power on/off button.

Basic Functions

Power On (Press)

Power Off (Press and Hold) 1

Volume Control

Channels Control

1 : If the menu button is on the screen, pressing and holding the joystick button will let you exit the menu.

Adjusting the Menu

When the TV is turned on, press the button one time. You can adjust the Menu items pressing or moving the buttons.

Turns the power off.

Accesses the setting menu.

Clears on-screen displays and returns to TV viewing.

Changes the input source.

Mounting on a Table

1 Lift and tilt the TV into its upright position on a table.

- Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation.

Joystick Button

10 cm

10 cm

(4 inches)

10 cm

10 cm

2 Connect the power cord to a wall outlet.

7

8

CAUTION

• Do not place the TV near or on sources of heat, as this may result in fire or other damage.

Securing the TV to a Wall (optional)

(Depending upon model)

Mounting on a Wall

An optional wall mount can be used with your

LG Television. Consult with your local dealer for a wall mount that supports the VESA standard used by your TV model. Carefully attach the wall mount bracket at the rear of the TV. Install the wall mount bracket on a solid wall perpendicular to the floor. If you are attaching the TV to other building materials, please contact qualified personnel to install the wall mount. Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. The LG wall mount is easy to adjust or to connect the cables.

When you do not use LG’s wall mount bracket, use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. If you are using a non-adjustable mount, attach the mount to the wall. Attach the cables to the TV first, then attach the TV to the mount.

1 Insert and tighten the eye-bolts or TV brackets and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope or cable. Make sure to keep the rope parallel to the flat surface.

CAUTION

• Make sure that children do not climb on or hang on the TV.

NOTE

• Use a platform or cabinet that is strong and large enough to support the TV securely.

• Brackets, bolts, and ropes are optional. You can obtain additional accessories from your local dealer.

10 cm

10 cm

(4 inches)

10 cm

10 cm

Make sure to use screws and wall mounts that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Model

VESA (A x B)

Standard screw

Number of screws

Wall mount bracket

(optional)

32LH510B

43LF5100

43LF5400

49LF5100

49LF5400

200 x 200 300 x 300

M6

4

LSW240B

MSW240

M6

4

LSW350B

MSW240

A

B

CAUTION

• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

Connections (Notifications)

You can connect various external devices to the TV.

Supported external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices,

PC, gaming devices, and other external devices. For more information on external device’s connection, refer to the manual provided with each device.

NOTE

• If you record a TV program on a DVD recorder or

VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR.

For more information about recording, refer to the manual provided with the connected device.

• The external device connections shown may differ slightly from illustrations in a manual.

• Connect external devices to the TV regardless about the order of the TV port.

• If you connect a gaming device to the TV, use the cable supplied with the gaming device.

• Refer to the external equipment’s manual for operating instructions.

• The TV may be capable of operating without a set-top from a multichannel video programming distributor (MVPD).

Connecting to an Antenna or Cable

Connect an antenna, cable, or cable box to watch

TV while referring to the following. The illustrations may differ from the actual items and an RF cable is optional.

CAUTION

• Make sure not to bend the copper wire of the RF cable.

Copper wire

• Complete all connections between devices, and then connect the power cord to the power outlet to prevent damage to your TV.

NOTE

• Use a signal splitter to use 2 TVs or more.

• DTV Audio Supported Codec: MPEG, Dolby

Digital.

Other Connections

Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable.

NOTE

• HDMI Audio Supported Format:

DTS (44.1 kHz / 48 kHz),

AC3 (32 kHz / 44.1 kHz / 48 kHz),

PCM (32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz)

(Depending upon model)

Remote Control

(Depending upon model)

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To install batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. Failure to match the correct polarities of the battery may cause the battery to burst or leak, resulting in fire, personal injury, or ambient pollution. To remove the batteries, perform the installation actions in reverse. This remote uses infrared light. When in use, it should be pointed in the direction of the TV’s remote sensor.

9

10

B

A

A

(Power) Turns the TV on or off.

Returns to the last TV channel.

Activates or deactivates the subtitles.

Selects an AV mode.

Resizes an image.

Changes the input source.

Number button Enters numbers.

(Dash) Inserts a dash between numbers such as

2-1 and 2-2.

Accesses the saved channel list.

Alternates between the two last channels selected (pressing repeatedly).

Adjusts the volume level.

Accesses your favorite channel list.

Digital signal: Changes the audio language.

Analog signal: Changes the MTS sound.

Mutes all sounds.

Scrolls through the saved channels.

Moves to the previous or next screen.

B

Changes the picture mode.

Shows information on the current program.

Changes the sound mode.

Accesses the setting menu.

Accesses the quick menu.

Navigation button (up / down / left / right)

Scrolls through menus or options.

Selects menus or options and confirms your input.

Returns to the previous screen.

Clears all on-screen displays and returns to TV viewing.

Enables SAP (Secondary Audio Program)

Feature.

Sets the length of time until the TV to turns off.

, , , , Control buttons for media contents.

These access special functions in some menus.

Settings

To set up the channels automatically

SETTINGS CHANNEL Auto Tuning

Memorizes automatically the channels being broadcast.

• The channels will not be memorized properly if the antenna/cable is not installed correctly.

Auto Tuning memorizes the channels that are currently being broadcast.

• If Lock System is turned on, a pop-up window will appear asking for password.

To select picture mode

SETTINGS PICTURE Picture Mode

Select the picture mode optimized for the viewing environment or the program.

Vivid Heightens contrast, brightness, and sharpness to display vivid images.

Standard Displays images in standard levels of contrast, brightness and sharpness.

APS APS (Auto power saving) mode reduces power consumption by dimming control.

Cinema / Game Displays the optimum picture for movie or game.

Expert Menu for adjusting picture quality that allows experts and amateurs to enjoy the best TV viewing. This menu for adjustment is provided for ISF-certified picture tuning professionals. (ISF logo can be used only on ISF-certified TVs.)

ISFccc: Imaging Science Foundation Certified

Calibration Control

• Depending upon the input signal, the available range of picture modes may differ.

Expert mode is for picture tuning professionals to control and fine-tune using a specific image.

For normal images, the effects may not be drastic.

To set advanced control or expert control

SETTINGS

PICTURE Advanced Control /

Expert Control

For each picture mode, the screen can be calibrated; or for a special screen, picture settings can be adjusted. Select the desired Picture Mode.

Dynamic Contrast Adjusts the contrast to the optimal level according to the image’s brightness.

Dynamic Color Adjusts colors to make the image appear in more natural colors.

Color Gamut Selects the range of colors that can be expressed.

Skin Color Skin color spectrum can be separately set to implement the skin color as defined by the user.

Grass Color Natural color spectrum (meadows, hills, etc.) can be set separately.

Sky Color Sky color is set separately.

Gamma Sets the gradation curve according to the output of picture signal in relation to the input signal.

Edge Enhancer Shows clearer and distinctive yet natural edges of the video.

Color Filter Filters a specific color spectrum in

RGB colors to fine-tune color saturation and hue accurately.

Color Temperature Adjusts the overall tone of the screen as desired. In Expert mode, detailed fine-tuning can be set via Gamma method, etc.

Color Management System This system is used by experts to adjust color with a test pattern.

They can select from six color areas (Red/Green/

Blue/Cyan/Magenta/Yellow) without affecting other colors. For normal images, adjustments may not result in noticeable color changes.

• Depending upon input signal or other picture settings, the range of detailed items for adjustment may differ.

11

12

To set additional picture options

SETTINGS

PICTURE Picture Option

Adjusts detailed setting for images.

Noise Reduction Eliminates noise in the picture.

MPEG Noise Reduction Eliminates noise generated while creating digital picture signals.

Black Level Adjusts the brightness and contrast of the screen to suit the black level.

Real Cinema Optimizes the screen for movie viewing.

Motion Eye Care [Depending upon model]

Automatically adjusts brightness and reduces image blur based on image data to reduce eyestrain.

• Depending upon input signal or other picture settings, the range of detailed items for adjustment may differ.

To use energy saving feature

SETTINGS PICTURE Energy Saving

Reduces power consumption by adjusting peak screen brightness.

Off Turns off the Energy Saving.

Minimum / Medium / Maximum Applies the pre-set Energy Saving.

Screen Off Screen is turned off and only sound is played. Press any button on the remote control to turn the screen back on.

To use TV speaker

SETTINGS AUDIO TV Speaker

Sound is output through the TV speaker.

To set the password

SETTINGS LOCK Set Password

Set or change the TV password.

• The initial password is set to 0000.

To set the caption

SETTINGS

OPTION Caption

View captions when the TV station provides captioned programming. Program captions work only on digital/analog broadcasts or external input.

Change Caption to On and select caption settings.

Mode

CC 1-4 (Closed Captioning) / Text 1-4 : Displays the audio portion of a TV program as text on the

TV screen. CC1 is the most common mode in use.

Field 1 data channels: two Captions (CC1, CC2), two Text (T1, T2).

Field 2 data channels: two Captions (CC3, CC4), two Text (T3, T4).

Service 1-6 : This is only available for the digital broadcasting system.

Digital Option : Set up the size and color of the captions on Digital Option. Please select Set By

Program or Custom. Select Custom to adjust minute options such as the captions’ size and color.

To return to initial settings

SETTINGS OPTION Initial Setting

Returns to initial default mode by deleting all optional setup. Once initialization is completed, the TV will turn off and on by itself.

• When Lock System is in place, a pop-up window appears and asks for password.

• Do not turn off the power during initialization.

To remove the USB device

Q.MENU Eject USB

Once the message that the USB device was removed is displayed, remove the device from the

TV.

• After selecting to remove USB device, the USB storage device cannot be read. Remove the USB storage device and then reconnect it.

Warning when using USB storage devices

• USB storage devices with a built-in auto recognition program or its own driver may not work.

• Some USB storage devices may not work or may work improperly.

• Use only those USB storage devices formatted with FAT32 or NTFS File System provided by

Windows.

• For external USB HDD, use devices with less than

5V-rated voltages and 500 mA-rated current.

• It is recommended to use USB flash drive with 32

GB or less and USB HDD with 2 TB or less.

• If a USB HDD with power-saving function does not work properly, turn the power off and on.

For more information, refer to the user manual of USB HDD.

• Data in the USB storage device can be damaged so back up important files in other devices. Data maintenance is the user’s responsibility. The manufacturer is not responsible for data loss.

Supported Photo Formats

• Category: jpeg, jpg

[Available file type]

SOF0: Baseline,

SOF1: Extend Sequential,

SOF2: Progressive

[Photo size] Minimum: 64 x 64,

Maximum: Normal Type: 15,360 (W) x 8,640 (H),

Progressive Type: 1,024 (W) x 768 (H)

Supported Audio Formats

• File type: mp3

[Bit rate] 32 Kbps - 320 Kbps

[Sample freq.] 32 kHz - 48 kHz

[Support] MPEG-1, MPEG-2, Layer2, Layer3

To See the Web Manual

Web manual allows you to easily access detailed TV information.

Go to http://www.lg.com.

Licenses

Supported licenses may differ by model.

For more information about licenses,

visit www.lg.com.

Manufactured under license from Dolby

Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition

Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other countries.

Open Source Software Notice

Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected] This offer is valid for three

(3) years from the date on which you purchased the product.

13

14

External Control Device Setup

(For 43/49LF5400)

To obtain the external control device setup information, please visit www.lg.com.

Troubleshooting

• Cannot control the TV with the remote control.

- Check if anything such as tape has been placed over the receiver.

- Check if there is any obstacle between the product and the remote control.

- Replace the batteries with new fresh ones.

• No image display and no sound is produced.

- Check if the product is turned on.

- Check if the power cord is connected to a wall outlet.

- Check if there is a problem in the wall outlet by connecting other products.

• The TV turns off suddenly.

- Check the power control settings.

The power supply may be interrupted.

- Check if the Off Time / Sleep Timer feature is activated in the TIME settings.

- If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

Specifications

Product specifications may be changed without prior notice due to upgrade of product functions.

Television System

ATSC, NTSC-M, 64 & 256 QAM

Program Coverage

VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135,

CADTV 1-135

External Antenna Impedance

75 Ω

Environment condition

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity

Less than 80 %

Storage Temperature

-20 °C to 60 °C (-4 °F to 140 °F)

Storage Humidity

Less than 85 %

HDMI (PC) supported mode

(Use HDMI IN 1 for PC mode)

Resolution

640 x 350

720 x 400

640 x 480

800 x 600

1024 x 768

Horizontal

Frequency (kHz)

31.46

31.46

31.46

37.87

48.36

1360 x 768

1152 x 864

47.71

54.34

1280 x 1024 63.98

1920 x 1080 67.50

Vertical

Frequency (Hz)

70.09

70.08

59.94

60.31

60.00

60.01

60.05

60.02

60.00

For 43/49LF5100, 43/49LF5400

HDMI (DTV) supported mode

Resolution

640 x 480p

720 x 480p

1280 x 720p

1920 x 1080i

1920 x 1080p

Horizontal

Frequency (kHz)

31.46

31.50

31.47

31.50

44.96

45.00

33.72

33.75

26.97

27.00

33.71

33.75

67.43

67.50

Vertical

Frequency (Hz)

59.94

60.00

59.94

60.00

59.94

60.00

59.94

60.00

23.97

24.00

29.97

30.00

59.94

60.00

Component port connecting information

Component ports on the TV Y P

B

P

R

Video output ports on DVD player

Y

Y

Y

Y

P

B

P

R

B-Y R-Y

Cb Cr

Pb Pr

Component supported mode

Resolution

720 x 480i

720 x 480p

1280 x 720p

1920 x 1080i

1920 x 1080p

Horizontal

Frequency (kHz)

15.73

15.73

31.47

31.50

44.96

45.00

33.72

33.75

26.97

27.00

33.71

33.75

67.432

67.50

Vertical

Frequency (Hz)

59.94

60.00

59.94

60.00

59.94

60.00

59.94

60.00

23.976

24.00

29.97

30.00

59.94

60.00

15

16

Regulatory

FCC NOTICE

(For USA)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC

Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC Radio Frequency Interference

Requirements (for UNII devices)

High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands.

These radar stations can cause interference with and/or damage this device. This device cannot be co-located with any other transmitter.

FCC RF Radiation Exposure Statement

[For having wireless function (WLAN, Bluetooth,...)]

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be colocated or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20 cm (7.8 inches) between the radiator and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

Industry Canada Statement

(For Canada)

[For having wireless function (WLAN, Bluetooth,...)]

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:

(1) This device may not cause interference; and

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement

(For Canada)

[For having wireless function (WLAN, Bluetooth,...)]

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm (7.8 inches) between the antenna & your body.

NOTE : THE MANUFACTURER IS NOT RESPONSIBLE

FOR ANY RADIO OR TV INTERFERENCE CAUSED

BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD

VOID THE USER’S AUTHORITY TO OPERATE THE

EQUIPMENT.

WARNING

(For Canada)

[For product having the wireless function using 5

GHz frequency bands]

• The device for operation in the band 5150–5250

MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;

• For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit;

• For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-topoint operation as appropriate; and

• The worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in Section 6.2.2(3) shall be clearly indicated.(devices operating in the band

5250-5350 MHz with a maximum e.i.r.p. greater than 200 mW)

• High-power radars are allocated as primary users

(i.e. priority users) of the bands 5250–5350 MHz and 5650–5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

NOTE TO CABLE/TV INSTALLER

(For USA and Canada)

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the

National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

WARNING!

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.

• Only using furniture that can safely support the television set.

• Ensuring the television set is not overhanging the edge of the supporting furniture.

• Not placing the television set on tall furniture

(for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

Symbols

Refers to alternating current(AC).

Refers to direct current(DC).

Refers to class II equipment.

Refers to stand-by.

Refers to “ON” (power).

Refers to dangerous voltage.

17

CHILD SAFETY:

PROPER TELEVISION PLACEMENT MATTERS

THE CONSUMER ELECTRONICS INDUSTRY CARES

• Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable.

• As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. Televisions that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc., may fall over, resulting in injury.

TUNE IN TO SAFETY

ALWAYS

follow the manufacturer’s recommendations for the safe installation of your television.

ALWAYS

read and follow all instructions for proper use of your television.

NEVER

allow children to climb on or play on the television or the furniture on which the television is placed.

NEVER

place the television on furniture that can easily be used as steps, such as a chest of drawers.

ALWAYS

install the television where it cannot be pushed, pulled over or knocked down.

ALWAYS

route cords and cables connected to the television so that they cannot be tripped over, pulled or grabbed.

WALL OR CEILING MOUNT YOUR TELEVISION

ALWAYS

contact your retailer about professional installation if you have any doubts about your ability to safely mount your television.

ALWAYS

use a mount that has been recommended by the television manufacturer and has a safety certification by an independent laboratory (such as UL, CSA, ETL).

ALWAYS

follow all instructions supplied by the television and mount manufacturers.

ALWAYS

make sure that the wall or ceiling where you are mounting the television is appropriate.

Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder block construction. If you are unsure, contact a professional installer.

• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount installation.

MOVING AN OLDER TELEVISION TO A NEW PLACE IN

YOUR HOME

• Many new television buyers move their older CRT televisions into a secondary room after the purchase of a flat-panel television. Special care should be made in the placement of older CRT televisions.

ALWAYS

place your older CRT television on furniture that is sturdy and appropriate for its size and weight.

NEVER

place your older CRT television on a dresser where children may be tempted to use the drawers to climb.

ALWAYS

make sure your older CRT television does not hang over the edge of your furniture.

CE.org/safety

Declaration of Conformity

Trade Name: LG

Model: 32LH510B-UC,

43LF5100-UF, 49LF5100-UF,

43LF5400-UE, 49LF5400-UE

Responsible Party: LG Electronics Inc.

Address: 1000 Sylvan Ave. Englewood Cliffs NJ

07632 U.S.A

TEL: 201-266-2534

LG Customer Information Center

For inquires or comments, visit www.lg.com or call;

1-800-243-0000

1-888-865-3026

1-888-542-2623

USA, Consumer User

USA, Commercial User

CANADA

Register your product Online!

www.lg.com

The model and serial numbers of the TV are located on the back and on one side of the TV. Record them below should you ever need service.

MODEL

SERIAL

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
