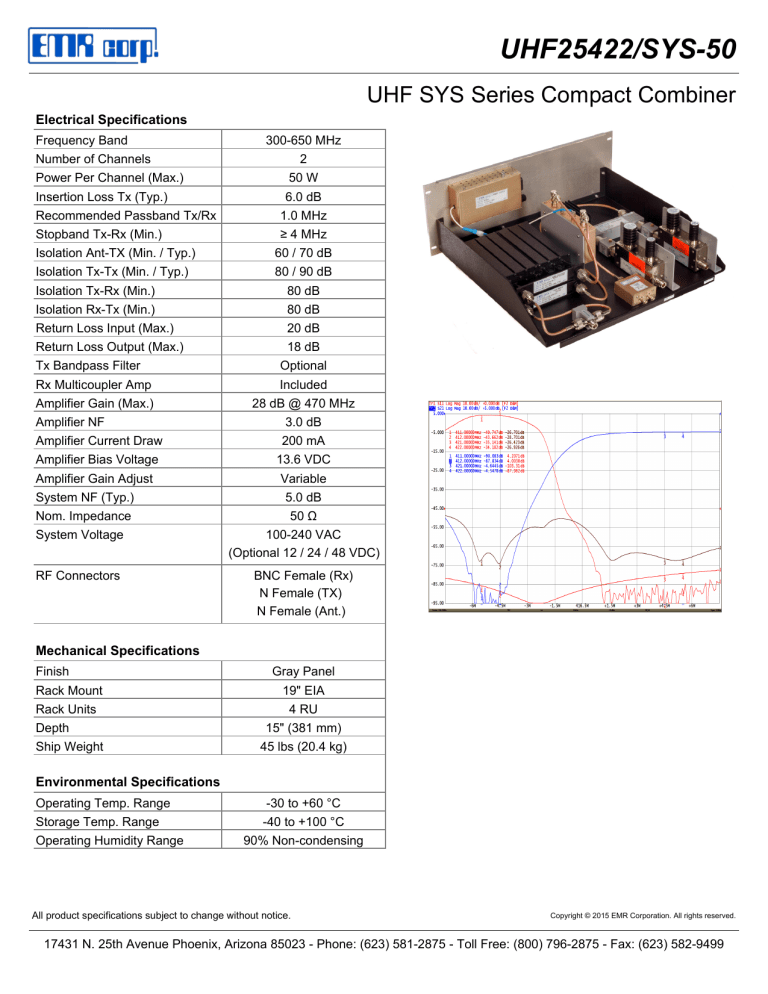

UHF25422/SYS-50
UHF25422/SYS-50
UHF SYS Series Compact Combiner
Electrical Specifications
Frequency Band
Number of Channels
Power Per Channel (Max.)
Insertion Loss Tx (Typ.)
Recommended Passband Tx/Rx
Stopband Tx-Rx (Min.)
Isolation Ant-TX (Min. / Typ.)
Isolation Tx-Tx (Min. / Typ.)
Isolation Tx-Rx (Min.)
Isolation Rx-Tx (Min.)
Return Loss Input (Max.)
Return Loss Output (Max.)
Tx Bandpass Filter
Rx Multicoupler Amp
Amplifier Gain (Max.)
Amplifier NF
Amplifier Current Draw
Amplifier Bias Voltage
Amplifier Gain Adjust
System NF (Typ.)
Nom. Impedance
System Voltage
RF Connectors
300-650 MHz
2
50 W
6.0 dB
1.0 MHz
≥ 4 MHz
60 / 70 dB
80 / 90 dB
80 dB
80 dB
20 dB
18 dB
Optional
Included
28 dB @ 470 MHz
3.0 dB
200 mA
13.6 VDC
Variable
5.0 dB
50 Ω
100-240 VAC
(Optional 12 / 24 / 48 VDC)
BNC Female (Rx)
N Female (TX)
N Female (Ant.)
Mechanical Specifications
Finish
Rack Mount
Rack Units
Depth
Ship Weight
Gray Panel
19" EIA
4 RU
15" (381 mm)
45 lbs (20.4 kg)
Environmental Specifications
Operating Temp. Range
Storage Temp. Range
Operating Humidity Range
-30 to +60 °C
-40 to +100 °C
90% Non-condensing
All product specifications subject to change without notice.
Copyright © 2015 EMR Corporation. All rights reserved.
17431 N. 25th Avenue Phoenix, Arizona 85023 - Phone: (623) 581-2875 - Toll Free: (800) 796-2875 - Fax: (623) 582-9499
