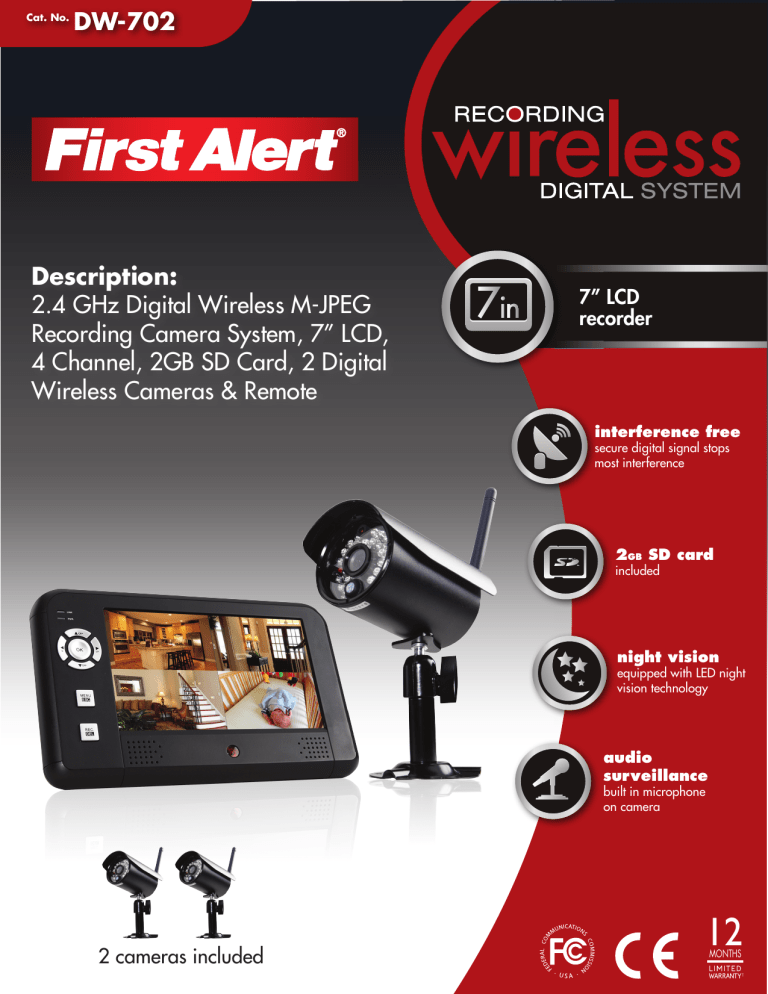

Cat. No.
DW-702
Description:
2.4 GHz Digital Wireless M-JPEG
Recording Camera System, 7” LCD,
4 Channel, 2GB SD Card, 2 Digital
Wireless Cameras & Remote
7” LCD
recorder
interference free
secure digital signal stops
most interference
2GB SD card
included
night vision
equipped with LED night
vision technology
audio
surveillance
built in microphone
on camera
2 cameras included
12
MONTHS
Cat. No.
DW-702
Contents
1 2.4 GHz Digital Wireless 7” LCD Recording Camera System
2 Wireless Digital Indoor/Outdoor Cameras
3 Power Supplies (Receiver, Camera )
1 AV Cable
2 Camera Stands
1 Remote Control
2 Camera Mounting Hardware
1Manual
1 2GB SD Card
Product Specifications
General
Operating Power
Operating Temp
Dimensions (Camera & Stand)
Dimensions (LCD Receiver)
Remote Control
Weather Resistant
Multiview Mode
Audio/Video Output
Transmission Channels
Wireless Signal
Range
DC 5V
14°F - 122°F
4.7”H x 2.8”W x 2.7”D
9.0”H x 5.5”W x 1.4”D
Included
IP66 (Camera only)
4 Cameras
Yes
40
2.4GHz Frequency Hopping Spread Spectrum (FHSS) Technology
up to 750 ft. line of sight
Camera
Image Sensor
CMOS
Video Quality
VGA 5~7 fps/QVGA 15fps
White Balance
Auto
Signal/Noise Ratio
50dB
Gain Control
Auto
Backlight Compensation
Yes
Lens
3.6 mm
Viewing Angle
H:56 V:43
Audio Range
16 ft.
ColorYes
Indoor/OutdoorBoth
Microphone
Built in
Night Vision
Number of infrared LED’s
Distance
Video
Video Format
Display Resolution
IR On/Off
Recording System
Type
Compression Format
Recording Modes
Storage Capacity
SDHC Compatible
27
Up to 40 ft.
Shipping Specifications
Individual Carton
Dimensions Weight Cube UPC
14.33”L x 2.93”W x 9.43”H
4.8 lbs.
0.23 ft3
0 29054 00717 9
Master Carton
Dimensions Master Pack
Weight Cube I2of5
15.25”L x 12.88”W x 10.50”H
4
19.9 lbs.
1.19 ft3
400 29054 00717 7
Pallet Information
Cases per layer Number of Layers Cases per Pallet Units per Pallet
Cube
Weight
9
4
36
144
51.1 ft3
766 lbs.
NTSC
640x480 (VGA)/320x240 (QVGA)
1/8 Lux
Digital DVR
Motion JPEG
Manual/Motion
2GB SD Card
32GB
©2012 BRK Brands, Inc.
a Jarden Corporation Company (NYSE:JAH)
3901 Liberty Street Road, Aurora, IL 60504-8122
Phone: 630-851-7330 Tech Services: 800-323-9005
brkelectronics.com
First Alert is a registered trademark of the First Alert Trust
BRK is a registered trademark of BRK Brands, Inc.
CM3057
