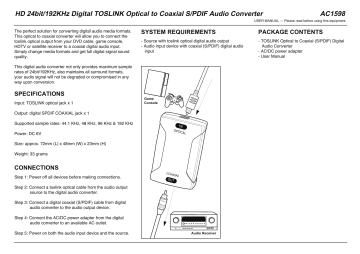

Manual AC1598 (POF-830-HB)
HD 24bit/192KHz Digital TOSLINK Optical to Coaxial S/PDIF Audio Converter
AC1598
USER MANUAL — Please read before using this equipment.
The perfect solution for converting digital- audio media formats.
This optical to coaxial converter will allow you to connect the
toslink optical output from your DVD cable, game console,
HDTV or satellite receiver to a coaxial digital audio input.
Simply change media formats and get full digital signal sound
quality.
SYSTEM REQUIREMENTS
PACKAGE CONTENTS
- Source with toslink optical digital audio output
- Audio input device with coaxial (S/PDIF) digital audio
input
- TOSLINK Optical to Coaxial (S/PDIF) Digital
Audio Converter
- AC/DC power adapter
- User Manual
This digital audio converter not only provides maximum sample
rates of 24bit/192KHz, also maintains all surround formats,
your audio signal will not be degraded or compromised in any
way upon conversion.
SPECIFICATIONS
Input: TOSLINK optical jack x 1
Game
Console
Output: digital SPDIF COAXIAL jack x 1
Supported sample rates: 44.1 KHz, 48 KHz, 96 KHz & 192 KHz
Power: DC 6V
IN
OPTIC
AL
Size: approx. 72mm (L) x 48mm (W) x 23mm (H)
Weight: 33 grams
CONNECTIONS
Step 1: Power off all devices before making connections.
COAX
OUT
IAL
Step 2: Connect a toslink optical cable from the audio output
source to the digital audio converter.
Step 3: Connect a digital coaxial (S/PDIF) cable from digital
audio converter to the audio output device.
Step 4: Connect the AC/DC power adapter from the digital
audio converter to an available AC outlet.
Step 5: Power on both the audio input device and the source.
Audio Receiver
