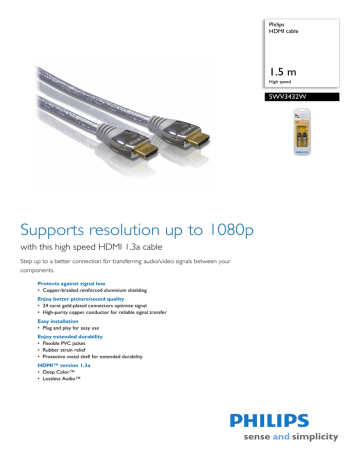

Philips SWV3432W/10 Datasheet

Philips SWV3432W/10 Datasheet
HDMI cable
1.5 m
High speed
Supports resolution up to 1080p
with this high speed HDMI 1.3a cable
Step up to a better connection for transferring audio/video signals between your
Protects against signal loss
• Copper-braided reinforced aluminium shielding
Enjoy better picture/sound quality
• 24 carat gold-plated connectors optimise signal
• High-purity copper conductor for reliable signal transfer
Easy installation
• Plug and play for easy use
Enjoy extended durability
• Flexible PVC jacket
• Rubber strain relief
• Protective metal shell for extended durability
HDMI™ version 1.3a
• Deep Color™
• Lossless Audio™
HDMI cable
1.5 m High speed
Product highlights
Packaging dimensions
EAN: 87 12581 39325 0
Number of products included: 1
Packaging type: Blister
Packaging dimensions (W x H x D):
9 x 28 x 2.5 cm
• Net weight: 0.25 kg
• Gross weight: 0.35 kg
• Tare weight: 0.1 kg
Outer Box
• EAN: 87 12581 39740 1
• Number of consumer packages: 4
• Outer carton (L x W x H):
14.6 x 11.45 x 29.5 cm
• Net weight: 1 kg
• Gross weight: 1.6 kg
• Tare weight: 0.6 kg
Flexible PVC Jacket
Flexible PVC jacket provides protection to the delicate
core of the cable. It also offers extended durability and
ease of installation.
Rubber strain relief
Rubber strain relief provides a secure yet flexible juncture
between the cable and the plug.
Braided shielding
Copper-braided reinforced aluminium shielding protects
against signal loss and interference.
Plug and play
Plug and play offers easy installation of components
without time-consuming installations.
Metal shell
The metal shell protects the internal connection of the
cable. It ensures durability and reliability of your
24 carat gold-plated connector
24 carat gold-plated connectors ensure the best signal
quality for your components.
High-purity copper
This copper conductor provides high accuracy in signal
transfer with minimal resistance.
Deep Color™
Supports 30-bit, 36-bit and 48-bit (RGB or YCbCr) colour
depths, allowing HDTVs to go from millions of colours to
billions of colours. Enables increased contrast ratio.
Eliminates on-screen colour banding for smooth tonal
transitions and subtle gradations between colours.
Lossless Audio™
Supports new lossless compressed digital audio formats
Dolby TrueHD and DTS-HD.
Issue date 2008-10-28
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 1.0.8
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 36811
EAN: 87 12581 39325 0
