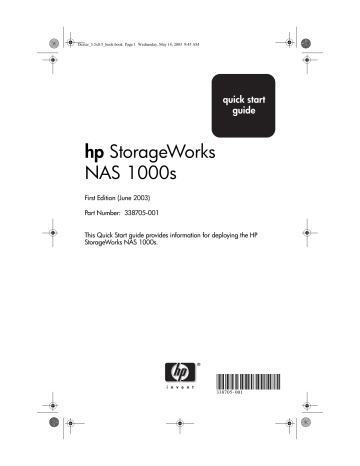

Dexter_5.5x8.5_book.book Page 1 Wednesday, May 14, 2003 9:45 AM

quick start guide hp StorageWorks

NAS 1000s

First Edition (June 2003)

Part Number: 338705-001

This Quick Start guide provides information for deploying the HP

StorageWorks NAS 1000s.

338705- 001

Dexter_5.5x8.5_book.book Page 2 Wednesday, May 14, 2003 9:45 AM

© Copyright 2003 Hewlett-Packard Development Company, L.P.

Hewlett-Packard Company makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of Hewlett-Packard. The information contained in this document is subject to change without notice.

Compaq Computer Corporation is a wholly-owned subsidiary of Hewlett-Packard

Company.

Microsoft®, MS-DOS®, MS Windows®, Windows®, and Windows NT® are U.S. registered trademarks of Microsoft Corporation.

Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein. The information is provided “as is” without warranty of any kind and is subject to change without notice. The warranties for Hewlett-Packard

Company products are set forth in the express limited warranty statements for such products. Nothing herein should be construed as constituting an additional warranty.

NAS 1000s Quick Start Guide

First Edition (June 2003)

Part Number: 338705-001

Dexter_5.5x8.5_book.book Page 3 Wednesday, May 14, 2003 9:45 AM

contents

Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Text Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Equipment Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Rack Stability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

HP Technical Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

HP Storage Website . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

HP Authorized Reseller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

1 Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Configuration Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Product Definition and Information . . . . . . . . . . . . . . . . . . . . . . . . .16

Server Hardware Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Optional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Software Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Managing the NAS 1000s. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Product Redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Dependencies and Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Storage Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

IP Networking and Setup Requirements. . . . . . . . . . . . . . . . . . .20

Deploying the NAS 1000s on the Network. . . . . . . . . . . . . . . . . . . .20

Setup and Configuration Overview. . . . . . . . . . . . . . . . . . . . . . . . . .22

Configuring the NAS 1000s . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Storage Management Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

NAS 1000s Quick Start Guide

3

Dexter_5.5x8.5_book.book Page 4 Wednesday, May 14, 2003 9:45 AM

Storage Management Elements . . . . . . . . . . . . . . . . . . . . . . . . .23

Logical Storage Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Persistent Storage Management Elements . . . . . . . . . . . . . . . . .24

Snapshot Facts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

File System Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

File-Sharing Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

2 Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Preinitialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Collect Information for Configuration . . . . . . . . . . . . . . . . . . . . . . .27

Configuration Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

3 Configuration Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Configuration Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

WebUI Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Remote Access Method (Using Hostname) . . . . . . . . . . . . . . . .31

Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Direct Access Method (Using the Console) . . . . . . . . . . . . . . . .33

Completing the System Configuration . . . . . . . . . . . . . . . . . . . . . . .34

4 Hot-Plug Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Important Guidelines for Replacing Hot-Pluggable Hard Drives . . .35

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Handling Hard Drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Replacing a Failed Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

A Regulatory Compliance Notices . . . . . . . . . . . . . . . . . . . . . . .39

Federal Communications Commission Notice . . . . . . . . . . . . . . . . .39

Class A Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Class B Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Declaration of Conformity for products marked with the FCC logo

-

United States only. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Canadian Notice (Avis Canadien). . . . . . . . . . . . . . . . . . . . . . . . . . .42

Class A Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Class B Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

European Union Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

4

Dexter_5.5x8.5_book.book Page 5 Wednesday, May 14, 2003 9:45 AM

BSMI Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Battery Replacement Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

B Electrostatic Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Grounding Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

NAS 1000s Quick Start Guide

5

Dexter_5.5x8.5_book.book Page 6 Wednesday, May 14, 2003 9:45 AM

6

Dexter_5.5x8.5_book.book Page 7 Wednesday, May 14, 2003 9:45 AM

About this Guide

the HP StorageWorks NAS 1000s.

About this Guide

About this Guide topics include:

Overview , page 8

Conventions , page 9

Rack Stability , page 12

Getting Help , page 12

about this guide

NAS 1000s Quick Start Guide

7

Dexter_5.5x8.5_book.book Page 8 Wednesday, May 14, 2003 9:45 AM

Overview

This section covers the following topics:

Intended Audience

Prerequisites

Related Documentation

Intended Audience

This book is intended for use by technical professionals who are experienced with the following:

Microsoft® administrative procedures file-sharing protocols

Prerequisites

Before you set up the NAS 1000s, HP recommends that the reader obtain supplemental documentation relative to the items listed above in the section titled Intended Audience.

Related Documentation

In addition to this guide, HP provides corresponding information:

HP StorageWorks NAS 1000s Administration Guide

HP StorageWorks NAS 1000s Rack Installation Instructions

HP StorageWorks NAS 1000s Release Notes (if required, this document will be available via www.hp.com

)

8

NAS 1000s Quick Start Guide

Dexter_5.5x8.5_book.book Page 9 Wednesday, May 14, 2003 9:45 AM

Conventions

Conventions consist of the following:

Document Conventions

Text Symbols

Equipment Symbols

Document Conventions

The document conventions included in Table 1 apply in most cases.

Table 1: Document Conventions

Element

Cross-reference links

Key and field names, menu items, buttons, and dialog box titles

File names, application names, and text emphasis

User input, command and directory names, and system responses (output and messages)

Figure 1

Bold

Italics

Convention

Monospace font

COMMAND NAMES are uppercase monospace font unless they are case sensitive

Variables

Website addresses

<monospace, italic font>

Underlin ed sans serif font text: http://www.hp.com

NAS 1000s Quick Start Guide

9

Dexter_5.5x8.5_book.book Page 10 Wednesday, May 14, 2003 9:45 AM

Text Symbols

The following symbols may be found in the text of this guide.

They have the following meanings.

WARNING: Text set off in this manner indicates that failure to follow directions in the warning could result in bodily harm or death.

Caution: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or data.

Note: Text set off in this manner presents commentary, sidelights, or interesting points of information.

Equipment Symbols

The following equipment symbols may be found on hardware for which this guide pertains. They have the following meanings.

Any enclosed surface or area of the equipment marked with these symbols indicates the presence of electrical shock hazards. Enclosed area contains no operator serviceable parts.

WARNING: To reduce the risk of personal injury from electrical shock hazards, do not open this enclosure.

10

NAS 1000s Quick Start Guide

Dexter_5.5x8.5_book.book Page 11 Wednesday, May 14, 2003 9:45 AM

Any RJ-45 receptacle marked with these symbols indicates a network interface connection.

WARNING: To reduce the risk of electrical shock, fire, or damage to the equipment, do not plug telephone or telecommunications connectors into this receptacle.

Any surface or area of the equipment marked with these symbols indicates the presence of a hot surface or hot component. Contact with this surface could result in injury.

WARNING: To reduce the risk of personal injury from a hot component, allow the surface to cool before touching.

Power supplies or systems marked with these symbols indicate the presence of multiple sources of power.

WARNING: To reduce the risk of personal injury from electrical shock, remove all power cords to completely disconnect power from the power supplies and systems.

Any product or assembly marked with these symbols indicates that the component exceeds the recommended weight for one individual to handle safely.

WARNING: To reduce the risk of personal injury or damage to the equipment, observe local occupational health and safety requirements and guidelines for manually handling material.

NAS 1000s Quick Start Guide

11

Dexter_5.5x8.5_book.book Page 12 Wednesday, May 14, 2003 9:45 AM

Rack Stability

Rack stability protects personal and equipment.

WARNING: To reduce the risk of personal injury or damage to the equipment, be sure that:

The leveling jacks are extended to the floor.

The full weight of the rack rests on the leveling jacks.

In single rack installations, the stabilizing feet are attached to the rack.

In multiple rack installations, the racks are coupled.

Only one rack component is extended at any time. A rack may become unstable if more than one rack component is extended for any reason.

Getting Help

If you still have a question after reading this guide, contact an HP authorized service provider or access our website: http://www.hp.com

.

HP Technical Support

In North America, call technical support at 1-800-652-6672, available 24 hours a day, 7 days a week.

Note: For continuous quality improvement, calls may be recorded or monitored.

Outside North America, call technical support at the nearest location. Telephone numbers for worldwide technical support are listed on the HP website under support: http://www.hp.com

.

12

NAS 1000s Quick Start Guide

Dexter_5.5x8.5_book.book Page 13 Wednesday, May 14, 2003 9:45 AM

Be sure to have the following information available before calling:

Technical support registration number (if applicable)

Product serial numbers

Product model names and numbers

Applicable error messages

Operating system type and revision level

Detailed, specific questions

HP Storage Website

The HP website has the latest information on this product, as well as the latest drivers. Access storage at: http://www.hp.com

. From this website, select the appropriate product or solution.

HP Authorized Reseller

For the name of your nearest HP authorized reseller:

In the United States, call 1-800-345-1518

In Canada, call 1-800-263-5868

Elsewhere, see the HP website for locations and telephone numbers: http://www.hp.com

.

NAS 1000s Quick Start Guide

13

Dexter_5.5x8.5_book.book Page 14 Wednesday, May 14, 2003 9:45 AM

14

NAS 1000s Quick Start Guide

chap1.fm Page 15 Thursday, May 15, 2003 4:33 PM

Product Overview

1

This chapter describes the configuration options and setup and configuration dependencies and requirements for the HP

StorageWorks NAS 1000s.

Configuration Options

The NAS 1000s is specifically designed for file serving; it offers optimized performance for a growing environment.

The NAS 1000s is available in three models:

1 TB

640 GB

320 GB

NAS 1000s Quick Start Guide

15

chap1.fm Page 16 Thursday, May 15, 2003 4:33 PM

Product Definition and Information

The NAS 1000s is a business class NAS solution that provides reliable performance, manageability, and fault tolerance.

Server Hardware Features

The following features are included in the NAS 1000s Model 1 server:

Intel Pentium 4 2.4 GHz processor

512-MB 200 MHz PC2100 DDR SDRAM memory

64-bit PCI-X slot

64-bit PCI slot

Four 80GB 7200 rpm hot-pluggable hard drives

Τwo embedded 10/100/1000 WOL (Wake on LAN) network interface controllers (NICs)

■ SCSI Controller for tape backup

The following features are included in the NAS 1000s Model 2 server:

Intel Pentium 4 2.8 GHz processor

512-MB 200 MHz PC2100 DDR SDRAM memory

64-bit PCI-X slot

64-bit PCI slot

Four 160GB 7200 rpm hot-pluggable hard drives

Two embedded 10/100/1000 WOL (Wake on LAN) network interface controllers (NICs)

■ SCSI Controller for tape backup

16

NAS 1000s Quick Start Guide

chap1.fm Page 17 Thursday, May 15, 2003 4:33 PM

The following features are included in the NAS 1000s Model 3 server:

Intel Pentium 4 2.8 GHz processor

512-MB 200 MHz PC2100 DDR SDRAM memory

64-bit PCI-X slot

64-bit PCI slot

Four 250GB 7200 rpm hot-pluggable hard drives

Two embedded 10/100/1000 WOL (Wake on LAN) network interface controllers (NICs)

Optional Features

The following features are optional for the NAS 1000s server:

Additional memory

Network interface cards (NICs)

SAN Fibre Channel Adapter for tape backup

Software Features

Advanced features included and supported by the NAS 1000s include:

Microsoft Services for Macintosh

Microsoft Services for NetWare

Microsoft Services for UNIX (SFU)

NAS Web Based User Interface (WebUI)

Windows Powered OS

Columbia Data Products Persistent Storage Manager

Optional third party supported software (not included):

— Backup software

— Management software

— Quota management

— Virus protection

NAS 1000s Quick Start Guide

17

chap1.fm Page 18 Thursday, May 15, 2003 4:33 PM

For specific software product recommendations, go to the HP website: http://h18000.www1.hp.com/products/storageworks/nas/support edsoftware.html

Managing the NAS 1000s

The NAS 1000s is configured at the factory with default system settings and with the NAS operating system installed. Refer to the

“Storage Management Overview” section later in this chapter for

more information.

The NAS administrator uses Windows Logical Disk Manager

(LDM) to manage the logical storage.

18

Figure 1: NAS 1000s device

NAS 1000s Quick Start Guide

chap1.fm Page 19 Thursday, May 15, 2003 4:33 PM

Product Redundancy

The NAS 1000s is specifically designed to perform file serving tasks for networks, using industry standard components to ensure reliability.

Other industry standard features, such as redundant array of independent drives (RAID) and remote manageability, further enhance the overall dependability of the NAS 1000s.

To ensure redundancy and reliability, the hard drives installed in the NAS 1000s are configured so that a single drive failure will not cause data loss or system failure. The NAS 1000s is configured with dual boot capibility. When powered on, the NAS

1000s can boot using a primary OS or a secondary recovery OS.

The primary OS resides on drive 0 and is mirrored on drive 1 while the secondary OS resides on drive 2 and is mirrored on drive 3. If the primary OS becomes corrupted and un-bootable, the secondary OS is available for data backup prior to using the

Quick Restore DVD to restore the system to the factory default state.

The data volume is configured as a RAID 5 volume across all four drives. This ensures redundancy in the event of a drive failure and the data volume is accessible by both the primary OS and secondary OS.

NAS 1000s Quick Start Guide

19

chap1.fm Page 20 Thursday, May 15, 2003 4:33 PM

Dependencies and Requirements

Specific conditions must be met in order for the NAS 1000s to operate.

Storage Requirements

To protect against data loss from hard drive failure, configure storage with fault tolerance in mind. HP recommends adhering to

RAID5 configurations.

IP Networking and Setup Requirements

The following are IP networking and setup requirements needed for a NAS 1000s device:

■ Windows-based PC running Microsoft Internet Explorer 5.5

(or later) on the same network segment as the NAS 1000s; this will be used to set up and administer the NAS device.

Additional Ethernet connection ports to client subnets

(depending on network options ordered).

Deploying the NAS 1000s on the Network

The default shipping configuration contains two 10/100/1000 integrated network interface controller (NIC) ports for client data access. These data ports also allow access to the Web user interface (WebUI) that accompanies the product. Most management and administrative procedures can be accomplished via the WebUI.

20

NAS 1000s Quick Start Guide

chap1.fm Page 21 Thursday, May 15, 2003 4:33 PM

1 2 3 4 5

10 9

8 7

6

Figure 2: Rear panel connectors

Table 2: Rear Panel Connectors

Item Description

1

Power connectors

2

Mouse connector (PS/2) (green)

3

Video connector (blue)

4

Serial connector (teal)

5

PCI expansion slot

6

LVD SCSI Controller connector

7

RJ-45 connector for NIC 1 (Eth0)

8

RJ-45 connector for NIC 1 (Eth1)

9

USB connectors (2) (black)

-

Keyboard connector (PS/2) (purple)

NAS 1000s Quick Start Guide

21

chap1.fm Page 22 Thursday, May 15, 2003 4:33 PM

Setup and Configuration Overview

Setting up systems is a well-defined process. This section is intended as an overview of the process, not a detailed list of step-by-step instructions. Step-by-step procedures are documented in the administration guide. Some of the steps are driven by wizards within the WebUI. In either type of setup, it is important to read all of the supplied documentation before starting. Relevant documents include:

HP StorageWorks NAS 1000s Administration Guide

HP StorageWorks NAS 1000s Rack Installation Instructions

HP StorageWorks NAS 1000s Release Notes (if required, this document will be available via www.hp.com

)

Configuring the NAS 1000s

The following describes how to configure the NAS 1000s.

1. Configure the NAS device using Chapter 2 of this guide.

2. This is a recommended step. Place the NAS device into an

Active Directory or Windows NT 4.0 domain for ease of manageability.

3. Configure the NAS 1000s device using Chapter 3 of this guide.

4. Using Logical Disk Manager (LDM), assign drive letters or mount points, and format the data drives. See the LDM online help for full details on this procedure.

5. This is an optional step. Enable protocols such as NFS sharing, NCP, and/or AppleTalk. See the administration guide for this procedure in detail.

6. This is an optional step. Create shares corresponding to the protocols mentioned in the previous steps. Grant access rights to the shares.

7. Read the remaining sections of the administration guide.

22

NAS 1000s Quick Start Guide

chap1.fm Page 23 Thursday, May 15, 2003 4:33 PM

Storage Management Overview

This section provides an overview of the components that make up the NAS storage structure. A complete discussion of the components and their relationships is available in the administration guide.

Caution: This section on storage management and Windows

LDM is required reading material for the NAS administrator.

This section develops the concepts and requirements that serve as the basis for successfully using an HP StorageWorks

NAS device. Failure to read this section and the appropriate sections on storage management in the administration guide may lead to data loss or file corruption.

Storage Management Elements

Storage is broken up into five major divisions:

■ Logical storage elements

Persistent Storage Manager Elements

File system elements

File sharing elements

Each of these elements is composed of the previous level’s elements.

Logical Storage Elements

The NAS 1000s utilizes the Microsoft Logical Disk Manager

(LDM) for managing the various types of disk presented to the file system. Logical Disk Manager has two types of disk presentations: basic disk and dynamic disk. Each of these types of disk has special features that enable different types of management. The NAS 1000s uses a dynamic RAID5 volume to ensure maximum data protection. This volume can then be assigned a drive letter or mount point, formatted, and the presented to the operating system for use.

NAS 1000s Quick Start Guide

23

chap1.fm Page 24 Thursday, May 15, 2003 4:33 PM

Persistent Storage Management Elements

Persistent Storage Manager lets the administrator make replicas of disks, called snapshots. Snapshots enable the creation of multipurpose logical replicas of production data without having to physically copy the data. They can be used to immediately recover a lost file or directory, to test a new application with realistic data without affecting the “real” data, and to serve as a source of data for backups. Snapshots are a temporary backup of the data and are not meant to be permanent.

Snapshots use existing space from the volume, partition, or logical drive to maintain the data required to present the original data. This space is termed the cache file. By default the cache files consumes 10 percent of the available space of a logical storage element. Snapshots can be read only, read-write or always keep, and if they are shared, users can access a snapshot and edit the data. If snapshots are shared with write access enabled, a second snapshot of the original volume should be created. There is no backup of the original snapshot unless a second snapshot of the volume is taken.

Snapshot Facts

Snapshots are created on a per volume, partition, or logical drive basis.

Snapshots can be read-only, read-write or always keep.

Snapshots are mounted as a mount point on the root of the volume, partition or logical drive.

Snapshots can be shared in the same manner as any other folder, drive or mount point.

Snapshots are meant to be temporary in nature.

Snapshots are automatically deleted if disk space becomes critical and they are not set to always keep.

Persistent Storage Manager only writes to the cache file on the first change of the underlying data.

Full documentation of Persistent Storage Manager may be found in the administration guide.

24

NAS 1000s Quick Start Guide

chap1.fm Page 25 Thursday, May 15, 2003 4:33 PM

File System Elements

File system elements are composed of the folders and subfolders that are created under each logical storage element (partitions, logical disks, and volumes). Folders are used to further subdivide the available file system providing another level of granularity for management of the information space. Each of these folders can contain separate permissions and share names that can be used for network access. Folders can be created for individual users, groups, projects, etc. Refer to the administration guide for more details on file system elements.

File-Sharing Elements

The NAS 1000s supports several file-sharing protocols, including

CIFS, NFS, FTP, HTTP, NCP, and AppleTalk. On each folder or logical storage element, different file-sharing protocols can be enabled using specific network names for access across a network to a variety of clients. Permissions can then be granted to those shares based on users or groups of users in each of the file sharing protocols. Refer to the administration guide for more details on file system elements.

NAS 1000s Quick Start Guide

25

chap1.fm Page 26 Thursday, May 15, 2003 4:33 PM

26

NAS 1000s Quick Start Guide

Dexter_5.5x8.5_book.book Page 27 Wednesday, May 14, 2003 9:45 AM

Before You Begin

2

This chapter describes the preinitialization and configuration tasks required for the HP StorageWorks NAS 1000s.

Preinitialization

Before beginning the installation process, verify that the hardware installation is complete. Verify that the NAS 1000s is completely installed in the rack and that all cables and cords are connected. The setup utility documented here and in the next section only provide basic setup for the network components of the NAS 1000s.

Note: If you need assistance with rack installation or hardware connections, refer to the quick reference and rack installation poster included in the shipping carton.

Collect Information for Configuration

Choose a host name and collect general information before initializing the NAS 1000s.

NAS 1000s Quick Start Guide

27

Dexter_5.5x8.5_book.book Page 28 Wednesday, May 14, 2003 9:45 AM

Configuration Information

Collect the general information required to initialize the NAS device for both dynamic host configuration protocols (DHCP) and non-DHCP configurations. You will be asked for this information during configuration, as shown in Table 3 . Become familiar with this information before attempting to configure the

NAS device.

Table 3: Configuration Information

Part A: To be completed for DHCP and non-DHCP configurations

Server Host Name:

Part B: To be completed for non-DHCP configurations only

DNS Servers

1

IP Address

2

3

NAS NIC Port* IP

Address

Subnet

Mask

Gateway

Address

Eth 0

Eth 1

* The default NAS 1000s has two Ethernet ports available for network connectivity. Disable ports that will not be used. Each

Ethernet port must be configured with a separate subnet.

Part C: SNMP Information (optional)

Trap Destination (IP

Address) Manager Client:

Management Traps

Community String:

System Management

Community String:

28

NAS 1000s Quick Start Guide

Dexter_5.5x8.5_book.book Page 29 Wednesday, May 14, 2003 9:45 AM

Configuration Setup

3

This chapter provides information about configuring the HP

StorageWorks NAS 1000s using the online method.

Before completing the tasks in this chapter, verify that the

NAS 1000s is installed in the rack and that all cables and cords are connected. It is also necessary to collect certain information required during the configuration process, as mentioned in

Chapter 2, “Before You Begin.”

Configuration Method

The two methods for configuring the NAS 1000s are:

■ Using the WebUI configuration application that comes with the NAS 1000s.

■ Running the application directly from the console.

NAS 1000s Quick Start Guide

29

Dexter_5.5x8.5_book.book Page 30 Wednesday, May 14, 2003 9:45 AM

WebUI Configuration

The NAS 1000s includes a WebUI that is designed to be a graphical, easy-to-use application that gathers the necessary information for configuration. The WebUI may be accessed locally or by host name.

Note: Configure the NAS 1000s locally when deploying the device in a non-DHCP environment.

30

1 2

Figure 3: Ethernet connectors

Table 4: Ethernet Network Connectors

Item Description

1

NIC Ethernet port 1 (Eth 1) used for data

2

NIC Ethernet port 0 (Eth 0) used for data

Note: Connect a loopback cable to any of the NAS 1000s Ethernet ports that are not configured for use.

NAS 1000s Quick Start Guide

Dexter_5.5x8.5_book.book Page 31 Wednesday, May 14, 2003 9:45 AM

Remote Access Method (Using Hostname)

The NAS 1000s ships by default with DHCP enabled on the network port. If the system is placed on a DHCP serviced network and the serial number of the device is known, it can be accessed through a client running Microsoft Internet Explorer 5.5

(or later) on that network, using the 3201 port of the device. The serial number is located on the product ID label.

Requirements

The following items are required to run the WebUI configuration application:

Windows-based PC loaded with Internet Explorer 5.5 (or later) on the same segment as the NAS 1000s

DHCP-serviced network

Serial number of the NAS 1000s

Note: The NAS 1000s is designed to be deployed without a monitor, keyboard, and mouse. These ports are available and supported by the

NAS device, if used.

Procedure

To initialize the NAS 1000s using the WebUI configuration application:

1. Connect the Ethernet cables to the respective network ports of the NAS b2000 v2 and the corresponding network segments in accordance with the information in the

“Configuration Information” section in Chapter 2.

2. See Figure 3 and Table 4 for the locations of the network ports on the NAS 1000s.

3. Go to the NAS device and power it on. It will be several minutes before the NAS device is accessible on the network.

NAS 1000s Quick Start Guide

31

Dexter_5.5x8.5_book.book Page 32 Wednesday, May 14, 2003 9:45 AM

32

Figure 4: Rapid Startup wizard screen

4. Open Internet Explorer on the Windows-based PC. Enter http://

, the serial number of the NAS 1000s followed by a hyphen (

-

), followed by

:3201

. Press Enter. This launches the WebUI configuration application (Rapid Startup) on the target HP StorageWorks NAS device as shown in Figure 4 .

Example:

http://D4059ABC3433-:3201

Note: The NAS device will respond when the NAS operating system has started.

5. Using the information from Table 4 , fill in the screens that follow. Verify that your information is correct when the configuration review screen is displayed, as shown in

Figure 5 .

NAS 1000s Quick Start Guide

Dexter_5.5x8.5_book.book Page 33 Wednesday, May 14, 2003 9:45 AM

Figure 5: Rapid Startup configuration review screen

6. Click the Finish icon to exit Rapid Startup. Close the browser window. The NAS 1000s will now reboot to set the configuration information.

Direct Access Method (Using the Console)

To initialize the NAS 1000s using the WebUI configuration application:

1. Logon locally using the username administrator. No password is needed.

2. Open Internet Explorer on the Windows-based PC. The browser will default to the Rapid Startup Wizard screen.

3. Using the information from Table 4 , fill in the screens that follow. Verify that your information is correct when the configuration review screen is displayed, as shown in

Figure 5 .

4. Click the Finish icon to exit Rapid Startup. Close the browser window. The NAS 1000s will now reboot to set the configuration information.

NAS 1000s Quick Start Guide

33

Dexter_5.5x8.5_book.book Page 34 Wednesday, May 14, 2003 9:45 AM

Completing the System Configuration

After the configuration process, there are additional tasks required in order to begin sharing files on the network. All procedures for the configuration tasks may be found in the HP

StorageWorks NAS 1000s Administration Guide. These include:

■ Configuring storage using LDM

Establishing file shares and creating access permissions

In addition to the required configuration steps above, enabling additional protocols and the associated file shares may need to be completed.

34

NAS 1000s Quick Start Guide

Dexter_5.5x8.5_book.book Page 35 Wednesday, May 14, 2003 9:45 AM

Hot-Plug Hard Drive

4

This chapter provides information about replacing the hot-pluggable hard drives of the HP StorageWorks NAS 1000s.

Important Guidelines for Replacing

Hot-Pluggable Hard Drives

Follow these guidelines when replacing drives configured for fault tolerance on an HP StorageWorks NAS 1000s:

■ Never remove more than one drive at a time.

When a drive is replaced, the controller uses data from the other drives in the array to reconstruct data on the replacement drive. If more than one drive is removed, a complete data set is not available to reconstruct data on the replacement drives and permanent data loss can occur.

Never remove a drive while another drive is being rebuilt.

A replaced drive is rebuilt from data stored on the other drives.

If a drive is replaced while the system is Off, it may be necessary to rebuild the replaced drive. Follow the instructions in the “

Replacing a Failed Hard Drive

” section of this guide or the instructions outlined in the system’s reference guide.

NAS 1000s Quick Start Guide

35

Dexter_5.5x8.5_book.book Page 36 Wednesday, May 14, 2003 9:45 AM

Before You Begin

Before replacing a hot-pluggable hard drive:

■ Verify correct drive carrier support

Refer to the documentation included with the system.

■ Review important guidelines

When replacing a failed drive, refer to the documentation included with the server to identify and remove a failed

drive. See “Important Guidelines for Replacing

Hot-Pluggable Hard Drives” earlier in this chapter.

Remove failed drive

Follow the steps shown in the section “ Replacing a Failed

Hard Drive ” later in this chapter.

Install Hot-Pluggable hard drive

Follow the steps shown in the section “ Replacing a Failed

Hard Drive ” later in this chapter.

Handling Hard Drives

Hard drives are sensitive electromechanical devices that can be permanently damaged through improper handling. The packaging provided with a hard drive is designed to protect it from accidental drops. HP recommends that hard drives remain in their original packaging until installation. Drives should be handled with care and never dropped, even from short distances.

36

NAS 1000s Quick Start Guide

Dexter_5.5x8.5_book.book Page 37 Wednesday, May 14, 2003 9:45 AM

Replacing a Failed Hard Drive

Follow these steps to install the hot-pluggable hard drive into the system.

1. Remove the NAS 1000s front bezel.

a.

Locate the two bezel latches found on the side of the bezel. Pull the latches outward.

b.

Pull the front bezel away from the unit.

2. Remove a hard drive from the disk enclosure before installing a new hard drive.

a.

Press the ejector button and pivot the lever to full open position.

b.

Pull the drive from the disk enclosure.

3. Slide the replacement drive into the disk enclosure.

4. The ejector lever must be in the full open position while installing to ensure a correct latch. When the drive has been fully inserted, close the ejector lever.

5. With the system powered on, open Logical Disk Manager

(LDM) and follow these steps to reactivate the disk.

a.

Open the Run applet from the Start menu and type diskmgmt.msc.

b.

Find the new disk drive in LDM.

c.

Right-click the new disk drive and select Reactivate.

Logical Disk Manager will now rebuild the data on the mirror and the RAID 5 volume.

NAS 1000s Quick Start Guide

37

Dexter_5.5x8.5_book.book Page 38 Wednesday, May 14, 2003 9:45 AM

38

NAS 1000s Quick Start Guide

Dexter_5.5x8.5_book.book Page 39 Wednesday, May 14, 2003 9:45 AM

Regulatory

Compliance Notices

A

Federal Communications Commission Notice

Part 15 of the Federal Communications Commission (FCC) Rules and Regulations has established Radio Frequency (RF) emission limits to provide an interference-free radio frequency spectrum.

Many electronic devices, including computers, generate RF energy incidental to their intended function and are, therefore, covered by these rules. These rules place computers and related peripheral devices into two classes, A and B, depending upon their intended installation. Class A devices are those that may reasonably be expected to be installed in a business or commercial environment. Class B devices are those that may reasonably be expected to be installed in a residential environment (personal computers, for example). The FCC requires devices in both classes to bear a label indicating the interference potential of the device as well as additional operating instructions for the user.

The rating label on the device shows which class (A or B) the equipment falls into. Class B devices have an FCC logo or FCC

ID on the label. Class A devices do not have an FCC logo or FCC

ID on the label. Once the class of the device is determined, refer to the following corresponding statement.

Class A Equipment

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

NAS 1000s Quick Start Guide

39

Dexter_5.5x8.5_book.book Page 40 Wednesday, May 14, 2003 9:45 AM interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at personal expense.

Class B Equipment

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio or television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hewlett-Packard Company may void the user's authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods in order to maintain compliance with FCC Rules and Regulations.

40

NAS 1000s Quick Start Guide

Dexter_5.5x8.5_book.book Page 41 Wednesday, May 14, 2003 9:45 AM

Declaration of Conformity for products marked with the FCC logo -

United States only

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NAS 1000s Quick Start Guide

41

Dexter_5.5x8.5_book.book Page 42 Wednesday, May 14, 2003 9:45 AM

For questions regarding your product, contact:

Hewlett-Packard Company

P. O. Box 692000, Mail Stop 530113

Houston, Texas 77269-2000

Or, call

1-800- 652-6672

For questions regarding this FCC declaration, contact:

Hewlett-Packard Company

P. O. Box 692000, Mail Stop 510101

Houston, Texas 77269-2000

Or, call

(281) 514-3333

To identify this product, refer to the Part, Series, or Model number found on the product.

Canadian Notice (Avis Canadien)

Class A Equipment

This Class A digital apparatus meets all requirements of the

Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

Class B Equipment

This Class B digital apparatus meets all requirements of the

Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

42

NAS 1000s Quick Start Guide

Dexter_5.5x8.5_book.book Page 43 Wednesday, May 14, 2003 9:45 AM

European Union Notice

Products bearing the CE marking comply with the EMC Directive

(89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community and if this product has telecommunication functionality, the R&TTE

Directive (1999/5/EC).

Compliance with these directives implies conformity to the following European Norms (in parentheses are the equivalent international standards and regulations):

EN 55022 (CISPR 22) - Electromagnetic Interference

EN55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11) - Electromagnetic

Immunity

EN61000-3-2 (IEC61000-3-2) - Power Line Harmonics

EN61000-3-3 (IEC61000-3-3) - Power Line Flicker

EN 60950 (IEC 60950) - Product Safety

NAS 1000s Quick Start Guide

43

Dexter_5.5x8.5_book.book Page 44 Wednesday, May 14, 2003 9:45 AM

BSMI Notice

Japanese Notice

44

NAS 1000s Quick Start Guide

Dexter_5.5x8.5_book.book Page 45 Wednesday, May 14, 2003 9:45 AM

Battery Replacement Notice

The battery-backed write cache uses a nickel metal hydride

(NiMH) battery pack.

WARNING: There is a risk of exlposion, fire, or personal injury if the battery pack is not properly handled. To reduce this risk:

Do not attempt to recharge the batteries if they are disconnected from the controller.

Do not expose the battery pack to water, or to temperatures higher than 60ºC (140ºF).

Do not abuse, disassemble, crush, or puncture the battery pack.

Do not short the external contacts.

Replace the battery pack only with the designated HP spare.

Battery disposal should comply with local regulations.

Batteries, battery packs, and accumulators should not be disposed of together with the general household waste. To forward them to recycling or proper disposal, use the public collection system or return them by established parts return methods to HP, an authorized HP Partner, or one of their agents.

For more information about battery replacement or proper disposal, contact an authorized reseller or an authorized service provider.

NAS 1000s Quick Start Guide

45

Dexter_5.5x8.5_book.book Page 46 Wednesday, May 14, 2003 9:45 AM

46

NAS 1000s Quick Start Guide

Dexter_5.5x8.5_book.book Page 47 Wednesday, May 14, 2003 9:45 AM

Electrostatic

Discharge

B

To prevent damage to the system, be aware of the precautions you need to follow when setting up the system or handling parts. A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices. This type of damage may reduce the life expectancy of the device.

To prevent electrostatic damage, observe the following precautions:

■ Avoid hand contact by transporting and storing products in static-safe containers.

Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.

Place parts on a grounded surface before removing them from their containers.

Avoid touching pins, leads, or circuitry.

Always be properly grounded when touching a static-sensitive component or assembly.

NAS 1000s Quick Start Guide

47

Dexter_5.5x8.5_book.book Page 48 Wednesday, May 14, 2003 9:45 AM

Grounding Methods

There are several methods for grounding. Use one or more of the following methods when handling or installing electrostatic-sensitive parts:

Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis. Wrist straps are flexible straps with a minimum of 1 megohm ± 10 percent resistance in the ground cords. To provide proper grounding, wear the strap snug against the skin.

Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet when standing on conductive floors or dissipating floor mats.

Use conductive field service tools.

Use a portable field service kit with a folding static-dissipating work mat.

If you do not have any of the suggested equipment for proper grounding, have an authorized reseller install the part.

Note: For more information on static electricity, or for assistance with product installation, contact your authorized reseller.

48

NAS 1000s Quick Start Guide

Dexter_5.5x8.5_book.book Page 49 Wednesday, May 14, 2003 9:45 AM

index

A audience

8

authorized reseller, HP 13

B before you begin

27

C cautions data loss

23

file corruption

23

configuration collect information

28

from RapidLaunch CD

29 configuration methods 29

direct access method

33

remote access method 31

WebUI 29

configuration See also configuration tasks

29

configuration setup

29 ,

35

configuration tasks complete the system

configuration 34

preinitialization

27

configuring the NAS 1000s

22

connectors keyboard

21

mouse

21

NICs 21 power 21

RJ45 21

NAS 1000s Quick Start Guide

serial 21

USB

21 video 21

conventions

document 9

equipment symbols

10

text symbols

10

D deployment

NAS 1000s

20

DHCP (dynamic host configuration protocol) defined

28

document conventions

9

prerequisites

8

related documentation

8

dynamic host configuration

protocol See DHCP 28

E equipment symbols

10

Ethernet connectors, illustrated 30

Ethernet Network Connectors, table

30

Ethernet ports configuring

28

loopback cables

30

European Union Notice

43

expansion slots, locations 21

49

Dexter_5.5x8.5_book.book Page 50 Wednesday, May 14, 2003 9:45 AM

F features hardware

16

optional

17

redundancy

19

software

17

G

getting help 12

H hard drives handling

36

replacing

37

help, obtaining

12

host configuration protocols,

DHCP and nonDHCP

28

hot-plug hard drive replacing

35

HP authorized reseller

13

storage website

13

technical support

12

K keyboard connector

21

M

mouse connector 21

N

NAS 1000s configuration

29

defined

16

dependencies and requirements

20 deployment 20

setup and configuration

overview 22

software features

17

NAS 1000s device, illustrated

18

50

NAS 1000s rear view, illustrated

21

O options, configuration

15

P power connector

21

preinitialization collect information for configuration

27

preinitialization tasks

27

prerequisites

8

product definition

16

product overview

15

R

rack stability, warning 12

Rapid Startup configuration review screen, illustrated

33

Rapid Startup wizard screen,

illustrated 32

RapidLaunch device discovery screen, illustrated

31

redundancy

19

related documentation

8

replacing hard drives, guidelines

35

requirements

IP networking and setup 20

storage

20

requirements and dependencies

20

RJ45 connectors location

21

S serial connector

21

setup and configuration, NAS

1000s

22

setup, related documents

22

slot locations

NAS 1000s Quick Start Guide

Dexter_5.5x8.5_book.book Page 51 Wednesday, May 14, 2003 9:45 AM

PCI slot 1

21

PCI slots 2 and 3

21

snapshots effects on virtual disk

24

facts

24

write locality

24

storage management file sharing elements

25

file system elements

25

Logical Storage elements

24

logical storage elements 23

persistent storage management elements

24

storage management and Virtual
