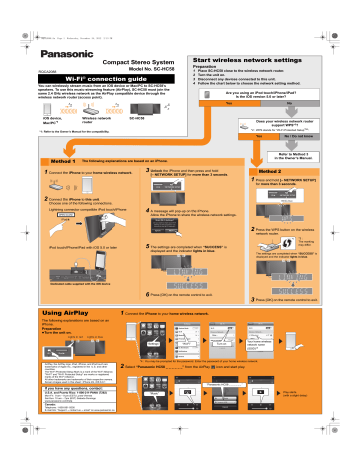

SC-HC58 - Panasonic
RQCA2088.fm
Page 1
Wednesday, December 19, 2012
2:15 PM
Start wireless network settings
Compact Stereo System
Preparation
Model No. SC-HC58
RQCA2088
1
2
3
4
Wi-Fi® connection guide
You can wirelessly stream music from an iOS device or Mac/PC to SC-HC58’s
speakers. To use this music-streaming feature (AirPlay), SC-HC58 must join the
same 2.4 GHz wireless network as the AirPlay compatible device through the
wireless network router (access point).
Place SC-HC58 close to the wireless network router.
Turn the unit on.
Disconnect any devices connected to this unit.
Follow the chart below to choose the network setting method.
Are you using an iPod touch/iPhone/iPad?
Is the iOS version 5.0 or later?
Yes
iOS device,
Mac/PC*1
Wireless network
router
SC-HC58
No
Does your wireless network router
support WPS*2?
*2 : WPS stands for “Wi-Fi Protected SetupTM”.
*1: Refer to the Owner’s Manual for the compatibility.
Yes
Method 1
No / Do not know
Refer to Method 3
in the Owner’s Manual.
The following explanations are based on an iPhone.
1 Connect the iPhone to your home wireless network.
3 Unlock the iPhone and then press and hold
[– NETWORK SETUP] for more than 3 seconds.
Method 2
1 Press and hold [– NETWORK SETUP]
for more than 3 seconds.
2 Connect the iPhone to this unit.
Blinks blue
Choose one of the following connections.
Lightning connector compatible iPod touch/iPhone
4 A message will pop-up on the iPhone.
Allow the iPhone to share the wireless network settings.
2 Press the WPS button on the wireless
network router.
*3
iPod touch/iPhone/iPad with iOS 5.0 or later
5 The settings are completed when “SUCCESS” is
displayed and the indicator lights in blue.
*3 :
The marking
may differ.
The settings are completed when “SUCCESS” is
displayed and the indicator lights in blue.
iPad
Dedicated cable supplied with the iOS device
6 Press [OK] on the remote control to exit.
Using AirPlay
3 Press [OK] on the remote control to exit.
1 Connect the iPhone to your home wireless network.
The following explanations are based on an
iPhone.
Preparation
≥Turn the unit on.
Lights in red
Lights in blue
“Settings”
“Wi-Fi”
Turn on
Your home wireless
network name
(SSID)*4
*4 : You may be prompted for the password. Enter the password of your home wireless network.
AirPlay, the AirPlay logo, iPad, iPhone, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other
countries.
The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance.
"Wi-Fi" and "Wi-Fi Protected Setup" are marks or registered
marks of the Wi-Fi Alliance.
All other trademarks are trademarks of their respective owners.
Screen images used in this sheet : iPhone 4S, iOS 6.0.1
2 Select “Panasonic HC58 _ _ _ _ _ _” from the AirPlay
icon and start play.
“Panasonic HC58 _ _ _ _ _ _ ”
If you have any questions, contact:
U.S.A. and Puerto Rico: 1-800-211-PANA (7262)
Mon-Fri: 9 am – 9 pm (EST) Lunes-Viernes
Sat-Sun: 10 am – 7pm (EST) Sabado-Domingo
www.panasonic.com/help
Canada:
Telephone: 1-800-561-5505
E-mail link: “Support -. contact us -. email” on www.panasonic.ca
“Music”
Play starts.
(with a slight delay)
