Sony STR-DH510 Stereo Receiver User manual

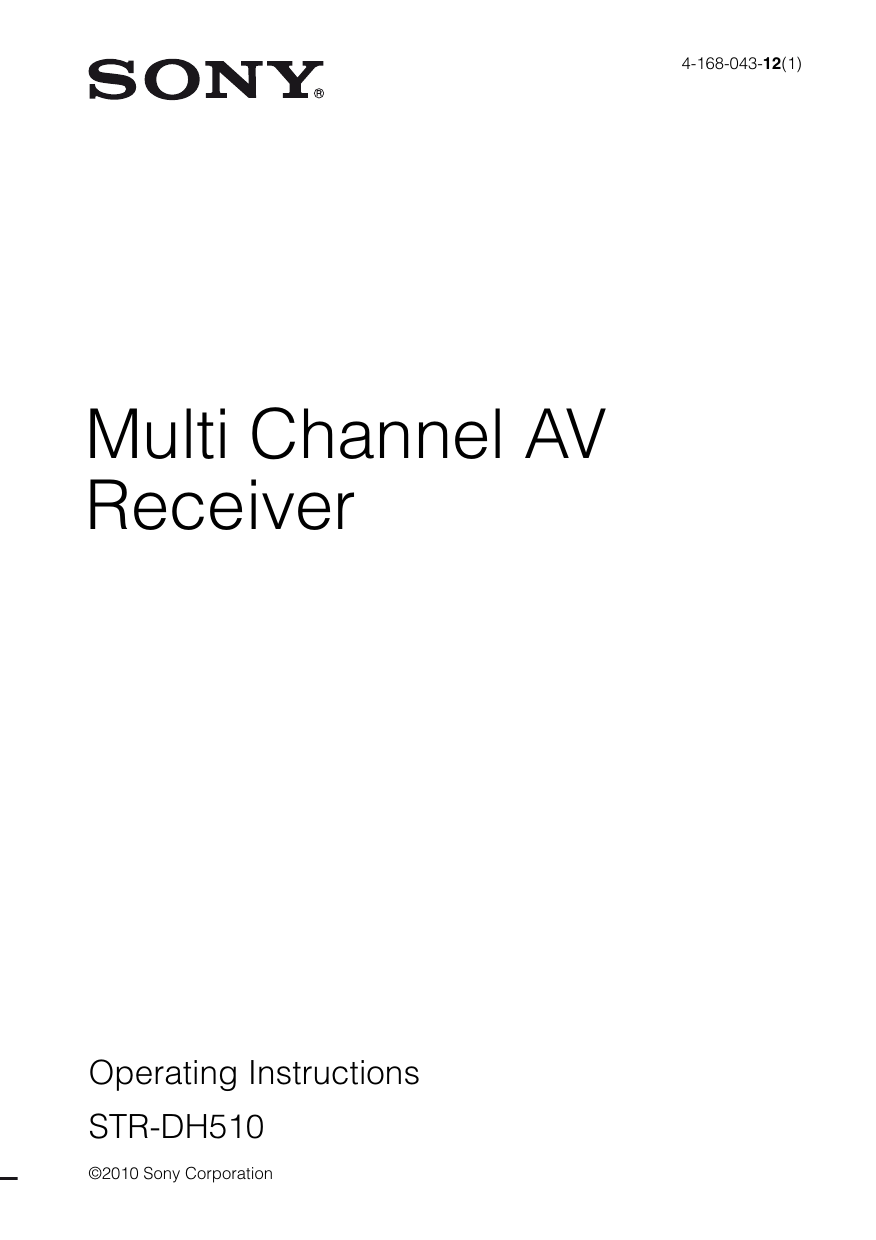

4-168-043-12(1)
Multi Channel AV
Receiver
Operating Instructions
STR-DH510
©2010 Sony Corporation
For customers in the United
States
WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
To reduce the risk of fire, do not cover the
ventilation opening of the apparatus with
newspapers, tablecloths, curtains, etc. Do not place
the naked flame sources such as lighted candles on
the apparatus.
Owner’s Record
The model and serial numbers are located on the rear
of the unit. Record these numbers in the space
provided below. Refer to them whenever you call
upon your Sony dealer regarding this product.
Model No.
Serial No.
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
Do not install the appliance in a confined space, such
as a bookcase or built-in cabinet.
To reduce the risk of fire or electric shock, do not
expose this apparatus to dripping or splashing, and
do not place objects filled with liquids, such as
vases, on the apparatus.
As the main plug is used to disconnect the unit from
the mains, connect the unit to an easily accessible
AC outlet. Should you notice an abnormality in the
unit, disconnect the main plug from the AC outlet
immediately.
Do not expose batteries or apparatus with batteryinstalled to excessive heat such as sunshine, fire or
the like.
The unit is not disconnected from the mains as long
as it is connected to the AC outlet, even if the unit
itself has been turned off.
Excessive sound pressure from earphones and
headphones can cause hearing loss.
This symbol is intended to alert
the user to the presence of the Hot
Surface that may be hot if it is
touched during the normal
operation.
2GB
Important Safety Instructions
1)
2)
3)
4)
5)
6)
7)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9) Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third
prong are provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10)Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11)Only use attachments/accessories specified by
the manufacturer.
12)Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13)Unplug this apparatus during lightning storms or
when unused for long periods of time.
14)Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
The following FCC statement
applies only to the version of
this model manufactured for
sale in the U.S.A. Other
versions may not comply with
FCC technical regulations.
NOTE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment
and receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
You are cautioned that any changes or modifications
not expressly approved in this manual could void
your authority to operate this equipment.
To reduce the risk of electric shock, the speaker cord
should be connected to the apparatus and the
speakers in accordance with the following
instructions.
1) Disconnect the AC power cord from the MAINS.
2) Strip 10 to 15 mm of the wire insulation of the
speaker cord.
3) Connect the speaker cord to the apparatus and
the speakers carefully so as not to touch the core
of speaker cord by hand. Also disconnect the AC
power cord from the MAINS before
disconnecting the speaker cord from the
apparatus and the speakers.
For customers in Europe
Disposal of Old Electrical &
Electronic Equipment
(Applicable in the European
Union and other European
countries with separate
collection systems)
This symbol on the product or on its packaging
indicates that this product shall not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help
prevent potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. The recycling of materials
will help to conserve natural resources. For more
detailed information about recycling of this product,
please contact your local Civic Office, your
household waste disposal service or the shop where
you purchased the product.
continued
3GB
Disposal of waste batteries
(applicable in the European
Union and other European
countries with separate
collection systems)
This symbol on the battery or on the packaging
indicates that the battery provided with this product
shall not be treated as household waste.
On certain batteries this symbol might be used in
combination with a chemical symbol. The chemical
symbols for mercury (Hg) or lead (Pb) are added if
the battery contains more than 0.0005% mercury or
0.004% lead.
By ensuring these batteries are disposed of correctly,
you will help prevent potentially negative
consequences for the environment and human health
which could otherwise be caused by inappropriate
waste handling of the battery. The recycling of the
materials will help to conserve natural resources.
In case of products that for safety, performance or
data integrity reasons require a permanent
connection with an incorporated battery, this battery
should be replaced by qualified service staff only.
To ensure that the battery will be treated properly,
hand over the product at end-of-life to the applicable
collection point for the recycling of electrical and
electronic equipment.
For all other batteries, please view the section on
how to remove the battery from the product safely.
Hand the battery over to the applicable collection
point for the recycling of waste batteries.
For more detailed information about recycling of
this product or battery, please contact your local
Civic Office, your household waste disposal service
or the shop where you purchased the product.
Notice for customers: The following
information is only applicable to
equipment sold in countries applying
EU Directives.
The manufacturer of this product is Sony
Corporation, 1-7-1 Konan Minato-ku Tokyo,
108-0075 Japan. The Authorized Representative for
EMC and product safety is Sony Deutschland
GmbH, Hedelfinger Strasse 61, 70327 Stuttgart,
Germany. For any service or guarantee matters
please refer to the addresses given in separate
service or guarantee documents.
4GB
For customers in Australia
Disposal of Old Electrical &
Electronic Equipment
(Applicable in the European
Union and other European
countries with separate
collection systems)
On Copyrights
About This Manual
• The instructions in this manual are for model
STR-DH510. Check your model number by
looking at the lower right corner of the front panel.
• In this manual, models of area code ECE is used
for illustration purposes unless stated otherwise.
Any difference in operation is clearly indicated in
the text, for example, “Models of area code ECE
only”.
• The instructions in this manual describe the
controls on the supplied remote. You can also use
the controls on the receiver if they have the same
or similar names as those on the remote.
About area codes
The area code of the receiver you purchased is
shown on the lower right portion of the rear panel
(see the illustration below).
FRONT
L
CENTER
SURROUND
R
L
R
SPEAKERS
4-XXX-XXX-XX (X) AA
Area code
Any differences in operation, according to the area
code, are clearly indicated in the text, for example,
“Models of area code AA only”.
This receiver incorporates Dolby* Digital and Pro
Logic Surround and the DTS** Digital Surround
System.
* Manufactured under license from Dolby
Laboratories. Dolby, Pro Logic, and the doubleD symbol are trademarks of Dolby Laboratories.
** Manufactured under license under U.S. Patent
#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,487,535 & other U.S. and worldwide patents
issued & pending. DTS and DTS Digital
Surround are registered trademarks and the DTS
logos and Symbol are trademarks of DTS, Inc.
© 1996-2008 DTS, Inc. All Rights Reserved.
This receiver incorporates High-Definition
Multimedia Interface (HDMITM) technology.
HDMI, the HDMI Logo, and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC in the United
States and other countries.
“x.v.Colour (x.v.Color)” and “x.v.Colour
(x.v.Color)” logo are trademarks of Sony
Corporation.
“BRAVIA” is a trademark of Sony Corporation.
“PLAYSTATION” is a trademark of Sony
Computer Entertainment Inc.
5GB
Table of Contents
About This Manual........................................5
Supplied accessories......................................7
Description and location of parts...................8
Connections
1: Installing the speakers .............................17
2: Connecting the speakers ..........................19
3: Connecting the TV ..................................20
4a: Connecting the audio components.........22
4b: Connecting the video components ........23
5: Connecting the antennas (aerials)............29
6: Connecting the AC power cord
(mains lead) ............................................29
Preparing the Receiver
Initializing the receiver ................................30
Calibrating the appropriate speaker
settings automatically
(AUTO CALIBRATION) .......................30
(Models of area code ECE, CEK, AU1
only)
Adjusting the speaker levels
(TEST TONE) ........................................34
Basic Operations
Playback ......................................................35
Viewing information on the display ............36
Using the Sleep Timer .................................37
Recording ....................................................37
Tuner Operations
Listening to FM/AM radio ..........................38
Presetting FM/AM radio stations ................40
Using the Radio Data System (RDS) ..........42
(Models of area code ECE, CEK, AU1
only)
6GB
Enjoying Surround Sound
Selecting the sound field............................. 42
Enjoying the surround effect at low
volume levels (NIGHT MODE) ............ 46
Resetting sound fields to the initial
settings ................................................... 46
“BRAVIA” Sync Features
What is “BRAVIA” Sync? .......................... 47
Preparing for the “BRAVIA” Sync ............. 47
Playing back components with one-touch
operation (One-Touch Play)................... 48
Enjoying the TV sound from the speakers
connected to the receiver
(System Audio Control)......................... 49
Turning off the receiver with the TV
(System Power Off) ............................... 50
Enjoying movies with the optimum sound
field (Theater/Theatre Mode Sync)........ 51
Enjoying the TV sound via an HDMI
cable (Audio Return Channel) ............... 51
Advanced Operations
Switching between digital and analog
audio (INPUT MODE) .......................... 52
Enjoying the sound from other inputs......... 53
Enjoying sound/images from the
components connected to the DIGITAL
MEDIA PORT ....................................... 55
Using the setting menu ............................... 55
Using the Remote
Changing the input button assignments ...... 66
Clearing all the contents of the remote’s
memory .................................................. 67
Supplied accessories
• Operating Instructions (this manual)
• Quick Setup Guide
• FM wire antenna (aerial) (1)
Additional Information
Glossary ...................................................... 67
Precautions .................................................. 69
Troubleshooting .......................................... 70
Specifications .............................................. 75
Index............................................................ 77
• AM loop antenna (aerial) (1)
• Remote commander (1)
– RM-AAU071 (Models of area code U2,
CA2 only)
– RM-AAU074 (Models of area code ECE,
CEK, AU1 only)
• R6 (size-AA) batteries (2)
• Optimizer microphone (ECM-AC2)
(Models of area code ECE, CEK, AU1 only)
(1)
7GB
Description and location of parts
Front panel
1
2
3
4
5
MASTER VOLUME
?/1
INPUT SELECTOR
INPUT MODE
TUNING MODE
TUNING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D.
MOVIE
MUSIC
DISPLAY
DIMMER
MUTING
8
7
6
PHONES
qs
qa
q;
A ?/1 (on/standby) (page 30, 39, 46, 67)
B INPUT SELECTOR (page 35)
C Display (page 9)
D Remote sensor
Receives signals from remote commander.
E MASTER VOLUME (page 34, 35)
F MUTING (page 35)
G DIMMER (page 65)
H DISPLAY (page 36)
I 2CH/A.DIRECT, A.F.D., MOVIE, MUSIC
(page 42)
J TUNING MODE, TUNING +/–, MEMORY/
ENTER (page 38)
K INPUT MODE (page 52)
L PHONES jack (page 71)
8GB
9
Indicators on the display
1
SW
L
C
R
SL
S
SR
2
3
4
LFE
COAX
HDMI
OPT
DTS
5
LPCM
q;
6
PL II
D
ST
RDS
9
SLEEP
D.RANGE
8
Indicator and explanation
Indicator and explanation
A Playback channel indicators
The letters (L, C, R, etc.) indicate the channels
being played back. The boxes around the letters
vary to show how the receiver downmixes or
upmixes the source sound (based on the speaker
settings).
C Input indicators
Light up to indicate the current input.
SW
L
R
C
SL
SR
S
Subwoofer
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the
surround components
obtained by Pro Logic
processing)
Example:
Speaker pattern: 3/0.1
Recording format: 3/2.1
Sound Field: A.F.D. AUTO
SW
L
SL
B
C
LFE
R
SR
LFE
Lights up when the disc being played back
contains an LFE (Low Frequency Effect)
channel and the LFE channel signal is actually
being reproduced.
7
HDMI
Lights up when
– INPUT MODE is set to AUTO and the
receiver recognizes a component connected
via an HDMI IN jack (page 23, 52).
– TV input detected Audio Return Channel
(ARC) signals (page 51).
COAX
Lights up when input mode is set to “AUTO” or
“COAX” and the source signals is a digital
signal being input through the COAXIAL jack
(page 52).
OPT
Lights up when input mode is set to “AUTO” or
“OPT” and the source signals is a digital signal
being input through the OPTICAL jack (page
52).
D DTS
Lights up when the receiver is decoding DTS
signals.
Note
When playing a DTS format disc, be sure that
you have made digital connections and that
INPUT MODE is set to “AUTO” (page 52).
E Dolby Pro Logic indicators
Lights up one of the respective indicators when
the receiver performs Dolby Pro Logic
processing. This matrix surround decoding
technology can enhance input signals.
PL
PL II
Dolby Pro Logic
Dolby Pro Logic II
Note
These indicators do not light up when the center
speaker and surround speaker is not selected.
continued
9GB
Indicator and explanation
F SLEEP
Lights up when the sleep timer is activated (page
37, 65).
G D.RANGE
Lights up when dynamic range compression is
activated (page 59).
H Tuning indicators
Lights up when the receiver tunes in radio
stations.
ST
Stereo broadcast
RDS (Models of area code ECE, CEK,
AU1 only)
A station that provides RDS services is tuned in.
Preset station number
Note
The preset station number will change
according to the preset station you select.
For details on presetting radio stations, see page
40.
I
D
Lights up when the receiver is decoding Dolby
Digital signals.
Note
When playing a Dolby Digital format disc, be
sure that you have made digital connections and
that INPUT MODE is not set to “ANALOG”
(page 52).
J LPCM
Lights up when Linear PCM signals are
detected.
10GB
Rear panel
1
3
2
1, 2
AM
HDMI
DVD IN
BD IN
SAT/CATV IN
ANTENNA
TV OUT
ARC
Y
IN
TV
PB/
CB
OPTICAL
SAT/
CATV
IN
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
PR/
CR
FRONT
OPTICAL
SAT/CATV IN
DVD
IN
DVD IN
MONITOR
OUT
L
DVD
COMPONENT VIDEO
COAXIAL
AUDIO
IN
DIGITAL (ASSIGNABLE)
AUDIO
IN
AUDIO
IN
MONITOR
AUDIO
OUT
AUDIO
IN
CENTER
SURROUND
R
L
AUDIO
OUT
L
R
R
DC5V
0.7A MAX
DMPORT
AUTO CAL
MIC
SA-CD/CD
TV
VIDEO
SAT/CATV
6 5
SUBWOOFER
1
A Audio signal section
DIGITAL INPUT/OUTPUT jacks (page 20,
23, 26, 27)
HDMI IN/OUT
OPTICAL IN
COAXIAL IN
ANALOG INPUT/OUTPUT jacks (page 19,
20, 22, 27)
White (L)
Red (R)
Black
AUDIO
IN/OUT
AUDIO OUT
SPEAKERS
4
B Video signal section*
The image quality depends on the connecting
jack.
DIGITAL INPUT/OUTPUT
jacks (page 20, 23)
HDMI IN/OUT
COMPONENT VIDEO
INPUT/OUTPUT jacks (page
20, 26, 27)
Green
(Y)
Blue
(PB/CB)
Y, PB/CB, PR/CR
IN/OUT
High
quality
Red
(PR/CR)
COMPOSITE VIDEO INPUT/
OUTPUT jacks (page 20, 26,
27, 28)
Yellow
VIDEO IN/OUT
continued
11GB
C ANTENNA section (page 29)
FM ANTENNA jack
AM ANTENNA terminals
D SPEAKERS section (page 19)
E AUTO CAL MIC section (page 31)
(Models of area code ECE, CEK,
AU1 only)
Remote commander
You can use the supplied remote to operate the
receiver and to control the Sony audio/video
components that the remote is assigned to
operate.
RM-AAU071 (Models of area
code U2, CA2 only)
RM-AAU074 (Models of area
code ECE, CEK, AU1 only)
wk
1
wj
2
BD
DVD
SAT/
CATV
TV
VIDEO
SA-CD/
CD
DMPORT
TUNER
AUTO CAL MIC jack
F DMPORT section (page 22)
DMPORT jack
* You can watch the selected input image when you
connect the HDMI TV OUT or MONITOR OUT
jack to a TV (page 20, 23).
3
4
5
6
7
8
9
wh
wg
wf
wd
0
ws
qa
qs
wa
qd
O
qf
MENU
m
M
qg
.
12GB
X
x
>
w;
ql
qh
qk
qj
Using the SHIFT (Q) and TV
(R) button
SHIFT (Q) button
Press and hold SHIFT (Q), then press the
button with pink printing that you want to use.
Example: Press and hold SHIFT (Q), then
press ENTER (E).
TV (R) button
Press and hold TV (R), then press the button
with yellow printing to control the TV.
Example: Press and hold TV (R), then press
TV CH + (RM-AAU071 only) or PROG +
(RM-AAU074 only) (P).
.
X
x
>
TV CH/PROG
DMPORT
TUNER
ENTER
TV
To control the receiver
O
MENU
Name and function
m
.
M
X
x
B ?/1b) (on/standby)
Turns the receiver on or sets it to standby mode.
>
Saving the power in standby mode
When “CTRL.HDMI” is set to “CTRL OFF”
(page 58).
SHIFT
C Input buttons (VIDEOa))
Selects the component you want to use. When
you press any of the input buttons, the receiver
turns on. The buttons are initial assigned to
control Sony components.
D Numeric buttonsc) (number 5a))
Presets or tunes to preset stations.
E ENTERc)
Enters the selection.
F MEMORY
Stores a station.
G D.TUNING
Enters direct tuning mode.
I DISPLAY
Views information on the display.
K AMP MENU
Displays the menu to operate the receiver.
L
, V/v/B/b
Press V/v/B /b to select the settings, then press
to enter the selection.
continued
13GB
Name and function
N
MENU/HOMEd)
Displays the menu to operate the receiver.
O TUNING +/–
Scans a station.
PRESET +/–
Selects preset stations.
To control a Sony TV
Press and hold TV (R) and then press the
yellow printing button to select the function
you want.
Name and function
A TV ?/1 (on/standby)
Turns on or off the TV.
P SOUND FIELD +a)/–
Selects a sound field (page 42).
D Numeric buttons (number 5a))
Selects the TV channels.
S MUTING (RM-AAU071 only)
(RM-AAU074 only)
Turns off the sound temporarily.
Press MUTING/
again to restore the sound.
E ENTER (RM-AAU071 only)
Enters the selections.
T MASTER VOL +/– (RM-AAU071 only)
+/– (RM-AAU074 only)
Adjust the volume level of all speakers at the
same time.
U RETURN/EXIT O
Returns to the previous menu.
a) The
following buttons have tactile dots:
– RM-AAU071: 5/VIDEO, AUDIO, N and
TV CH +/SOUND FIELD +
– RM-AAU074: 5/VIDEO,
, N and
PROG +/SOUND FIELD +/c
Use the tactile dots as references when operating
the receiver.
b)
If you press AV ?/1 (A) and ?/1 (B)
simultaneously, the receiver and connected
components will turn off (SYSTEM STANDBY).
c)
Press and hold SHIFT (Q) then press this button.
d) Press AMP MENU (K) to activate this button.
(Previous channel) (RM-AAU074
only)
Returns to the previous channel watched (for
more than five seconds).
I DISPLAY (RM-AAU071 only)
Displays the information of TV.
/
(Info/Text reveal) (RM-AAU074
only)
In digital mode: Displays brief details of the
program currently being watched.
In analog mode: Displays information such as
current channel number and screen format.
In text mode: Reveals hidden information (e.g.
answers to a quiz).
J Color buttons
Displays an operation guide on the TV screen
when the color buttons are available. Follow the
operation guide to perform a selected operation.
M TOOLS/OPTIONS
Displays the TV options.
N MENU/HOME
Displays the TV menus.
P TV CH +a)/– (RM-AAU071 only)
Selects the next (+) or previous (–) channel.
PROG +a)/–, ca)/C (RM-AAU074 only)
In TV mode: Selects the next (+) or previous
(–) channel.
In text mode: Selects the next (c) or previous
(C) channel.
S MUTING (RM-AAU071 only)
(RM-AAU074 only)
Activates the TV’s muting function.
T TV VOL +/– (RM-AAU071 only)
(RM-AAU074 only)
Adjust the volume.
U RETURN/EXIT O
Returns to the previous TV menu.
14GB
Name and function
V GUIDE (RM-AAU071 only)
(RM-AAU074 only)
Displays the guide when you are watching
analog or digital channel.
W AUDIOa) (RM-AAU071 only)
a) (RM-AAU074 only)
Selects the desired audio signal.
Y DIGITAL (RM-AAU074 only)
Changes to digital mode.
ANALOG (RM-AAU074 only)
Changes to analog mode.
Z / (Text) (RM-AAU074 only)
Displays text.
wj THEATER (RM-AAU071 only)
THEATRE (RM-AAU074 only)
Sets the optimal picture settings automatically
for watching movies when you connect a Sony
TV that is compatible with the THEATER/
THEATRE button function (page 51).
wk INPUT (RM-AAU071 only)
Selects the input signal (TV or video).
/
(Input select/Text hold)
(RM-AAU074 only)
In TV mode: Selects the input signal (TV or
video).
In analog text mode: Holds the current page.
a) The
following buttons have tactile dots:
– RM-AAU071: 5/VIDEO, AUDIO, N and
TV CH +/SOUND FIELD +
– RM-AAU074: 5/VIDEO,
, N and
PROG +/SOUND FIELD +/c
Use the tactile dots as references when operating
the receiver.
continued
15GB
To control other Sony components
Name
Blu-ray disc,
DVD player
Satellite tuner,
Cable TV tuner
VCR
CD player
A AV ?/1b)
Power
Power
Power
Power
D Numeric buttonsc)
(number 5a))
Track
Channel
Channel
Track
E ENTERc)
Enter
Enterd)
Enter
Enter
H ANGLEd)
Select angle
–
–
–
I DISPLAY
Display
Display
Display
Display
J Color buttons
Menu, guide
Menu, guidee)
–
–
L
Enter
Enter
Enter
–
Select
Select
Select
–
M TOOLS/OPTIONS
Options
menu
Options
menud)
–
–
N MENU/HOME
Menu
Menu
Menu
–
Search forward,
backward
–
Fast forward,
rewind
Fast forward,
rewind
Na)f)
Play
–
Play
Play
./>f)
Skip track
–
Skip track
Skip track
Xf)
Pause
–
Pause
Pause
xf)
e)
V/v/B/b
O m/M
f)
Stop
–
Stop
Stop
U RETURN/EXIT O
Exit menu
Exit menu,
Live TVd)
–
–
V GUIDEd)
Program
schedule
Display
guide menu
–
–
W AUDIOa)d)
Select audio
–
–
–
X SUBTITLEd)
Select subtitle
–
–
–
Y TOP MENU
On-screen guide
–
–
–
Menu
–
–
–
Clear
Clear
–
–
e)
e)
e)
POP UP/MENU
Z CLEARc)
a)
The following buttons have tactile dots:
– RM-AAU071: 5/VIDEO, AUDIO, N and
TV CH +/SOUND FIELD +
– RM-AAU074: 5/VIDEO,
, N and
PROG +/SOUND FIELD +/c
Use the tactile dots as references when operating
the receiver.
b)
If you press AV ?/1 (A) and ?/1 (B)
simultaneously, the receiver and connected
components will turn off (SYSTEM STANDBY).
The function of the AV ?/1 (A) changes
automatically each time you press the input
buttons (C).
c)
Press and hold SHIFT (Q) then press this button.
16GB
d)
RM-AAU071 only.
RM-AAU074 only.
f) This button is also available for DIGITAL MEDIA
PORT adapter operation. For details on the
function of the button, refer to the operating
instructions supplied with the DIGITAL MEDIA
PORT adapter.
e)
Notes
• Some functions explained in this section may not
work depending on the model.
• The above explanation is intended to serve as an
example only. Therefore, depending on the
component, the above operation may not be
possible or may operate differently than described.
Inserting batteries into the
remote
Connections
1: Installing the speakers
This receiver allows you to use a 5.1 channel
system (5 speakers and one subwoofer).
To fully enjoy theater-like multi channel
surround sound requires five speakers (two
front speakers, a center speaker, and two
surround speakers) and a subwoofer (5.1
channel).
Example of a 5.1 channel
speaker system configuration
Notes
• Do not leave the remote in an extremely hot or
humid place.
• Do not use a new battery with old ones.
• Do not mix manganese batteries and other kinds of
batteries.
• Do not expose the remote sensor to direct sunlight
or lighting apparatuses. Doing so may cause a
malfunction.
• If you do not intend to use the remote for an
extended period of time, remove the batteries to
avoid possible damage from battery leakage and
corrosion.
• When you replace the batteries, the remote buttons
may be reset to their initial settings. If this happens,
reassign the buttons again (page 66).
• When the remote no longer operates the receiver,
replace all the batteries with new ones.
AFront speaker (Left)
BFront speaker (Right)
CCenter speaker
DSurround speaker (Left)
ESurround speaker (Right)
FSubwoofer
continued
17GB
Connections
Insert two R6 (size-AA) batteries in the
RM-AAU071 (Models of area code U2, CA2
only) or RM-AAU074 (Models of area code
ECE, CEK, AU1 only) Remote Commander.
Observe the correct polarity when installing
batteries.
Note
Tips
To enjoy better surround sound, the distance
between the center speaker and the listening position
B cannot be more than 1.5 meters (5 feet) closer
than the one between the listening position and the
front speaker A. Place the speakers so that the
difference in the length of B in the following
diagram is no more than 1.5 meters (5 feet) closer
than the length of A.
Example: Adjust the distance B to 4.5 meters
(15 feet) or more when the distance A is 6 meters
(20 feet).
Also, the distance between the surround speakers
and the listening position C cannot be more than
4.5 meters (15 feet) closer than the distance between
the listening position and the front speakers A.
Place the speakers so that the difference in the length
of C in the above diagram is no more than
4.5 meters (15 feet) closer than the length of A.
Example: Adjust the distance C to 1.5 meters
(5 feet) or more when the distance A is 6 meters
(20 feet).
This is important because incorrect speaker
placement is not conductive to the enjoyment of
surround sound. Please note that placing the
speakers closer than the required will cause a delay
in the output of the sound from that speaker. In other
words, the speaker will sound like it is farther away.
Adjusting these parameter while listening to the
sound often results in much better surround sound.
• The angle A should be the same.
18GB
A
30˚
100˚-120˚
30˚
A
100˚-120˚
• Since the subwoofer does not emit highly
directional signals, you can place it wherever you
want.
2: Connecting the speakers
Connections
Before connecting the cords, be sure to disconnect the AC power cord (mains lead).
Center speaker
Front speaker
Left
Right
B
AM
B
HDMI
DVD IN
BD IN
SAT/CATV IN
TENNA
TV OUT
ARC
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
FRONT
DVD IN
MONITOR
OUT
L
DVD
NENT VIDEO
AUDIO
IN
AUDIO
IN
AUDIO
IN
CENTER
MONITOR
AUDIO
OUT
AUDIO
IN
SURROUND
R
L
AUDIO
OUT
R
SA-CD/CD
TV
SAT/CATV
VIDEO
SPEAKERS
SUBWOOFER
A
B
Right
Subwoofer*
10 mm
(13/32 in.)
Left
Surround speaker
A Monaural audio cord (not supplied)
B Speaker cord (not supplied)
* When you connect a subwoofer with an auto
standby function, turn off the function when
watching movies. If the auto standby function is
set to on, it turns to standby mode automatically
based on the level of the input signal to a
subwoofer, then sound may not be output.
Notes
• Before connecting the AC power cord (mains
lead), make sure that metalic wires of the speaker
cords are not touching each other between the
SPEAKERS terminals.
• After you have install and connect your speaker, be
sure to select the speaker pattern from SPEAKER
menu (page 60).
19GB
3: Connecting the TV
Before connecting cords, be sure to disconnect the AC power cord (mains lead).
TV
Audio signals
Video signals
Ba)
A
Audio/Video
signals
C
Ea)
D
b)
AM
HDMI
DVD IN
BD IN
SAT/CATV IN
ANTENNA
IN
TV OUT
ARC
Y
TV
OPTICAL
SAT/
CATV
IN
PB/
CB
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
PR/
CR
FRONT
OPTICAL
SAT/CATV IN
DVD
IN
DVD IN
MONITOR
OUT
L
DVD
COMPONENT VIDEO
COAXIAL
AUDIO
IN
DIGITAL (ASSIGNABLE)
AUDIO
IN
AUDIO
IN
CENTER
MONITOR
AUDIO
OUT
AUDIO
IN
SURROUND
R
L
AUDIO
OUT
L
R
R
DC5V
0.7A MAX
DMPORT
AUTO CAL
MIC
SA-CD/CD
TV
SAT/CATV
VIDEO
A Audio cord (not supplied)
B Optical digital cord (not supplied)
C Component video cord (not supplied)
D Video cord (not supplied)
E HDMI cable (not supplied)
We recommend that you use a Sony HDMI
cable.
Recommended connection
Alternative connection
20GB
SUBWOOFER
a)
SPEAKERS
To enjoy TV multi channel surround sound
broadcasting from the speakers connected to the
receiver, connect either B or E.
Be sure to turn off the TV’s volume or activate the
TV’s muting function.
b) If your TV is compatible with the Audio Return
Channel (ARC) function, the TV sound will output
from the speakers connected to the receiver via
HDMI TV OUT connection. In this case, set
“ARC” to “ARC ON” in HDMI menu (page 51).
Notes
Connections
• Be sure to turn on the receiver when the video and
audio signals of a playback component are being
output to a TV via the receiver. Unless the power is
turned on, neither video nor audio signals will be
transmitted.
• Connect image display components such as a TV
monitor or a projector to the HDMI TV OUT or
MONITOR OUT jack on the receiver. You may
not be able to record even if you connect recording
components.
• Depending on the status of the connection between
the TV and the antenna (aerial), the image on the
TV screen may be distorted. In this case, place the
antenna (aerial) farther away from the receiver.
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
21GB
4a: Connecting the audio
components
The following illustration shows how to
connect a Super Audio CD player, CD player
and DIGITAL MEDIA PORT adapter. Before
connecting cords, be sure to disconnect the AC
power cord (mains lead).
Super Audio
CD player,
CD player
TV
B
A
Notes on connecting DIGITAL
MEDIA PORT adapter
• Do not connect an adapter other than the
DIGITAL MEDIA PORT adapter.
• Do not connect or disconnect the DIGITAL
MEDIA PORT adapter while the receiver is
turned on.
• When connecting the DIGITAL MEDIA
PORT adapter, be sure the connector is
inserted with the arrow mark facing towards
the arrow mark on the DMPORT jack.
• Be sure to make DMPORT connections
firmly, insert the connector straight in.
• As the connector of the DIGITAL MEDIA
PORT adapter is fragile, be sure to handle
with care when placing or moving the
receiver.
To detach the DIGITAL MEDIA
PORT adapter from DMPORT
jack
AM
HDMI
DVD IN
BD IN
SAT/CATV IN
ANTENNA
IN
Y
OPTICAL
PB/
CB
TV
SAT/
CATV
IN
2
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
AUDIO
OUT
AUDIO
IN
VIDEO
OUT
DC5V
1
0.7A MAX
DMPORT
PR/
CR
OPTICAL
SAT/CATV IN
DVD
IN
DVD IN
MONITOR
OUT
DVD
COMPONENT VIDEO
COAXIAL
DIGITAL (ASSIGNABLE)
AUDIO
IN
AUDIO
IN
AUDIO
IN
SA-CD/CD
TV
SAT/CATV
MONITOR
AUDIO
OUT
L
R
DC5V
0.7A MAX
DMPORT
AUTO CAL
MIC
DIGITAL MEDIA
PORT adapter
A Audio cord (not supplied)
B Video cord (not supplied)
22GB
VIDEO
SUBWOOFER
Press and hold both sides of the connector and
then pull out the connector.
4b: Connecting the video components
Connect your video components according to
the table below.
Component
Page
Blu-ray disc player*
24
“PlayStation 3”*
24
DVD player*
24, 26
DVD recorder*
24, 26, 28
Satellite tuner*, Cable TV tuner*
24, 27
VCR
28
* We recommend that you connect your video
components via HDMI connection if they have
HDMI jacks.
Notes
• Before connecting cords (mains lead), be sure to
disconnect the AC power cord.
• It is not necessary to connect all the cords. Connect
according to the availability of jacks on the
connected components.
• Be sure to turn on the receiver when the video and
audio signals of a playback component are being
output to a TV via the receiver. Unless the power is
turned on, neither video nor audio signals will be
transmitted.
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
You can watch the selected input image when
you connect the HDMI TV OUT or
MONITOR OUT jack to a TV (page 20).
Connecting components with
HDMI jacks
If you want to connect several
digital components, but cannot
find an unused input
HDMI is the abbreviated name for HighDefinition Multimedia Interface. It is an
interface which transmits video and audio
signals in digital format.
See “Enjoying the sound from other inputs”
(page 53).
HDMI features
• A digital audio signals transmitted by HDMI
can be output from the speakers connected to
the receiver. This signal supports Dolby
Digital, DTS, and Linear PCM.
• This receiver can receive multi channel
Linear PCM with a sampling frequency of
192 kHz or less with an HDMI connection.
• This receiver supports Deep Colour (Deep
Color) and x.v.Colour (x.v.Color).
• This receiver supports the Control for HDMI
function. For details, see ““BRAVIA” Sync
Features” (page 47).
continued
23GB
Connections
Components to be connected
DVD player, DVD recorder
Blu-ray disc player, “PlayStation 3”
Audio/video
signals
Audio/video
signals
Audio/video
signals
A
A
AM
A
HDMI
DVD IN
BD IN
SAT/CATV IN
ANTENNA
IN
Satellite tuner, Cable TV tuner
TV OUT
ARC
Y
TV
OPTICAL
SAT/
CATV
IN
P B/
CB
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
OUT
VIDEO
IN
PR/
CR
FRONT
OPTICAL
SAT/CATV IN
DVD
IN
DVD IN
MONITOR
OUT
L
DVD
COMPONENT VIDEO
COAXIAL
AUDIO
IN
DIGITAL (ASSIGNABLE)
AUDIO
IN
AUDIO
IN
CENTER
MONITOR
AUDIO
OUT
AUDIO
IN
SURROUND
R
L
AUDIO
OUT
L
R
R
DC5V
0.7A MAX
DMPORT
AUTO CAL
MIC
SA-CD/CD
TV
SAT/CATV
VIDEO
SPEAKERS
SUBWOOFER
A
Audio/video
signals
TV, etc.*
A HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
* See page 20 for the audio connection of the TV to
the receiver.
24GB
Notes
• The initial setting for the DVD input button is as
follows:
– RM-AAU071: DVD player
– RM-AAU074: DVD recorder
Be sure to change the initial setting of the DVD
input button on the remote so that you can use the
button to control your DVD player/recorder.
For details, see “Changing the input button
assignments” (page 66).
• You can also rename the DVD input so that it can
be displayed on the receiver’s display. For details,
see “Naming inputs” (page 36).
Notes on connecting cables
Notes on HDMI connections
• An audio signal input to the HDMI IN jack
is output from the SPEAKERS jacks and
HDMI TV OUT jack. It is not output from
any other audio jacks.
• Video signals input to the HDMI IN jack can
only be output from the HDMI TV OUT
jack. The video input signals cannot be
output from the VIDEO OUT jacks or
MONITOR OUT jacks.
• When you want to listen to the sound from
the TV speaker, set “AUDIO.OUT” to
“TV+AMP” in the HDMI menu (page 64). If
you cannot play back multi channel
software, set to “AMP”. However, the sound
will not output from the TV speaker.
• Be sure to turn on the receiver when video
and audio signals of a playback component
are being output to a TV through this
receiver. If you set “PASS.TRHU” to
“OFF”, video and audio signal will not be
transmitted when the power is set to off.
• DSD signals of Super Audio CD are not
input and output.
• The multi/stereo area audio signals of a
Super Audio CD are not output.
• Audio signals (sampling frequency, bit
length, etc.) transmitted from an HDMI jack
may be suppressed by the connected
component. Check the setup of the
connected component if the image is poor or
the sound does not come out of a component
connected via the HDMI cable.
• Sound may be interrupted when the
sampling frequency, the number of channels
or audio format of audio output signals from
the playback component is switched.
• When the connected component is not
compatible with copyright protection
technology (HDCP), the image and/or the
sound from the HDMI TV OUT jack may be
distorted or may not be output.
In this case, check the specification of the
connected component.
• The image resolution of player may need
certain settings be made before you can
enjoy multi channel Linear PCM. Refer to
the operating instructions of the player.
• Not every HDMI component supports all
functions that are defined by the specified
HDMI version. For example, components
that support HDMI, version 1.4, may not
support Audio Return Channel (ARC).
• Refer to the operating instructions of each
connected component for details.
25GB
Connections
• Use a High Speed HDMI cable. If you use a
Standard HDMI cable, 1080p or Deep
Colour (Deep Color) images may not be
displayed properly.
• Sony recommends that you use an HDMI
authorized cable or Sony HDMI cable.
• We do not recommend using an HDMI-DVI
conversion cable. When you connect an
HDMI-DVI conversion cable to a DVI-D
component, the sound and/or the image may
not be output. Connect other audio cords or
digital connecting cords, then set
“A. ASSIGN” in AUDIO menu (page 63)
when the sound is not output correctly.
Connecting a DVD player, DVD recorder
The following illustration shows how to connect a DVD player or DVD recorder.
DVD player, DVD recorder
Audio signals
A
Video signals
B*
C
D
AM
HDMI
DVD IN
BD IN
SAT/CATV IN
ANTENNA
IN
TV OUT
ARC
Y
TV
OPTICAL
SAT/
CATV
IN
PB/
CB
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
PR/
CR
FRONT
OPTICAL
SAT/CATV IN
DVD
IN
DVD IN
MONITOR
OUT
L
DVD
COMPONENT VIDEO
COAXIAL
AUDIO
IN
DIGITAL (ASSIGNABLE)
AUDIO
IN
AUDIO
IN
MONITOR
AUDIO
OUT
AUDIO
IN
CENTER
SURROUND
R
L
AUDIO
OUT
L
R
R
DC5V
0.7A MAX
DMPORT
AUTO CAL
MIC
SA-CD/CD
TV
SAT/CATV
VIDEO
A Coaxial digital cord (not supplied)
B Optical digital cord (not supplied)
C Component video cord (not supplied)
D Video cord (not supplied)
SUBWOOFER
SPEAKERS
Recommended connection
Alternative connection
* When you connect a component equipped with an
OPTICAL jack, set “A. ASSIGN” in the AUDIO
menu (page 63).
Notes
• The initial setting for the DVD input button is as
follows:
– RM-AAU071: DVD player
– RM-AAU074: DVD recorder
Be sure to change the initial setting of the DVD
input button on the remote so that you can use the
button to control your DVD player or DVD
recorder. For details, see “Changing the input
button assignments” (page 66).
26GB
• You can also rename the DVD input so that it can
be displayed on the receiver’s display. For details,
see “Naming inputs” (page 36).
• To input multi channel digital audio from the DVD
player or DVD recorder, set the digital audio output
setting on the DVD player or DVD recorder. Refer
to the operating instructions supplied with the
DVD player or DVD recorder.
Connecting a Satellite tuner, Cable TV tuner
Connections
The following illustration shows how to connect a Satellite tuner or Cable TV tuner.
Satellite tuner, Cable TV tuner
Audio signals
A
Video signals
B
C
D
AM
HDMI
DVD IN
BD IN
SAT/CATV IN
ANTENNA
IN
TV OUT
ARC
Y
TV
OPTICAL
SAT/
CATV
IN
PB/
CB
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
PR/
CR
FRONT
OPTICAL
SAT/CATV IN
DVD
IN
DVD IN
MONITOR
OUT
L
DVD
COMPONENT VIDEO
COAXIAL
AUDIO
IN
DIGITAL (ASSIGNABLE)
AUDIO
IN
AUDIO
IN
MONITOR
AUDIO
OUT
AUDIO
IN
CENTER
SURROUND
R
L
AUDIO
OUT
L
R
R
DC5V
0.7A MAX
DMPORT
AUTO CAL
MIC
SA-CD/CD
TV
SAT/CATV
VIDEO
A Audio cord (not supplied)
B Optical digital cord (not supplied)
C Component video cord (not supplied)
D Video cord (not supplied)
SUBWOOFER
SPEAKERS
Recommended connection
Alternative connection
27GB
Notes
Connecting components with
analog video and audio jack
The following illustration shows how to
connect a component which has analog jacks
such as a VCR, DVD recorder, etc.
• Be sure to change the initial setting of the VIDEO
input button on the remote so that you can use the
button to control your DVD recorder. For details,
see “Changing the input button assignments” (page
66).
• You can also rename the VIDEO input so that it
can be displayed on the receiver’s display. For
details, see “Naming inputs” (page 36).
VCR, DVD recorder
Audio signals
Video signals
A
B
AM
HDMI
DVD IN
BD IN
SAT/CATV IN
ANTENNA
IN
TV OUT
ARC
Y
TV
OPTICAL
SAT/
CATV
IN
PB/
CB
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
PR/
CR
FRONT
OPTICAL
SAT/CATV IN
DVD
IN
DVD IN
MONITOR
OUT
L
DVD
COMPONENT VIDEO
COAXIAL
AUDIO
IN
DIGITAL (ASSIGNABLE)
AUDIO
IN
AUDIO
IN
MONITOR
AUDIO
OUT
AUDIO
IN
CENTER
SURROUND
R
L
AUDIO
OUT
L
R
R
DC5V
0.7A MAX
DMPORT
AUTO CAL
MIC
SA-CD/CD
TV
SAT/CATV
A Video cord (not supplied)
B Audio cord (not supplied)
28GB
VIDEO
SUBWOOFER
SPEAKERS
6: Connecting the AC
power cord (mains lead)
Connect the supplied AM loop antenna
(aerial) and FM wire antenna (aerial).
Before connecting antennas (aerials), be sure
to disconnect the AC power cord (mains lead).
Connect the AC power cord (mains lead) to a
wall outlet.
FM wire antenna (aerial) (supplied)
AM loop antenna (aerial)
(supplied)
Notes
• Before connecting the AC power cord (mains
lead), make sure that metallic wires of the speaker
cords are not touching each other between the
SPEAKERS terminals.
• Connect the AC power cord (mains lead) firmly.
AC power cord (mains lead)
AM
DVD IN
BD IN
ANTENNA
IN
Y
OPTICAL
PB/
CB
TV
SAT/
CATV
IN
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
PR/
CR
SAT/CATV IN
DVD
IN
FRONT
L
SURROUND
OPTICAL
DVD IN
R
MONITOR
OUT
DIGITAL (ASSIGNABLE)
L
DVD
COMPONENT VIDEO
COAXIAL
AUDIO
IN
AUDIO
IN
AUDIO
IN
SA-CD/CD
TV
SAT/CATV
AUDIO
OUT
R
AUDIO
IN
L
SPEAKERS
R
DC5V
0.7A MAX
DMPORT
AUTO CAL
MIC
VIDEO
Notes
To the wall outlet
• To prevent noise pickup, keep the AM loop
antenna (aerial) away from the receiver and other
components.
• Be sure to fully extend the FM wire antenna
(aerial).
• After connecting the FM wire antenna (aerial),
keep it as horizontal as possible.
29GB
Connections
5: Connecting the
antennas (aerials)
Preparing the Receiver
Initializing the receiver
Before using the receiver for the first time,
initialize the receiver by performing the
following procedure. This procedure can also
be used to return settings you have made to
their initial settings.
Be sure to use the buttons on the receiver for
this operation.
?/1
?/1
1
Press ?/1 to turn off the
receiver.
2
Hold down ?/1 for 5 seconds.
After “CLEARING” appears on the
display for a while, “CLEARED”
appears.
All the settings you have changed or
adjusted are reset to the initial settings.
30GB
Calibrating the
appropriate speaker
settings automatically
(AUTO CALIBRATION)
(Models of area code ECE, CEK,
AU1 only)
This receiver is equipped with DCAC (Digital
Cinema Auto Calibration) Technology which
allows you to perform automatic calibration as
follows:
• Check the connection between each speaker
and the receiver.
• Adjust the speaker level.
• Measure the distance of each speaker from
your listening position.
The DCAC is designed to obtain proper sound
balance in your room. However, you can
adjust the speaker levels manually according
to your preference. For details, see “Adjusting
the speaker levels (TEST TONE)” (page 34).
Before you perform Auto
Calibration
Before you perform Auto Calibration, check
the following items:
• set up and connect the speakers (page 17,
19).
• connect only the supplied optimizer
microphone to the AUTO CAL MIC jack.
Do not connect other microphones to this
jack.
• turn off the muting function.
• disconnect the headphones.
• remove any obstacles in the path between
the optimizer microphone and the speakers
to avoid measurement errors.
• make sure the environment is quiet to avoid
the effect of noise and get a more accurate
measurement.
Note
During the calibration, the sound that comes out of
the speakers is very loud. The volume of the sound
cannot be adjusted. Pay attention to the presence of
children or to the effect on your neighborhood.
Performing Auto Calibration
?/1
Tip
BD
DVD
SAT/
CATV
TV
VIDEO
SA-CD/
CD
DMPORT
TUNER
Input
buttons
Setting up the Auto Calibration
AM
Optimizer microphone
HDMI
TV OUT
ANTENNA
IN
Y
TV
OPTICAL
SAT/
CATV
IN
PB /
CB
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
PR/
CR
FRONT
OPTICAL
SAT/CATV IN
DVD
IN
DVD IN
MONITOR
OUT
L
DVD
COMPONENT VIDEO
COAXIAL
AUDIO
IN
DIGITAL (ASSIGNABLE)
AUDIO
IN
AUDIO
IN
MONITOR
AUDIO
OUT
AUDIO
IN
CENTER
SURROUND
R
L
AUDIO
OUT
L
R
R
DC5V
0.7A MAX
DMPORT
AUTO CAL
MIC
SA-CD/CD
TV
SAT/CATV
VIDEO
SUBWOOFER
AMP
MENU
SPEAKERS
,
V/v/B/b
AUTO CAL
MIC
O
MENU
m
M
X
.
x
>
MASTER
VOL +/–/
2 +/–
MUTING/
1
2
1
2
Connect the supplied optimizer
microphone to the AUTO CAL
MIC jack.
Set up the optimizer
microphone.
Place the optimizer microphone at your
listening position. Use a stool or tripod so
that the optimizer microphone remains at
the same height as your ears.
Press AMP MENU.
Press V/v repeatedly to select
“A. CAL”, then press
or b.
“START” appears on the display.
3
Press
.
Measurement starts in 5 seconds.
A countdown is displayed.
The measurement process will take
approximately a few minutes to complete.
continued
31GB
Preparing the Receiver
When you face the speaker towards the optimizer
microphone, you will get a more accurate
measurement.
The table below shows the display when
measurement starts.
Measurement for Display
Environment noise
level
NOISE.CHK
Speaker connection MEASURE and SP
DET. appears
alternately*
Speaker level
MEASURE and GAIN
appears alternately*
Speaker distance
MEASURE and
DISTANCE appears
alternately*
* The corresponding speaker indicator lights
up in the display during measurement.
When measurement ends, “COMPLETE”
appears on the display and the settings are
registered.
Notes
• Auto Calibration cannot detect the subwoofer.
Therefore, all subwoofer settings will be
maintained.
• If you have reposition your speaker, we
recommend that you perform Auto Calibration
again to enjoy the surround sound.
Error and warning codes
When error codes appear
When an error is detected during Auto
Calibration, an error code will appear on the
display cyclically after each measurement
process as follows:
Error code t blank display t (error code t
blank display)a) t PUSH t blank display
t ENTER
a) Appears
when there are more than one error code.
Tips
• Operations other than turning the receiver on or off
are deactivated during the measurement.
• The measurements may not be performed correctly
or Auto Calibration cannot be performed when
special speakers, such as dipole speakers are used.
To cancel Auto Calibration
The Auto Calibration function will be
canceled when you do the following during
the measurement process:
– Press ?/1
– Press MUTING (RM-AAU071 only) or
(RM-AAU074 only)
– Press the input buttons or turn INPUT
SELECTOR on the receiver.
– Change the volume level.
– Connect the headphones.
After you have finished
Disconnect the optimizer microphone from the
AUTO CAL MIC jack.
32GB
To rectify the error
1 Record down the error code.
2 Press .
3 Press ?/1 to turn off the receiver.
4 Rectify the error.
For details, see “Error codes and remedies”
below.
5 Turn on the receiver and perform Auto
Calibration again (page 31).
Error codes and remedies
Warning codes and solutions
Error
code
Warning
code
Cause and remedy
Explanation and solution
WARN. 40 The environment is noisy. Make sure
the environment is quiet during Auto
Calibration.
ERROR 11 The speakers are placed too near the
optimizer microphone. Place your
speakers further away from the
optimizer microphone.
WARN. 60 The front speaker level is out of range.
Reposition your front speakers.c)
ERROR 12 None of the speakers are detected.
Make sure that the optimizer
microphone is connected properly and
perform Auto Calibration again.
WARN. 62 The center speaker level is out of
range. Reposition your center
speaker.c)
WARN. 63 The surround left speaker level is out
of range. Reposition your surround left
speaker.c)
ERROR 20 Front speakers are not detected or only
one front speaker is detected. Check
the front speakers connection.
WARN. 64 The surround right speaker level is out
of range. Reposition your surround
right speaker.c)
ERROR 21 Only one surround speaker is
detected. Check the surround speakers
connection.
WARN. 70 The front speaker distance is out of
range. Reposition your front
speakers.c)
When warning codes appear
WARN. 72 The center speaker distance is out of
range. Reposition your center
speaker.c)
During Auto Calibration, the warning code
provides information on the measurement
result. The warning code will appear on the
display cyclically as follows:
Warning code t blank display t (warning
code t blank display)b) t PUSH t blank
display t ENTER
b)
Appears when there are more than one warning
code.
WARN. 73 The surround left speaker distance is
out of range. Reposition your surround
left speaker.c)
WARN. 74 The surround right speaker distance is
out of range. Reposition your surround
right speaker.c)
c) For
details, see “Note” and “Tip” on page 18.
You can choose to ignore the warning code as
the Auto Calibration function will
automatically adjust the settings. You can also
change the settings manually.
To change the settings
manually
1 Record down the warning code.
2 Press .
3 Press ?/1 to turn off the receiver.
4 Follow the solution provided in the
“Warning codes and solutions” below.
5 Turn on the receiver and perform Auto
Calibration again (page 31).
33GB
Preparing the Receiver
ERROR 10 The environment is too noisy. Make
sure the environment is quiet during
Auto Calibration.
4
Adjusting the speaker
levels
The test tone is output from each speaker
in sequence as follow:
Front left t Center t Front right t
Surround right t Surround left t
subwoofer
(TEST TONE)
You can adjust the speaker levels while
listening to the test tone from your listening
position.
BD
DVD
SAT/
CATV
TV
VIDEO
SA-CD/
CD
DMPORT
TUNER
Press V/v repeatedly to select
“AUTO xxx*”.
*xxx represent a speaker channel.
Note
Depending on the speaker pattern setting, test
tone may not be output from all speakers even
though you select “AUTO xxx”.
Input
buttons
5
Adjust the speaker levels using
the LEVEL menu so that the
level of the test tone sounds the
same from each speaker.
For details, see LEVEL menu (page 59).
Tips
AMP
MENU
• To adjust the level of all speakers at the same
time, press MASTER VOL +/–
(RM-AAU071 only) or 2 +/–
(RM-AAU074 only). You can also use
MASTER VOLUME on the receiver.
• The adjusted value are shown on the display
during adjustment.
,
V/v/B/b
O
MENU
m
.
M
X
x
>
6
MASTER
VOL +/–/
2 +/–
1
2
3
Press AMP MENU.
Press V/v repeatedly to select
“LEVEL”, then press
or b.
Press V/v repeatedly to select
“T. TONE”, then press
.
Repeat steps 1 to 4 to select
“OFF”.
You can also press any input buttons.
The test tone turns off.
When a test tone is not output
from the speakers
• The speaker cords may not be connected
securely.
• The speaker cords may have the short-circuit
problem.
When a test tone is output from
a different speaker than the
speaker indicator showed in the
display
The speaker pattern to the connected speaker
is not set up correctly. Make sure the speaker
connection and the speaker pattern match.
34GB
5
Basic Operations
Playback
BD
DVD
SAT/
CATV
TV
VIDEO
SA-CD/
CD
DMPORT
TUNER
Input
buttons
Press MASTER VOL +/–
(RM-AAU071 only) or 2 +/–
(RM-AAU074 only) to adjust the
volume.
You can also use MASTER VOLUME on
the receiver.
6
Press SOUND FIELD +/– to
enjoy the surround sound.
AMP
MENU
,
V/v/B/b
O
MENU
m
MASTER
VOL +/–/
2 +/–
.
M
X
x
>
MUTING/
1
Turn on the connected
component.
2
3
Turn on the receiver.
SOUND
FIELD +/–
To activate the muting function
Press MUTING (RM-AAU071 only) or
(RM-AAU074 only) on the remote.
The muting function will be canceled when
you do the following.
• Press MUTING (RM-AAU071 only) or
(RM-AAU074 only) again.
• Increase the volume.
• Turn off the receiver.
• Perform Auto Calibration
To avoid damaging your
speakers
Before you turn off the receiver, be sure to turn
down the volume level.
Press one of the input buttons
to select the component you
want.
You can also use INPUT SELECTOR on
the receiver.
The selected input appears on the display.
4
Play back the source.
35GB
Basic Operations
You can also use 2CH/A.DIRECT,
A.F.D., MOVIE or MUSIC on the
receiver.
For details, see page 42.
Naming inputs
You can enter a name of up to 8 characters for
inputs (except TUNER) and display it on the
receiver’s display.
This is convenient for labeling the jacks with
the names of the connected components.
1
Viewing information on
the display
You can check the sound field, etc., by
changing the information on the display.
Press one of the input buttons
to select the input you want to
create an index name for.
DISPLAY
You can also use INPUT SELECTOR on
the receiver.
2
3
Press AMP MENU.
4
Press V/v repeatedly to select
“NAME IN”, then press
or b.
Press V/v repeatedly to select
“SYSTEM”, then press
or b.
The cursor flashes and you can select a
character.
5
Press V/v to select a character,
then press B/b to move the
cursor to the next position.
If you made a mistake
Press B/b until the character you want to
change flashes, then press V/v to select
the correct character.
Tips
• You can select the character type as follows
by pressing V/v.
Alphabet (upper case) t Numbers t
Symbols
• To enter a blank space, press b without
selecting a character.
6
Press
.
The name you entered is registered.
O
Press DISPLAY repeatedly.
Each time you press the button, the display
changes cyclically as follows:
All inputs except the FM and AM
band
Index name of the inputa) t Selected input
t Sound field currently applied t Volume
level t Stream info
FM and AM band
Program Service nameb) or preset station
namea) t Frequency t Program Type
indicationb) t Radio Text indicationb) t
Current Time indication (in 24-hour system
mode)b) t Sound field currently applied t
Volume level
a)
Index name appears only when you have assigned
one to the input or preset station (page 36, 41).
Index name does not appear when only blank
spaces have been entered, or it is the same as the
input name.
b) During RDS reception only (Models of area code
ECE, CEK, AU1 only) (page 42).
Note
Character or marks may not be displayed for some
languages.
36GB
Using the Sleep Timer
Recording
You can set the receiver to turn off
automatically at a specified time.
You can record from a video/audio component
using the receiver. Refer to the operating
instructions supplied with your recording
component.
AMP
MENU
Recording onto a recording
media
O
MENU
1
2
3
4
1
Press AMP MENU.
Press V/v repeatedly to select
“SYSTEM”, then press
or b.
Press V/v repeatedly to select
“SLEEP”, then press
or b.
Press V/v repeatedly to select
the preset time you want, then
press
.
You can also use INPUT SELECTOR on
the receiver.
2
Note
A count down is displayed 1 minute before the
receiver turns off.
Tip
To check the remaining time before the receiver
turns off, repeat step 1 to 3 above. The remaining
time appears on the display.
Prepare the playback
component for playing.
For example, insert the video tape you
want to copy into the VCR.
3
The display changes as follows:
OFF y 0-30-00 y 1-00-00 y
1-30-00 y 2-00-00
When sleep timer is being used, “SLEEP”
indicator lights up in the display.
Press one of the input buttons
to select the playback
component.
Prepare the recording
component.
Insert a blank video tape, etc. into the
recording component (VIDEO) for
recording.
4
Start recording on the
recording component, then
start playback on the playback
component.
Notes
• Some sources contain copy guards to prevent
recording. In this case, you may not be able to
record from the source.
• Only analog signals are output from the analog
output jack (for recording).
• HDMI sound cannot be recorded.
37GB
Basic Operations
,
V/v/B/b
Tuner Operations
Listening to FM/AM radio
You can listen to FM and AM broadcasts
through the built-in tuner. Before operation,
make sure you have connected the FM and
AM antennas (aerials) to the receiver (page
29).
Tip
The tuning scale for direct tuning differs depending
on the area code as shown in the following table. For
details on area codes, see page 5.
Tuning into a station
automatically (Automatic
Tuning)
1
Press TUNER repeatedly to
select the FM or AM band.
2
Press TUNING + or TUNING –.
Press TUNING + to scan from low to
high; press TUNING – to scan from high
to low.
The receiver stops scanning whenever a
station is received.
Area code
FM
AM
U2, CA2
100 kHz
10 kHz*
Using the controls on the
receiver
ECE, CEK, AU1
50 kHz
9 kHz
1 Turn INPUT SELECTOR to select the FM
or AM band.
* The AM tuning scale can be changed (page 39).
2 Press TUNING MODE repeatedly to select
“AUTO”.
BD
DVD
SAT/
CATV
TV
VIDEO
SA-CD/
CD
DMPORT
TUNER
TUNER
3 Press TUNING + or TUNING –.
Numeric
buttons
ENTER
D. TUNING
AMP
MENU
,
V/v/B/b
O
MENU
TUNING
+/–
m
.
M
X
x
>
SHIFT
38GB
In case of poor FM stereo
reception
If the FM stereo reception is poor and “ST”
flashes on the display, select monaural audio
so that the sound will be less distorted.
1 Press AMP MENU.
2 Press V/v repeatedly to select “TUNER”,
then press
or b.
3 Press V/v repeatedly to select
“FM MODE”, then press
or b.
4 Press V/v repeatedly to select “MONO”,
then press .
5 To return to stereo mode, repeat steps 1 to 4
and select “STEREO” in step 4.
Tuning into a station directly
(Direct Tuning)
You can enter the frequency of a station
directly by using the numeric buttons.
1
Press TUNER repeatedly to
select the FM or AM band.
Changing the AM tuning scale
(Models of area code U2, CA2 only)
You can change the AM tuning scale to either
9 kHz or 10 kHz using the buttons on the
receiver.
?/1
You can also use INPUT SELECTOR on
the receiver.
2
3
Press D.TUNING.
Press and hold SHIFT, then
press ENTER.
You can also use MEMORY/ENTER on
the receiver.
Tip
TUNING MODE
1
Press ?/1 to turn off the
receiver.
2
While holding down TUNING
MODE, press ?/1.
3
Change the current AM tuning
scale to 9 kHz (or 10 kHz).
To reset the scale to 10 kHz (or 9 kHz),
repeat the procedure above.
Note
All preset stations will be erased when you change
the tuning scale.
If you have tuned in an AM station, adjust the
direction of the AM loop antenna for optimum
reception.
If you cannot tune in a station
Make sure you have entered the right
frequency. If not, repeat steps 2 to 4. If you
still cannot tune in a station, the frequency is
not used in your area.
39GB
Tuner Operations
Press and hold SHIFT, then
press the numeric buttons to
enter the frequency.
Example 1: FM 102.50 MHz
• Models of area code U2 and CA2:
Select 1 b 0 b 2 b 5
• Models of area code ECE, CEK and
AU1:
Select 1 b 0 b 2 b 5 b 0
Example 2: AM 1,350 kHz
Select 1 b 3 b 5 b 0
4
?/1
4
Presetting FM/AM radio
stations
You can preset up to 30 FM stations and 30
AM stations. Then you can easily tune in the
stations you often listen to.
BD
DVD
SAT/
CATV
TV
VIDEO
SA-CD/
CD
DMPORT
TUNER
TUNER
MEMORY
AMP
MENU
,
V/v/B/b
O
MENU
m
.
M
X
x
>
PRESET
+/–
SHIFT
1
Press TUNER repeatedly to
select the FM or AM band.
You can also use INPUT SELECTOR on
the receiver.
2
Tune in the station that you
want to preset using Automatic
Tuning (page 38) or Direct
Tuning (page 39).
Switch the FM reception mode, if
necessary (page 38).
3
Press MEMORY.
You can also use MEMORY/ENTER on
the receiver.
40GB
You can also press PRESET + or
PRESET – to select a preset number.
5
Press and hold SHIFT, then
press ENTER.
You can also use MEMORY/ENTER on
the receiver.
The station is stored as the selected preset
number.
Numeric
buttons
ENTER
Press and hold SHIFT, then
press the numeric buttons to
select a preset number.
6
Repeat steps 1 to 5 to preset
another station.
5
Tuning to preset stations
1
Press TUNER repeatedly to
select the FM or AM band.
2
Press PRESET + or PRESET –
repeatedly to select the preset
station you want.
The cursor flashes and you can select a
character.
6
2
4
5
30
29
28
...
27
You can also press and hold SHIFT and
then press the numeric buttons to select
the preset station you want. To enter the
selection, press and hold SHIFT then
press ENTER.
Using the controls on the
receiver
1 Turn INPUT SELECTOR to select the FM
or AM band.
2 Press TUNING MODE repeatedly to select
“PRESET”.
3 Press TUNING + or TUNING – to select the
preset station you want.
Tips
• You can select the character type as follows
by pressing V/v.
Alphabet (upper case) t Numbers t
Symbols
• To enter a blank space, press b without
selecting a character.
7
Press
.
The name you entered is registered.
Note (Models of area code ECE, CEK,
AU1 only)
When you name an RDS station and tune in that
station, the Program Service name appears instead
of the name you entered. (You cannot change the
Program Service name. The name you entered will
be overwritten by the Program Service name.)
Naming preset stations
1
Press TUNER repeatedly to
select the FM or AM band.
You can also use INPUT SELECTOR on
the receiver.
2
Tune in the preset station you
want to create an index name
for (page 41).
3
4
Press AMP MENU.
Press V/v repeatedly to select
“TUNER”, then press
or b.
41GB
Tuner Operations
3
Press V/v to select a character,
then press B/b to move the
cursor to the next position.
If you made a mistake
Press B/b until the character you want to
change flashes, then press V/v to select
the correct character.
Each time you press the button, you can
select a preset station as follows:
1
Press V/v repeatedly to select
“NAME IN”, then press
or b.
Using the Radio Data
System (RDS)
(Models of area code ECE, CEK,
AU1 only)
This receiver allows you to use Radio Data
System (RDS), which enables radio stations to
send additional information along with the
regular program signal. This receiver offers
convenient RDS features, such as program
service name display.
Enjoying Surround Sound
Selecting the sound field
This receiver can create multi channel
surround sound. You can select one of the
optimized sound fields from the receiver’s
preprogrammed sound fields.
.
X
x
>
SOUND
FIELD +/–
Notes
• RDS is operable only for FM stations.
• Not all FM stations provide RDS service, nor do
they provide the same type of services. If you are
not familiar with the RDS services in your area,
check with your local radio stations for details.
Receiving RDS broadcasts
Simply select a station on the FM
band using Direct Tuning (page 39),
Automatic Tuning (page 38), or
Preset Tuning (page 41).
When you tune in a station that provides RDS
services, “RDS” lights up and the program
service name appears on the display.
Note
RDS may not work properly if the station you tuned
to is not transmitting the RDS signal properly or if
the signal strength is weak.
Tip
When a program service name is displayed, you can
check the frequency by pressing DISPLAY
repeatedly (page 36).
42GB
Press SOUND FIELD +/– repeatedly
to select the sound field you want.
You can also press 2CH/A.DIRECT, A.F.D.,
MOVIE or MUSIC on the receiver.
2 channel sound mode
You can switch the output sound to 2 channel
sound regardless of the recording formats of
the software you are using, the playback
component connected, or the sound field
settings of the receiver.
x 2CH ST. (2 Channel Stereo)
The receiver outputs the sound from the front
left/right speakers only. There is no sound
from the subwoofer.
Standard 2 channel stereo sources completely
bypass the sound field processing and multi
channel surround formats are downmixed to 2
channel except LFE signal.
x A.DIRECT (Analog direct)
You can switch the audio of the selected input
to 2 channel analog input. This function
enables you to enjoy high quality analog
sources without any adjusment.
When using this function, only the volume and
front speaker level can be adjusted.
Notes
• When headphones are connected, “HP DIR”
appears on the display.
• You cannot select Analog Direct when you select
BD, DVD, and DMPORT as input.
Auto Format Direct (A.F.D.)
mode
x A.F.D. AUTO (A.F.D. Auto)
Presets the sound as it was recorded/encoded
without adding any surround effects.
x MULTI ST. (Multi Stereo)
Outputs 2 channel left/right signals from all
speakers.
However, sound may not be output from
certain speakers depending on the speaker
settings.
Movie mode
You can take advantage of surround sound
simply by selecting one of the receiver’s
preprogrammed sound fields. They bring the
exciting and powerful sound of movie theaters
into your home.
x C.ST.EX A (Cinema Studio EX
DCS)
Reproduces the sound characteristics of the
Sony Pictures Entertainment “Cary Grant
Theater” cinema production studio. This is a
standard mode, great for watching almost any
type of movie.
Reproduces the sound characteristics of the
Sony Pictures Entertainment “Kim Novak
Theater” cinema production studio. This mode
is ideal for watching science-fiction or action
movies with lots of sound effects.
x C.ST.EX C (Cinema Studio EX
DCS)
Reproduces the sound characteristics of the
Sony Pictures Entertainment scoring stage.
This mode is ideal for watching musicals or
films where orchestra music is featured in the
soundtrack.
x V. M. DIM (V. Multi Dimension
DCS)
Creates many virtual speakers from a single
pair of actual surround speakers.
x PLII MV (Pro Logic II Movie)
Performs Dolby Pro Logic II Movie mode
decoding. This setting is ideal for movies
encoded in Dolby Surround. In addition, this
mode can reproduce sound in 5.1 channel for
watching videos of overdubbed or old movies.
Music mode
You can take advantage of surround sound
simply by selecting one of the receiver’s
preprogrammed sound fields. They bring the
exciting and powerful sound of concert halls
into your home.
x HALL (Hall)
Reproduces the acoustics of a classical concert
hall.
x JAZZ (Jazz Club)
Reproduces the acoustics of a jazz club.
x CONCERT (Concert)
Reproduces the acoustics of a 300-seat live
house.
continued
43GB
Enjoying Surround Sound
The Auto Format Direct (A.F.D.) mode allows
you to listen to high fidelity sound and select
the decoding mode for listening to a 2 channel
stereo sound as multi channel.
x C.ST.EX B (Cinema Studio EX
DCS)
x STADIUM (Stadium)
Notes on sound fields
Reproduces the feeling of a large open-air
stadium.
• Depends on the speaker pattern settings,
some sound fields may not be available.
• The effects provided by the virtual speakers
may cause increased noise in the playback
signal.
• When listening with sound fields that
employ the virtual speakers, you will not be
able to hear any sound coming directly from
the surround speakers.
• The sound fields for music and movie do not
work in the following cases.
– signals with a sampling frequency of more
than 48 kHz is input.
– Analog Direct is selected.
• When multi channel Linear PCM signals are
received via an HDMI IN jack, “A.F.D.
AUTO” will be selected automatically.
• When one of the sound fields for music is
selected, no sound is output from the
subwoofer if all the speakers are set to
“LARGE” on the SPEAKER menu.
However, the sound will be output from the
subwoofer if
– the digital input signal contains LFE
signals.
– the front and surround speakers are set to
“SMALL”.
– the sound field for movie is selected.
– the portable audio is selected.
x SPORTS (Sports)
Reproduces the feeling of sports broadcasting.
x PORTABLE (Portable Audio
Enhancer)
Reproduces a clear enhanced sound image
from your portable audio device. This mode is
ideal for MP3 and other compressed music.
x PLII MS (Pro Logic II Music)
Perform Dolby Pro Logic II Music mode
decoding. This setting is ideal for normal
stereo sources such as CDs.
When headphones are
connected
You can only select this sound field if the
headphones are connected to the receiver.
x HP 2CH (Headphones 2CH)
This mode is selected automatically if you use
headphones (except Analog Direct). Standard
2 channel stereo sources completely bypass
the sound field processing and multi channel
surround formats are downmixed to 2
channels except LFE signals.
x HP DIR (Headphones Direct)
Outputs the analog signals without processing
by the equalizer, sound field, etc.
If you connect a subwoofer
This receiver will generate a low frequency
signal for output to the subwoofer when there
is no LFE signal, which is a low-pass sound
effect output from a subwoofer to a 2 channel
signal.
44GB
Tips
• You can identify the encoding format of DVD
software, etc., by looking at the logo on the
package.
• Sound fields with DCS marks use DCS
technology. For details on Digital Cinema Sound
(DCS), see “Glossary” (page 67).
To turn off the surround effect
for movie/music
Press SOUND FIELD +/– repeatedly to select
“2CH ST.” or “A.F.D. AUTO”.
You can also press 2CH/A.DIRECT
repeatedly on the receiver to select “2CH ST.”
or press A.F.D. repeatedly on the receiver to
select “A.F.D. AUTO”.
When connecting Blu-ray disc players and other next generation HD
players
Digital audio formats that this receiver can decode depend on digital audio input jacks for the
connected component. This receiver supports the following audio formats.
Maximum number
of channels
Audio format
Connection of the playback component and
the receiver
COAXIAL/OPTICAL
HDMI
Dolby Digital
5.1
a
a
DTS
5.1
a
a
7.1b)
×
a
Multi channel Linear PCM
a)
a) Audio signals are output in another format if the playback component does not correspond to the format. For
details, refer to the operating instructions of the playback component.
signal will be downmixed to 5.1 channel.
b) The
Enjoying Surround Sound
45GB
Enjoying the surround
effect at low volume
levels
(NIGHT MODE)
Resetting sound fields to
the initial settings
Be sure to use the buttons on the receiver for
this operation.
?/1
This function allows you to retain a theater like
environment at low volume levels. This
function can be used with other sound fields.
When watching a movie late at night, you will
be able to hear the dialog clearly even at a low
volume level.
?/1
MUSIC
AMP
MENU
,
V/v/B/b
O
MENU
1
2
Press AMP MENU.
Press V/v repeatedly to select
“AUDIO”, then press
or b.
3
Press V/v repeatedly to select
“NIGHT M.”, then press
or
b.
4
Press V/v repeatedly to select
“NIGHT. ON”, then press
.
Note
This function does not work in the following cases:
–signals with a sampling frequency of more than
48 kHz are being received.
–Analog Direct is selected.
Tip
While the NIGHT MODE is turned on,
“D. RANGE” is automatically set to “COMP.
MAX”.
46GB
1
Press ?/1 to turn off the
receiver.
2
While holding down MUSIC,
press ?/1.
“S.F. CLEAR” appears on the display and
all sound fields are reset to their initial
setting.
“BRAVIA” Sync Features
What is “BRAVIA” Sync?
“BRAVIA” Sync is compatible with Sony TV,
Blu-ray Disc/DVD player, AV amplifier, etc.,
that is equipped with the Control for HDMI
function.
By connecting Sony components that are
compatible with the “BRAVIA” Sync with an
HDMI cable (not supplied), operation is
simplified as follows:
• One-Touch Play (page 48)
• System Audio Control (page 49)
• System Power Off (page 50)
• Theater/Theatre Mode Sync (page 51)
• Audio Return Channel (page 51)
We recommend that you connect the receiver
to products featuring “BRAVIA” Sync.
Note
Depending on the connected component, the
Control for HDMI function may not work. Refer to
the operating instructions of the component.
The receiver is compatible with the “Control
for HDMI-Easy Setting” function.
• If your TV is compatible with the “Control
for HDMI-Easy Setting” function, you can
set the receiver and playback components
Control for HDMI function automatically by
setting the TV (page 47).
• If your TV is not compatible with the
“Control for HDMI-Easy Setting” function,
set the Control for HDMI function of the
receiver, playback components and TV
individually (page 48).
If your TV is compatible with the
“Control for HDMI-Easy Setting”
function
The Control for HDMI function of the receiver
can be turned on simultaneously by turning on
the Control for HDMI function of the TV.
1 Connect the receiver, TV and playback
components via HDMI connection
(page 23).
(The respective components must be
compatible with the Control for HDMI
function.)
2 Turn on the receiver, TV and playback
components.
3 Turn on the Control for HDMI function
of the TV.
The Control for HDMI function of the
receiver and all the connected components
are turned on simultaneously. When the
setup is completed, “COMPLETE” will
appear.
For details on setting the TV, refer to the
operating instructions supplied with the TV.
continued
47GB
“BRAVIA” Sync Features
Control for HDMI is a mutual control function
standard used by HDMI CEC (Consumer
Electronics Control) for HDMI (HighDefinition Multimedia Interface).
Preparing for the
“BRAVIA” Sync
If your TV is not compatible with
the “Control for HDMI-Easy
Setting” function
AMP
MENU
Playing back components
with one-touch operation
(One-Touch Play)
By a simple operation (one-touch),
components connected to the receiver with
HDMI connections start automatically.
You can enjoy the sound/image from
connected components.
,
V/v/B/b
O
MENU
1 Perform the steps given in “If your TV is
compatible with the “Control for HDMIEasy Setting” function” (page 47).
2 Press AMP MENU.
When you set “PASS.THRU” to “AUTO” or
“ON”, sound and image can be output only
from the TV while the receiver remains in
standby mode.
3 Press V/v repeatedly to select “HDMI”,
then press
or b.
4 Press V/v repeatedly to select
“CTRL.HDMI”, then press
or b.
5 Press V/v repeatedly to select “CTRL
When you start playback a connected
component, the receiver and TV operation are
simplified as follow:
Receiver and TV
Turns on (if in standby mode)
r
Switches to appropriate HDMI input
ON”, then press
.
Control for HDMI function is activated.
6 Set the Control for HDMI function for
the connected component to on.
If the Control for HDMI function for the
connected component is already set to on,
you do not need to change the setting.
For details on setting the TV and connected
components, refer to the operating instructions
of the respective components.
Notes
• Before you do the “Control for HDMI-Easy
Setting” from the TV, be sure to turn on the TV,
connected components and receiver.
• If the playback components cannot function after
you have made the settings for “Control for HDMIEasy Setting”, check the Control for HDMI setting
on your TV.
• If the connected components do not support
“Control for HDMI-Easy Setting”, you need to set
the Control for HDMI function for the connected
components to on before you perform the “Control
for HDMI-Easy Setting” from the TV.
48GB
Notes
• Depending on the TV, the start of the content may
not be output.
• Depending on the settings, the receiver may not
turns on when “PASS.THRU” is set to “AUTO” or
“ON”.
Tip
You can also select a connected component, such as
DVD/Blu-ray disc player using the TV menu. The
receiver and TV will automatically switch to the
appropriate HDMI input.
Notes
Enjoying the TV sound
from the speakers
connected to the receiver
(System Audio Control)
You can enjoy the TV sound from the speakers
connected to the receiver by a simple
operation.
You can operate System Audio Control
function using the TV menu. For details, refer
to the operating instructions of the TV.
TV
Sets System Audio
Control to on
Receiver
•
•
Turns on (if in
standby mode)
Switches to
appropriate
HDMI input
“BRAVIA” Sync Features
Minimizes TV
volume
• If System Audio Control does not function
according to your TV setting, refer to the operating
instructions of the TV.
• When “CTRL.HDMI” is set to “CTRL ON”, the
“AUDIO.OUT” settings in the HDMI menu will
set automatically depending on the System Audio
Control settings.
• When you connect a TV that does not have System
Audio Control function, the System Audio Control
function does not work.
• If the TV is turned on before turning on the
receiver, the TV sound will not be output for a
moment.
Outputs TV
sound
You can also use the System Audio Control
function as follows.
• If you turn on the receiver while the TV is
turned on, the System Audio Control
function will automatically be set to on and
the TV sound will output from the speakers
connected to the receiver. However, if you
turn off the receiver, the sound will output
from the TV speakers.
• When you adjust the TV volume, the
receiver’s volume is adjusted
simultaneously.
49GB
Notes
Turning off the receiver
with the TV
(System Power Off)
When you turn the TV off by using the
POWER button on the TV’s remote, the
receiver and the connected components turn
off automatically.
You can also use the receiver’s remote to turn
off the TV.
TV ?/1
BD
DVD
SAT/
CATV
TV
VIDEO
SA-CD/
CD
DMPORT
TUNER
O
MENU
m
.
M
X
x
>
TV
Press and hold TV, then press TV
?/1.
The TV, receiver and the components
connected via HDMI are turned off.
50GB
• Set the TV Standby Synchro to on before using the
System Power Off function. For details, refer to the
operating instructions of the TV.
• Depending on the status, the connected
components may not be turned off. For details,
refer to the operating instructions of the connected
components.
Enjoying movies with the
optimum sound field
Enjoying the TV sound via
an HDMI cable
(Theater/Theatre Mode Sync)
(Audio Return Channel)
Press the THEATER or THEATRE
button on the remote of the
receiver, TV, or the Blu-ray disc
player, while pointing the remote
toward the TV.
The Audio Return Channel (ARC) function
enables the TV outputs the audio signals to the
receiver via a HDMI cable connected to the
HDMI TV OUT jack.
You can enjoy the TV sound from the speakers
connected to the receiver without connecting
the TV OPTICAL IN or TV AUDIO IN jack.
The sound field switches to “C.ST.EX B”.
To return to the previous sound field, press the
THEATER or THEATRE button again.
AMP
MENU
Note
The sound field may not switch depending on the
TV.
,
V/v/B/b
Tip
O
The sound field may be changed back to the
previous one when you change the TV’s input.
MENU
Press AMP MENU.
3
Press V/v repeatedly to select
“ARC”, then press
or b.
4
Press V/v repeatedly to select
“ARC ON”, then press
.
Press V/v repeatedly to select
“HDMI”, then press
or b.
Notes
• This function does not work when you set
“CTRL.HDMI” to “CTRL OFF” in the HDMI
menu.
• This function is only available when
– your TV is compatible with Audio Return
Channel (ARC) function.
– INPUT MODE is set to “AUTO”.
51GB
“BRAVIA” Sync Features
1
2
Notes
Advanced Operations
Switching between
digital and analog audio
(INPUT MODE)
When you connect components to both digital
and analog input jacks on the receiver, you can
fix the audio input mode to either of them, or
switch from one to the other, depending on the
type of material you intend to watch.
1
Turn INPUT SELECTOR on the
receiver to select the input.
You can also use the input buttons on the
remote.
2
Press INPUT MODE repeatedly
on the receiver to select the
audio input mode.
The selected audio input mode appears on
the display.
Audio input modes
x AUTO
Gives priority to digital audio signals when
there are both digital and analog connections.
If there are more than one digital connection,
HDMI audio signals have priority over
COAXIAL and OPTICAL audio signals. If
there are no digital audio signals, analog audio
signals are selected.
x COAX
Specifies the digital audio signals input to the
DIGITAL COAXIAL jack.
x OPT
Specifies the digital audio signals input to the
DIGITAL OPTICAL jack.
x ANALOG
Specifies the analog audio signals input to the
AUDIO IN (L/R) jacks.
52GB
• Some audio input modes may not be set up
depending on the input.
• When the Analog Direct function is selected, audio
input is set to “ANALOG” automatically and you
cannot select other modes.
Enjoying the sound from
other inputs
You can reassign audio signals to another
input when they are not currently being used.
For example, when you want to output the
sound source for the DVD player using
OPTICAL IN jack on the receiver:
DVD player
Connect to
OPTICAL
SAT/CATV IN
jack (audio
signal)
?/1
Receiver
1
2
Assign to DVD input jack
– using “A. ASSIGN” in
AUDIO menu
Press AMP MENU.
Press V/v repeatedly to select
“AUDIO”, then press
or b.
Press V/v repeatedly to select
“A. ASSIGN”, then press
or
b.
4
Press V/v repeatedly to select
the input name you want to
assign (for example, “DVD”),
then press
or b to enter
your selection.
5
Press V/v repeatedly to select
the input jack you want to
assign to the input which you
selected in step 4.
Advanced Operations
3
To return to the previous display
Press B.
continued
53GB
Assigning input jacks
Assignable audio input
jacks
Audio
Input name
VIDEO
BD
DVD
SAT
SA-CD
DVD COAX
a
a
a*
a
a
SAT OPT
a
a
a
a*
a
ANALOG
a*
–
–
a
a*
NONE
–
a*
–
–
–
* Initial setting
Notes
• When you assign the digital audio input, the
INPUT MODE setting may change automatically
(page 52).
• You cannot reassign more than one digital audio
input to the same input.
54GB
Enjoying sound/images
from the components
connected to the DIGITAL
MEDIA PORT
The DIGITAL MEDIA PORT (DMPORT)
allows you to enjoy sound/images from a
portable audio source or computer by
connecting a DIGITAL MEDIA PORT
adapter.
The DIGITAL MEDIA PORT adapters are
available for purchase depending on the area.
For details on connecting the DIGITAL
MEDIA PORT adapter, see “4a: Connecting
the audio components” (page 22).
Using the setting menu
By using the amplifier menus, you can make
various adjustments to customize the receiver.
AMP
MENU
,
V/v/B/b
RETURN/
EXIT O
MENU
1
2
Press AMP MENU.
3
Press V/v repeatedly to select
the parameter you want to
adjust, then press
or b
4
Press V/v repeatedly to select
the setting you want.
Notes
• Depending on the DIGITAL MEDIA PORT
adapter, video output may not be possible.
• Depending on the type of DIGITAL MEDIA
PORT adapter, you can operate the connected
component by using the remote. For details on the
remote button operation, see page 16.
1
Press DMPORT.
You can also use the INPUT SELECTOR
on the receiver to select “DMPORT”.
Press V/v repeatedly to select
the menu you want, then press
or b
The setting is entered automatically.
Start playback of the connected
component.
To return to the previous
display
The sound is played back on the receiver
and the image appears on the TV.
For details, refer to the operating
instructions supplied with the DIGITAL
MEDIA PORT adapter.
Press B or RETURN/EXIT O.
Tip
When listening to MP3 or other compressed music
using a portable audio source, you can enhance the
sound. Press SOUND FIELD +/– (or press MUSIC
on the receiver) repeatedly to select “PORTABLE”
(page 43).
Advanced Operations
2
O
To exit the menu
Press AMP MENU.
Note
Some parameters and settings may appear dimmed
on the display. This means that they are either
unavailable or fixed and unchangeable.
55GB
Overview of the menus
The following options are available in each menu. For details, see the page in the parentheses.
Menu
[Display]
Parameters
[Display]
AUTO CALa)
[A. CAL]
(page 59)
Starts Auto Calibration
[START]
LEVEL
[LEVEL]
(page 59)
SPEAKER
[SPKR]
(page 60)
56GB
Settings
Initial
setting
Test tonec)
[T. TONE]
OFF, AUTO xxxb)
OFF
Front left speaker level
[FL LVL]
FL –10.0 dB to FL +10.0 dB
(0.5 dB per step)
FL 0 dB
Front right speaker level
[FR LVL]
FR –10.0 dB to FR +10.0 dB
(0.5 dB per step)
FR 0 dB
Center speaker levelc)
[CNT LVL]
CNT –20.0 dB to CNT +10.0 dB
(0.5 dB per step)
CNT 0 dB
Surround left speaker levelc)
[SL LVL]
SL –20.0 dB to SL +10.0 dB
(0.5 dB per step)
SL 0 dB
Surround right speaker levelc)
[SR LVL]
SR –20.0 dB to SR +10.0 dB
(0.5 dB per step)
SR 0 dB
Subwoofer levelc)
[SW LVL]
SW –20.0 dB to SW +10.0 dB
(0.5 dB per step)
SW 0 dB
Dynamic range compressor
[D. RANGE]
COMP. MAX, COMP. STD,
COMP. OFF
COMP. OFF
Speaker pattern
[PATTERN]
For details, see page 60
3/2.1
Front speakers sizec)
[FRT SIZE]
LARGE, SMALL
LARGE
Center speaker sizec)
[CNT SIZE]
LARGE, SMALL
LARGE
Surround speakers sizec)
[SUR SIZE]
LARGE, SMALL
LARGE
Front left speaker distancec)
[FL DIST.]
FL 1.0 m to FL 7.0 m
(FL 3 ft to FL 22 ft)
(0.1 m (1 ft) step)
FL 3.0 m
(FL 9 ft)
Front right speaker distancec)
[FR DIST.]
FR 1.0 m to FR 7.0 m
(FR 3 ft to FR 22 ft)
(0.1 m (1 ft) step)
FR 3.0 m
(FR 9 ft)
Center speaker distancec)
[CNT DIST.]
CNT 1.0 m to CNT 7.0 m
(CNT 3 ft to CNT 22 ft)
(0.1 m (1 ft) step)
CNT 3.0 m
(CNT 9 ft)
Surround left speaker distancec)
[SL DIST.]
SL 1.0 m to SL 7.0 m
(SL 3 ft to SL 22 ft)
(0.1 m (1 ft) step)
SL 3.0 m
(SL 9 ft)
Menu
[Display]
Parameters
[Display]
Settings
Initial
setting
SR 3.0 m
(SR 9 ft)
Subwoofer distancec)
[SW DIST.]
SW 1.0 m to SW 7.0 m
(SW 3 ft to SW 22 ft)
(0.1 m (1 ft) step)
SW 3.0 m
(SW 9 ft)
Distance unit
[DIST.UNIT]
METER, FEET
METERf)
Front speaker crossover
frequencyd)
[FRT CRS.]
CRS. 40 Hz to CRS. 200 Hz
(10 Hz step)
CRS. 120 Hz
Center speaker crossover
frequencyd)
[CNT CRS.]
CRS. 40 Hz to CRS. 200 Hz
(10 Hz step)
CRS. 120 Hz
Surround speaker crossover
frequencyd)
[SUR CRS.]
CRS. 40 Hz to CRS. 200 Hz
(10 Hz step)
CRS. 120 Hz
SURROUND
[SURR]
(page 62)
Sound field selection
[S.F. SELCT]
For details, see “Enjoying Surround
Sound” (page 42).
A.F.D. AUTO
Effect level
[EFFECT]
EFCT. MAX, EFCT. STD,
EFCT. MIN
EFCT. STD
EQ
[EQ]
(page 62)
Front speakers bass level
[BASS]
BASS –10 dB to BASS +10 dB
(1 dB per step)
BASS 0 dB
Front speakers treble level
[TREBLE]
TRE –10 dB to TRE +10 dB
(1 dB per step)
TRE 0 dB
TUNER
[TUNER]
(page 63)
FM station receiving mode
[FM MODE]
STEREO, MONO
STEREO
Naming preset stations
[NAME IN]
For details, see “Naming preset
stations” (page 41).
AUDIO
[AUDIO]
(page 63)
Synchronizes audio with video
output
[A/V SYNC]
SYNC ON, SYNC OFF
SYNC OFF
Digital broadcast language
selection
[DUAL]
MAIN/SUB, MAIN, SUB
MAIN
Digital audio input decoding
prioritye)
[DEC. PRIO]
DEC. AUTO, DEC. PCM
DEC. AUTO
Digital audio input assignment
[A. ASSIGN]
For details, see “Enjoying the sound
from other inputs” (page 53).
Night mode
[NIGHT M.]
NIGHT.OFF, NIGHT. ON
NIGHT.OFF
continued
57GB
Advanced Operations
Surround right speaker distancec) SR 1.0 m to SR 7.0 m
[SR DIST.]
(SR 3 ft to SR 22 ft)
(0.1 m (1 ft) step)
Menu
[Display]
Parameters
[Display]
Settings
Initial
setting
HDMI
[HDMI]
(page 64)
Control for HDMI
[CTRL.HDMI]
CTRL ON, CTRL OFF
CTRL ON
HDMI pass through
[PASS.THRU]
ON, AUTO, OFF
OFF
Setting HDMI audio input
[AUDIO.OUT]
AMP, TV+AMP
AMP
Subwoofer level for HDMIe)
[SW LEVEL]
SW AUTO, SW +10 dB, SW 0 dB
SW AUTO
Subwoofer Low Pass Filter
for HDMIe)
[SW L.P.F.]
L.P.F. ON, L.P.F. OFF
L.P.F. ON
Audio Return Channel
[ARC]
ARC ON, ARC OFF
ARC ON
Brightness of the display
[DIMMER]
DIM MAX, DIM MID, DIM OFF
DIM OFF
Sleep timer mode
[SLEEP]
OFF, 0-30-00, 1-00-00, 1-30-00,
2-00-00
OFF
Auto standby mode
[AUTO.STBY]
STBY ON, STBY OFF
STBY ON
Naming inputs
[NAME IN]
For details, see “Naming inputs”
(page 36).
SYSTEM
[SYSTEM]
(page 65)
a)
Models of area code ECE, CEK, AU1 only.
represent a speaker channel (FL, FR, CNT, SL, SR, SW).
c) Depends on the speaker pattern setting, some parameters may not be available.
d)
You cannot select this setting if your speaker is set to “LARGE”.
e) This parameter is only available when HDMI input signals is detected.
f)
“FEET” for models of area code U2, CA2.
b) xxx
58GB
AUTO CAL menu
(Models of area code ECE, CEK,
AU1 only)
You can perform automatic calibration to get
proper sound balance in your room.
For details, see “Calibrating the appropriate
speaker settings automatically (AUTO
CALIBRATION)” (page 30).
LEVEL menu
You can adjust the level of each speaker.
These settings are applied to all sound fields.
x T. TONE
Lets you adjust the speaker levels while
listening to the test tone from your listening
position.
• OFF
The test tone is turned off.
• AUTO xxx*
The test tone is output from each speaker in
sequence.
* xxx represent a speaker channel.
Adjusting the speaker level
Depends on the speaker pattern setting, some
parameters may not be available.
x D. RANGE
Lets you compress the dynamic range of the
soundtrack. This may be useful when you want
to watch movies at low volumes late at night.
Dynamic range compression is possible with
Dolby Digital sources only.
• COMP. MAX
The dynamic range is compressed
dramatically.
• COMP. STD
The dynamic range is compressed as
intended by the recording engineer.
• COMP. OFF
The dynamic range is not compressed.
Tip
Dynamic range compressor lets you compress the
dynamic range of the soundtrack based on the
dynamic range information included in the Dolby
Digital signal.
“COMP. STD” is the standard setting, but it only
enacts light compression. Therefore, we recommend
using the “COMP. MAX” setting. This greatly
compresses the dynamic range and lets you view
movies late at night at low volumes. Unlike analog
limiters, the levels are predetermined and provide a
very natural compression.
Advanced Operations
You can adjust each speaker’s level using the
following parameters.
For front left/right speakers, you can adjust the
level from –10.0 dB to +10.0 dB in 0.5 dB
steps. For other speakers, you can adjust the
level from –20.0 dB to +10.0 dB in 0.5 dB
steps.
Note
x FL LVL
x FR LVL
x CNT LVL
x SL LVL
x SR LVL
x SW LVL
59GB
SPEAKER menu
You can set the size and distance of the speakers connected to this receiver.
x PATTERN
Lets you set the number of speakers connected to this receiver. It should be synchronize with the
speakers settings.
For example:
3 / 2. 1
2 front +
center
Speaker
pattern
3/2.1
2 surround
subwoofer
Front left/right
Center
Surround
left/right
Subwoofer
a
a
a
a
3/2
a
a
a
–
2/2.1
a
–
a
a
2/2
a
–
a
–
3/0.1
a
a
–
a
3/0
a
a
–
–
2/0.1
a
–
–
a
2/0
a
–
–
–
60GB
x FRT SIZE
x SUR SIZE
• LARGE
If you connect large speakers that will
effectively reproduce bass frequencies,
select “LARGE”. Normally, select
“LARGE”. However, if you have selected a
speaker pattern without subwoofer, the front
speakers are automatically set to “LARGE”.
• SMALL
If the sound is distorted, or you feel a lack of
surround effects when using multi channel
surround sound, select “SMALL” to activate
the bass redirection circuitry and output the
front channel bass frequencies from the
subwoofer. When the front speakers are set
to “SMALL”, the center and surround
speakers are also automatically set to
“SMALL”.
• LARGE
If you connect large speakers that will
effectively reproduce bass frequencies,
select “LARGE”. Normally, select
“LARGE”. However, if the front speakers
are set to “SMALL”, you cannot set the
surround speakers to “LARGE”.
• SMALL
If the sound is distorted, or you feel a lack of
surround effects when using multi channel
surround sound, select “SMALL” to activate
the bass redirection circuitry and output the
surround channel bass frequencies from the
subwoofer or other speaker that is set to
“LARGE”.
x CNT SIZE
The “LARGE” and “SMALL” settings for each
speaker determine whether the internal sound
processor will cut the bass signal from that channel.
When the bass is cut from a channel, the bass
redirection circuitry sends the corresponding bass
frequencies to the subwoofer or other “LARGE”
speakers.
However, since bass sounds have a certain amount of
directionality, it is best not to cut them, if possible.
Therefore, even when using small speakers, you can
set them to “LARGE” if you want to output the bass
frequencies from that speaker. On the other hand, if
you are using a large speaker, but prefer not to have
bass frequencies output from that speaker, set it to
“SMALL”.
If the overall sound level is lower than you prefer, set
all speakers to “LARGE”. If there is not enough
bass, you can use the equalizer to boost the bass
levels. For details, see page 57.
x FL DIST.
x FR DIST.
Lets you set the distance from your listening
position to the front speakers.
If both front speakers are not placed an equal
distance from your listening position, set the
distance to the closest speaker.
x CNT DIST.
Lets you set the distance from your listening
position to the center speaker.
continued
61GB
Advanced Operations
• LARGE
If you connect a large speaker that will
effectively reproduce bass frequencies,
select “LARGE”. Normally, select
“LARGE”. However, if the front speakers
are set to “SMALL”, you cannot set the
center speaker to “LARGE”.
• SMALL
If the sound is distorted, or you feel a lack of
surround effects when using multi channel
surround sound, select “SMALL” to activate
the bass redirection circuitry and output the
center channel bass frequencies from the
front speakers (if set to “LARGE”) or
subwoofer.
Tip
x SL DIST.
x SR DIST.
Lets you set the distance from your listening
position to the surround speakers.
x SW DIST.
Lets you set the distance from your listening
position to the subwoofer.
Notes
• Depends on the speaker pattern setting, some
parameters may not be available.
• This function does not work in the following cases.
– Signals with a sampling frequency of more than 48
kHz are being received.
– the multi channel Linear PCM signals are received
via an HDMI IN jack.
– Analog Direct is selected.
x DIST.UNIT
Lets you select the unit of measure for setting
distances.
• METER
The distance is displayed in meters.
• FEET
The distance is displayed in feet.
SURROUND menu
You can select the sound field you want for
your listening pleasure.
x S.F. SELCT
Lets you select the sound field you want. For
details, see “Enjoying Surround Sound” (page
42).
Note
The receiver lets you apply the last selected sound
field to an input whenever it is selected (Sound Field
Link). For example, if you select “HALL” for the
DVD input, then change to a different input and then
return to DVD, “HALL” will automatically be
applied again.
x EFFECT
Lets you adjust the “presence” of the surround
effect for the Cinema Studio EX A/B/C sound
fields.
EQ menu
You can adjust the tonal quality (bass/treble
level) of the front speakers.
x FRT CRS.
Lets you set the bass crossover frequency of
the front speakers that have been set to
“SMALL” in the SPEAKER menu.
x CNT CRS.
Lets you set the bass crossover frequency of
the center speaker that have been set to
“SMALL” in the SPEAKER menu.
x SUR CRS.
Lets you set the bass crossover frequency of
the surround speakers that have been set to
“SMALL” in the SPEAKER menu.
62GB
x BASS
x TREBLE
Note
This function does not work in the following cases:
– signals with a sampling frequency of more than
48kHz are being received.
– the multi channel Linear PCM signals are received
via an HDMI IN jack.
– Analog Direct is selected.
TUNER menu
x DUAL
• STEREO
This receiver will decode the signal as stereo
signal when the radio station is broadcast in
stereo.
• MONO
This receiver will decode the signal as mono
signal regardless of the broadcast signal.
Lets you select the language you want to listen
to during digital broadcast. This feature only
functions for Dolby Digital sources.
• MAIN/SUB
Sound of the main language will be output
through the front left speaker and sound of
the sub language will be output through the
front right speaker simultaneously.
• MAIN
Sound of the main language will be output.
• SUB
Sound of the sub language will be output.
x NAME IN
x DEC. PRIO
You can set the FM station receiving mode and
name the preset stations.
x FM MODE
Lets you set the name of preset stations. For
details, see “Naming preset stations” (page
41).
AUDIO menu
You can make settings for the audio to suit
your preference.
x A/V SYNC
Notes
• This parameter is useful when you use a large LCD
or plasma monitor or a projector.
• This parameter is valid only when you use a sound
field selected with the 2CH or A.F.D. buttons.
• This function does not work in the following cases:
– signals with a sampling frequency of more than
48 kHz is input.
– the multi channel Linear PCM signals are received
via an HDMI IN jack.
– Analog Direct function is selected (page 42).
Notes
• Even when “DEC. PRIO” is set to “DEC.
PCM”, the sound may be interrupted at the very
beginning of the first track depending on the CD
being played back.
• When playback DTS CD, set “DEC. PRIO” to
“DEC. AUTO”.
x A. ASSIGN
Lets you assign the digital audio input to other
input source. For details, see “Enjoying the
sound from other inputs” (page 53).
continued
63GB
Advanced Operations
Lets you delay the output of audio to minimize
the time gap between audio output and visual
display.
• SYNC ON (Delay time: 60 ms)
The audio output is delayed so that the time
gap between the audio output and visual
display is minimized.
• SYNC OFF (Delay time: 0 ms)
The audio output is not delayed.
Lets you specify the input mode for the digital
signal input to the DIGITAL IN jacks or
HDMI IN jacks.
• DEC. AUTO
Automatically switches the input mode
between DTS, Dolby Digital, or PCM.
• DEC. PCM
When signals from the DIGITAL IN jack are
selected, PCM signals are given priority (to
prevent interruption when playback starts).
However, when other signals are input, there
may be no sound, depending on the format.
In this case, set this item to “DEC. AUTO”.
When signals from the HDMI IN jack are
selected, only PCM signals are output from
the connected player. When signals in any
other format are received, set this item to
“DEC. AUTO”.
x NIGHT M.
Notes
Lets you to retain a theater-like environment at
low volume levels. For details, see “Enjoying
the surround effect at low volume levels
(NIGHT MODE)” (page 46).
• NIGHT.OFF
• NIGHT. ON
• This parameter is not available when
“CTRL.HDMI” is set to “CTRL OFF”.
• When “AUTO” is selected, it may take a little more
time for the image and sound to be output to the TV
than when “ON” is selected.
• When the receiver is in standby mode, “HDMI”
indicator will lights up if “PASS.THRU” is set to
“AUTO” or “ON”. However, when
“PASS.THRU” is set to “AUTO”, this indicator
will lights off if no signals are detected.
HDMI menu
You can make various adjustments for HDMI
settings.
x CTRL.HDMI
Lets you turn the Control for HDMI function
on or off. For details, see ““BRAVIA” Sync
Features” (page 47).
x PASS.THRU
Lets you output the HDMI signals to the TV
even when the receiver is in standby mode.
• ON
When the receiver is in the standby mode,
the receiver continuously outputs HDMI
signals from the receiver’s HDMI TV OUT
jack.
• AUTO
When the TV is turned on while the receiver
is in the standby mode, the receiver outputs
HDMI signals from the receiver’s HDMI TV
OUT jack. Sony recommends this setting if
you use a TV that is compatible with
“BRAVIA” Sync. This setting saves power
in the standby mode compared with the
“ON” setting.
• OFF
The receiver does not output HDMI signals
when in the standby mode. Turn on the
receiver to enjoy the connected component’s
source on the TV. This setting saves power in
the standby mode compared with the “ON”
setting.
64GB
x AUDIO.OUT
Lets you set the HDMI audio output from the
playback component connected to the receiver
via an HDMI connection.
• AMP
The HDMI audio signals from the playback
component are only output to the speakers
connected to the receiver. Multi channel
sound can be played back as it is.
Note
Audio signals are not output from the TV’s
speakers when “AUDIO.OUT” is set to “AMP”.
• TV+AMP
The sound is output from TV’s speaker and
the speakers connected to the receiver.
Notes
• The sound quality of the playback component
depends on the TV’s sound quality, such as the
number of channels, and the sampling frequency,
etc. When the TV has stereo speakers, the sound
output from the receiver is also stereo as that of
the TV, even if you play back multi channel
software.
• When you connect the receiver to an image
display component (projector, etc.), sound may
not be output from the receiver. In this case,
select “AMP”.
x SW LEVEL
Lets you set the level of the subwoofer to 0 dB
or +10 dB when multi channel Linear PCM
signals are input via an HDMI connection. You
can set the level for each HDMI input
independently.
• SW AUTO
Automatically sets the level to 0 dB or
+10 dB depending on the frequency.
• SW +10 dB
• SW 0 dB
SYSTEM menu
You can customize the settings of the receiver.
x DIMMER
Lets you adjust the brightness of the display in
3 levels.
x SLEEP
Note
Lets you set the Sleep Timer on the receiver to
turn off automatically at the specific time. For
details, see “Using the Sleep Timer” (page 37).
This parameter is only available when HDMI input
signals are detected.
x AUTO.STBY
x SW L.P.F.
Lets you set the low pass filter of the
subwoofer when multi channel Linear PCM
signals are input via an HDMI connection. Set
the “SW L.P.F.” if your connected
subwoofer’s crossover frequency do not have
low pass filter.
• L.P.F. ON
The low pass filter of the subwoofer’s cut off
frequency is set to 120 Hz.
• L.P.F. OFF
The low pass filter of the subwoofer is
turned off.
This parameter is only available when HDMI input
signals are detected.
x ARC
Notes
• This function does not work when TUNER input is
selected.
• If you use the auto standby mode and the Sleep
Timer at the same time, the Sleep Timer has
priority.
x NAME IN
Lets you set the name of inputs. For details,
see “Naming inputs” (page 36).
Lets you enjoy the TV sound from the
speakers connected to the receiver via an
HDMI cable. For details, see “Enjoying the
TV sound via an HDMI cable” (page 51).
• ARC ON
Audio signal is input to the HDMI TV OUT
jack.
• ARC OFF
Audio signal is output through the TV
OPTICAL IN jack or TV AUDIO IN jack.
Note
This parameter is not available when
“CTRL.HDMI” is set to “CTRL OFF”.
65GB
Advanced Operations
Note
Lets you set the receiver switch to standby
mode automatically after 30 minutes when
you do not operate the receiver or when there
is no signals input to the receiver.
• STBY ON
Switches to standby mode after
approximately 30 minutes.
• STBY OFF
Does not switch to standby mode.
3
Using the Remote
Changing the input button
assignments
Referring to the following table,
press the corresponding
button for the category you
want, then release AV ?/1.
Example: Press 1, then release AV ?/1.
Now you can use the DVD button to
control the Blu-ray disc player.
You can change the initial settings of the input
buttons to suit the components in your system.
For example, if you connect a Blu-ray disc
player to the DVD jack on the receiver, you
can set the DVD button on this remote to
control the Blu-ray disc player.
Categories and the
corresponding buttons for BD,
DVD, SAT/CATV, VIDEO and
SA-CD/CD
Note
Categories
Press
You cannot change the remote assignments for
DMPORT, TUNER and TV input buttons.
Blu-ray disc player
(command mode BD1)a)
1
Blu-ray disc recorder
(command mode BD3)a)
2
DVD player
(command mode DVD1)
3
DVD recorder
(command mode DVD3)b)
4
VCR (command mode VTR3)c)
5
AV ?/1
Numeric
buttons
BD
DVD
SAT/
CATV
TV
VIDEO
SA-CD/
CD
DMPORT
TUNER
Assignable
Input
buttons
CD player
1
While holding down the input
button of which you want to
change the assignment, hold
down AV ?/1.
Example: While holding down DVD,
hold down AV ?/1.
2
With the AV ?/1 button held,
release the input button you
selected in step 1.
Example: With the AV ?/1 button held,
release DVD.
66GB
6
d)/
DSS (Digital Satellite Receiver)
Euro Digital Satellite Receiver e)
a)
7
For details on the BD1 or BD3 setting, refer to the
operating instructions supplied with the Blu-ray
disc player or Blu-ray disc recorder.
b)
Sony DVD recorders are operated with a DVD1 or
DVD3 setting. For details, refer to the operating
instructions supplied with the DVD recorders.
c)
Sony VCRs are operated with a VTR 2 or VTR 3
setting which corresponds to 8 mm and VHS
respectively.
d)
RM-AAU071 only.
e) RM-AAU074 only.
Clearing all the contents
of the remote’s memory
Additional Information
Glossary
INPUT/
?/1
BD
DVD
SAT/
CATV
TV
VIDEO
SA-CD/
CD
DMPORT
TUNER
O
MENU
m
.
M
X
x
>
MASTER
VOL –/
2–
x Cinema Studio EX
A surround sound mode that can be regarded
as the compilation of Digital Cinema Sound
technology, delivers the sound of a dubbing
theater using three technologies: “Virtual
Multi Dimensions,” “Screen Depth Matching,”
and “Cinema Studio Reverberation.”
“Virtual Multi Dimensions,” the virtual
speaker technology, creates a virtual multisurround environment with actual speakers up
to 7.1 channels, and brings the surround sound
experience of a theater with the latest facilities
into your home.
“Screen Depth Matching” reproduces treble
attenuation, fullness, and depth of sound
usually created in a theater using sound
emission from behind the screen. This is then
added to the front and center channels.
“Cinema Studio Reverberation” reproduces
the sound characteristics of state-of-the-art
dubbing theaters and recording studios,
including Sony Pictures Entertainment’s
dubbing studios. There are three modes,
A/B/C, available according to the studio type.
x Component video
While holding down MASTER VOL –, press
?/1 and INPUT.
A format for transmitting video signal
information consisting of three separate
signals: luminance Y, chrominance Pb, and
chrominance Pr. High quality pictures, such as
DVD video or HDTV pictures, are transmitted
more faithfully. The three jacks are color coded green, blue and red.
RM-AAU074 only
While holding down 2 –, press ?/1 and
/ .
The remote is reset to its initial settings.
x Composite video
A standard format for transmitting video
signal information. The luminance signal Y
and chrominance signal C are combined and
transmitted together.
continued
67GB
Additional Information
RM-AAU071 only
x Deep Colour (Deep Color)
Video signals for which the color depth of
signals passing through an HDMI jack have
been raised.
The number of colors that could be expressed
by 1 pixel was 24 bits (16,777,216 colors) with
the current HDMI jack. However, the number
of colors which can be expressed by 1 pixel
will be 36 bits, etc., when the receiver
corresponds to Deep Colour (Deep Color).
Since the gradation of the depth of a color can
be expressed more finely with more bits,
continuous color changes can be more
smoothly expressed.
x Digital Cinema Sound (DCS)
A unique sound reproduction technology for
home theater developed by Sony, in
cooperation with Sony Pictures Entertainment,
for enjoying the exciting and powerful sound
of movie theaters at home. With this “Digital
Cinema Sound” developed by integrating a
DSP (Digital Signal Processor) and measured
data, the ideal sound field intended by
filmmakers can be experienced at home.
x Dolby Digital
Digital audio encoding/decoding technology
developed by Dolby Laboratories, Inc. It
consists of front (left/right), center, surround
(left/right) and subwoofer channels. It is a
designated audio standard for DVD video and
also known as 5.1 channel surround. Since
surround information is recorded and
reproduced in stereo, more realistic sound with
fuller presence is delivered than with Dolby
surround.
x Dolby Pro Logic II
This technology converts 2 channel stereo
recorded audio into 5.1 channel for playback.
There is a MOVIE mode for movies and
MUSIC mode for stereo sources such as
music. Old movies encoded in the traditional
stereo format can be enhanced with 5.1
channel surround sound.
68GB
x Dolby Surround (Dolby Pro
Logic)
Audio processing technology developed by
Dolby Laboratories, Inc. Center and mono
surround information is matrixed into two
stereo channels. When reproduced, audio is
decoded and output in 4 channel surround
sound. This is the most common audio
processing method for DVD video.
x DTS Digital Surround
Digital audio encoding/decoding technology
for theaters developed by DTS, Inc. It
compresses audio less than Dolby Digital,
delivering a higher quality sound
reproduction.
x HDMI (High-Definition
Multimedia Interface)
HDMI (High-Definition Multimedia
Interface) is an interface that supports both
video and audio on a single digital connection,
allowing you to enjoy high quality digital
picture and sound. The HDMI specification
supports HDCP (High-bandwidth Digital
Contents Protection), a copy protection
technology that incorporates coding
technology for digital video signals.
x L.F.E. (Low Frequency Effects)
Sound effects of low frequencies which are
output from a subwoofer in Dolby Digital or
DTS, etc. By adding a deep bass with a
frequency between 20 to 120 Hz, audio
becomes more powerful.
x PCM (Pulse Code Modulation)
A method of converting analog audio to digital
audio for easy enjoyment of digital sound.
x Sampling frequency
To convert analog audio to digital, analog data
should be quantified. This process is called
sampling, and the number of times per second
the analog data is quantified is called the
sampling frequency. A standard music CD
stores data quantified at 44,100 times per
second, which is expressed as a sampling
frequency of 44.1 kHz. Generally speaking, a
higher sampling frequency means better sound
quality.
Precautions
x x.v.Colour (x.v.Color)
• Before operating the receiver, check that the
operating voltage is identical with your local
power supply.
The operating voltage is indicated on the
nameplate on the back of the receiver.
• The unit is not disconnected from the AC
power source (mains) as long as it is
connected to the wall outlet, even if the unit
itself has been turned off.
• If you are not going to use the receiver for a
long time, be sure to disconnect the receiver
from the wall outlet. To disconnect the AC
power cord (mains lead), grasp the plug
itself; never pull the cord.
• The AC power cord (mains lead) must be
changed only at a qualified service shop.
• (Models of area code U2, CA2 only)
One blade of the plug is wider than the other
for the purpose of safety and will fit into the
wall outlet only one way. If you are unable to
insert the plug fully into the outlet, contact
your dealer.
x.v.Colour (x.v.Color) is a more familiar term
for the xvYCC standard proposed by Sony,
and is a trademark of Sony. xvYCC is an
international standard for color space in video.
This standard can express a wider colour range
than the currently used broadcast standard.
On safety
Should any solid object or liquid fall into the
cabinet, unplug the receiver and have it
checked by qualified personnel before
operating it any further.
On power sources
On heat buildup
continued
69GB
Additional Information
Although the receiver heats up during
operation, this is not a malfunction. If you
continuously use this receiver at a large
volume, the cabinet temperature of the top,
side and bottom rises considerably. To avoid
burning yourself, do not touch the cabinet.
On placement
• Place the receiver in a location with adequate
ventilation to prevent heat buildup and
prolong the life of the receiver.
• Do not place the receiver near heat sources,
or in a place subject to direct sunlight,
excessive dust, or mechanical shock.
• Do not place anything on top of the cabinet
that might block the ventilation holes and
cause malfunctions.
• Do not place the receiver near equipment
such as a TV, VCR, or tape deck. (If the
receiver is being used in combination with a
TV, VCR, or tape deck, and is placed too
close to that equipment, noise may result,
and picture quality may suffer. This is
especially likely when using an indoor
antenna (aerial). Therefore, we recommend
using an outdoor antenna (aerial).)
• Use caution when placing the receiver on
surfaces that have been specially treated
(with wax, oil, polish, etc.) as staining or
discoloration of the surface may result.
On operation
Before connecting other components, be sure
to turn off and unplug the receiver.
On cleaning
Clean the cabinet, panel, and controls with a
soft cloth slightly moistened with a mild
detergent solution. Do not use any type of
abrasive pad, scouring powder, or solvent,
such as alcohol or benzine.
If you have any questions or problems
concerning your receiver, please consult your
nearest Sony dealer.
70GB
Troubleshooting
If you experience any of the following
difficulties while using the receiver, use this
troubleshooting guide to help you remedy the
problem. Should any problem persist, consult
your nearest Sony dealer.
Audio
There is no sound, no matter which
component is selected, or only a very
low-level sound is heard.
• Check that the speakers and components
are connected correctly and securely.
• Check that all speaker cords are connected
correctly.
• Check that both the receiver and all
components are turned on.
• Check that MASTER VOLUME is not set
to “VOL MIN”.
• Check that headphones are not connected.
• Press MUTING (RM-AAU071 only) or
(RM-AAU074 only) on the remote to
cancel the muting function.
• Check that you have selected the correct
component with the input buttons.
• The protective device on the receiver has
been activated. Turn off the receiver,
eliminate the short-circuit problem, and
turn on the power again.
There is no sound from a specific
component.
• Check that the component is connected
correctly to the audio input jacks for that
component.
• Check that the cord(s) used for the
connection is (are) fully inserted into the
jacks on both the receiver and the
component.
There is no sound from one of the front
speakers.
• Connect a pair of headphones to the
PHONES jack to verify that sound is
output from the headphones. If only one
channel is output from the headphones, the
component may not be connected to the
receiver correctly. Check that all the cords
are fully inserted into the jacks on both the
receiver and the component. If both
channels are output from the headphones,
the front speaker may not be connected to
the receiver correctly. Check the
connection of the front speaker which is
not outputting any sound.
• Make sure you have connected to both the
L and R jacks of an analog component, and
not only to either the L or R jack. Use an
audio cord (not supplied).
There is no sound from analog 2
channel sources.
• Check that the INPUT MODE is not set to
“AUTO” (page 52) and the DIGITAL
connection is not made for the selected
input.
• Check that the INPUT MODE is not set to
“AUTO” (page 52) and the “A. ASSIGN”
function is not used to reassign the audio
input of another source to the selected
input (page 53).
• Check that the INPUT MODE is not set to
“COAX” or “OPT”.
The left and right sounds are
unbalanced or reversed.
• Check that the speakers and components
are connected correctly and securely.
• Adjust the level parameters using the
LEVEL menu (page 56).
“- - - - - -” appears on the display.
• Check that your component is connected
to the COAXIAL or OPTICAL jack. If no
signal is input through the COAXIAL or
OPTICAL jack, “- - - - - -” appears on the
display and this is not a malfunction.
There is severe hum or noise.
• Check that the speakers and components
are connected securely.
• Check that the connecting cords are away
from a transformer or motor, and at least
3 meters (10 feet) away from a TV set or
fluorescent light.
• Move your audio components away from
the TV.
• The plugs and jacks are dirty. Wipe them
with a cloth slightly moistened with
alcohol.
continued
71GB
Additional Information
There is no sound from digital sources
(from COAXIAL or OPTICAL input jack).
• Check that the INPUT MODE is not set to
“ANALOG” (page 52).
• Check that the Analog Direct is not being
used.
• Check that the “A. ASSIGN” function is
not used to reassign the audio input of
another source to the selected input (page
53).
• Set “ARC” to “ARC OFF” when no sound
is output from TV OPTICAL IN jack
during TV input (page 58).
The source sound input to the HDMI
jack is not output from the receiver or
the TV speaker.
• Check the HDMI connection (page 23).
• You cannot listen to the Super Audio CD
by connecting HDMI.
• Depending on the playback component,
you may need to set up the component.
Refer to the operating instructions
supplied with each component.
• Be sure to use a High Speed HDMI cable
when you view images or listen to sound
during Deep Colour (Deep color)
transmission.
There is no sound, or only a very lowlevel sound is heard from the center/
surround.
• Select a CINEMA STUDIO EX mode
(page 43).
• Check that the speaker settings are
appropriate using the AUTO CAL menu
or “PATTERN” in the SPEAKER menu.
Then check that sound is output from each
speaker correctly, using “T. TONE” in the
LEVEL menu.
• Adjust the speaker level (page 34).
There is no sound from the subwoofer.
• Check that the subwoofer is connected
correctly and securely.
• Make sure you have turned on your
subwoofer.
• Depending on the selected sound field, no
sound output from the subwoofer.
• Check “PATTERN” in the SPEAKER
menu (page 60).
The surround effect cannot be
obtained.
• Make sure you have selected the sound
field for movie or music mode (page 43).
• Sound fields do not function for signals
with a sampling frequency of more than
48 kHz.
Dolby Digital or DTS multi channel
sound is not reproduced.
• Check that the DVD, etc. you are playing
is recorded in Dolby Digital or DTS
format.
• When connecting the DVD player, etc., to
the digital input jacks of this receiver,
check the audio setting (the settings for the
audio output) of the connected component.
For example, when connecting the
“PlayStation 3”, set the BD/DVD audio
output format to “Bitstream” on the
“PlayStation 3”.
• Set “AUDIO.OUT” to “AMP” in the
HDMI menu.
Recording cannot be carried out.
• Check that the components are connected
correctly.
72GB
• Select the source component using the
input buttons.
There is no sound from the component
connected to the DIGITAL MEDIA
PORT adapter.
• Adjust the volume of this receiver.
• The DIGITAL MEDIA PORT adapter
and/or component is not connected
correctly. Turn off the receiver, then
reconnect the DIGITAL MEDIA PORT
adapter and/or component.
• Check the DIGITAL MEDIA PORT
adapter and/or component device to make
sure it supports this receiver.
Video
There is no picture or an unclear
picture appears on the TV screen or
monitor.
• Select the appropriate input using the input
buttons.
• Set your TV to the appropriate input mode.
• Move your audio components away from
the TV.
• Depending on the DIGITAL MEDIA
PORT adapter, video output may not be
possible.
The source image input to the VIDEO IN
or COMPONENT VIDEO IN jacks is not
output from the TV.
• Check that your component is connected
to the MONITOR OUT jack (page 20).
• Make sure “CTRL.HDMI” is set to
“CTRL OFF” in HDMI menu (page 58).
The source image input to the HDMI
jack is not output from the TV.
• Check the HDMI connection (page 23).
• Depending on the playback component,
you may need to set up the component.
Refer to the operating instructions
supplied with each component.
• Be sure to use a High Speed HDMI cable
when you view images or listen to sound
during Deep Colour (Deep color)
transmission.
Recording cannot be carried out.
• Check that the components are connected
correctly.
• Select the source component using the
input buttons (page 35).
Tuner
The FM reception is poor.
• Use a 75-ohm coaxial cable (not supplied)
to connect the receiver to an outdoor FM
antenna (aerial) as shown below. If you
connect the receiver to an outdoor antenna
(aerial), ground it against lightning. To
prevent a gas explosion, do not connect the
ground (earth) wire to a gas pipe.
Outdoor FM antenna (aerial)
Receiver
AM
ANTENNA
Ground (earth)
wire (not supplied)
To ground
The RDS information that you want
does not appear.*
• Contact the radio station and find out
whether they actually provide the service
in question. If so, the service may be
temporarily out of order.
* Models of area code ECE, CEK, AU1 only.
Control for HDMI
The Control for HDMI function does not
work.
• Check the HDMI connection (page 23).
• Make sure “CTRL.HDMI” is set to
“CTRL ON” in the HDMI menu (page
58).
• Make sure the connected component is
compatible with the Control for HDMI
function.
• Check the Control for HDMI settings on
the connected component. Refer to the
operating instructions of the connected
component.
• Repeat the procedures of “Preparing for
the “BRAVIA” Sync” if you change the
HDMI connection, connect/disconnect the
AC power cord (mains lead), or when
there is a power failure (page 47).
Additional Information
Radio stations cannot be tuned in.
• Check that the antennas (aerials) are
connected securely. Adjust the antennas
(aerials) and connect an external antenna
(aerial), if necessary.
• The signal strength of the stations is too
weak (when tuning in with automatic
tuning). Use direct tuning.
• Make sure you set the tuning interval
correctly (when tuning in AM stations
with direct tuning).
• No stations have been preset or the preset
stations have been cleared (when tuning
by scanning preset stations). Preset the
stations (page 40).
• Press DISPLAY repeatedly so that the
frequency appears on the display.
RDS does not work.*
• Make sure that you are tuned to an FM
RDS station.
• Select a stronger FM station.
continued
73GB
No sound is output from the receiver
and TV speaker while using the System
Audio Control function.
• Make sure the TV is compatible with the
System Audio Control function.
• If the TV does not have System Audio
Control function, set the “AUDIO.OUT”
settings in HDMI menu to
– “TV+AMP” if you want to listen to the
sound from the TV speaker and receiver.
– “AMP” if you want to listen to the sound
from the receiver.
• When you connect the receiver to a video
component (projector, etc.), sound may
not be output from the receiver. In this
case, select “AMP”.
• If you cannot listen to the sound of a
component connected to the receiver
– Select appropriate input (BD, DVD,
SAT/CATV) when you want to watch a
program on a component connected via
HDMI connection to the receiver.
– Change the TV channel when you want
to watch a TV broadcast.
– Select the component or input you want
to watch when you watch a program on
the component connected to the TV.
Refer to the operating instructions of the
TV on this operation.
When the receiver is in standby mode,
there is no image or sound on the TV.
• When the receiver is in standby mode,
image and sound are output from the
HDMI component selected the last time
you turned off the receiver. If you are
enjoying other component, play the
component and perform the One-Touch
Play operation, or turn on the receiver to
select the HDMI component you want to
enjoy.
• Make sure “PASS.THRU” is set to “ON”
in the HDMI menu if you connect
components not compatible with the
“BRAVIA” Sync to the receiver (page 64).
74GB
Remote commander
The remote does not function.
• Point the remote at the remote sensor on
the receiver.
• Remove any obstacles in the path between
the remote and the receiver.
• Replace all the batteries in the remote with
new ones, if they are weak.
• Make sure you select the correct input on
the remote.
Others
The receiver is turned off
automatically.
• The “AUTO.STBY” function is working
(page 58).
Error messages
If there is a malfunction, the display shows a
message. You can check the condition of the
system by the message. See the following table
to solve the problem. If any problem persists,
consult your nearest Sony dealer.
If an error message appears while you perform
Auto Calibration, see “When error codes
appear” (page 32) to solve the problem.
PROTECTOR
Irregular current is output to the speakers, or
the upper panel of the receiver is covered
with something. The receiver will
automatically turn off after a few seconds.
Check the speaker connection and turn on
the power again.
If you are unable to remedy the
problem using the
troubleshooting guide
Clearing the receiver’s memory may remedy
the problem (page 30). However, note that all
memorized settings will be reset to their initial
settings and you will have to readjust all
settings on the receiver.
If the problem persist
Consult your nearest Sony dealer. Note that if
service personnel changes some parts during
repair, these parts may be retained.
Reference sections for clearing
the receiver’s memory
To clear
See
All memorized settings
page 30
Customized sound fields
page 46
Specifications
AUDIO POWER
SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
(Models of area code U2 only)
With 8 ohm loads, both channels driven, from
20 – 20,000 Hz; rated 90 watts per channel
minimum RMS power, with no more than
0.09% total harmonic distortion from 250
milliwatts to rated output.
Amplifier section
Models of area code U21)
Minimum RMS Output Power
(8 ohms, 20 Hz – 20 kHz, THD 0.09%)
90 W + 90 W
Stereo Mode Output Power
(8 ohms, 1 kHz, THD 1%)
100 W + 100 W
Surround Mode Output Power2)
(8 ohms, 1 kHz, THD 10%)
130 W per channel
Models of area code CA2, ECE, CEK, AU11)
Minimum RMS Output Power
(8 ohms, 20 Hz – 20 kHz, THD 0.09%)
85 W + 85 W
Stereo Mode Output Power
(8 ohms, 1 kHz, THD 1%)
100 W + 100 W
Surround Mode Output Power2)
(8 ohms, 1 kHz, THD 10%)
130 W per channel
under the following conditions:
Area code
Power requirements
U2, CA2
120 V AC, 60 Hz
ECE, CEK, AU1
230 V AC, 50 Hz
2)
Reference power output for front, center and
surround speakers. Depending on the sound field
settings and the source, there may be no sound
output.
continued
75GB
Additional Information
1) Measured
Frequency response
Analog
10 Hz – 70 kHz,
+0.5/–2 dB (with sound
field and equalizer
bypassed)
Input
Analog
Sensitivity: 500 mV/
50 kohms
S/N3): 96 dB
(A, 500 mV4))
Digital (Coaxial) Impedance: 75 ohms
S/N: 100 dB
(A, 20 kHz LPF)
Digital (Optical) S/N: 100 dB
(A, 20 kHz LPF)
Output (analog)
AUDIO OUT
Voltage: 500 mV/
10 kohms
SUBWOOFER
Voltage: 2 V/1 kohm
Equalizer
Gain levels
±6 dB, 1 dB step
3) INPUT
SHORT (with sound field and equalizer
bypassed).
4)
Weighted network, input level.
FM tuner section
Tuning range
87.5 MHz – 108.0 MHz
Antenna (aerial)
FM wire antenna (aerial)
Antenna (aerial) terminals
75 ohms, unbalanced
Intermediate frequency
10.7 MHz
Tuning range
Tuning scale
10 kHz step
9 kHz step
U2, CA2
530 kHz –
1,710 kHz
531 kHz –
1,710 kHz
ECE, CEK, AU1
–
531 kHz –
1,602 kHz
Antenna (aerial)
Loop antenna (aerial)
Intermediate frequency
450 kHz
76GB
Inputs/Outputs
Video:
1 Vp-p, 75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p, 75 ohms
PB/CB: 0.7 Vp-p, 75 ohms
PR/CR: 0.7 Vp-p, 75 ohms
80 MHz HD Pass Through
General
Power requirements
Area code
Power requirements
U2, CA2
120 V AC, 60 Hz
ECE, CEK
230 V AC, 50/60 Hz
AU1
230 V AC, 50 Hz
Power output (DIGITAL MEDIA PORT)
DC OUT:
5V, 0.7A MAX
Power consumption
Area code
Power consumption
U2, CA2, ECE, CEK, 230 W
AU1
Dimensions (width/height/depth) (Approx.)
430 mm × 157.5 mm ×
322 mm (17 in × 6 1/4 in ×
12 3/4 in) including
projecting parts and
controls
Mass (Approx.)
7.4 kg (16 lb 6 oz)
For details on the area code of the
component you are using, see page 5.
AM tuner section
Area code
Video section
Design and specifications are subject to
change without notice.
• Standby power consumption: 0.3 W
• Halogenated flame retardants are not used
in the certain printed wiring boards.
Index
Numerics
I
S
2 channel 42
5.1 channel 17
Initial setup 30
INPUT MODE 52
A
M
A.F.D. mode 43
Analog Direct 43
Audio Return Channel
(ARC) 51, 58
AUTO CALIBRATION 30
Menu
AUDIO 63
AUTO CAL 59
EQ 62
HDMI 64
LEVEL 59
SPEAKER 60
SURROUND 62
SYSTEM 65
TUNER 63
Movie mode 43
Music mode 43
Muting 35
Satellite tuner
connecting 24, 27
Sleep Timer 37
Sound fields
resetting 46
selecting 42
Speaker pattern 56, 60
Speakers
connecting 19
installing 17
Super Audio CD Player
connecting 22
System Audio Control 49
System Power Off 50
B
Blu-ray disc player
connecting 24
C
Cable TV tuner
connecting 24, 27
CD Player
connecting 22
Clear
memory 30
remote 67
D
DIGITAL MEDIA PORT
connecting 22
enjoying 55
Dolby Digital 68
DTS 68
DVD player
connecting 24, 26
DVD recorder
connecting 24, 26
Naming 36, 41
NIGHT MODE 46
O
One-Touch Play 48
P
“PlayStation 3”
connecting 24
R
RDS 42
Recording
onto a recording media
37
Remote commander 12
Test Tone 34, 59
Theater/Theatre Mode Sync
51
Tuner
connecting 29
Tuning
automatically 38
directly 39
to preset stations 41
TV
connecting 20
V
VCR
connecting 28
Additional Information
E
N
T
Error messages 74
H
HDMI
connecting 23
HDMI pass Through 64
77GB
(1)
Sony Corporation Printed in Malaysia

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
