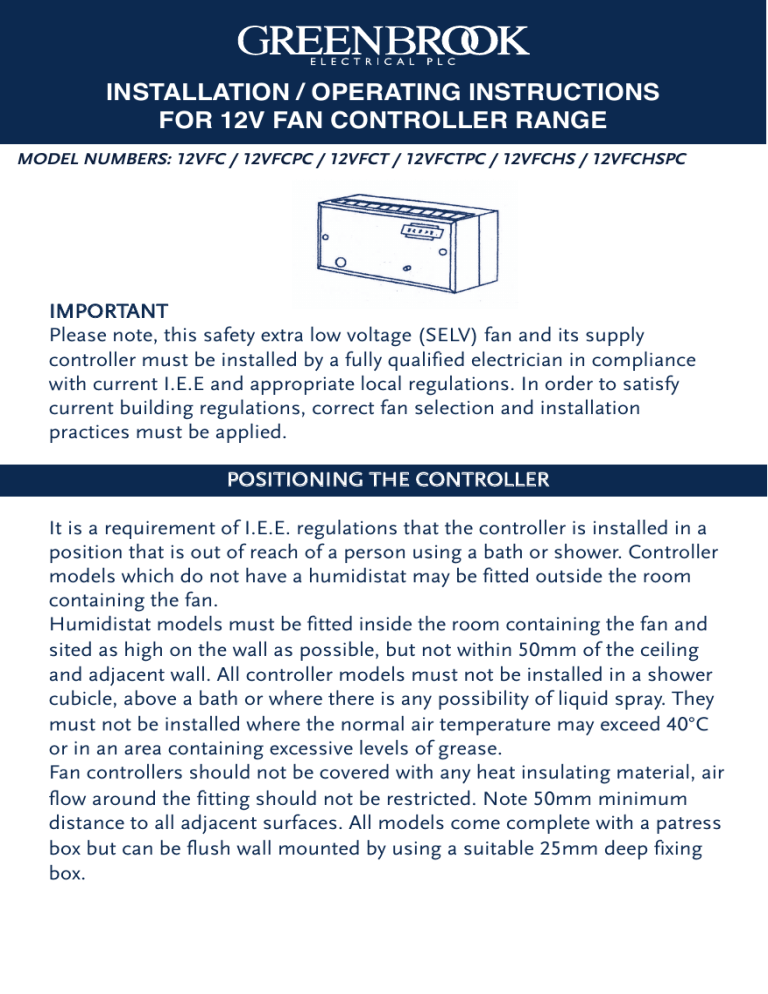

INSTALLATION / OPERATING INSTRUCTIONS
FOR 12V FAN CONTROLLER RANGE
MODEL NUMBERS: 12VFC / 12VFCPC / 12VFCT / 12VFCTPC / 12VFCHS / 12VFCHSPC
IMPORTANT
Please note, this safety extra low voltage (SELV) fan and its supply
controller must be installed by a fully qualified electrician in compliance
with current I.E.E and appropriate local regulations. In order to satisfy
current building regulations, correct fan selection and installation
practices must be applied.
POSITIONING THE CONTROLLER
It is a requirement of I.E.E. regulations that the controller is installed in a
position that is out of reach of a person using a bath or shower. Controller
models which do not have a humidistat may be fitted outside the room
containing the fan.
Humidistat models must be fitted inside the room containing the fan and
sited as high on the wall as possible, but not within 50mm of the ceiling
and adjacent wall. All controller models must not be installed in a shower
cubicle, above a bath or where there is any possibility of liquid spray. They
must not be installed where the normal air temperature may exceed 40°C
or in an area containing excessive levels of grease.
Fan controllers should not be covered with any heat insulating material, air
flow around the fitting should not be restricted. Note 50mm minimum
distance to all adjacent surfaces. All models come complete with a patress
box but can be flush wall mounted by using a suitable 25mm deep fixing
box.
CONTROLLER ELECTRICAL SUPPLY
Rated single phase 220/240V AC 50Hz input providing 12V 50Hz 30VA
max. safety extra low voltage (SELV) output. Class II double insulated - no
earth required. The controller’s electrical supply must be connected via an
RCD double pole fused connection unit having a contact separation of at
least 3mm in all poles and fitted with a 3amp fuse. This must be sited
outside of a room which contains a fixed bath or shower.
PLEASE NOTE - the controller is only suitable for operating one SELV (extra
low voltage) fan.
DIAGRAM 1
12VFC - Standard Model
DIAGRAM 2
12VFCPC - Integral Pullcord
Switch Operated Model (Non timer)
DIAGRAM 3
12VFCT / 12VFCTPC / 12VFCHS /
12VFCHSPC
Overrun Timer & Humidistat
Models for Remote Pullcord
Switch Operation
INSTALLING THE CONTROLLER
1. Fix the (SELV) fan cable and the mains supply cable in position
ensuring sufficient length is left for the connections.
2. Remove suitable cable entry knockouts from the pattress box and
fix in position using screws and (possible masonry plugs) compatible
with the mounting surface.
3. Make the correct electrical connections (See overleaf for which wiring
diagram to follow) to the controller terminal blocks.
4. Refit the controller to the pattress box taking care not to overtighten
the fixing screws or trap any wires.
MODEL
Standard
12VFC
Pullcord Switch
12VFCPC
Overrun Timer
12VFCT
Overrun Timer &
Pullcord Switch
12VFCTPC
Overrun Timer &
Humidistat
12VFCHS
Overrun Timer,
Humidistat &
Pullcord
12VFCHSPC
WIRING
DIAGRAM
1
2
3
2
3
2
DESCRIPTION
OPERATING
Remote switch on - Fan runs
Remote switch off - Fan stops
Integral Pullcord Switch. Pullcord switch on - Fan runs
Pullcord switch off - Fan stops
Adjustable (2-30 mins)
Remote switch on - Fan runs
Overrun timer for remote Remote switch off - Fan overruns
switching.
for preset time.
For remote switching.
As above with integral
pullcord switch.
As above - Operated by integral
pullcord switch.
As above with integral
pullcord switch.
As above - Operated by integral
pullcord switch.
Adjustable (2-30 mins)
overrun timer for remote
switching. Integral
humidity sensor
switching.
Remote switch on - Fan runs
Remote switch off - Fan overruns
for preset time. Automatic operation
when relative humidity level in room
rises above 70%.
HUMIDISTAT MODELS
Upon initial installation, the fan may run continuously for up to 10 days
until the relative humidity has been reduced to an acceptable level.
Prevailing weather conditions can also have an effect and in humid
conditions normal running periods may be extended.
CLEANING
Before cleaning, ensure the controller and fan are isolated from the mains
supply. The front cover of the fan may be cleaned with a damp cloth. The
interior of the fan should also be cleaned occasionally. To do this, first
remove the front cover by loosening its locking screw, then clean carefully
with a dry cloth. If necessary the fan blades may be cleaned with a soft
brush.
PLEASE KEEP THESE
INSTRUCTIONS SAFE
FOR FUTURE REFERENCE
Email: [email protected]
Web: www.greenbrook.co.uk
Issue No: 702043
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
