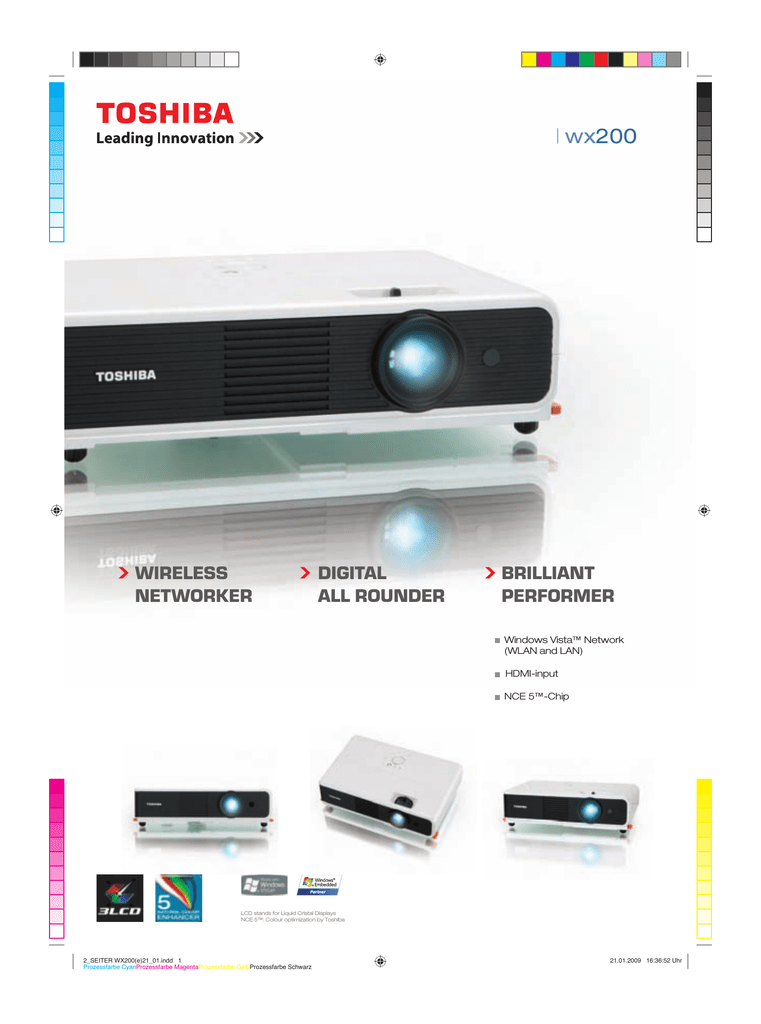

Toshiba wx200 Datasheet

| wx200
WIRELESS
NETWORKER
DIGITAL
ALL ROUNDER
BRILLIANT
PERFORMER
Windows Vista™ Network
(WLAN and LAN)
HDMI-input
NCE 5™-Chip
LCD stands for Liquid Cristal Displays
NCE 5™: Colour optimization by Toshiba
2_SEITER WX200(e)21_01.indd 1
Prozessfarbe CyanProzessfarbe
CyanProzessfarbe MagentaProzessfarbe
MagentaProzessfarbe GelbProzessfarbe
GelbProzessfarbe Schwarz
21.01.2009 16:36:52 Uhr
| wx200
Display
0.59” LCD Chip
Resolution
WXGA 1,280 x 800
Brightness
2,200 ANSI-lumens
Colour reproduction
16.7 mio. colours
Contrast
600:1
Projection format
16:10 switchable to 4:3/16:9
Lamp
180 W (TLPLW21)
Max. lamp life
up to max. 2,000 hours/
Lens
F = 1.7 - 1.87 / f = 19.2- 23.1 mm,
Zoom
1.2 x
up to max. 3,000 hours in ECO mode
manual focus and zoom
Frequency (hor./vert.)
15 - 106 kHz / 50 - 85 Hz
Projection
front, rear and ceiling
Digital keystone correction
full auto keystone vertical +/- 45°
Picture size (diagonal)
0.76 - 7.60 m
Projection offset
100 %
Input signals
NTSC / PAL / SECAM, 480i, 480p, 576i, 576p, 720p, 1,080i,
Inputs
1 x RGB, audio, video (1 x RCA), S-video, USB, HDMI, RJ45
Outputs
1 x RGB switchable in/out, audio
Serial interface
RS-232C (D-sub 9pin)
1,080p, VGA, SVGA, XGA, WXGA, SXGA, UXGA (compr.)
Power supply
AC 100 - 240 V, 50/60 Hz
Loudspeaker
1 W mono
Dimensions (W x H x D)
293 x 70 x 192 mm
Weight
1.9 kg
Operation noise
ECO Mode 28 dB / normal 32 dB
Specials
Windows Vista™ Network (WLAN and LAN), auto keystone correction, instant shut down, user logo capture,
NCE 5™, password, USB memory reader, voice guidance
Accessories
remote control with laserpointer and batteries, mouse
remote receiver, softcase, owners manual (CD-ROM),
RGB- and power-cable
Options
ceiling mount, spare lamp, camera c001
Menu guidance
25 languages: English, French, German, Italian, Spanish,
Portuguese, Russian, Swedish, Turkish, Polish, Japanese, Chinese (simple/traditional), Korean, Indonesian,
Danish, Czech, Hungarian, Dutch, Finnish, Norwegian,
Greek, Rumanian, Thai, Arabic
802.11 b/g WEP, WPA, WPA 2
July 2008 • subject to modifications and errors
Wireless communication
www.toshiba-projectors.com
Toshiba Europe GmbH
Projection & Display Technology
Phone: ++49-2131-158-01 · Fax: ++49-2131-158-835
e-mail: [email protected]
