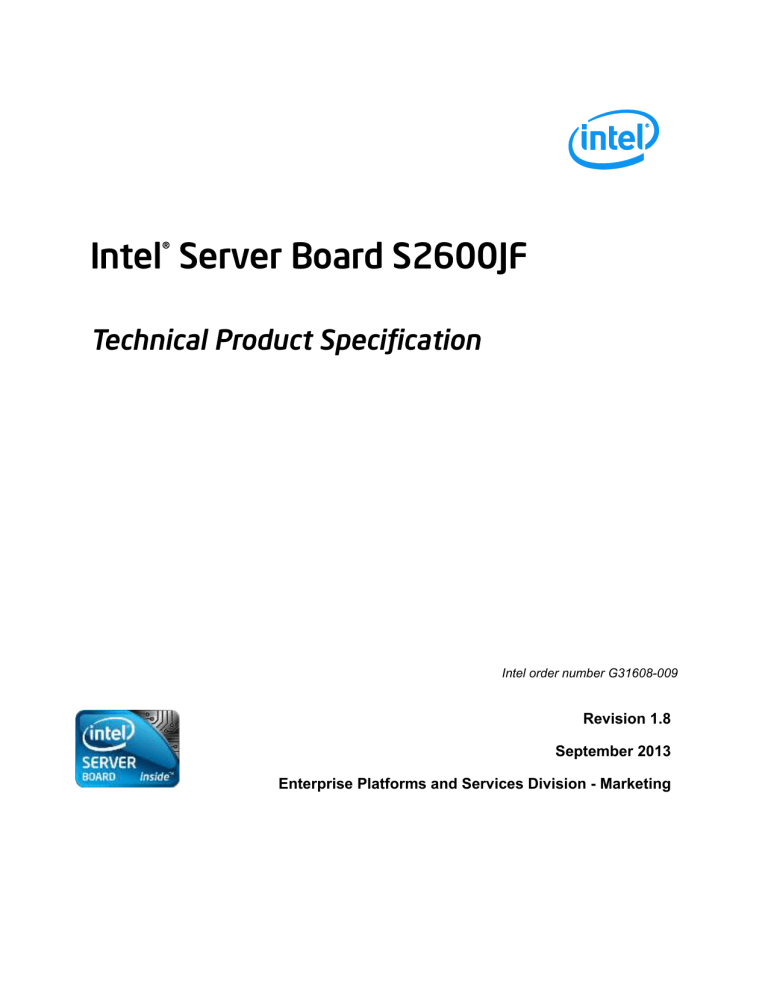

Intel® Server Board S2600JF TPS
Intel®Server Board S2600JF
Technical Product Specification
Intel order number G31608-009
Revision 1.8
September 2013
Enterprise Platforms and Services Division - Marketing
Revision History
Intel®Server Board S2600JF TPS
Revision History
ii
Date
December, 2011
Revision Number
1.0
Modifications
February, 2012
1.1
Added BMC sensor table and features.
May, 2012
1.2



July, 2012
1.3
Updated InfiniBand* recommendation.
September, 2012
1.4


Updated Node Manager IPMI Integrated Sensors.
Updated extended memory support.
February, 2013
1.5


Updated board block diagram.
Updated E5-2600V2 processor support.
June, 2013
1.6
Updated memory test scope.
August, 2013
1.7
Updated Jumper Usage, BIOS menu changes, and Video POST
Code Errors.
September, 2013
1.8
Updated POST LED decode table, Video POST code table, and
POST Error Beep codes.
Initial release.
Updated Design Specifications and ASHRAE specification.
Added NTB support in BIOS.
Updated board block diagram.
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Disclaimers
Disclaimers
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL PRODUCTS. NO LICENSE,
EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS
GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR
SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER AND INTEL DISCLAIMS ANY EXPRESS OR
IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR
INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
A "Mission Critical Application" is any application in which failure of the Intel Product could result, directly or indirectly,
in personal injury or death. SHOULD YOU PURCHASE OR USE INTEL'S PRODUCTS FOR ANY SUCH MISSION
CRITICAL APPLICATION, YOU SHALL INDEMNIFY AND HOLD INTEL AND ITS SUBSIDIARIES,
SUBCONTRACTORS AND AFFILIATES, AND THE DIRECTORS, OFFICERS, AND EMPLOYEES OF EACH,
HARMLESS AGAINST ALL CLAIMS COSTS, DAMAGES, AND EXPENSES AND REASONABLE ATTORNEYS'
FEES ARISING OUT OF, DIRECTLY OR INDIRECTLY, ANY CLAIM OF PRODUCT LIABILITY, PERSONAL
INJURY, OR DEATH ARISING IN ANY WAY OUT OF SUCH MISSION CRITICAL APPLICATION, WHETHER OR
NOT INTEL OR ITS SUBCONTRACTOR WAS NEGLIGENT IN THE DESIGN, MANUFACTURE, OR WARNING OF
THE INTEL PRODUCT OR ANY OF ITS PARTS.
Intel may make changes to specifications and product descriptions at any time, without notice. Designers must not
rely on the absence or characteristics of any features or instructions marked "reserved" or "undefined". Intel reserves
these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from
future changes to them. The information here is subject to change without notice. Do not finalize a design with this
information.
The products described in this document may contain design defects or errors known as errata which may cause the
product to deviate from published specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your
product order.
Copies of documents which have an order number and are referenced in this document, or other Intel literature, may
be obtained by calling 1-800-548-4725, or go to: http://www.intel.com/design/literature.
Revision 1.8
Intel order number G31608-009
iii
Table of Contents
Intel®Server Board S2600JF TPS
Table of Contents
1.
Introduction .......................................................................................................................... 1
1.1
Section Outline ........................................................................................................ 1
1.2
Server Board Use Disclaimer .................................................................................. 2
2. Server Board Overview ........................................................................................................ 3
2.1
Server Board Connector and Component Layout .................................................... 5
2.1.1
Board Rear Connector Placement ........................................................................... 6
2.1.2
Server Board Mechanical Drawings ........................................................................ 7
3. Product Architecture Overview ........................................................................................... 8
3.1
High Level Product Features ................................................................................... 8
3.2
Processor Support ................................................................................................. 10
3.2.1
Processor Socket Assembly .................................................................................. 10
3.2.2
Processor Population Rules .................................................................................. 11
3.3
Processor Function Overview ................................................................................ 13
3.3.1
Intel® QuickPath Interconnect ................................................................................ 14
3.3.2
Integrated Memory Controller (IMC) and Memory Subsystem .............................. 14
3.3.3
Processor Intergrated I/O Module (I/O) ................................................................. 20
3.4
Intel® C600-A/B PCH Functional Overview ............................................................ 24
3.4.1
PCI Express* ......................................................................................................... 25
3.4.2
Non-Transparent Bridge ........................................................................................ 25
3.4.3
Universal Serial Bus (USB) .................................................................................... 26
3.4.4
Serial Attached SCSI (SAS) and Serial ATA (SATA) Controller ............................ 26
3.4.5
PCI Interface .......................................................................................................... 27
3.4.6
Low Pin Count (LPC) Interface .............................................................................. 27
3.4.7
Digital Media Interface (DMI) ................................................................................. 27
3.4.8
Serials Peripheral Interface (SPI) .......................................................................... 27
3.4.9
Compatibility Modules (DMA Controller, Timer/Counters, Interrupt Controller) ..... 27
3.4.10 Advanced Programmable Interrupt Controller (APIC) ........................................... 28
3.4.11 Real Time Clock (RTC) .......................................................................................... 28
3.4.12 GPIO ...................................................................................................................... 28
3.4.13 Enhanced Power Management ............................................................................. 28
3.4.14 Fan Speed Control ................................................................................................. 28
3.4.15 Intel® Virtualization Technology for Direct I/O (Intel® VT-d) ................................... 29
3.4.16 KVM/Serial Over LAN (SOL) Function ................................................................... 29
3.4.17 IDE-R Function ...................................................................................................... 29
3.4.18 Manageability ......................................................................................................... 29
3.4.19 System Management Bus (SMBus 2.0*) ............................................................... 30
3.4.20 Network Interface Controller (NIC) ........................................................................ 30
3.5
InfiniBand* Controller ............................................................................................. 32
3.5.1
Device Interfaces ................................................................................................... 33
iv
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Table of Contents
3.5.2
Quad Small Form-factor Pluggable (QSFP) Connector ......................................... 33
3.6
Integrated Baseboard Management Controller Overview ...................................... 34
3.6.1
Super I/O Controller ............................................................................................... 36
3.6.2
Graphics Controller and Video Support ................................................................. 36
3.6.3
Remote KVM ......................................................................................................... 37
4. Platform Management Functional Overview .................................................................... 39
4.1
Baseboard Management Controller (BMC) Firmware Feature Support................. 39
4.1.1
IPMI 2.0 Features .................................................................................................. 39
4.1.2
Non-IPMI Features ................................................................................................ 40
4.1.3
New Manageability Features ................................................................................. 41
4.2
Advanced Configuration and Power Interface (ACPI) ........................................... 43
4.3
Platform Management SMBus* and I2C Implementation ....................................... 43
4.4
BMC Internal Timestamp Clock ............................................................................. 44
4.5
Sensor Monitoring .................................................................................................. 44
4.6
Messaging Interfaces ............................................................................................. 44
4.6.1
Channel Management ........................................................................................... 45
4.6.2
User Model ............................................................................................................ 45
4.6.3
Sessions ................................................................................................................ 46
4.6.4
BMC LAN Channels ............................................................................................... 47
4.6.5
IPv6 Support .......................................................................................................... 48
4.6.6
BMC IP Address Configuration .............................................................................. 49
4.6.7
DHCP BMC Hostname .......................................................................................... 51
4.6.8
Address Resolution Protocol (ARP) ....................................................................... 52
4.6.9
Virtual Local Area Network (VLAN) ....................................................................... 52
4.6.10 Secure Shell (SSH) ................................................................................................ 53
4.6.11 Serial-over-LAN (SOL 2.0) ..................................................................................... 53
4.6.12 Platform Event Filter (PEF) .................................................................................... 53
4.6.13 LAN Alerting ........................................................................................................... 54
4.6.14 SNMP Platform Event Traps (PETs) ..................................................................... 54
4.6.15 Alert Policy Table ................................................................................................... 54
4.6.16 Email Alerting ......................................................................................................... 54
4.6.17 SM-CLP (SM-CLP Lite) ......................................................................................... 54
4.7
System Event Log (SEL) ....................................................................................... 55
4.7.1
Servicing Events .................................................................................................... 55
4.7.2
SEL Entry Deletion ................................................................................................ 55
4.7.3
SEL Erasure .......................................................................................................... 55
4.7.4
SEL Extension Capabilities .................................................................................... 55
4.8
Sensor Data Record (SDR) Repository ................................................................. 56
4.9
Field Replaceable Unit (FRU) Inventory Device .................................................... 56
4.10
Diagnostics and Beep Code Generation ............................................................... 56
4.11
Diagnostics Interrupt (NMI) .................................................................................... 56
Revision 1.8
Intel order number G31608-009
v
Table of Contents
Intel®Server Board S2600JF TPS
4.12
BMC Basic and Advanced Management Features ................................................ 57
4.12.1 Enabling Advanced Manageability Features ......................................................... 58
4.12.2 Media Redirection .................................................................................................. 60
4.12.3 Embedded Web Server ......................................................................................... 61
4.12.4 Data Center Management Interface (DCMI) .......................................................... 62
4.12.5 Local Directory Authentication Protocol (LDAP) .................................................... 63
4.12.6 Platform/Chassis Management .............................................................................. 63
4.12.7 Thermal Control ..................................................................................................... 63
4.12.8 Node Power On/Off Control ................................................................................... 65
4.13
Intel® Intelligent Power Node Manager .................................................................. 65
4.13.1 Overview ................................................................................................................ 65
4.13.2 Features ................................................................................................................. 65
4.14
Management Engine (ME) ..................................................................................... 66
4.14.1 Overview ................................................................................................................ 66
4.14.2 BMC – Management Engine (ME) Distributed Model ............................................ 66
4.14.3 ME System Management Bus (SMBus*) Interface ................................................ 67
4.14.4 BMC - Management Engine Interaction ................................................................. 67
4.14.5 ME Power and Firmware Startup ........................................................................... 68
4.14.6 SmaRT/CLST ........................................................................................................ 68
4.15
Other Platform Management ................................................................................. 69
4.15.1 Wake On LAN (WOL) ............................................................................................ 69
4.15.2 PCI Express* Power Management ........................................................................ 69
4.15.3 PMBus* .................................................................................................................. 69
4.15.4 Node Power Policies .............................................................................................. 69
5. BIOS Setup Interface .......................................................................................................... 70
5.1
HotKeys Supported during POST .......................................................................... 70
5.2
POST Logo/Diagnostic Screen .............................................................................. 70
5.3
BIOS Boot Pop-up Menu ....................................................................................... 71
5.4
BIOS Setup Utility .................................................................................................. 71
5.4.1
BIOS Setup Operation ........................................................................................... 71
5.4.2
BIOS Setup Utility Screens .................................................................................... 74
5.5
Loading BIOS Defaults ........................................................................................ 117
6. Configuration Jumpers .................................................................................................... 118
6.1
Force Integrated BMC Update (J6B1) ................................................................. 119
6.2
Force ME Update (J1E2) ..................................................................................... 120
6.3
Password Clear (J1B6) ........................................................................................ 121
6.4
BIOS Recovery Mode (J1E1) .............................................................................. 121
6.5
Reset BIOS Settings (J1D5) ................................................................................ 122
7. Connector/Header Locations and Pin-out ..................................................................... 124
7.1
Power Connectors ............................................................................................... 124
7.2
System Management Headers ............................................................................ 124
vi
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Table of Contents
7.2.1
Intel® Remote Management Module 4 (Intel® RMM4 Lite) Connector .................. 124
7.2.2
IPMB Header ....................................................................................................... 124
7.3
Bridge Board Connector ...................................................................................... 124
7.3.1
Power Button ....................................................................................................... 126
7.3.2
Reset Button ........................................................................................................ 126
7.3.3
Chassis Identify Button ........................................................................................ 126
7.3.4
Power LED ........................................................................................................... 126
7.3.5
System Status LED .............................................................................................. 127
7.3.6
Chassis ID LED ................................................................................................... 129
7.4
I/O Connectors ..................................................................................................... 129
7.4.1
PCI Express* Connectors .................................................................................... 129
7.4.2
VGA Connector .................................................................................................... 135
7.4.3
NIC Connectors ................................................................................................... 136
7.4.4
SATA Connectors ................................................................................................ 136
7.4.5
Hard Drive Activity (Input) LED Header ............................................................... 137
7.4.6
Storage Upgrade Key Connector ......................................................................... 137
7.4.7
Serial Port Connectors ......................................................................................... 137
7.4.8
USB Connectors .................................................................................................. 138
7.4.9
QSFP for InfiniBand* ........................................................................................... 138
7.5
Fan Headers ........................................................................................................ 139
7.6
Chassis Intrusion ................................................................................................. 139
®
8. Intel Light-Guided Diagnostics...................................................................................... 140
8.1
Front Panel Support ............................................................................................. 140
8.1.1
System ID LED .................................................................................................... 140
8.1.2
System Status LED .............................................................................................. 140
8.1.3
Network Link/Activity LED .................................................................................... 140
8.1.4
Dedicated InfiniBand* Link/Activity LED .............................................................. 141
8.2
POST Code Diagnostic LEDs .............................................................................. 141
9. Environmental Limits Specification ............................................................................... 143
9.1
System Level Environmental Considerations ...................................................... 143
9.1.1
Set Throttling Mode ............................................................................................. 144
9.1.2
Altitude ................................................................................................................. 144
9.1.3
Set Fan Profile ..................................................................................................... 144
9.1.4
Fan PWM Offset .................................................................................................. 144
9.1.5
Quiet Fan Idle Mode ............................................................................................ 144
9.1.6
Thermal Sensor Input for Fan Speed Control ...................................................... 145
9.2
Processor Thermal Design Power (TDP) Support ............................................... 146
10. Power Supply Specification Guidelines ......................................................................... 147
10.1
Power Supply DC Output Connector ................................................................... 147
10.2
Power Supply DC Output Specification ............................................................... 147
10.2.1 Output Power/Currents ........................................................................................ 147
Revision 1.8
Intel order number G31608-009
vii
Table of Contents
Intel®Server Board S2600JF TPS
10.2.2 Standby Output .................................................................................................... 147
10.2.3 Voltage Regulation .............................................................................................. 148
10.2.4 Dynamic Loading ................................................................................................. 148
10.2.5 Capacitive Loading .............................................................................................. 148
10.2.6 Grounding ............................................................................................................ 148
10.2.7 Closed Loop Stability ........................................................................................... 148
10.2.8 Residual Voltage Immunity in Standby Mode ...................................................... 149
10.2.9 Common Mode Noise .......................................................................................... 149
10.2.10 Soft Starting ......................................................................................................... 149
10.2.11 Zero Load Stability Requirements ....................................................................... 149
10.2.12 Hot Swap Requirements ...................................................................................... 149
10.2.13 Forced Load Sharing ........................................................................................... 149
10.2.14 Ripple/Noise ........................................................................................................ 149
10.2.15 Timing Requirement ............................................................................................ 150
Appendix A: Integration and Usage Tips .............................................................................. 152
Appendix B: Integrated BMC Sensor Tables ........................................................................ 153
Appendix C: BIOS Sensors and SEL Data ............................................................................ 170
Appendix D: Node Manager 2.0 IPMI Integrated Sensors ................................................... 177
Appendix E: POST Code LED Decoder ................................................................................. 178
Appendix F: Video POST Code Errors .................................................................................. 183
Glossary................................................................................................................................... 189
Reference Documents ............................................................................................................ 192
viii
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
List of Figures
List of Figures
Figure 1. Intel® Server Board S2600JF (InfiniBand* SKU) ............................................................ 3
Figure 2. Intel® Server Board S2600JF Components ................................................................... 5
Figure 3. Rear Panel Connector Placement ................................................................................. 6
Figure 4. Baseboard and Mounting Holes .................................................................................... 7
Figure 5. Intel® Server Board S2600JF Functional Block Diagram ............................................... 9
Figure 6. Processor Socket Assembly ........................................................................................ 10
Figure 7. Processor Socket ILM Variations ................................................................................. 11
Figure 8. Processor with IMC Functional Block Diagram ............................................................ 14
Figure 9. Intel® Server Board S2600JF Family DIMM Slot Layout .............................................. 18
Figure 10. General Functional Block Diagram of Processor I/O Subsystem .............................. 20
Figure 11. PCI Express* Lane Distribution Scheme ................................................................... 21
Figure 12. PCIe Riser for Slot 1 .................................................................................................. 23
Figure 13. PCIe Riser for Slot 2 .................................................................................................. 23
Figure 14. Intel® C600-A/B PCH Connection .............................................................................. 24
Figure 15. 1GbE NIC Port LED ................................................................................................... 31
Figure 16. ConnectX*-3 Function Block Diagram ........................................................................ 32
Figure 17. Connection between ConnectX*-3 and QSFP ........................................................... 34
Figure 18. Integrated BMC Implementation Overview ................................................................ 34
Figure 19. Integrated BMC Functional Block Diagram ................................................................ 35
Figure 20. Management Engine Distribution Model .................................................................... 67
Figure 21. Main Screen ............................................................................................................... 76
Figure 22. Advanced Screen ...................................................................................................... 78
Figure 23. Processor Configuration Screen ................................................................................ 79
Figure 24. Power and Performance Configuration Screen ......................................................... 83
Figure 25. Memory Configuration Screen ................................................................................... 86
Figure 26. Memory RAS and Performance Configuration Screen .............................................. 88
Figure 27. Mass Storage Controller Configuration Screen ......................................................... 89
Figure 28. PCI Configuration Screen .......................................................................................... 91
Figure 29. NIC Configuration Screen .......................................................................................... 93
Figure 30. UEFI Network Stack Conffiguration Screen ............................................................... 96
Figure 31. UEFI Option ROM Conffiguration Screen .................................................................. 96
Figure 32. i350 NIC configuration ............................................................................................... 97
Figure 33. PCIe Port OpROM Conffiguration Screen ................................................................. 98
Figure 34. Serial Port Configuration Screen ............................................................................... 98
Figure 35. USB Configuration Screen ......................................................................................... 99
Figure 36. System Acoustic and Performance Configuration ................................................... 101
Figure 37. Security Screen ....................................................................................................... 103
Figure 38. Server Management Screen .................................................................................... 105
Figure 39. Console Redirection Screen .................................................................................... 107
Revision 1.8
Intel order number G31608-009
ix
List of Figures
Intel®Server Board S2600JF TPS
Figure 40. System Information Screen ..................................................................................... 108
Figure 41. BMC LAN Configuration Screen .............................................................................. 110
Figure 42. Boot Options Screen ................................................................................................ 112
Figure 43. Hard Disk Order Screen .......................................................................................... 114
Figure 44. Network Device Order Screen ................................................................................. 114
Figure 45. Boot Manager Screen .............................................................................................. 115
Figure 46. Error Manager Screen ............................................................................................. 116
Figure 47. Save & Exit Screen .................................................................................................. 116
Figure 48. Jumper Blocks (J6B1, J1E2, J1E3, J1E1, and J1D5) .............................................. 118
Figure 49. System Status LED (A) and ID LED (B) .................................................................. 127
Figure 50. Rear Panel Diagnostic LEDs (Block A) .................................................................... 142
Figure 51. Fan Control Model ................................................................................................... 146
Figure 52. Turn On/Off Timing (Power Supply Signals) ............................................................ 151
Figure 53. Diagnostic LED Placement Diagram(Block A) ......................................................... 178
x
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
List of Tables
List of Tables
Table 1. Intel® Server Board S2600JF Feature Set ...................................................................... 3
Table 2. Intel® Server Board S2600JF Features ........................................................................... 8
Table 3. Mixed Processor Configurations ................................................................................... 12
Table 4. Color Definition ............................................................................................................. 16
Table 5. UDIMM Support Guidelines .......................................................................................... 16
Table 6. RDIMM Support Guidelines .......................................................................................... 16
Table 7. LRDIMM Support Guidelines ........................................................................................ 17
Table 8. Intel® Server Board S2600JF DIMM Nomenclature ...................................................... 18
Table 9. CPU1 and CPU2 PCIe Connectivity ............................................................................. 22
Table 10. Intel® Server Board S2600JF SATA/SAS Port ............................................................ 26
Table 11. Intel® RAID C600 Storage Upgrade Key Options for S2600JF ................................... 27
Table 12. NIC Status LED ........................................................................................................... 31
Table 13. Network Port Configuration ......................................................................................... 33
Table 14. Supported Video Modes ............................................................................................. 37
Table 15. Dual Video Option ....................................................................................................... 37
Table 16. ACPI Power States ..................................................................................................... 43
Table 17. Standard Channel Assignments ................................................................................. 45
Table 18. Default User Values .................................................................................................... 46
Table 19. Channel/Media-Specific Minimum Number of Sessions ............................................. 46
Table 20. Factory Configured PEF Table Entries ....................................................................... 53
Table 21. BMC Beep Codes ....................................................................................................... 56
Table 22. NMI Signal Generation and Event Logging ................................................................. 57
Table 23. Basic and Advanced Management Features .............................................................. 57
Table 24. Management Features and Benefits ........................................................................... 58
Table 25. Fan Profile Mapping .................................................................................................... 64
Table 26. POST HotKeys Recognized ........................................................................................ 70
Table 27. BIOS Setup Page Layout ............................................................................................ 72
Table 28. BIOS Setup: Keyboard Command Bar ....................................................................... 73
Table 29. Screen Map ................................................................................................................. 75
Table 30. Setup Utility – Main Screen Fields .............................................................................. 76
Table 31. Setup Utility – Advanced Screen Display Fields ......................................................... 78
Table 32. Setup Utility – Processor Configuration Screen Fields ............................................... 80
Table 33. Setup Utility – Power and Performance Configuration Screen Fields ......................... 83
Table 34. Power/Performance Profiles ....................................................................................... 84
Table 35. Setup Utility – Memory Configuration Screen Fields .................................................. 86
Table 36. Setup Utility – Memory RAS and Performance Configuration Fields .......................... 88
Table 37. Setup Utilities – Mass Storage Controller Configuration Fields .................................. 89
Table 38. Setup Utility – PCI Configuration Screen Fields ......................................................... 91
Table 39. Setup Utility – NIC Configuration Screen Fields ......................................................... 94
Revision 1.8
Intel order number G31608-009
xi
List of Tables
Intel®Server Board S2600JF TPS
Table 40. Setup Utility – UEFI Network Stack Configuration Screen Fields ............................... 96
Table 41. Setup Utility – UEFI Option ROM Configuration Screen Fields .................................. 97
Table 42. UEFI NIC Configuration .............................................................................................. 97
Table 43. Setup Utility – NIC Configuration Screen Fields ......................................................... 98
Table 44. Setup Utility – Serial Ports Configuration Screen Fields ............................................. 99
Table 45. Setup Utility – USB Controller Configuration Screen Fields ..................................... 100
Table 46. Setup Utility – System Acoustic and Performance Configuration Screen Fields ...... 101
Table 47. Setup Utility – Security Configuration Screen Fields ................................................ 103
Table 48. Setup Utility – Server Management Configuration Screen Fields ............................. 105
Table 49. Setup Utility – Console Redirection Configuration Fields ......................................... 107
Table 50. Setup Utility – Server Management System Information Fields ................................ 109
Table 51. Setup Utility – BMC Configuration Screen Fields ..................................................... 111
Table 52. Setup Utility – Boot Options Screen Fields ............................................................... 113
Table 53. Setup Utility – Hard Disk Order Fields ...................................................................... 114
Table 54. Setup Utility – Network Device Order Fields ............................................................. 115
Table 55. Setup Utility – Boot Manager Screen Fields ............................................................. 115
Table 56. Setup Utility – Error Manager Screen Fields ............................................................. 116
Table 57. Setup Utility – Exit Screen Fields .............................................................................. 117
Table 58. Server Board Jumpers (J6B1, J1E2, J1E3, J1E1, and J1D5) .................................. 119
Table 59. Force Integrated BMC Update Jumper ..................................................................... 119
Table 60. Force ME Update Jumper ......................................................................................... 120
Table 61. Password Clear Jumper ............................................................................................ 121
Table 62. BIOS Recovery Mode Jumper .................................................................................. 121
Table 63. Reset BIOS Jumper .................................................................................................. 122
Table 64. Main Power Supply Connector 6-pin 2x3 Connector (J4K1 and J3K1) .................... 124
Table 65. Intel® RMM4 Lite Connector Pin-out (J1A2).............................................................. 124
Table 66. IPMB Header 4-pin (J2D2) ........................................................................................ 124
Table 67. Bridge Board Connector (J1D1) ................................................................................ 125
Table 68. Power LED Indicator States ...................................................................................... 127
Table 69. System Status LED ................................................................................................... 128
Table 70. Chassis ID LED Indicator States ............................................................................... 129
Table 71. PCI Express* x16 Riser Slot 1 Connector (J6A1) ..................................................... 129
Table 72. PCI Express* x16 Riser Slot 2 Connector (J1A3) ..................................................... 131
Table 73. PCI Express* x16 Riser Slot 3 Connector (J1H1) ..................................................... 133
Table 74. PCI Express* Riser ID Assignment ........................................................................... 135
Table 75. PCI Express* Clock Source by Slot .......................................................................... 135
Table 76. VGA External Video Connector (J4A1) ..................................................................... 136
Table 77. RJ-45 10/100/1000 NIC Connector Pin-out (JA6A1 and JA5A1) .............................. 136
Table 78. SATA Connector ....................................................................................................... 137
Table 79. SATA HDD Activity (Input) LED Header (J6C5) ....................................................... 137
Table 80. Storage Upgrade Key Connector (J6C4) .................................................................. 137
xii
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
List of Tables
Table 81. Internal 9-Pin Serial A (COM1) (J6A2) ...................................................................... 137
Table 82. External USB Port Connector (J3A1) ........................................................................ 138
Table 83. Internal USB Connector (J2D1) ................................................................................ 138
Table 84. QSFP Pin Definition .................................................................................................. 138
Table 85. Baseboard Fan Connector (J1K2) ............................................................................ 139
Table 86. Chassis Intrusion Header (J6C1) .............................................................................. 139
Table 87. Network Link/Activity LED ......................................................................................... 141
Table 88. InfiniBand* Link/Activity LED ..................................................................................... 141
Table 89. Server Board Design Specifications ......................................................................... 143
Table 90. Power Supply DC Power Input Connector Pin-out (See Table 65) ........................... 147
Table 91. Minimum Load Ratings ............................................................................................. 147
Table 92. Voltage Regulation Limits ......................................................................................... 148
Table 93. Transient Load Requirements ................................................................................... 148
Table 94. Capacitive Loading Conditions ................................................................................. 148
Table 95. Ripples and Noise ..................................................................................................... 150
Table 96. Timing Requirements ................................................................................................ 150
Table 97. BMC Sensor Table .................................................................................................... 155
Table 98. BIOS Sensor and SEL Data ...................................................................................... 170
Table 99. Node Manager 2.0 IPMI Integrated Sensors ............................................................ 177
Table 100. POST Progress Code LED Example ...................................................................... 179
Table 101. Diagnostic LED POST Code Decoder .................................................................... 179
Table 102. POST Error Messages and Handling ...................................................................... 183
Table 103. Glossary .................................................................................................................. 189
Revision 1.8
Intel order number G31608-009
xiii
<This page is intentionally left blank.>
xiv
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
1.
Introduction
Introduction
The Intel® Server Board S2600JF is a half-width, dual-socket server board using the Intel®
Xeon® Processor E5-2600 and E5-2600V2 series processor, in combination with the Intel® C600
chipset to provide an outstanding feature set for high performance and high density computing.
This Technical Product Specification (TPS) provides board-specific information detailing the
features, functionality, and high-level architecture of the Intel® Server Board S2600JF.
For design-level information of specific components or subsystems relevant to the server boards
described in this document, additional documents can be obtained through Intel. The
documents listed in Reference Documents are used as reference to compile much of the data
provided here. Some of the listed documents are not publicly available and must be ordered
through your local Intel representative.
1.1
Section Outline
This document is divided into the following chapters:


















Revision 1.8
Chapter 1 – Introduction
Chapter 2 – Server Board Overview
Chapter 3 – Product Architecture Overview
Chapter 4 – Platform Management Functional Overview
Chapter 5 – BIOS Setup Interface
Chapter 6 – Configuration Jumpers
Chapter 7 – Connector/Header Location and Pin-out
Chapter 8 – Intel® Light-Guided Diagnostics
Chapter 9 – Environmental Limits Specification
Chapter 10 – Power Supply Specification Guidelines
Appendix A – Integration and Usage Tips
Appendix B – Integrated BMC Sensor Tables
Appendix C – BIOS Sensors and SEL Data
Appendix D – Node Manager 2.0 IPMI Integrated Sensors
Appendix E – POST Code LED Decoder
Appendix F – Video POST Code Errors
Glossary
Reference Documents
Intel order number G31608-009
1
Introduction
1.2
Intel®Server Board S2600JF TPS
Server Board Use Disclaimer
Intel Corporation server boards contain a number of high-density VLSI (Very Large Scale
Integration) and power delivery components that need adequate airflow to cool. Intel ensures
through its own chassis development and testing that when Intel server building blocks are used
together, the fully integrated system will meet the intended thermal requirements of these
components. It is the responsibility of the system integrator who chooses not to use Intel
developed server building blocks to consult vendor datasheets and operating parameters to
determine the amount of air flow required for their specific application and environmental
conditions. Intel Corporation cannot be held responsible if components fail or the server board
does not operate correctly when used outside any of their published operating or non-operating
limits.
2
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
2.
Server Board Overview
Server Board Overview
The Intel® Server Board S2600JF is a monolithic printed circuit board (PCB) with features
designed to support the high performance and high density computing markets. This server
board is designed to support the Intel® Xeon® processor E5-2600 and E5-2600V2 product family.
Previous generation Intel® Xeon® processors are not supported. Many of the features and
functions of the server board family are common. A board is identified by its name that has a
described feature or function unique to it.
Figure 1. Intel® Server Board S2600JF (InfiniBand* SKU)
There are three board SKUs based on different hardware configuration:



S2600JF: Base SKU
S2600JFQ: Base SKU with InfiniBand* ConnectX-3* QDR populated
S2600JFF: Base SKU with InfiniBand* ConnectX-3* FDR populated
The following table provides a high-level product feature list.
Table 1. Intel® Server Board S2600JF Feature Set
Feature
Processors
Memory
Chipset
Revision 1.8
Description
Support for one or two Intel® Xeon® Processor E5-2600 and E5-2600V2 series
processors.
 Up to 8 GT/s Intel® QuickPath Interconnect (Intel® QPI)
 LGA 2011 Socket R
 Thermal Design Power (TDP) up to 135 Watt
 Eight DIMM slots total across eight memory channels
 Unbuffered DDR3 and registered DDR3 with ECC DIMMs
 Memory DDR3 data transfer rates of 800/1066/1333/1600/1866 MT/s
 Load Reduced DDR3 DIMM
 DDR3 standard I/O voltage of 1.5V (All Speed) and DDR3 Low Voltage of
1.35 V (1600 MT/s or below)
Intel® C600-A Platform Controller Hub (PCH) with support for optional Storage
Upgrade Key
Intel order number G31608-009
3
Server Board Overview
Feature
External I/O Connections
Internal I/O
connectors/headers
Power Connections
System Fan Support
Add-in Riser Support
Video
Hard Drive Support
RAID Support
Server Management
4
Intel®Server Board S2600JF TPS
Description
DB-15 Video connectors
Two RJ-45 Network Interfaces for 10/100/1000 LAN
One stacked two-port USB 2.0 (Port 0/1) connector
One InfiniBand* QDR QSFP port (SKU: S2600JFQ)
One InfiniBand* FDR QSFP port (SKU: S2600JFF)
Bridge Slot to extend board I/O
o SCU0 (Four SAS 3Gb/s ports) for backplane
o Front control panel signals
o One SATA (Port 0) 6Gb/s port for DOM
 One USB 2.0 connector (USB port 2/3)
 One 2x7 pin header for system FAN module
 One DH-10 serial Port A connector
 One SATA 6Gb/s (Port 1)
 One 2x4 pin header for Intel® RMM4 Lite
 One 1x4 pin header for Storage Upgrade Key
Two sets of 2x3 pin connector
Three sets of dual rotor fan
Three PCIe Gen III x16 riser slots
 Riser slot 1 and 3 support PCIe Gen III x16 Riser
 Riser slot 2 supports PCIe Gen III x8 Riser (Intel® rIOM)
One Bridge Slot for board I/O expansion
 Integrated 2D Video Graphics controller
 128 MB DDR2 Memory
One SATA port at 6Gb/s on board. Four SATA/SAS ports (SCU0) and one SATA
6Gb/s port (for DOM) are supported through bridge board.
 Intel® RSTe SW RAID 0/1/10/5 for SATA mode
 LSI* SW RAID 0/1/10/5
 On-board ServerEngines* LLC Pilot III* Controller
 Support for Intel® Remote Management Module 4 Lite solutions
 Intel® Light-Guided Diagnostics on field replaceable units
 Support for Intel® System Management Software
 Support for Intel® Intelligent Power Node Manager (Need PMBus*-compliant
power supply)






Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
2.1
Server Board Overview
Server Board Connector and Component Layout
The following illustration provides a general overview of the server board, identifying key feature
and component locations. The majority of the items identified are common in the Intel® Server
Board S2600JF family. The accompanying table identifies variations when present.
A
2x7 fan control
connector
I
Riser Slot2 with
PCIe Gen3 x16
Q
VGA out
Y
SATA port 1
B
VRS (4 total)
J
Infiniband* QDR or
FDR
R
Dual port 1Gbe
NIC
Z
PCH C600
C
Riser Slot3 with
PCIe Gen3 x16
K
RMM4 lite
S
NIC Port 2
AA
CPU 1
D
CPU2 DIMM (4
total)
L
POST and QSFP
LED
T
Serial Port A
AB
XDP connector
E
CPU1 DIMM (4
total)
M
QSFP
U
NIC Port 1
AC
CPU 2
F
Bridge board
connector
N
USB x2
V
Riser Slot1 with
PCIe Gen3 x16
AD
2x3 PWR
connector (2 total)
G
IPMB
O
Debug connector
W
Integrated BMC
H
2x5 USB
P
Status and ID LED
X
Storage Upgrade
key
Figure 2. Intel® Server Board S2600JF Components
Revision 1.8
Intel order number G31608-009
5
Server Board Overview
2.1.1
Intel®Server Board S2600JF TPS
Board Rear Connector Placement
®
The Intel Server Board S2600JF has the following board rear connector placement.
A
B
C
D
Description
NIC port 1 (RJ45)
NIC port 2 (RJ45)
DB15 video out
ID LED
E
F
G
H
Description
Status LED
Dual port USB connector
QSFP Connector
IB status and Diagnostic LED
Figure 3. Rear Panel Connector Placement
6
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
2.1.2
Server Board Overview
Server Board Mechanical Drawings
The following figure is a mechanical drawing for the Intel® Server Board S2600JF.
Figure 4. Baseboard and Mounting Holes
Revision 1.8
Intel order number G31608-009
7
Product Architecture Overview
3.
Intel®Server Board S2600JF TPS
Product Architecture Overview
The Intel® Server Board S2600JF is a purpose-built, rack-optimized server board used in a highdensity rack system. It is designed around the integrated features and functions of the Intel ®
Xeon® processor E5-2600 and E5-2600V2 product family, the Intel® C600-A chipset, and other
supporting components including the Integrated BMC, the Intel® i350 network interface
controller, and the Mellanox* ConnectX-3* InfiniBand* (depending on the board SKU).
The reduced board size allows four boards reside in a standard multi-node 2U Intel® Server
Chassis H2000JF for high performance and high density computing.
3.1
High Level Product Features
Table 2. Intel® Server Board S2600JF Features
Board
Form Factor
S2600JF
6.4" (153mm) x 17.8" (453mm)
S2600JFQ/S2600JFF
6.4" (153mm) x 17.8" (453mm)
CPU Socket
Socket R and LGA 2011
Socket R and LGA 2011
Chipset
Intel® C600 Chipset PCH
Intel® C600 Chipset PCH
Memory
Eight DDR3 RDIMMs/LRDIMMs/UDIMMs with ECC
Eight DDR3 RDIMMs/LRDIMMs/UDIMMs with ECC
Slots
Three PCI Express* Gen3 x16
connectors
One system bridge board connector
Dual GbE, Intel® I350 Gigabit
Ethernet
Three PCI Express* Gen3 x16
connectors
One system bridge board connector
Dual GbE, Intel® I350 Gigabit
Ethernet
InfiniBand*
NA
Single port of InfiniBand* QDR/FDR
Storage
One SATA III port (6Gb/s)
One SATA III port (6Gb/s)
SAS
SCU0 through bridge board slot
SCU0 through bridge board slot
SW RAID
LSI* SW RAID 0,1,5,10 or RSTe
RAID 0,1,5 for SATA mode
LSI* SW RAID 0,1,5,10 or RSTe
RAID 0,1,5 for SATA mode
Processor
Support
135W maximum
135W maximum
Video
Integrated in BMC
Integrated in BMC
iSMS
Integrated BMC w/IPMI 2.0 support
Integrated BMC w/IPMI 2.0 support
Chassis
H2000 family
H2000 family
Power Supply
12V and 5VS/B PMBus*
12V and 5VS/B PMBus*
Ethernet
8
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Product Architecture Overview
Figure 5. Intel® Server Board S2600JF Functional Block Diagram
Revision 1.8
Intel order number G31608-009
9
Product Architecture Overview
3.2
Intel®Server Board S2600JF TPS
Processor Support
The server board includes two Socket-R (LGA 2011) processor sockets and supports one or
two of the Intel® Xeon® processor E5-2600 and E5-2600V2 product family, with a Thermal
Design Power (TDP) of up to 135W processor.
The Intel® Xeon® E5-2600 and E5-2600V2 processor family are composed of up to 10/12 cores
respectively. The microprocessors include an integrated DDR3 memory controller (IMC) with
four memory channels that can support up to three ECC Registered DIMMs or three Unbuffered ECC DIMMs per memory channel, and an integrated I/O controller with 40 PCI
Express* Gen3 lanes controlled by ten PCI Express* Master Controllers. The target TDPs are
80W, 95W, 115W, 130W, and 135W on Intel® Server Board S2600JF.
Previous generation Intel® Xeon® processors are not supported on the Intel® Server Boards
described in this document.
For a complete updated list of supported processors, see:
http://www.intel.com/p/en_US/support/highlights/server/sb-s2600jf.
On the Support tab, look for Compatibility and then Supported Processor List.
3.2.1
Processor Socket Assembly
Each processor socket of the server board is pre-assembled with an Independent Latching
Mechanism (ILM) and Back Plate that allow for secure placement of the processor and
processor heat to the server board.
The following illustration identifies each sub-assembly component.
Figure 6. Processor Socket Assembly
10
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Product Architecture Overview
Figure 7. Processor Socket ILM Variations
The square ILM has a 90.5 x 90.5mm heat sink mounting hole pattern and is used on the Intel®
Server Board S2600JF.
3.2.2
Processor Population Rules
Note: Although the server board does support dual-processor configurations consisting of
different processors that meet the following defined criteria, Intel does not perform validation
testing of this configuration. For optimal system performance in dual-processor configurations,
Intel recommends that identical processors be installed.
When using a single-processor configuration, the processor must be installed into the processor
socket labeled CPU_1.
When two processors are installed, the following population rules apply:



Both processors must be of the same processor family.
Both processors must have the same cache size.
Processors with different speeds can be mixed in a system, given the prior rules are met.
If this condition is detected, all processor speeds are set to the lowest common
denominator (highest common speed) and an error is reported.
 Processor stepping within a common processor family can be mixed as long as it is
listed in the processor specification updates published by Intel Corporation.
The following table describes mixed processor conditions and recommended actions for all
Intel® Server Boards and Intel® Server Systems designed around the Intel® Xeon® processor
E5-2600 product family and Intel® C600 chipset product family architecture. The errors fall into
one of the following two categories:

Fatal: If the system can boot, it goes directly to the Error Manager screen in BIOS Setup,
regardless of whether the “POST Error Pause” setup option is enabled or disabled.

Major: If the “POST Error Pause” option in BIOS Setup is disabled, the system logs the
error to the BIOS Setup Utility Error Manager and then continues to boot. No POST error
message is given. If the “POST Error Pause” option in BIOS Setup is enabled, the error
is logged and the system goes directly to the Error Manager in BIOS Setup.
Revision 1.8
Intel order number G31608-009
11
Product Architecture Overview
Intel®Server Board S2600JF TPS
Table 3. Mixed Processor Configurations
Error
Processor family not identical
Severity
Fatal
System Action
The BIOS detects the error condition and responds as follows:
 Logs the error into the system event log (SEL).
 Alerts the Integrated BMC of the configuration error with an IPMI
command.
 Does not disable the processor.
 Displays “0194: Processor family mismatch detected” message in
the error manager.
 Halts the system.
Processor cache not identical
Fatal
The BIOS detects the error condition and responds as follows:
 Logs the error into the SEL.
 Alerts the Integrated BMC of the configuration error with an IPMI
command.
 Does not disable the processor.
 Displays “0192: Cache size mismatch detected” message in the
error manager.
 Halts the system.
Processor frequency (speed)
not identical
Major
The BIOS detects the error condition and responds as follows:
 Adjusts all processor frequencies to the lowest common
denominator.
 Continues to boot the system successfully.
If the frequencies for all processors cannot be adjusted to be the
same, the BIOS:
 Logs the error into the SEL.
 Displays “0197: Processor speeds mismatched” message in the
error manager.
 Halts the system.
Processor microcode missing
Fatal
The BIOS detects the error condition and responds as follows:
 Logs the error into the SEL.
 Alerts the Integrated BMC of the configuration error with an IPMI
command.
 Does not disable processor.
 Displays “816x: Processor 0x unable to apply microcode update”
message in the error manager.
 Pauses the system for user intervention.
Processor Intel® QuickPath
Interconnect speeds not
identical
Halt
The BIOS detects the error condition and responds as follows:
 Logs the error into the SEL.
 Alerts the Integrated BMC of the configuration error with an IPMI
command.
 Does not disable the processor.
 Displays “0195: Processor Front Side Bus speed mismatch
detected” message in the error manager.
 Halts the system.
Note: When a single processor is installed, no terminator is required in the second processor socket.
12
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
3.3
Product Architecture Overview
Processor Function Overview
With the release of the Intel® Xeon® processor E5-2600V2 product family, several key system
components, including the CPU, Integrated Memory Controller (IMC), and Integrated IO Module
(IIO), have been combined into a single processor package and feature per socket; two Intel ®
QuickPath Interconnect point-to-point links capable of up to 8.0 GT/s, up to 40 lanes of Gen 3
PCI Express* links capable of 8.0 GT/s, and four lanes of DMI2/PCI Express* Gen 2 interface
with a peak transfer rate of 5.0 GT/s. The processor supports up to 46-bit physical address
space and 48-bit virtual address space.
The following sections provide an overview of the key processor features and functions that help
to define the performance and architecture of the server board. For more comprehensive
processor-specific information, refer to the Intel® Xeon® processor E5-2600V2 product family
documents listed in the Reference Documents section.
Processor Feature Details:







Up to 12 execution cores (Intel® Xeon® processor E5-2600V2 only)
Each core supports two threads (Intel® Hyper-Threading Technology), up to 24 threads
per socket
46-bit physical addressing and 48-bit virtual addressing
1-GB large page support for server applications
A 32-KB instruction and 32-KB data first-level cache (L1) for each core
A 256-KB shared instruction/data mid-level (L2) cache for each core
Up to 30-MB last level cache (LLC) and up to 2.5-MB per core instruction/data last level
cache (LLC), shared among all cores
Supported Technologies:

















Intel® Virtualization Technology (Intel® VT)
Intel® Virtualization Technology for Directed I/O (Intel® VT-d)
Intel® Virtualization: APIC Virtualization (APICv)
Intel® Virtualization Technology Xeon® E5-2600 Processor Extensions
Intel® Trusted Execution Technology (Intel® TXT)
Intel® 64 Architecture
Intel® Streaming SIMD Extensions 4.1 (Intel® SSE4.1)
Intel® Streaming SIMD Extensions 4.2 (Intel® SSE4.2)
Intel® Advanced Vector Extensions (Intel® AVX) Float 16
Intel® Hyper-Threading Technology
Intel® Node Manager – Basic and Extended Editions
Execute Disable Bit
Max Memory Speed update to 1866 MT/s
Intel® Turbo Boost Technology
Intel® Intelligent Power Technology
Data Direct I/O (DDIO)
Enhanced Intel® SpeedStep Technology
Revision 1.8
Intel order number G31608-009
13
Product Architecture Overview



3.3.1
Intel®Server Board S2600JF TPS
PCI express* Atomic operation, x16 Non-Transparent Bridge (NTB) (Intel® Xeon®
processor E5-2600V2 only)
Intel® 64 OS Guide
Intel® 64 Secure Key
Intel®QuickPath Interconnect
The Intel® QuickPath Interconnect is a high-speed, packetized, point-to-point interconnect used
in the processor. The narrow high-speed links stitch together processors in distributed shared
memory and integrated I/O platform architecture. It offers much higher bandwidth with low
latency. The Intel® QuickPath Interconnect has an efficient architecture allowing more
interconnect performance to be achieved in real systems. It has a snoop protocol optimized for
low latency and high scalability, as well as packet and lane structures enabling quick
completions of transactions. Reliability, Availability, and Serviceability features (RAS) are built
into the architecture.
The physical connectivity of each interconnect link is made up of twenty differential signal pairs
plus a differential forwarded clock. Each port supports a link pair consisting of two unidirectional
links to complete the connection between two components. This supports traffic in both
directions simultaneously. To facilitate flexibility and longevity, the interconnection is defined as
having five layers: Physical, Link, Routing, Transport, and Protocol.
The Intel® QuickPath Interconnect includes a cache coherency protocol to keep the distributed
memory and caching structures coherent during system operation. It supports both low-latency
source snooping and a scalable home snoop behavior. The coherency protocol provides for
direct cache-to-cache transfers for optimal latency.
Integrated Memory Controller (IMC) and Memory Subsystem
QPI
0
7
L3
Cache
L3
Cache
1
6
L3
Cache
L3
Cache
2
5
(2.5MB)
(2.5MB)
(2.5MB)
(2.5MB)
(2.5MB)
(2.5MB)
L3
L3
Cache Cache
(2.5MB)
(2.5MB)
3
4
L1 + L2
Cache
L3
Cache
Core 7
L1 + L2
Cache
L3
Cache
Core 6
L1 + L2
Cache
L1 + L2
Cache
Core 3
L1 + L2
Cache
Core 2
L1 + L2
Cache
Core 1
L1 + L2
Cache
Core 0
PCIe
Core 5
L1 + L2
Cache
3.3.2
Core 4
IMC -Memory
Controller
Figure 8. Processor with IMC Functional Block Diagram


14
Unbuffered DDR3 and registered DDR3 DIMMs.
LR DIMM (Load Reduced DIMM) for buffered memory solutions demanding higher
capacity memory subsystems.
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS

















Product Architecture Overview
Independent channel mode or lockstep mode.
Data burst length of eight cycles for all memory organization modes.
Memory DDR3 data transfer rates of 800, 1066, 1333, 1600, and 1867 MT/s.
64-bit wide channels plus 8-bit ECC support for each channel.
DDR3 standard I/O Voltage of 1.5V for all speed.
DDR3 Low Voltage of 1.35V for 1600MT/s or below.
1Gb, 2Gb, and 4Gb DDR3 DRAM technologies supported for these devices:
o UDIMM DDR3 – SR x8 and x16 data widths, DR – x8 data width.
o RDIMM DDR3 – SR, DR, and QR – x4 and x8 data widths.
o LRDIMM DDR3 – QR – x4 and x8 data widths with direct map or with rank
multiplication.
Up to eight ranks supported per memory channel, 1, 2, or 4 ranks per DIMM.
Open with adaptive idle page close timer or closed page policy.
Per channel memory test and initialization engine can initialize DRAM to all logical zeros
with valid ECC (with or without data scrambler) or a predefined test pattern.
Isochronous access support for Quality of Service (QoS).
Minimum memory configuration: Independent channel support with one DIMM populated.
Integrated dual SMBus* master controllers.
Command launch modes of 1n/2n.
RAS Support:
o Rank Level Sparing and Device Tagging.
o Demand and Patrol Scrubbing.
o DRAM Single Device Data Correction (SDDC) for any single x4 or x8 DRAM
device. Independent channel mode supports x4 SDDC. The x8 SDDC requires
lockstep mode.
o Lockstep mode where channels 0 and 1 and channels 2 and 3 are operated in
lockstep mode.
o Data scrambling with address to ease detection of write errors to an incorrect
address.
o Error reporting through Machine Check Architecture.
o Read Retry during CRC error handling checks by iMC.
o Channel mirroring within a socket.
o CPU1 Channel Mirror Pairs (A, B) and (C, D).
o CPU2 Channel Mirror Pairs (E, F) and (G, H).
o Error Containment Recovery.
Improved Thermal Throttling with dynamic Closed Loop Thermal Throttling (CLTT).
Memory thermal monitoring support for DIMM temperature.
Revision 1.8
Intel order number G31608-009
15
Product Architecture Overview
3.3.2.1
Intel®Server Board S2600JF TPS
Supported Memory
Table 4. Color Definition
Supported and Validated
Supported but not Validate
TBD
Table 5. UDIMM Support Guidelines
Ranks Per DIMM and
Data Width
Notes:
1.
2.
3.
4.
Memory Capacity Per DIMM1
SRx8 ECC
1GB
2GB
4GB
DRx8 ECC
2GB
4GB
8GB
Speed (MT/s) and Voltage Validated by
Slot per Channel (SPC) and DIMM Per
Channel (DPC)2,3
1 Slot per Channel
1DPC
1.35V
1.5V
1066, 1333,
1066, 1333,
16004
1600, 18674
1066, 1333,
1066, 1333,
16004
1600, 18674
Supported DRAM Densities are 1Gb, 2Gb, and 4Gb. Only 2Gb and 4Gb are validated by Intel.
Command Address Timing is 1N for 1DPC and 2N for 2DPC.
No support for 3DPC when using UDIMMs.
These speed options are only available when “Memory SPD Override” is enabled.
Table 6. RDIMM Support Guidelines
Ranks Per DIMM and
Data Width
Memory Capacity Per DIMM1
SRx8
1GB
2GB
4GB
DRx8
2GB
4GB
8GB
SRx4
2GB
4GB
8GB
DRx4
4GB
8GB
16GB
QRx4
QRx8
8GB
4GB
16GB
8GB
32GB
16GB
Speed (MT/s) and Voltage Validated by
Slot per Channel (SPC) and DIMM Per
Channel (DPC)2
1 Slot per Channel
1DPC
1.35V
1.5V
1066, 1333,
3
1066, 1333, 1600
1600, 18673
1066, 1333,
1066, 1333, 16003
1600, 18673
1066, 1333,
1066, 1333, 16003
1600, 18673
1066, 1333,
1066, 1333, 16003
1600, 18673
800
1066
800
1066
Notes:
1. Supported DRAM Densities are 1Gb, 2Gb, and 4Gb. Only 2Gb and 4Gb are validated by Intel.
2. Command Address Timing is 1N.
3. These speed options are only available when “Memory SPD Override” is enabled.
16
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Product Architecture Overview
Table 7. LRDIMM Support Guidelines
Ranks Per DIMM and
Data Width1
Memory Capacity Per DIMM2
QRx4 (DDP)6
QRx8 (DPP)6
8Rx4 (QPP)6
Notes:
1.
2.
3.
4.
5.
6.
8GB
4GB
32GB
32GB
16GB
64GB
Speed (MT/s) and Voltage Validated by
Slot per Channel (SPC) and DIMM Per
Channel (DPC)3,4,5
1 Slot per Channel
1DPC
1.35V
1.5V
1066, 1333
1066, 1333
1066, 1333
1066, 1333
1066
1066
Physical Rank is used to calculate DIMM Capacity.
Supported and validated DRAM Densities are 2Gb and 4Gb.
Command Address Timing is 1N.
The speeds are estimated targets and verified through simulation.
For 3SPC/3DPC – Rank Multiplication (RM) >=2.
DDP – Dual Die Package DRAM stacking. P – Planar monolithic DRAM Dies.
3.3.2.2
Memory Population Rules
Note: Although mixed DIMM configurations may be support by the chipset, Intel only performs
platform validation on systems that are configured with identical DIMMs installed.
Each processor provides four banks of memory, each capable of supporting up to three DIMMs.

DIMMs are organized into physical slots on DDR3 memory channels that belong to
processor sockets.

The memory channels from processor socket 1 are identified as Channel A, B, C, and D.
The memory channels from processor socket 2 are identified as Channel E, F, G, and H.

The silk screened DIMM slot identifiers on the board provide information about the
channel, and therefore the processor to which they belong. For example, DIMM_A1 is
the first slot on Channel A on processor 1; DIMM_E1 is the first DIMM socket on
Channel E on processor 2.

The memory slots associated with a given processor are unavailable if the
corresponding processor socket is not populated.

A processor may be installed without populating the associated memory slots provided a
second processor is installed with associated memory. In this case, the memory is
shared by the processors. However, the platform suffers performance degradation and
latency due to the remote memory.

Processor sockets are self-contained and autonomous. However, all memory subsystem
support (such as Memory RAS and Error Management) in the BIOS setup is applied
commonly across processor sockets.
On the Intel® Server Board S2600JF, a total of eight DIMM slots is provided (Two CPUs – four
Channels/CPU and one DIMMs/Channel). The nomenclature for DIMM sockets is detailed in the
following table.
Revision 1.8
Intel order number G31608-009
17
Product Architecture Overview
Intel®Server Board S2600JF TPS
Table 8. Intel® Server Board S2600JF DIMM Nomenclature
(0)
Channel A
A1
Processor Socket 1
(1)
(2)
Channel B
Channel C
B1
C1
(3)
Channel D
D1
(0)
Channel E
E1
Processor Socket 2
(1)
(2)
Channel F
Channel G
F1
G1
(3)
Channel H
H1
Figure 9. Intel® Server Board S2600JF Family DIMM Slot Layout
The following are generic DIMM population requirements that generally apply to the Intel ®
Server Board S2600JF:

All DIMMs must be DDR3 DIMMs.

Unbuffered DIMMs can be ECC only.

Mixing of Registered and Unbuffered DIMMs is not allowed per platform.

Mixing of LRDIMM with any other DIMM type is not allowed per platform.

Mixing of DDR3 voltages is not validated within a socket or across sockets by Intel. If
1.35V (DDR3L) and 1.50V (DDR3) DIMMs are mixed, the DIMMs run at 1.50V.

Mixing of DDR3 operating frequencies is not validated within a socket or across sockets
by Intel. If DIMMs with different frequencies are mixed, all DIMMs run at the common
lowest frequency.

Quad rank RDIMMs are supported but not validated by Intel.

A maximum of eight logical ranks (ranks seen by the host) per channel is allowed.
3.3.2.3
18
Publishing System Memory

The BIOS displays the “Total Memory” of the system during POST if Display Logo is
disabled in the BIOS setup. This is the total size of memory discovered by the BIOS
during POST, and is the sum of the individual sizes of installed DDR3 DIMMs in the
system.

The BIOS displays the “Effective Memory” of the system in the BIOS setup. The term
Effective Memory refers to the total size of all DDR3 DIMMs that are active (not disabled)
and not used as redundant units.

The BIOS provides the total memory of the system in the main page of the BIOS setup.
This total is the same as the amount described by the first bullet above.
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS

Product Architecture Overview
If Display Logo is disabled, the BIOS displays the total system memory on the diagnostic
screen at the end of POST. This total is the same as the amount described by the first
bullet above.
3.3.2.4
RAS Features
The server board supports the following memory RAS modes:
 Independent Channel Mode
 Rank Sparing Mode
 Mirrored Channel Mode
 Lockstep Channel Mode
Regardless of RAS mode, the requirements for populating within a channel given in the Memory
Population Rules must be met at all times. Note that support of RAS modes that require
matching DIMM population between channels (Mirrored and Lockstep) requires that ECC
DIMMs be populated.
For RAS modes that require matching populations, the same slot positions across channels
must hold the same DIMM type with regards to size and organization. DIMM timings do not
have to match but timings will be set to support all DIMMs populated (that is, DIMMs with slower
timings force faster DIMMs to the slower common timing modes).
3.3.2.4.1
Independent Channel Mode
Channels can be populated in any order in Independent Channel Mode. All four channels may
be populated in any order and have no matching requirements. All channels must run at the
same interface frequency but individual channels may run at different DIMM timings (RAS
latency, CAS Latency, and so on).
3.3.2.4.2
Rank Sparing Mode
In Rank Sparing Mode, one rank is a spare of the other ranks on the same channel. The spare
rank is held in reserve and is not available as system memory. The spare rank must have
identical or larger memory capacity than all the other ranks (sparing source ranks) on the same
channel. After sparing, the sparing source rank will be lost.
3.3.2.4.3
Mirrored Channel Mode
In Mirrored Channel Mode, the memory contents are mirrored between Channel 0 and Channel
2 and also between Channel 1 and Channel 3. As a result of the mirroring, the total physical
memory available to the system is half of what is populated. Mirrored Channel Mode requires
that Channel 0 and Channel 2, and Channel 1 and Channel 3 must be populated identically with
regards to size and organization. DIMM slot populations within a channel do not have to be
identical but the same DIMM slot location across Channel 0 and Channel 2 and across Channel
1 and Channel 3 must be populated the same.
3.3.2.4.4
Lockstep Channel Mode
In Lockstep Channel Mode, each memory access is a 128-bit data access that spans Channel 0
and Channel 1, and Channel 2 and Channel 3. Lockstep Channel mode is the only RAS mode
that allows SDDC for x8 devices. Lockstep Channel Mode requires that Channel 0 and Channel
1, and Channel 2 and Channel 3 must be populated identically with regards to size and
organization. DIMM slot populations within a channel do not have to be identical but the same
Revision 1.8
Intel order number G31608-009
19
Product Architecture Overview
Intel®Server Board S2600JF TPS
DIMM slot location across Channel 0 and Channel 1 and across Channel 2 and Channel 3 must
be populated the same.
3.3.3
Processor Intergrated I/O Module (I/O)
The processor’s integrated I/O module provides features traditionally supported through chipset
components. The integrated I/O module provides the following features:


PCI Express* Interfaces: The integrated I/O module incorporates the PCI Express*
interface and supports up to 40 lanes of PCI Express*. Following are key attributes of
the PCI Express* interface:
o Gen3 speeds at 8 GT/s (no 8b/10b encoding)
o X16 interface bifurcated down to two x8 or four x4 (or combinations)
o X8 interface bifurcated down to two x4
DMI2 Interface to the PCH: The platform requires an interface to the legacy
Southbridge (PCH) which provides basic, legacy functions required for the server
platform and operating systems. Because only one PCH is required and allowed for the
system, any sockets that do not connect to PCH will use this port as a standard x4 PCI
Express* 2.0 interface.

Integrated IOAPIC: Provides support for PCI Express* devices implementing legacy
interrupt messages without interrupt sharing.

Non-Transparent Bridge: PCI Express* Non-Transparent Bridge (NTB) acts as a
gateway that enables high performance, low overhead communication between two
intelligent subsystems, the local and the remote subsystems. The NTB allows a local
processor to independently configure and control the local subsystem, and provides
isolation of the local host memory domain from the remote host memory domain while
enabling status and data exchange between the two domains.

Intel® QuickData Technology: Used for efficient, high bandwidth data movement
between two locations in memory or from memory to I/O.
Figure 10. General Functional Block Diagram of Processor I/O Subsystem
20
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Product Architecture Overview
The following sub-sections describe the server board features that are directly supported by the
processor IIO module. These include the Riser Card Slots, Network Interface, and connectors
for the optional I/O modules and SAS Module. Features and functions of the Intel® C600 Series
chipset are described in its own dedicated section.
3.3.3.1
Riser Card Support
The server board provides three riser card slots identified by Riser Slot 1, Riser Slot 2, and
Riser Slot 3. The PCIe signals for each riser card slot are supported by each of the two installed
processors. A total of 32 PCIe Gen3 signals are routed to Riser Slot 1 and Riser Slot 2; all 32
lanes are routed from CPU 1. A total of 16 PCIe Gen3 signals are routed to Riser Card 3; all 16
lanes are routed from CPU 2.
Following is the scope of I/O connection from processors on Intel® Server Board S2600JF.
Figure 11. PCI Express* Lane Distribution Scheme
Revision 1.8
Intel order number G31608-009
21
Product Architecture Overview
Intel®Server Board S2600JF TPS
Table 9. CPU1 and CPU2 PCIe Connectivity
CPU
CPU1
CPU1
CPU1
CPU1
CPU2
CPU2
CPU2
CPU2
Port
DMI2
PE1
PE2
PE3
DMI2
PE1
PE2
PE3
IOU
IOU2
IOU2
IOU0
IOU1
IOU2
IOU2
IOU0
IOU1
Width
x4
X8
x16
x16
x4
x8
x16
x16
Connection
PCH (lane reversal, no polarity inversion)
QDR/FDR InfiniBand*
Riser 1
Riser 2 (x8 for IOM on Riser)
Unused
Unused
Unused
Riser 3
Note: All riser slots are defined specially for dedicated risers only. Plugging in normal PCIe riser
or PCIe add-in card directly causes danger and may burn out the add-in riser or card.
Riser Slot 3 can only be used in dual-processor configurations. Without the second processor
installed, any graphic add-in card in Riser Slot 3 cannot output video, meaning the default video
out is still from on-board integrated BMC.
3.3.3.2
Riser Types
The riser connector is a standard 164-pin x16 connector but pinned out differently to create
enough unused pins to route the RGMII interface through Riser 2. It has an x16 PCIe Gen 3
electrical interface, which can be configured as 2 x8 if required. The placement of the rear IO
connectors and layout of the components on the board must be made to support an MD2, low
profile card in the Riser1 and an rIOM mounted on a riser carrier for Riser 2. Riser 3 on
S2600JF supports off-board standard full height, full length I/O cards including double wide
GPU boards.
To support GPU boards, each riser need to provide 66W of 12V power as well as 10W of 3.3V
power in the case of 2 x8 boards being hosted in customized chassis. These risers need to
generate 20W of 3.3V, the number of 12amp pins on the riser having increased to
accommodate this.
Supported 1U riser cards include:

22
1U Riser for slot 1 with one PCIe slot – x16 signals routed to an x16 PCIe Slot.
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Product Architecture Overview
Figure 12. PCIe Riser for Slot 1

1U Riser for Slot 2 with one PCIe slot – 2 sets of x8 signals routed to an x16 PCIe Slot
(eight lanes for IOM Carrier).
Figure 13. PCIe Riser for Slot 2

1U customized Riser for Slot 2 with one PCIe slot – 1 set of x8 signals routed to root port
3A of processor 1 to facilitate Non-Transparent Bridge. For more information, refer to
Multi-node Server Board Developers Spec under NDA.
3.3.3.3
Network Interface
Network connectivity from processor is provided by means of an on-board Mellanox* ConnectX3* InfiniBand* Controller on board SKU S2600JFQ and S2600JFF, providing one
SDR/DDR/QDR/FDR InfiniBand* port in a QSFP interface. The controller is supported by
implementing x16 PCIe Gen3 signals from the IIO module of the CPU 1 processor.
3.3.3.4
I/O Module Support
To broaden the standard on-board feature set, the server board supports the option of adding a
single I/O module providing external ports for a variety of networking interfaces. The I/O module
attaches to a high density 80-pin connector of I/O module carrier on the Riser 2. Refer to Intel®
Revision 1.8
Intel order number G31608-009
23
Product Architecture Overview
Intel®Server Board S2600JF TPS
Server System H2000JF Technical Product Specification (Intel Order Number G39462) for more
information.
Intel® Xeon Phi™ Coprocessor Card – System Configuration Requirements
For best system performance and proper fan speed control, ensure the system is configured as
follows:
 The minimum system software revisions installed must be:
o System BIOS 01.06.0002 or later
o BMC Firmware 01.17.4207 or later
o FRUSDR 1.07 or later
Intel highly recommends that the latest available system software be installed. The latest
system update package can be downloaded from the Intel website: http://www.intel.com/support
 The following <F2> BIOS Setup Utility Options must be set:
o MMIO over 4GB = Enabled
o MMIO Size = 256GB
3.4
Intel®C600-A/B PCH Functional Overview
The following sub-sections provide an overview of the key features and functions of the Intel ®
C600-A/B chipset used on the server board. For more comprehensive chipset-specific
information, refer to the Intel® C600 Series chipset documents listed in the Reference
Documents section.
SATA
SATA
SAS
SAS
SAS
SAS
PCI-E GEN2 x4 (4GB/s)
6Gps
Dual 1Gb LAN
Intel®
C600-A/B
3Gps
PCI-E GEN1 x1
SMBUS PORTS
2 USB 2.0 (480Mbs)
NC-SI PORT 1 (RMII) 100Mbps
SERVER
ENGINES
PILOT 3
IBMC
LPC (33MHz)
Type A
USB
USB 2.0
USB 2.0
2x USB
2.0 INT
8MB BIOS
SPI FLASH
2x5 HDR
VIDEO RGB
NC-SI PORT 0 (RGMII) 1Gps
3Gps
2 USB 2.0 EXT
SERIAL PORT A
Dual Gb
Intel® I350
Dual NIC
To PCIe SLOT 2
DEDICATED management port
16 MB IBMC
SPI FLASH
RMM4 LITE
128MB
DRAM
DDR-3
Figure 14. Intel® C600-A/B PCH Connection
The Intel® C600-A PCH component provides extensive I/O support. Functions and capabilities
include:
24

PCI Express* Base Specification, Revision 2.0, supports up to eight ports with transfers
up to 5 GT/s

PCI Local Bus Specification, Revision 2.3, supports 33 MHz PCI operations (supports up
to four Req/Gnt pairs)

ACPI Power Management Logic Support, Revision 4.0a

Enhanced DMA controller, interrupt controller, and timer functions

Integrated Serial Attached SCSI host controllers at transfer rate up to 3Gb/s on up to
eight ports

Integrated Serial ATA host controllers with independent DMA operation on up to six
ports
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Product Architecture Overview

USB host interface with two EHCI high-speed USB 2.0 Host controllers and two rate
matching hubs supporting up to 14 USB 2.0 ports

Integrated 10/100/1000 Gigabit Ethernet MAC with System Defense

System Management Bus (SMBus*) Specification, Version 2.0, with additional support
for I2C devices

Supports Intel® High Definition Audio

Supports Intel® Rapid Storage Technology (Intel® RST)

Supports Intel® Virtualization Technology for Directed I/O (Intel® VT-d)

Supports Intel® Trusted Execution Technology (Intel® TXT)

Low Pin Count (LPC) interface

Firmware Hub (FWH) interface support

Serial Peripheral Interface (SPI) support

Intel® Anti-Theft Technology (Intel® AT)

JTAG Boundary Scan support
3.4.1
PCI Express*
®
The Intel C600 PCH provides up to eight PCI Express* Root Ports, supporting the PCI
Express* Base Specification, Revision 3.0. Each Root Port x1 lane supports up to 5Gb/s
bandwidth in each direction (10Gb/s concurrent). PCI Express* Root Ports 1-4 or Ports 5-8 can
independently be configured to support four x1s, two x2s, one x2 and two x1s, or one x4 port
widths.
From PCH on the Intel® Server Board S2600JF, PCIe Port8 x1 Gen2 is connected to BMC
Gen1 Uplink. Ports 1-4 are connected to the Intel® I350 GbE NIC. The remaining PCIe Gen2
interconnect (Port 5-7, 1 based numbering) are unused.
3.4.2
Non-Transparent Bridge
PCI Express* Non-Transparent Bridge (NTB) acts as a gateway that enables high performance,
low overhead communication between two intelligent subsystems, the local and the remote
subsystems. The NTB allows a local processor to independently configure and control the local
subsystem, and provides isolation of the local host memory domain from the remote host
memory domain while enabling status and data exchange between the two domains.
The PCI Express* Port 3A of the Intel® Xeon® Processor E5-2600 product family can be
configured to be a transparent bridge or an NTB with x4/x8 link width and Gen1/Gen2/Gen3 link
speed. Also this NTB port can be attached to another NTB port or PCI Express* Root Port on
another subsystem. NTB supports three 64-bit BARs as configuration space or prefetchable
memory windows that can access both 32-bit and 64-bit address space through 64-bit BARs.
There are three NTB-supported configurations:

NTB Port to NTB Port Based Connection (Back-to-Back)

NTB Port to Root Port Based Connection – Symmetric Configuration. The NTB port on
the first system is connected to the root port of the second system. The second system’s
NTB port is connected to the root port on the first system making this a fully symmetric
configuration.
Revision 1.8
Intel order number G31608-009
25
Product Architecture Overview

3.4.3
Intel®Server Board S2600JF TPS
NTB Port to Root Port Based Connection – Non-Symmetric Configuration. The root port
on the first system is connected to the NTB port of the second system. And it is not
necessary for the first system to be of the Intel® Xeon® Processor E5-2600 product
family.
Universal Serial Bus (USB)
There are 14 USB 2.0 ports available from Intel® C600 PCH. All ports are high-speed, full-speed
and low-speed capable. A total of five USB 2.0 dedicated ports are used by Intel® Server Board
S2600JF. The USB port distribution is as follows:

ServerEngines* BMC PILOT III consumes two USB 2.0 ports (one USB 1.1 and one
USB 2.0).

Two rear USB 2.0 ports.

One internal USB port for extension of front panel USB port.

Wake on USB is supported on the rear and front panel USB ports for S1 only. Standby
power on USB ports is not required.
3.4.4
Serial Attached SCSI (SAS) and Serial ATA (SATA) Controller
®
The Intel C600-A/B chipset provides storage support through two integrated controllers: AHCI
and SCU. By default, the server board supports up to six SATA ports: two single 6Gb/s SATA
ports routed from the AHCI controller to one blue SATA connector labeled “SATA-1” on mother
board and “SATA-1” on bridge board, and four 3Gb/s SATA ports routed from the SCU to the
multi-drive port connector labeled “SAS/SATA 0-3” (grouped as SCU0).
Note: The multi-drive port connector labeled “SAS/SATA 4-7” is NOT functional by default and
is enabled only with the addition of an Intel® RAID C600 Storage Upgrade Key option supporting
eight SAS/SATA ports.
It supports the Serial ATA Specification, Revision 3.0, and several optional sections of the Serial
ATA II: Extensions to Serial ATA 1.0 Specification, Revision 1.0 (AHCI support is required for
some elements).
The Intel® Server Board S2600JF implements six SATA/SAS ports. The implementation is as
follows.
Table 10. Intel® Server Board S2600JF SATA/SAS Port
SCU0
Port#
Speed
Connector
0
1
6Gb/s SATA
6Gb/s SATA
Bridge Board Slot
On Server board
3Gb/s SATA/SAS(non-AHCI)
Bridge Board Slot
0
1
2
3
There are two embedded software RAID options using the storage ports configured from the
SCU only:

26
Intel® Embedded Server RAID Technology 2 (ESRT2) based on LSI* MegaRAID SW
RAID technology supporting SATA RAID levels 0,1,10, and 5.
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS

Product Architecture Overview
Intel® Rapid Storage Technology (RSTe) supporting SATA RAID levels 0,1,5, and 10.
The server board supports additional chipset embedded SAS and RAID options from the SCU
controller when configured with one of several available Intel® RAID C600 Storage Upgrade
Keys. Upgrade keys install onto a 4-pin connector on the server board labeled “STOR UPG
Key”. The following table identifies available upgrade key options and their supported features.
Table 11. Intel® RAID C600 Storage Upgrade Key Options for S2600JF
Intel®RAID C600 Upgrade Key Options
(Intel Product Codes)
Default – No option key installed
Key Color
Description
NA
RKSATA4R5
Black
RKSAS4
Green
RKSAS4R5
Yellow
4-port SATA with Intel® ESRT RAID 0,1,10, and Intel®
RSTe RAID 0,1,5,10
4-port SATA with Intel® ESRT2 RAID 0,1,5,10, and
Intel® RSTe RAID 0,1,5,10
4-port SAS with Intel® ESRT2 RAID 0,1,10, and Intel®
RSTe RAID 0,1,10
4-port SAS with Intel® ESRT2 RAID 0,1,5,10, and
Intel® RSTe RAID 0,1,10
Note:
1.
2.
3.4.5
The eight-port Storage Upgrade Key can also implement the RAID function, but only four ports (SCU0) are
user accessible on the Intel® Server Board S2600JF.
Additional information for the on-board RAID features and functionality can be found in the Intel® RAID
Software Users Guide (Intel Order Number D29305).
PCI Interface
®
The Intel C600 PCH PCI Interface provides a 33 MHz, Revision 2.3 implementation. It
integrates a PCI arbiter that supports up to four external PCI bus masters in addition to the PCH
internal requests. This allows for combinations of up to four PCI down devices and PCI slots.
3.4.6
Low Pin Count (LPC) Interface
®
The Intel C600 PCH implements an LPC Interface as described in the LPC 1.1 Specification.
The Low Pin Count (LPC) bridge function of the PCH resides in PCI Device 31: Function 0. In
addition to the LPC bridge interface function, D31:F0 contains other functional units including
DMA, interrupt controllers, timers, power management, system management, GPIO, and RTC.
3.4.7
Digital Media Interface (DMI)
Digital Media Interface (DMI) is the chip-to-chip connection between the processor and Intel®
C600 PCH. This high-speed interface integrates advanced priority-based servicing allowing for
concurrent traffic and true isochronous transfer capabilities. Base functionality is completely
software-transparent, permitting current, and legacy software to operate normally.
3.4.8
Serials Peripheral Interface (SPI)
®
The Intel C600 PCH implements an SPI Interface as an alternative interface for the BIOS flash
device. An SPI flash device can be used as a replacement for the FWH, and is required to
support Gigabit Ethernet and Intel® Active Management Technology. The PCH supports up to
two SPI flash devices with speeds up to 50 MHz, utilizing two chip select pins.
3.4.9
Compatibility Modules (DMA Controller, Timer/Counters, Interrupt Controller)
The DMA controller incorporates the logic of two 82C37 DMA controllers, with seven
independently programmable channels. Channels 0–3 are hardwired to 8-bit, count-by-byte
transfers, and channels 5–7 are hardwired to 16-bit, count-by-word transfers. Any two of the
Revision 1.8
Intel order number G31608-009
27
Product Architecture Overview
Intel®Server Board S2600JF TPS
seven DMA channels can be programmed to support fast Type-F transfers. Channel 4 is
reserved as a generic bus master request.
The Intel® C600 PCH supports LPC DMA, which is similar to ISA DMA, through the PCH’s DMA
controller. LPC DMA is handled through the use of the LDRQ# lines from peripherals and
special encoding on LAD [3:0] from the host. Single, Demand, Verify, and Increment modes are
supported on the LPC interface.
The timer/counter block contains three counters that are equivalent in function to those found in
one 82C54 programmable interval timer. These three counters are combined to provide the
system timer function and speaker tone. The 14.31818 MHz oscillator input provides the clock
source for these three counters.
The Intel® C600 PCH provides an ISA-compatible Programmable Interrupt Controller (PIC) that
incorporates the functionality of two 82C59 interrupt controllers. The two interrupt controllers are
cascaded so that 14 external and two internal interrupts are possible. In addition, the PCH
supports a serial interrupt scheme. All of the registers in these modules can be read and
restored. This is required to save and restore system state after power has been removed and
restored to the platform.
3.4.10
Advanced Programmable Interrupt Controller (APIC)
In addition to the standard ISA-compatible Programmable Interrupt Controller (PIC) described in
the previous section, the Intel® C600 PCH incorporates the Advanced Programmable Interrupt
Controller (APIC).
3.4.11
Real Time Clock (RTC)
®
The Intel C600 PCH contains a Motorola* MC146818B-compatible real-time clock with 256
bytes of battery-backed RAM. The real-time clock performs two key functions: keeping track of
the time of day and storing system data, even when the system is powered down. The RTC
operates on a 32.768 KHz crystal and a 3V battery. The RTC also supports two lockable
memory ranges. By setting bits in the configuration space, two 8-byte ranges can be locked to
read and write accesses. This prevents unauthorized reading of passwords or other system
security information. The RTC also supports a date alarm that allows for scheduling a wake-up
event up to 30 days in advance, rather than just 24 hours in advance.
3.4.12
GPIO
Various general purpose inputs and outputs are provided for custom system design. The
number of inputs and outputs varies depending on the Intel® C600 PCH configuration.
3.4.13
Enhanced Power Management
®
The Intel C600 PCH power management functions include enhanced clock control and various
low-power (suspend) states. A hardware-based thermal management circuit permits softwareindependent entrance to low-power states. The PCH contains full support for the Advanced
Configuration and Power Interface (ACPI) Specification, Revision 4.0a.
3.4.14
Fan Speed Control
®
The Intel C600 PCH integrates four fan speed sensors (four TACH signals) and four fan speed
controllers (three Pulse Width Modulator signals), which enables monitoring and controlling up
to four fans on the system. With the new implementation of the single-wire Simple Serial
28
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Product Architecture Overview
Transport (SST) 1.0 bus and Platform Environmental Control Interface (PECI), the PCH
provides an easy way to connect to SST-based thermal sensors and access the processor
thermal data.
3.4.15
Intel®Virtualization Technology for Direct I/O (Intel®VT-d)
The Intel® Virtualization Technology is designed to support multiple software environments
sharing same hardware resources. Each software environment may consist of an OS and
applications. The Intel® Virtualization Technology can be enabled or disabled in the BIOS setup.
The default behavior is disabled.
Note: If the setup options are changed to enable or disable the Virtualization Technology setting
in the processor, the user must perform an AC power cycle for the changes to take effect.
The chipset supports DMA remapping from inbound PCI Express* memory Guest Physical
Address (GPA) to Host Physical Address (HPA). PCI devices are directly assigned to a virtual
machine leading to a robust and efficient virtualization.
3.4.16
KVM/Serial Over LAN (SOL) Function
These functions support redirection of keyboard, mouse, video, and text screen to a terminal
window on a remote console. The keyboard, mouse, video, and text redirection enables the
control of the client machine through the network without the need to be physically near that
machine. Text, mouse, video, and keyboard redirection allows the remote machine to control
and configure the client by entering BIOS setup. The KVM/SOL function emulates a standard
PCI serial port and redirects the data from the serial port to the management console using LAN.
KVM has additional requirements of internal graphics and SOL may be used when KVM is not
supported.
3.4.17
IDE-R Function
The IDE-R function is an IDE Redirection interface that provides client connection to
management console ATA/ATAPI devices. When booting from IDE-R, the IDE-R interface
sends the client’s ATA/ATAPI command to the management console. The management console
then provides a response command back to the client. A remote machine can set up a
diagnostic SW or OS installation image and direct the client to boot from IDE-R. The IDE-R
interface is the same as the IDE interface and is compliant with ATA/ATAPI-6 specifications.
IDE-R does not conflict with the usage of PXE boot. The system supports both interfaces and
continues to boot from the PXE as with any other boot devices. However, during management
boot session the Intel® AMT solution will use IDE-R when remote boot is required. The devices
attached to the IDER channel are only visible to software during management boot session.
During normal boot session the IDE-R channel does not appear as a present device.
3.4.18
Manageability
®
The Intel C600 PCH integrates several functions designed to manage the system and lower
the total cost of ownership (TCO) of the system. These system management functions are
designed to report errors, diagnose the system, and recover from system lockups without the
aid of an external microcontroller. The functionality provided by the SPS firmware is different
from Intel® Active Management Technology (Intel® AMT or AT) provided by the ME on client
platforms.
Revision 1.8
Intel order number G31608-009
29
Product Architecture Overview
Intel®Server Board S2600JF TPS

TCO Timer: The Intel® C600 PCH’s integrated programmable TCO timer is used to
detect system locks. The first expiration of the timer generates an SMI# that the system
can use to recover from a software lock. The second expiration of the timer causes a
system reset to recover from a hardware lock.

Processor Present Indicator: The Intel® C600 PCH looks for the processor to fetch the
first instruction after reset. If the processor does not fetch the first instruction, the PCH
reboots the system.

ECC Error Reporting: When detecting an ECC error, the host controller can send one
of several messages to the Intel® C600 PCH. The host controller can instruct the PCH to
generate any of SMI#, NMI, SERR#, or TCO interrupt.

Function Disable: The Intel® C600 PCH can disable the following integrated functions:
LAN, USB, LPC, Intel® HD Audio, SATA, PCI Express*, or SMBus*. After disabled, these
functions no longer decode I/O, memory, or PCI configuration space. Also, no interrupts
or power management events are generated from the disabled functions.

Intruder Detect: The Intel® C600 PCH provides an input signal (INTRUDER#) that can
be attached to a switch that is activated by the system case being opened. The Intel®
C600 PCH can be programmed to generate either SMI# or TCO interrupt due to an
active INTRUDER# signal.
3.4.19
System Management Bus (SMBus 2.0*)
®
The Intel C600 PCH contains an SMBus* Host interface that allows the processor to
communicate with SMBus* slaves. This interface is compatible with most I2C devices. Special
I2C commands are implemented.
The Intel® C600 PCH’s SMBus* host controller provides a mechanism for the processor to
initiate communications with SMBus* peripherals (slaves). Also, the PCH supports slave
functionality, including the Host Notify protocol. Hence, the host controller supports eight
command protocols of the SMBus* interface (see System Management Bus (SMBus*)
Specification, Version 2.0): Quick Command, Send Byte, Receive Byte, Write Byte/Word, Read
Byte/Word, Process Call, Block Read/Write, and Host Notify.
The Intel® C600 PCH’s SMBus* also implements hardware-based Packet Error Checking for
data robustness and the Address Resolution Protocol (ARP) to dynamically provide address to
all SMBus* devices.
3.4.20
Network Interface Controller (NIC)
Network interface support is provided from the on-board Intel® i350 NIC, which is a dual-port,
compact component with two fully integrated GbE Media Access Control (MAC) and Physical
Layer (PHY) ports. The Intel® i350 NIC provides the server board with support for dual LAN
ports designed for 10/100/1000 Mbps operation. Refer to the Intel® i350 Gigabit Ethernet
Controller Datasheet for full details of the NIC feature set.
The NIC device provides a standard IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASETX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab) and is capable of transmitting and
receiving data at rates of 1000 Mbps, 100 Mbps, or 10 Mbps.
The Intel® i350 controller also requires the use of Intel® C600 PCH SMBus* interface during
Sleep states S4 and S5 as well as for ME Firmware. The Intel® i350 LAN controller will be on
standby power so that Wake on LAN and manageability functions can be supported.
30
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Product Architecture Overview
Intel® i350 is used in conjunction with the Server Engines PILOT III BMC for in band
Management traffic. The BMC communicates with Intel® i350 over a NC-SI interface (RMII
physical). The NIC will be on standby power so that the BMC can send management traffic over
the NC-SI interface to the network during sleep states S4 and S5.
The NIC supports the normal RJ-45 LINK/Activity speed LEDs as well as the Preset ID function.
These LEDs are powered from a Standby voltage rail.
The link/activity LED (at the right of the connector) indicates network connection when on, and
transmit/receive activity when blinking. The speed LED (at the left of the connector) indicates
1000-Mbps operation when green, 100-Mbps operation when amber, and 10-Mbps when off.
The following table provides an overview of the LEDs.
Figure 15. 1GbE NIC Port LED
Table 12. NIC Status LED
LED Color
Green/Amber (B)
Green (A)
3.4.20.1
LED State
NIC State
Off
10 Mbps
Amber
100 Mbps
Green
1000 Mbps
On
Active Connection
Blinking
Transmit/Receive activity
MAC Address Definition
®
The Intel Server Board S2600JF has the following four MAC addresses assigned to it at the
Intel factory:

NIC 1 MAC address (for OS usage)

NIC 2 MAC address = NIC 1 MAC address + 1 (for OS usage)

BMC LAN channel 1 MAC address = NIC1 MAC address + 2

BMC LAN channel 2 MAC address = NIC1 MAC address + 3

BMC LAN channel 3 (Dedicated Server Management NIC) MAC address = NIC1 MAC
address + 4
The Intel® Server Board S2600JF has a white MAC address sticker included with the board. The
sticker displays the NIC 1 MAC address in both bar code and alphanumeric formats.
Revision 1.8
Intel order number G31608-009
31
Product Architecture Overview
3.4.20.2
Intel®Server Board S2600JF TPS
LAN Manageability
Port 2 of the Intel® i350 NIC is used by the BMC firmware to send management traffic. In
standby in order to save power, Port 2 is the only port to support Wake on LAN. The EEPROM
is programmed to turn off this feature from the other ports in order to maximize power savings
during sleep states.
3.4.20.3
Wake-On-LAN
WOL is supported on the Intel® i350 LAN controller for all supported Sleep states.
3.4.20.4
LAN Connector Ordering
®
The Intel i350 NIC is connected to independent RJ-45 ports for NIC 1 and NIC 2.
3.4.20.5
Thermal Sensor
The Intel® i350 NIC has an integrated digital thermal sensor accessible through CSR and
manageability registers. The thermal sensor can be programmed to trigger digital pins and
thermal throttling with hysteresis.
3.5
InfiniBand* Controller
®
Intel Server Board S2600JFQ and JF2600JFF are populated with a new generation InfiniBand*
adapter device. Mellanox* ConnectX-3* supports Virtual Protocol Interconnect* (VPI), providing
single port 10/20/40/56 Gb/s InfiniBand* interfaces. The functional diagram is as follows.
Figure 16. ConnectX*-3 Function Block Diagram
Major features and functions include:

32
Single InfiniBand* Port: SDR/DDR/QDR/FDR with port remapping in firmware.
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS



Performance optimization: Achieving single port line-rate bandwidth.
PCI Express 3.0* x8 to achieve 2.5, 5, or 8GT/s link rate.
Optimized for LOM: Small footprint, minimal peripherals, WOL, integrated sensors,
and BMC interface.
Low power consumption: 6.5 Watt typical.

3.5.1
Product Architecture Overview
Device Interfaces
Following is a list of major interfaces of Mellanox* ConnectX-3* chip:


Clock and Reset signals: Include core clock input and chip reset signals.
Uplink Bus: The PCI Express* bus is a high-speed uplink interface used to connect
ConnectX-3* to the host processor. The ConnectX-3* supports a PCI Express 3.0*
x8 uplink connection with transfer rates of 2.5GT/s, 5GT/s, and 8GT/s per lane.
Throughout this document, the PCI Express* interface may also be referred to as the
“uplink” interface.
Network Interface: Single network port connecting the device to a network fabric in
one of the configurations described in the following table.

Table 13. Network Port Configuration
Port Configured as
10/20/40/56 Gb/s InfiniBand*
3.5.2

Flash interface: Chip initialization and host boot.

I2C Compatible Interfaces: For chip, QSFP connector, and chassis configure and
monitor.

Management Link: Connect to BMC through SMBus* and NC-SI.

Others including: MDIO, GPIO, and JTAG.
Quad Small Form-factor Pluggable (QSFP) Connector
Port of the Mellanox* ConnectX-3* is connected to a single QSFP connector on Intel® Server
Board S2600JF (available on SKU: S2600JFQ and S2600JFF). Following is the application
reference between Mellanox* ConnectX-3* and QSFP.
Revision 1.8
Intel order number G31608-009
33
Product Architecture Overview
Intel®Server Board S2600JF TPS
Figure 17. Connection between ConnectX*-3 and QSFP
The QSFP module and all pins withstand 500V electrostatic discharge based on the Human
Body Model per JEDEC JESD22-A114-B.
The module meets ESD requirements given in EN61000-4-2, criterion B test specification so
that when installed in a properly grounded cage and chassis the units are subjected to 12KV air
discharges during operation and 8KV direct contact discharges to the case.
Note: InfiniBand* cables of 2-meter or 3-meter length are recommended to get better EMI
performance.
3.6
Integrated Baseboard Management Controller Overview
The server board utilizes the Baseboard Management features of the ServerEngines* Pilot-III
Server Management Controller. The following is an overview of the features implemented on the
server board from each embedded controller.
Dual 1Gb LAN
Intel®
C600-A/B
PCI-E GEN1 x1
NC-SI PORT 1 (RMII) 100Mbps
SERVER
ENGINES
PILOT 3
IBMC
SMBUS PORTS
2 USB 2.0 (480Mbs)
LPC (33MHz)
SERIAL PORT A
Intel® I350
Dual NIC
Dual Gb
2x5 HDR
VIDEO RGB
NC-SI PORT 0 (RGMII) 1Gps
To Riser SLOT 2
DEDICATED management port
16 MB IBMC
SPI FLASH
RMM4 LITE
128MB
DRAM
DDR-3
Figure 18. Integrated BMC Implementation Overview
34
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Product Architecture Overview
Figure 19. Integrated BMC Functional Block Diagram
The Integrated BMC is provided by an embedded ARM9 controller and associated peripheral
functionality that is required for IPMI-based server management. Firmware usage of these
hardware features is platform-dependent.
The following is a summary of the Integrated BMC management hardware features that
comprise the BMC:










400MHz 32-bit ARM9 processor with memory management unit (MMU).
Two independent10/100/1000 Ethernet Controllers with RMII/RGMII support.
DDR2/3 16-bit interface with up to 800 MHz operation.
12 10-bit ADCs.
16 fan tachometers.
Eight Pulse Width Modulators (PWM).
Chassis intrusion logic.
JTAG Master.
Eight I2C interfaces with master-slave and SMBus* timeout support. All interfaces are
SMBus 2.0* compliant.
Parallel general-purpose I/O Ports (16 direct, 32 shared).
Revision 1.8
Intel order number G31608-009
35
Product Architecture Overview














Intel®Server Board S2600JF TPS
Serial general-purpose I/O Ports (80 in and 80 out).
Three UARTs.
Platform Environmental Control Interface (PECI).
Six general-purpose timers.
Interrupt controller.
Multiple SPI flash interfaces.
NAND/Memory interface.
16 mailbox registers for communication between the BMC and host.
LPC ROM interface.
BMC watchdog timer capability.
SD/MMC card controller with DMA support.
LED support with programmable blink rate controls on GPIOs.
Port 80h snooping capability.
Secondary Service Processor (SSP), which provides the HW capability of offloading time
critical processing tasks from the main ARM core.
Server Engines* Pilot III contains an integrated SIO, KVMS subsystem, and graphics controller
with the following features.
3.6.1
Super I/O Controller
The integrated super I/O controller supports the following features implemented on the server
board:







3.6.1.1
Keyboard Style/BT interface for BMC support
Two Fully Functional Serial Ports, compatible with the 16C550
Serial IRQ Support
Up to 16 Shared GPIO available for host processor
Programmable Wake-up Event Support
Plug and Play Register Set
Power Supply Control
Keyboard and Mouse Support
The server board does not support PS/2 interface keyboards and mice. However, the system
BIOS recognizes USB-specification-compliant keyboards and mice.
3.6.1.2
Wake-up Control
The super I/O contains functionality that allows various events to power on and power off the
system.
3.6.2
Graphics Controller and Video Support
The integrated graphics controller supports the following features implemented on the server
board:

36
Integrated Graphics Core with 2D Hardware accelerator
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Product Architecture Overview
 DDR-2/3 memory interface supports up to 256Mbytes of memory
 Supports all display resolutions up to 1600 x 1200 16bpp @ 60Hz
 High speed Integrated 24-bit RAMDAC
The integrated video controller supports all standard IBM VGA modes. The following table
shows the 2D modes supported for both CRT and LCD.
Table 14. Supported Video Modes
2D Mode
Note:
1.
2.
Refresh Rate (Hz)
8 bpp
Supported
2D Video Mode Support
16 bpp
32 bpp
Supported
Supported
640x480
60, 72, 75, 85, 90,
100, 120, 160, 200
800x600
60, 70, 72, 75, 85,
90, 100, 120,160
Supported
Supported
Supported
1024x768
60, 70, 72, 75, 85,
90, 100
Supported
Supported
Supported
1152x864
43, 47, 60, 70, 75,
80, 85
Supported
Supported
Supported
1280x1024
60, 70, 74, 75
Supported
Supported
Supported
1600x1200**
60
Supported
Supported
Supported
Video resolutions at 1600x1200 are only supported through the external video connector located on the rear
I/O section of the server board. Utilizing the optional front panel video connector may result in lower video
resolutions.
The server board provides two video interfaces. The primary video interface is accessed using a standard
15-pin VGA connector found on the back edge of the server board. In addition, video signals are routed to a
14-pin header labeled “FP_Video” on the leading edge of the server board, allowing for the option of cabling
to a front panel video connector. Attaching a monitor to the front panel video connector disables the primary
external video connector on the back edge of the board.
The BIOS supports dual-video mode when an add-in video card is installed.


In the single mode (dual monitor video = disabled), the on-board video controller is
disabled when an add-in video card is detected.
In the dual mode (on-board video = enabled, dual monitor video = enabled), the onboard video controller is enabled and is the primary video device. The add-in video card
is allocated resources and is considered the secondary video device. The BIOS Setup
utility provides options to configure the feature as follows.
Table 15. Dual Video Option
On-board Video
Enabled
Disabled
Dual Monitor Video
Enabled
Disabled
3.6.3
Shaded if on-board video is set to "Disabled"
Remote KVM
The Integrated BMC contains a remote KVMS subsystem with the following features:

USB 2.0 interface for keyboard, mouse, video, and remote storage such as CD/DVD
ROM and floppy.
Revision 1.8
Intel order number G31608-009
37
Product Architecture Overview






38
Intel®Server Board S2600JF TPS
USB 1.1 / USB 2.0 interface for PS2 to USB bridging, remote keyboard, video, and
mouse.
Hardware Based Video Compression and Redirection Logic.
Supports both text and Graphics redirection.
Hardware assisted Video redirection using the Frame Processing Engine.
Direct interface to the Integrated Graphics Controller registers and Frame buffer.
Hardware-based encryption engine.
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
4.
Platform Management Functional Overview
Platform Management Functional Overview
Platform management functionality is supported by several hardware and software components
integrated on the server board that work together to control system functions, monitor and report
system health, and control various thermal and performance features in order to maintain (when
possible) server functionality in the event of component failure and/or environmentally stressed
conditions.
This chapter provides a high-level overview of the platform management features and
functionality implemented on the server board. For more in depth and design level Platform
Management information, refer to the BMC Core Firmware External Product Specification (EPS)
(Intel Order Number: G31813) and BIOS Core External Product Specification (EPS) for Intel®
Server products based on the Intel® Xeon® processor E5-4600, 2600, and 1600 product families.
4.1
Baseboard Management Controller (BMC) Firmware Feature Support
The following sections outline general features that the integrated BMC firmware supports.
Support and utilization for some features is dependent on the server platform in which the
server board is integrated and any additional system level components and options that may be
installed.
4.1.1
IPMI 2.0 Features















Revision 1.8
Baseboard management controller (BMC).
IPMI Watchdog timer.
Messaging support, including command bridging and user/session support.
Chassis device functionality, including power/reset control and BIOS boot flags
support.
Event receiver device: The BMC receives and processes events from other platform
subsystems.
Field Replaceable Unit (FRU) inventory device functionality: The BMC supports
access to system FRU devices using IPMI FRU commands.
System Event Log (SEL) device functionality: The BMC supports and provides
access to a SEL.
Sensor Data Record (SDR) repository device functionality: The BMC supports
storage and access of system SDRs.
Sensor device and sensor scanning/monitoring: The BMC provides IPMI
management of sensors. It polls sensors to monitor and report system health.
IPMI interfaces.
Host interfaces, including system management software (SMS) with receive
message queue support, and server management mode (SMM).
IPMB interfaces.
LAN interface that supports the IPMI-over-LAN protocol (RMCP and RMCP+).
Serial-over-LAN (SOL).
ACPI state synchronization: The BMC tracks ACPI state changes that are provided
by the BIOS.
Intel order number G31608-009
39
Platform Management Functional Overview
Intel®Server Board S2600JF TPS

BMC self-test: The BMC performs initialization and runtime self-tests and makes
results available to external entities.
See also the Intelligent Platform Management Interface Specification Second Generation v2.0.
4.1.2
Non-IPMI Features
The BMC supports the following non-IPMI features. This list does not preclude support for future
enhancements or additions:

























40
In-circuit BMC firmware update.
BMC FW reliability enhancements:
o Redundant BMC boot blocks to avoid possibility of a corrupted boot block
resulting in a scenario that prevents a user from updating the BMC.
o
BMC System Management Health Monitoring.
o
Signed firmware images for increased security.
Fault resilient booting (FRB): FRB2 is supported by the watchdog timer functionality.
Enable/Disable of system reset due to CPU errors.
Chassis intrusion detection.
Fan speed control.
Fan redundancy monitoring and support.
Hot-swap fan support.
Power Supply Fan Sensors.
System Airflow Monitoring.
Exit Air Temperature Monitoring.
Acoustic management: Support for multiple fan profiles.
Ethernet Controller Thermal Monitoring.
Global Aggregate Temperature Margin Sensor.
Platform environment control interface (PECI) thermal management support.
Memory Thermal Management.
DIMM temperature monitoring: New sensors and improved acoustic management
using closed-loop fan control algorithm take into account DIMM temperature
readings.
Power supply redundancy monitoring and support.
Power unit management: Support for power unit sensor. The BMC handles powergood dropout conditions.
Intel® Intelligent Power Node Manager support.
Signal testing support: The BMC provides test commands for setting and getting
platform signal states.
The BMC generates diagnostic beep codes for fault conditions.
System GUID storage and retrieval.
Front panel management: The BMC controls the system status LED and chassis ID
LED. It supports secure lockout of certain front panel functionality and monitors
button presses. The chassis ID LED is turned on using a front panel button or a
command.
Power state retention.
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS














Power fault analysis.
Intel® Light-Guided Diagnostics.
Address Resolution Protocol (ARP): The BMC sends and responds to ARPs
(supported on embedded NICs).
Dynamic Host Configuration Protocol (DHCP): The BMC performs DHCP (supported
on embedded NICs).
Email alerting.
Embedded web server.
o Support for embedded web server UI in Basic Manageability feature set.
o
Human-readable SEL.
o
Additional system configurability.
o
Additional system monitoring capability.
o
Enhanced online help.
Integrated KVM.
Integrated Remote Media Redirection.
Local Directory Access Protocol (LDAP) support.
Sensor and SEL logging additions/enhancements (for example, additional thermal
monitoring capability).
SEL Severity Tracking and the Extended SEL.
BMC Data Repository (Managed Data Region Feature).
Embedded platform debug feature that allows capture of detailed data for later
analysis.
Provisioning and inventory enhancements:
o Signed Firmware (improved security).
o







4.1.3
Platform Management Functional Overview
Inventory data/system information export (partial SMBIOS table).
DCMI 1.1 compliance.
Management support for PMBus* rev1.2 compliant power supplies.
Energy Star Server Support.
SmaRT/CLST.
Power Supply Cold Redundancy.
Power Supply FW Update for supported Intel supplies.
Power Supply Compatibility Check.
New Manageability Features
The new generation EPSD server products offer a number of changes and additions to the
manageability features that are supported on the previous generation of servers. The following
is a list of the more significant changes that are common to all EPSD servers of this new
generation:


Revision 1.8
Sensor and SEL logging additions/enhancements (for example, additional thermal
monitoring capability).
SEL Severity Tracking and the Extended SEL.
Intel order number G31608-009
41
Platform Management Functional Overview






















42
Intel®Server Board S2600JF TPS
Embedded platform debug feature that allows capture of detailed data for later
analysis.
Provisioning and inventory enhancements:
o Signed Firmware (improved security).
o Inventory data/system information export (partial SMBIOS table).
Enhancements to fan speed control.
DCMI 1.1 compliance.
Support for embedded web server UI in basic manageability feature set.
Enhancements to embedded web server.
o Human-readable SEL.
o Additional system configurability.
o Additional system monitoring capability.
o Enhanced online help.
Enhancements to KVM redirection.
o Support resolution up to 1600x1200.
Management support for PMBus* rev1.2 compliant power supplies.
BMC Data Repository (Managed Data Region Feature).
System Airflow Monitoring.
Exit Air Temperature Monitoring.
Ethernet Controller Thermal Monitoring.
Global Aggregate Temperature Margin Sensor.
Memory Thermal Management.
Power Supply Fan Sensors.
Enable/Disable of system reset due to CPU errors.
Energy Star Server Support.
SmaRT/CLST.
Power Supply Cold Redundancy.
Power Supply FW Update.
Power Supply Compatibility Check.
BMC FW reliability enhancements:
o Redundant BMC boot blocks to avoid possibility of a corrupted boot block
resulting in a scenario that prevents a user from updating the BMC.
o BMC System Management Health Monitoring.
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
4.2
Platform Management Functional Overview
Advanced Configuration and Power Interface (ACPI)
The server board supports the following ACPI states.
Table 16. ACPI Power States
State
S0
Supported
Yes
Description
Working.
 The front panel power LED is on (not controlled by the BMC).
 The fans spin at the normal speed, as determined by sensor inputs.
 Front panel buttons work normally.
Sleeping. Hardware context is maintained; equates to processor, and chipset clocks being
stopped.
 The front panel power LED blinks at a rate of 1 Hz with a 50% duty cycle (not controlled by
the BMC).
 The watchdog timer is stopped.
 The power, reset, front panel NMI, and ID buttons are unprotected.
 Fan speed control is determined by available SDRs. Fans may be set to a fixed state, or
basic fan management can be applied.
The BMC detects that the system has exited the ACPI S1 sleep state when the BIOS SMI
handler notifies it.
S1
Yes
S2
No
Not supported.
S3
No
Supported only on Workstation platforms. See appropriate Platform Specific Information for
more information.
S4
No
Not supported.
S5
Yes
Soft off.
 The front panel buttons are not locked.
 The fans are stopped.
 The power-up process goes through the normal boot process.
 The power, reset, front panel NMI, and ID buttons are unlocked.
4.3
Platform Management SMBus* and I2C Implementation
SMBus*/I2C interconnections is a fundamental interface for various manageability components.
Three buses are used in a multi-master fashion:

Primary IPMB. An IPMB header is provided on the baseboard to support connectivity
with third-party management PCIe cards. This bus operates as a 100-kHz bus.
 Secondary IPMB. This is the SMLink0 bus that connects the BMC with the ME in the
SSB. This bus is considered a secondary IPMB. The ME and BMC communicate over
this bus using IPMB protocol messages. Any devices on the bus must be 400-kHz bus
tolerant.
 PMBus*. This is the SMLink1 bus that both the ME and BMC use to communicate with
the power supplies. This bus operates as a 100-kHz bus.
For all multi-master buses, the master that initiates a transaction is responsible for any bus
recovery sequence if the bus hangs.
The BMC acts as a master for the other buses connected to it.
Revision 1.8
Intel order number G31608-009
43
Platform Management Functional Overview
4.4
Intel®Server Board S2600JF TPS
BMC Internal Timestamp Clock
The BMC maintains an internal timestamp clock that is used by various BMC subsystems, for
example, for time stamping SEL entries. As part of BMC initialization after AC power is applied
or the BMC is reset, the BMC initializes this internal clock to the value retrieved from the SSB
component’s RTC through an SMBus* slave read operation. This is the system RTC and is on
the battery power well so it maintains the current time even when there is no AC supplied to the
system.
The BMC reads the RTC using the same SMBus* (the “host SMBus*”) that is used by the BIOS
during POST, so the BMC FW must not attempt to access the RTC between the time the
system is reset or powered on and POST completes, as indicated by the assertion of the POSTcomplete signal. Additionally, the BMC should cancel any pending reads of the RTC if the
POST-complete signal de-asserts (for example, due to a reset). Normally the BMC reads the
RTC when AC power is first applied and before the system is powered on, so this is not a
concern. However, if AC power is applied and the power button is immediately pressed, it is
possible that POST will be in progress by the time the BMC is ready to read the RTC. Another
potential conflict can occur if the BMC gets reset and POST is in progress when the BMC has
re-initialized. For either of these cases, the BMC FW initializes its internal time clock to zero and
begins counting up from there. When POST completes, the BIOS will then update the BMC’s
time clock to the current system time.
The BMC’s internal timestamp clock is read and set using the Get SEL Time and Set SEL Time
commands, respectively. The Get SDR Time command can also be used to read the timestamp
clock. These commands and the IPMI time format are specified in the IPMI 2.0 specification.
Whenever the BMC receives the Set SEL Time command, it updates only its internal time clock.
Note that an update of this internal time clock does not result in a change to the system RTC.
4.5
Sensor Monitoring
The BMC monitors system hardware and reports system health. The information gathered from
physical sensors is translated into IPMI sensors as part of the “IPMI Sensor Model”. The BMC
also reports various system state changes by maintaining virtual sensors that are not
specifically tied to physical hardware.
4.6
Messaging Interfaces
The supported BMC communication interfaces include:




44
Host SMS interface by means of low pin count (LPC) / keyboard controller style (KCS)
interface
Host SMM interface by means of low pin count (LPC) / keyboard controller style (KCS)
interface
Intelligent Platform Management Bus (IPMB) I2C interface
LAN interface using the IPMI-over-LAN protocols
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
4.6.1
Platform Management Functional Overview
Channel Management
Every messaging interface is assigned an IPMI channel ID by IPMI 2.0. Commands are
provided to configure each channel for privilege levels and access modes. The following table
shows the standard channel assignments.
Table 17. Standard Channel Assignments
Channel ID
Interface
0
Primary IPMB
1
LAN 1
2
LAN 2
3
LAN 3 1 (Provided by the Intel® Dedicated Server Management NIC)
4
Reserved
5
USB
6
Secondary IPMB
7
SMM
8 – 0Dh
Reserved
0Eh
Self 2
0Fh
SMS/Receive Message Queue
Notes:
1. Optional hardware supported by the server system.
2. Refers to the actual channel used to send the request.
4.6.2
Supports Sessions
No
Yes
Yes
Yes
Yes
No
No
No
–
–
No
User Model
The BMC supports the IPMI 2.0 user model including User ID 1 support. Fifteen user IDs are
supported. These 15 users can be assigned to any channel. The following restrictions are
placed on user-related operations:
1. User names for User IDs 1 and 2 cannot be changed. These are always “” (Null/blank)
and “root” respectively.
a. A CCh error completion code is returned if a user attempts to modify these
names.
2. User 2 (“root”) always has the administrator privilege level.
a. A CCh error completion code is returned if a user attempts to modify this value.
b. Trying to set any parameter for User ID 2 (root user) with the Set User Access
command fails with a CCh completion code.
3. All user passwords (including passwords for 1 and 2) may be modified.
4. User IDs 3-15 may be used freely, with the condition that user names are unique.
Therefore, no other users can be named “” (Null), “root,” or any other existing user name.
Resetting a user name, to a value equivalent to its current value, results in a 0xCC error code. A
list of default user values is given in the following table.
Revision 1.8
Intel order number G31608-009
45
Platform Management Functional Overview
Intel®Server Board S2600JF TPS
Table 18. Default User Values
Users
User name
Password
Status
Default Privilege
Characteristics
User 1
[Null]
[Null]
Disabled
Admin
Password can be
changed.
This user may not be
used to access the
embedded web
server.
User 2
root
superuser
Disabled
Admin
Password can be
changed.
User 3
test1
superuser
Disabled
Admin
User name and
password can be
changed.
User 4
test2
superuser
Disabled
Admin
User name and
password can be
changed.
User 5
test3
superuser
Disabled
Admin
User name and
password can be
changed.
User 6-15
undefined
undefined
Disabled
Admin
User name and
password can be
changed.
4.6.3
Sessions
The maximum number of IPMI-based sessions that can be supported by the BMC is returned as
the byte 3 (number of possible active sessions) of the IPMI Command Get Session Info (App,
3Dh). Embedded Web Server and Media Redirection are not IPMI-based sessions. KVM is a
type of payload in an RMCP+ Session.
Table 19. Channel/Media-Specific Minimum Number of Sessions
Channels/Media Type
LAN Channel1, Intel®
Dedicated Server
Management NIC 4
HTTP 5
--- 5
--- 1
Session Type
IPMI Over LAN 1
Minimum Number of Sessions
4 6, 7
Embedded Web Server 3
Media Redirection b
KVM 2
2 8, 9
28
2 10
Notes:
1.
2.
3.
4.
5.
6.
7.
8.
9.
46
Session type is defined by the IPMI spec and includes RMCP and RMCP+ sessions (including all the
payloads supported).
KVM is an RMCP+ Payload Type, not an IPMI session.
These sessions are not defined by IPMI Specification and are not based on IPMI protocol. Counting
them as IPMI Session violates the Specification.
If Intel® Dedicated Server Management NIC is not present, the minimum number of sessions still holds
but only over LAN Channel 1.
It is not an IPMI Channel.
Maximum of 15 IPMI sessions are allowed per channel that is defined.
IPMI-based session is counted as an IPMI Session in all calculations.
These sessions are not counted as IPMI sessions. (For example, Get Session Info only returns values
based on IPMI Sessions.)
This type of Non-IPMI session can open IPMI sessions as part of a normal operation and those IPMI
sessions are counted as IPMI sessions. For example, within a Web Session, one or more IPMI Over
LAN Session is opened to Get and Set IPMI parameters. But because these IPMI sessions are not over
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Platform Management Functional Overview
LAN1 or Intel® Dedicated Server Management NIC, they are not counted as LAN1 or Intel® Dedicated
Server Management NIC IPMI channel sessions but are counted as IPMI sessions in limit calculations.
10. It is an IPMI Over LAN RMCP+ session and is included in counts as part of the larger IPMI Over LAN
group.
Note: The number of possible active session values returned by Get Session Info is the total
number of allocated memory session slots in BMC firmware for IPMI Sessions. The actual
number of IPMI sessions that can be established at any time is dependent on Channel and User
IPMI configuration parameters and in compliance with the IPMI Specification, which is always
less than the total available slots.
4.6.4
BMC LAN Channels
The BMC supports three RMII/RGMII ports that can be used for communicating with Ethernet
devices. Two ports are used for communication with the on-board NICs and one is used for
communication with an Ethernet PHY located on an optional add-in card (or equivalent on-board
circuitry).
4.6.4.1
Baseboard NICs
The specific Ethernet controller (NIC) used on a server is platform-specific but all baseboard
device options support an NC-SI manageability interface. This provides a sideband high-speed
connection for manageability traffic to the BMC while still allowing for a simultaneous host
access to the OS if desired.
The Network Controller Sideband Interface (NC-SI) is a DMTF industry standard protocol for the
side band management LAN interface. This protocol provides a fast multi-drop interface for
traffic management.
The baseboard NICs are connected to a single BMC RMII/RGMII port that is configured for RMII
operation. The NC-SI protocol is used for this connection and provides a 100 Mb/s full-duplex
multi-drop interface that allows multiple NICs to be connected to the BMC. The physical layer is
based upon RMII, however RMII is a point-to-point bus whereas NC-SI allows one master and
up to four slaves. The logical layer (Configuration commands) is incompatible with RMII.
Multi-port baseboard NICs on some products support a dedicated management channel that
can be configured to be hidden from the host and only used by the BMC. This mode of
operation is configured through a BIOS setup option.
4.6.4.2
Dedicated Management Channel
An additional LAN channel dedicated to BMC usage and not available to host SW is supported
through an optional add-in card. There is only a PHY device present on the add-in card. The
BMC has a built-in MAC module that uses the RGMII interface to link with the card’s PHY.
Therefore, for this dedicated management interface, the PHY and MAC are located in different
devices.
The PHY on the card connects to the BMC’s other RMII/RGMII interface (the one that is not
connected to the baseboard NICs). This BMC port is configured for RGMII usage.
In addition to the use of an add-in card for a dedicated management channel, on systems that
support multiple Ethernet ports on the baseboard, the system BIOS provides a setup option to
allow one of these baseboard ports to be dedicated to the BMC for manageability purposes.
When this is enabled, that port is hidden from the OS.
Revision 1.8
Intel order number G31608-009
47
Platform Management Functional Overview
4.6.4.3
Intel®Server Board S2600JF TPS
Concurrent Server Management Use of Multiple Ethernet Controllers
Provided the HW supports a management link between the BMC and a NIC port, the BMC FW
supports concurrent OOB LAN management sessions for the following combinations:



Two on-board NIC ports
One on-board NIC and the optional dedicated add-in management NIC
Two on-board NICs and optional dedicated add-in management NIC
All NIC ports must be on different subnets for the concurrent usage models above.
MAC addresses are assigned for management NICs from a pool of up to three MAC addresses
allocated specifically for manageability. The total number of MAC addresses in the pool is
dependent on the product HW constraints (for example, a board with two NIC ports available for
manageability will have a MAC allocation pool of two addresses).
For these channels, support can be enabled for IPMI-over-LAN and DHCP.
For security reasons, embedded LAN channels have the following default settings:


IP Address: Static
All users disabled
Network failover mode must be used for IPMI-capable interfaces that are on the same subnet.
Host-BMC communication over the same physical LAN connection – also known as “loopback”
– is not supported. This includes “ping” operations.
On baseboards with more than two on-board NIC ports, only the first two ports can be used as
BMC LAN channels. The remaining ports have no BMC connectivity.
Maximum bandwidth supported by BMC LAN channels are as follows:



4.6.5
BMC LAN1 (Baseboard NIC port)
BMC LAN 2 (Baseboard NIC port)
BMC LAN 3 (Dedicated NIC)
1000M (10M in DC off state)
1000M (10M in DC off state)
1000M
IPv6 Support
In addition to IPv4, the Intel® Server Board S2600JF supports IPv6 for manageability channels.
Configuration of IPv6 is provided by extensions to the IPMI Set and Get LAN Configuration
Parameters commands as well as through a Web Console IPv6 configuration web page.
The BMC supports IPv4 and IPv6 simultaneously so they are both configured separately and
completely independently. For example, IPv4 can be DHCP configured while IPv6 is statically
configured or vice versa. The parameters for IPv6 are similar to the parameters for IPv4 with the
following differences:



48
An IPv6 address is 16 bytes vs. 4 bytes for IPv4.
An IPv6 prefix is 0 to 128 bits whereas IPv4 has a 4-byte subnet mask.
The IPv6 Enable parameter must be set before any IPv6 packets are sent or received on
that channel.
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Platform Management Functional Overview

There are two variants of automatic IP Address Source configuration vs. just DHCP for
IPv4.
The three possible IPv6 IP Address Sources for configuring the BMC are:

Static (Manual): The IP, Prefix, and Gateway parameters are manually configured by
the user. The BMC ignores any Router Advertisement messages received over the
network.

DHCPv6: The IP comes from running a DHCPv6 client on the BMC and receiving the IP
from a DHCPv6 server somewhere on the network. The Prefix and Gateway are
configured by Router Advertisements from the local router. The IP, Prefix, and Gateway
are read-only parameters to the BMC user in this mode.

Stateless auto-configuration: The Prefix and Gateway are configured by the router
through Router Advertisements. The BMC derives its IP in two parts: the upper network
portion comes from the router and the lower unique portion comes from the BMC’s
channel MAC address. The 6-byte MAC address is converted into an 8-byte value per
the EUI-64* standard. For example, a MAC value of 00:15:17:FE:2F:62 converts into a
EUI-64 value of 215:17ff:fefe:2f62. If the BMC receives a Router Advertisement from a
router at IP 1:2:3:4::1 with a prefix of 64, it will then generate for itself an IP of
1:2:3:4:215:17ff:fefe:2f62. The IP, Prefix, and Gateway are read-only parameters to the
BMC user in this mode.
IPv6 can be used with the BMC’s Web Console, JViewer* (remote KVM and Media), and
Systems Management Architecture for Server Hardware – Command Line Protocol (SMASHCLP) interface (ssh). There is no standard yet on how IPMI RMCP or RMCP+ should operate
over IPv6 so that is not currently supported.
4.6.5.1
LAN Failover
The BMC FW provides a LAN failover capability so that the failure of the system HW associated
with one LAN link will result in traffic being rerouted to an alternate link. This functionality is
configurable through IPMI methods as well as through the BMC’s Embedded UI, allowing for a
user to specify the physical LAN links constitute the redundant network paths or physical LAN
links constitute different network paths. The BMC supports an “only-all-or-nothing” approach –
that is, all interfaces bonded together, or none are bonded together.
The LAN Failover feature applies only to BMC LAN traffic. It bonds all available Ethernet
devices but only one is active at a time. When enabled, if the active connection’s leash is lost,
one of the secondary connections is automatically configured so that it has the same IP address.
Traffic immediately resumes on the new active connection.
The LAN Failover enable/disable command may be sent at any time. After it has been enabled,
standard IPMI commands for setting channel configuration that specify a LAN channel other
than the first will return an error code.
4.6.6
BMC IP Address Configuration
Enabling the BMC’s network interfaces requires using the Set LAN Configuration Parameter
command to configure LAN configuration parameter 4, IP Address Source. The BMC supports
this parameter as follows:
Revision 1.8
Intel order number G31608-009
49
Platform Management Functional Overview
Intel®Server Board S2600JF TPS

1h, static address (manually configured): Supported on all management NICs. This is
the BMC’s default value.

2h, address obtained by BMC running DHCP: Supported on all management NICs.
IP Address Source value 4h, address obtained by BMC running other address assignment
protocol, is not supported on any management NIC.
Attempting to set an unsupported IP address source value has no effect, and the BMC returns
error code 0xCC, Invalid data field-in request. Note that values 0h and 3h are no longer
supported, and will return a 0xCC error completion code.
4.6.6.1
Static IP Address (IP Address Source Value 0h, 1h, and 3h)
The BMC supports static IP address assignment on all of its management NICs. The IP address
source parameter must be set to static before the IP address; the subnet mask or gateway
address can be manually set.
The BMC takes no special action when the following IP address source is specified as the IP
address source for any management NIC:

1h – Static address (manually configured)
The Set LAN Configuration Parameter command must be used to configure LAN configuration
parameter 3, IP Address, with an appropriate value.
The BIOS does not monitor the value of this parameter, and it does not execute DHCP for the
BMC under any circumstances, regardless of the BMC configuration.
Static LAN Configuration parameters can be configured as followings:
When the IP Address Configuration parameter is set to 01h (static), the following parameters
may be changed by the user:

LAN configuration parameter 3 (IP Address)

LAN configuration parameter 6 (Subnet Mask)

LAN configuration parameter 12 (Default Gateway Address)
When changing from DHCP to Static configuration, the initial values of these three parameters
will be equivalent to the existing DHCP-set parameters. Additionally, the BMC observes the
following network safety precautions:
50
1.
The user may only set a subnet mask that is valid, per IPv4 and RFC 950 (Internet
Standard Subnetting Procedure). Invalid subnet values return a 0xCC (Invalid Data
Field in Request) completion code, and the subnet mask is not set. If no valid mask has
been previously set, default subnet mask is 0.0.0.0.
2.
The user may only set a default gateway address that can potentially exist within the
subnet specified above. Default gateway addresses outside the BMC’s subnet are
technically unreachable and the BMC will not set the default gateway address to an
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Platform Management Functional Overview
unreachable value. The BMC returns a 0xCC (Invalid Data Field in Request)
completion code for default gateway addresses outside its subnet.
3.
If a command is issued to set the default gateway IP address before the BMC’s IP
address and subnet mask are set, the default gateway IP address is not updated and
the BMC returns 0xCC.
If the BMC’s IP address on a LAN channel changes while a LAN session is in progress over that
channel, the BMC does not take action to close the session except through a normal session
timeout. The remote client must re-sync with the new IP address. The BMC’s new IP address is
only available in-band through the Get LAN Configuration Parameters command.
Enabling/Disableing Dynamic Host Configuration Protocol (DHCP)
4.6.6.2
The BMC DHCP feature is activated by using the Set LAN Configuration Parameter command
to set LAN configuration parameter 4, IP Address Source, to 2h: “address obtained by BMC
running DHCP”. Once this parameter is set, the BMC initiates the DHCP process within
approximately 100 ms.
If the BMC has previously been assigned an IP address through DHCP or the Set LAN
Configuration Parameter command, it requests that same IP address to be reassigned. If the
BMC does not receive the same IP address, system management software must be
reconfigured to use the new IP address. The new address is only available in-band, through the
IPMI Get LAN Configuration Parameters command.
Changing the IP Address Source parameter from 2h to any other supported value will cause the
BMC to stop the DHCP process. The BMC uses the most recently obtained IP address until it is
reconfigured.
If the physical LAN connection is lost (that is, the cable is unplugged), the BMC will not reinitiate the DHCP process when the connection is re-established.
Users may not change the following LAN parameters while the DHCP is enabled:

LAN configuration parameter 3 (IP Address)

LAN configuration parameter 6 (Subnet Mask)

LAN configuration parameter 12 (Default Gateway Address)
To prevent users from disrupting the BMC’s LAN configuration, the BMC treats these
parameters as read-only while DHCP is enabled for the associated LAN channel. Using the Set
LAN Configuration Parameter command to attempt to change one of these parameters under
such circumstances has no effect, and the BMC returns error code 0xD5, “Cannot Execute
Command. Command, or request parameter(s) are not supported in present state.”
4.6.7
DHCP BMC Hostname
The BMC allows setting a DHCP Hostname. DHCP Hostname can be set regardless of the IP
Address source configured on the BMC. But this parameter is only used if the IP Address
source is set to DHCP.
Revision 1.8
Intel order number G31608-009
51
Platform Management Functional Overview
4.6.8
Intel®Server Board S2600JF TPS
Address Resolution Protocol (ARP)
The BMC can receive and respond to ARP requests on BMC NICs. Gratuitous ARPs are
supported, and disabled by default.
4.6.9
Virtual Local Area Network (VLAN)
The BMC supports VLAN as defined by IPMI 2.0 specifications. VLAN is supported internally by
the BMC, not through switches. VLAN provides a way of grouping a set of systems together so
that they form a logical network. This feature can be used to set up a management VLAN where
only devices that are members of the VLAN will receive packets related to management and
members of the VLAN will be isolated from any other network traffic. Note that VLAN does not
change the behavior of the host network setting; it only affects the BMC LAN communication.
LAN configuration options are now supported (by means of the Set LAN Config Parameters
command, parameters 20 and 21) that allow support for 802.1Q VLAN (Layer 2). This allows
VLAN headers/packets to be used for IPMI LAN sessions. VLAN IDs are entered and enabled
by means of parameter 20 of the Set LAN Config Parameters IPMI command. When a VLAN ID
is configured and enabled, the BMC only accepts packets with that VLAN tag/ID. Conversely, all
BMC generated LAN packets on the channel include the given VLAN tag/ID. Valid VLAN IDs
are 1 through 4094, with 0 and 4095 reserved, per the 802.1Q VLAN specification. Only one
VLAN can be enabled at any point in time on a LAN channel. If an existing VLAN is enabled, it
must first be disabled prior to configuring a new VLAN on the same LAN channel.
Parameter 21 (VLAN Priority) of the Set LAN Config Parameters IPMI command is now
implemented and a range from 0-7 will be allowed for VLAN Priorities. Note that bits 3 and 4 of
Parameter 21 are considered Reserved bits.
Parameter 25 (VLAN Destination Address) of the Set LAN Config Parameters IPMI command is
not supported and returns a completion code of 0x80 (parameter not supported) for any
read/write of parameter 25.
If the BMC IP address source is DHCP, the following behavior is seen:

If the BMC is first configured for DHCP (prior to enabling VLAN), when VLAN is enabled,
the BMC performs a discovery on the new VLAN in order to obtain a new BMC IP
address.

If the BMC is configured for DHCP (before disabling VLAN), when VLAN is disabled, the
BMC performs a discovery on the LAN in order to obtain a new BMC IP address.
If the BMC IP address source is Static, the following behavior is seen:
52

If the BMC is first configured for static (prior to enabling VLAN), when VLAN is enabled,
the BMC has the same IP address that was configured before. It is left to the
management application to configure a different IP address if that is not suitable for
VLAN.

If the BMC is configure for static (prior to disabling VLAN), when VLAN is disabled, the
BMC has the same IP address that was configured before. It is left to the management
application to configure a different IP address if that is not suitable for LAN.
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
4.6.10
Platform Management Functional Overview
Secure Shell (SSH)
Secure Shell (SSH) connections are supported for one SMASH-CLP session to the BMC.
4.6.11
Serial-over-LAN (SOL 2.0)
The BMC supports IPMI 2.0 SOL.
IPMI 2.0 introduced a standard serial-over-LAN feature. This is implemented as a standard
payload type (01h) over RMCP+.
Three commands are implemented for SOL 2.0 configuration.

Get SOL 2.0 Configuration Parameters and Set SOL 2.0 Configuration Parameters:
These commands are used to get and set the values of the SOL configuration
parameters. The parameters are implemented on a per-channel basis.

Activating SOL: This command is not accepted by the BMC. It is sent by the BMC when
SOL is activated to notify a remote client of the switch to SOL.

Activating a SOL session requires an existing IPMI-over-LAN session. If encryption is
used, it should be negotiated when the IPMI-over LAN session is established. SOL
sessions are only supported on serial port 1 (COM1).
4.6.12
Platform Event Filter (PEF)
The BMC includes the ability to generate a selectable action, such as a system power-off or
reset, when a match occurs to one of a configurable set of events. This capability is called
Platform Event Filtering, or PEF. One of the available PEF actions is to trigger the BMC to send
a LAN alert to one or more destinations.
The BMC supports 20 PEF filters. The first 12 entries in the PEF filter table are pre-configured
(but may be changed by the user). The remaining entries are left blank, and may be configured
by the user.
Table 20. Factory Configured PEF Table Entries
Event Filter Number
1
2
3
4
5
6
7
8
9
10
11
12
Offset Mask
Non-critical, critical and non-recoverable
Non-critical, critical and non-recoverable
Non-critical, critical and non-recoverable
General chassis intrusion
Failure and predictive failure
Uncorrectable ECC
POST error
FRB2
Policy Correction Time
Power down, power cycle, and reset
OEM system boot event
Drive Failure, Predicted Failure
Events
Temperature sensor out of range
Voltage sensor out of range
Fan failure
Chassis intrusion (security violation)
Power supply failure
BIOS
BIOS: POST code error
Watchdog Timer expiration for FRB2
Node Manager
Watchdog timer
System restart (reboot)
Hot Swap Controller
Additionally, the BMC supports the following PEF actions:

Power off

Power cycle
Revision 1.8
Intel order number G31608-009
53
Platform Management Functional Overview

Reset

OEM action

Alerts
Intel®Server Board S2600JF TPS
The “Diagnostic interrupt” action is not supported.
4.6.13
LAN Alerting
The BMC supports sending embedded LAN alerts, called SNMP PET (Platform Event traps),
and SMTP email alerts.
The BMC supports a minimum of four LAN alert destinations.
4.6.14
SNMP Platform Event Traps (PETs)
This feature enables a target system to send SNMP traps to a designated IP address by means
of LAN. These alerts are formatted per the Intelligent Platform Management Interface
Specification Second Generation v2.0. A MIB file associated with the traps is provided with the
BMC firmware to facilitate interpretation of the traps by external software.
The format of the MIB file is covered under RFC 2578.
4.6.15
Alert Policy Table
Associated with each PEF entry is an alert policy that determines which IPMI channel the alert
is to be sent. There is a maximum of 20 alert policy entries. There are no pre-configured entries
in the alert policy table because the destination types and alerts may vary by user. Each entry in
the alert policy table contains four bytes for a maximum table size of 80 bytes.
4.6.16
Email Alerting
The Embedded Email Alerting feature allows the user to receive email alerts indicating issues
with the server. This allows email alerting in an OS-absent (for example, Pre-OS and OS-Hung)
situation. This feature provides support for sending email by means of SMTP, the Simple Mail
Transport Protocol as defined in Internet RC 821. The email alert provides a text string that
describes a simple description of the event. SMTP alerting is configured using the embedded
web server.
4.6.17
SM-CLP (SM-CLP Lite)
SMASH refers to Systems Management Architecture for Server Hardware. SMASH is defined
by a suite of specifications, managed by the DMTF, that standardize the manageability
interfaces for server hardware. CLP refers to Command Line Protocol. SM-CLP is defined by
the Server Management Command Line Protocol Specification (SM-CLP) ver1.0, which is part
of the SMASH suite of specifications. The specifications and further information on SMASH can
be found at the DMTF website (http://www.dmtf.org/).
The BMC provides an embedded “lite” version of SM-CLP that is syntax-compatible but not
considered fully compliant with the DMTF standards.
54
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
4.7
Platform Management Functional Overview
System Event Log (SEL)
The BMC implements the system event log as specified in the Intelligent Platform Management
Interface Specification, Version 2.0. The SEL is accessible regardless of the system power state
through the BMC's in-band and out-of-band interfaces.
The BMC allocates 65,502 bytes (approx. 64 KB) of non-volatile storage space to store system
events. The SEL timestamps may not be in order. Up to 3,639 SEL records can be stored at a
time. Any command that results in an overflow of the SEL beyond the allocated space is
rejected with an “Out of Space” IPMI completion code (C4h).
4.7.1
Servicing Events
Events can be received while the SEL is being cleared. The BMC implements an event
message queue to avoid the loss of messages. Up to three messages can be queued before
messages are overwritten.
The BMC recognizes duplicate event messages by comparing sequence numbers and the
message source. For details, see the Intelligent Platform Management Interface Specification
Second Generation v2.0. Duplicate event messages are discarded (filtered) by the BMC after
they are read from the event message queue. The queue can contain duplicate messages.
4.7.2
SEL Entry Deletion
The BMC does not support individual SEL entry deletion. The SEL may only be cleared as a
whole.
4.7.3
SEL Erasure
SEL erasure is a background process. After initiating erasure with the Clear SEL command,
additional Clear SEL commands must be executed to get the erasure status and determine
when the SEL erasure is completed. This may take several seconds. SEL events that arrive
during the erasure process are queued until the erasure is complete and then committed to the
SEL.
SEL erasure generates an Event Logging Disabled (Log Area Reset/Cleared offset) sensor
event.
4.7.4
SEL Extension Capabilities
The BMC provides an OEM extension to all SEL entries. Each entry includes an additional eight
bytes for storing extra event data that will not fit into the original three data bytes provided by
standard IPMI SEL entries. The first extension byte is always valid for all SEL entries and
specifies the severity of the SEL event as well as the number of valid extension bytes following
the first one. That leaves up to seven SEL extension data bytes that can be defined for each
SEL event entry.
All standard IPMI SEL commands work the same as if there were no SEL extensions.
In order to store and access the extended SEL information, five OEM commands are
implemented that closely follow the standard IPMI SEL commands but provide support for the
SEL Extension data. These OEM commands are specified in the Intel® General Application
Commands table.
Revision 1.8
Intel order number G31608-009
55
Platform Management Functional Overview
4.8
Intel®Server Board S2600JF TPS
Sensor Data Record (SDR) Repository
The BMC implements the sensor data record (SDR) repository as specified in the Intelligent
Platform Management Interface Specification, Version 2.0. The SDR is accessible through the
BMC’s in-band and out-of-band interfaces regardless of the system power state. The BMC
allocates 65,519 bytes of non-volatile storage space for the SDR.
4.9
Field Replaceable Unit (FRU) Inventory Device
The BMC implements the interface for logical FRU inventory devices as specified in the
Intelligent Platform Management Interface Specification, Version 2.0. This functionality provides
commands used for accessing and managing the FRU inventory information. These commands
can be delivered through all interfaces.
The BMC provides FRU device command access to its own FRU device and to the FRU
devices throughout the server. The FRU device ID mapping is defined in the Platform Specific
Information. The BMC controls the mapping of the FRU device ID to the physical device.
4.10 Diagnostics and Beep Code Generation
The BMC may generate beep codes upon detection of failure conditions. Beep codes are
sounded each time the problem is discovered (for example, on each power-up attempt), but are
not sounded continuously. Common supported codes are listed in Table 21.
Additional platform-specific beep codes can be found in the appropriate Platform Specific
Information. Each digit in the code is represented by a sequence of beeps whose count is equal
to the digit.
Table 21. BMC Beep Codes
Code
1-5-2-1
1-5-2-4
1-5-4-2
1-5-4-4
1-5-1-2
1-5-1-4
Reason for Beep
No CPUs installed or first CPU socket is
empty.
MSID Mismatch.
Power fault: DC power is unexpectedly
lost (power good dropout).
Power control fault (power good assertion
timeout).
VR Watchdog Timer sensor assertion.
The system does not power on or
unexpectedly powers off and a power
supply unit (PSU) is present that is an
incompatible model with one or more
other PSUs in the system.
Associated Sensors
CPU Missing Sensor
Supported
Yes
MSID Mismatch Sensor
Power unit – power unit failure
offset
Power unit – soft power control
failure offset
VR Watchdog Timer
PSU status
Yes
Yes
Yes
Yes
Yes
4.11 Diagnostics Interrupt (NMI)
The BMC generates an NMI pulse under certain conditions. The BMC-generated NMI pulse
duration is at least 30ms. After an NMI has been generated by the BMC, the BMC does not
generate another NMI until the system has been reset or powered down.
The following actions cause the BMC to generate an NMI pulse:
56
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Platform Management Functional Overview
a. Receiving a Chassis Control command to pulse the diagnostic interrupt. This command
does not cause an event to be logged in the SEL.
b. Detecting that the front panel diagnostic interrupt button has been pressed.
c. Watchdog timer pre-timeout expiration with NMI/diagnostic interrupt pre-timeout action
enabled.
The following table shows behavior regarding NMI signal generation and event logging by the
BMC.
Table 22. NMI Signal Generation and Event Logging
Causal Event
X
NMI (IA-32 Only)
Front Panel Diag Interrupt Sensor Event Logging
Support
–
X
X
X
–
Signal Generation
Chassis Control command (pulse diagnostic
interrupt)
Front panel diagnostic interrupt button pressed
Watchdog Timer pre-timeout expiration with
NMI/diagnostic interrupt action
4.12 BMC Basic and Advanced Management Features
The Intel® Server Board S2600JF product provides an upgrade module to support the advanced
server management functionality.
Table 23. Basic and Advanced Management Features
Feature
IPMI 2.0 Feature Support
X
Basic*
X
In-circuit BMC Firmware Update
X
X
FRB 2
X
X
Chassis Intrusion Detection
X
X
Fan Redundancy Monitoring
X
X
Hot-Swap Fan Support
X
X
Acoustic Management
X
X
Diagnostic Beep Code Support
X
X
Power State Retention
X
X
ARP/DHCP Support
X
X
PECI Thermal Management Support
X
X
Email Alerting
X
X
Embedded Web Server
X
X
SSH Support
X
X
Integrated KVM
Advanced**
X
Integrated Remote Media Redirection
Local Directory Access Protocol (LDAP)
X
X
X
Intel Intelligent Power Node Manager
Support***
X
X
SMASH CLP
X
X
®
* Basic management features provided by Integrated BMC.
**Advanced management features available with optional Intel® Remote Management Module 4 Lite.
***Intel® Intelligent Power Node Manager Support requires PMBus*-compliant power supply.
Revision 1.8
Intel order number G31608-009
57
Platform Management Functional Overview
4.12.1
Intel®Server Board S2600JF TPS
Enabling Advanced Manageability Features
The Advanced management features are to be delivered as part of the BMC FW image. The
BMC’s baseboard SPI flash contains code/data for both the Basic and Advanced features. An
optional module Intel® RMM4 Lite is used as the activation mechanism. When the BMC FW
initializes, it attempts to access the Intel® RMM4 lite. If the attempt to access Intel® RMM4 Lite is
successful, the BMC activates the advanced features.
Advanced manageability features are supported over all NIC ports enabled for server
manageability. This includes baseboard NICs as well as the LAN channel provided by the
optional Dedicated NIC add-in card.
Table 24. Management Features and Benefits
Manageability Hardware
Benefits
Intel® Integrated BMC
Comprehensive IPMI based base manageability
features
Intel® Remote Management Module4 – Lite
Package contains one module:

Key for advance Manageability features.
No dedicated NIC for management
Enables KVM and media redirection through on-board
NIC
Intel® Remote Management4 Module
Package includes 2 modules:

Key for advance features

Dedicated NIC (1Gbe) for management
Dedicated NIC for management traffic. Higher
bandwidth connectivity for KVM and media Redirection
with 1Gbe NIC.
4.12.1.1
Keyboard, Video, and Mouse (KVM) Redirection
The BMC firmware supports keyboard, video, and mouse redirection (KVM) over LAN. This
feature is available remotely from the embedded web server as a Java* applet. This feature is
enabled when the Intel® RMM4 Lite is present. The client system must have a Java* Runtime
Environment (JRE) version 5.0 or later to run the KVM or media redirection applets.
The Integrated BMC supports an embedded KVM application (Remote Console) that can be
launched from the embedded web server from a remote console. USB1.1 or USB 2.0 based
mouse and keyboard redirection is supported. It is also possible to use the KVM-redirection
(KVM-r) session concurrently with media-redirection (media-r). This feature allows a user to
interactively use the keyboard, video, and mouse (KVM) functions of the remote server as if the
user were physically at the managed server.
The KVM-redirection feature automatically senses video resolution for best possible screen
capture and provides high-performance mouse tracking and synchronization. It allows remote
viewing and configuration in pre-boot POST and BIOS setup, after BIOS has initialized video.
Other attributes of this feature include:
58

Encryption of the redirected screen, keyboard, and mouse

Compression of the redirected screen
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
4.12.1.2
Platform Management Functional Overview
Remote Console
The Remote Console is the redirected screen, keyboard, and mouse of the remote host system.
To use the Remote Console window of your managed host system, the browser must include a
Java* Runtime Environment plug-in. If the browser has no Java* support, such as with a small
handheld device, the user can maintain the remote host system using the administration forms
displayed by the browser.
The Remote Console window is a Java* Applet that establishes TCP connections to the
Integrated BMC. The protocol that is run over these connections is a unique KVM protocol and
not HTTP or HTTPS. This protocol uses ports #7578 for KVM, #5120 for CDROM media
redirection, and #5123 for Floppy/USB media redirection (both supporting encryption).
4.12.1.3
Performance
The remote display accurately represents the local display. The feature adapts to changes to the
video resolution of the local display and continues to work smoothly when the system transitions
from graphics to text or vice versa. The responsiveness may be slightly delayed depending on
the bandwidth and latency of the network.
Enabling KVM and/or media encryption degrades performance. Enabling video compression
provides the fastest response while disabling compression provides better video quality.
For the best possible KVM performance, a 2Mb/sec link or higher is recommended.
The redirection of KVM over IP is performed in parallel with the local KVM without affecting the
local KVM operation.
4.12.1.4
Security
The KVM redirection feature supports multiple encryption algorithms, including RC4 and AES.
The actual algorithm that is used is negotiated with the client based on the client’s capabilities.
4.12.1.5
Availability
The remote KVM session is available even when the server is powered off (in standby mode).
No restart of the remote KVM session is required during a server reset or power on/off. An
Integrated BMC reset (for example, due to an Integrated BMC Watchdog initiated reset or
Integrated BMC reset after Integrated BMC firmware update) requires the session to be reestablished.
KVM sessions persist across system reset, but not across an AC power loss.
4.12.1.6
Timeout
The remote KVM session will automatically timeout after a configurable amount of time (30
minutes by default).
The default inactivity timeout is 30 minutes, but may be changed through the embedded web
server. Remote KVM activation does not disable the local system keyboard, video, or mouse.
Remote KVM is not deactivated by local system input, unless the feature is disabled locally.
Revision 1.8
Intel order number G31608-009
59
Platform Management Functional Overview
4.12.1.7
Intel®Server Board S2600JF TPS
Usage
When the server is powered up, the remote KVM session displays the complete BIOS boot
process. The user can interact with BIOS setup, change and save settings as well as enter and
interact with option ROM configuration screens.
At least two concurrent remote KVM sessions are supported. It is possible for at least two
different users to connect to the same server and start remote KVM sessions.
4.12.2
Media Redirection
The embedded web server provides a Java* applet to enable remote media redirection. This
may be used in conjunction with the remote KVM feature, or as a standalone applet.
The media redirection feature is intended to allow system administrators or users to mount a
remote USB HDD or USB CD-ROM, floppy drive, or a USB flash disk as a remote device to the
server. After mounted, the remote device appears just like a local device to the server, allowing
system administrators or users to install software (including operating systems), copy files,
update BIOS, and so on, or boot the server from this device.
The following capabilities are supported:
60

The operation of remotely mounted devices is independent of the local devices on the
server. Both remote and local devices are usable in parallel.

It is possible to boot all supported operating systems from the remotely mounted device
and to boot from disk IMAGE (*.IMG) and CD-ROM or DVD-ROM ISO files. See the
Tested/supported Operating System List for more information.

Media redirection supports redirection for a minimum of two virtual devices concurrently
with any combination of devices. As an example, a user can redirect two CD or two USB
devices.

The media redirection feature supports multiple encryption algorithms, including RC4
and AES. The actual algorithm that is used is negotiated with the client based on the
client’s capabilities.

A remote media session is maintained even when the server is powered off (in standby
mode). No restart of the remote media session is required during a server reset or power
on/off. An Integrated BMC reset (for example, due to an Integrated BMC reset after
Integrated BMC firmware update) requires the session to be re-established.

The mounted device is visible to (and usable by) managed system’s OS and BIOS in
both pre-boot and post-boot states.

The mounted device shows up in the BIOS boot order and it is possible to change the
BIOS boot order to boot from this remote device.

It is possible to install an operating system on a bare metal server (no OS present) using
the remotely mounted device. This may also require the use of KVM-r to configure the
OS during installation.

USB storage devices appear as floppy disks over media redirection. This allows for the
installation of device drivers during OS installation.
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS

Platform Management Functional Overview
If either a virtual floppy device is remotely attached during system boot, the virtual floppy
is presented as a bootable device. It is not possible to present only a single-mounted
device type to the system BIOS.
Note: When trying to attach a local floppy or local USB key drive, if it is in use by the operating
system or any other application it will fail to attach.
With Microsoft Windows 2008*, Microsoft Windows 2008* R2, and Microsoft Windows 7*, if a
Windows Explorer GUI is opened after the USB Key has been installed in the local system, you
may not be able to attach the USB Key as remote media.
With Microsoft Windows 2003* and Microsoft Windows XP*, if a Windows Explorer GUI is
opened after the USB Key has been installed in the local system and you then browse through
the USB Key, you may not be able to attach the USB Key as remote media.
4.12.2.1
Availability
The default inactivity timeout is 30 minutes and is not user-configurable.
Media redirection sessions persist across system reset but not across an AC power loss or
BMC reset.
4.12.2.2
Network Port Usage
The KVM and media redirection features use the following ports:

5120 – CD Redirection

5123 – FD Redirection

5124 – CD Redirection (Secure)

5127 – FD Redirection (Secure)

7578 – Video Redirection

7582 – Video Redirection (Secure)
4.12.3
Embedded Web Server
Integrated BMC Base manageability provides an embedded web server and an OEMcustomizable web GUI that exposes the manageability features of the Integrated BMC base
feature set. It is supported over all on-board NICs that have management connectivity to the
Integrated BMC as well as an optional dedicated add-in management NIC. At least two
concurrent web sessions from up to two different users are supported. The embedded web user
interface supports the following client web browsers:

Microsoft Internet Explorer 7.0*

Microsoft Internet Explorer 8.0*

Microsoft Internet Explorer 9.0*

Mozilla Firefox* 3.0

Mozilla Firefox* 3.5

Mozilla Firefox* 3.6
Revision 1.8
Intel order number G31608-009
61
Platform Management Functional Overview
Intel®Server Board S2600JF TPS
The embedded web user interface supports strong security (authentication, encryption, and
firewall support) because it enables remote server configuration and control. The user interface
presented by the embedded web user interface authenticates the user before allowing a web
session to be initiated. Encryption using 128-bit SSL is supported. User authentication is based
on user id and password.
The GUI presented by the embedded web server authenticates the user before allowing a web
session to be initiated. It presents all functions to all users but grays out those functions that the
user does not have privilege to execute. (For example, if a user does not have privilege to
power control, the item will be displayed in gray-out font in that user’s UI display). The web GUI
also provides a launch point for some of the advanced features, such as KVM and media
redirection. These features are grayed out in the GUI unless the system has been updated to
support these advanced features.
A partial list of additional features supported by the web GUI includes:

Present all the Basic features to the users.

Power on/off/reset the server and view current power state.

Virtual front panel display and overall system health.

Provide embedded firmware version information.

Configuration of various IPMI parameters (LAN parameters, users, passwords, and so
on.)

Configuration of alerting (SNMP and SMTP).

Display system asset information for the product, board, and chassis.

Display of BMC-owned sensors (name, status, current reading, and enabled thresholds),
including color-code status of sensors.

Automatic refresh of sensor data with a configurable refresh rate.

Online help.

Display/clear SEL (display is in easily understandable human readable format).

Support major industry-standard browsers (Internet Explorer* and Mozilla Firefox*).

Automatically log out after user-configurable inactivity period.

The GUI session automatically times out after a user-configurable inactivity period. By
default, this inactivity period is 30 minutes.

Embedded Platform Debug feature – Allow the user to initiate a “diagnostic dump” to a
file that can be sent to Intel for debug purposes.

Display of power statistics (current, average, minimum, and maximum) consumed by the
server.
4.12.4
Data Center Management Interface (DCMI)
The DCMI Specification is an emerging standard that is targeted to provide a simplified
management interface for Internet Portal Data Center (IPDC) customers. It is expected to
become a requirement for server platforms that are targeted for IPDCs. DCMI is an IPMI-based
standard that builds upon a set of required IPMI standard commands by adding a set of DCMIspecific IPMI OEM commands. The S2600CP platforms implement the mandatory DCMI
features in the BMC FW (DCMI 1.1 Errata 1 compliance).
62
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
4.12.5
Platform Management Functional Overview
Local Directory Authentication Protocol (LDAP)
The Lightweight Directory Access Protocol (LDAP) is an application protocol supported by the
Integrated BMC for the purpose of authentication and authorization. The Integrated BMC user
connects with an LDAP server for login authentication. This is only supported for non-IPMI
logins including the embedded web UI and SM-CLP. IPMI users/passwords and sessions are
not supported over LDAP.
LDAP can be configured (IP address of LDAP server, port, and so on.) through the Integrated
BMC’s Embedded Web UI. LDAP authentication and authorization is supported over the any
NIC configured for system management. The BMC uses a standard Open LDAP implementation
for Linux*.
4.12.6
Platform/Chassis Management
Within an IPMI 2.0 framework, the BMC Firmware provides functionality to support management
and control of several aspects of the platform operation. This includes:

Front Panel Support (for example, secure lockout of power and reset buttons and
System Status LED control).

Hardware/Sensor Monitoring (for example, system voltages, thermal sensors, fans,
power supplies, and so on).

Power/Reset Control and Monitoring (for example, local and remote power/reset
control and power restore policy).

Hardware and Manufacturing Test Features.

Asset Inventory and System Identification (for example, system GUID and FRU
management).

Thermal and Acoustics Management – The BMC firmware provides a comprehensive
set of fan control capabilities utilizing various system thermal sensors (for example, CPU,
DIMMs, front panel thermal sensor). Additionally, the BMC participates in the memory
CLTT by pushing dim thermal data to the iMC in the CPU.

Power Management (Node Manager) Support – The BMC firmware provides an
external (LAN) interface for a remote management console to communicate with the
ME’s Node Manager Functionality.
4.12.7
Thermal Control
The system supports thermal management through open loop throttling (OLTT) or static closed
loop throttling (CLTT) of system memory based on availability of valid temperature sensors on
the installed memory DIMMs. The Integrated Memory Controller (IMC) dynamically changes
throttling levels to cap throttling based on memory and system thermal conditions as determined
by the system and DIMM power and thermal parameters. There is no support for CLTT on
mixed-mode DIMM populations (that is, some installed DIMMs have valid temp sensors and
some do not). The Integrated BMC fan speed control functionality is related to the memory
throttling mechanism used.
The following terminology is used for the various memory throttling options:

Static Open Loop Thermal Throttling (Static-OLTT): OLTT control registers are
configured by BIOS MRC remain fixed after POST. The system does not change any of
the throttling control registers in the embedded memory controller during runtime.
Revision 1.8
Intel order number G31608-009
63
Platform Management Functional Overview
Intel®Server Board S2600JF TPS

Static Closed Loop Thermal Throttling (Static-CLTT): CLTT control registers are
configured by BIOS MRC during POST. The memory throttling is run as a closed-loop
system with the DIMM temperature sensors as the control input. Otherwise, the system
does not change any of the throttling control registers in the embedded memory
controller during runtime.

Dynamic Open Loop Thermal Throttling (Dynamic-OLTT): OLTT control registers are
configured by BIOS MRC during POST. Adjustments are made to the throttling during
runtime based on changes in system cooling (fan speed).

Dynamic Closed Loop Thermal Throttling (Dynamic-CLTT): CLTT control registers
are configured by BIOS MRC during POST. The memory throttling is run as a closedloop system with the DIMM temperature sensors as the control input. Adjustments are
made to the throttling during runtime based on changes in system cooling (fan speed).
4.12.7.1
Fan Speed Control Profiles
BIOS and BMC software work cooperatively to implement system thermal management support.
During normal system operation, the BMC retrieves information from the BIOS and monitors
several platform thermal sensors to determine the required fan speeds.
In order to provide the proper fan speed control for a given system configuration, the BMC must
have the appropriate platform data programmed. Platform configuration data is programmed
using the FRUSDR utility during the system integration process and by System BIOS during
runtime.
Table 25. Fan Profile Mapping
4.12.7.2
Type
OLTT
Profile
0
Details
Acoustic, 300M altitude
OLTT
1
Performance, 300M altitude
OLTT
2
Acoustic, 900M altitude
OLTT
3
Performance, 900M altitude
OLTT
4
Acoustic, 1500M altitude
OLTT
5
Performance, 1500M altitude
OLTT
6
Acoustic, 3000M altitude
OLTT
7
Performance, 3000M altitude
CLTT
0
300M altitude
CLTT
2
900M altitude
CLTT
4
1500M altitude
CLTT
6
3000M altitude
System Configuration Using FRUSDR Utility
The Field Replaceable Unit and Sensor Data Record Update Utility (FRUSDR utility) is a
program used to write platform-specific configuration data to NVRAM on the server board. It
allows the user to select which supported chassis (Intel or Non-Intel) and platform chassis
configuration is used. Based on the input provided, the FRUSDR writes sensor data specific to
the configuration to NVRAM for the BMC controller to read each time the system is powered on.
64
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
4.12.8
Platform Management Functional Overview
Node Power On/Off Control
The BMC on each node monitors its fans and temperature for a critical failure. When a critical
failure occurs, the node will be powered down by the BMC. When this occurs, the node needs to
be manually powered on.
4.13 Intel®Intelligent Power Node Manager
4.13.1
Overview
Power management deals with requirements to manage processor power consumption and
manage power at the platform level to meet critical business needs. Node Manager (NM) is a
platform-resident technology that enforces power capping and thermal-triggered power capping
policies for the platform. These policies are applied by exploiting subsystem knobs (such as
processor P and T states) that can be used to control power consumption. NM enables data
center power management by exposing an external interface to management software through
which platform policies can be specified. It also implements specific data center power
management usage models such as power limiting and thermal monitoring.
Note: Support for NM is product-specific. This section details how NM is supported on products
that provide this capability.
The NM feature is implemented by a complementary architecture utilizing the ME, BMC, BIOS,
and an ACPI-compliant OS. The ME provides the NM policy engine and power control/limiting
functions (referred to as Node Manager or NM) while the BMC provides the external LAN link by
which external management software can interact with the feature. The BIOS provides system
power information utilized by the NM algorithms and also exports ASL code used by OSPM for
negotiating processor P and T state changes for power limiting. PMBus*-compliant power
supplies provide the capability to monitor input power consumption, which is necessary to
support NM.
The NM architecture applicable to this generation of servers is defined by the NPTM
Architecture Specification v2.0. NPTM is an evolving technology that is expected to continue to
add new capabilities that will be defined in subsequent versions of the specification. The ME NM
implements the NPTM policy engine and control/monitoring algorithms defined in the NPTM
specification.
4.13.2
Features
NM provides feature support for policy management, monitoring and querying, alerts and
notifications, and an external interface protocol. The policy management features implement
specific IT goals that can be specified as policy directives for NM. Monitoring and querying
features enable tracking of power consumption. Alerts and notifications provide the foundation
for automation of power management in the data center management stack. The external
interface specifies the protocols that are supported in this version of NM.
The role of BMC in Node Manager includes:

External communication links

Command passing through BMC

Alerting

BIOS-BMC-ME communication
Revision 1.8
Intel order number G31608-009
65
Platform Management Functional Overview
Intel®Server Board S2600JF TPS
4.14 Management Engine (ME)
4.14.1
Overview
®
The Intel Server Platform Services (SPS) is a set of manageability services provided by the
firmware executing on an embedded ARC controller within the IOH. This management controller
is also commonly referred to as the Management Engine (ME). The functionality provided by the
SPS firmware is different from Intel® Active Management Technology (Intel® AMT or AT)
provided by the ME on client platforms.
Intel® Server Platform Services (SPS) are value-added platform management options that
enhance the value of Intel platforms and their component ingredients (CPUs, chipsets, and I/O
components). Each service is designed to function independently wherever possible, or grouped
together with one or more features in flexible combinations to allow OEMs to differentiate
platforms.
4.14.2
BMC – Management Engine (ME) Distributed Model
The Intel® Server Board S2600JF covered in this specification requires Node Manager 2.0
(NM2.0) support. The following management architecture needs to be supported on the
baseboard to meet product and validation requirements. The NM 2.0 functionality is provided by
the Intel® C600 PCH Management Engine (ME).
The server management architecture is a partitioned model that places the Management Engine,
which is an embedded controller in the Intel® C600 PCH, in between the BMC and the
processors. In this architecture, the PCH Management Engine is the owner of the PECI 3.0 bus
and the ServerEngines* Pilot III BMC communicates with the ME through an SMBus*
connection (SMLINK 0). The ME provides PECI proxy support that allows the ServerEngines*
Pilot III BMC firmware to access processor functions available on the PECI bus.
The primary function of ME is to implement the NM 2.0 feature set. In this architectural model,
the ServerEngines* Pilot III BMC provides the external (LAN) interface to ME in the form of IPMI
bridging. A remote Node Manager application establishes a management session with the
ServerEngines* Pilot III BMC which in turn bridges IPMI commands through the secondary
IPMB to the ME. In this scenario, the ServerEngines* Pilot III BMC simply acts as a proxy for
this communication pipe. The ME may also generate alerts to the ServerEngines* Pilot III BMC,
which may log these into the system SEL and/or output them to the remote application in the
form of IPMI LAN alerts.
The ServerEngines* Pilot III BMC needs access to various system registers in the processor
core silicon and integrated memory controller subsystem. Examples include Processor core and
Memory DIMMs temperature information. The ServerEngines* Pilot III BMC requires this
information as an input into its fan speed control algorithms. The ServerEngines* Pilot III BMC
accesses these registers through the secondary IPMB bus connection to ME. Depending on the
particular data or register access needed, this is done using either the ME’s PECI proxy
functionality or through an abstracted data construct provided by the ME.
Also in this architecture, both the ServerEngines* Pilot III BMC and the ME are connected to the
system power supplies through a common PMBus* (SMBus* physical) connection (SMLINK 1).
The ME accesses the system power supplies in support of various NM 2.0 features. The
ServerEngines* Pilot III BMC monitors the power supplies in support of various power-related
telemetry and status information that is exposed as IPMI sensors.
66
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Platform Management Functional Overview
Figure 20. Management Engine Distribution Model
4.14.3
ME System Management Bus (SMBus*) Interface

The ME uses the SMLink0 on the SSB in multi-master mode as a dedicated bus for
communication with the BMC using the IPMB protocol. The EPSD BMC FW considers
this a secondary IPMB bus and runs at 400 kHz.

The ME uses the SMLink1 on the SSB in multi-master mode bus for communication with
PMBus* devices in the power supplies for support of various NM-related features. This
bus is shared with the BMC, which polls these PMBus* power supplies for sensor
monitoring purposes (for example, power supply status, input power, and so on). This
bus runs at 100 KHz.

The Management Engine has access to the “Host SMBus*”.
4.14.4
BMC - Management Engine Interaction
Management Engine-Integrated BMC interactions include the following:

Integrated BMC stores sensor data records for ME-owned sensors.

Integrated BMC participates in ME firmware update.

Integrated BMC initializes ME-owned sensors based on SDRs.

Integrated BMC receives platform event messages sent by the ME.

Integrated BMC notifies ME of POST completion.
Revision 1.8
Intel order number G31608-009
67
Platform Management Functional Overview

Intel®Server Board S2600JF TPS
BMC may be queried by the ME for inlet temperature readings.
4.14.5
ME Power and Firmware Startup
®
On Intel Server Board S2600JF, the ME is on standby power. The ME FW begins its startup
sequence at the same time when the BMC FW is booting. As the BMC FW is booting to a Linux*
kernel and the ME FW uses an RTOS, the ME FW will always complete its basic initialization
before the BMC. The ME FW can be configured to send a notification message to the BMC.
After this point, the ME FW is ready to process any command requests from the BMC.
In S0/S1 power states, all ME FW functionality is supported. Some features, such as power
limiting, are not supported in S3/S4/S5 power states. Refer to ME FW documentation for details
on what is not supported while in the S3/S4/S5 states.
The ME FW uses a single operational image with a limited-functionality recovery image. In order
to upgrade an operational image, a boot to recovery image must be performed. The ME FW
does not support an IPMI update mechanism except for the case that the system is configured
with a dual-ME (redundant) image. In order to conserve flash space, which the ME FW shares
with BIOS, EPSD systems only support a single ME image. For this case, ME update is only
supported by means of BIOS performing a direct update of the flash component. The recovery
image only provides the basic functionality that is required to perform the update; therefore
other ME FW features are not functional when the update is in progress.
4.14.6
SmaRT/CLST
The power supply optimization provided by SmaRT/CLST relies on a platform HW capability as
well as ME FW support. When a PMBus*-compliant power supply detects insufficient input
voltage, an over current condition or an over temperature condition, it will assert the SMBAlert#
signal on the power supply SMBus* (also known as the PMBus*). Through the use of external
gates, this results in a momentary assertion of the PROCHOT# and MEMHOT# signals to the
processors, thereby throttling the processors and memory. The ME FW also sees the
SMBAlert# assertion, queries the power supplies to determine the condition causing the
assertion, and applies an algorithm to either release or prolong the throttling, based on the
situation.
System power control modes include:

SmaRT: Low AC input voltage event; results in a one-time momentary throttle for
each event to the maximum throttle state.

Electrical Protection CLST: High output energy event; results in a throttling hiccup
mode with fixed maximum throttle time and a fix throttle release ramp time.

Thermal Protection CLST: High power supply thermal event; results in a throttling
hiccup mode with fixed maximum throttle time and a fix throttle release ramp time.
When the SMBAlert# signal is asserted, the fans will be gated by HW for a short period
(~100ms) to reduce overall power consumption. It is expected that the interruption to the fans
will be of short enough duration to avoid false lower threshold crossings for the fan tach sensors;
however, this may need to be comprehended by the fan monitoring FW if it does have this side
effect.
68
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Platform Management Functional Overview
4.15 Other Platform Management
The platform supports the following sleep states, S1 and S5. Within S0, the platform supports
additional lower power states, such as C1e and C6, for the CPU.
4.15.1
4.15.2
Wake On LAN (WOL)

Wake On LAN (WOL) is supported on both LAN ports and IOM LAN modules for all
supported Sleep states.

Wake on Ring is supported on the external Serial port only for all supported Sleep
states.

Wake on USB is supported on the rear and front panel USB ports for S1 only.

Wake on RTC is supported for all supported Sleep states.

Wake IPMI command is supported (BMC function no additional hardware
requirement) for all supported Sleep states.
PCI Express* Power Management
L0 and L3 power management states are supported on all PCI Express* slots and embedded
end points.
4.15.3
PMBus*
Power supplies that have PMBus* 1.1 are supported and required to support Intel® Dynamic
Power Node Manager. The Intel® Server Board S2600JF supports the features of Intel®
Dynamic Power Node Manager version 1.5 except the inlet temperature sensor.
4.15.4
Node Power Policies
When working with Intel® Server Chassis H2000JF, the BMC on each node monitors its fans
and temperature for critical failures. When there is a fan failure and a critical temperature event
at the same time, the node will be powered down. When this occurs, the node needs to be
manually powered back on.
Additionally on Intel® Server Board S2600JF, the BMC on node 3 and node 4 monitors for a
power supply over current condition or power supply over temperature condition. If either of
these occurs and the Shutdown Policy has been enabled, the node will be powered down.
When this occurs, the node needs to be manually powered back on. However, if the over
current or over temperature event is detected again, the node will be powered back off.
The Shutdown Policy setting is only shown on Node 3 and Node 4, and is disabled by default
but can be enabled or disabled in the BIOS setup Server Management page or by using the Set
Shutdown Policy command.
Revision 1.8
Intel order number G31608-009
69
BIOS Setup Interface
Intel®Server Board S2600JF TPS
5.
BIOS Setup Interface
5.1
HotKeys Supported during POST
Certain HotKeys are recognized during POST. A HotKey is a key or key combination that is
recognized as an unprompted command input, that is, the operator is not prompted to press the
HotKey and typically the HotKey will be recognized even while other processing is in progress.
The Intel® Server Board S2600JF Family BIOS recognizes a number of HotKeys during POST.
After the OS is booted, HotKeys are the responsibility of the OS and the OS defines its own set
of recognized HotKeys.
Following are the POST HotKeys with the functions they cause to be performed.
Table 26. POST HotKeys Recognized
HotKey Combination
<F2>
<F6>
<F12>
5.2
Function
Enter Setup
Pop up BIOS Boot Menu
Network boot
POST Logo/Diagnostic Screen
The logo/Diagnostic Screen displays in one of two forms:

If Quiet Boot is enabled in the BIOS setup, a logo splash screen displays. By default,
Quiet Boot is enabled in the BIOS setup. If the logo displays during POST, press <Esc>
to hide the logo and display the diagnostic screen.

If a logo is not present in the flash ROM or if Quiet Boot is disabled in the system
configuration, the POST Diagnostic Screen is displayed with a summary of system
configuration information.
The diagnostic screen displays the following information:
70

“Copyright <year> Intel Corporation”

AMI Copyright statement

BIOS version (ID)

BMC firmware version

SDR version

ME firmware version

Platform ID

System memory detected (total size of all installed DDR3 DIMMs)

Current memory speed (currently configured memory operating frequency)

Processor information (Intel® Brand String identifying type of processor and nominal
operating frequency, and number of physical processors identified)

Keyboards detected, if any attached

Mouse devices detected, if any attached

Instructions showing hotkeys for going to Setup, going to popup Boot Menu, and starting
Network Boot
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
5.3
BIOS Setup Interface
BIOS Boot Pop-up Menu
The BIOS Boot Specification (BBS) provides a Boot Pop-up menu that can be invoked by
pressing the <F6> key during POST. The BBS Pop-up menu displays all available boot devices.
The boot order in the pop-up menu is not the same as the boot order in the BIOS setup. The
pop-up menu simply lists all of the available devices from which the system can be booted, and
allows a manual selection of the desired boot device.
When an Administrator password is installed in Setup, the Administrator password will be
required in order to access the Boot Pop-up menu using the <F6> key. If a User password is
entered, the Boot Pop-up menu will not even appear – the user will be taken directly to the Boot
Manager in the Setup, where a User password allows only booting in the order previously
defined by the Administrator.
5.4
BIOS Setup Utility
The BIOS Setup utility is a text-based utility that allows the user to configure the system and
view current settings and environment information for the platform devices. The Setup utility
controls the platform's built-in devices, the boot manager, and error manager.
The BIOS Setup interface consists of a number of pages or screens. Each page contains
information or links to other pages. The advanced tab in Setup displays a list of general
categories as links. These links lead to pages containing a specific category’s configuration.
The following sections describe the look and behavior for the platform setup.
5.4.1
BIOS Setup Operation
The BIOS Setup Utility has the following features:

Localization – The Intel® Server Board BIOS is available only in English. However, BIOS
Setup uses the Unicode standard and is capable of displaying data and input in Setup
fields in all languages currently included in the Unicode standard.

Console Redirection – BIOS Setup is functional through Console Redirection over
various terminal emulation standards. This may limit some functionality for compatibility,
for example, usage of colors or some keys or key sequences or support of pointing
devices.

Setup screens are designed to be displayable in an 80-character x 24-line format in
order to work with Console Redirection, although that screen layout should display
correctly on any format with longer lines or more lines on the screen.

Password protection – BIOS Setup may be protected from unauthorized changes by
setting an Administrative Password in the Security screen. When an Administrative
Password has been set, all selection and data entry fields in Setup (except System Time
and Date) are grayed out and cannot be changed unless the Administrative Password
has been entered.
Note: If an Administrative Password has not been set, anyone who boots the system to Setup
has access to all selection and data entry fields in Setup and can change any of them.
Revision 1.8
Intel order number G31608-009
71
BIOS Setup Interface
5.4.1.1
Intel®Server Board S2600JF TPS
Setup Page Layout
The Setup page layout is sectioned into functional areas. Each occupies a specific area of the
screen and has dedicated functionality. The following table lists and describes each functional
area.
The Setup page is designed to a format of 80 x 24 (24 lines of 80 characters each). The typical
display screen in a Legacy mode or in a terminal emulator mode is actually 80 characters by 25
lines, but with line wrap enabled (which it usually is) the 25th line cannot be used with the Setup
page.
Table 27. BIOS Setup Page Layout
Functional Area
Title (Tab) Bar
Description
The Title Bar is located at the top of the screen and displays “Tabs” with the titles of
the top-level pages, or screens that can be selected. Using the left and right arrow
keys moves from page to page through the Tabs.
When there are more Tabs than can be displayed on the Title (Tab) Bar, they will
scroll off to the left or right of the screen and temporarily disappear from the visible
Title Bar. Using the arrow keys will scroll them back onto the visible Title Bar. When
the arrow keys reach either end of the Title Bar, they will “wrap around” to the other
end of the Title Bar.
For multi-level hierarchies, this shows only the top-level page above the page which
the user is currently viewing. The Page Title gives further information.
Page Title
In a multi-level hierarchy of pages beneath one of the top-level Tabs, the Page Title
identifying the specific page which the user is viewing is located in the upper left
corner of the page. Using the <ESC> (Escape) key will return the user to the higher
level in the hierarchy, until the top-level Tab page is reached.
Setup Item List
The Setup Item List is a set of control entries and informational items. The list is
displayed in two columns. For each item in the list:

The left column of the list contains Prompt String (or Label String), a character
string that identifies the item. The Prompt String may be up to 34 characters
long in the 80 x 24 page format.

The right column contains a data field that may be an informational data
display, a data input field, or a multiple choice field. Data input or multiplechoice fields are demarcated by square brackets (“[....]”). This field may be up
to 90 characters long, but only the first 22 characters can be displayed on the
80 x 24 page (24 characters for an informational display-only field).
The operator navigates up and down the right hand column through the available
input or choice fields.
A Setup Item may also represent a selection to open a new screen with a further
group of options for specific functionality. In this case, the operator navigates to the
desired selection and presses <Enter> to go to the new screen.
Item-Specific Help Area
The Item-specific Help Area is located on the right side of the screen and contains
Help Text specific to the highlighted Setup Item. Help information may include the
meaning and usage of the item, allowable values, effects of the options, and so on.
The Help Area is a 29 character by 11 line section of the 80 x 24 page. The Help
Text may have explicit line-breaks within it. When the text is longer than 29
characters, it is also broken to a new line, dividing the text at the last space (blank)
character before the 29th character. An unbroken string of more than 29 characters
will be arbitrarily wrapped to a new line after the 29th character. Text that extends
beyond the end of the 11th line will not be displayed.
Keyboard Command Area
The Keyboard Command Area is located at the bottom right of the screen and
continuously displays help for keyboard special keys and navigation keys.
72
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
5.4.1.2
BIOS Setup Interface
Entering BIOS Setup
To enter the BIOS Setup using a keyboard (or emulated keyboard), press the <F2> function key
during boot time when the OEM or Intel® logo is displayed. The following message is displayed
on the diagnostics screen and under the Quiet Boot logo screen:
Press <F2> to enter setup
When the Setup Utility is entered, the Main screen is displayed. However, serious errors cause
the system to display the Error Manager screen instead of the Main screen.
It is also possible to cause a boot to Setup using an IPMI 2.0 command Get/Set System Boot
Options. For details on that capability, see the explanation in the IPMI description.
5.4.1.3
Setup Navigation Keyboard Commands
The bottom right portion of the Setup screen provides a list of commands that are used to
navigate through the Setup utility. These commands are displayed at all times.
Each Setup menu page contains a number of features. Each feature is associated with a value
field, except those used for informative purposes. Each value field contains configurable
parameters. Depending on the security option chosen and in effect by the password, a menu
feature’s value may or may not be changed. If a value cannot be changed, its field is made
inaccessible and appears grayed out.
Table 28. BIOS Setup: Keyboard Command Bar
Key
<Enter>
Option
Execute
Command
Description
The <Enter> key is used to activate submenus when the selected feature is a
submenu, or to display a pick list if a selected option has a value field, or to select a
subfield for multi-valued features such as time and date. If a pick list is displayed,
the <Enter> key selects the currently highlighted item, undoes the pick list, and
returns the focus to the parent menu.
<Esc>
Exit
The <Esc> key provides a mechanism for backing out of any field. When the <Esc>
key is pressed while editing any field or selecting features of a menu, the parent
menu is re-entered.
When the <Esc> key is pressed in any submenu, the parent menu is re-entered.
When the <Esc> key is pressed in any major menu, the exit confirmation window is
displayed and the user is asked whether changes can be discarded. If “No” is
selected and the <Enter> key is pressed, or if the <Esc> key is pressed, the user is
returned to where they were before <Esc> was pressed, without affecting any
existing settings. If “Yes” is selected and the <Enter> key is pressed, the setup is
exited and the BIOS returns to the main System Options Menu screen.

Select Item
The up arrow is used to select the previous value in a pick list, or the previous
option in a menu item's option list. The selected item must then be activated by
pressing the <Enter> key.

Select Item
The down arrow is used to select the next value in a menu item’s option list, or a
value field’s pick list. The selected item must then be activated by pressing the
<Enter> key.

Select Menu
The left and right arrow keys are used to move between the major menu pages.
The keys have no effect if a submenu or pick list is displayed.
<Tab>
Select Field
The <Tab> key is used to move between fields. For example, <Tab> can be used
to move from hours to minutes in the time item in the main menu.
-
Change Value
The minus key on the keypad is used to change the value of the current item to the
previous value. This key scrolls through the values in the associated pick list
without displaying the full list.
Revision 1.8
Intel order number G31608-009
73
BIOS Setup Interface
Key
Intel®Server Board S2600JF TPS
+
Option
Change Value
Description
The plus key on the keypad is used to change the value of the current menu item
to the next value. This key scrolls through the values in the associated pick list
without displaying the full list. On 106-key Japanese keyboards, the plus key has a
different scan code than the plus key on the other keyboards, but will have the
same effect.
<F9>
Setup Defaults
Pressing the <F9> key causes the following to display:
Load Optimized Defaults?
Yes No
If “Yes” is highlighted and <Enter> is pressed, all Setup fields are set to their
default values. If “No” is highlighted and <Enter> is pressed, or if the <Esc> key is
pressed, the user is returned to where they were before <F9> was pressed without
affecting any existing field values.
<F10>
Save and Exit
Pressing the <F10> key causes the following message to display:
Save configuration and reset?
Yes
No
If “Yes” is highlighted and <Enter> is pressed, all changes are saved and the Setup
is exited. If “No” is highlighted and <Enter> is pressed, or the <Esc> key is
pressed, the user is returned to where they were before <F10> was pressed
without affecting any existing values.
5.4.1.4
Setup Screen Menu Selection Bar
The Setup Screen Menu selection bar is located at the top of the BIOS Setup Utility screen. It
displays tabs showing the major screen selections available to the user. By using the left and
right arrow keys, the user can select the listed screens. Some screen selections are out of the
visible menu space, and become available by scrolling to the left or right of the current
selections displayed.
5.4.2
BIOS Setup Utility Screens
The following sections describe the screens available in the BIOS Setup utility for the
configuration of the server platform.
For each of these screens, there is an image of the screen with a list of Field Descriptions that
describe the contents of each item on the screen. Each item on the screen is hyperlinked to the
relevant Field Description. Each Field Description is hyperlinked back to the screen image.
These lists follow the following guidelines:
74

The text heading for each Field Description is the actual text as displayed on the BIOS
Setup screen. This screen text is a hyperlink to its corresponding Field Description.

The text shown in the Option Values and Help Text entries in each Field Description are
the actual text and values are displayed on the BIOS Setup screens.

In the Option Values entries, the text for default values is shown with an underline.
These values do not appear underline on the BIOS Setup screen. The underlined text in
this document is to serve as a reference to which value is the default value.
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
BIOS Setup Interface

The Help Text entry is the actual text that appears on the screen to accompany the item
when the item is the one in focus (active on the screen).

The Comments entry provides additional information where it may be helpful. This
information does not appear on the BIOS Setup screens.

Information enclosed in angular brackets (< >) in the screen shots identifies text that can
vary, depending on the options installed. For example, <Amount of memory installed> is
replaced by the actual value for “Total Memory”.

Information enclosed in square brackets ([ ]) in the tables identifies areas where the user
must type in text instead of selecting from a provided option.

Whenever information is changed (except Date and Time), the systems requires a save
and reboot to take place in order for the changes to take effect. Alternatively, pressing
<ESC> discards the changes and resumes POST to continue to boot the system
according to the boot order set from the last boot.
5.4.2.1
Map of Screens and Functionality
There are a number of screens in the entire Setup collection. They are organized into major
categories. Each category has a hierarchy beginning with a top-level screen from which lowerlevel screens may be selected. Each top-level screen appears as a tab, arranged across the top
of the Setup screen image of all top-level screens.
There are more categories than will fit across the top of the screen, so at any given time there
will be some categories which will not appear until the user has scrolled across the tabs which
are present.
The categories and the screens included in each category are listed as follows, with links to
each of the screens named.
Table 29. Screen Map
Categories (Top Tabs)
Main Screen (Tab)
Advanced Screen (Tab)








Security Screen (Tab)
Server Management Screen
(Tab)


Revision 1.8
Second Level Screens
Processor Configuration
Power and Performance
Memory Configuration

Mass Storage Controller
Configuration
PCI Configuration




Serial Port Configuration
USB Configuration
System Acoustic and
Performance Configuration
Third Level Screens
Memory RAS and Performance
Configuration
NIC Configuration
UEFI Network Stack
UEFI Option ROM Control
PCIe Port Oprom Control
Console Redirection
System Information
Intel order number G31608-009
75
BIOS Setup Interface
Intel®Server Board S2600JF TPS
Categories (Top Tabs)

Boot Options Screen (Tab)


Boot Manager Screen (Tab)
Error Manager Screen (Tab)
Save and Exit Screen (Tab)
5.4.2.2
Second Level Screens
BMC LAN Configuration
Third Level Screens
Hard Disk Order
Network Device Order
Main Screen (Tab)
The Main Screen is the first screen that appears when the BIOS Setup configuration utility is
entered, unless an error has occurred. If an error has occurred, the Error Manager Screen
appears instead.
Main
Advanced
Security
Server Management
Boot Options
Logged in as:
Administrator/User
Platform ID
<Platform Identification String>
Boot Manager
System BIOS
BIOS Version
<Platform.86B.xx.yy.zzzz>
Build Date
<MM/DD/YYYY>
Memory
Total Memory
<Amount of memory installed>
Quiet Boot
Enabled/Disabled
POST Error Pause
Enabled/Disabled
System Date
[Day MM/DD/YYYY]
System Time
[HH:MM:SS]
Figure 21. Main Screen
Table 30. Setup Utility – Main Screen Fields
Setup Item
Logged in as
Platform ID
Options
Help Text
S2600JF
Comments
Information only. Displays
password level that setup is
running in: Administrator or
User. With no passwords set,
Administrator is the default
mode.
Information only. Displays the
Platform ID: S2600JF
System BIOS
76
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Setup Item
BIOS Version
BIOS Setup Interface
Options
Help Text
Build Date
Memory
Total Memory
Information only. Displays the
total physical memory installed
in the system, in MB or GB.
The term physical memory
indicates the total memory
discovered in the form of
installed DDR3 DIMMs.
Quiet Boot
Enabled
Disabled
POST Error
Pause
Enabled
Disabled
System Date
[Day of week MM/DD/YYYY]
System Time
[HH:MM:SS]
5.4.2.3
Comments
Information only. Displays the
current BIOS version.
xx = major release version
yy = minor release version
zzzz = release number
Information only. Displays the
current BIOS build date.
[Enabled] – Display the
logo screen during POST.
[Disabled] – Display the
diagnostic screen during
POST.
[Enabled] – Go to the
Error Manager for critical
POST errors.
[Disabled] – Attempt to
boot and do not go to the
Error Manager for critical
POST errors.
System Date has
configurable fields for
Month, Day, and Year.
Use [Enter] or [Tab] key
to select the next field.
Use [+] or [-] key to
modify the selected field.
System Time has
configurable fields for
Hours, Minutes, and
Seconds.
Hours are in 24-hour
format.
Use [Enter] or [Tab] key
to select the next field.
Use [+] or [-] key to
modify the selected field.
If enabled, the POST Error
Pause option takes the system
to the error manager to review
the errors when major errors
occur. Minor and fatal error
displays are not affected by this
setting.
Advanced Screen (Tab)
The Advanced screen provides an access point to configure several groups of options. On this
screen, the user can select the option group to be configured. Configuration actions are
performed on the selected screen, and not directly on the Advanced screen.
To access this screen from the Main screen or other top-level Tab screen, press the right or left
arrow keys to traverse the tabs at the top of the Setup screen until the Advanced screen is
selected.
Revision 1.8
Intel order number G31608-009
77
BIOS Setup Interface
Main
Advanced
Intel®Server Board S2600JF TPS
Security
Server Management
Boot Options
Boot Manager
► Processor Configuration
► Power & Performance
► Memory Configuration
► Mass Storage Controller Configuration
► PCI Configuration
► Serial Port Configuration
► USB Configuration
► System Acoustic and Performance Configuration
Figure 22. Advanced Screen
Table 31. Setup Utility – Advanced Screen Display Fields
Setup Item
Processor Configuration
Power and Performance
Memory Configuration
Mass Storage Controller Configuration
PCI Configuration
Serial Port Configuration
USB Configuration
System Acoustic and Performance
Configuration
5.4.2.4
Help Text
View/Configure processor information and
settings.
View/Configure power and performance
policy.
View/Configure memory information and
settings.
View/Configure mass storage controller
information and settings.
View/Configure PCI information and
settings.
View/Configure serial port information and
settings.
View/Configure USB information and
settings.
View/Configure system acoustic and
performance information and settings.
Processor Configuration
The Processor Configuration screen displays the processor identification and microcode level,
core frequency, cache sizes, Intel® QuickPath Interconnect information for all processors
currently installed. It also allows the user to enable or disable a number of processor options.
To access this screen from the Main screen, select Advanced > Processor Configuration. To
move to another screen, press the <Esc> key to return to the Advanced screen, then select the
desired screen.
78
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
BIOS Setup Interface
Advanced
Processor Configuration
Processor Socket
L3 Cache RAM
Processor 1 Version
Processor 2 Version
CPU 1
CPU 2
<CPUID>*
<CPUID>
<Proc Freq>
<Proc Freq>
<Rev data>
<Rev data>
<L1 Cache Size>
<L1 Cache Size>
<L2 Cache Size>
<L2 Cache Size>
<L3 Cache Size>
<L3 Cache Size>
<ID string from Processor 1>
<ID string from Processor 2>
Current Intel®QPI Link Speed
Intel®QPI Link Frequency
Intel®QPI Frequency Select
Intel®Turbo Boost Technology
Slow/Fast
Unknown GT/s/6.4 GT/s/7.2 GT/s/8.0 GT/s
Auto Max/6.4 GT/s/7.2 GT/s/8.0 GT/s
Enabled/Disabled
Processor ID
Microcode Frequency
Microcode Revision
L1 Cache RAM
L2 Cache RAM
Enhanced Intel®SpeedStep®Tech
Processor C3
Processor C6
Intel®Hyper-Threading Tech
Active Processor Cores
Execute Disable Bit
Intel®Virtualization Technology
Intel®VT for Direct I/O
Enhanced Error Containment Mode
MLC Streamer
MLC Spatial Prefetcher
DCU Data Prefetcher
DCU Instruction Prefetcher
Direct Cache Access (DCA)
Extended ATR
PFloor Tuning
SMM Wait Timeout
Enabled/Disabled
Enabled/Disabled
Enabled/Disabled
Enabled/Disabled
All/1/2/3/4/5/6/7
Enabled/Disabled
Enabled/Disabled
Enabled/Disabled
Enabled/Disabled
Enabled/Disabled
Enabled/Disabled
Enabled/Disabled
Enabled/Disabled
Enabled/Disabled
0x03/0x01
12
[20 – 3000ms, 20 is default]
Figure 23. Processor Configuration Screen
Revision 1.8
Intel order number G31608-009
79
BIOS Setup Interface
Intel®Server Board S2600JF TPS
Table 32. Setup Utility – Processor Configuration Screen Fields
Setup Item
Processor ID
Options
Help Text
Processor Frequency
Microcode Revision
L1 Cache RAM
L2 Cache RAM
L3 Cache RAM
Processor Version
Processor 1 Version
Processor 2 Version
Current QPI Link Speed
QPI Link Frequency
Current QPI Frequency
Select
Auto Max
6.4 GT/s
7.2 GT/s
8.0 GT/s
Allows for selecting the Intel®
QuickPath Interconnect
Frequency. Recommended to
leave in [Auto Max] so that
BIOS can select the highest
common Intel® QuickPath
Interconnect frequency.
Intel® Turbo Boost
Technology
Enabled
Disabled
Intel® Turbo Boost Technology
allows the processor to
automatically increase its
frequency if it is running below
power, temperature, and
current specifications.
80
Intel order number G31608-009
Comments
Information only. Processor
CPUID.
Information only. Current
frequency of the processor.
Information only. Revision of
the loaded microcode.
Information only. Size of the
Processor L1 Cache.
Information only. Size of the
Processor L2 Cache.
Information only. Size of the
Processor L3 Cache.
Information only. ID string
from the Processor.
Information only. Brand ID
string of processor with
CPUID instruction.
Information only. Brand ID
string of processor with
CPUID instruction.
Information only. Current
speed that the QPI Link is
using.
Information only. Current
frequency that the QPI Link is
operating.
Lowering the QPI frequency
may improve performance per
watt for some processing
loads and on certain
benchmarks. [Auto Max] will
give the maximum QPI
performance available.
Appears only on multi-socket
boards.
When a multi-socket board
has only one processor
installed, this will be grayed
out, with the previous value
remaining displayed.
Changes in QPI Link
Frequency will not take effect
until the system reboots, so
this will not immediately
change the QPI Link
Frequency display. Changing
QPI Link Frequency does not
affect the QPI Link Speed.
This option is only visible if the
processor in the system
support Intel® Turbo Boost
Technology.
Revision 1.8
Intel®Server Board S2600JF TPS
BIOS Setup Interface
Setup Item
Enhanced Intel®
SpeedStep® Technology
Options
Enabled
Disabled
Processor C3
Enabled
Disabled
Help Text
Enhanced Intel® SpeedStep®
Technology allows the system
to dynamically adjust processor
voltage and core frequency,
which can result in decreased
average power consumption
and decreased average heat
production.
Contact your OS vendor
regarding OS support of this
feature.
Enable/Disable Processor C3
(ACPI C2/C3) report to OS.
Processor C6
Enabled
Disabled
Enable/Disable Processor C6
(ACPI C3) report to OS.
Intel® Hyper-Threading
Technology
Enabled
Disabled
Active Processor Cores
All
1
2
3
4
5
6
7
Intel® HT Technology allows
multithreaded software
applications to execute threads
in parallel within each
processor.
Contact your OS vendor
regarding OS support of this
feature.
Number of cores to enable in
each processor package.
Execute Disable Bit
Enabled
Disabled
Execute Disable Bit can help
prevent certain classes of
malicious buffer overflow
attacks.
Intel® Virtualization
Technology
Enabled
Disabled
Intel® Virtualization Technology
allows a platform to run
multiple operating systems and
applications in independent
partitions.
Note: A change to this option
requires the system to be
powered off and then back on
before the setting takes effect.
Revision 1.8
Intel order number G31608-009
Comments
When Disabled, the processor
setting reverts to running at
Max TDP Core Frequency
(rated frequency).
This is normally Disabled, but
can be Enabled for improved
performance on certain
benchmarks and in certain
situations.
This is normally Enabled but
can be Disabled for improved
performance on certain
benchmarks and in certain
situations.
This option is only visible if all
processors installed in the
system support Intel® HyperThreading Technology.
The numbers of cores that
appear as selections depends
on the number of cores
available in the processors
installed. Boards may have as
many as 8 cores in each of 1,
2, or 4 processors. The same
number of cores must be
active in each processor
package.
This option is only visible if all
processors installed in the
system support the Execute
Disable Bit. The OS and
applications installed must
support this feature in order
for it to be enabled.
This option is only visible if all
processors installed in the
system support Intel® VT. The
software configuration
installed on the system must
support this feature in order
for it to be enabled.
81
BIOS Setup Interface
Intel®Server Board S2600JF TPS
Setup Item
Intel® Virtualization
Technology for Directed
I/O
Options
Enabled
Disabled
Enhanced Error
Containment Mode
Enabled
Disabled
MLC Streamer
Enabled
Disabled
MLC Streamer is a speculative
prefetch unit within the
processors.
MLC Spatial Prefetcher
Enabled
Disabled
[Enabled] – Fetches adjacent
cache line (128 bytes) when
required data is not currently in
cache.
[Disabled] – Only fetches
cache line with data required
by the processor (64 bytes).
DCU Data Prefetcher
Enabled
Disabled
DCU Instruction
Prefetcher
Enabled
Disabled
Direct Cache Access
(DCA)
Enabled
Disabled
The next cache line will be
prefetched into L1 data cache
from L2 or system memory
during unused cycles if it sees
that the processor core has
accessed several bytes
sequentially in a cache line as
data.
[Disabled] – Only fetches
cache line with data required
by the processor (64 bytes).
The next cache line will be
prefetched into L1 instruction
cache from L2 or system
memory during unused cycles
if it sees that the processor
core has accessed several
bytes sequentially in a cache
line as data.
Allows processors to increase
the I/O performance by placing
data from I/O devices directly
into the processor cache.
82
Help Text
Enable/Disable Intel®
Virtualization Technology for
Directed I/O (Intel® VT-d).
Report the I/O device
assignment to VMM through
DMAR ACPI Tables.
Intel order number G31608-009
Comments
This option is only visible if all
processors installed in the
system support Intel® VT-d.
The software configuration
installed on the system must
support this feature in order
for it to be enabled.
Enhanced Error Containment
(Data Poisoning) is not
supported by all models of
processors, and this option
will not appear unless all
installed processors support
Enhanced Error Containment.
This option globally enables or
disables both Core and
Uncore Data Poisoning, for
processors which support
them.
MLC Streamer is normally
Enabled, for best efficiency in
L2 Cache and Memory
Channel use, but disabling it
may improve performance for
some processing loads and
on certain benchmarks.
MLC Spatial Prefetcher is
normally Enabled, for best
efficiency in L2 Cache and
Memory Channel use, but
disabling it may improve
performance for some
processing loads and on
certain benchmarks.
DCU Data Prefetcher is
normally Enabled, for best
efficiency in L1 Data Cache
and Memory Channel use, but
disabling it may improve
performance for some
processing loads and on
certain benchmarks.
DCU Data Prefetcher is
normally Enabled, for best
efficiency in L1 I Cache and
Memory Channel use, but
disabling it may improve
performance for some
processing loads and on
certain benchmarks.
System performance is
usually best with Direct Cache
Access Enabled. In certain
unusual cases, disabling this
may give improved results.
Revision 1.8
Intel®Server Board S2600JF TPS
Setup Item
Extended ATR
Options
Help Text
Extended Timeout value for
PCIe tuning. 0x03 = default
timeout. 0x01 = extended
timeout.
Adjustment CPU idle frequency
for PCIe Bus tuning between
12 and 3 less than CPU rated
frequency.
Millisecond timeout waiting for
BSP and SPs to enter SMM.
Range is 20ms to 3000ms.
0x03
0x01
PFloor Tuning
12
SMM Wait Timeout
20
5.4.2.5
BIOS Setup Interface
Comments
Amount of time to allow for the
SMI Handler to respond to an
SMI. If exceeded, the BMC
generates an SMI Timeout
and resets the system.
Power and Performance Policy
The Power and Performance screen allows the user to specify a profile which is optimized in the
direction of either reduced power consumption or increased performance.
To access this screen from the Main screen, select Advanced > Power and Performance. To
move to another screen, press the <Esc> key to return to the Advanced screen, then select the
desired screen.
Advanced
Power & Performance
Power and Performance Policy
Performance / Balanced Performance /
Balanced Power / Power
[Performance] Optimization is strongly toward performance, even at the expense of energy efficiency.
[Balanced Performance] Weights optimization toward performance, while conserving energy.
[Balanced Power] Weights optimization toward energy conservation, with good performance.
[Power] Optimization is strongly toward energy efficiency, even at the expense of performance.
Figure 24. Power and Performance Configuration Screen
Table 33. Setup Utility – Power and Performance Configuration Screen Fields
Setup Item
Options
CPU Power and
Performance
Performance Policy
Balanced Performance
Balanced Power
Power
Revision 1.8
Comments
Optimization is strongly toward performance, even at the expense
of energy efficiency.
Weights optimization toward performance, while conserving
energy.
Weights optimization toward energy conservation, with good
performance
Optimization is strongly toward energy efficiency, even at the
expense of performance.
Intel order number G31608-009
83
BIOS Setup Interface
Intel®Server Board S2600JF TPS
When the user selects a Power and Performance Policy in Setup, there is a list of
complementary settings which are made. These can be individually overridden after the policy
setting has been selected and the profile settings performed. The profile settings are listed in
the following table.
Table 34. Power/Performance Profiles
BIOS Features
CPU Power and
Performance Policy
Intel® QPI
Frequency Select
Intel® Turbo Boost
Technology
Enhanced Intel
SpeedStep®
Technology
Processor C3
Processor C6
Intel® Hyper
Threading
Active Processor
Cores
MLC Streamer
MLC Spatial
Prefetcher
DCU Data
Prefetcher
DCU Instruction
Prefetcher
Direct Cache
Access (DCA)
Available Settings
Performance
Balanced
Performance
Setup: Advanced > Power and Performance
Performance
(Balanced
Performance)
Balanced Power
Performance
/Balanced
Performance
/Balanced Power
/Power
Setup: Advanced > Processor Configuration
Auto Max
(Auto Max)
(Auto Max)
/6.4 GT/s
/7.2 GT/s
/8.0 GT/s
Enabled/Disabled
(Enabled)
(Enabled)
Balanced
Power
Power
(Auto Max)
6.4 GT/s
(Enabled)
(Enabled)
Enabled/Disabled
(Enabled)
(Enabled)
(Enabled)
(Enabled)
Enabled/Disabled
Enabled/Disabled
Enabled/Disabled
(Disabled)
(Enabled)
(Enabled)
(Disabled)
(Enabled)
(Enabled)
(Disabled)
(Enabled)
(Enabled)
(Disabled)
(Enabled)
(Enabled)
All/1/2/3/4/5/6/7
(All)
(All)
(All)
(All)
Enabled/Disabled
Enabled/Disabled
(Enabled)
(Enabled)
(Enabled)
(Enabled)
(Enabled)
(Enabled)
(Enabled)
(Enabled)
Enabled/Disabled
(Enabled)
(Enabled)
(Enabled)
(Enabled)
Enabled/Disabled
(Enabled)
(Enabled)
(Enabled)
(Enabled)
Enabled/Disabled
(Enabled)
(Enabled)
(Enabled)
(Enabled)
Setup: Advanced > Memory Configuration
Auto/800/1067
(Auto)
(Auto)
(Auto)
/1333/1600
Enabled/Disabled
(Enabled)
(Enabled)
(Enabled)
Enabled/Disabled
(Enabled)
(Enabled)
(Enabled)
Power
(Performance
(Performance
(Performance
Optimized/Perform Optimized)
Optimized)
Optimized)
ance Optimized
Setup: Advanced > Memory Configuration > Memory RAS and Performance Configuration
Enabled/Disabled
NUMA Optimized
(Enabled)
(Enabled)
(Enabled)
Setup: Advanced > System Acoustic and Performance Configuration
Auto/DCLTT
Set Throttling
(Auto)
(Auto)
(Auto)
Mode
/SCLTT/SOLTT
Performance
Set Fan Profile
(Performance)
(Performance)
(Performance)
/Acoustic
Enabled/Disabled
Quiet Fan Idle
(Disabled)
(Disabled)
(Disabled)
Mode
Setup: Server Management
Memory Operating
Speed Selection
Patrol Scrub
Demand Scrub
Memory Power
Optimization
84
Power
Intel order number G31608-009
(Auto)
(Enabled)
(Enabled)
(Performance
Optimized)
(Enabled)
(Auto)
(Performance)
(Disabled)
Revision 1.8
Intel®Server Board S2600JF TPS
BIOS Features
Available Settings
EuP LOT6 OFFMode
Enabled/Disabled
QPI Link L0S
enable
CKE Throttling
Memory Voltage
CPU PkgC State
Limit
Processor C1
mapped to ACPI
C1
Processor C6 with
retention mapped
to ACPI C2
ACPI C3
Processor C1/C3
Auto Demotion
Processor C1/C3
UnDemotion
ENERGY_PERF
_BIAS mode
5.4.2.6
BIOS Setup Interface
Performance
(Disabled)
Balanced
Performance
(Disabled)
Internal BIOS Settings not displayed in BIOS Setup
Auto/Enabled
Disabled
(Auto)
/Disabled
Auto/Enabled
Disabled
(Auto)
/Disabled
Auto/1.5V/1.35V
1.5v
(Auto)
Disabled/C6 with
Disabled
(C6 with
no retention/C6
retention)
with retention
Enabled/Disabled
(Enabled)
(Enabled)
Balanced Power
Power
(Disabled)
(Disabled)
(Auto)
(Auto)
(Auto)
Enabled
(Auto)
(C6 with
retention)
(Auto)
(C6 with
retention)
(Enabled)
(Enabled)
Enabled/Disabled
(Enabled)
(Enabled)
(Enabled)
(Enabled)
Enabled/Disabled
Enabled/Disabled
(Disabled)
(Enabled)
(Disabled)
(Enabled)
(Disabled)
(Enabled)
(Disabled)
(Enabled)
Enabled/Disabled
(Enabled)
(Enabled)
(Enabled)
(Enabled)
Performance/Bala
nced
Performance/Bala
nced Power/Power
Performance
(Balanced
Performance)
Balanced
Power
Power
Memory Configuration
The Memory Configuration screen allows the user to view details about the DDR3 DIMMs that
are installed as system memory.
To access this screen from the Main screen, select Advanced > Memory Configuration. To
move to another screen, press the <Esc> key to return to the Advanced screen, then select the
desired screen.
Revision 1.8
Intel order number G31608-009
85
BIOS Setup Interface
Intel®Server Board S2600JF TPS
Advanced
Memory Configuration
Total Memory
<Total Physical Memory Installed in System>
Effective Memory
<Total Effective Memory>
Current Configuration
<Independent/Mirror/Lockstep>
Current Memory Speed
<Operational Memory Speed in MT/s>
Memory Operation Speed Selection
Auto/800/1066/1333/1600/1867
Memory SPD Override
Enable/Disable
Patrol Scrub
Enable/Disable
Demand Scrub
Enable/Disable
Correctable Error Threshold
20/10/5/Every
► Memory RAS and Performance Configuration
DIMM Information
DIMM_A1
<DIMM size> Operational/Not Installed/Failed/Disabled
DIMM_B1
<DIMM size> Operational/Not Installed/Failed/Disabled
DIMM_C1
<DIMM size> Operational/Not Installed/Failed/Disabled
DIMM_D1
<DIMM size> Operational/Not Installed/Failed/Disabled
DIMM_E1
<DIMM size> Operational/Not Installed/Failed/Disabled
DIMM_F1
<DIMM size Operational/Not Installed/Failed/Disabled
DIMM_G1
<DIMM size Operational/Not Installed/Failed/Disabled
DIMM_H1
<DIMM size> Operational/Not Installed/Failed/Disabled
Figure 25. Memory Configuration Screen
Table 35. Setup Utility – Memory Configuration Screen Fields
Setup Item
Total Memory
Effective Memory
86
Options
Comments
Information only. The amount of memory available in the system in
the form of installed DDR3 DIMMs in units of GB.
Information only. The amount of memory available to the operating
system in MB or GB.
The Effective Memory is the difference between the Total Physical
Memory and the sum of all memory reserved for internal usage, RAS
redundancy and SMRAM. This difference includes the sum of all
DDR3 DIMMs that failed Memory BIST during POST, or were
disabled by the BIOS during memory discovery phase to optimize
memory configuration.
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Setup Item
Current
Configuration
Options
Independent Channel
Mirror
Lockstep
Current Memory
Speed
Memory Operating
Speed Selection
Auto
800
1066
1333
1600
1867
Enable
Disable
Patrol Scrub
Enabled
Disabled
Demand Scrub
Enabled
Disabled
Correctable Error
Threshold
20
10
5
All
None
5.4.2.7
Comments
Displays one of the following:
Independent Channel – DIMMs are operating in Independent
Channel Mode, the default configuration when there is no RAS Mode
configured.
Mirror – Mirroring RAS Mode has been configured and is operational.
Lockstep – Lockstep RAS Mode has been configured and is
operational.
Information only. Displays the speed the memory is running at.
Memory SPD
Override
DIMM_XY
BIOS Setup Interface
Allows the user to select a specific speed at which memory will
operate. Only speeds that are legitimate are available, that is, the
user can only specify speeds less than or equal to the auto-selected
Memory Operating Speed. The default Auto setting will select the
highest achievable Memory Operating Speed consistent with the
DIMMs and processors installed.
Note: 1867 and 1600LV are supported only when Memory SPD
Override is enabled.
When enabled, it extends the platform’s capability to support higher
Memory Frequency to 1867MHz DIMM and 1600MHz LVDIMM with
Intel® S1600/S2600/S4600 family processors.
When enabled, Patrol Scrub is initialized to read through all of
memory in a 24-hour period, correcting any Correctable ECC Errors it
encounters by writing back the corrected data to memory.
When enabled, Demand Scrub automatically corrects a Correctable
ECC Error encountered during a fetch from memory by writing back
the corrected data to memory.
Specifies how many Correctable Errors must occur before triggering
the logging of a SEL Correctable Error Event. Only the first threshold
crossing is logged, unless “All” is selected. “All” causes every CE that
occurs to be logged. “None” suppresses CE logging completely.
Displays the state of each DIMM socket present on the board. Each
DIMM socket field reflects one of the following possible states:
Operational – There is a DDR3 DIMM installed and operational in
this slot.
Not Installed – There is no DDR3 DIMM installed in this slot.
Failed – The DIMM installed in this slot has failed during initialization.
Disabled – The DIMM installed in this slot was disabled during
initialization.
For each DIMM that is in an Operational status, the size in GB of that
DIMM is displayed.
Note: X denotes the Channel Identifier and Y denote the DIMM
Identifier within the Channel.
Memory RAS and Performance Configuration
The Memory RAS and Performance Configuration screen allows the user to customize several
memory configuration options, such as whether to use Memory Mirroring or Memory Sparing.
To access this screen from the Main screen, select Advanced > Memory Configuration >
Memory RAS and Performance Configuration. To move to another screen, press the <Esc>
key to return to the Memory Configuration screen, if necessary press the <Esc> key again to
return to the Advanced screen, then select the desired screen.
Revision 1.8
Intel order number G31608-009
87
BIOS Setup Interface
Intel®Server Board S2600JF TPS
Advanced
Memory RAS and Performance Configuration
Capabilities
Memory Mirroring Possible
Memory Rank Sparing Possible
Memory Lockstep Possible
Select Memory RAS Configuration
Lockstep x4 DIMMs
NUMA Optimized
Yes/No
Yes/No
Yes/No
Maximum Performance/Mirroring/Lockstep
Auto/Disable/Enable
Disabled/ Enabled
Figure 26. Memory RAS and Performance Configuration Screen
Table 36. Setup Utility – Memory RAS and Performance Configuration Fields
Setup Item
Memory Mirroring
Possible
Yes
No
Memory Rank Sparing
Possible
Yes
No
Memory Lockstep
Possible
Yes
No
Select Memory RAS
Configuration
Maximum Performance
Mirroring
Lockstep
Allows the user to select
the memory RAS
Configuration to be
applied for the next boot.
Lockstep x4 DIMMs
Auto
Disable
Enable
Enabled
Disabled
Enable/Disable Lockstep
for x4 DIMMs
NUMA Optimized
88
Options
Help Text
If enabled, the BIOS
includes ACPI tables that
are required for NUMAaware Operating
Systems.
Intel order number G31608-009
Comments
Information only. Displays
whether the current DIMM
configuration is capable of
Memory Mirroring.
Information only. Displays
whether the current DIMM
configuration is capable of
Rank Sparing.
Information only. Displays
whether the current DIMM
configuration is capable of
Memory Lockstep.
Available modes depend on
the current memory
population. Modes that are
not listed as “possible” are
not available as choices. If
the only valid choice is
“Maximum Performance”,
this option is grayed out and
unavailable.
This option is only present
for boards that have two or
more processor sockets.
When a multi-socket board
has only a single processor
installed, this option is
grayed out and set as
Disabled.
Revision 1.8
Intel®Server Board S2600JF TPS
5.4.2.8
BIOS Setup Interface
Mass Storage Controller Configuration
The Mass Storage Configuration screen allows the user to configure the Mass Storage
controllers that are integrated into the server board on which the BIOS is executing.
To access this screen from the Main screen, select Advanced > Mass Storage Controller
Configuration. To move to another screen, press the <Esc> key to return to the Advanced
screen, then select the desired screen.
Advanced
Mass Storage Controller Configuration
AHCI Controller Configuration
SATA/SAS Controller Configuration
AHCI Capable SATA Controller
AHCI HDD Staggered Spin-Up
SAS/SATA Capable Controller
2 ports of 6Gb/s SATA
4 ports in SAS mode
Disable/Compatibility/Enhanced/AHCI/RAID Mode
ENABLED/DISABLED
DISABLED/INTEL®ESRT2(LSI*)/INTEL®RSTE
Intel®Storage Module
--- None / <Name of storage module detected >
SATA Port 0
Not Installed/<Drive Info.>
SATA Port 1
Not Installed/<Drive Info.>
Figure 27. Mass Storage Controller Configuration Screen
Table 37. Setup Utilities – Mass Storage Controller Configuration Fields
Setup Item
AHCI Controller
Configuration
SATA/SAS Controller
Configuration
AHCI Capable SATA
Controller
AHCI HDD Staggered
Spin-Up
Revision 1.8
Options
Help Text
Comments
Information only.
Information only.
Disabled
Compatibilty
Enhanced
AHCI
RAID Mode
Disabled
Enabled
Compatibility: Provides PATA
emulation on the SATA device.
Enhanced: Provides Native SATA
support.
AHCI: Enables the Advanced Host
Controller Interface, which provides
Enhanced SATA functionality.
RAID Mode: Provides host based
RAID support on the on-board
SATA ports.
If enabled for the AHCI Capable
SATA controller, Staggered SpinUp will be performed on drives
attached to it. Otherwise these
drives will all spin up at boot.
Intel order number G31608-009
This option configures
the on-board AHCIcapable SATA controller,
which is distinct from the
SCU.
This option selects the
target HDDs that will
spin up at system boot.
89
BIOS Setup Interface
Intel®Server Board S2600JF TPS
Setup Item
SAS/SATA Capable
Controller
Options
Disabled
Intel® ESRT2
(LSI*)
Intel® RSTe
Intel® Storage Module
SATA Port x
--- None
Not Installed
Drive Info
5.4.2.9
Help Text
Intel® ESRT2: Provides host-based
RAID 0/1/10 and optional RAID 5.
Uses Intel® ESRT2 drivers (based
on LSI* MegaSR).
Intel® RSTe: Provides pass-through
drive support. Also provides hostbased RAID 0/1/10 support, and
RAID 5 (in SATA mode only). Uses
Intel® RSTe iaStor drivers.
Ports 0-1: 6Gb SATA capable port
Comments
This option selects the
RAID stack to be used
with the SCU. If Disabled
is selected, any drives
connected to the SCU
will not be usable.
Information Only
Information only. This is
repeated for all six SATA
ports for the On-board
SATA Controller. This
section for SATA Drive
Information does not
appear when the SATA
Mode is RAID Mode.
PCI Configuration
The PCI Configuration screen allows the user to configure the PCI memory space used for onboard and add-in adapters, configure video options, and configure on-board adapter options. It
also displays the NIC MAC Addresses currently in use.
To access this screen from the Main screen, select Advanced > PCI Configuration. To move
to another screen, press the <Esc> key to return to the Advanced screen, then select the
desired screen.
90
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
BIOS Setup Interface
Advanced
PCI Configuration
Maximize Memory below 4GB
Enabled / Disabled
Memory Mapped I/O above 4GB
Memory Mapped I/O Size
Enabled / Disabled
Auto / 1G / 2G / 4G / 8G / 16G / 32G / 64G / 128G / 256G
/ 512G / 1024G
Onboard Video
Enabled / Disabled
Legacy VGA Socket
CPU Socket 1 / CPU Socket 2
Dual Monitor Video
Enabled / Disabled
NTB PCIe Port on CPU Socket 1
Transparent Bridge / NTB to NTB / NTB to RP
Enable NTB BARs
Enabled / Disabled
Crosslink Control Override
DSD / USP / USD / DSP
NTB PCIe Port on CPU Socket 2
Transparent Bridge / NTB to NTB / NTB to RP
Enable NTB BARs
Enabled / Disabled
Crosslink Control Override
DSD / USP / USD / DSP
► NIC Configuration
► UEFI Network Stack
► UEFI Option ROM Control
► PCIe Port Oprom Control
Figure 28. PCI Configuration Screen
Table 38. Setup Utility – PCI Configuration Screen Fields
Setup Item
Maximize Memory
below 4GB
Options
Enabled
Disabled
Memory Mapped I/O
above 4GB
Enabled
Disabled
Revision 1.8
Help Text
The BIOS maximizes memory
usage below 4GB for an OS
without PAE support, depending
on the system configuration. Only
enable for an OS without PAE
support.
Comments
When this option is enabled, the
BIOS makes as much memory
available as possible in the 32bit (4GB) address space, by
limiting the amount of PCI/PCIe
Memory Address Space and
PCIe Extended Configuration
Space. This option is only
enabled for a 32-bit OS without
PAE capability or without PAE
enabled.
Enable or disable memory mapped When enabled, PCI/PCIe
I/O of 64-bit PCI devices to 4 GB
Memory Mapped I/O for devices
or greater address space.
capable of 64-bit addressing is
allocated to address space
above 4GB, in order to allow
larger allocations and avoid
impacting address space below
4GB.
Intel order number G31608-009
91
BIOS Setup Interface
Setup Item
Memory Mapped I/O
Size
Onboard Video
Intel®Server Board S2600JF TPS
Options
Auto / 1G / 2G / 4G /
8G / 16G / 32G /
64G / 128G / 256G /
512G / 1024G
Enabled
Disabled
Help Text
Set MMIO Size.
Comments
Auto  2GB (Default).
On-board video controller.
Warning: System video is
completely disabled if this option is
disabled and an add-in video
adapter is not installed.
Determines whether Legacy VGA
video output is enabled for PCIe
slots attached to Processor Socket
1 or 2. Socket 1 is the default.
When disabled, the system
requires an add-in video card in
order for the video to be seen.
Legacy VGA Socket
CPU Spcket 1
CPU Socket 2
Dual Monitor Video
Enabled
Disabled
If enabled, both on-board video
controller and an add-in video
adapter are enabled for system
video. The on-board video
controller becomes the primary
video device.
NTB PCIe Port on
CPU Socket 1
Transparent Bridge /
NTB to NTB / NTB
to RP
Enabled
Disabled
DSD / USP
USD / DSP
Transparent Bridge /
NTB to NTB / NTB
to RP
Enabled
Disabled
DSD / USP
USD / DSP
Configure CPU PCIe root port 3A
as transparent bridge, or NTB to
NTB, or NTB to Root Port.
If disabled, the BIOS will not
program NTB BAR size registers.
Configure NTB port as DSP/USP,
USD/DSP, or use external pins.
Configure CPU PCIe root port 3A
as transparent bridge, or NTB to
NTB, or NTB to Root Port.
If disabled, the BIOS will not
program NTB BAR size registers.
Configure NTB port as DSP/USP,
USD/DSP, or use external pins.
View/Configure NIC information
and settings.
View/Configure UEFI Network
Stack Settings.
View/Configure UEFI Option ROM
Control.
View/Configure PCIe Port Oprom
Control.
Enable NTB BARs
Crosslink Control
Override
NTB PCIe Port on
CPU Socket 2
Enable NTB BARs
Crosslink Control
Override
NIC Configuration
UEFI Network Stack
UEFI Option ROM
Control
PCIe Port Oprom
Control
92
Intel order number G31608-009
This option is necessary when
using an add-in video card on a
PCIe slot attached to CPU
Socket 2, due to a limitation of
the processor IIO. The Legacy
video device can be connected
through either socket, but there
is a setting that must be set on
only one of the two. This option
allows the switch to use a video
card in a slot connected to CPU
Socket 2.
This option must be enabled to
use an add-in card as a
secondary POST Legacy Video
device while also displaying on
the On-board Video device.
If there is no add-in video card
in any PCIe slot connected to
CPU Socket 1, this option is set
to Disabled and grayed out and
unavailable.
Default is Transparent Bridge
(NTB is disabled).
This option only appears when
NTB is enabled.
This option only appears when
NTB is enabled.
Default is Transparent Bridge
(NTB is disbaled).
This option only appears when
NTB is enabled.
This option only appears when
NTB is enabled.
Revision 1.8
Intel®Server Board S2600JF TPS
5.4.2.10
BIOS Setup Interface
NIC Configuration
The NIC Configuration screen allows the user to configure on-board NIC port 1 and port 2.
Advanced
NIC Configuration
Wake On LAN
Enabled / Disabled
PXE 1GbE Option ROM
PXE 10GbE Option ROM
FCoE 10GbE Option ROM
iSCSI 1GbE / 10GbE Option ROM
Enabled / Disabled
Enabled / Disabled
Enabled / Disabled
Enabled / Disabled
Onboard NIC1 Type
NIC1 Controller
NIC1 Port1
NIC1 Port2
NIC1 Port1 PXE
NIC1 Port2 PXE
NIC1 Port1 MAC Address
NIC1 Port2 MAC Address
<Onboard NIC Description – Non-InfiniBand*>
Enabled / Disabled
Enabled / Disabled
Enabled / Disabled
Enabled / Disabled
Enabled / Disabled
<MAC Address display>
<MAC Address display >
Onboard NIC2 Type
NIC2 InfiniBand Option ROM
NIC2 Port1 GUID
NIC2 Port1 MAC Address
<Onboard NIC Description – InfiniBand Only>
Enabled / Disabled
<GUID Display>
<MAC Address display >
IO Module 1 Type
IOM1 Port1 PXE
IOM1 Port2 PXE
IOM1 Port3 PXE
IOM1 Port4 PXE
IOM1 Port1 MAC Address
IOM1 Port2 MAC Address
IOM1 Port3 MAC Address
IOM1 Port4 MAC Address
<IO Module Description – Non-InfiniBand>
Enabled / Disabled
Enabled / Disabled
Enabled / Disabled
Enabled / Disabled
<MAC Address display >
<MAC Address display >
<MAC Address display >
<MAC Address display >
IO Module 1 Type
IOM1 InfiniBand Option ROM
IOM1 Port1 GUID
IOM1 Port1 MAC Address
<IO Module Description – InfiniBand Only>
Enabled / Disabled
<GUID Display>
<MAC Address display >
Figure 29. NIC Configuration Screen
Revision 1.8
Intel order number G31608-009
93
BIOS Setup Interface
Intel®Server Board S2600JF TPS
Table 39. Setup Utility – NIC Configuration Screen Fields
Setup Item
Wake on LAN (PME)
Options
Enabled
Disabled
Help Text
Enables or disables PCI PME
function for Wake on LAN
capability from LAN adapters.
PXE 1GbE Option ROM
Enabled
Disabled
Enable/Disable Onboard / IOM
NIC PXE Option ROM Load.
iSCSI 1GbE/10GbE Option
ROM
Enabled
Disabled
Enable/Disable Onboard / IOM
NIC iSCSI Option ROM Load.
Onboard NIC1 Type
Onboard NIC2 Type
None
Intel® 82574 Single-Port Gigabit
Ethernet Controller
Intel® I350 Dual-Port Gigabit
Ethernet Controller
Intel® I350 Quad-Port Gigabit
Ethernet Controller
Intel® I540 Dual-Port X540 10
Gigabit RJ-45 Controller
Mellanox* ConnectX-3* SinglePort InfiniBand* FD14 Controller
94
Intel order number G31608-009
Comments
Enables/disables PCI/PCIe PME#
signal to generate Power Management
Events (PME) and ACPI Table entries
required for Wake on LAN (WOL).
However, note that this will enable
WOL only with an ACPI-capable
Operating System that has the WOL
function enabled.
This selection is to enable/disable the
1GbE PXE Option ROM that is used by
all On-board and IO Module 1 GbE
controllers.
This option is grayed out and not
accessible if the disc Option ROM is
enabled. It can co-exist with the 10
GbE PXE Option ROM, the 10 GbE
FCoE Option ROM, or with an
InfiniBand* controller Option ROM.
If the 1GbE PXE Option ROM is
disabled, and no other Option ROM is
enabled, the system cannot perform a
Network Boot and cannot respond for
Wake-on-LAN.
This 1GbE PXE option does not appear
unless there is a 1 GbE NIC installed in
the system as an On-board or IO
Module NIC.
This selection is to enable/disable the
iSCSI Option ROM that is used by all
On-board and IO Module 1 GbE and 10
GbE controllers.
This option is grayed out and not
accessible if the 1 GbE or 10GbE PXE
Option ROM is enabled or if the 10
GbE FCoE Option ROM is enabled. It
can co-exist with an InfiniBand*
controller Option ROM.
If the iSCSI Option ROM is disabled,
and no other Option ROM is enabled,
the system cannot perform a Network
Boot and cannot respond for Wake-onLAN.
This iSCSI option does not appear
unless there is an iSCSI-capable NIC
installed in the system as an On-board
or IO Module NIC.
Information only.
Revision 1.8
Intel®Server Board S2600JF TPS
Setup Item
IO Module 1 Type
IO Nodule 2 Type
Options
NIC1 Controller
NIC2 Controller
Enable
Disable
NIC2 InfiniBand* Option
ROM
IOM1 InfiniBand* Option
ROM
Enable
Disable
NIC2 Port1 GUID
IOM1 Port1 GUID
NIC1 Port1
NIC1 Port2
NIC2 Port1
NIC2 Port2
Revision 1.8
BIOS Setup Interface
Help Text
None
Intel® I350 Quad-Port Gigabit
Ethernet Module
Intel® I540 Dual-Port X540 10
Gigabit RJ-45 Module
Intel® 82599 Dual-Port 10
Gigabit SFP+ Module
Mellanox* ConnectX-3* SinglePort InfiniBand* FD14 Module
Enable/Disable On-board
Network Controller
Enable/Disable InfiniBand*
Controller Option ROM and
FlexBoot.
Information Only.
Enable
Disable
Enable/Disable On-board
NIC<n> Port<x>.
Intel order number G31608-009
Comments
Information only.
This will completely disable On-board
Network Controller NIC1 or NIC2, along
with all included NIC Ports and their
associated options. That controller’s
NIC Ports, Port PXE options, and Port
MAC Address displays will not appear.
This option only appears for on-board
Ethernet controllers. It does not appear
for on-board InfiniBand* controllers.
Ethernet controllers on IO Modules do
not have a disabling function that can
be controlled by the BIOS, so there is
no corresponding controller
enable/disable option for an IOM
Ethernet controller.
This option will control whether the
associated InfiniBand* Controller
Option ROM is executed by the BIOS
during POST. This will also control
whether the InfiniBand* controller
FlexBoot program appears in the list of
bootable devices.
This option only appears for On-board
or IO Module InfiniBand* controllers. It
does not appear for Ethernet
controllers.
16 hex digits of the Port1 GUID of the
InfiniBand* controller for NIC2, IOM1,
or IOM2.
This will enable or disable Port<x, x =
1-4> of On-board Network Controller<n,
n = 1-2>, including associated Port
PXE options. The NIC<n> Port<x> PXE
option and MAC Address display will
not appear when that port is disabled.
The associated port enable/disable
options will not appear when NIC<n> is
disabled.
Only ports that actually exist for a
particular NIC will appear in this
section. That is, Port1-Port4 will appear
for a quad-port NIC, Port1-Port2 will
appear for a dual-port NIC, and only
Port1 will appear for a single-port NIC.
Network controllers installed on an IO
Module do not have a port disabling
function that is controlled by the BIOS,
so there are no corresponding options
for IO Module NICs.
95
BIOS Setup Interface
Intel®Server Board S2600JF TPS
Setup Item
NIC1 Port1 PXE
NIC1 Port2 PXE
NIC2 Port1 PXE
NIC2 Port2 PXE
IOM1 Port1 PXE
IOM1 Port2 PXE
NIC1 Port1 MAC Address
NIC1 Port2 MAC Address
NIC2 Port1 MAC Address
NIC2 Port2 MAC Address
IOM1 Port1 MAC Address
IOM1 Port2 MAC Address
5.4.2.11
Options
Enable
Disable
Help Text
Enable/Disable On-board / IOM
NIC Port PXE Boot.
Comments
This option will not appear for ports on
a NIC that is disabled, or for individual
ports when the corresponding NIC Port
is disabled.
Information Only.
12 hex digits of the MAC address.
UEFI Network Stack
This screen allows the user to configure UEFI Network Stack Settings.
UEFI Network Stack
UEFI Network Stack
Enabled/Disabled
IPv4 PXE Support
Enabled/Disabled
Figure 30. UEFI Network Stack Conffiguration Screen
Table 40. Setup Utility – UEFI Network Stack Configuration Screen Fields
Setup Item
UEFI Network Stack
Options
Enabled
Disabled
Help Text
Enable or Disable the whole
UEFI Network Stack
IPv4 PXE Support
Enabled
Disabled
Enable IPv4 PXE Boot
Support. If disabled, IPv4 PXE
boot option will not be created.
5.4.2.12
Comments
Disabling the UEFI Network Stack will
disable the Network Protocols defined in
UEFI Spec v2.3.1
IPv4 PXE support is required to be
Enabled to perform native UEFI PXE
functionality.
UEFI Option ROM Control
This screen allows the user to configure UEFI Option ROM Settings.
Advanced
UEFI Option ROM Control
Intel®I350 Gigabit Network Connection – xx:xx:xx:xx:xx:xx
Intel®I350 Gigabit Network Connection – xx:xx:xx:xx:xx:xx
Figure 31. UEFI Option ROM Conffiguration Screen
96
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
BIOS Setup Interface
Table 41. Setup Utility – UEFI Option ROM Configuration Screen Fields
Setup Item
Intel® I350 Gigabit Network
Connection – MAC1 address
Intel® I350 Gigabit Network
Connection – MAC2 address
5.4.2.13
Options
Help Text
Configure Gigabit Ethernet
device parameters.
Configure Gigabit Ethernet
device parameters.
Comments
i350 Gigabit Network Connection
This screen allows the user to configure LOM NIC settings.
Intel®I350 Gigabit Network Connection - xx:xx:xx:xx:xx:xx
PORT CONFIGURATION MENU
► NIC Configuration
Blink LEDs (Range 0-15 seconds)
0
PORT CONFIGURATION
INFORMATION
UEFI Driver:
Intel®1GbE DEV x.x.xx PCI-E
Adapter PBA:
xxxxxx-xxx
Chip Type:
Intel i350
PCI Device ID:
1521
PCI Bus:Device:Function:
6:0:0
Link Status:
Connected/Disconnected
Factory MAC Address:
xx:xx:xx:xx:xx:xx
Alternate MAC Address:
xx:xx:xx:xx:xx:xx
Figure 32. i350 NIC configuration
Table 42. UEFI NIC Configuration
Setup Item
NIC Configuration
Options
Sub-menu
Help Text
Click to configure the
network device port.
Blink LEDs
0-15s
Blink LEDs for specified
duration (up to 15 seconds)
Comments
UEFI Driver
Information only
Adapter PBA
Information only
Chip Type
Intel i350
Information only
PCI Device ID
1521
Information only
PCI
Bus:Device:Fuunction
6:0:0
Information only
Revision 1.8
Intel order number G31608-009
97
BIOS Setup Interface
Setup Item
Link Status
Intel®Server Board S2600JF TPS
Options
Connected
Disconnected
Help Text
Comments
Information only
Factory MAC Address
Information only
Alternate MAC Address
Information only
5.4.2.14
PCIe Port Oprom Control
This screen allows the user to configure PCIe root port 3c OpROM.
Advanced
CPU socket 1
PCIe Port 3c OpROM Control
Enabled / Disabled
Figure 33. PCIe Port OpROM Conffiguration Screen
Table 43. Setup Utility – NIC Configuration Screen Fields
Setup Item
PCIe Port 3c OpROM
Control
5.4.2.15
Options
Enabled
Disabled
Help Text
PCIe port OpROM control
Comments
Serial Port Configuration
The Serial Port Configuration screen allows the user to configure the Serial A [COM 1] and
Serial B [COM2] ports.
To access this screen from the Main screen, select Advanced > Serial Port Configuration. To
move to another screen, press the <Esc> key to return to the Advanced screen, then select the
desired screen.
Advanced
Serial Port Configuration
Serial A Enable
Enabled / Disabled
Address
3F8h / 2F8h / 3E8h / 2E8h
IRQ
3 or 4
Figure 34. Serial Port Configuration Screen
98
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
BIOS Setup Interface
Table 44. Setup Utility – Serial Ports Configuration Screen Fields
Setup Item
Serial A
Enable
Address
IRQ
5.4.2.16
Options
Enabled
Disabled
3F8h
2F8h
3E8h
2E8h
3
4
Help Text
Enable or Disable Serial port A.
Select Serial port A base I/O address.
Select Serial port A interrupt request (IRQ) line.
USB Configuration
The USB Configuration screen allows the user to configure the USB controller options.
To access this screen from the Main screen, select Advanced > USB Configuration. To move
to another screen, press the <Esc> key to return to the Advanced screen, then select the
desired screen.
Advanced
USB Configuration
Detected USB Devices
<Total USB Devices in System>
USB Controller
Legacy USB Support
Port 60/64 Emulation
Make USB Devices Non-Bootable
Enabled / Disabled
Enabled / Disabled/Auto
Enabled / Disabled
Enabled / Disabled
USB Mass Storage Device Configuration
Device Reset timeout
10 seconds / 20 seconds / 30 seconds / 40 seconds
Mass Storage Device:
<Mass storage devices one line per device>
Auto / Floppy / Forced FDD / Hard Disk / CD-ROM
Figure 35. USB Configuration Screen
Revision 1.8
Intel order number G31608-009
99
BIOS Setup Interface
Intel®Server Board S2600JF TPS
Table 45. Setup Utility – USB Controller Configuration Screen Fields
Setup Item
Detected USB
Devices
USB Controller
Options
Enabled
Disabled
Legacy USB
Support
Enabled
Disabled
Auto
Port 60/64
Emulation
Enabled
Disabled
Make USB
Devices NonBootable
Enabled
Disabled
Device Reset
timeout
10 sec
20 sec
30 sec
40 sec
Mass Storage
Devices
Auto
Floppy
Forced FDD
Hard Disk
CD-ROM
100
Help Text
[Enabled] – All on-board USB controllers
are turned on and accessible by the OS.
[Disabled] – All on-board USB
controllers are turned off and
inaccessible by the OS.
USB device boot support and PS/2
emulation for USB keyboard and USB
mouse devices.
[Auto] – Legacy USB support is enabled
if a USB device is attached.
I/O port 60h/64h emulation support.
Note: This may be needed for legacy
USB keyboard support when using an
OS that is USB unaware.
Exclude USB in Boot Table.
[Enabled] – This removes all USB Mass
Storage devices as Boot options.
[Disabled] – This allows all USB Mass
Storage devices as Boot options.
USB Mass Storage device Start Unit
command timeout.
Setting to a larger value provides more
time for a mass storage device to be
ready, if needed.
[Auto] – USB devices less than 530 MB
are emulated as floppies.
[Forced FDD] – HDD formatted drive is
emulated as an FDD (for example, ZIP
drive).
Intel order number G31608-009
Comments
Information only. Shows the number
of USB devices in the system.
When Legacy USB Support is
Disabled, USB devices are available
only through OS drivers.
Grayed out if the USB Controller is
disabled.
Grayed out if the USB Controller is
disabled.
Grayed out if the USB Controller is
disabled.
Grayed out if the USB Controller is
disabled.
This field is hidden if no USB Mass
Storage devices are detected.
This setup screen can show a
maximum of eight USB Mass
Storage devices on the screen. If
more than eight devices are installed
in the system, the “USB Devices
Enabled” displays the correct count,
but only the first eight devices
discovered are displayed in this list.
Revision 1.8
Intel®Server Board S2600JF TPS
5.4.2.17
BIOS Setup Interface
System Acoustic and Performance Configuration
The System Acoustic and Performance Configuration screen allows the user to configure the
thermal control behavior of the system with respect to what parameters are used in the system’s
Fan Speed Control algorithms.
To access this screen from the Main screen, select Advanced > System Acoustic and
Performance Configuration. To move to another screen, press the <Esc> key to return to the
Advanced screen, then select the desired screen.
Advanced
System Acoustic and Performance Configuration
Set Throttling Mode
Altitude
Set Fan Profile
Fan PWM Offset
Quiet Fan Idle Mode
Auto / DCLTT / SCLTT / SOLTT
300m or less / 301m-900m / 901m – 1500m / Higher than
1500m
Performance / Acoustic
0
Enabled / Disabled
Figure 36. System Acoustic and Performance Configuration
Table 46. Setup Utility – System Acoustic and Performance Configuration Screen Fields
Setup Item
Set Throttling
Mode
Options
Auto
DCLTT
SCLTT
SOLTT
Help Text
[Auto] – Auto Throttling mode
[DCLTT] – Dynamic Closed Loop
Thermal Throttling
[SCLTT] – Static Closed Loop
Thermal Throttling
[SOLTT] – Static Open Loop
Thermal Throttling
Comments
DCLTT is the expected mode for a
board in an Intel chassis with inlet and
outlet air temperature sensors and
TSOD. The firmware can update the
offset registers for closed loop during
runtime, as the BIOS sends the
dynamic CLTT offset temperature
data.
SCLTT is used with an OEM chassis
and DIMMs with TSOD. The firmware
does not change the offset registers
for closed loop during runtime,
although the Management Engine can
do so.
SOLTT is intended for a system with
UDIMMs that do not have TSOD. The
thermal control registers are
configured during POST, and the
firmware does not change them.
Revision 1.8
Intel order number G31608-009
101
BIOS Setup Interface
Intel®Server Board S2600JF TPS
Setup Item
Altitude
Options
300m or less
301m-900m
901m-1500m
Higher than 1500m
Help Text
[300m or less] (980ft or less) –
Optimal performance setting near
sea level
[301m - 900m] (980ft - 2950ft) –
Optimal performance setting at
moderate elevation
[901m – 1500m] (2950ft – 4920ft) –
Optimal performance setting at
high elevation
[Higher than 1500m] (4920ft or
greater) – Optimal performance
setting at the highest elevations
Comments
This option sets an altitude value in
order to choose a Fan Profile that is
optimized for the air density at the
current altitude at which the system is
installed.
Set Fan
Profile
Performance
Acoustic
[Performance] – Fan control
provides primary system cooling
before attempting to throttle
memory.
[Acoustic] – The system will favor
using throttling of memory over
boosting fans to cool the system if
thermal thresholds are met.
This option allows the user to choose
a Fan Profile that is optimized for
maximizing performance or for
minimizing acoustic noise.
When Performance is selected, the
thermal conditions in the system are
controlled by raising fan speed when
necessary to raise cooling
performance. This provides cooling
without impacting system
performance, but may impact system
acoustic performance – fans running
faster are typically louder.
When Acoustic is selected, rather
than increasing fan speed for
additional cooling, the system will
attempt first to control thermal
conditions by throttling memory to
reduce heat production. This
regulates the system’s thermal
condition without changing the
acoustic performance, but throttling
memory may impact system
performance.
Fan PWM
Offset
[Entry Filed]
Quiet Fan Idle
Mode
Enabled
Disabled
Valid Offset 0-100. This number is
added to the calculated PWM value
to increase Fan Speed.
E Enabling this option allows the
system fans to operate in Quiet
“Fan off” mode while still
maintaining sufficient system
cooling. In this mode, fan sensors
become unavailable and cannot be
monitored. There will be limited fan
related event generation.
This is a percentage by which the
calculated fan speed will be
increased. The user can apply
positive offsets that result in
increasing the minimum fan speeds.
When enabled, this option allows fans
to idle or turn off when sufficient
thermal margin is available,
decreasing the acoustic noise
produced by the system and
decreasing system power
consumption. Fans will run as needed
to maintain thermal control. The actual
decrease in fan speed depends on the
system thermal loading, which in turn
depends on system configuration and
workload.
While Quiet Fan Idle Mode is
engaged, fan sensors become
unavailable and are not monitored by
the BMC.
102
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
5.4.2.18
BIOS Setup Interface
Security Screen (Tab)
The Security screen allows the user to enable and set the user and administrative password
and to lock out the front panel buttons so they cannot be used. This screen also allows the user
to enable and activate the Trusted Platform Module (TPM) security settings on those boards
that support TPM.
To access this screen from the Main screen or other top-level Tab screen, press the right or left
arrow keys to traverse the tabs at the top of the Setup screen until the Security screen is
selected.
Main
Advanced
Security
Server Management
Boot Options
Administrator Password Status
<Installed / Not Installed>
User Password
<Installed / Not Installed>
Boot Manager
Set Administrator Password
Set User Password
[123aBcD]
Power ON Password
Enabled / Disabled
Front Panel Lockout
Enabled / Disabled
HDD Security Configuration:
Figure 37. Security Screen
Table 47. Setup Utility – Security Configuration Screen Fields
Setup Item
Administrator
Password Status
Options
Installed
Not Installed
User Password
Status
Set
Administrator
Password
Installed
Not Installed
[Entry Field]
Revision 1.8
Help Text
Administrator password is used
to control change access in
BIOS Setup Utility.
Only alphanumeric characters
can be used. Maximum length
is seven characters. It is case
sensitive.
Note: Administrator password
must be set in order to use the
user account.
Intel order number G31608-009
Comments
Information only. Indicates the
status of the administrator
password.
Information only. Indicates the
status of the user password.
This option is only to control
access to the setup.
Administrator has full access
to all the setup items. Clearing
the Administrator password
also clears the user password.
103
BIOS Setup Interface
Intel®Server Board S2600JF TPS
Setup Item
Set User
Password
Options
[Entry Filed]
Power ON
Password
Enabled
Disabled
Front Panel
Lockout
Enabled
Disabled
Help Text
User password is used to
control entry access to BIOS
Setup Utility.
Only alphanumeric characters
can be used. Maximum length
is 7 characters. It is case
sensitive.
Note: Removing the
administrator password also
automatically removes the user
password.
Enable Power On Password
support. If enabled, password
entry is required in order to
boot the system.
When Power On Password
security is enabled, the
system will halt soon after
power on and the BIOS will
ask for a password before
continuing POST and booting.
Either the Administrator or
User password may be used.
If an Administrator password
has not been set, this option
will be grayed out and
unavailable. If this option is
enabled and the Administrator
password is removed, this will
also disable this option.
If enabled, locks the power
button and reset button on the
system's front panel. If
[Enabled] is selected, power
and reset must be controlled
through a system management
interface.
HDD Security
Configuration
5.4.2.19
Comments
Available only if the
administrator password is
installed. This option only
protects the setup.
User password only has
limited access to the setup
items.
Information only
Server Management Screen (Tab)
The Server Management screen allows the user to configure several server management
features. This screen also provides an access point to the screens for configuring console
redirection, displaying system information, and controlling the BMC LAN configuration.
To access this screen from the Main screen or other top-level Tab screen, press the right or left
arrow keys to traverse the tabs at the top of the Setup screen until the Server Management
screen is selected.
104
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Main
Advance
d
BIOS Setup Interface
Security
Server Management
Boot Options
Boot Manager
Assert NMI on SERR
Enabled / Disabled
Assert NMI on PERR
Enabled / Disabled
PCIe AER Support
Enable / Disable
Reset on CATERR
Enabled / Disabled
Reset on ERR2
Enabled / Disabled
Resume on AC Power Loss
Stay Off / Last state / Power On
Power Restore Delay
Disabled / Auto / Fixed
Power Restore Delay Value
25
Clear System Event Log
Enabled / Disabled
FRB-2 Enable
Enabled / Disabled
OS Boot Watchdog Timer
Enabled / Disabled
OS Boot Watchdog Timer Policy
Power off / Reset
OS Boot Watchdog Timer Timeout
5 minutes / 10 minutes / 15 minutes / 20 minutes
Plug and Play BMC Detection
Shutdown Policy
Enabled / Disabled
Enabled / Disabled
► Console Redirection
► System Information
► BMC LAN Configuration
Figure 38. Server Management Screen
Table 48. Setup Utility – Server Management Configuration Screen Fields
Setup Item
Assert NMI on
SERR
Options
Enabled
Disabled
Assert NMI on
PERR
Enabled
Disabled
Revision 1.8
Help Text
On SERR, generate an NMI and log an
error.
Note: [Enabled] must be selected for
the Assert NMI on PERR setup option
to be visible.
On PERR, generate an NMI and log an
error.
Note: This option is only active if the
Assert NMI on SERR option is
[Enabled] selected.
Intel order number G31608-009
Comments
105
BIOS Setup Interface
Setup Item
PCIe AER Support
Intel®Server Board S2600JF TPS
Options
Enable
Disable
Enabled
Disabled
Help Text
Enable or Disable PCIe AER (Advanced
Error Reporting)
When enabled system gets reset upon
encountering Catastrophic Error
(CATERR); when disabled system does
not get reset on CATERR.
Reset on ERR2
Enabled
Disabled
When enabled system gets reset upon
encountering ERR2 (Fatal error); when
disabled system does not get reset on
ERR2.
Resume on AC
Power Loss
Stay Off
Last state
Reset
Clear System Event
Log
Enabled
Disabled
FRB-2 Enable
Enabled
Disabled
O/S Boot Watchdog
Timer
Enabled
Disabled
O/S Boot Watchdog
Timer Policy
Power Off
Reset
O/S Boot Watchdog
Timer Timeout
5 minutes
10 minutes
15 minutes
20 minutes
Enabled
Disabled
System action to take on AC power loss
recovery.
[Stay Off] – System stays off.
[Last State] – System returns to the
same state before the AC power loss.
[Reset] – System powers on.
If enabled, clears the System Event
Log. All current entries will be lost.
Note: This option is reset to [Disabled]
after a reboot.
Fault Resilient Boot (FRB).
If enabled, the BIOS programs the BMC
watchdog timer for approximately six
minutes. If the BIOS does not complete
POST before the timer expires, the
BMC resets the system.
If enabled, the BIOS programs the
watchdog timer with the timeout value
selected. If the OS does not complete
booting before the timer expires, the
BMC resets the system and an error is
logged.
Requires OS support or Intel®
Management Software.
If the OS boot watchdog timer is
enabled, this is the system action taken
if the watchdog timer expires.
[Reset] – System performs a reset.
[Power Off] – System powers off.
If the OS watchdog timer is enabled,
this is the timeout value used by the
BIOS to configure the watchdog timer.
Reset on CATERR
Plug and Play BMC
Detection
106
Comments
PCIe AER error will be masked
after PCIe AER is disabled.
This option controls whether the
system will be reset when the
CATERR signal is held asserted,
rather than just pulsed to
generate an SMI.
This option controls whether the
system will be reset if the BMC’s
ERR2 Monitor times out, that is,
the ERR2 signal has been
continuously asserted long
enough to indicate that the SMI
Handler is not able to service the
condition.
Grayed out when the O/S Boot
Watchdog Timer is disabled.
Grayed out when the O/S Boot
Watchdog Timer is disabled.
If enabled, the BMC is detectable by
OSes that support plug and play loading
of an IPMI driver. Do not enable if your
OS does not support this driver.
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Setup Item
Shutdown Policy
Options
Enabled
Disabled
BIOS Setup Interface
Help Text
Enable/Disable Shutdown Policy.
Console
Redirection
System Information
View/Configure console redirection
information and settings.
View system information.
BMC LAN
Configuration
View/Configure BMC LAN channel and
user settings.
5.4.2.20
Comments
This option is designed for
multiple-node system and to
control the policy that BMC
should shut down one node if it
detected over-current or overtemperature condition. The BIOS
and the BMC will synchronize the
policy during the BIOS POST
and current value of the BMC will
be displayed in BIOS Setup.
This option only shows on Node
3 and Node 4.
Takes the user to the Console
Redirection screen.
Takes the user to the System
Information screen.
Takes the user to the BMC
configuration screen.
Console Redirection
The Console Redirection screen allows the user to enable or disable Console Redirection for
Remote Management, and to configure the connection options for this feature.
To access this screen from the Main screen, select Server Management > Console
Redirection. To move to another screen, press the <Esc> key to return to the Server
Management screen, then select the desired screen.
Server Management
Console Redirection
Console Redirection
Disabled / Serial Port A
Flow Control
None / RTS/CTS
Baud Rate
9.6k / 19.2k / 38.4k / 57.6k / 115.2k
Terminal Type
PC-ANSI / VT100 / VT100+ / VT-UTF8
Legacy OS Redirection
Disabled / Enabled
Terminal Resolution
80x24 / 100x31
Figure 39. Console Redirection Screen
Table 49. Setup Utility – Console Redirection Configuration Fields
Setup Item
Console Redirection
Revision 1.8
Options
Disabled
Serial Port A
Help Text
Console redirection allows a serial port to be used for server
management tasks.
[Disabled] – No console redirection.
[Serial Port A] – Configure serial port A for console redirection.
Enabling this option disables the display of the Quiet Boot logo
screen during POST.
Intel order number G31608-009
107
BIOS Setup Interface
Intel®Server Board S2600JF TPS
Setup Item
Flow Control
Options
None
RTS/CTS
Baud Rate
9600
19.2K
38.4K
57.6K
115.2K
PC-ANSI
VT100
VT100+
VT-UTF8
Disabled
Enabled
Terminal Type
Legacy OS
Redirection
Terminal Resolution
5.4.2.21
80x24
100x31
Help Text
Flow control is the handshake protocol.
Setting must match the remote terminal application.
[None] – Configure for no flow control.
[RTS/CTS] – Configure for hardware flow control.
Serial port transmission speed. Setting must match the remote
terminal application.
Character formatting used for console redirection. Setting must
match the remote terminal application.
This option enables legacy OS redirection (that is, DOS) on serial
port. If it is enabled, the associated serial port is hidden from the
legacy OS.
Terminal screen resolution for console redirection.
System Information
The System Information screen allows the user to view part numbers, serial numbers, and
firmware revisions. This is an Information Only screen.
To access this screen from the Main screen, select Server Management > System
Information. To move to another screen, press the <Esc> key to return to the Server
Management screen, then select the desired screen.
Server Management
System Information
Board Part Number
<Part Number display>
Board Serial Number
<Serial Number display>
System Part Number
<Part Number display>
System Serial Number
<Serial Number display>
Chassis Part Number
<Part Number display>
Chassis Serial Number
<Serial Number display>
Asset Tag
<Asset Tag-display>
BMC Firmware Revision
<BMC FW Rev display>
HSC Firmware Revision
<HSC FW Rev display>
ME Firmware Revision
<ME FW Rev display>
SDR Revision
<SDR Rev display>
UUID
<UUID display>
Figure 40. System Information Screen
108
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
BIOS Setup Interface
Table 50. Setup Utility – Server Management System Information Fields
Setup Item
Board Part Number
Board Serial Number
System Part Number
System Serial Number
Chassis Part Number
Chassis Serial Number
Asset Tag
Help Text
Press <Enter> to edit system Serial Number and
then use Backspace to delete existing value.
Maximum length is 20 characters.
Press <Enter> to edit system Serial Number and
then use Backspace to delete existing value.
Maximum length is 20 characters.
BMC Firmware Revision
HSC Firmware Revision
Information only.
Information only.
Information only.
Information only.
Information only. If there is
no HSC installed, the
Firmware Revision Number
appears as “0,00”.
Information only.
Information only.
Information only.
ME Firmware Revision
SDR Revision
UUID
5.4.2.22
Comments
Information only.
Information only.
Information only.
Information only.
BMC LAN Configuration
The BMC configuration screen allows the Setup user to configure the BMC Baseboard LAN
channel and the RMM4 LAN channel, and to manage BMC User settings for up to five BMC
Users.
To access this screen from the Main screen, select Server Management > System
Information. To move to another screen, press the <Esc> key to return to the Server
Management screen, then select the desired screen.
Revision 1.8
Intel order number G31608-009
109
BIOS Setup Interface
Intel®Server Board S2600JF TPS
Server Management
BMC LAN Configuration
Baseboard LAN configuration
IP Source
IP Address
Subnet Mask
Gateway IP
Baseboard LAN IPV6 configuration
IPV6
IPV6 source
IPV6 address
Gateway IPV6
IPV6 Prefix Length
Static/Dynamic
[0.0.0.0 IP display/edit]
[0.0.0.0 IP display/edit]
[0.0.0.0 IP display/edit]
Disable/Enable
Static/Dynamic/Auto
0000:0000:0000:0000
0000:0000:0000:0000
64
Intel® RMM4 IPV4 LAN configuration
Intel® RMM4
IP Source
IP Address
Subnet Mask
Gateway IP
<Present/Not Present>
Static/Dynamic
[0.0.0.0 IP display/edit]
[0.0.0.0 IP display/edit]
[0.0.0.0 IP display/edit]
Intel® RMM4 IPV6 LAN configuration
Intel® RMM4
IPV6 Source
IPV6 Address
Gateway IPV6
IPV6 Prefix Length
<Present/Not Present>
Static/Dynamic
0000:0000:0000:0000
0000:0000:0000:0000
64
BMC DHCP Host Name
[DHCP Host Name display/edit]
User Configuration
User ID
Privilege
User status
User Name
User Password.
anonymous/root/User3/User4/User5
Callback/ User/Operator/Administrator
Disable/Enable
[User Name display/edit]
Figure 41. BMC LAN Configuration Screen
110
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
BIOS Setup Interface
Table 51. Setup Utility – BMC Configuration Screen Fields
Setup Item
IP source
Options
Static
Dynamic
IP address
Subnet Mask
Gateway IP
Intel® RMM4
IP source
Present
Not Present
Static
Dynamic
IP address
Subnet Mask
Gateway IP
BMC DHCP Host
Name
User ID
Privilege
User Status
User Name
User Password
Revision 1.8
anonymous
root
User3
User4
User5
Callback
User
Operator
Administrator
Enable
Disable
Help Text
Select BMC IP source. When Static option is
selected, IP address, subnet mask, and gateway
are editable. When Dynamic option selected,
these fields are read-only and IP is address
acquired automatically (DHCP).
View/Edit IP address. Press <Enter> to edit.
View/Edit subnet address. Press <Enter> to edit.
View Edit Gateway IP address. Press <Enter> to
edit.
Comments
Information Only.
Select BMC IP source. When Static option is
selected, IP address, subnet mask, and gateway
are editable. When Dynamic option selected,
these fields are read-only and IP is address
acquired automatically (DHCP).
View/Edit IP address. Press <Enter> to edit.
View/Edit subnet address. Press <Enter> to edit.
View Edit Gateway IP address. Press <Enter> to
edit.
View/Edit BMC DHCP host name. Press <Enter>
to edit.
Available only when IP
source for any one
channel is dynamic
option.
Select the user id to configure.
View/Select user privilege.
Enable/Disable LAN access for selected user.
Also enables/disables SOL, KVM media
redirection.
Press <Enter> to edit user name. The user name
is a string of 4 to 15 alphanumeric characters.
The user name must begin with an alphabetic
character.
Press <Enter> Key to enter password. Only
alphanumeric characters can be used. Maximum
length is 15 characters and case sensitive.
Note: Password entered will override any
previously set password.
Intel order number G31608-009
This filed will not
indicate whether there is
password set already.
111
BIOS Setup Interface
5.4.2.23
Intel®Server Board S2600JF TPS
Boot Options Screen (Tab)
The Boot Options screen displays all bootable media encountered during POST, and allows the
user to configure the desired order in which boot devices are to be tried.
The first boot device in the specified Boot Order that is present and is bootable during POST will
be used to boot the system, and will continue to be used to reboot the system until the boot
device configuration has changed (that is, which boot devices are present), or until the system
has been powered down and booted in a cold power-on boot.
If all types of bootable devices are installed in the system, the default boot order is as follows:






CD/DVD-ROM
Floppy Disk Drive
Hard Disk Drive
PXE Network Device
BEV (Boot Entry Vector) Device
EFI Shell and EFI Boot paths
To access this screen from the Main screen or other top-level Tab screen, press the right or left
arrow keys to traverse the tabs at the top of the Setup screen until the Boot Options screen is
selected.
Main
Advanced
Security
Server Management
Boot Options
System Boot Timeout
<0 – 65535, 0 is default>
Boot Option #1
<Available Boot devices>
Boot Option #2
<Available Boot devices>
Boot Option #n
<Available Boot devices>
Boot Manager
► Network Device Order
► Hard Disk Order
EFI Optimized Boot
Enabled/Disabled
Boot Option Retry
Enabled/Disabled
USB Boot Priority
Enabled/Disabled
Static Boot Ordering
Enabled/Disabled
Reset Static Boot Order
Yes/No Action
Figure 42. Boot Options Screen
112
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
BIOS Setup Interface
Table 52. Setup Utility – Boot Options Screen Fields
Setup Item
Boot Timeout
Options
0-65535
Boot Option #x
Available boot
devices.
Hard Disk Order
Network Device
Order
Help Text
The number of seconds the BIOS
should pause at the end of POST to
allow the user to press the [F2] key for
entering the BIOS Setup utility.
Valid values are 0-65535. Zero is the
default. A value of 65535 causes the
system to go to the Boot Manager
menu and wait for user input for every
system boot.
Set system boot order by selecting the
boot option for this position.
Set the order of the legacy devices in
this group.
Set the order of the legacy devices in
this group.
EFI Optimized Boot
Enabled
Disabled
If enabled, the BIOS only loads
modules required for booting EFIaware Operating Systems.
Boot Option Retry
Enabled
Disabled
USB Boot Priority
Enabled
Disabled
Static Boot Ordering
Enabled
Disabled
If enabled, this continually retries nonEFI-based boot options without waiting
for user input.
If enabled, newly discovered USB
devices will be put to the top of their
boot device category.
If disabled, newly discovered USB
devices will be put at the bottom of the
respective list.
[Disabled] – Devices removed from the
system are deleted from Boot Order
Tables.
[Enabled] – Devices removed have
positions in Boot Order Tables retained
for later reinsertion.
Reset Static Boot
Order
Yes
No Action
Revision 1.8
[Yes] – Take snapshot of current boot
order to save as Static Boot Order
Template.
Intel order number G31608-009
Comments
After entering the necessary
timeout, press the Enter key to
register that timeout value to
the system. These settings are
in seconds.
Displays when one or more
hard disk drives are in the
system.
Displays when one or more of
these devices are available in
the system.
Grayed out when [SW RAID]
SATA Mode is Enabled. SW
RAID can only be used in
Legacy Boot mode.
When the option changes to
“Enabled” from “Disabled”, it
will enable Static Boot
Ordering (SBO) from the next
boot onward, and also the
current Boot Order will be
stored as the SBO template.
When the option changes to
“Disabled” from “Enabled”, it
will disable SBO and the SBO
template will be cleared.
Otherwise it will retain the
current Enabled/Disabled
state.
This option will allow you to
take the current Boot Options
and save it as the Static Boot
Option template without
disabling and re-enabling the
Static Boot Ordering option.
Select “Yes” to snapshot the
current Boot Options into the
Static Boot Options. After
saving SBO, on next boot this
option will change back to “No
Action” automatically.
113
BIOS Setup Interface
5.4.2.24
Intel®Server Board S2600JF TPS
Hard Disk Order
The Hard Disk Order screen allows the user to control the order in which BIOS attempts to boot
from the hard disk drives installed in the system. This screen is only available when there is at
least one hard disk device available in the system configuration. Note that a USB attached Hard
Disk drive or a USB Key device formatted as a hard disk will appear in this section.
To access this screen from the Main screen, select Boot Options > Hard Disk Order. To move
to another screen, press the <Esc> key to return to the Boot Options screen, then select the
desired screen.
Boot Options
Hard Disk Order
Hard Disk #1
<Available Hard Disk devices>
Hard Disk #2
<Available Hard Disk devices>
Figure 43. Hard Disk Order Screen
Table 53. Setup Utility – Hard Disk Order Fields
Setup Item
Hard Disk #1
Hard Disk #2
5.4.2.25
Options
Available Legacy devices for
this Device group.
Available Legacy devices for
this Device group.
Help Text
Set system boot order by selecting the boot
option for this position.
Set system boot order by selecting the boot
option for this position.
Network Device Order
The Network Device Order screen allows the user to control the order in which BIOS attempts to
boot from the network bootable devices installed in the system. This screen is only available
when there is at least one network bootable device available in the system configuration.
To access this screen from the Main screen, select Boot Options > Network Device Order. To
move to another screen, press the <Esc> key to return to the Boot Options screen, then select
the desired screen.
Boot Options
Network Device Order
Network Device #1
<Available bootable Network devices>
Network Device #2
<Available bootable Network devices>
Figure 44. Network Device Order Screen
114
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
BIOS Setup Interface
Table 54. Setup Utility – Network Device Order Fields
Setup Item
Network
Device #1
Network
Device #2
5.4.2.26
Options
Available Legacy devices for
this Device group.
Available Legacy devices for
this Device group.
Help Text
Set system boot order by selecting the boot
option for this position.
Set system boot order by selecting the boot
option for this position.
Boot Manager Screen (Tab)
The Boot Manager screen allows the user to view a list of devices available for booting, and to
select a boot device for immediately booting the system. Note that this list is not in order
according to the system Boot Option order. The Internal EFI Shell will always be available,
regardless of whether any other bootable devices are available.
To access this screen from the Main screen or other top-level Tab screen, press the right or left
arrow keys to traverse the tabs at the top of the Setup screen until the Boot Manager screen is
selected.
Main
Advanced
Security
Server Management
Boot Options
Boot Manager
Internal EFI Shell
<Boot device #1>
<Boot Option #2>
<Boot Option #n>
Figure 45. Boot Manager Screen
Table 55. Setup Utility – Boot Manager Screen Fields
Setup Item
Internal EFI Shell
Boot Device #n
5.4.2.27
Help Text
Select this option to boot now.
Note: This list is not the system boot option order. Use the
Boot Options menu to view and configure the system boot
option order.
Select this option to boot now.
Note: This list is not the system boot option order. Use the
Boot Options menu to view and configure the system boot
option order.
Error Manager Screen (Tab)
The Error Manager screen displays any POST Error Codes encountered during BIOS POST,
along with an explanation of the meaning of the Error Code in the form of a Help Text. This is an
Information Only screen.
To access this screen from the Main screen or other top-level Tab screen, press the right or left
arrow keys to traverse the tabs at the top of the Setup screen until the Error Manager screen is
selected.
Revision 1.8
Intel order number G31608-009
115
BIOS Setup Interface
Intel®Server Board S2600JF TPS
Error Manager
Save&Exit
► View Event Log
ERROR CODE
SEVERITY
INSTANCE
<Post Code>
<Major/Minor>
<Instance #>>
<Description>
5224
Major
N/A
This is an example.
Figure 46. Error Manager Screen
Table 56. Setup Utility – Error Manager Screen Fields
Setup Item
Displays System Errors
5.4.2.28
Options
Help Text
Comments
Information only. Displays errors that occurred
during POST.
Save and Exit Screen (Tab)
The Exit screen allows the user to choose whether to save or discard the configuration changes
made on other Setup screens. It also allows the user to restore the BIOS settings to the factory
defaults or to save or restore them to a set of user-defined default values. If Load Default
Values is selected, the factory default settings (noted in bold in the Setup screen images) are
applied. If Load User Default Values is selected, the system is restored to the previously saved
user-defined default values.
To access this screen from the Main screen or other top-level Tab screen, press the right or left
arrow keys to traverse the tabs at the top of the Setup screen until the Exit screen is selected.
Error Manager
Save & Exit
Save Changes and Exit
Discard Changes and Exit
Save Changes
Discard Changes
Load Default Values
Save as User Default Values
Load User Default Values
Figure 47. Save & Exit Screen
116
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
BIOS Setup Interface
Table 57. Setup Utility – Exit Screen Fields
Setup Item
Save Changes and Exit
Discard Changes and
Exit
Save Changes
Discard Changes
Load Default Values
Save as User Default
Values
Load User Default
Values
5.5
Help Text
Exit the BIOS Setup utility after saving changes.
The system reboots if required.
The [F10] key can also be used.
Exit the BIOS Setup utility without saving
changes.
The [Esc] key can also be used.
Save changes without exiting the BIOS Setup
Utility.
Note: Saved changes may require a system
reboot before taking effect.
Discard changes made since the last Save
Changes operation was performed.
Load factory default values for all BIOS Setup
utility options.
The [F9] key can also be used.
Save current BIOS Setup utility values as
custom user default values. If needed, the user
default values can be restored through the Load
User Default Values option given as follows.
Note: Clearing the CMOS or NVRAM does not
cause the User Default values to be reset to the
factory default values.
Load user default values.
Comments
User prompted for confirmation only if
any of the setup fields were modified.
User prompted for confirmation only if
any of the setup fields were modified.
User prompted for confirmation only if
any of the setup fields were modified.
User prompted for confirmation only if
any of the setup fields were modified.
User prompted for confirmation.
User prompted for confirmation.
User prompted for confirmation.
Loading BIOS Defaults
Different mechanisms exist for resetting the system configuration to the default values. When a
request to reset the system configuration is detected, the BIOS loads the default system
configuration values during the next POST. You can send the request to reset the system to the
defaults in the following ways:

Pressing <F9> from within the BIOS Setup utility.

Moving the clear system configuration jumper.

IPMI command (set System Boot options command).

Int15 AX=DA209.

Choosing Load User Defaults from the Exit page of the BIOS Setup loads user set
defaults instead of the BIOS factory defaults.
The recommended steps to load the BIOS defaults are:
1. Power down the system (Do not remove AC power).
2. Move the BIOS DFLT jumper from pins 1-2 to pins 2-3.
3. Move the BIOS DFLT jumper from pins 2-3 to pins 1-2.
4. Power up the system.
Revision 1.8
Intel order number G31608-009
117
Configuration Jumpers
6.
Intel®Server Board S2600JF TPS
Configuration Jumpers
The following table provides a summary and description of configuration, test, and debug
jumpers on the Intel® Server Board S2600JF. The server board has several 3-pin jumper blocks
that can be used.
Pin 1 on each jumper block can be identified by the following symbol on the silkscreen.
Figure 48. Jumper Blocks (J6B1, J1E2, J1E3, J1E1, and J1D5)
118
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Configuration Jumpers
Table 58. Server Board Jumpers (J6B1, J1E2, J1E3, J1E1, and J1D5)
Jumper Name
J6B1: BMC Force
Update jumper
J1E2: ME Force Update
J1E3: Password Clear
Jumper Position
1-2
Mode of Operation
Normal
Normal mode
Note
2-3
Update
BMC in force update mode
1-2
Normal
Normal mode
2-3
Update
ME in force update mode
1-2
Normal
Normal mode, password in protection
2-3
Clear Password
BIOS password is cleared
J1E1: BIOS Recovery
Mode
1-2
Normal
Normal mode
2-3
Recovery
BIOS in recovery mode
J1D5: BIOS Default
1-2
Normal
Normal mode
2-3
Clear BIOS
Settings
BIOS settings are reset to factory default
6.1
Force Integrated BMC Update (J6B1)
When performing a standard BMC firmware update procedure, the update utility places the
BMC into an update mode, allowing the firmware to load safely onto the flash device. In the
unlikely event the BMC firmware update process fails due to the BMC not being in the proper
update state, the server board provides a BMC Force Update jumper (J6B1) that will force the
BMC into the proper update state. The following procedure should be followed in the event the
standard BMC firmware update process fails.
Table 59. Force Integrated BMC Update Jumper
Jumper Position
1-2
Mode of
Operation
Normal
Note
Normal operation
2-3
Update
BMC in force update mode
Steps to perform Force BMC Update:
1. Power down and remove the AC power cord.
2. Open the server chassis. See your server chassis documentation for instructions.
3. Move jumper from the default operating position (covering pins1 and 2) to the enabled
position (covering pins 2 and 3).
4. Close the server chassis.
5. Reconnect the AC cord and power up the server.
6. Perform the BMC firmware update procedure as documented in the ReleaseNote.TXT
file included in the given BMC firmware update package. After successful completion of
the firmware update process, the firmware update utility may generate an error stating
the BMC is still in update mode.
7. Power down and remove the AC power cord.
8. Open the server chassis.
9. Move the jumper from the enabled position (covering pins 2 and 3) to the disabled
position (covering pins 1 and 2).
10. Close the server chassis.
11. Reconnect the AC cord and power up the server.
Revision 1.8
Intel order number G31608-009
119
Configuration Jumpers
Intel®Server Board S2600JF TPS
Note: Normal BMC functionality is disabled with the Force BMC Update jumper set to the
enabled position. You should never run the server with the BMC Force Update jumper set in this
position. You should only use this jumper setting when the standard firmware update process
fails. This jumper should remain in the default/disabled position when the server is running
normally.
The server board has several 3-pin jumper blocks that can be used to configure, protect, or
recover specific features of the server board.
6.2
Force ME Update (J1E2)
When this 3-pin jumper is set, it manually puts the ME firmware in update mode, which enables
the user to update ME firmware code when necessary.
Table 60. Force ME Update Jumper
Jumper Position
1-2
Mode of
Operation
Normal
Note
Normal operation
2-3
Update
ME in force update mode
Note: Normal ME functionality is disabled with the Force ME Update jumper set to the enabled
position. You should never run the server with the ME Force Update jumper set in this position.
You should only use this jumper setting when the standard firmware update process fails. This
jumper should remain in the default/disabled position when the server is running normally.
Steps to perform the Force ME Update:
1.
Power down and remove the AC power cord.
2.
Open the server chassis. For instructions, see your server chassis documentation.
3.
Move jumper from the default operating position (covering pins 1 and 2) to the enabled
position (covering pins 2 and 3).
4.
Close the server chassis.
5.
Reconnect the AC cord and power up the server.
6.
Perform the ME firmware update procedure as documented in the README.TXT file
that is included in the given ME firmware update package (same package as BIOS).
7.
Power down and remove the AC power cord.
8.
Open the server chassis.
9.
Move jumper from the enabled position (covering pins 2 and 3) to the disabled position
(covering pins 1 and 2).
10. Close the server chassis.
120
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
6.3
Configuration Jumpers
Password Clear (J1B6)
The user sets this 3-pin jumper to clear the password.
Table 61. Password Clear Jumper
Jumper Position
1-2
2-3
Mode of Operation
Normal
Note
Normal mode, password in protection
Clear Password
BIOS password is cleared
Steps to clear the BIOS password:
1. Plug out the compute module from chassis.
2. Remove the air duct.
3. Move jumper (J1B6) from the default operating position (covering pins 1 and 2) to the
password clear position (covering pins 2 and 3).
4. Plug in compute module in chassis and power on for 10 seconds or until POST
completes.
5. Plug out the compute module.
6. Move the jumper back to default position (covering pins 1 and 2).
7. Restore the air duct.
8. Plug in compute module back to chassis.
9. Power up the compute module.
The password is now cleared and you can reset it by going into the BIOS setup.
6.4
BIOS Recovery Mode (J1E1)
The Intel® Server Board S2600JF uses BIOS recovery to repair the system BIOS from flash
corruption in the main BIOS and Boot Block. This 3-pin jumper is used to reload the BIOS when
the image is suspected to be corrupted. For directions on how to recover the BIOS, refer to the
specific BIOS release notes.
Table 62. BIOS Recovery Mode Jumper
Jumper
Position
1-2
2-3
Mode of
Operation
Normal
Note
Normal mode
Recovery
BIOS in recovery mode
You can accomplish a BIOS recovery from the SATA CD and USB Mass Storage device. Note
that this platform does not support recovery from a USB floppy.
The recovery media must contain the following files under the root directory:
1.
2.
3.
4.
RML.ROM
UEFI iFlash32 11.0 Build 2 (including iFlash32.efi and ipmi.efi)
*Rec.CAP
Startup.nsh (update accordingly to use proper *Rec.CAP file)
Revision 1.8
Intel order number G31608-009
121
Configuration Jumpers
Intel®Server Board S2600JF TPS
The BIOS starts the recovery process by first loading and booting to the recovery image file
(RML.ROM) on the root directory of the recovery media (USB disk). This process takes place
before any video or console is available. After the system boots to this recovery image file
(FVMAIN.FV), it boots automatically into the EFI Shell to invoke the Startup.nsh script and start
the flash update application (IFlash32.efi). IFlash32.efi requires the supporting BIOS Capsule
image file (*Rec.CAP).
After the update is complete, a message displays, stating the BIOS has been updated
successfully. This indicates the recovery process is finished.
The user should then switch the recovery jumper back to normal operation and restart the
system by performing a power cycle.
The following steps demonstrate this recovery process:
1. Power OFF the system.
2. Insert recovery media.
3. Switch the recovery jumper. Details regarding the jumper ID and location can be obtained
from the Board EPS for that Platform.
4. Power ON the system.
5. The BIOS POST screen appears displaying the progress, and the system automatically
boots to the EFI SHELL.
6. The Startup.nsh file executes, and initiates the flash update (IFlash32.efi) with a new
capsule file (*Rec.CAP). The regular iFlash message displays at the end of the process—
after the flash update succeeds.
7. Power OFF the system, and revert the recovery jumper position to normal operation.
8. Power ON the system.
9. Do NOT interrupt the BIOS POST during the first boot.
6.5
Reset BIOS Settings (J1D5)
The former name for this jumper is CMOS Clear. It is used to be the BIOS reset jumper. Since
the previous generation, the BIOS has moved CMOS data to the NVRAM region of the BIOS
flash. The BIOS checks during boot to determine whether the data in the NVRAM needs to be
set to default (Same function as F9 in BIOS that loads BIOS by default).
Table 63. Reset BIOS Jumper
Jumper Position
1-2
2-3
Mode of Operation
Normal
Normal mode
Note
Clear BIOS settings
BIOS settings are reset to factory default
Steps to clear BIOS settings:
1. Plug out the compute module from chassis.
2. Remove the air duct.
3. Move jumper (J1D5) from the default operating position (covering pins 1 and 2) to the
reset/clear position (covering pins 2 and 3).
4. Wait five seconds.
122
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
5.
6.
7.
8.
Configuration Jumpers
Move the jumper back to default position (covering pins 1 and 2).
Restore the air duct.
Plug in the compute module back to chassis.
Power up the compute module.
The BIOS settings are now cleared and you can reset it by going into the BIOS setup.
Note: Removing AC Power before performing the BIOS settings Clear operation causes the
system to automatically power up and immediately power down, after the procedure is followed
and AC power is re-applied. If this happens, remove the AC power cord again, wait 30 seconds,
and re-install the AC power cord. Power up the system and proceed to the <F2> BIOS Setup
Utility to reset the desired settings.
Revision 1.8
Intel order number G31608-009
123
Connector/Header Locations and Pin-out
Intel®Server Board S2600JF TPS
7.
Connector/Header Locations and Pin-out
7.1
Power Connectors
To facilitate customers who want to cable to this board from a power supply, the power
connector is implemented through two 6-pin Minifit Jr* connectors, which can be used to deliver
12amps per pin or 60+Amps total. Note that no over-voltage protective circuits will exist on the
board.
Table 64. Main Power Supply Connector 6-pin 2x3 Connector (J4K1 and J3K1)
Pin
1
2
3
7.2
7.2.1
Signal Name
GND
GND
GND
Pin
4
5
6
Signal Name
+12V
+12V
+12V
System Management Headers
Intel®Remote Management Module 4 (Intel®RMM4 Lite) Connector
A 7-pin Intel® RMM4 Lite connector (J1A2) is included on the server board to support the
optional Intel® Remote Management Module 4. There is no support for third-party management
cards on this server board.
Note: This connector is not compatible with the Intel® Remote Management Module 3 (Intel®
RMM3).
Table 65. Intel® RMM4 Lite Connector Pin-out (J1A2)
Pin
1
3
5
7
7.2.2
Signal Description
DI
CLK
GND
GND
Pin
2
4
6
8
Signal Description
VCC
KEY
DO
CS_N
IPMB Header
Table 66. IPMB Header 4-pin (J2D2)
Pin
1
2
3
4
7.3
Signal Name
SMB_IPMB_5VSB_DAT
GND
SMB_IPMB_5VSB_CLK
P5V_STBY
Description
BMC IPMB 5V standby data line
Ground
BMC IPMB 5V standby clock line
+5V standby power
Bridge Board Connector
The bridge board delivers SATA/SAS signals, Disk back plane management signals, BMC
SMBus* as well as SSI-compliant front panel and miscellaneous Node specific signals. The fifth
SAS connection was added to support a Raid 5 + hot spare configuration. This drives the
addition of a second set of SGPIO pins.
124
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Connector/Header Locations and Pin-out
Table 67. Bridge Board Connector (J1D1)
Side Even
Signal
80
78
76
74
72
70
68
66
64
62
60
58
56
54
52
50
48
46
44
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
SATA_SAS_SEL
GND
SAS0_RX_DP
SAS0_RX_DN
GND
SAS1_TX_DP
SAS1_TX_DN
GND
SAS2_RX_DP
SAS2_RX_DN
GND
SAS3_TX_DP
SAS3_TX_DN
GND
SGPIO CLK
IBMC_ID0
IBMC_ID1
IBMC_ID2
IBMC_ID3
SPA_SIN_N
SPA_SOUT_N
2
Side Odd
Signal
GND
GND
SAS0_TX_DN
SAS0_TX_DP
GND
SAS1_RX_DN
SAS1_RX_DP
GND
SAS2_TX_DN
SAS2_TX_DP
GND
SAS3_RX_DN
SAS3_RX_DP
GND
SPKR_IN
SGPIO_SAS1_LOAD
SGPIO_SAS1_DATA_OUT
SGPIO_SAS1_DATA_IN
PS_EN_PSU _N
IRQ_PMBUS Alert_N
GND
USB2_P0_DN
USB2_P0_DP
GND
SATA0_RX_DP
SATA0_RX_DN
GND
USB_OC_FP
79
77
75
73
71
69
67
65
63
61
59
57
55
53
51
49
47
45
43
41
39
37
35
33
31
29
27
25
23
21
19
17
15
13
11
9
7
5
3
5V Aux
1
5V Aux
FP NMI BTN_N
FP PWR BTN_N
FP RST BTN_N
FP ID BTN_N
FP ID LED_N
FP PWR LED_N
FP STS LED G_N
FP STS LED A_N
FP ACT LED_N
FP HDD ACT LED_N
GND
SMB_PMBUS_CLK
SMBUS_PMBUS_DATA
GND
SMB_HSBP_3V3STBY_CLK
SMB_HSBP_3V3STBY_DATA
GND
SMB_3V3STBY_CLK
SMB_3V3STBY_DATA
GND
IPMB-5VSTBY_Clk
IPMB-5VSTBY_Data
GND
SPARE
ALL_NODE_OFF
GND
GND
SATA0_TX_DP
SATA0_TX_DN
Combined system BIOS and the Integrated BMC support provide the functionality of the various
supported control panel buttons and LEDs. The following sections describe the supported
functionality of each control panel feature.
Revision 1.8
Intel order number G31608-009
125
Connector/Header Locations and Pin-out
7.3.1
Intel®Server Board S2600JF TPS
Power Button
The BIOS supports a front control panel power button. Pressing the power button initiates a
request that the Integrated BMC forwards to the ACPI power state machines in the chipset. It is
monitored by the Integrated BMC and does not directly control power on the power supply.

Power Button – Off to On
The Integrated BMC monitors the power button and the wake-up event signals from the
chipset. A transition from either source results in the Integrated BMC starting the powerup sequence. Because the processors are not executing, the BIOS does not participate
in this sequence. The hardware receives the power good and reset signals from the
Integrated BMC and then transitions to an ON state.

Power Button – On to Off (operating system absent)
The System Control Interrupt (SCI) is masked. The BIOS sets up the power button event
to generate an SMI and checks the power button status bit in the ACPI hardware
registers when an SMI occurs. If the status bit is set, the BIOS sets the ACPI power state
of the machine in the chipset to the OFF state. The Integrated BMC monitors power
state signals from the chipset and de-asserts PS_PWR_ON to the power supply. As a
safety mechanism, if the BIOS fails to service the request, the Integrated BMC
automatically powers off the system in four to five seconds.

Power Button – On to Off (operating system present)
If an ACPI operating system is running, pressing the power button switch generates a
request through SCI to the operating system to shut down the system. The operating
system retains control of the system and the operating system policy determines the
sleep state into which the system transitions, if any. Otherwise, the BIOS turns off the
system.
7.3.2
Reset Button
The platform supports a front control panel reset button. Pressing the reset button initiates a
request forwarded by the Integrated BMC to the chipset. The BIOS does not affect the behavior
of the reset button.
7.3.3
Chassis Identify Button
The front panel Chassis Identify button toggles the state of the chassis ID LED. If the LED is off,
pushing the ID button lights the LED. It remains lit until the button is pushed again or until a
Chassis Identify or a Chassis Identify LED command is received to change the state of the LED.
7.3.4
Power LED
The green power LED is active when the system DC power is on. The power LED is controlled
by the BIOS. The power LED reflects a combination of the state of system (DC) power and the
system ACPI state.
The following table identifies the different states that the power LED can assume.
126
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Connector/Header Locations and Pin-out
Table 68. Power LED Indicator States
State
Power off
Power on
S5
S1 Sleep
S0
7.3.5
ACPI
No
No
Yes
Yes
Yes
Power LED
Off
Solid on
Off
~1 Hz blink
Solid on
System Status LED
Note: The system status LED state shows the state for the current, most severe fault. For
example, if there is a critical fault due to one source and a non-critical fault due to another
source, the system status LED state will be solid on (the critical fault state).
The system status LED is a bicolor LED. Green (status) shows a normal operation state or a
degraded operation. Amber (fault) shows the system hardware state and overrides the green
status.
The Integrated BMC detected state and the state from the other controllers, such as the
SCSI/SATA hot-swap controller state, are included in the LED state. For fault states monitored
by the Integrated BMC sensors, the contribution to the LED state follows the associated sensor
state, with the priority going to the most critical state currently asserted.
When the server is powered down (transitions to the DC-off state or S5), the Integrated BMC is
still on standby power and retains the sensor and front panel status LED state established prior
to the power-down event.
The following table maps the system state to the LED state.
Figure 49. System Status LED (A) and ID LED (B)
Revision 1.8
Intel order number G31608-009
127
Connector/Header Locations and Pin-out
Intel®Server Board S2600JF TPS
Table 69. System Status LED
Color
Green
Green
State
Solid on
~1 Hz blink
System Status
Ok
Degraded
Amber
~1 Hz blink
Non-Fatal
Amber
Solid on
Fatal
Description
System ready
BIOS detected

Unable to use all of the installed memory (more than one
DIMM installed).1

In a mirrored configuration, when memory mirroring takes
place and system loses memory redundancy. This is not
covered by (2).1

PCI Express* correctable link errors.
Integrated BMC detected

Redundancy loss such as a power supply or fan. Applies
only if the associated platform subsystem has redundancy
capabilities.

CPU disabled – If there are two CPUs and one CPU is
disabled.

Fan alarm – Fan failure. Number of operational fans should
be more than minimum number needed to cool the system.

Non-critical threshold crossed – Temperature, voltage,
power nozzle, power gauge, and PROCHOT2 (Therm Ctrl)
sensors.

Battery failure.

Predictive failure when the system has redundant power
supplies.
Non-fatal alarm – system is likely to fail:
BIOS Detected

In non-mirroring mode, if the threshold of ten correctable
errors is crossed within the window.1

PCI Express* uncorrectable link errors.
Integrated BMC Detected

Critical threshold crossed – Voltage, temperature, power
nozzle, power gauge, and PROCHOT (therm Ctrl) sensors.

VRD Hot asserted.

Minimum number of fans to cool the system is not present
or has failed.
Fatal alarm – system has failed or shut down:
BIOS Detected

DIMM failure when there is one DIMM present and no good
memory is present.1

Run-time memory uncorrectable error in non-redundant
mode.1

CPU configuration error (for instance, processor stepping
mismatch).
Integrated BMC Detected

CPU CATERR signal asserted.

CPU 1 is missing.

CPU THERMTRIP.

No power good – power fault.

Power Unit Redundancy sensor – Insufficient resources
offset (indicates not enough power supplies are present).
Main power off
Off
NA
Not ready
Notes:
1. The BIOS detects these conditions and sends a Set Fault Indication command to the Integrated BMC to
provide the contribution to the system status LED.
2. Support for an upper, non-critical threshold limit is not provided in default SDR configuration. However, if a
user does enable this threshold in the SDR, the system status LED should behave as described.
128
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
7.3.6
Connector/Header Locations and Pin-out
Chassis ID LED
The chassis ID LED provides a visual indication of a system being serviced. The state of the
chassis ID LED is affected by the following:

Toggled by the chassis ID button

Controlled by the Chassis Identify command (IPMI)

Controlled by the Chassis Identify LED command (OEM)
Table 70. Chassis ID LED Indicator States
State
Identify active through button
Identify active through command
Off
LED State
Solid on
~1 Hz blink
Off
There is no precedence or lock-out mechanism for the control sources. When a new request
arrives, all previous requests are terminated. For example, if the chassis ID LED is blinking and
the chassis ID button is pressed, the chassis ID LED changes to solid on. If the button is
pressed again with no intervening commands, the chassis ID LED turns off.
7.4
I/O Connectors
7.4.1
PCI Express* Connectors
®
The Intel Server Board S2600JP uses three PCI Express* slots physically with different pin-out
definition. Each riser slot has dedicated usage and cannot be used for normal PCIe based addin card.

Riser Slot 1: Riser to support PCIe x16 add-in card or GPGPU card

Riser Slot 2: Riser to support PCIe x16 add-in card, GPGPU card, or Intel® IOM card

Riser Slot 3: Riser to support PCIe x16 add-in card or GPGPU card
The pin-outs for the slots are shown in the following tables.
Table 71. PCI Express* x16 Riser Slot 1 Connector (J6A1)
Description
Pin
B1
Pin
12V
20W 3.3V generated on riser
A1
12V
20W 3.3V generated on riser
B2
B3
B4
B5
12V
12V
12V
SMCLK
66W for GPU
66W for GPU
66W for GPU
A2
A3
A4
A5
12V
12V
SMDATA
66W for GPU
66W for GPU
3.3VAUX
For wake on LAN
A6
GPU_NODE_ON
can turn of 2U GPU power
B7
3.3VAUX
GND
For wake on LAN
A7
GPU_PWRGD
B8
Tach9
A8
Tach11
B9
Tach8
A9
Tach10
B10
Tach7
A10
Tach6
B11
Spare
A11
Spare
B6
Pin Name
Pin Name
Description
KEY
Revision 1.8
Intel order number G31608-009
129
Connector/Header Locations and Pin-out
Pin
B12
Pin Name
Intel®Server Board S2600JF TPS
Description
Pin
Pin Name
Description
Spare
A12
Spare
GND
A13
PWM2
GND
A14
PERST#
A15
WAKE#
A16
GND
B17
B18
B19
SMBUS_R4
CLK
SMBUS_R4
DAT
GND
PETxP0
PETxN0
A17
A18
A19
REFCLK+
REFCLKGND
Clock pair 1
Clock pair 1
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
GND
GND
PETxP1
PETxN1
GND
GND
PETxP2
PETxN2
GND
GND
PETxP3
PETxN3
GND
GND
PETxP4
PETxN4
GND
GND
PETxP5
PETxN5
GND
GND
PETxP6
PETxN6
GND
GND
PETxP7
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
PERxP0
PERxN0
GND
GND
PERxP1
PERxN1
GND
GND
PERxP2
PERxN2
GND
GND
PERxP3
PERxN3
GND
GND
PERxP4
PERxN4
GND
GND
PERxP5
PERxN5
GND
GND
PERxP6
PERxN6
GND
Rx Lane 0+
Rx Lane 0-
B47
B48
B49
B50
PETxN7
GND
GND
PETxP8
Tx Lane 7-
A47
A48
A49
A50
GND
PERxP7
PERxN7
GND
B51
B52
B53
B54
B55
B56
PETxN8
GND
GND
PETxP9
PETxN9
GND
Tx Lane 8-
A51
A52
A53
A54
A55
A56
GND
PERxP8
PERxN8
GND
GND
PERxP9
B13
B14
B15
B16
130
Tx Lane 0+
Tx Lane 0-
Tx Lane 1+
Tx Lane 1-
Tx Lane 2+
Tx Lane 2-
Tx Lane 3+
Tx Lane 3-
Tx Lane 4+
Tx Lane 4-
Tx Lane 5+
Tx Lane 5-
Tx Lane 6+
Tx Lane 6-
Tx Lane 7+
Tx Lane 8+
Tx Lane 9+
Tx Lane 9-
Intel order number G31608-009
GPU Fan speed control
Rx Lane 1+
Rx Lane 1-
Rx Lane 2+
Rx Lane 2-
Rx Lane 3+
Rx Lane 3-
Rx Lane 4+
Rx Lane 4-
Rx Lane 5+
Rx Lane 5-
Rx Lane 6+
Rx Lane 6-
Rx Lane 7+
Rx Lane 7-
Rx Lane 8+
Rx Lane 8-
Rx Lane 9+
Revision 1.8
Intel®Server Board S2600JF TPS
Pin
Pin Name
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66
B67
B68
B69
B70
B71
B72
B73
B74
B75
B76
B77
B78
B79
B80
B81
B82
GND
PETxP10
PETxN10
GND
GND
PETxP11
PETxN11
GND
GND
PETxP12
PETxN12
GND
GND
PETxP13
PETxN13
GND
GND
PETxP14
PETxN14
GND
REFCLK+
REFCLKGND
PETxP15
PETxN15
GND
Connector/Header Locations and Pin-out
Description
Pin
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82
Tx Lane 10+
Tx Lane 10-
Tx Lane 11+
Tx Lane 11-
Tx Lane 12+
Tx Lane 12-
Tx Lane 13+
Tx Lane 13-
Tx Lane 14+
Tx Lane 14Clock pair 2
Clock pair 2
Tx Lane 15+
Tx Lane 15-
Pin Name
PERxN9
GND
GND
PERxP10
PERxN10
GND
GND
PERxP11
PERxN11
GND
GND
PERxP12
PERxN12
GND
GND
PERxP13
PERxN13
GND
GND
PERxP14
PERxN14
GND
PERxP15
PERxN15
GND
Riser ID
Description
Rx Lane 9-
Rx Lane 10+
Rx Lane 10-
Rx Lane 11+
Rx Lane 11-
Rx Lane 12+
Rx Lane 12-
Rx Lane 13+
Rx Lane 13-
Rx Lane 14+
Rx Lane 14Rx Lane 15+
Rx Lane 15(See Table 74)
Table 72. PCI Express* x16 Riser Slot 2 Connector (J1A3)
Pin
B1
Pin Name
12V
Description
20W 3.3V generated on riser
Pin
A1
B2
B3
B4
B5
12V
12V
12V
SMCLK
66W for GPU
66W for GPU
66W for GPU
for rIOM temp sensor
A2
A3
A4
A5
For DNM and IOM wake on
LAN
A6
Pin Name
12V
12V
12V
SMDATA
5VAUX
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
3.3V Aux
GND
TXD_0
TXD_1
TXD_2
TXD_3
RGMII txmit data
RGMII txmit data
RGMII txmit data
RGMII txmit data
GND
TX_CLK
TX_CTL
MDIO
Revision 1.8
RGMII txmit Clock
RGMII txmit Cntrl
A7
A8
A9
A10
A11
KEY
A12
A13
A14
A15
Description
20W 3.3V generated on riser
66W for GPU
66W for GPU
for rIOM temp sensor
For DNM and IOM wake on
LAN
PRESENT#
RIOM_ACT#
RXD_3
RXD_2
RXD_1
RXD_0
DNM function present
RX_CTL
GND
RGMII receive Cntrl
RX_CLK
MDC
RGMII receive Clock
Intel order number G31608-009
RGMII receive data
RGMII receive data
RGMII receive data
RGMII receive data
131
Connector/Header Locations and Pin-out
Pin
B16
B17
B18
B19
Pin Name
PERST#
WAKE#
PETxP0
PETxN0
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
GND
GND
PETxP1
PETxN1
GND
GND
PETxP2
PETxN2
GND
GND
PETxP3
PETxN3
GND
GND
PETxP4
PETxN4
GND
GND
PETxP5
PETxN5
GND
GND
PETxP6
PETxN6
GND
GND
PETxP7
B47
B48
B49
B50
PETxN7
GND
GND
PETxP8
Tx Lane 7-
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
PETxN8
GND
GND
PETxP9
PETxN9
GND
GND
PETxP10
PETxN10
GND
GND
PETxP11
Tx Lane 8-
132
Description
Tx Lane 0+
Tx Lane 0-
Tx Lane 1+
Tx Lane 1-
Tx Lane 2+
Tx Lane 2-
Tx Lane 3+
Tx Lane 3-
Tx Lane 4+
Tx Lane 4-
Tx Lane 5+
Tx Lane 5-
Tx Lane 6+
Tx Lane 6-
Tx Lane 7+
Tx Lane 8+
Tx Lane 9+
Tx Lane 9-
Tx Lane 10+
Tx Lane 10-
Tx Lane 11+
Intel®Server Board S2600JF TPS
Pin
A16
A17
A18
A19
Pin Name
GND
REFCLK+
REFCLKGND
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
PERxP0
PERxN0
GND
GND
PERxP1
PERxN1
GND
GND
PERxP2
PERxN2
GND
GND
PERxP3
PERxN3
GND
GND
PERxP4
PERxN4
GND
GND
PERxP5
PERxN5
GND
GND
PERxP6
PERxN6
GND
A47
A48
A49
A50
GND
PERxP7
PERxN7
GND
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
GND
PERxP8
PERxN8
GND
GND
PERxP9
PERxN9
GND
GND
PERxP10
PERxN10
GND
Intel order number G31608-009
Description
Clock pair 1
Clock pair 1
Rx Lane 0+
Rx Lane 0-
Rx Lane 1+
Rx Lane 1-
Rx Lane 2+
Rx Lane 2-
Rx Lane 3+
Rx Lane 3-
Rx Lane 4+
Rx Lane 4-
Rx Lane 5+
Rx Lane 5-
Rx Lane 6+
Rx Lane 6-
Rx Lane 7+
Rx Lane 7-
Rx Lane 8+
Rx Lane 8-
Rx Lane 9+
Rx Lane 9-
Rx Lane 10+
Rx Lane 10-
Revision 1.8
Intel®Server Board S2600JF TPS
Pin
B63
B64
B65
B66
B67
B68
B69
B70
B71
B72
B73
B74
B75
B76
B77
B78
B79
B80
B81
B82
Pin Name
PETxN11
GND
GND
PETxP12
PETxN12
GND
GND
PETxP13
PETxN13
GND
GND
PETxP14
PETxN14
GND
REFCLK+
REFCLKGND
PETxP15
PETxN15
GND
Connector/Header Locations and Pin-out
Description
Tx Lane 11-
Pin
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82
Tx Lane 12+
Tx Lane 12-
Tx Lane 13+
Tx Lane 13-
Tx Lane 14+
Tx Lane 14Clock pair 2
Clock pair 2
Tx Lane 15+
Tx Lane 15-
Pin Name
GND
PERxP11
PERxN11
GND
GND
PERxP12
PERxN12
GND
GND
PERxP13
PERxN13
GND
GND
PERxP14
PERxN14
GND
PERxP15
PERxN15
GND
Riser ID
Description
Rx Lane 11+
Rx Lane 11-
Rx Lane 12+
Rx Lane 12-
Rx Lane 13+
Rx Lane 13-
Rx Lane 14+
Rx Lane 14Rx Lane 15+
Rx Lane 15(See Table 74)
Table 73. PCI Express* x16 Riser Slot 3 Connector (J1H1)
Pin
B1
Pin Name
12V
Description
20W 3.3V generated on riser
Pin
A1
B2
B3
B4
B5
12V
12V
12V
SMCLK
66W for GPU
66W for GPU
66W for GPU
A2
A3
A4
A5
B6
B7
B8
B9
B10
B11
3.3VAUX
GND
For wake on LAN
Pin Name
12V
Description
20W 3.3V generated on riser
12V
12V
SMDATA
66W for GPU
66W for GPU
For wake on LAN
Spare
Spare
Spare
Spare
A6
A7
A8
A9
A10
A11
3.3VAUX
Spare
Spare
Spare
Spare
Spare
Spare
B12
B13
B14
B15
B16
B17
B18
B19
GND
PERST#
WAKE#
GND
REFCLK+
REFCLKGND
GND
KEY
A12
A13
A14
A15
A16
A17
A18
A19
Spare
GND
REFCLK+
REFCLKGND
GND
PERxP0
PERxN0
B20
B21
B22
PETxP0
PETxN0
GND
A20
A21
A22
GND
GND
PERxP1
Revision 1.8
Clock pair 2
Clock pair 2
Tx Lane 0+
Tx Lane 0-
Intel order number G31608-009
Clock pair 1
Clock pair 1
Rx Lane 0+
Rx Lane 0-
Rx Lane 1+
133
Connector/Header Locations and Pin-out
Pin
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
Pin Name
GND
PETxP1
PETxN1
GND
GND
PETxP2
PETxN2
GND
GND
PETxP3
PETxN3
GND
GND
PETxP4
PETxN4
GND
GND
PETxP5
PETxN5
GND
GND
PETxP6
PETxN6
GND
B47
B48
B49
B50
GND
PETxP7
PETxN7
GND
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66
B67
B68
B69
GND
PETxP8
PETxN8
GND
GND
PETxP9
PETxN9
GND
GND
PETxP10
PETxN10
GND
GND
PETxP11
PETxN11
GND
GND
PETxP12
PETxN12
134
Intel®Server Board S2600JF TPS
Description
Tx Lane 1+
Tx Lane 1-
Tx Lane 2+
Tx Lane 2-
Tx Lane 3+
Tx Lane 3-
Tx Lane 4+
Tx Lane 4-
Tx Lane 5+
Tx Lane 5-
Tx Lane 6+
Tx Lane 6-
Tx Lane 7+
Tx Lane 7-
Tx Lane 8+
Tx Lane 8-
Tx Lane 9+
Tx Lane 9-
Tx Lane 10+
Tx Lane 10-
Tx Lane 11+
Tx Lane 11-
Tx Lane 12+
Tx Lane 12-
Pin
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
Pin Name
PERxN1
GND
GND
PERxP2
PERxN2
GND
GND
PERxP3
PERxN3
GND
GND
PERxP4
PERxN4
GND
GND
PERxP5
PERxN5
GND
GND
PERxP6
PERxN6
GND
GND
PERxP7
Description
Rx Lane 1-
A47
A48
A49
A50
PERxN7
GND
GND
PERxP8
Rx Lane 7-
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
PERxN8
GND
GND
PERxP9
PERxN9
GND
GND
PERxP10
PERxN10
GND
GND
PERxP11
PERxN11
GND
GND
PERxP12
PERxN12
GND
GND
Rx Lane 8-
Intel order number G31608-009
Rx Lane 2+
Rx Lane 2-
Rx Lane 3+
Rx Lane 3-
Rx Lane 4+
Rx Lane 4-
Rx Lane 5+
Rx Lane 5-
Rx Lane 6+
Rx Lane 6-
Rx Lane 7+
Rx Lane 8+
Rx Lane 9+
Rx Lane 9-
Rx Lane 10+
Rx Lane 10-
Rx Lane 11+
Rx Lane 11-
Rx Lane 12+
Rx Lane 12-
Revision 1.8
Intel®Server Board S2600JF TPS
Pin
B70
B71
B72
B73
B74
B75
B76
B77
B78
B79
B80
B81
B82
Pin Name
GND
GND
PETxP13
PETxN13
GND
GND
PETxP14
PETxN14
GND
GND
PETxP15
PETxN15
GND
Connector/Header Locations and Pin-out
Description
Pin
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82
Tx Lane 13+
Tx Lane 13-
Tx Lane 14+
Tx Lane 14-
Tx Lane 15+
Tx Lane 15-
Pin Name
PERxP13
PERxN13
GND
GND
PERxP14
PERxN14
GND
GND
PERxP15
PERxN15
GND
GND
Riser ID
Description
Rx Lane 13+
Rx Lane 13-
Rx Lane 14+
Rx Lane 14-
Rx Lane 15+
Rx Lane 15-
(See Table 74)
Table 74. PCI Express* Riser ID Assignment
CPU1
Description
Riser 1 1x16
Riser 1 2x8
Riser 2 1x16
Riser 2 2x8
Riser 3 1x16
Riser 3 2x8
Riser ID (0)
1
0
Riser ID (1)
CPU2
Riser ID (2)
1
0*
1
0
Notes:
1. S2600JF board supports only one GPIO for slot 2 riser ID. However, there are three types of riser defined
for Slot 2.
a.
PCIe 1 x16 riser
b.
PCIe 2 x 8 riser
c.
IOM riser
2. Riser 2 x8 and Riser IOM share the same riser ID as IOM riser.
Table 75. PCI Express* Clock Source by Slot
PCI Express Clocks Source according Riser's Lane
PCIE SLOT RISER
X16 PCIE PIN
X8 (lane 0~7) PCIE PIN
X8 (8~15) PCIE PIN
SLOT 1
PIN A17/A18
PIN A17/A18
PIN B77/B78
SLOT 2
PIN A17/A18
PIN A17/A18
PIN B77/B78
SLOT 3
PIN A14/A15
PIN A14/A15
PIN B16/B17
7.4.2
VGA Connector
The following table details the pin-out definition of the external VGA connector (J4A1).
Revision 1.8
Intel order number G31608-009
135
Connector/Header Locations and Pin-out
Intel®Server Board S2600JF TPS
Table 76. VGA External Video Connector (J4A1)
Pin
7.4.3
1
Signal Name
V_IO_R_CONN
Description
Red (analog color signal R)
2
V_IO_G_CONN
Green (analog color signal G)
3
V_IO_B_CONN
Blue (analog color signal B)
4
TP_VID_CONN_B4
No connection
5
GND
Ground
6
GND
Ground
7
GND
Ground
8
GND
Ground
9
TP_VID_CONN_B9
No connection
10
GND
Ground
11
TP_VID_CONN_B11
No connection
12
V_IO_DDCDAT
DDCDAT
13
V_IO_HSYNC_CONN
HSYNC (horizontal sync)
14
V_IO_VSYNC_CONN
VSYNC (vertical sync)
15
V_IO_DDCCLK
DDCCLK
NIC Connectors
The server board provides two independent RJ-45 connectors on the back edge of the board
(JA6A1, JA5A1). The pin-out for NIC connectors are identical and are defined in the following
table.
Table 77. RJ-45 10/100/1000 NIC Connector Pin-out (JA6A1 and JA5A1)
7.4.4
SATA Connectors
The server board provides one SATA port connector named SATA-1 port (J6D1) on board.
Additional four SAS ports are provided through bridge board.
136
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Connector/Header Locations and Pin-out
The pin configuration for each connector is identical and defined in the following table.
Table 78. SATA Connector
Pin
1
2
3
4
5
6
7
Signal Name
GND
SATA_TX_P
SATA_TX_N
GND
SATA_RX_N
SATA_RX_P
P5V_SATA/GND
Description
Ground
Positive side of transmit differential pair
Negative side of transmit differential pair
Ground
Negative side of receive differential pair
Positive side of receive differential pair
+5V for DOM or Ground for SATA signals
Note: SATA DOM requires external power that cannot be used with SATA-1 port.
7.4.5
Hard Drive Activity (Input) LED Header
Table 79. SATA HDD Activity (Input) LED Header (J6C5)
Pin
1
2
7.4.6
Description
LED_HD_ACTIVE_L
NC
Storage Upgrade Key Connector
The server board provides one SATA/SAS storage upgrade key connector (J6C4) on board.
The Storage Upgrade Key is a small PCB board that has up to two security EEPROMs that are
read by the system ME to enable different versions of LSI* RAID 5 software stack and/or
upgrade from SATA to SAS storage functionality.
The pin configuration of connector is identical and defined in the following table.
Table 80. Storage Upgrade Key Connector (J6C4)
Pin
Signal Description
GND
DYN_SKU_KEY
GND
SAS_SATA_RAID_KEY
1
2
3
4
7.4.7
Serial Port Connectors
The server board provides one internal 9-pin serial A header (J6A2). The following tables define
the pin-outs.
Table 81. Internal 9-Pin Serial A (COM1) (J6A2)
Pin
1
3
5
7
9
Revision 1.8
Signal Name
SPB_DCD
SPB_SIN_N
SPB_SOUT_N
SPB_DTR
GND
Pin
2
4
6
8
Signal Name
SPB_DSR
SPB_RTS
SPB_CTS
SPB_RI
Intel order number G31608-009
137
Connector/Header Locations and Pin-out
7.4.8
Intel®Server Board S2600JF TPS
USB Connectors
The following table details the pin-out of the external stack USB port 0/1 connectors (J3A1)
found on the back edge of the server board.
Table 82. External USB Port Connector (J3A1)
Pin
1
2
3
4
Signal Name
+5V
USB_N
USB_P
GND
Description
USB Power
Differential data line paired with DATAH0
Differential date line paired with DATAL0
Ground
One 2x5 connector on the server board provides an option to support two additional internal
USB port (USB 2/3). The pin-out is detailed in the following table.
Table 83. Internal USB Connector (J2D1)
Pin
1
3
5
7
9
7.4.9
Signal Name
+5V
USB_N
USB_P
GND
Key Pin
Pin
2
4
6
8
10
Signal Name
+5V
USB_N
USB_P
GND
NC
QSFP for InfiniBand*
The following table details the pin-out of the QSFP connector (J2B1) found on the back edge of
the server board. This port is only available on board SKU S2600JFQ and S2600JFF.
Table 84. QSFP Pin Definition
Side A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
138
Signal
GND
IB_RX0_DN0
IB_RX0_DP0
GND
IB_RX0_DN2
IB_RX0_DP2
GND
SMB_IB_QSFP0_DATA
SMB_IB_QSFP0_CLK
P3V3_RX_PORT0
RST_QSFP0_N
FM_QSFP0_MODSEIL_N
GND
IB_TX0_DP3
IB_TX0_DN3
GND
IB_TX0_DP1
IB_TX0_DN1
Side B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Signal
GND
IB_RX0_DN1
IB_RX0_DP1
GND
IB_RX0_DN3
IB_RX0_DP3
GND
QSFP0_MODPRSL_N
IRQ_QSFP0_N
P3V3_TX_PORT0
P3V3_PORT0
QSFP0_LPMODE
GND
IB_TX0_DP2
IB_TX0_DN2
GND
IB_TX0_DP0
IB_TX0_DN0
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Side A
Signal
19
7.5
Connector/Header Locations and Pin-out
GND
Side B
19
Signal
GND
Fan Headers
To facilitate the connection of 3 x40mm double rotor fans, a 14-pin header is provided, and all
fans share a PWM. Both rotor tachs can be monitored.
Table 85. Baseboard Fan Connector (J1K2)
Pin
Signal Name
Pin
Signal Name
1
PWM1
2
Reserved
3
Tach0
4
Tach1
5
7
Tach2
Tach4
6
8
Tach3
Tach5
9
NODE_ON
10
GND
11
SMBUS_R4 CLK
12
SMBUS_R4 DAT
13
NODE_ADR0
14
NODE_PWRGD
The SMBus* is used to connect to the hot-swap controller that provides inrush current protection
and can measure the power being used by the node. The NODE_ON signal is used to turn on
the hot-swap controller. Note that the polarity is correct because the ADI1275 controller uses a
high true enable signal. When the node is turned off, the fans will continue to rotate at a preset
rate; this rate is selected by Intel and preset by the Fan manufacturer. This is done to stop air
recirculation between nodes. When docking the board to a live 12V rail, the fans will spin up
immediately; it may be required to phase their connection to power to minimize the inrush
current. Bench testing of the fans should determine if this is necessary.
7.6
Chassis Intrusion
The Chassis Intrusion header is connected through a two-wire cable to a switch assembly that
is mounted just under the chassis cover on systems that support this feature. When the chassis
cover is removed, the switch and thus the electrical connection between the pins on this header
become open allowing the Server Engines PILOT III BMC’s CHASIS_N pin to be pulled LOW.
The Server Engines PILOT III BMC’s CHASIS_N pin is used by Firmware to note the change in
the chassis cover status. Header on baseboard can be unstuffed by default a shorting resistor
will be needed to close the circuit.
Table 86. Chassis Intrusion Header (J6C1)
Header State
PINS 1 and 2 CLOSED
Description
BMC CHASIS_N is pulled HIGH. Chassis cover is closed.
PINS 1 and 2 OPEN
BMC CHASIS_N is pulled LOW. Chassis cover is removed.
Revision 1.8
Intel order number G31608-009
139
Intel®Light-Guided Diagnostics
8.
Intel®Server Board S2600JF TPS
Intel®Light-Guided Diagnostics
The Intel® Server Board S2600JF has several on-board diagnostic LEDs to assist in
troubleshooting board-level issues. This section describes the location and function of each LED
on the server board.
8.1
Front Panel Support
The Intel® Server Board S2600JF supports Mini-FP on Intel® Server Chassis H2000JF. The
front panel control signals are provided through bridge board.
Each Mini-FP provides the following switch and LED features:
 Power switch with integrated power LED (green). Includes clear button lens but painted
black with laser etched power icon for light to shine through.
 Chassis ID switch with integrated ID LED (blue). Includes clear button lens but painted
black with laser etched ID icon for light to shine through.
 Recessed resets switch with black actuator.
 Bi-color Status/Fault LED (green/amber). Includes a status/fault icon printed on cosmetic
front panel label. Icon should be translucent (only shows when LED is on).
 Single network activity/link LED, hardware baseboard ORs Ethernet and Infiniband*
activity signals together into just one global signal. Includes a network activity/link icon
printed on cosmetic front panel label. Icon should be translucent (only shows when LED
is on).
8.1.1
System ID LED
The server board supports a blue system ID LED on the front panel, which is used to visually
identify a specific server installed among many other similar servers. There are two options
available for illuminating the System ID LED:
1. The front panel ID LED Button is pushed, which causes the LED to illuminate to a solid
on state until the button is pushed again.
2. An IPMI Chassis Identify command is remotely entered, which causes the LED to blink.
The System ID LED on the server board is tied directly to the System ID LED on system front
panel if present.
8.1.2
System Status LED
The server board supports status LED on the front panel, which acts as same as the status LED
on the server board.
8.1.3
Network Link/Activity LED
The server board provides LED on the front panel for Network Link/Activity. On S2600JF base
SKU, this LED shows the status of Ethernet port. On S2600JFQ and S2600JFF, this LED still
shows the Ethernet port link and activities. Following table shows the LED detail.
140
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Intel®Light-Guided Diagnostics
Table 87. Network Link/Activity LED
LED
LAN – Link/Activity
8.1.4
Color
Condition
Green
Green
On
Blink
Off
What It Means
LAN link/no access
LAN access
Idle
Dedicated InfiniBand* Link/Activity LED
The server board provides dedicated LEDs for InfiniBand* Link/Activity. They are located on the
baseboard rear, near diagnostic LED set. This set of LEDs only works on S2600JFQ and
S2600JFF baseboard. See block B in Figure 52 for the location of LEDs. The following table
shows the LED detail.
Table 88. InfiniBand* Link/Activity LED
LED Color
Amber (Right)
Green (Left)
8.2
LED State
NIC State
Off
No Logical Link
Blinking
Logical Link established
Off
No Physical Link
On
Physical Link established
POST Code Diagnostic LEDs
Eight amber POST code diagnostic LEDs are located on the back left edge of the server board,
in the rear I/O area near the QSFP connector.
During the system boot process, the BIOS executes a number of platform configuration
processes, each of which is assigned a specific hex POST code number. As each configuration
routine is started, the BIOS displays the given POST code to the POST code diagnostic LEDs
on the back edge of the server board. To assist in troubleshooting a system hang during the
POST process, you can use the Diagnostic LEDs to identify the last POST process executed.
For a complete description of how these LEDs are read and a list of all supported POST codes,
refer to Appendix A.
Revision 1.8
Intel order number G31608-009
141
Intel®Light-Guided Diagnostics
Intel®Server Board S2600JF TPS
Figure 50. Rear Panel Diagnostic LEDs (Block A)
142
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
9.
Environmental Limits Specification
Environmental Limits Specification
Operation of the server board at conditions beyond those shown in the following table may
cause permanent damage to the system. Exposure to absolute maximum rating conditions for
extended periods may affect long term system reliability.
Note: The Energy Star compliance is at systems level, but not board level. Use of Intel® Server
Boards alone does not guarantee Energy Star compliance.
Table 89. Server Board Design Specifications
Note:
1.
Operating Temperature
0ºC to 55ºC1 (32ºF to 131ºF) at product airflow
specification
Non-Operating Temperature
-40ºC to 70ºC (-40ºF to 158ºF)
DC Voltage
± 5% of all nominal voltages
Shock (Unpackaged)
Trapezoidal, 35g, 170 inches/sec
Shock (Packaged)
<20 pounds
>= 20 to <40 pounds
>= 40 to <80 pounds
>= 80 to <100 pounds
>= 100 to <120 pounds
>= 120 pounds
36 inches
30 inches
24 inches
18 inches
12 inches
9 inches
Vibration (Unpackaged)
5 Hz to 500 Hz 3.13 g RMS random
Intel Corporation server boards contain a number of high-density VLSI and power delivery components that
need adequate airflow to cool. Intel ensures through its own chassis development and testing that when Intel
server building blocks are used together, the fully integrated system will meet the intended thermal
requirements of these components. It is the responsibility of the system integrator who chooses not to use
Intel developed server building blocks to consult vendor datasheets and operating parameters to determine
the amount of airflow required for their specific application and environmental conditions. Intel Corporation
cannot be held responsible, if components fail or the server board does not operate correctly when used
outside any of its published operating or non-operating limits.
Disclaimer Note: Intel ensures the unpackaged server board and system meet the shock
requirement mentioned above through its own chassis development and system configuration. It
is the responsibility of the system integrator to determine the proper shock level of the board
and system if the system integrator chooses different system configuration or different chassis.
Intel Corporation cannot be held responsible if components fail or the server board does not
operate correctly when used outside any of its published operating or non-operating limits.
9.1
System Level Environmental Considerations
In order to maintain comprehensive thermal protection, deliver the best system acoustics, and
improve fan power efficiency, an intelligent Fan Speed Control (FSC) and thermal management
technology (mechanism) is used. Options in <F2> BIOS Setup (BIOS > Advanced > System
Acoustic and Performance Configuration) allow for parameter adjustments based on the
actual system configuration and usage. Refer to the following sections for a description of each
setting.
Revision 1.8
Intel order number G31608-009
143
Environmental Limits Specification
Intel®Server Board S2600JF TPS
9.1.1
Set Throttling Mode
This option is used to select the desired memory thermal throttling mechanism. Available
settings include [Auto], [DCLTT], [SCLTT] and [SOLTT].
[Auto] – Factory Default Setting: The BIOS automatically detects and identifies the appropriate
thermal throttling mechanism based on DIMM type, airflow input, and DIMM sensor availability.
[DCLTT] – Dynamic Closed Loop Thermal Throttling: For the SOD DIMM with system airflow
input.
[SCLTT] – Static Close Loop Thermal Throttling: For the SOD DIMM without system airflow
input.
[SOLTT] – Static Open Loop Thermal Throttling: For the DIMMs without sensor on DIMM (SOD).
9.1.2
Altitude
This option is used to select the proper altitude that the system will be used in. Available
settings include [300m or less], [301m-900m], [901m-1500m], and [Above 1500m].
Selecting an altitude range that is lower than the actual altitude the system will be operating at,
can cause the fan control system to operate less efficiently, leading to higher system thermals
and lower system performance. If the altitude range selected is higher than the actual altitude
the system will be operating at, the fan control system may provide better cooling but with
higher acoustics and higher fan power consumption. If the altitude is not known, selecting a
higher altitude is recommended in order to provide sufficient cooling.
9.1.3
Set Fan Profile
This option is used to set the desired Fan Profile. Available settings include [Performance] and
[Acoustic].
The Acoustic mode offers the best acoustic experience and appropriate cooling capability
covering the mainstream and the majority of the add-in cards used. Performance mode is
designed to provide sufficient cooling capability covering all kinds of add-in cards on the market.
9.1.4
Fan PWM Offset
This option is reserved for manual adjustment to the minimum fan speed curves. The valid
range is from [0 to 100] that stands for 0% to 100% PWM adding to the minimum fan speed.
This feature is valid when Quiet Fan Idle Mode is at Enabled state. The default setting is [0].
9.1.5
Quiet Fan Idle Mode
This feature can be [Enabled] or [Disabled]. If enabled, the fans will either shift to lower speeds
or stop when the aggregate sensor temperatures are satisfied, indicating the system is at ideal
thermal/light loading conditions. When the aggregate sensor temperatures are not satisfied, the
fans will shift back to normal control curves. If disabled, the fans will never shift to lower fan
speeds or stop, regardless of whether the aggregate sensor temperatures are satisfied. The
default setting is [Disabled].
Note: The features above may or may not be in effect and depend on the actual thermal
characteristics of the specified system.
144
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
9.1.6
Environmental Limits Specification
Thermal Sensor Input for Fan Speed Control
The BMC uses various IPMI sensors as inputs to fan speed control. Some of the sensors are
actual physical sensors and some are “virtual” sensors derived from calculations.
The following IPMI thermal sensors are used as input to fan speed control:













Front Panel Temperature Sensor 1
Server board Temperature Sensor 2
Processor Margin Sensors 3, 5, 6
DIMM Thermal Margin Sensors 3, 5
Exit Air Temperature Sensor 1, 4, 8
Chipset Temperature Sensor 4, 6
On-board Ethernet Controller Temperature Sensors 4, 6
Add-In Intel® SAS/IO Module Temperature Sensors 4, 6
Power Supply Thermal Sensor 4, 9
Processor VR Temperature Sensors 4, 7
DIMM VR Temperature Sensors 4, 7
BMC Temperature Sensor 4, 7
Global Aggregate Thermal Margin Sensors 8
Notes:
1. For fan speed control in Intel chassis
2. For fan speed control in third-party chassis
3. Temperature margin from throttling threshold
4. Absolute temperature
5. PECI value or margin value
6. On-die sensor
7. On-board sensor
8. Virtual sensor
9. Available only when PSU has PMBus*
Revision 1.8
Intel order number G31608-009
145
Environmental Limits Specification
Intel®Server Board S2600JF TPS
The following diagram illustrates the fan speed control structure.
Figure 51. Fan Control Model
9.2
Processor Thermal Design Power (TDP) Support
To allow optimal operation and long-term reliability of Intel processor-based systems, the
processor must remain within the defined minimum and maximum case temperature (TCASE)
specifications. Thermal solutions not designed to provide sufficient thermal capability may affect
the long-term reliability of the processor and system. The server board is designed to support
the Intel® Xeon® Processor E5-2600 product family TDP guidelines up to and including 135W.
Disclaimer Note: Intel Corporation server boards contain a number of high-density VLSI and
power delivery components that need adequate airflow to cool. Intel ensures through its own
chassis development and testing that when Intel server building blocks are used together, the
fully integrated system will meet the intended thermal requirements of these components. It is
the responsibility of the system integrator who chooses not to use Intel-developed server
building blocks to consult vendor datasheets and operating parameters to determine the amount
of airflow required for their specific application and environmental conditions. Intel Corporation
cannot be held responsible if components fail or the server board does not operate correctly
when used outside any of their published operating or non-operating limits.
146
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Power Supply Specification Guidelines
10. Power Supply Specification Guidelines
This section provides power supply specification guidelines recommended for providing the
specified server platform with stable operating power requirements.
Note: The power supply data provided in this section is for reference purposes only. It reflects
Intel’s own DC power out requirements for a 1200W and 1600W power supply as used in an
Intel designed 2U server platform. The intent of this section is to provide customers with a guide
to assist in defining and/or selecting a power supply for custom server platform designs that
utilize the server boards detailed in this document.
10.1 Power Supply DC Output Connector
The server board includes two main power Minifit Jr* connectors allowing for power supplies to
attach directly to the server board. The connectors are two sets of 2x3 pin and can be used to
deliver 12amps per pin or 60+Amps total. Note that no over-voltage protective circuits exist on
the board.
Table 90. Power Supply DC Power Input Connector Pin-out (See Table 65)
Pin
1
2
3
Signal Name
+12V
+12V
+12V
Pin
4
5
6
Signal Name
GND
GND
GND
10.2 Power Supply DC Output Specification
10.2.1
Output Power/Currents
The following tables define the minimum power and current ratings. The power supply meets
both static and dynamic voltage regulation requirements for all conditions.
Table 91. Minimum Load Ratings
Parameter
12V main
5Vstby
Notes:
1.
2.
Min
0.0
0.0
Max.
60.0
2.0
Peak 1, 2
72.0
2.4
Unit
A
A
Peak combined power for all outputs shall not exceed 800W.
Length of time peak power that can be supported is based on thermal sensor and assertion of the
SMBAlert# signal. Minimum peak power duration shall be 20 seconds without asserting the SMBAlert#
signal at maximum operating temperature.
10.2.2
Standby Output
The 5VSB output will be present when an AC input greater than the power supply turn on
voltage is applied. There is load sharing in the standby rail.
Revision 1.8
Intel order number G31608-009
147
Power Supply Specification Guidelines
10.2.3
Intel®Server Board S2600JF TPS
Voltage Regulation
The power supply output voltages stay within the following voltage limits when operating at
steady state and dynamic loading conditions. These limits include the peak-peak ripple/noise.
These are measured at the output connectors.
Table 92. Voltage Regulation Limits
Parameter
+12V
+5V stby
10.2.4
Tolerance
- 5%/+5%
- 5%/+5%
Min
+11.40
+4.75
Nom
+12.00
+5.00
Max
+12.60
+5.25
Units
Vrms
Vrms
Dynamic Loading
The output voltages remain within limits specified for the step loading and capacitive loading
specified in the following table. The load transient repetition rate is tested between 50Hz and
5kHz at duty cycles ranging from 10% to 90%. The load transient repetition rate is only a test
specification. The  step load may occur anywhere within the MIN load to the MAX load
conditions.
Table 93. Transient Load Requirements
Output
 Step Load Size
+5VSB
1.0A
+12V
60% of max load
Note: For dynamic condition +12V min loading is 1A.
10.2.5
Load Slew Rate
0.25 A/sec
0.25 A/sec
Test capacitive Load
20 F
2000 F
Capacitive Loading
The power supply is stable and meets all requirements with the following capacitive loading
ranges.
Table 94. Capacitive Loading Conditions
Output
+5VSB
+12V
10.2.6
MIN
20
500
MAX
3100
25000
Units
F
F
Grounding
The output ground of the pins of the power supply provides the output power return path. The
output connector ground pins are connected to the safety ground (power supply enclosure). This
grounding is well designed to ensure passing the max allowed Common Mode Noise levels.
The power supply is provided with a reliable protective earth ground. All secondary circuits are
connected to protective earth ground. Resistance of the ground returns to chassis does not
exceed 1.0 m. This path may be used to carry DC current.
10.2.7
Closed Loop Stability
The power supply is unconditionally stable under all line/load/transient load conditions including
specified capacitive load ranges. A minimum of 45 degrees phase margin and 10dB-gain margin
is required. Closed-loop stability must be ensured at the maximum and minimum loads as
applicable.
148
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
10.2.8
Power Supply Specification Guidelines
Residual Voltage Immunity in Standby Mode
The power supply is immune to any residual voltage placed on its outputs (Typically a leakage
voltage through the system from standby output) up to 500mV. There is no additional heat
generated, nor stressing of any internal components with this voltage applied to any individual
or all outputs simultaneously. It also does not trip the protection circuits during turn on.
The residual voltage at the power supply outputs for no load condition does not exceed 100mV
when AC voltage is applied and the PSON# signal is de-asserted.
10.2.9
Common Mode Noise
The Common Mode noise on any output does not exceed 350mV pk-pk over the frequency
band of 10Hz to 20MHz.
10.2.10
Soft Starting
The Power Supply contains control circuit that provides monotonic soft start for its outputs
without overstress of the AC line or any power supply components at any specified AC line or
load conditions.
10.2.11
Zero Load Stability Requirements
When the power subsystem operates in a no load condition, it does not need to meet the output
regulation specification, but it must operate without any tripping of over-voltage or other fault
circuitry. When the power subsystem is subsequently loaded, it must begin to regulate and
source current without fault.
10.2.12
Hot Swap Requirements
Hot swapping a power supply is the process of inserting and extracting a power supply from an
operating power system. During this process the output voltages remain within the limits with the
capacitive load specified. The hot swap test must be conducted when the system is operating
under static, dynamic, and zero loading conditions.
10.2.13
Forced Load Sharing
The +12V output has active load sharing. The output shares within 10% at full load. The failure
of a power supply does not affect the load sharing or output voltages of the other supplies still
operating. The supplies can load share in parallel and operate in a hot-swap/redundant 1+1
configurations. The 12VSBoutput is not required to actively share current between power
supplies (passive sharing). The 12VSBoutput of the power supplies are connected together in
the system so that a failure or hot swap of a redundant power supply does not cause these
outputs to go out of regulation in the system.
10.2.14
Ripple/Noise
The maximum allowed ripple/noise output of the power supply is defined in the following table.
This is measured over a bandwidth of 10Hz to 20MHz at the power supply output connectors. A
10F tantalum capacitor in parallel with a 0.1F ceramic capacitor is placed at the point of
measurement.
Revision 1.8
Intel order number G31608-009
149
Power Supply Specification Guidelines
Intel®Server Board S2600JF TPS
Table 95. Ripples and Noise
+12V main
120mVp-p
10.2.15
+5VSB
50mVp-p
Timing Requirement
These are the timing requirements for the power supply operation. The output voltages must rise
from 10% to within regulation limits (Tvout_rise) within 5 to 70ms. For 5VSB, it is allowed to rise
from 1.0 to 25ms. All outputs must rise monotonically. The following table shows the timing
requirements for the power supply being turned on and off through the AC input, with PSON
held low and the PSON signal, with the AC input applied.
Table 96. Timing Requirements
Item
Tvout_rise
Tsb_on_delay
Tac_on_delay
Tvout_holdup
Tpwok_holdup
Tpson_on_delay
Tpson_pwok
Tpwok_on
Tpwok_off
Tpwok_low
Tsb_vout
T5VSB_holdup
Description
Output voltage rise time.
Delay from AC being applied to 5VSB being within
regulation.
Delay from AC being applied to all output voltages
being within regulation.
Time 12Vl output voltage stays within regulation
after loss of AC.
Delay from loss of AC to de-assertion of PWOK.
Delay from PSON# active to output voltages
within regulation limits.
Delay from PSON# deactivate to PWOK being deasserted.
Delay from output voltages within regulation limits
to PWOK asserted at turn on.
Delay from PWOK de-asserted to output voltages
dropping out of regulation limits.
Duration of PWOK being in the de-asserted state
during an off/on cycle using AC or the PSON
signal.
Delay from 5VSB being in regulation to O/Ps
being in regulation at AC turn on.
Time 5VSB output voltage stays within regulation
after loss of AC.
Min
5.0 *
Max
70 *
1500
Units
ms
ms
3000
ms
13
12
5
100
ms
400
ms
ms
5
ms
500
ms
1
ms
100
ms
50
70
1000
ms
ms
Note:
* The 5VSB output voltage rise time shall be from 1.0ms to 25ms.
150
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Power Supply Specification Guidelines
AC Input
Tvout_holdup
Vout
Tpwok_low
TAC_on_delay
Tsb_on_delay
PWOK
12Vsb
Tpwok_off
Tpwok_on
Tsb_on_delay
Tpwok_on
Tpwok_holdup
Tsb_vout
Tpwok_off
Tpson_pwok
T5Vsb_holdup
Tpson_on_delay
PSON
AC turn on/off cycle
PSON turn on/off cycle
Figure 52. Turn On/Off Timing (Power Supply Signals)
Revision 1.8
Intel order number G31608-009
151
Appendix A: Integration and Usage Tips
Intel®Server Board S2600JF TPS
Appendix A: Integration and Usage Tips

When adding or removing components or peripherals from the server board, AC power
must be removed. With AC power plugged into the server board, 5V standby is still
present even though the server board is powered off.

This server board supports the Intel® Xeon® Processor E5-2600 and E5-2600V2 product
family with a Thermal Design Power (TDP) of up to and including 135 Watts. Previous
generations of the Intel® Xeon® processors are not supported.

Processors must be installed in order. CPU 1 must be populated for the server board to
operate.

The server board includes a pre-installed CPU power cable harness. The cable harness
must be installed and fully seated in each connector for the server board to operate.

On the back edge of the server board are eight diagnostic LEDs that display a sequence
of amber POST codes during the boot process. If the server board hangs during POST,
the LEDs display the last POST event run before the hang.

This server board only supports registered DDR3 DIMMs (RDIMMs) and unbuffered
DDR3 DIMMs (UDIMMs). Mixing of RDIMMs and UDIMMs is not supported.

For the best performance, the number of DDR3 DIMMs installed should be balanced
across both processor sockets and memory channels. For example, a two-DIMM
configuration performs better than a one-DIMM configuration. In a two-DIMM
configuration, DIMMs should be installed in DIMM sockets A1 and D1. A six-DIMM
configuration (DIMM sockets A1, B1, C1, D1, E1, and F1) performs better than a threeDIMM configuration (DIMM sockets A1, B1, and C1).

The Intel® Remote Management Module 4 (Intel® RMM4) connector is not compatible
with any previous versions of the Intel® Remote Management Module (Product Order
Code – AXXRMM, AXXRMM2, and AXXRMM3).

Clear the CMOS with AC power cord plugged. Removing the AC power before
performing the CMOS clear operation causes the system to automatically power up and
immediately power down after the CMOS clear procedure is followed and AC power is
re-applied. If this happens, remove the AC power cord, wait 30 seconds, and then reconnect the AC power cord. Power up the system and proceed to the <F2> BIOS Setup
utility to reset the desired settings.

Normal Integrated BMC functionality is disabled with the BMC Force Update jumper set
to the “enabled” position (pins 2-3). The server should never be run with the BMC Force
Update jumper set in this position and should only be used when the standard firmware
update process fails. This jumper should remain in the default (disabled) position (pins 12) when the server is running normally.
When performing a normal BIOS update procedure, the BIOS recovery jumper must be
set to its default position (pins 1-2).

152
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Appendix B: Integrated BMC Sensor Tables
Appendix B: Integrated BMC Sensor Tables
This appendix lists the sensor identification numbers and information about the sensor type,
name, supported thresholds, assertion and de-assertion information, and a brief description of
the sensor purpose. See the Intelligent Platform Management Interface Specification, Version
2.0, for sensor and event/reading-type table information.

Sensor Type
The sensor type references the values in the Sensor Type Codes table in the Intelligent
Platform Management Interface Specification Second Generation v2.0. It provides a
context to interpret the sensor.

Event/Reading Type
The event/reading type references values from the Event/Reading Type Code Ranges
and the Generic Event/Reading Type Code tables in the Intelligent Platform
Management Interface Specification Second Generation v2.0. Digital sensors are
specific type of discrete sensors that only have two states.

Event Thresholds/Triggers
The following event thresholds are supported for threshold type sensors:
[u,l][nr,c,nc] upper non-recoverable, upper critical, upper non-critical, lower nonrecoverable, lower critical, lower non-critical uc, lc upper critical, lower critical
Event triggers are supported event-generating offsets for discrete type sensors. The
offsets can be found in the Generic Event/Reading Type Code or Sensor Type Code
tables in the Intelligent Platform Management Interface Specification Second Generation
v2.0, depending on whether the sensor event/reading type is generic or a sensorspecific response.




Assertion/Deassertion
Assertion and de-assertion indicators reveal the type of events this sensor generates:
As: Assertion
De: De-assertion
Readable Value/Offsets
Readable value indicates the type of value returned for threshold and other non-discrete
type sensors.
Readable offsets indicate the offsets for discrete sensors that are readable by means of
the Get Sensor Reading command. Unless otherwise indicated, event triggers are
readable. Readable offsets consist of the reading type offsets that do not generate
events.
Event Data
Event data is the data that is included in an event message generated by the associated
sensor. For threshold-based sensors, these abbreviations are used:
R: Reading value
T: Threshold value
Rearm Sensors
The rearm is a request for the event status for a sensor to be rechecked and updated
upon a transition between good and bad states. Rearming the sensors can be done
manually or automatically. This column indicates the type supported by the sensor. The
following abbreviations are used in the comment column to describe a sensor:
Revision 1.8
Intel order number G31608-009
153
Appendix B: Integrated BMC Sensor Tables

Intel®Server Board S2600JF TPS
A: Auto-rearm
M: Manual rearm
I: Rearm by init agent
Default Hysteresis
The hysteresis setting applies to all thresholds of the sensor. This column provides the
count of hysteresis for the sensor, which can be 1 or 2 (positive or negative hysteresis).

Criticality
Criticality is a classification of the severity and nature of the condition. It also controls the
behavior of the front panel status LED.

Standby
Some sensors operate on standby power. These sensors may be accessed and/or
generate events when the main (system) power is off, but AC power is present.
154
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Appendix B: Integrated BMC Sensor Tables
Table 97. BMC Sensor Table
Full Sensor Name
(Sensor name in SDR)
Sensor #
Platform
Applicability
Sensor Type
Event/
Reading
Type
Event Offset Triggers
00 - Power down
02 - 240 VA power
down
Power Unit Status
(Pwr Unit Status)
01h
All
Power Unit
09h
Sensor
Specific
6Fh
04 - A/C lost
Contrib. To
System
Status
OK
Assert/Deassert
Readable
Value/Offs
ets
Event
Data
Rearm
Stand
-by
Fatal
OK
05 - Soft power
control failure
As and De
–
Trig
Offset
A
X
As and De
–
Trig
Offset
M
X
Fatal
06 - Power unit
failure
Power Unit
RedundancyNote1
(Pwr Unit Redund)
Revision 1.8
02h
Chassisspecific
Power Unit
09h
Generic
0Bh
00 - Fully Redundant
OK
01 - Redundancy lost
Degraded
02 - Redundancy
degraded
Degraded
03 - Non-redundant:
sufficient resources.
Transition from full
redundant state
Degraded
04 – Non-redundant:
sufficient resources.
Transition from
insufficient state
Degraded
05 - Non-redundant:
insufficient resources
Fatal
06 – Redundant:
degraded from fully
redundant state
Degraded
07 – Redundant:
Transition from nonredundant state
Degraded
Intel order number G31608-009
155
Appendix B: Integrated BMC Sensor Tables
Full Sensor Name
(Sensor name in SDR)
Sensor #
Platform
Applicability
Intel®Server Board S2600JF TPS
Sensor Type
Event/
Reading
Type
Event Offset Triggers
Contrib. To
System
Status
Assert/Deassert
Readable
Value/Offs
ets
Event
Data
Rearm
Stand
-by
A
X
00 - Timer expired,
status only
IPMI Watchdog
(IPMI Watchdog)
03h
All
Watchdog 2
23h
Sensor
Specific
6Fh
01 - Hard reset
02 - Power down
Trig
Offset
OK
As
–
OK
As and De
–
Trig
Offset
A
X
OK
As
–
Trig
Offset
A
–
Fatal
As and De
–
Trig
Offset
A
–
OK
As
–
Trig
Offset
A
X
Fatal
OK
As and De
As
-
Trig
Offset
A
X
OK
AS
_
Trig
Offset
A
X
03 - Power cycle
08 - Timer interrupt
Chassis
Intrusion is
chassisspecific
Physical
Security
05h
Sensor
Specific
6Fh
00 - Chassis
intrusion
05h
Chassis specific
Critical
Interrupt
13h
Sensor
Specific
6Fh
00 - Front panel
NMI/diagnostic
interrupt
All
SMI Timeout
F3h
Digital
Discrete
03h
01 – State asserted
06h
All
Event
Logging
Disabled
10h
Sensor
Specific
6Fh
System
Event
12h
Sensor
Specific
6Fh
02 - Undetermined
system H/W failure
04 – PEF action
00 – Power Button
02 – Reset Button
Physical Security
(Physical Scrty)
04h
FP Interrupt
(FP NMI Diag Int)
SMI Timeout
(SMI Timeout)
System Event Log
(System Event
Log)
07h
04 - LAN leash lost
02 - Log area
reset/cleared
System Event
(System Event)
08h
All
Button Sensor
(Button)
09h
All
Button/Switc
h
14h
Sensor
Specific
6Fh
All
Mgmt
System
Health
28h
Digital
Discrete
03h
01 – State Asserted
Degraded
As
–
Trig
Offset
A
-
All
Voltage
02h
Digital
Discrete
03h
01 – State Asserted
Fatal
As and De
–
Trig
Offset
M
X
BMC Watchdog
Voltage Regulator
Watchdog
(VR Watchdog)
156
0Ah
0Bh
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Full Sensor Name
(Sensor name in SDR)
Sensor #
Appendix B: Integrated BMC Sensor Tables
Platform
Applicability
Sensor Type
Event/
Reading
Type
Event Offset Triggers
00 - Fully redundant
Fan
RedundancyNote1
(Fan Redundancy)
0Ch
Chassisspecific
Fan
04h
Generic
0Bh
Contrib. To
System
Status
OK
01 - Redundancy lost
Degraded
02 - Redundancy
degraded
Degraded
03 - Non-redundant:
Sufficient resources.
Transition from
redundant
Degraded
04 - Non-redundant:
Sufficient resources.
Transition from
insufficient
Degraded
05 - Non-redundant:
insufficient resources
Non-Fatal
06 – NonRedundant:
degraded from fully
redundant
Degraded
07 - Redundant
degraded from nonredundant
Degraded
Assert/Deassert
Readable
Value/Offs
ets
Event
Data
Rearm
Stand
-by
As and De
–
Trig
Offset
A
–
All
Temperature
01h
Digital
Discrete
03h
01 – State Asserted
Fatal
As and De
–
Trig
Offset
M
X
0Eh
Platformspecific
Module/Boar
d
15h
Digital
Discrete
08h
01 –
Inserted/Present
OK
As and De
–
Trig
Offset
M
X
SAS Module
Presence
(SAS Mod
Presence)
0Fh
Platformspecific
Module/Boar
d
15h
Digital
Discrete
08h
01 –
Inserted/Present
OK
As and De
–
Trig
Offset
M
X
BMC Firmware
Health
(BMC FW Health)
10h
All
Mgmt Health
28h
Sensor
Specific
6Fh
04 – Sensor Failure
As
-
Trig
Offset
A
X
SSB Thermal Trip
(SSB Therm Trip)
0Dh
IO Module
Presence
(IO Mod Presence)
Revision 1.8
Intel order number G31608-009
Degraded
157
Appendix B: Integrated BMC Sensor Tables
Full Sensor Name
(Sensor name in SDR)
Sensor #
Platform
Applicability
System Airflow
(System Airflow)
11h
All
FW Update Status
0x12
All
Intel®Server Board S2600JF TPS
Sensor Type
Other Units
0Bh
Version
Change(0x2
B)
Event/
Reading
Type
Threshold
01h
Event Offset Triggers
–
OEM
1.
defined(0
x70)
2.
Contrib. To
System
Status
Assert/Deassert
Readable
Value/Offs
ets
Event
Data
Rearm
Stand
-by
–
–
Analog
–
–
–
OK
As
_
Trig
Offset
A
_
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
0x00hUpdate
started
0x01hUpdate
completed
successfully
0x02Update failure
Baseboard
Temperature 1
(Platform Specific)
Front Panel
Temperature
(Front Panel Temp)
SSB Temperature
(SSB Temp)
Baseboard
Temperature 2
(Platform Specific)
Baseboard
Temperature 3
(Platform Specific)
Baseboard
Temperature 4
(Platform Specific)
158
Platformspecific
Temperature
01h
Threshold
01h
All
Temperature
01h
Threshold
01h
22h
All
Temperature
01h
Threshold
01h
23h
Platformspecific
Temperature
01h
Threshold
01h
24h
Platformspecific
Temperature
01h
Threshold
01h
25h
Platformspecific
Temperature
01h
Threshold
01h
20h
21h
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Full Sensor Name
(Sensor name in SDR)
IO Module
Temperature
(I/O Mod Temp)
PCI Riser 1
Temperature
(PCI Riser 1 Temp)
IO Riser
Temperature
(IO Riser Temp)
Hot-swap
Backplane 1
Temperature
(HSBP 1 Temp)
Hot-swap
Backplane 2
Temperature
(HSBP 2 Temp)
Hot-swap
Backplane 3
Temperature
(HSBP 3 Temp)
PCI Riser 2
Temperature
(PCI Riser 2 Temp)
SAS Module
Temperature
(SAS Mod Temp)
Revision 1.8
Sensor #
Appendix B: Integrated BMC Sensor Tables
Platform
Applicability
Sensor Type
Event/
Reading
Type
26h
Platformspecific
Temperature
01h
Threshold
01h
27h
Platformspecific
Temperature
01h
Threshold
01h
28h
Platformspecific
Temperature
01h
Threshold
01h
29h
Chassisspecific
Temperature
01h
Threshold
01h
2Ah
Chassisspecific
Temperature
01h
Threshold
01h
2Bh
Chassisspecific
Temperature
01h
Threshold
01h
2Ch
Platformspecific
Temperature
01h
Threshold
01h
2Dh
Platformspecific
Temperature
01h
Threshold
01h
Event Offset Triggers
[u,l] [c,nc]
Contrib. To
System
Status
nc =
Degraded
c = Nonfatal
Assert/Deassert
Readable
Value/Offs
ets
Event
Data
Rearm
Stand
-by
As and De
Analog
R, T
A
X
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
Intel order number G31608-009
159
Appendix B: Integrated BMC Sensor Tables
Full Sensor Name
(Sensor name in SDR)
Exit Air
Temperature
(Exit Air Temp)
Sensor #
2Eh
Platform
Applicability
Intel®Server Board S2600JF TPS
Sensor Type
Event/
Reading
Type
Chassis
and
Platform
Specific
Temperature
01h
Threshold
01h
Threshold
01h
Event Offset Triggers
[u,l] [c,nc]
Contrib. To
System
Status
nc =
Degraded
c = Nonfatal
X
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
As and De
Analog
R, T
M
-
As and De
-
Trigger
ed
Offset
Auto
-
As and De
–
Trig
Offset
A
X
As and De
–
Trig
Offset
A
X
Fan Tachometer
Sensors
(Chassis specific
sensor names)
30h–
3Fh
Chassis
and
Platform
Specific
Fan
04h
Threshold
01h
[l] [c,nc]
nc =
Degraded
c = NonfatalNote2
Fan
04h
Generic
08h
01 - Device inserted
OK
Power Supply 2
Status
(PS2 Status)
160
50h
51h
Chassisspecific
Chassisspecific
Power
Supply
08h
Power
Supply
08h
Sensor
Specific
6Fh
Sensor
Specific
6Fh
Stand
-by
A
All
Power Supply 1
Status
(PS1 Status)
Rearm
R, T
2Fh
40h–
4Fh
Event
Data
Analog
Temperature
01h
Chassis
and
Platform
Specific
Readable
Value/Offs
ets
As and De
Network Interface
Controller
Temperature
(LAN NIC Temp)
Fan Present
Sensors
(Fan x Present)
Assert/Deassert
00 - Presence
OK
01 - Failure
Degraded
02 – Predictive
Failure
Degraded
03 - A/C lost
Degraded
06 – Configuration
error
OK
00 - Presence
OK
01 - Failure
Degraded
02 – Predictive
Failure
Degraded
03 - A/C lost
Degraded
06 – Configuration
error
OK
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Full Sensor Name
(Sensor name in SDR)
Power Supply 1
AC Power Input
(PS1 Power In)
Power Supply 2
AC Power Input
(PS2 Power In)
Power Supply 1
+12V % of
Maximum Current
Output
(PS1 Curr Out %)
Power Supply 2
+12V % of
Maximum Current
Output
(PS2 Curr Out %)
Power Supply 1
Temperature
(PS1 Temperature)
Power Supply 2
Temperature
(PS2 Temperature)
Sensor #
Appendix B: Integrated BMC Sensor Tables
Platform
Applicability
Sensor Type
Event/
Reading
Type
54h
Chassisspecific
Other Units
0Bh
Threshold
01h
55h
Chassisspecific
Other Units
0Bh
Threshold
01h
58h
Chassisspecific
Current
03h
Threshold
01h
59h
Chassisspecific
Current
03h
Threshold
01h
5Ch
Chassisspecific
Temperature
01h
Threshold
01h
5Dh
Chassisspecific
Temperature
Threshold
01h
Event Offset Triggers
[u] [c,nc]
Revision 1.8
60h
–
68h
Chassisspecific
Drive Slot
0Dh
Sensor
Specific
6Fh
Assert/Deassert
Readable
Value/Offs
ets
Event
Data
Rearm
Stand
-by
As and De
Analog
R, T
A
X
[u] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
[u] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
[u] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
[u] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
As and De
Analog
R, T
A
X
As and De
–
Trig
Offset
A
X
[u] [c,nc]
00 - Drive Presence
Hard Disk Drive 16
- 24 Status
(HDD 16 - 24
Status)
Contrib. To
System
Status
nc =
Degraded
c = Nonfatal
01- Drive Fault
07 - Rebuild/Remap
in progress
Intel order number G31608-009
nc =
Degraded
c = Nonfatal
OK
Degraded
Degraded
161
Appendix B: Integrated BMC Sensor Tables
Full Sensor Name
(Sensor name in SDR)
Sensor #
Platform
Applicability
Intel®Server Board S2600JF TPS
Sensor Type
Event/
Reading
Type
Event Offset Triggers
HSC Status
69h
6Bh
Chassisspecific
Microcontroll
er 16h
Discrete
0Ah
04- transition to Off
Line
Processor 1 Status
(P1 Status)
70h
All
Processor
07h
Sensor
Specific
6Fh
01 - Thermal trip
Processor 2 Status
(P2 Status)
All
Processor
07h
Sensor
Specific
6Fh
01 - Thermal trip
71h
Processor 1
Thermal Margin
(P1 Therm Margin)
74h
All
Temperature
01h
Threshold
01h
-
Processor 2
Thermal Margin
(P2 Therm Margin)
75h
All
Temperature
01h
Threshold
01h
-
All
Temperature
01h
Threshold
01h
Processor 1
Thermal
Control %
(P1 Therm Ctrl %)
78h
Contrib. To
System
Status
Assert/Deassert
Readable
Value/Offs
ets
Event
Data
Rearm
Stand
-by
As and De
–
Trig
Offset
A
X
As and De
–
Trig
Offset
M
X
As and De
–
Trig
Offset
M
X
-
-
Analog
R, T
A
–
-
-
Analog
R, T
A
–
[u] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
Trig
Offset
A
–
Threshold
01h
[u] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
Trig
Offset
A
–
Degraded
Fatal
07 - Presence
OK
Fatal
07 - Presence
OK
Processor 2
Thermal
Control %
(P2 Therm Ctrl %)
79h
All
Temperature
01h
Processor 1 ERR2
Timeout
(P1 ERR2)
7Ch
All
Processor
07h
Digital
Discrete
03h
01 – State Asserted
fatal
As and De
–
Trig
Offset
A
–
Processor 2 ERR2
Timeout
(P2 ERR2)
7Dh
All
Processor
07h
Digital
Discrete
03h
01 – State Asserted
fatal
As and De
–
Trig
Offset
A
–
Catastrophic Error
(CATERR)
80h
All
Processor
07h
Digital
Discrete
03h
01 – State Asserted
fatal
As and De
–
Trig
Offset
M
–
162
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Full Sensor Name
(Sensor name in SDR)
Appendix B: Integrated BMC Sensor Tables
Sensor #
Platform
Applicability
Processor1 MSID
Mismatch
(P1 MSID
Mismatch)
81h
All
Processor
07h
Digital
Discrete
03h
01 – State Asserted
fatal
As and De
–
Processor
Population Fault
(CPU Missing)
82h
All
Processor
07h
Digital
Discrete
03h
01 – State Asserted
Fatal
As and De
Processor 1 DTS
Thermal Margin
(P1 DTS Therm
Mgn)
83h
All
Temperature
01h
Threshold
01h
-
-
Processor 2 DTS
Thermal Margin
(P2 DTS Therm
Mgn)
83h
All
Temperature
01h
Threshold
01h
-
Processor2 MSID
Mismatch
(P2 MSID
Mismatch)
87h
All
Processor
07h
Digital
Discrete
03h
Processor 1 VRD
Temperature
(P1 VRD Hot)
90h
All
Temperature
01h
Processor 2 VRD
Temperature
(P2 VRD Hot)
91h
All
Processor 1
Memory VRD Hot
0-1
(P1 Mem01 VRD
Hot)
94h
Processor 1
Memory VRD Hot
2-3
(P1 Mem23 VRD
Hot)
Revision 1.8
95h
Sensor Type
Event/
Reading
Type
Event Offset Triggers
Rearm
Stand
-by
Trig
Offset
M
–
–
Trig
Offset
M
–
-
Analog
R, T
A
–
-
-
Analog
R, T
A
–
01 – State Asserted
fatal
As and De
–
Trig
Offset
M
–
Digital
Discrete
05h
01 - Limit exceeded
Non-fatal
As and De
–
Trig
Offset
M
–
Temperature
01h
Digital
Discrete
05h
01 - Limit exceeded
Non-fatal
As and De
–
Trig
Offset
M
–
All
Temperature
01h
Digital
Discrete
05h
01 - Limit exceeded
Non-fatal
As and De
–
Trig
Offset
A
–
All
Temperature
01h
Digital
Discrete
05h
01 - Limit exceeded
Non-fatal
As and De
–
Trig
Offset
A
–
Intel order number G31608-009
Contrib. To
System
Status
Assert/Deassert
Readable
Value/Offs
ets
Event
Data
163
Appendix B: Integrated BMC Sensor Tables
Full Sensor Name
(Sensor name in SDR)
Intel®Server Board S2600JF TPS
Sensor #
Platform
Applicability
Processor 2
Memory VRD Hot
0-1
(P2 Mem01 VRD
Hot)
96h
All
Temperature
01h
Digital
Discrete
05h
01 - Limit exceeded
Non-fatal
As and De
–
Processor 2
Memory VRD Hot
2-3
(P2 Mem23 VRD
Hot)
97h
All
Temperature
01h
Digital
Discrete
05h
01 - Limit exceeded
Non-fatal
As and De
Power Supply 1
Fan Tachometer 1
(PS1 Fan Tach 1)
A0h
Chassisspecific
Fan
04h
Generic –
digital
discrete
01 – State Asserted
Non-fatal
Power Supply 1
Fan Tachometer 2
(PS1 Fan Tach 2)
A1h
Chassisspecific
Fan
04h
Generic –
digital
discrete
01 – State Asserted
Power Supply 2
Fan Tachometer 1
(PS2 Fan Tach 1)
A4h
Chassisspecific
Fan
04h
Generic –
digital
discrete
Power Supply 2
Fan Tachometer 2
(PS2 Fan Tach 2)
A5h
Chassisspecific
Fan
04h
Generic –
digital
discrete
Processor 1 DIMM
Aggregate Thermal
Margin 1
(P1 DIMM Thrm
Mrgn1)
Processor 1 DIMM
Aggregate Thermal
Margin 2
(P1 DIMM Thrm
Mrgn2)
Processor 2 DIMM
Aggregate Thermal
Margin 1
(P2 DIMM Thrm
Mrgn1)
164
B0h
B1h
B2h
All
All
All
Sensor Type
Temperature
01h
Temperature
01h
Temperature
01h
Event/
Reading
Type
Threshold
01h
Threshold
01h
Threshold
01h
Event Offset Triggers
Rearm
Stand
-by
Trig
Offset
A
–
–
Trig
Offset
A
–
As and De
-
Trig
Offset
M
-
Non-fatal
As and De
-
Trig
Offset
M
-
01 – State Asserted
Non-fatal
As and De
-
Trig
Offset
M
-
01 – State Asserted
Non-fatal
As and De
-
Trig
Offset
M
-
As and De
Analog
R, T
A
–
As and De
Analog
R, T
A
–
As and De
Analog
R, T
A
–
[u,l] [c,nc]
[u,l] [c,nc]
[u,l] [c,nc]
Intel order number G31608-009
Contrib. To
System
Status
nc =
Degraded
c = Nonfatal
nc =
Degraded
c = Nonfatal
nc =
Degraded
c = Nonfatal
Assert/Deassert
Readable
Value/Offs
ets
Event
Data
Revision 1.8
Intel®Server Board S2600JF TPS
Full Sensor Name
(Sensor name in SDR)
Appendix B: Integrated BMC Sensor Tables
Sensor #
Platform
Applicability
Sensor Type
Event/
Reading
Type
Processor 2 DIMM
Aggregate Thermal
Margin 2
(P2 DIMM Thrm
Mrgn2)
B3h
Processor 1 DIMM
Thermal Trip
(P1 Mem Thrm
Trip)
All
Temperature
01h
Threshold
01h
[u,l] [c,nc]
C0h
All
Temperature
01h
Digital
Discrete
03h
01 – State Asserted
Processor 2 DIMM
Thermal Trip
(P2 Mem Thrm
Trip)
C1h
All
Temperature
01h
Digital
Discrete
03h
Global Aggregate
Temperature
Margin 1
(Agg Therm Mrgn
1)
C8h
Platform
Specific
Temperature
01h
Global Aggregate
Temperature
Margin 2
(Agg Therm Mrgn
2)
C9h
Platform
Specific
Global Aggregate
Temperature
Margin 3
(Agg Therm Mrgn
3)
CAh
Global Aggregate
Temperature
Margin 4
(Agg Therm Mrgn
4)
CBh
Revision 1.8
Event Offset Triggers
Contrib. To
System
Status
nc =
Degraded
c = Nonfatal
Assert/Deassert
Readable
Value/Offs
ets
Event
Data
Rearm
Stand
-by
As and De
Analog
R, T
A
–
Fatal
As and De
–
Trig
Offset
M
-
01 – State Asserted
Fatal
As and De
–
Trig
Offset
M
-
Threshold
01h
-
-
-
Analog
R, T
A
–
Temperature
01h
Threshold
01h
-
-
-
Analog
R, T
A
–
Platform
Specific
Temperature
01h
Threshold
01h
-
-
-
Analog
R, T
A
–
Platform
Specific
Temperature
01h
Threshold
01h
-
-
-
Analog
R, T
A
–
Intel order number G31608-009
165
Appendix B: Integrated BMC Sensor Tables
Full Sensor Name
(Sensor name in SDR)
Sensor #
Platform
Applicability
Intel®Server Board S2600JF TPS
Sensor Type
Event/
Reading
Type
Event Offset Triggers
Contrib. To
System
Status
Assert/Deassert
Readable
Value/Offs
ets
Event
Data
Rearm
Stand
-by
Global Aggregate
Temperature
Margin 5
(Agg Therm Mrgn
5)
CCh
Platform
Specific
Temperature
01h
Threshold
01h
-
-
-
Analog
R, T
A
–
Global Aggregate
Temperature
Margin 6
(Agg Therm Mrgn
6)
CDh
Platform
Specific
Temperature
01h
Threshold
01h
-
-
-
Analog
R, T
A
–
Global Aggregate
Temperature
Margin 7
(Agg Therm Mrgn
7)
CEh
Platform
Specific
Temperature
01h
Threshold
01h
-
-
-
Analog
R, T
A
–
Global Aggregate
Temperature
Margin 8
(Agg Therm Mrgn
8)
CFh
Platform
Specific
Temperature
01h
Threshold
01h
-
-
-
Analog
R, T
A
–
All
Voltage
02h
Threshold
01h
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
–
All
Voltage
02h
Threshold
01h
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
–
All
Voltage
02h
Threshold
01h
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
–
All
Voltage
02h
Threshold
01h
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
X
Baseboard +12V
(BB +12.0V)
Baseboard +5V
(BB +5.0V)
Baseboard +3.3V
(BB +3.3V)
Baseboard +5V
Stand-by
(BB +5.0V STBY)
166
D0h
D1h
D2h
D3h
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Full Sensor Name
(Sensor name in SDR)
Baseboard +3.3V
Auxiliary
(BB +3.3V AUX)
Baseboard +1.05V
Processor 1 Vccp
(BB +1.05Vccp P1)
Baseboard +1.05V
Processor 1 Vccp
(BB +1.05Vccp P2)
Baseboard +1.5V
P1 Memory AB
VDDQ
(BB +1.5 P1MEM
AB)
Baseboard +1.5V
P1 Memory CD
VDDQ
(BB +1.5 P1MEM
CD)
Baseboard +1.5V
P2 Memory AB
VDDQ
(BB +1.5 P2MEM
AB)
Baseboard +1.5V
P2 Memory CD
VDDQ
(BB +1.5 P2MEM
CD)
Baseboard +1.8V
Aux
(BB +1.8V AUX)
Revision 1.8
Appendix B: Integrated BMC Sensor Tables
Sensor #
Platform
Applicability
D4h
All
D6h
D7h
D8h
D9h
DAh
DBh
DCh
Sensor Type
Voltage
02h
Event/
Reading
Type
Threshold
01h
All
Voltage
02h
Threshold
01h
All
Voltage
02h
Threshold
01h
All
Voltage
02h
Threshold
01h
All
Voltage
02h
Threshold
01h
All
Voltage
02h
Threshold
01h
All
Voltage
02h
Threshold
01h
All
Voltage
02h
Threshold
01h
Event Offset Triggers
[u,l] [c,nc]
Contrib. To
System
Status
nc =
Degraded
c = Nonfatal
Assert/Deassert
Readable
Value/Offs
ets
Event
Data
Rearm
Stand
-by
As and De
Analog
R, T
A
X
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
–
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
–
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
–
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
–
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
–
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
–
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
–
Intel order number G31608-009
167
Appendix B: Integrated BMC Sensor Tables
Full Sensor Name
(Sensor name in SDR)
Baseboard +1.1V
Stand-by
(BB +1.1V STBY)
Baseboard CMOS
Battery
(BB +3.3V Vbat)
Baseboard +1.35V
P1 Low Voltage
Memory AB VDDQ
(BB +1.35 P1LV
AB)
Baseboard +1.35V
P1 Low Voltage
Memory CD VDDQ
(BB +1.35 P1LV
CD)
Baseboard +1.35V
P2 Low Voltage
Memory AB VDDQ
(BB +1.35 P2LV
AB)
Baseboard +1.35V
P2 Low Voltage
Memory CD VDDQ
(BB +1.35 P2LV
CD)
Baseboard +3.3V
Riser 1 Power
Good
(BB +3.3 RSR1
PGD)
168
Sensor #
Platform
Applicability
DDh
All
DEh
E4h
Intel®Server Board S2600JF TPS
Sensor Type
Voltage
02h
Event/
Reading
Type
Threshold
01h
All
Voltage
02h
Threshold
01h
All
Voltage
02h
Threshold
01h
All
Voltage
02h
Threshold
01h
All
Voltage
02h
Threshold
01h
E7h
All
Voltage
02h
Threshold
01h
EAh
Platform
Specific
E5h
E6h
Voltage
02h
Threshold
01h
Event Offset Triggers
Contrib. To
System
Status
nc =
Degraded
c = Nonfatal
Assert/Deassert
Readable
Value/Offs
ets
Event
Data
Rearm
Stand
-by
As and De
Analog
R, T
A
–
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
–
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
–
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
–
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
–
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
–
[u,l] [c,nc]
nc =
Degraded
c = Nonfatal
As and De
Analog
R, T
A
–
[u,l] [c,nc]
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Full Sensor Name
(Sensor name in SDR)
Baseboard +3.3V
Riser 2 Power
Good
(BB +3.3 RSR2
PGD)
Hard Disk Drive 1 15 Status
(HDD 1 - 15
Status)
Sensor #
EBh
F0h
FEh
Appendix B: Integrated BMC Sensor Tables
Platform
Applicability
Platform
Specific
Chassisspecific
Sensor Type
Voltage
02h
Drive Slot
0Dh
Event/
Reading
Type
Threshold
01h
Sensor
Specific
6Fh
Event Offset Triggers
[u,l] [c,nc]
Contrib. To
System
Status
nc =
Degraded
c = Nonfatal
00 - Drive Presence
OK
01- Drive Fault
Degraded
07 - Rebuild/Remap
in progress
Assert/Deassert
Readable
Value/Offs
ets
Event
Data
Rearm
Stand
-by
As and De
Analog
R, T
A
–
As and De
–
Trig
Offset
A
X
Degraded
Notes:
1. Redundancy sensors will be only present on systems with appropriate hardware to support redundancy (for instance, fan or power supply).
2. This is only applicable when the system does not support redundant fans. When fan redundancy is supported, the contribution to system state is driven
by the fan redundancy sensor.
Revision 1.8
Intel order number G31608-009
169
Appendix C: BIOS Sensors and SEL Data
Intel®Server Board S2600JF TPS
Appendix C: BIOS Sensors and SEL Data
The BIOS owns a set of IPMI-compliant Sensors. These are actually divided in ownership
between BIOS POST (GID = 01) and BIOS SMI Handler (GID = 33). The SMI Handler Sensors
are typically for logging runtime error events, but they are active during POST and may log
errors such as Correctable Memory ECC Errors if they occur.
It is important to remember that a Sensor is uniquely identified by the combination of Sensor
Owner plus Sensor Number. There are cases where the same Sensor Number is used with
different Sensor Owners – this is not a conflict. For example, in the BIOS Sensors list there is a
Sensor Number 83h for Sensor Owner 01h (BIOS POST) as well as for Sensor Owner 33h (SMI
Handler), but these are two distinct sensors reporting the same type of event from different
sources (Generator IDs 01h and 33h).
On the other hand, each distinct Sensor (GID + Sensor Number) is defined by one specific
Sensor Type describing the kind of data being reported, and one specific Event Type describing
the type of event and the format of the data being reported.
Table 98. BIOS Sensor and SEL Data
Sensor Name
Mirroring
Redundancy State
Sensor
Number
01h
Sensor Owner
(GID)
33h (SMI
Handler)
Sensor Type
0Ch (Memory)
Event/Reading Type
Offset Values
0Bh (Discrete,
Redundancy State)
0h = Fully Redundant
2h = Redundancy
Degraded
Event Data 2
Event Data 3
ED2 =
[7:4] = Mirroring
Domain
0-1 = Channel
Pair for Socket
[3:2] = Reserved
[1:0] = Rank on
DIMM
0-3 = Rank
Number
ED3 =
[7:5]= Socket ID
0-3 = CPU1-4
[4:3] = Channel
0-3 = Channel
A-D for Socket
[2:0] = DIMM
0-2 = DIMM 1-3
on Channel
170
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Sensor Name
Memory RAS
Configuration
Status
Sensor
Number
02h
Appendix C: BIOS Sensors and SEL Data
Sensor Owner
(GID)
01h (BIOS
POST)
Sensor Type
0Ch (Memory)
Event/Reading Type
Offset Values
09h (Digital Discrete)
0h = RAS
Configuration Disabled
1h = RAS
Configuration Enabled
Event Data 2
Event Data 3
ED2 =
[7:4] = Reserved
[3:0] Config Err
0 = None
3 = Invalid
DIMM Config for
RAS Mode
ED3 =
[7:4] = Reserved
[3:0] = RAS
Mode
0 = None
1 = Mirroring
2 = Lockstep
4 = Rank
Sparing
Memory ECC
Error
02h
33h (SMI
Handler)
0Ch (Memory)
6Fh (Sensor Specific
Offset)
0h = Correctable Error
1h = Uncorrectable
Error
ED2 =
[7:2] = Reserved
[1:0] = Rank on
DIMM
0-3 = Rank
Number
ED3 =
[7:5]= Socket ID
0-3 = CPU1-4
[4:3] = Channel
0-3 = Channel
A-D for Socket
[2:0] = DIMM
0-2 = DIMM 1-3
on Channel
Legacy PCI Error
03h
33h (SMI
Handler)
13h (Critical
Interrupt)
6Fh (Sensor Specific
Offset)
4h = PCI PERR
5h = PCI SERR
Revision 1.8
Intel order number G31608-009
ED2 =
[7:0] = Bus
Number
ED3 =
[7:3] = Device
Number
[2:0] = Function
Number
171
Appendix C: BIOS Sensors and SEL Data
Sensor Name
PCIe Fatal Error
(Standard AER
Errors)
(see Sensor 14h
for continuation)
Sensor
Number
04h
PCIe Correctable
Error
(Standard AER
Errors)
05h
BIOS POST Error
06h
QPI Correctable
Errors
(reserved for
Validation)
06h
QPI Fatal Error
07h
172
Intel®Server Board S2600JF TPS
Sensor Owner
(GID)
33h (SMI
Handler)
33h (SMI
Handler)
01h (BIOS
POST)
Sensor Type
13h (Critical
Interrupt)
13h (Critical
Interrupt)
0Fh (System
Firmware
Progress)
Event/Reading Type
Offset Values
70h (OEM Discrete)
0h = Data Link Layer
Protocol Error
1h = Surprise Link
Down Error
2h = Completer Abort
3h = Unsupported
Request
4h = Poisoned TLP
5h = Flow Control
Protocol
6h = Completion
Timeout
7h = Receiver Buffer
Overflow
8h = ACS Violation
9h = Malformed TLP
Ah = ECRC Error
Bh = Received Fatal
Message From
Downstream
Ch = Unexpected
Completion
Dh = Received
ERR_NONFATAL
Message
Eh = Uncorrectable
Internal
Fh = MC Blocked TLP
71h (OEM Discrete)
0h = Receiver Error
1h = Bad DLLP
2h = Bad TLP
3h = Replay Num
Rollover
4h = Replay Timer
timeout
5h = Advisory Non-fatal
6h = Link BW Changed
7h = Correctable
Internal
8h = Header Log
Overflow
6Fh (Sensor Specific
Offset)
0h = System Firmware
Error (POST Error
Code)
Event Data 2
Event Data 3
ED2 =
[7:0] = Bus
Number
ED3 =
[7:3] = Device
Number
[2:0] = Function
Number
ED2 =
[7:0] = Bus
Number
ED3 =
[7:3] = Device
Number
[2:0] = Function
Number
ED2 =
[7:0] = LSB of
POST Error
Code
ED3 =
[7:0] MSB of
POST Error
Code
33h (SMI
Handler)
13h (Critical
Interrupt)
72h (OEM Discrete)
ED2 = Reserved
Offset Reserved
ED3 = Reserved
33h (SMI
13h (Critical
73h (OEM Discrete)
ED2 =
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Sensor Name
Sensor
Number
(see Sensor 17h
for continuation)
Chipset
Proprietary
(reserved for
Validation)
08h
QPI Link Width
Reduced
09h
Memory Error
Extension
(reserved for
Validation)
Revision 1.8
10h
Appendix C: BIOS Sensors and SEL Data
Sensor Owner
(GID)
Handler)
Sensor Type
Interrupt)
33h (SMI
Handler)
19h (Chipset)
01h (BIOS
POST)
13h (Critical
Interrupt)
33h (SMI
Handler)
0Ch (Memory)
Event/Reading Type
Offset Values
0h = Link Layer
Uncorrectable ECC
Error
1h = Protocol Layer
Poisoned Packet
Reception Error
2h = Link/PHY Init
Failure with resultant
degradation in link
width
3h = CSI PHY Layer
detected drift buffer
alarm
4h = CSI PHY detected
latency buffer rollover
5h = CSI PHY Init
Failure
6h = CSI Link Layer
generic control error
(buffer
overflow/underflow,
credit underflow and so
on.)
7h = Parity error in link
or PHY layer
8h = Protocol layer
timeout detected
9h = Protocol layer
failed response
Ah = Protocol layer
illegal packet field,
target Node ID and so
on.
Bh = Protocol Layer
Queue/table
overflow/underflow
Ch = Viral Error
Dh = Protocol Layer
parity error
Eh = Routing Table
Error
Fh = (unused)
Event Data 2
Event Data 3
[7:0] = Node ID
ED2 =
[7:0] = Node ID
0-3 = CPU1-4
ED3 = No Data
75h (OEM Discrete)
ED2 = Reserved
Offset Reserved
ED3 = Reserved
77h (OEM Discrete)
ED2 =
[7:0] = Node ID
0-3 = CPU1-4
1h = Reduced to ½
width
2h = Reduced to ¼
width
ED3 = No Data
7Fh (OEM Discrete)
ED2 = Reserved
Offset Reserved
ED3 = Reserved
Intel order number G31608-009
173
Appendix C: BIOS Sensors and SEL Data
Sensor Name
Sparing
Redundancy State
Sensor
Number
11h
Intel®Server Board S2600JF TPS
Sensor Owner
(GID)
33h (SMI
Handler)
Sensor Type
0Ch (Memory)
Event/Reading Type
Offset Values
0Bh (Discrete,
Redundancy State)
0h = Fully Redundant
2h = Redundancy
Degraded
Event Data 2
Event Data 3
ED2 =
[7:4] = Sparing
Domain
0-3 = Channel
A-D for Socket
[3:2] = Reserved
[1:0] = Rank on
DIMM
0-3 = Rank
Number
ED3 =
[7:5]= Socket ID
0-3 = CPU1-4
[4:3] = Channel
0-3 = Channel
A-D for Socket
[2:0] = DIMM
0-2 = DIMM 1-3
on Channel
Memory RAS
Mode Select
12h
01h (BIOS
POST)
0Ch (Memory)
09h (Digital Discrete)
0h = RAS
Configuration Disabled
1h = RAS
Configuration Enabled
ED2 = Prior
Mode
[7:4] = Reserved
[3:0] = RAS
Mode
0 = None
1 = Mirroring
2 = Lockstep
4 = Rank
Sparing
ED3 = Selected
Mode
[7:4] = Reserved
[3:0] = RAS
Mode
0 = None
1 = Mirroring
2 = Lockstep
4 = Rank
Sparing
174
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Sensor Name
Memory Parity
Error
Sensor
Number
13h
Appendix C: BIOS Sensors and SEL Data
Sensor Owner
(GID)
33h (SMI
Handler)
Sensor Type
0Ch (Memory)
Event/Reading Type
Offset Values
6Fh (Sensor Specific
Offset)
2h = Address Parity
Error
Event Data 2
Event Data 3
ED2 = Validity
[7:5] = Reserved
[4] = Channel
Validity Check
0 = ED3 Chan #
Not Valid
1 = ED3 Chan #
Is Valid
[3] = DIMM
Validity Check
0 = ED3 DIMM
# Not Valid
1 = ED3 DIMM
# Is Valid
[2:0] = Error
Type
0 = Not Known
2 = Address
Parity Error
ED3 = Location
[7:5]= Socket ID
0-3 = CPU1-4
[4:2] = Channel
0-3 = Channel
A-D for Socket
[1:0] = DIMM
0-2 = DIMM 1-3
on Channel
PCIe Fatal Error#2
(Standard AER
Errors)
(continuation of
Sensor 04h)
Revision 1.8
14h
33h (SMI
Handler)
13h (Critical
Interrupt)
76h (OEM Discrete)
0h = Atomic Egress
Blocked
1h = TLP Prefix
Blocked
Fh = Unspecified NonAER Fatal Error
Intel order number G31608-009
ED2 =
[7:0] = Bus
Number
ED3 =
[7:3] = Device
Number
[2:0] = Function
Number
175
Appendix C: BIOS Sensors and SEL Data
Sensor Name
QPI Fatal Error
(continuation of
Sensor 07h)
Sensor
Number
17h
Intel®Server Board S2600JF TPS
Sensor Owner
(GID)
33h (SMI
Handler)
Sensor Type
13h (Critical
Interrupt)
Event/Reading Type
Offset Values
74h (OEM Discrete)
0h = Illegal inbound
request
1h = IIO Write Cache
Uncorrectable Data
ECC Error
2h = IIO CSR crossing
32-bit boundary Error
3h = IIO Received XPF
physical/logical redirect
interrupt inbound
4h = IIO Illegal SAD or
Illegal or non-existent
address or memory
5h = IIO Write Cache
Coherency Violation
6Fh (Sensor Specific
Offset)
Event Data 2
Event Data 3
ED2 =
[7:0] = Node ID
0-3 = CPU1-4
ED3 = No Data
1h = System Boot
Event
5h = Time Synch
(EPSD)
System Event
83h
01h (BIOS
POST)
12h (System
Event))
6Fh (Sensor Specific
Offset)
5h = Time Synch
(EPSD)
ED2 = (only for
Time Synch)
[7:0] Synch #
00h = 1st in pair
80h = 2nd in pair
ED3 = No Data
System Event
83h
33h (SMI
Handler)
12h (System
Event))
6Fh (Sensor Specific
Offset)
5h = Time Synch
(EPSD)
ED2 = (only for
Time Synch)
[7:0] Synch #
00h = 1st in pair
80h = 2nd in pair
ED3 = No Data
176
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Appendix D: Node Manager 2.0 IPMI Integrated Sensors
Appendix D: Node Manager 2.0 IPMI Integrated Sensors
The following is a list of all Node Manager (NM) 2.0 sensors that are typically integrated into the
Sensor Data Records on EPSD Boards Based on Intel® Xeon® Processor
E5-4600/2600/2400/1600/1400 Product Families. Not all sensors are implemented on all
platforms. For more details on any of these sensors, see the Intel® Intelligent Power Node
Manager 2.0 specification.
The following characteristic are common for all sensors in the following sensor table:
 Senor Owner ID = 2Ch
 Sensor Owner LUN = 60
o [7:4] = Bus Number = 6
o [1:0] = LUN = 0
Table 99. Node Manager 2.0 IPMI Integrated Sensors
Full Sensor Name
(Sensor name in SDR)
Sensor
#
Sensor
Type
Event/Reading
Event Offset Triggers
Type
ME Firmware Health
(SPS FW Health)
17h
OEM
Reserved
DCh
Readable
Value/
Offsets
Event
Data
OEM
Reserved
75h
00h – Firmware Status.
–
Trig Offset,
ED2 and
ED31
–
Trig Offset,
ED2 and
ED31
Node Manager
Exception
(NM Exception)
18h
OEM
Reserved
DCh
OEM
Reserved
75h
[3] – Node Manager Policy
event
0 – Reserved.
1 – Policy Correction
Time Exceeded
[0:2] – Reserved.
Node Manager
Health
(NM Health)
19h
OEM
Reserved
DCh
OEM
Reserved
73h
02h – Sensor Node Manager.
–
Trig Offset,
ED2 and
ED31
Node Manager
Operational
Capabilities Change
(NM Capabilities)
1Ah
OEM
Reserved
DCh
OEM
Reserved
74h
Current state of Operational
Capabilities1
–
Trig Offset,
ED2 and
ED31
–
Trig Offset,
ED2 and
ED31
NM Alert Threshold
Exceeded
(NM Threshold)
1Bh
OEM
Reserved
DCh
OEM
Reserved
72h
[3] – Node Manager Policy
Event
0 – Threshold exceeded.
1 – Policy Correction
Time Exceeded
[0:1] – Threshold Number
0–2 – Threshold index.
Memory Throttling for
CPU#0
(P1 MTT)
34h
Memory
0Ch
Threshold
01h
[u][c,nc]
Analog
Reading
Threshold
Memory Throttling for
CPU#1
(P2 MTT)
35h
Memory
0Ch
Threshold
01h
[u][c,nc]
Analog
Reading
Threshold
Memory Throttling for
CPU#2
(P3 MTT)
36h
Memory
0Ch
Threshold
01h
[u][c,nc]
Analog
Reading
Threshold
Memory Throttling for
CPU#3
(P4 MTT)
37h
Memory
0Ch
Threshold
01h
[u][c,nc]
Analog
Reading
Threshold
Note 1: For data in ED2 and ED3, see Intel® Intelligent Power Node Manager 2.0 specification.
Revision 1.8
Intel order number G31608-009
177
Appendix E: POST Code LED Decoder
Intel®Server Board S2600JF TPS
Appendix E: POST Code LED Decoder
During the system boot process, the BIOS executes several platform configuration processes,
each of which is assigned a specific hex POST code number. As each configuration routine is
started, the BIOS displays the POST code on the POST code diagnostic LEDs found on the
back edge of the server board. To assist in troubleshooting a system hang during the POST
process, the diagnostic LEDs can be used to identify the last POST process to be executed.
Each POST code is represented by the eight amber diagnostic LEDs. The POST codes are
divided into two nibbles, an upper nibble and a lower nibble. The upper nibble bits are
represented by diagnostic LEDs #4, #5, #6, and #7. The lower nibble bits are represented by
diagnostics LEDs #0, #1, #2, and #3. If the bit is set in the upper and lower nibbles, the
corresponding LED is lit. If the bit is clear, the corresponding LED is off.
The diagnostic LED #7 is labeled as “MSB” (Most Significant Bit), and the diagnostic LED #0 is
labeled as “LSB” (Least Significant Bit).
Figure 53. Diagnostic LED Placement Diagram(Block A)
178
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Appendix E: POST Code LED Decoder
In the following example, the BIOS sends a value of ACh to the diagnostic LED decoder. The
LEDs are decoded as follows.
Table 100. POST Progress Code LED Example
Upper Nibble LEDs
Lower Nibble LEDs
MSB
LSB
LEDs
LED #7
LED #6
LED #5
LED #4
LED #3
LED #2
LED #1
LED #0
8h
4h
2h
1h
8h
4h
2h
1h
Status
ON
OFF
ON
OFF
ON
ON
OFF
OFF
1
0
1
0
1
1
0
0
Results
Ah
Ch
Upper nibble bits = 1010b = Ah; Lower nibble bits = 1100b = Ch; the two are concatenated as ACh.
Table 101. Diagnostic LED POST Code Decoder
Progress Code
Description
SEC Phase
0x01
First POST code after CPU reset
0x02
Microcode load begin
0x03
CRAM initialization begin
0x04
Pei Cache When Disabled
0x05
SEC Core At Power On Begin
0x06
Early CPU initialization during Sec
Phase
0x07
Early SB initialization during Sec Phase
0x08
Early NB initialization during Sec Phase
0x09
End Of Sec Phase
0x0E
Microcode Not Found
0x0F
Microcode Not Loaded
PEI Phase
0x10
PEI Core
0x11
CPU PEIM
0x15
NB PEIM
0x19
SB PEIM
MRC Progress Codes
At this point the MRC Progress Code sequence is executed
Revision 1.8
0x31
Memory Installed
0x32
CPU PEIM (CPU Init)
Intel order number G31608-009
179
Appendix E: POST Code LED Decoder
Intel®Server Board S2600JF TPS
Progress Code
Description
0x33
CPU PEIM (Cache Init)
0x34
CPU PEIM (BSP Select)
0x35
CPU PEIM (AP Init)
0x36
CPU PEIM (CPU SMM Init)
0x4F
Dxe IPL started
DXE Phase
180
0x60
DXE Core started
0x61
DXE NVRAM Init
0x62
SB RUN Init
0x63
DXE CPU Init
0x68
DXE PCI Host Bridge Init
0x69
DXE NB Init
0x6A
DXE NB SMM Init
0x70
DXE SB Init
0x71
DXE SB SMM Init
0x72
DXE SB devices Init
0x78
DXE ACPI Init
0x79
DXE CSM Init
0x90
DXE BDS Started
0x91
DXE BDS connect drivers
0x92
DXE PCI Bus begin
0x93
DXE PCI Bus HPC Init
0x94
DXE PCI Bus enumeration
0x95
DXE PCI Bus resource requested
0x96
DXE PCI Bus assign resource
0x97
DXE CON_OUT connect
0x98
DXE CON_IN connect
0x99
DXE SIO Init
0x9A
DXE USB start
0x9B
DXE USB reset
0x9C
DXE USB detect
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Appendix E: POST Code LED Decoder
Progress Code
Description
0x9D
DXE USB enable
0xA1
DXE IDE begin
0xA2
DXE IDE reset
0xA3
DXE IDE detect
0xA4
DXE IDE enable
0xA5
DXE SCSI begin
0xA6
DXE SCSI reset
0xA7
DXE SCSI detect
0xA8
DXE SCSI enable
0xA9
DXE verifying SETUP password
0xAB
DXE SETUP start
0xAC
DXE SETUP input wait
0xAD
DXE Ready to Boot
0xAE
DXE Legacy Boot
0xAF
DXE Exit Boot Services
0xB0
RT Set Virtual Address Map Begin
0xB1
RT Set Virtual Address Map End
0xB2
DXE Legacy Option ROM init
0xB3
DXE Reset system
0xB4
DXE USB Hot plug
0xB5
DXE PCI BUS Hot plug
0xB6
DXE NVRAM cleanup
0xB7
DXE Configuration Reset
0x00
INT19
S3 Resume
Revision 1.8
0xE0
S3 Resume PEIM (S3 started)
0xE1
S3 Resume PEIM (S3 boot script)
0xE2
S3 Resume PEIM (S3 Video Repost)
0xE3
S3 Resume PEIM (S3 OS wake)
Intel order number G31608-009
181
Appendix E: POST Code LED Decoder
Intel®Server Board S2600JF TPS
Progress Code
Description
BIOS Recovery
182
0xF0
PEIM which detected forced Recovery
condition
0xF1
PEIM which detected User Recovery
condition
0xF2
Recovery PEIM (Recovery started)
0xF3
Recovery PEIM (Capsule found)
0xF4
Recovery PEIM (Capsule loaded)
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Appendix F: Video POST Code Errors
Appendix F: Video POST Code Errors
The table below lists the supported POST Error Codes, with a descriptive Error Message text for
each. There is also a Response listed, which classifies the error as Minor, Major, or Fatal
depending on how serious the error is and what action the system should take.
The Response section in the following table indicates one of these actions:
Minor: The message is displayed on the screen or on the Error Manager screen, and an
error is logged to the SEL. The system continues booting in a degraded state. The user
may want to replace the erroneous unit. The POST Error Pause option setting in the
BIOS setup does not have any effect on this error.
Major: The message is displayed on the Error Manager screen, and an error is logged to
the SEL. The POST Error Pause option setting in the BIOS setup determines whether
the system pauses to the Error Manager for this type of error so the user can take
immediate corrective action or the system continues booting.
Note that for 0048 “Password check failed”, the system halts, and then after the next
reset/reboot will displays the error code on the Error Manager screen.
Fatal: The system halts during post at a blank screen with the text “Unrecoverable fatal
error found. System will not boot until the error is resolved” and “Press <F2> to
enter setup” The POST Error Pause option setting in the BIOS setup does not have
any effect with this class of error.
When the operator presses the F2 key on the keyboard, the error message is displayed
on the Error Manager screen, and an error is logged to the SEL with the error code. The
system cannot boot unless the error is resolved. The user needs to replace the faulty
part and restart the system.
Again, note that these Error Codes and the messages that go with them must be coordinated
with the master list maintained by the Server Management Utilities team.
Be aware that the POST Error Code list shown in this table may contain error codes which do
not necessarily apply uniformly to every platform. Only a subset of these error codes will be
applicable to any given server board.
Table 102. POST Error Messages and Handling
Error Code
0012
System RTC date/time not set
Response
Major
0048
Password check failed
Major
113
Fixed media not detected
Major
0140
PCI component encountered a PERR error
Major
0141
PCI resource conflict
Major
0146
PCI out of resources error
Major
0191
Processor core/thread count mismatch detected
Fatal
0192
Processor cache size mismatch detected
Fatal
0194
Processor family mismatch detected
Fatal
0195
Processor Intel(R) QPI link frequencies unable to synchronize
Fatal
Revision 1.8
Error Message
Intel order number G31608-009
183
Appendix F: Video POST Code Errors
Intel®Server Board S2600JF TPS
Error Code
0196
Error Message
Processor model mismatch detected
Response
Fatal
0197
Processor frequencies unable to synchronize
Fatal
5220
BIOS Settings reset to default settings
Major
5221
Passwords cleared by jumper
Major
5224
Password clear jumper is Set
Major
8130
Processor 01 disabled
Major
8131
Processor 02 disabled
Major
8132
Processor 03 disabled
Major
8133
Processor 04 disabled
Major
8160
Processor 01 unable to apply microcode update
Major
8161
Processor 02 unable to apply microcode update
Major
8162
Processor 03 unable to apply microcode update
Major
8163
Processor 04 unable to apply microcode update
Major
8170
Processor 01 failed Self Test (BIST)
Major
8171
Processor 02 failed Self Test (BIST)
Major
8172
Processor 03 failed Self Test (BIST)
Major
8173
Processor 04 failed Self Test (BIST)
Major
8180
Processor 01 microcode update not found
Minor
8181
Processor 02 microcode update not found
Minor
8182
Processor 03 microcode update not found
Minor
8183
Processor 04 microcode update not found
Minor
8190
Watchdog timer failed on last boot
Major
8198
OS boot watchdog timer failure
Major
8300
Baseboard management controller failed self test
Major
8305
Hot Swap Controller failure
Major
83A0
Management Engine (ME) failed self test
Major
83A1
Management Engine (ME) Failed to respond.
Major
84F2
Baseboard management controller failed to respond
Major
84F3
Baseboard management controller in update mode
Major
84F4
Sensor data record empty
Major
84FF
System event log full
Minor
8500
Memory component could not be configured in the selected RAS mode
Major
8501
DIMM Population Error
Major
8520
DIMM_A1 failed test/initialization
Major
8521
DIMM_A2 failed test/initialization
Major
8522
DIMM_A3 failed test/initialization
Major
8523
DIMM_B1 failed test/initialization
Major
8524
DIMM_B2 failed test/initialization
Major
8525
DIMM_B3 failed test/initialization
Major
8526
DIMM_C1 failed test/initialization
Major
8527
DIMM_C2 failed test/initialization
Major
8528
DIMM_C3 failed test/initialization
Major
8529
DIMM_D1 failed test/initialization
Major
852A
DIMM_D2 failed test/initialization
Major
852B
DIMM_D3 failed test/initialization
Major
184
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Appendix F: Video POST Code Errors
Error Code
852C
DIMM_E1 failed test/initialization
Response
Major
852D
DIMM_E2 failed test/initialization
Major
852E
DIMM_E3 failed test/initialization
Major
852F
DIMM_F1 failed test/initialization
Major
8530
DIMM_F2 failed test/initialization
Major
8531
DIMM_F3 failed test/initialization
Major
8532
DIMM_G1 failed test/initialization
Major
8533
DIMM_G2 failed test/initialization
Major
8534
DIMM_G3 failed test/initialization
Major
8535
DIMM_H1 failed test/initialization
Major
8536
DIMM_H2 failed test/initialization
Major
8537
DIMM_H3 failed test/initialization
Major
8538
DIMM_J1 failed test/initialization
Major
8539
DIMM_J2 failed test/initialization
Major
853A
DIMM_J3 failed test/initialization
Major
853B
DIMM_K1 failed test/initialization
Major
853C
DIMM_K2 failed test/initialization
Major
853D
DIMM_K3 failed test/initialization
Major
853E
DIMM_L1 failed test/initialization
Major
853F
(Go to
85C0)
DIMM_L2 failed test/initialization
Major
8540
DIMM_A1 disabled
Major
8541
DIMM_A2 disabled
Major
8542
DIMM_A3 disabled
Major
8543
DIMM_B1 disabled
Major
8544
DIMM_B2 disabled
Major
8545
DIMM_B3 disabled
Major
8546
DIMM_C1 disabled
Major
8547
DIMM_C2 disabled
Major
8548
DIMM_C3 disabled
Major
8549
DIMM_D1 disabled
Major
854A
DIMM_D2 disabled
Major
854B
DIMM_D3 disabled
Major
854C
DIMM_E1 disabled
Major
854D
DIMM_E2 disabled
Major
854E
DIMM_E3 disabled
Major
854F
DIMM_F1 disabled
Major
8550
DIMM_F2 disabled
Major
8551
DIMM_F3 disabled
Major
8552
DIMM_G1 disabled
Major
8553
DIMM_G2 disabled
Major
8554
DIMM_G3 disabled
Major
8555
DIMM_H1 disabled
Major
8556
DIMM_H2 disabled
Major
Revision 1.8
Error Message
Intel order number G31608-009
185
Appendix F: Video POST Code Errors
Intel®Server Board S2600JF TPS
Error Code
8557
DIMM_H3 disabled
Response
Major
8558
DIMM_J1 disabled
Major
8559
DIMM_J2 disabled
Major
855A
DIMM_J3 disabled
Major
855B
DIMM_K1 disabled
Major
855C
DIMM_K2 disabled
Major
855D
DIMM_K3 disabled
Major
855E
DIMM_L1 disabled
Major
855F
(Go to
85D0)
DIMM_L2 disabled
Major
8560
DIMM_A1 encountered a Serial Presence Detection (SPD) failure
Major
8561
DIMM_A2 encountered a Serial Presence Detection (SPD) failure
Major
8562
DIMM_A3 encountered a Serial Presence Detection (SPD) failure
Major
8563
DIMM_B1 encountered a Serial Presence Detection (SPD) failure
Major
8564
DIMM_B2 encountered a Serial Presence Detection (SPD) failure
Major
8565
DIMM_B3 encountered a Serial Presence Detection (SPD) failure
Major
8566
DIMM_C1 encountered a Serial Presence Detection (SPD) failure
Major
8567
DIMM_C2 encountered a Serial Presence Detection (SPD) failure
Major
8568
DIMM_C3 encountered a Serial Presence Detection (SPD) failure
Major
8569
DIMM_D1 encountered a Serial Presence Detection (SPD) failure
Major
856A
DIMM_D2 encountered a Serial Presence Detection (SPD) failure
Major
856B
DIMM_D3 encountered a Serial Presence Detection (SPD) failure
Major
856C
DIMM_E1 encountered a Serial Presence Detection (SPD) failure
Major
856D
DIMM_E2 encountered a Serial Presence Detection (SPD) failure
Major
856E
DIMM_E3 encountered a Serial Presence Detection (SPD) failure
Major
856F
DIMM_F1 encountered a Serial Presence Detection (SPD) failure
Major
8570
DIMM_F2 encountered a Serial Presence Detection (SPD) failure
Major
8571
DIMM_F3 encountered a Serial Presence Detection (SPD) failure
Major
8572
DIMM_G1 encountered a Serial Presence Detection (SPD) failure
Major
8573
DIMM_G2 encountered a Serial Presence Detection (SPD) failure
Major
8574
DIMM_G3 encountered a Serial Presence Detection (SPD) failure
Major
8575
DIMM_H1 encountered a Serial Presence Detection (SPD) failure
Major
8576
DIMM_H2 encountered a Serial Presence Detection (SPD) failure
Major
8577
DIMM_H3 encountered a Serial Presence Detection (SPD) failure
Major
8578
DIMM_J1 encountered a Serial Presence Detection (SPD) failure
Major
8579
DIMM_J2 encountered a Serial Presence Detection (SPD) failure
Major
857A
DIMM_J3 encountered a Serial Presence Detection (SPD) failure
Major
857B
DIMM_K1 encountered a Serial Presence Detection (SPD) failure
Major
857C
DIMM_K2 encountered a Serial Presence Detection (SPD) failure
Major
857D
DIMM_K3 encountered a Serial Presence Detection (SPD) failure
Major
857E
DIMM_L1 encountered a Serial Presence Detection (SPD) failure
Major
857F
(Go to
85E0)
DIMM_L2 encountered a Serial Presence Detection (SPD) failure
Major
85C0
DIMM_L3 failed test/initialization
Major
186
Error Message
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Appendix F: Video POST Code Errors
Error Code
85C1
DIMM_M1 failed test/initialization
Response
Major
85C2
DIMM_M2 failed test/initialization
Major
85C3
DIMM_M3 failed test/initialization
Major
85C4
DIMM_N1 failed test/initialization
Major
85C5
DIMM_N2 failed test/initialization
Major
85C6
DIMM_N3 failed test/initialization
Major
85C7
DIMM_P1 failed test/initialization
Major
85C8
DIMM_P2 failed test/initialization
Major
85C9
DIMM_P3 failed test/initialization
Major
85CA
DIMM_R1 failed test/initialization
Major
85CB
DIMM_R2 failed test/initialization
Major
85CC
DIMM_R3 failed test/initialization
Major
85CD
DIMM_T1 failed test/initialization
Major
85CE
DIMM_T2 failed test/initialization
Major
85CF
DIMM_T3 failed test/initialization
Major
85D0
DIMM_L3 disabled
Major
85D1
DIMM_M1 disabled
Major
85D2
DIMM_M2 disabled
Major
85D3
DIMM_M3 disabled
Major
85D4
DIMM_N1 disabled
Major
85D5
DIMM_N2 disabled
Major
85D6
DIMM_N3 disabled
Major
85D7
DIMM_P1 disabled
Major
85D8
DIMM_P2 disabled
Major
85D9
DIMM_P3 disabled
Major
85DA
DIMM_R1 disabled
Major
85DB
DIMM_R2 disabled
Major
85DC
DIMM_R3 disabled
Major
85DD
DIMM_T1 disabled
Major
85DE
DIMM_T2 disabled
Major
85DF
DIMM_T3 disabled
Major
85E0
DIMM_L3 encountered a Serial Presence Detection (SPD) failure
Major
85E1
DIMM_M1 encountered a Serial Presence Detection (SPD) failure
Major
85E2
DIMM_M2 encountered a Serial Presence Detection (SPD) failure
Major
85E3
DIMM_M3 encountered a Serial Presence Detection (SPD) failure
Major
85E4
DIMM_N1 encountered a Serial Presence Detection (SPD) failure
Major
85E5
DIMM_N2 encountered a Serial Presence Detection (SPD) failure
Major
85E6
DIMM_N3 encountered a Serial Presence Detection (SPD) failure
Major
85E7
DIMM_P1 encountered a Serial Presence Detection (SPD) failure
Major
85E8
DIMM_P2 encountered a Serial Presence Detection (SPD) failure
Major
85E9
DIMM_P3 encountered a Serial Presence Detection (SPD) failure
Major
85EA
DIMM_R1 encountered a Serial Presence Detection (SPD) failure
Major
85EB
DIMM_R2 encountered a Serial Presence Detection (SPD) failure
Major
85EC
DIMM_R3 encountered a Serial Presence Detection (SPD) failure
Major
85ED
DIMM_T1 encountered a Serial Presence Detection (SPD) failure
Major
Revision 1.8
Error Message
Intel order number G31608-009
187
Appendix F: Video POST Code Errors
Intel®Server Board S2600JF TPS
Error Code
85EE
Error Message
DIMM_T2 encountered a Serial Presence Detection (SPD) failure
Response
Major
85EF
DIMM_T3 encountered a Serial Presence Detection (SPD) failure
Major
8604
POST Reclaim of non-critical NVRAM variables
Minor
8605
BIOS Settings are corrupted
Major
8606
NVRAM variable space was corrupted and has been reinitialized
Major
92A3
Serial port component was not detected
Major
92A9
Serial port component encountered a resource conflict error
Major
9505
ATA/ATAPI interface error
Major
A000
TPM device not detected.
Minor
A001
TPM device missing or not responding.
Minor
A002
TPM device failure.
Minor
A003
TPM device failed self test.
Minor
A100
BIOS ACM Error
Major
A421
PCI component encountered a SERR error
Fatal
A5A0
PCI Express component encountered a PERR error
Minor
A5A1
PCI Express component encountered an SERR error
Fatal
A6A0
DXE Boot Services driver: Not enough memory available to shadow a Legacy
Option ROM.
Minor
188
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Glossary
Glossary
This glossary contains important terms used in the preceding chapters. For ease of use,
numeric entries are listed first (for example, 82460GX) with alpha entries following (for example,
AGP 4x). Acronyms are then entered in their respective place, with non-acronyms following.
Table 103. Glossary
Term
ACPI
Advanced Configuration and Power Interface
AP
Application Processor
APIC
Advanced Programmable Interrupt Control
ARP
Address Resolution Protocal
ASIC
Application Specific Integrated Circuit
BIOS
Basic Input/Output System
BIST
Built-In Self Test
BMC
Baseboard Management Controller
Bridge
Circuitry connecting one computer bus to another, allowing an agent on one to access the other
BSP
Bootstrap Processor
Byte
8-bit quantity.
CATERR
On a catastrophic hardware event the core signals CATERR to the uncore. The core enters a
halted state that can only be exited by a reset.
CBC
Chassis Bridge Controller (A microcontroller connected to one or more other CBCs, together they
bridge the IPMB buses of multiple chassis.)
CEK
Common Enabling Kit
CHAP
Challenge Handshake Authentication Protocol
CMOS
In terms of this specification, this describes the PC-AT compatible region of battery-backed 128
bytes of memory, which normally resides on the server board.
DCMI
Data Center Management Interface
DHCP
Dynamic Host Configuration Protocal
DPC
Direct Platform Control
EEPROM
Electrically Erasable Programmable Read-Only Memory
EHCI
Enhanced Host Controller Interface
EMP
Emergency Management Port
EPS
External Product Specification
FBD
Fully Buffered DIMM
FMB
Flexible Mother Board
FRB
Fault Resilient Booting
FRU
Field Replaceable Unit
FSB
Front Side Bus
GB
1024 MB
GPIO
General Purpose I/O
GTL
Gunning Transceiver Logic
GPA
Guest Physical Address
HSC
Hot-Swap Controller
HPA
Host Physical Address
Revision 1.8
Definition
Intel order number G31608-009
189
Glossary
Intel®Server Board S2600JF TPS
Term
Definition
Hz
Hertz (1 cycle/second)
I2 C
Inter-Integrated Circuit Bus
IA
Intel® Architecture
IBF
Input Buffer
ICH
I/O Controller Hub
IC MB
Intelligent Chassis Management Bus
IFB
I/O and Firmware Bridge
ILM
Independent Loading Mechanism
IMC
Integrated Memory Controller
INTR
Interrupt
IP
Internet Protocol
IPMB
Intelligent Platform Management Bus
IPMI
Intelligent Platform Management Interface
IR
Infrared
ITP
In-Target Probe
KB
1024 bytes
KCS
Keyboard Controller Style
LAN
Local Area Network
LCD
Liquid Crystal Display
LED
Light Emitting Diode
LPC
Low Pin Count
LSB
Least Significant Bit
LUN
Logical Unit Number
MAC
Media Access Control
MB
1024KB
ME
Management Engine
MD2
Message Digest 2 – Hashing Algorithm
MD5
Message Digest 5 – Hashing Algorithm – Higher Security
ms
Milliseconds
MSB
Most Significant Bit
MTTR
Memory Type Range Register
Mux
Multiplexor
NIC
Network Interface Controller
NMI
Nonmaskable Interrupt
OBF
Output Buffer
OEM
Original Equipment Manufacturer
Ohm
Unit of electrical resistance
PECI
Platform Environment Control Interface
PEF
Platform Event Filtering
PEP
Platform Event Paging
PIA
Platform Information Area (This feature configures the firmware for the platform hardware)
PLD
Programmable Logic Device
PMI
Platform Management Interrupt
POST
Power-On Self Test
PSMI
Power Supply Management Interface
190
Intel order number G31608-009
Revision 1.8
Intel®Server Board S2600JF TPS
Glossary
Term
PWM
Pulse-Width Modulation
QPI
QuickPath Interconnect
RAM
Random Access Memory
RASUM
Reliability, Availability, Serviceability, Usability, and Manageability
RISC
Reduced Instruction Set Computing
ROM
Read Only Memory
RTC
Real-Time Clock (Component of ICH peripheral chip on the server board)
RMM3
Remote Management Module 3
SDR
Sensor Data Record
SECC
Single Edge Connector Cartridge
SEEPROM
Serial Electrically Erasable Programmable Read-Only Memory
SEL
System Event Log
SIO
Server Input/Output
SMBus*
System Management BUS
SMI
Server Management Interrupt (SMI is the highest priority nonmaskable interrupt)
SMM
Server Management Mode
SMS
Server Management Software
SNMP
Simple Network Management Protocol
TBD
To Be Determined
TDP
Thermal Design Power
TIM
Thermal Interface Material
UART
Universal Asynchronous Receiver/Transmitter
UDP
User Datagram Protocol
UHCI
Universal Host Controller Interface
URS
Unified Retention System
UTC
Universal time coordinare
UUID
Universally Unique Identifier
VID
Voltage Identification
VLSI
Very Large Scale Integration
VRD
Voltage Regulator Down
VT
Virtualization Technology
Word
16-bit quantity
ZIF
Zero Insertion Force
Revision 1.8
Definition
Intel order number G31608-009
191
Reference Documents
Intel®Server Board S2600JF TPS
Reference Documents
192

ACPI 3.0: http://www.acpi.info/spec.htm

IPMI 2.0

Data Center Management Interface Specification v1.0, May 1, 2008:
www.intel.com/go/dcmi

PCI Bus Power Management Interface Specification 1.1: http://www.pcisig.com/

PCI Express* Base Specification Rev 2.0 Dec 06: http://www.pcisig.com/

PCI Express* Card Electromechanical Specification Rev 2.0: http://www.pcisig.com/

PMBus*: http://pmbus.org

SATA 2.6: http://www.sata-io.org/

SMBIOS 2.4

SSI-EEB 3.0: http://www.ssiforum.org

USB 1.1: http://www.usb.org

USB 2.0: http://www.usb.org

Windows* Logo/SDG 3.0

Intel® Dynamic PowerTechnology Node Manager 1.5 External Interface Specification
using IPMI, 2007. Intel Corporation.

Node Power and Thermal Management Architecture Specification v1.5, rev.0.79. 2007,
Intel Corporation.

Intel® Server System Integrated Baseboard Management Controller Core External
Product Specification, 2007 Intel Corporation.

Intel® Thurley Server Platform Services IPMI Commands Specification, 2007. Intel
Corporation.

Intel® Server Safety and Regulatory, 2011. Intel Corporation. Intel® order number:
G31608-006.

Intelligent Platform Management Bus Communications Protocol Specification, Version
1.0, 1998. Intel Corporation, Hewlett-Packard* Company, NEC* Corporation, Dell*
Computer Corporation.

Platform Environmental Control Interface (PECI) Specification, Version 2.0. Intel
Corporation.

Platform Management FRU Information Storage Definition, Version 1.0, Revision 1.2,
2002. Intel Corporation, Hewlett-Packard* Company, NEC* Corporation, Dell* Computer
Corporation. http://developer.intel.com/design/servers/ipmi/spec.htm.
Intel order number G31608-009
Revision 1.8
