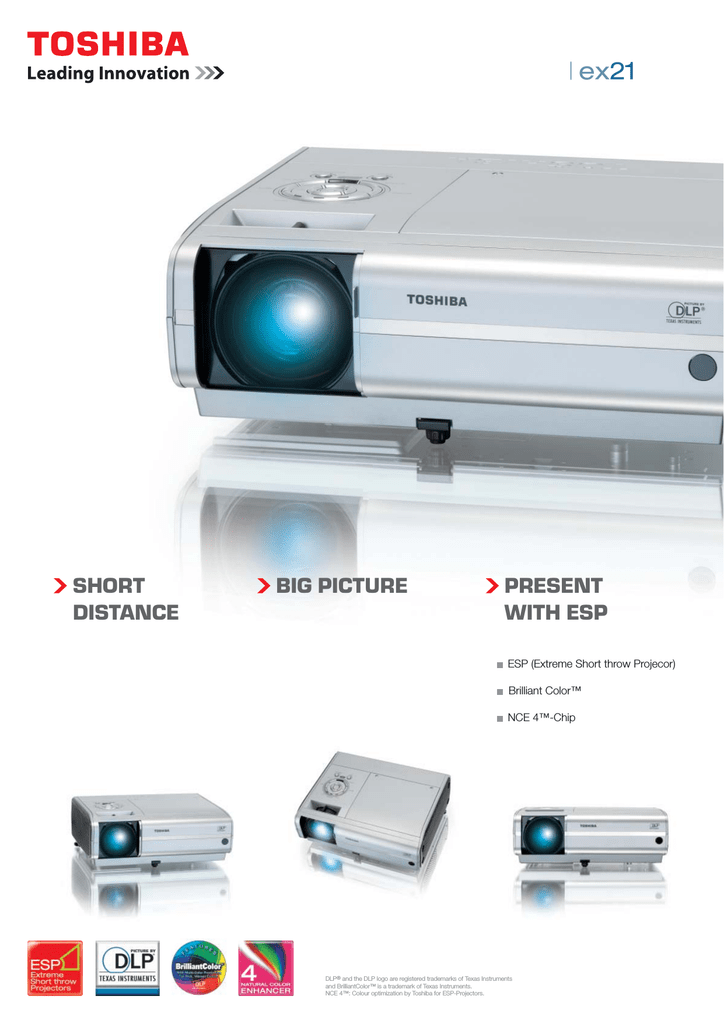

Toshiba ex21 Datasheet

| ex21
SHORT
DISTANCE
BIG PICTURE
PRESENT
WITH ESP
ESP (Extreme Short throw Projecor)
Brilliant Color™
NCE 4™-Chip
DLP® and the DLP logo are registered trademarks of Texas Instruments
and BrilliantColor™ is a trademark of Texas Instruments.
NCE 4™: Colour optimization by Toshiba for ESP-Projectors.
| ex21
Display
0.55” DMD™ Chip
Resolution
XGA 1,024 x 768
Brightness
2,300 ANSI-lumens
Colour reproduction
16.7 mio. colours
Contrast
2,000:1
Projection format
4:3 switchable to 16:9, 16:10 (compr.)
Lamp
275 W (TLPLW15LAMP)
Max. lamp life
up to max. 2,000 hours/
Lens
F = 2.6 / f = 8.37, manual focus
up to max. 3,000 hours in ECO mode
Zoom
-
Frequency (hor./vert.)
15 - 120 kHz / 50 - 150 Hz
Projection
front, rear and ceiling
Digital keystone correction
full auto vertical +/- 18°
Picture size (diagonal)
0.89 - 2.54 m
Projection offset
130 %
Input signals
NTSC/PAL/SECAM, 480i, 480p, 576i, 576p, 720p, 1,080i,
Inputs
2 x RGB (D-sub 15), S-video, composite video (RCA),
VGA, SVGA, XGA, SXGA, WXGA & UXGA (compr.)
audio (stereo mini jack), video/S-video, audio (2 x RCA
L/R), component (Y/PB/PR) via D-sub 15
Outputs
RGB (D-sub 15), audio (stereo mini jack)
Serial interface
RS-232C (D-sub 9pin)
Power supply
AC 100 - 240 V, 50/60 Hz
Loudspeaker
1 W mono
Dimensions (W x H x D)
337 x 118 x 265 mm
Weight
4.2 kg
Operation noise
ECO Mode 28 dB / normal 33 dB
Specials
Password, panel lock, digital zoom, user logo capture,
Accessories
remote control with batteries, owners manual
Options
ceiling mount, spare lamp, camera c001
Menu guidance
22 languages: English, French, German, Italian, Spanish,
DDC compatible, BrilliantColor™
(CD ROM), quick reference, RGB and power-cable
Portuguese, Russian, Swedish, Turkish, Polish, Japanese, Chinese (simple/traditional), Korean, Indonesian,
Danish, Czech, Hungarian, Dutch, Finnish, Norwegian,
Picture size
Projection distance
0.89 m
1.20 m
1.50 m
2.00 m
2.54 m
0.50 m
0.69 m
0.87 m
1.16 m
1.50 m
January 2009 • subject to modifications and errors
Greek, Rumanian
www.toshiba-projectors.com
Toshiba Europe GmbH
Projection & Display Technology
Phone: ++49-2131-158-01 · Fax: ++49-2131-158-835
