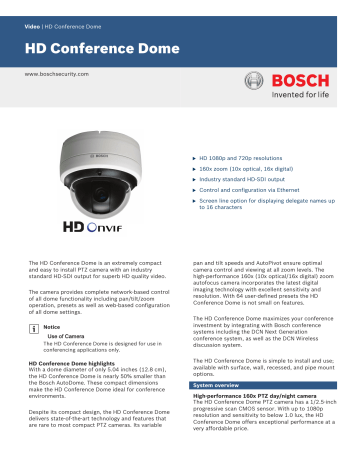

Video | HD Conference Dome
HD Conference Dome
www.boschsecurity.com
The HD Conference Dome is an extremely compact
and easy to install PTZ camera with an industry
standard HD-SDI output for superb HD quality video.
The camera provides complete network-based control
of all dome functionality including pan/tilt/zoom
operation, presets as well as web-based configuration
of all dome settings.
Notice
Use of Camera
The HD Conference Dome is designed for use in
conferencing applications only.
HD Conference Dome highlights
With a dome diameter of only 5.04 inches (12.8 cm),
the HD Conference Dome is nearly 50% smaller than
the Bosch AutoDome. These compact dimensions
make the HD Conference Dome ideal for conference
environments.
Despite its compact design, the HD Conference Dome
delivers state-of-the-art technology and features that
are rare to most compact PTZ cameras. Its variable
u
HD 1080p and 720p resolutions
u
160x zoom (10x optical, 16x digital)
u
Industry standard HD-SDI output
u
Control and configuration via Ethernet
u
Screen line option for displaying delegate names up
to 16 characters
pan and tilt speeds and AutoPivot ensure optimal
camera control and viewing at all zoom levels. The
high-performance 160x (10x optical/16x digital) zoom
autofocus camera incorporates the latest digital
imaging technology with excellent sensitivity and
resolution. With 64 user-defined presets the HD
Conference Dome is not small on features.
The HD Conference Dome maximizes your conference
investment by integrating with Bosch conference
systems including the DCN Next Generation
conference system, as well as the DCN Wireless
discussion system.
The HD Conference Dome is simple to install and use;
available with surface, wall, recessed, and pipe mount
options.
System overview
High-performance 160x PTZ day/night camera
The HD Conference Dome PTZ camera has a 1/2.5-inch
progressive scan CMOS sensor. With up to 1080p
resolution and sensitivity to below 1.0 lux, the HD
Conference Dome offers exceptional performance at a
very affordable price.
2 | HD Conference Dome
Pan and tilt preset repeatability are accurate to within
±0.1 degrees to ensure that the correct scene is
captured every time. The HD Conference Dome
delivers variable pan/tilt speeds from a crawl speed of
only 1 degree per second up to an ultra-quick 120
degrees per second. The dome is capable of pan
speeds of 360 degrees per second and tilt speeds of
100 degrees per second between prepositions. The
HD Conference Dome provides a tilt range of 0 to 94
degrees, and a pan range of up to 360 degrees
continuous rotation.
The AutoScaling (proportional zoom) and AutoPivot
(automatically rotates and flips the camera) features
ensure optimal control.
Industry standard HD-SDI output
The HD Conference Dome makes use of an industry
standard HD-SDI output for superb HD quality video.
The HD Conference Dome supports 1080p30 and
720p60 resolutions for 50 Hz and 60 Hz models at
16:9 aspect ratio.
Multiple video streams
Next to the HD-SDI output, Bosch's innovative Quadstreaming feature enables the HD Conference Dome to
deliver three H.264 streams together with an M-JPEG
stream in full and reduced bandwidth modes for
monitoring purposes.
Image stabilization
Image stabilization algorithms included with the HD
Conference Dome reduces camera shake in both the
vertical and horizontal axis, resulting in exceptional
image clarity. Bosch’s unique image stabilization
solution does not reduce camera sensitivity, unlike
competitive systems.
Device management
Simple Network Management Protocol (SNMP)
support facilitates the remote monitoring and
management. The HD Conference Dome provides full
support for SNMP v3.
Ease of installation and servicing
The HD Conference Dome has been designed for quick
and easy installation. The dome comes fully assembled
and ready for surface mount applications. Also
available are wall, recessed, and pipe mounting kits
which allow the HD Conference Dome to be easily
adapted for the individual site requirements.
Power over Ethernet
Power for indoor camera models may be supplied via a
Power over Ethernet Plus (PoE+, IEEE 802.3at, class 4)
compliant network cable connection. With this
configuration, only a single cable connection is
required to power and to control the camera while
also monitoring images from the camera via the web
server. An additional coax cable is required for the
video from the HD-SDI output.
Certifications and approvals
Electromagnetic
Compatibility (EMC)
Complies with FCC Part 15, ICES-003, and CE
regulations
Product Safety
Complies with CE regulations, UL, CSA, EN,
and IEC Standards
Installation/configuration notes
Unsurpassed reliability
As with all Bosch products, the camera is designed
using the industry’s best design process and is
subjected to the most stringent testing standards such
as HALT (highly accelerated life testing).
166.9
(6.57)
Functions
The following are some of the features that make the
HD Conference Dome the perfect fit for a variety of
conference applications.
Network-based control and configuration
The HD Conference Dome enables full camera control
and configuration capabilities over the network.
Operators or technicians can control camera pan/tilt/
zoom operation, and presets virtually anywhere
without need for additional wiring.
The embedded web server lets the installer access all
the user settings, make camera adjustments, and
update firmware via a standard web browser or via the
Bosch Video Management System.
128.4
(5.06)
175.0
(6.89)
HD Conference Dome Dimensions
mm
(in.)
3 | HD Conference Dome
112.6
(4.43)
46.0
(1.81)
768.2
(30.24)
14.8
(0.58)
83.0
(3.27)
88.8
(3.5)
561.2
(22.09)
366.0
(14.41)
88.8
(3.5)
3/4-14 NP
SM Threads
461.2
(18.16)
Ø11.2 (4x)
(0.44)
mm
(in.)
mm
(in.)
Pipe Mount Dimensions
Wall Mount Dimensions
291.0
(11.46)
104.9
(4.13)
112.6
(4.43)
71.6
(2.82)
mm
(in.)
220.4
(8.68)
mm
(in.)
R114.4
(4.50)
mm
(in.)
In-Ceiling / Recessed Mount Dimensions
4 | HD Conference Dome
(adjustable R and B signals in Manual
mode)
Day/Night
Monochrome, Color, Auto
1. F1.8, 1/30 (1/25) shutter, maximum AGC.
2. Tinted bubble adds 0.8 f-stop loss.
207.2
(8.16)
Software Control
mm
(in.)
Camera Configuration
Via Internet Explorer Web browser
version 7.0 or later or Bosch
Configuration Manager
Software Update
Firmware upload
Video
Surface Mount Dimensions
HD-SDI
Parts included
Standards
Technical specifications
Resolutions (H x V) and Frame Rates
10x HD Camera
SMPTE 292M
• Full HD/1080p
1920 x 1080, 30 ips
• HD/720p
1280 x 720, 60 ips
Imager
1/2.5 inch progressive scan CMOS
Number of Pixels
2.1 Megapixels
Data Rate
1.5 Gbit/s
Aspect Ratio
16:9
Video Delay
10 ms
Lens
10x optical zoom (6.3 to 63 mm)
(F1.8/F2.5 to close)
Network Stream
Focus
Automatic with manual override
Iris
Automatic with manual override
Field of View
Horizontal: 5.5° to 50.6°
Vertical: 3.1° to 29.3°
Automatic Gain Control
Normal, Medium, High, Fixed
Synchronization
Internal
Aperture Correction
On/Off
Digital Zoom
16x
Sensitivity(typical)1
30 IRE2
SensUP On (64x)
1.2 lx
2.0 lx
0.038 lx
0.063 lx
SensUP On (64x)
Streaming
Individually configurable streams in H.
264 and M‑JPEG, configurable frame
rate and bandwidth;
• 1080p30
One (1) H.264 1080p30 stream plus
one (1) M‑JPEG and one (1) I-frame
stream
• 720p60
One (1) H.264 720p60 stream plus
one (1) M‑JPEG and one (1) I-frame
stream
GOP Structure
IP, IBP, IBBP
Data Rate
9.6 kbps to 6 Mbps
Overall IP Delay
240 ms
Resolutions (H x V) and Frame Rates
Night Mode
SensUP Off
H.264 (ISO/IEC 14496‑10), M‑JPEG,
JPEG
50 IRE2
Day Mode
SensUP Off
Standards
0.06 lx
0.1 lx
0.0018 lx
0.0031 lx
Electronic Shutter Speed
(AES)
1x to 64x; 1/50 (1/60) to 1/10000
Signal to Noise Ratio
> 50 dB (AGC off)
Backlight Compensation
On/Off
White Balance
ATW, Indoor, Outdoor, AWB Hold,
Extended ATW, Manual
Stream 1
• Full HD/1080p
1920 x 1080, 30 ips
• HD/720p
1280 x 720, 60 ips
Stream 23
• SD/480p (WVGA)4
854 x 480, 30 ips
• SD/240p (WQVGA)4
432 x 240, 30 ips
5 | HD Conference Dome
Miscellaneous
3. Stream 1 must be set to 720p at 30 ips.
4. Images displayed in 16:9 aspect ratio.
Pre-positions
64
Screen Line
Up to 16 characters (only standard ASCII
character set can be used)
Supported
Languages
English, German, Dutch, French, Italian,
Spanish, Portuguese, Polish, Russian,
Chinese, and Japanese
Network
Protocols
RTP, Telnet, UDP, TCP, IP, HTTP,
HTTPS, FTP, DHCP, IGMP V2/V3,
ICMP, ARP, SMTP, SNTP, SNMP, RTSP,
802.1x, iSCSI, DynDNS, UPnP
NTCIP Protocols
• CCTV Camera
Control
NTCIP 1205
• Application Layer
SNMP per NTCIP 1101:1996 & NTCIP
2301
• Transport/Network
Layers
TCP/IP per NTCIP 2202:2001
• Sub-network Layer
PMPP (Point to Multi-Point Protocol)
per NTCIP 2101:2001 & NTCIP
2102:2003
Ethernet
10-Base T/100 Base-TX, auto-sensing,
half/full duplex, RJ45
PoE+
IEEE 802.3at, class 4
Mechanical/Electrical
User Connections
Power
• PoE+, Indoor
Models
RJ-45 100 Base-TX Ethernet PoE+ IEEE
802.3at, class 4
• Camera, All
Models
24 VAC, 50/60 Hz
Video
BNC with HD-SDI output
Control
RJ-45 100 Base-TX Ethernet
Construction
Size (Diameter x
Height)
153.0 x 133.0 mm
(6.02 x 4.61 in.)
Bubble Size
128.0 mm (5.04 in.)
Weight
1.92 kg (4.24 lb)
Material
Pan Range
0–360° continuous
Tilt Angle
0–93.6°
• Housing
Cast aluminum
Variable Speed
Pan: 1°/s to 120°/s
Tilt: 1°/s to 100°/s
• Bubble
Acrylic
Pre-position Speed
Pan:360°/s
Tilt: 100°/s
Preset Accuracy
± 0.1° typical
Rated Voltage
24 VAC ± 10%, 50/60 Hz or
PoE+ (IEEE 802.3at, class 4)
Power Draw
17 W typical
Environmental
Operating
Temperature
–10°C to 30°C (14°F to 86°F)
Storage
Temperature
–20°C to 60°C (–4°F to 140°F)
Operating Humidity
0% to 90% relative, non-condensing
Color
White or Charcoal
Ordering information
VCD-811-IWT HD Conference Dome, White, with Tinted
Bubble
White, 1080p HD indoor camera for use with video
conference system, with tinted bubble
Order number VCD-811-IWT
VCD-811-ICT HD Conference Dome, Charcoal, with Tinted Bubble
Charcoal, 1080p HD indoor camera for use with video
conference system, with tinted bubble
Order number VCD-811-ICT
Accessories
VJR-A3-IC AutoDome Junior HD Indoor Recessed Mount
Recessed mount for indoor camera applications that
do not require IP54 or a plenum rating
Order number VJR-A3-IC
6 | HD Conference Dome
VJR-A3-SP In-ceiling Support Kit for AutoDome 700/800
Series and AutoDome Junior HD
Suspended ceiling support kit for AutoDome 700 and
800 Series and AutoDome Junior HD In-ceiling mounts
Order number VJR-A3-SP
VJR-A3-IC54 AutoDome Junior HD Plenum-rated and
Outdoor Recessed Mount
Recessed mount required for indoor camera
applications that must attain an IP54 or a plenum
rating, and required for all recessed outdoor camera
applications
Order number VJR-A3-IC54
VEZ-A2-JC Surface Mount Adapter
Charcoal adapter for AutoDome Junior surface
installations
Order number VEZ-A2-JC
VEZ-A2-JW Surface Mount Adapter
White adapter for AutoDome Junior surface
installations
Order number VEZ-A2-JW
VEZ-A2-PC AutoDome Junior Pipe Mount
Charcoal
Order number VEZ-A2-PC
VEZ-A2-PW AutoDome Junior Pipe Mount
White
Order number VEZ-A2-PW
VEZ-A2-WC AutoDome Junior Wall Mount
Charcoal
Order number VEZ-A2-WC
VEZ-A2-WW Wall Mount
White
Order number VEZ-A2-WW
VJR-SBUB2-CL AutoDome Junior HD Clear Bubble, Indoor
Order number VJR-SBUB2-CL
VJR-SBUB2-TI AutoDome Junior HD Tinted Bubble, Indoor
Order number VJR-SBUB2-TI
UPA-2450-60 Power Supply, 120 V, 60 Hz
Indoor power supply for camera. 120 VAC, 60 Hz In;
24 VAC, 50 VA Out
Order number UPA-2450-60
UPA-2450-50 Power Supply, 220 V, 50 Hz
Indoor power supply for camera. 220 VAC, 50 Hz In;
24 VAC, 50 VA Out
Order number UPA-2450-50
7 | HD Conference Dome
Represented by:
Americas:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
[email protected]
www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
[email protected]
www.boschsecurity.com
© Bosch Security Systems 2014 | Data subject to change without notice
2487314187 | en, V6, 11. Nov 2014
Asia-Pacific:
Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6571 2808
Fax: +65 6571 2699
[email protected]
www.boschsecurity.asia
China:
America Latina:
Bosch (Shanghai) Security Systems Ltd. Robert Bosch Ltda Security Systems Division
201 Building, No. 333 Fuquan Road
Via Anhanguera, Km 98
North IBP
CEP 13065-900
Changning District, Shanghai
Campinas, Sao Paulo, Brazil
200335 China
Phone: +55 19 2103 2860
Phone +86 21 22181111
Fax: +55 19 2103 2862
Fax: +86 21 22182398
[email protected]
www.boschsecurity.com.cn
www.boschsecurity.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
