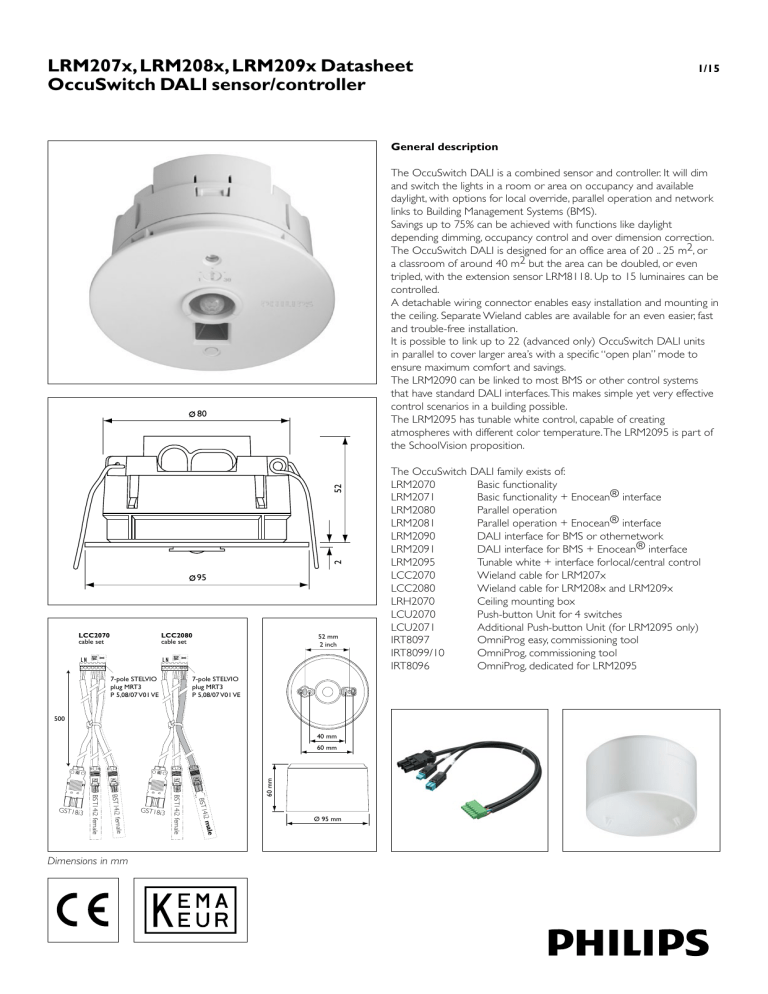

LRM207x, LRM208x, LRM209x Datasheet
OccuSwitch DALI sensor/controller
1/15
General description
The OccuSwitch DALI is a combined sensor and controller. It will dim
and switch the lights in a room or area on occupancy and available
daylight, with options for local override, parallel operation and network
links to Building Management Systems (BMS).
Savings up to 75% can be achieved with functions like daylight
depending dimming, occupancy control and over dimension correction.
The OccuSwitch DALI is designed for an office area of 20 .. 25 m2, or
a classroom of around 40 m2 but the area can be doubled, or even
tripled, with the extension sensor LRM8118. Up to 15 luminaires can be
controlled.
A detachable wiring connector enables easy installation and mounting in
the ceiling. Separate Wieland cables are available for an even easier, fast
and trouble-free installation.
It is possible to link up to 22 (advanced only) OccuSwitch DALI units
in parallel to cover larger area’s with a specific “open plan” mode to
ensure maximum comfort and savings.
The LRM2090 can be linked to most BMS or other control systems
that have standard DALI interfaces. This makes simple yet very effective
control scenarios in a building possible.
The LRM2095 has tunable white control, capable of creating
atmospheres with different color temperature. The LRM2095 is part of
the SchoolVision proposition.
2
52
80
95
LCC2070
cable set
LN
52 mm
2 inch
X
DA
X
DA
LN
LCC2080
cable set
7-pole STELVIO
plug MRT3
P 5,08/07 V01 VE
7-pole STELVIO
plug MRT3
P 5,08/07 V01 VE
500
40 mm
BST14
le
i2 ma
Dimensions in mm
GST18i3
BST14i2 female
ale
BST14i2 female
BST14i2 fem
GST18i3
60 mm
60 mm
Ø 95 mm
The OccuSwitch DALI family exists of:
LRM2070 Basic functionality
LRM2071 Basic functionality + Enocean® interface
LRM2080 Parallel operation
LRM2081 Parallel operation + Enocean® interface
LRM2090 DALI interface for BMS or othernetwork
LRM2091 DALI interface for BMS + Enocean® interface
LRM2095
Tunable white + interface forlocal/central control
LCC2070 Wieland cable for LRM207x
LCC2080 Wieland cable for LRM208x and LRM209x
LRH2070 Ceiling mounting box
LCU2070 Push-button Unit for 4 switches
LCU2071
Additional Push-button Unit (for LRM2095 only)
IRT8097 OmniProg easy, commissioning tool
IRT8099/10 OmniProg, commissioning tool
IRT8096
OmniProg, dedicated for LRM2095
LRM207x, LRM208x, LRM209x Datasheet
OccuSwitch DALI sensor/controller
Applications
2/15
Typical applications
The OccuSwitch DALI is designed for use in offices and similar
applications like schools, including corridors, meeting rooms, etc. It
is optimized for recessed ceiling mounting and for mounting heights
between 2.5 and 4 meter.
The surface box allows surface mounting as well, with either recessed
wiring or surface mounted ducts.
The advanced OccuSwitch DALI can be connected in parallel (max 22)
to cover larger area’s like open plan offices. The use of different mains
groups or even phases is no problem.
The OccuSwitch DALI design guide (available on www.philips.com/
occuswitchdali) gives all necessary design information for offices, schools
and meeting rooms.
LRM2090 / LRM2095
LRM207x
LRM208x
Features
Window/corridor and dynamic offset control
For optimal energy savings the window and corridor luminaires are
controlled separately as indicated in the graph. Window-side lights will
switch off (or not switch on entrance, the daylight override function)
when sufficient daylight is available. The corridor side however will by
default dim to minimum only, hence indicating to the user that the
system is operational. This feature can be disabled.
Energy indicator
The LED on the OccuSwitch DALI indicating movement or
communication will change color depending on the energy usage.
Dimming levels below 30% will show a green color, below 70% yellow,
and above red.
100%
80%
30%
1%
max. offset
LRM2080
LRM207x, LRM208x, LRM209x Datasheet
OccuSwitch DALI sensor/controller
DALI addressing
The OccuSwitch DALI can be used with one channel only or two
(window / corridor control), using the physical outputs (LRM2070 only).
However all versions can be used with DALI addressing as well. Up to 4
channels can be defined.
DALI group
3/15
For all functions
1
0
click
click
press shortly
0 lights off
1 lights on
Function
1 Window
2 Corridor
3
Additional presence
4
Additional absence
press longer
0 lights dim down
1 lights dim up
The additional luminaire groups can switch on together with the
window and corridor groups or only switch on manually (absence).
All groups will switch off when the area is vacated. Pre-programmed
luminaires will be recognized upon start-up.
Auto commissioning
The OccuSwitch DALI can determine the installed lux level and take
this as set point for the daylight depending regulation. This is easy to use
without the need for a Lux meter.
DALI network interface
The LRM2090 can be controlled with a DALI network interface. This
means that this device can be connected to most BMS or other control
system with a DALI interface. This enables functions like switching on/ of
or dim, scenes and queries for lamp/ballast states, the set light level and
even more functions.
With an specific gateway, supporting the OccuSwitch DALI BMS
functions, it is also possible to use parallel occupancy control, very much
like the OccuSwitch DALI advanced.
Enocean® interface
OccuSwitch DALI allows the use of wireless switches with Enocean®
RF technology. Both single rocker and dual rocker switches can be
used. You can connect up to 4 switches to a single OccuSwitch DALI, if
required each with different functions. Switches and OccuSwitch DALI
units are bound with each other during the commissioning process.
A single switch can be linked to several OccuSwitch DALI units.
Binding procedure see www.philips.com/omniprog
Commissioning tools
The OccuSwitch DALI comes with two commissioning tools, the
Omniprog and Omniprog easy. With both tools the light levels can be
set, witnessing mode be started and window/corridor be assigned. The
Omniprog can also set the desired mode, Start-up behaviour, IR group
and assign more luminaire channels.
IRT8097, OmniProg easy
IRT8099/10, OmniProg
Witnessing mode
With the Omniprog (easy) the witnessing mode can be started. This
makes it possible to check if the OccuSwitch DALI and the connected
luminaires are correctly installed and fully operational, Quick and easy.
Functions
0
window + corridor + additional presence
1
0
0
B
A
1
1
window corridor
or
window + additional absence
corridor +
additional presence
100 hours burn-in
Many lamp manufacturers advise not to dim fluorescent lamps for a 100
hours period prior to normal use. Especially to maintain the light quality
at (very) low dimming. The OccuSwitch DALI can do this automatically.
During 100 hours lights will not be dimmed, and all dimming functions
are adapted.
Only during witnessing (to test the installation) and commissioning
dimming is allowed to make the necessary adjustments.
LRM207x, LRM208x, LRM209x Datasheet
OccuSwitch DALI sensor/controller
4/15
Extension sensor
The LRM8118 extension movement detector can be used to double
the movement detection area. This sensor is connected to the same
DALI channel as the luminaires. Installation is simple since mains is not
required.
Smart Timer
On some occasions with very little movement it is possible that the
standard delay time of the OccuSwitch DALI is too short. If movement
is detected during switch off (including fade this takes 10 seconds), the
delay timer is automatically increased by 10 minutes.
6m
Ø 63.5
25.9
4m
120°
2
5m 8m
Ø 72
Dimensions in mm
LRM8118 extension sensor
Detection pattern
If the shield is retracted the
detection pattern will be cut on
one side (120°) as indicted in the
diagram.
The OccuSwitch DALI detection pattern (see drawing) is 4 by 5
meters for small movements (desk work) and 6 by 8 meters for larger
movements like walking.
We strongly suggest using the 4 by 5 meters for the design. It is also
the right range for the Light Sensor (for daylight depending regulation).
The detection area of the movement detector can be extended by two
extension sensors (LRM8118) each with a equal detection pattern as
the OccuSwitch DALI.
Push-button Unit
The LCU2070 Push-button unit (PBU) makes it possible to connect
up to 4 switches to the OccuSwitch DALI, to dim and switch different
channels. This PBU is connected to the DALI channel (DA and X
(LRM2070/10) or DA only (LRM2080/10 and 2090/10)). It derives
its power form the DALI channel, so no additional power supply is
required. The PBU uses the same interface technique as the Enocean®
or Touch & Dim; press shortly and it will switch on when off, and off
when on, pressed for a longer time and it will alternatively dim up and
down.
Up to two PBUs can be used on a single OccuSwitch DALI. It is possible
to interconnect (single) switches to several PBUs to control several
OccuSwitch DALI units.
LCU2070/00
9137 003 35103
Made in E.U.
PFT yyww
DA+
DA 1
2
3
4
5
6
LCU2070/00 wiring
LCU2070 Push-button unit
Note: the LCU2070 requires the /10 versions of the OccuSwitch DALI
Black
DA +
Black
DA -
White
SW-COM
Push-button common
Red
Purple
SW1
SW2
Window T&D
Window + Corridor + Extra Auto-on T&D
White
Green
Yellow
SW-COM
SW3
SW4
Push-button common
Corridor T&D
Extra Manual-on T&D
DALI line on OccuSwitch DALI
LRM207x, LRM208x, LRM209x Datasheet
OccuSwitch DALI sensor/controller
5/15
LRM 2090/2091
The BMS version has a second DALI interface (“X”). The OccuSwitch
DALI will act as a DALI slave.
This interface makes it possible to connect the OccuSwitch DALI to a
building management system using a controller with a DALI interface or
a DALI gateway.
It also makes it possible to use DALI user interfaces to override the
OccuSwitch DALI.
This interface is fully compliant to DALI but the unit will act, of course,
a bit different than a standard DALI ballast.
Response to DALI commands
If a DALI command is received (for instance a direct arc power
command) every lamp on any channel connected to the OccuSwitch
DALI will respond, and respond in the same way.
The OccuSwitch DALI sends most of these DALI commands directly to
the ballasts.
Every command that changes the output level will disable the daylight
depending regulation, and restart the occupancy timer.
Response to DALI queries
The OccuSwitch DALI will respond to all DALI queries like a DALI
(#102) ballast.
A query on the ACTUAL LEVEL will result in the value of the window
side (channel 1).
The unit performs a regular scan on the connected ballasts. Queries
on status and lamp failure will report the result of this scan, if a single
ballast reports an error, the OccuSwitch DALI will do as well.
Other queries like MAX LEVEL will show the value and status as stored
in the OccuSwitch DALI.
Exceptions
• The OccuSwitch DALI will not recall SCENE 1. It will use the default
light level settings and start daylight depending regulation again.
• Any command resulting in a different output level will (re)start the
occupancy timer. If you need to keep the lights on (or off) you need
to repeat the command periodically with a shorter repeat time than
the set occupancy timer.
Addressing
The OccuSwitch DALI supports the standard ways to address units,
including physical selection (using the Push-button on the front).
All address (including grouping) related commands are NOT relayed to
the connected ballasts.
It is also possible to use the IRT8099/10 OmniProg to set the short
address of the unit.
This is only possible when the address has not been set before, or after
a complete reset (back to basic) of the unit.
Aim at the unit with the IRT8099/10 and press within 5 seconds the
required 2 digit address on the numeric keypad, for instance 36 or 05.
The OccuSwitch DALI will blink its LEDs and connected lights to
confirm the new settings.
LRM207x, LRM208x, LRM209x Datasheet
OccuSwitch DALI sensor/controller
6/15
Mechanical installation
The OccuSwitch DALI can be mounted in two ways; recessed in
the ceiling or surface mounted using the ceiling box. The ceiling box
(LRH2070) has a breakout port for cable ducts and a breakout
centerpiece.
1
2
3
80-82 mm
> 50 mm
3
≤ 30 mm
4
1
2
LRH2070
LRM20xx
Datasheet
5
max. 185 mm
4
LRM207x, LRM208x, LRM209x Datasheet
OccuSwitch DALI sensor/controller
7/15
Electrical installation
The OccuSwitch DALI can be installed with either conventional
wiring or Wieland connectors. For the last option the Wieland cable
(LCC2070 or LCC2080) is required. The OccuSwitch DALI comes
with a detachable mains connector for easy installation. This connector
is removed if the Wieland cable is used. The mains connection is
protected by a retractable cover and secured with two tie raps.
2
The DALI signal from a ballast or luminaire, although low voltage and
isolated from mains, cannot be treated as a safe signal (SELV). All wiring
and isolation materials used must be similar to mains wiring (FELV).
The same applies to the network connection of the LRM208x and
LRM209x.
LRM207x
1
–
X
+
–
DA
+
na
N
3
L
L
N
4
5
LCC2070 or LCC2080
LRM208x
LRM209x
LRM207x, LRM208x, LRM209x Datasheet
OccuSwitch DALI sensor/controller
8/15
Commissioning
Desired standard light level
There are three ways to set the light level.
Automated mode
Step 1Press the OccuSwitch DALI button
for 3 seconds until the LEDs start a
yellow/green sequence
Step 2Release and press again, the LEDs will
now blink red/green
Step 3Clear the area beneath the
OccuSwitch DALI
Step 4Within 10 seconds the auto
calibration starts
Lights will switch off and on to
determine the installed lux level
Lights will flash to indicate a successful
operation
The calibration is finished
Manual with normal control
Step 1Use a remote or switch to set the
desired light level
Step 2Press the OccuSwitch DALI button
until the LEDs start a yellow/green
sequence
Step 3Clear the area beneath the
OccuSwitch DALI
Step 4The light level existing 10 seconds
after step 2 is used as set point
Lights will flash to indicate a successful
operation
The calibration is finished
Delay time occupancy control
With the rotary it is possible to select a delay time of either 70s, 5 till
30 min (in steps of 5 minutes).
Further commissioning
OmniProg (easy)
The OccuSwitch DALI will acknowledge commissioning commands by
flashing the lights.
For detailed information please refer to the manual or www.philips.
com/omniprog
The OmniProg tool has a low power and very narrow beam to prevent
that neigbouring OccuSwitch DALI units are programmed by mistake.
You must be within 3 meters of the device and aim exactly at it.
Rotary
Max. 1m
= 1x
IRT8099/10
Send command
commissioning tool
Calibrate light level
Manual with OmniProg (easy)
Step 1Use the OmniProg’s up an down keys
to create the desired light level
Step 2 Press the “SAVE” button
Step 3The lights will flash once to indicate
calibration was successful
LRM207x, LRM208x, LRM209x Datasheet
OccuSwitch DALI sensor/controller
Commissioning of switches with Enocean® RF technology
Shortly press the front button of the OccuSwitch DALI, all LEDs will
flash shortly.
Press again but now hold the button down until the green and red
LEDs start to flash rapidly.
Wait till the flashing slows down.
Press one of the keys of the switch you want to bind to the
OccuSwitch DALI.
The LEDs will flash rapidly again. Wait till the flashing slows down.
You can now bind another switch.
Press the front button (shortly), or wait for 30 seconds, to stop the
commissioning. The green/red flashing will now stop and normal
operation is resumed.
If you make a mistake or want to make alterations, stop the
commissioning process, and restart again.
The following settings are sent all at once with the green SEND button.
After selection of the function the red LED on the transmitter will
switch on.
Change IR group
Both the OccuSwitch DALI and transmitters can operate in 7 different
groups. Both the transmitter and OccuSwitch DALI must be in the same
group
Select “group A-G” on the IRT8099, followed by the desired IR group
(A-G, buttons 1 .. 7).
Change power-up behaviour
The OccuSwitch DALI switches the output on when it is connected to
the mains. If the area is vacated the lights will switch off after 5 minutes.
It is possible to leave the output off and start movement detection
30 seconds after the mains is connected.
Select “power up on/off” on the IRT8099, followed by either “on”
or “off ”.
Restore defaults
To restore the default settings aim the IRT8099 towards the
OccuSwitch DALI and press on “basics” and press SEND.
Attention
The IRT8099 will send all parameters when the SEND button
is pressed.
Error states
The OccuSwitch DALI is designed to create (if possible) a safe situation
if the device itself or its peripherals fail.
Depending on the failure the OccuSwitch DALI will continue “as good
as possible” or switch the lights on.
The LED on the device will be always yellow and will not switch off,
even if there is no movement or communication detected.
Please refer to the manual or www.philips.com/OccuSwitch DALI for
more information and diagnostic flow charts.
9/15
LED
Flash Red, Yellow or Green
Circulation (long/short)
Yellow/Green
Red/Green
Green/Red
Movement or communication
detected.
Red = 100 – 70%
Yellow = 70 – 30%
Green = 30% - off
Auto commissioning with current
light level
Auto commissioning
DALI commissioning in progress
Continuously
Green (when lights are on)
Yellow
Red In 100 hours burn in mode
(no dimming possible)
Internal error
Short circuit on DALI channel
Fast sequence
Red/Yellow/Green
Trigger received from parallel unit
(LRM2080 only)
Attention
The OccuSwitch DALI should not be used in the following
situations
• In applications outside the specification range, most notable heights
above 4 meter.
• Environmental conditions other than in a normal office environment
(temperature, humidity).
• In applications with heat sources like electrical heaters, within the
detection range of the device
• In applications with (semi continuous) IR appliances like IRDA
communication, IR communication between PDA and phones and
other devices, headsets operating with IR communication, etc. etc.
Please note that some devices with IR communication send IR
messages, even when there is no active communication link. These
features must be disabled.
• In applications with electronic ballasts that operate up or near
a frequency of 36Khz. Also when these ballasts are not used in
combination with the device, but the light from the lamps they
operate is visible to the IR receiver.
LRM207x, LRM208x, LRM209x Datasheet
OccuSwitch DALI sensor/controller
10/15
OccuSwitch DALI Modes
The OccuSwitch DALI is set, by default, with a generic set of
parameters for a standard office. But it is possible to recall 8 other
application (specific cell, open plan or meeting room) modes as
mentioned below.
This makes the system very flexible for all different kinds of applications.
With the aid of the advanced mode selection tool IRT8099 specific
modes can be selected. Once selected, the mode can be stored and
copied via a point and shoot method. The mode will be stored in a nonvolatile memory. Even when the luminaires are switched off for a longer
period, stored parameters are kept.
The modes are compatible with the Actilume system’s modes, except
for modes 4 and 5.
Mode 1
Cell office
Mode 6
Corridor
Auto on
Auto on
Mode 2
Open plan office
Auto on
T1
T2
T1
T2
T1
T2
Mode 7
Toilets
Auto on
DDR off
Mode 3
School, classroom
Manual on
Mode 4
Cell office
Comfort mode
EN 12464
Mode 5
Open plan office
Comfort mode
EN 12464
Mode 8
Meeting rooms
Mode 9
Open plan
Always light
Auto on
Mode 10
Open plan
Comfort mode, always light
Custom mode
Class room
Cell office*
Open plan*
Corridor
Toilets
Meeting room
Open plan office**
Custom
3
4
5
6
7
8
9
10
0
10
10
10
N.a.
10
N.a.
Infinite
0
15 (portal only)
60
0
0
0
120
N.a.
Window only
Disabled
Disabled
Window / corridor
N.a.
N.a.
N.a.
Window only
N.a.
Window / corridor
Window / corridor
Disabled
Window / corridor
Window / corridor
Window / corridor
Window / corridor
Window / corridor
Window / corridor
N.a.
Window only
Window only
Disabled
Window / corridor
Window only
Window only
Window / corridor
Window only
Window only
N.a.
Background lighting
Local occupancy
Local occupancy
Local occupancy
N.a.
N.a.
Local occupancy
Local occupancy
Local occupancy
Daylight dependent Daylight dependent Parallel link period
regulation
switching
(Advanced only)
or more, do detect movement all other units will go to background level.
* Equals mode 1 and 2, but without MD active. Do not use these modes for normal applications.
** T his mode works differently in the advanced (LRM2080) version. Here the lights will switch off (the basic never switches off) when none of the advanced OccuSwitch DALI units in the parallel network detect movement. If one,
N.a.
Auto on/off
Manual on/auto off 10
Auto on/off
Auto on/off
Disabled
Disabled
Manual on/auto off 10
Auto on/off
10
Open plan office
Window only
2
0
10
Cell office (default)
1
Auto on/off
Smart timer Background period Daylight override
(minutes)
(minutes)
Mode Application
Occupancy
LRM207x, LRM208x, LRM209x Datasheet
OccuSwitch DALI sensor/controller
11/15
LRM207x, LRM208x, LRM209x Datasheet
OccuSwitch DALI sensor/controller
LRM2095
Introduction
The LRM2095 is a special version of the OccuSwitch DALI. On top of
the normal OccuSwitch DALI functions it is capable of changing the
color temperature of the lighting (assuming the luminaires have the
same capability).
The system has been released for lighting systems with 2 lamp types in
a single luminaire (each with a DALI driver), with cold (17000 K) and
warm (2700 K) lamps. This section provides the differences between the
standard (LRM2070) and the LRM2095 OccuSwitch DALI functions.
Application
The main application is for use in classrooms.
12/15
Push-button Units
The LCU2070 and LCU2071 can be used with the LRM2095. Please
be aware that the functions of the LCU2070 are not the same for the
LRM2095 as for all other OccuSwitch DALI units.
The functions and connections can be found below:
DA+
DA 1
2
3
4
5
6
LCU2070/00
Made in E.U.
PFT yyww
DA+
DA 1
2
3
4
5
6
LCU2071/00
Made in E.U.
PFT yyww
LRM2095
LCU207x/00 wiring
The (occupancy) detection range can, like with the other OccuSwitch
DALI versions, be extended with the LRM8118 extension sensors.
With
F1Intensity
F2 Color temperature
Standard Philips Dynamic Lighting (DL) or SchoolVision luminaires are
already pre-programmed and can be used without any programming.
Channel
Function
1
Cold lamps (“window”)
2 Warm lamps (“window”)
3 Additional presence
4 Additional absence (board lighting)
5 Cold lamps (“corridor”)*
6 Warm lamps (“corridor”)*
* See window/corridor control
Window/corridor control
The LRM2095 does not have a separate window corridor steering
for daylight depending regulation. Due to the nature of the color
temperature system this could lead to color differences between
window and corridor. It is however possible to address the luminaires as
window or corridor, so that several settings are still possible, like daylight
override and/or daylight switching for window row only.
It is not possible to manually override window or corridor luminaires
separately from each other.
Black
DA +
Black
DA -
White
SW-COM
Red
Purple
Normal
Energy
White
Green
Yellow
SW-COM
Focus
Calm
Black
DA +
Black
DA -
White
SW-COM
Red
Purple
All off
F1
White
Green
Yellow
SW-COM
F2
Board
DALI
Additional presence
This channel (without color control) is available but should normally not
be used. This channel will switch together with the DL luminaires, both
on automatic as manual control. It is not possible to control this group
separately.
There are no controls available for this channel on manual control
(IR remote control) and Push-button Unit.
Enocean® interface
There is no Enocean® option for this product.
Loads
The LRM2095 can handle up to 24 loads on the master (DA) output.
Each unit (Philips DALI driver (or ballast, either LED or fluorescent),
extension sensor and PBU) counts as one load.
For other driver systems than Philips use for safety 2 loads.
LRM207x, LRM208x, LRM209x Datasheet
OccuSwitch DALI sensor/controller
13/15
Remote control
The LRC2095 can be used with standard Philips IR remotes, like the
other OccuSwitch DALI units. There are some difference though.
• Do not use IR channel 2 and 3
• Use IR channel 1 to control the main lighting (intensity only)
• Use IR channel 5 to control the board lighting.
The IRT7090 can be used as well for the standard luminaires (no option
available for board lighting, a separate control (eg. IRT8050) is required.
User Interfaces
There are several user interface options available for this product. Refer
to the SchoolVision propositions for more details.
Calibration
(see also commissioning guide)
1
3
Save1
IRT7090
1
2
Save3
3
4
0
IRT8096
IRT8096
The IRT8096 is a specific tool for SchoolVision. It can set the required
light level and change Preset1 (normal) to another value than 300 Lux.
Operation of the IRT8096
General light level calibration
Step 1
Select (preset) 3
Step 2Change the light level with the arrows to the
required light level, for SchoolVision this will be 1000
Lux.
Step 3Press Save3, the lights will blink to confirm that the
setting has been accepted and stored.
Change “Normal” (preset 1) to 500 Lux
Step 1
Select (preset) 1
Step 2Change the light level with the arrows to the
required light level, for instance to 500 Lux.
Step 3Press Save1, the lights will blink to confirm that the
setting has been accepted and stored.
Safety
The OccuSwitch DALI uses DALI or DALI like signals to
communicate to other devices, ballasts or BMS systems.
The interfaces (DA and X) on the OccuSwitch DALI are
supplementary isolated from mains (SELV). However most
DALI devices (like ballasts in luminaires) only provide basic
isolation between mains and DALI. Therefore to avoid
Installation safety Issues all interface wiring (also on the
X-Interface) should be treated as FELV, so mains rated
isolation is required.
We strongly recommend to always use cabling with mains
rated isolation to prevent potential unsafe installations.
Short circuit and protection
The DA (all units) and X (LRM207x and 208x) interface
provides DALI (or other) power in order to be able to
communicate. These interfaces are protected against a short
circuit if used within specification.
External power (DALI) supplies can only be used on the BMS
DALI network of the LRM209x (X-Interface).
The use of more than 22 LRM208x units in parallel connected
on the X-Interface can damage the X-Interface circuit.
The network (X) interface of the LRM209x Is extended
protected against mains connection. For all OccuSwitch
DALI devices the DA and X interface (except X-Interface on
LRM209x) will be damaged beyond repair if mains power is
connected. Although safe, smoke and a strong smell can occur
if this happens.
Parallel mode
The LRM208x OccuSwitch DALI advanced supports parallel
mode for occupancy control (X-interface). This means that
the separate units have their own daylight depending and
local control and their own settings. Only the MD signal from
connected units is shared. This means that lights will stay on if
one of the connected systems detects movement. Lights will
stay on and only switch off, or go to background level when
the last MD timer in the group elapses.
Exception to this rule is mode 9. The parallel link is refreshed
every 60 seconds. So when movement is detected a signal will
be given, than after 60 seconds again, and again, until de timer
elapses. This signal is visible on the unit.
LRM207x, LRM208x, LRM209x Datasheet
OccuSwitch DALI sensor/controller
14/15
Technical data
Environmental conditions
Storage conditions
Temperature
Relative humidity
Operating conditions
Temperature Relative humidity Mains connection
Voltage Power consumption
Connector screw terminal Wire range Mains distribution system Interfaces
Parallel interface (LRM208x only)
BMS interface (LRM209x only)
DALI output interface
Protocol Load capacity -20 .. +70 ºC
10 to 85 %; no condensation
+5 .. +50ºC
15% to 80%; no condensation
230VAC +/10%; 50/60Hz
Stand-by <1 W (without DALI
load)
Max. 1.7 W (with 15 ballasts)
LRM20x1 (Enocean® option)
adds 0.2W
MRT3P7.62-3VE or GMVSTBW2.5/3-ST-7.62
0.75 .. 2.5 mm2
Note wires must be >= 0.75 mm2
TN-S, 16A max, with Neutral
grounded
Up to 22 units in parallel
Free topology wiring and polarity
sensitive
DALI compatible
Up to 64 units in parallel
(depending on control device
used as master)
Free topology and polarity
insensitive
Bi phase coded according to
EN60929 Extend annex E
Network polarity and polarity
insensitive
Maximum 15 DALI devices per
output (for LRM207x X+DA
Interface)
Protection Transmission rate DALI voltage Connector type General
LED indicators Switch off delay Light levels Detection range Light sensor Interface is short circuit proof
Max. 1200 bits per second
11.5VDC to 21.5VDC
Wieland BST 14i2; blue
Standards Classification Pollution Over voltage Approbation Protection Class Flammability Glow wire test Insulation EMC
Compliance IEC Immunity IEC Emission IEC EN/IEC 61347-2-11 Lamp control
gear, Particular requirements for
miscellaneous
electronic circuits used with
luminaires
IEC 60598-1 Luminaires, General
requirements and tests
Class I
degree 2
category III
Product complies with the
relevant European Directive (CE)
KEMA
ENEC
IP20
UL94 V-0
960°C/5s
Supplementary insulation
between Mains and SELV
see text
1,5,10,15,20,25,30,35* minutes
* OmniProg only
250 .. 1000 Lux (30% reflection)
see detection pattern, page 4
(IR remote is similar)
see diagram, page 4
(EN) 61347-2-11 / 60598-1
(EN) 61547
(EN) 55015 and IEC (EN) 55022,
class B
LRM207x, LRM208x, LRM209x Datasheet
OccuSwitch DALI sensor/controller
Packing data
Type
LRM2070/10
LRM2071/10
LRM2080/10
LRM2081/10
LRM2090/10
LRM2091/10
LRM2095/00
LCC2070
LCC2080
LRH2070
LCU2070
LCU2071
IRT8097
IRT8099/10
Box dimensions
(mm)
105 x 95 x 58
105 x 95 x 58
105 x 95 x 58
105 x 95 x 58
105 x 95 x 58
105 x 95 x 58
105 x 95 x 58
105 x 95 x 58
16 x 11 x 0.5
131 x 58 x 87
168 x 45 x 22.5
Ordering data
Type
MOQ
LRM2070/10 Basic
1
LRM2071/10 Basic RF
1
LRM2080/10 Advanced
1
LRM2081/10 Advanced RF
1
LRM2090/10 BMS
1
LRM2091/10 BMS RF
1
LRM2095/00 Dynamic Lighting
1
LCC2070 Wieland cable for LRM2070 1
LCC2080 Wieland cable for LRM2080-90 1
LRH2070 Surface Box
1
LCU2070 PBU
1
LCU2071 PBU opt. 1
1
IRT8097 OmniProg Easy
1
IRT8099/10 OmniProg Standard
1
3222 636 33203
10/2010
Data subject to change
www.philips.com/lightingcontrols
15/15
Qty
Material
1
1
1
1
1
1
1
1
1
1
1
1
1
1
card board
card board
card board
card board
card board
card board
card board
plastic bag
plastic bag
card board
plastic bag
plastic bag
card board
card board
Ordering number
9137 003 32904
9137 003 33304
9137 003 33004
9137 003 33404
9137 003 33103
9137 003 33503
9137 003 39403
9137 003 33703
9137 003 33803
9137 003 33903
9137 003 35103
9137 003 39303
9137 003 34103
9137 003 34203
Weight (Kg)
net
0.12
0.18
0.12
0.18
0.12
0.18
0.12
0.13
0.13
0.05
0.16
0.16
0.06
0.08
gross
0.15
0.21
0.15
0.21
0.15
0.21
0.15
0.14
0.14
0.08
0.21
0.21
0.09
0.10
EAN code level 1
8711 559 732305
8711 559 732404
8711 559 732343
8711 559 732442
8711 559 732367
8711 559 732466
8727 900 900590
8711 559 732497
8711 559 732510
8711 559 732534
8727 900 870268
8727 900 870268
8727 900 891409
8711 559 732572
EOC
732305 99
732404 99
732343 99
732442 99
732367 99
732466 99
900590 00
732480 99
732503 99
732527 99
870268 00
870268 00
891409 00
732565 99
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
