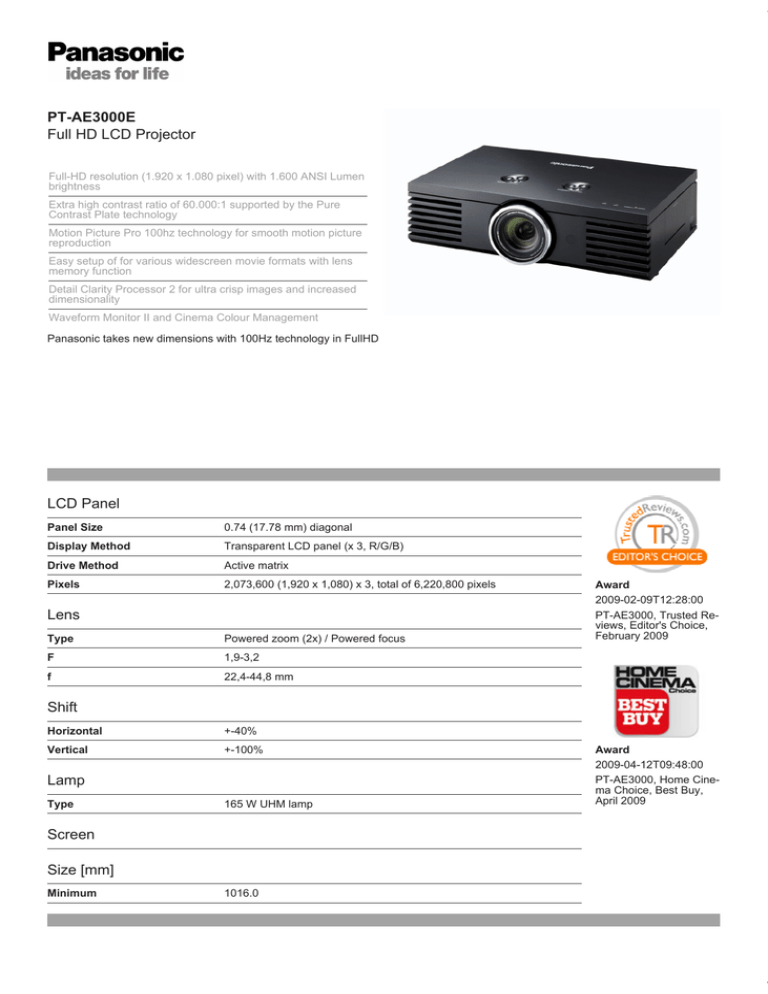

PT-AE3000E
Full HD LCD Projector
Full-HD resolution (1.920 x 1.080 pixel) with 1.600 ANSI Lumen
brightness
Extra high contrast ratio of 60.000:1 supported by the Pure
Contrast Plate technology
Motion Picture Pro 100hz technology for smooth motion picture
reproduction
Easy setup of for various widescreen movie formats with lens
memory function
Detail Clarity Processor 2 for ultra crisp images and increased
dimensionality
Waveform Monitor II and Cinema Colour Management
Panasonic takes new dimensions with 100Hz technology in FullHD
LCD Panel
Panel Size
0.74 (17.78 mm) diagonal
Display Method
Transparent LCD panel (x 3, R/G/B)
Drive Method
Active matrix
Pixels
2,073,600 (1,920 x 1,080) x 3, total of 6,220,800 pixels
Lens
Type
Powered zoom (2x) / Powered focus
F
1,9-3,2
f
22,4-44,8 mm
Award
2009-02-09T12:28:00
PT-AE3000, Trusted Reviews, Editor's Choice,
February 2009
Shift
Horizontal
+-40%
Vertical
+-100%
Lamp
Type
165 W UHM lamp
Screen
Size [mm]
Minimum
1016.0
Award
2009-04-12T09:48:00
PT-AE3000, Home Cinema Choice, Best Buy,
April 2009
Maximum
5080.0
Projection Distance [m]
Minimum
1.2
Maximum
12.0
Aspect Ratio
16:9/ 4:3
Colours
Full colour (1,073,741,824 colours)
Colour System
PAL, PAL-M, PAL-N, PAL 60, SECAM, NTSC, NTSC 4.43
Brightness (lumens)
1600.0
Contrast (high mode)
60.000:1
Award
2009-03-10T16:50:00
PT-AE3000, AV Forums
(Online), Highly Recommended Award, March
2009
Resolution
Native
1920 x 1080 pixels
Terminals
HDMI
yes
RGB In
yes
Composite Video
yes
S-Video
yes
Serial
yes
RS232 In
yes
Keystone Correction Range
Vertical: approx. +/-30 degrees
Award
2009-03-23T10:55:00
PT-AE3000, What Video
and Hi Def TV, Best Buy
Award, Issue 345, March
09
Centre-to-corner uniformity ratio 85%
Scanning Frequency
RGB
Horizontal: 30-70 kHz, Vertical: 50-87 Hz, Dot clock: less than 150 MHz
YPaPr
480i (525i), 480p (525p), 576i (625i), 576p (625p), 720 (750)/50p, 720
(750)/60p, 1,080 (1,125)/24p, 1,080 (1,125)/50i, 1,080 (1,125)/50p,
1,080 (1,125)/60i, 1,080 (1,125)/60p
S-Video / Video
fH 15.75 kHz fV 60 Hz (NTSC, NTSC4.43, PAL-M, PAL60) fH 15.63
kHz fV 50 Hz (PAL, PAL-N, SECAM)
Optical Axis Shift
Horizontal +/-40 percent and vertical +/-100 percent.
On-screen menu
English, French, German, Spanish, Italian, Chinese, Korean, Russian,
Swedish, Danish, Norwegian, Polish, Czech, Hungarian, Portuguese,
Thai
General
Power Supply
AC 100-240V, 50 / 60 Hz
Power Cord Length [m]
3.0
Cabinet Material
Molded plastic (PC + ABS)
Dimensions [mm]
Width
460.0
Height
130.0
Depth
300.0
Award
2009-05-08T16:48:00
PT-AE3000, What Hi Fi?
Sound and Vision, 5
Stars, May 2009
Award
2009-07-02T17:15:00
PT-AE3000, What Hi Fi?
Sound and Vision, 5
Stars, July 2009
Weight [kg]
7.3
Power Consumption [w]
240.0
Power Consumption [W]
Standby
0.08
Operating Environment
Temperature
0°– 40°C
Humidity
20-80 per cent (no condensation)
Remote Control Unit
Power Supply
3 V DC (AA type battery x 2)
Operation Range
Approx. 7 m when operated from directly in front of the signal receptor
Dimensions [mm]
Width
48.0
Height
138.0
Depth
28.0
Weight [g]
125.0
Standard Accessories
Power cord
Wireless remote control unit
Batteries for remote control (AA type battery x 2)
Optional Accessories
Replacement lamp ET-LAE1000
Ceiling bracket for low ceilings: ET-PKE1000S
Ceiling bracket for high ceilings: ET-PKE2000
Cable cover: ET-PCE2000
Award
2009-07-14T09:55:00
PT-AE3000, Stuff.tv
(Online), 'Hot Buy'
Award, July 2009
