phyBOARD Rana-AM335x Hardware Manual

phyBOARD Rana-AM335x Hardware Manual

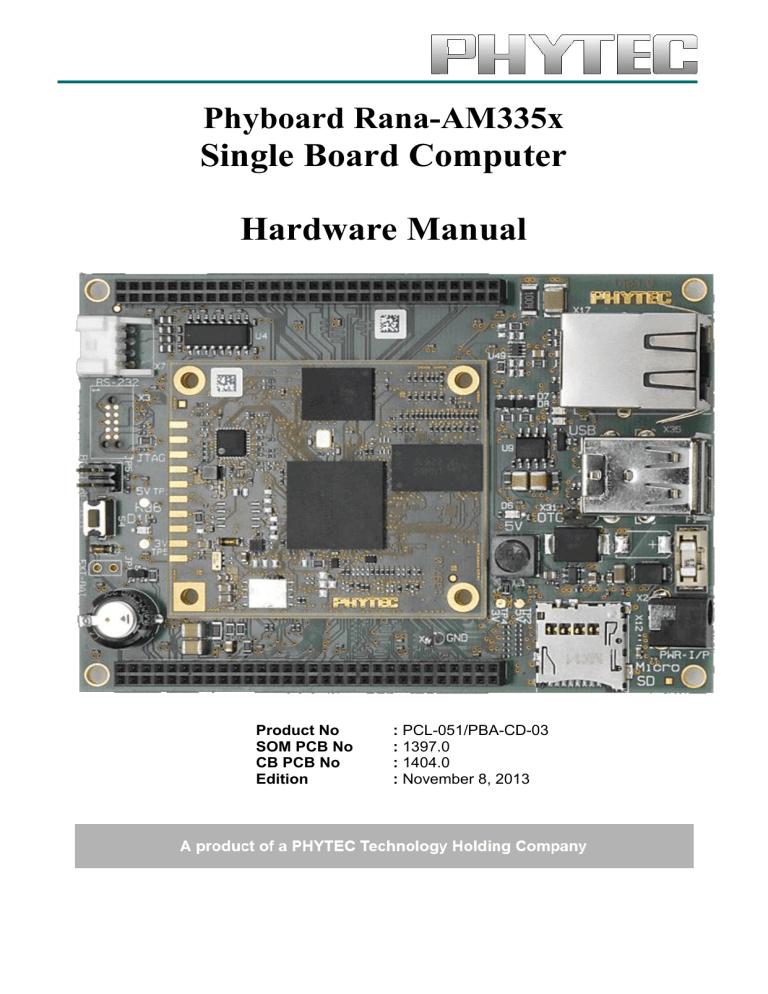

Phyboard Rana-AM335x

Single Board Computer

Hardware Manual

Product No

SOM PCB No

CB PCB No

Edition

: PCL-051/PBA-CD-03

: 1397.0

: 1404.0

: November 8, 2013

In this manual descriptions are for copyrighted products that are not explicitly indicated as such. The absence of the trademark (TM) and copyright (©) symbols does not imply that a product is not protected. Additionally, registered patents and trademarks are similarly not explicitly indicated in this manual.

The information in this document has been carefully checked and is believed to be entirely reliable. However, PHYTEC Embedded Pvt. Ltd assumes no responsibility for any inaccuracies. PHYTEC Embedded Pvt. Ltd neither gives any guarantee nor accepts any liability whatsoever for consequential damages resulting from the use of this manual or its associated product. PHYTEC Embedded Pvt. Ltd reserves the right to alter the information contained herein without prior notification and accepts no responsibility for any damages which might result.

Additionally, PHYTEC Embedded Pvt. Ltd offers no guarantee nor accepts any liability for damages arising from the improper usage or improper installation of the hardware or software. PHYTEC Embedded Pvt. Ltd further reserves the right to alter the layout and/or design of the hardware without prior notification and accepts no liability for doing so.

© Copyright 2013 PHYTEC Embedded Pvt. Ltd, Koramangala, Bangalore India.

Rights - including those of translation, reprint, broadcast, photomechanical or similar reproduction and storage or processing in computer systems, in whole or in part - are reserved. No reproduction may occur without the express written consent from PHYTEC

Embedded Pvt. Ltd

INDIA EUROPE NORTH AMERICA

Address: PHYTEC Embedded

Pvt. Ltd.

#16/9C,3rd Floor,3rd

Main,Opp.Police

Station

Koramangala,8 th block

, Bangalore -560095

India

PHYTEC

Technologie Holding

AG

Robert-Koch-Str. 39

D-55129 Mainz

GERMANY

PHYTEC America LLC

203 Parfitt Way SW,

Suite G100

Bainbridge Island, WA

98110

USA

Ordering

+91-80-40867046

Information:

[email protected]

Technical Support: +91-80-40867047

[email protected]

+49 (800) 0749832 [email protected]

+49 (6131) 9221-31 [email protected]

1 (800) 278-9913 [email protected]

1 (800) 278-9913 [email protected]

Fax:

-

+49 (6131) 9221-33 1 (206) 780-9135

Website: http://www.phytec.in

http://www.phytec.eu http://www.phytec.de http://www.phytec.com

© PHYTEC Embedded Pvt. Ltd 2013 2

Table of Contents

CONVENTIONS, ABBREVIATIONS, AND ACRONYMS ..................................................................................... 5

1 INTRODUCTION ................................................................................................................................................... 9

1.1

RANA B

OARD

F

EATURES

..................................................................................................................................... 10

1.2

B

LOCK

D

IAGRAM

................................................................................................................................................... 10

2 PCL-051/PHYCORE-AM335X SYSTEM ON MODULE ...................................................................................11

2.1

PHY

CORE-AM335

X

F

EATURES

........................................................................................................................... 12

3 POWER ................................................................................................................................................................13

3.1

W

ALL

P

OWER

(X2) ...................................................................................................................................................... 13

4 ETHERNET (X17)

...............................................................................................................................................13

5 RS-232 CONSOLE (X7) .....................................................................................................................................13

6 USB CONNECTIVITY ..........................................................................................................................................14

6.1

USB H

OST

(X35)

.................................................................................................................................................. 14

7 SD CARD (X12)

...................................................................................................................................................14

7.1

I

NSERTING AND

R

EMOVING AN

SD C

ARD

............................................................................................................. 14

8 SYSTEM RESET BUTTON (S4)

.........................................................................................................................15

9 BOARD POWER LED’S .....................................................................................................................................15

10 BOOT SELECTION (JP5) .................................................................................................................................15

11 REAL-TIME CLOCK OPTIONS (RTC)

............................................................................................................16

11.1

PMIC RTC

.......................................................................................................................................................... 16

11.2

AM335

X

RTC ..................................................................................................................................................... 16

11.3

E

XTERNAL

RTC ......................................................................................................................................................... 16

12 JTAG

...................................................................................................................................................................16

13 EXPANSION CONNECTORS (X19, X20) ........................................................................................................17

T

ABLE

131.

P

OWER

S

IGNAL

M

AP

...................................................................................................................................... 17

T

ABLE

13-2.

S

YSTEM

S

IGNAL

M

AP

....................................................................................................................................... 18

T

ABLE

13-3.

I2C S

IGNAL

M

AP

............................................................................................................................................ 18

T

ABLE

13-4.

UART S

IGNAL

M

AP

......................................................................................................................................... 18

T

ABLE

135.

ADC S

IGNAL

M

AP

.......................................................................................................................................... 19

T

ABLE

13-6.

NAND (GPMC) S

IGNAL

M

AP

.......................................................................................................................... 19

T

ABLE

13-7.

LCD S

IGNAL

M

AP

........................................................................................................................................... 20

Touch Screen Controller ........................................................................................................................................... 21

T

ABLE

13-8.

AIN [3:0] S

IGNAL

L

OCATIONS

........................................................................................................................... 21

T

ABLE

139.

M

ULTICHANNEL

A

UDIO

S

ERIAL

P

ORTS

(M

C

ASP) S

IGNAL

M

AP

................................................................................ 21

T

ABLE

1310.

G

ENERAL

P

URPOSE

I/O'

S

(GPIO'

S

) S

IGNAL

M

AP

............................................................................................... 21

T

ABLE

1311.

E

THERNET

(RGMII) S

IGNAL

M

AP

.................................................................................................................... 22

T

ABLE

1312.

USB S

IGNALS

M

AP

....................................................................................................................................... 23

T

ABLE

13-13.

SPI S

IGNAL

M

AP

.......................................................................................................................................... 23

T

ABLE

13-14.

CAN S

IGNAL

M

AP

........................................................................................................................................ 24

© PHYTEC Embedded Pvt. Ltd 2013 3

14 TECHNICAL SPECIFICATIONS ......................................................................................................................24

T

ABLE

141.

T

ECHNICAL

S

PECIFICATIONS

.............................................................................................................................. 24

15 REVISION HISTORY .........................................................................................................................................24

T

ABLE

151.

R

EVISION

H

ISTORY

.......................................................................................................................................... 24

16 PLACEMENT DIAGRAMS ........................................................................................................................................25

17 PHYSICAL DIMENSIONS DIAGRAM OF RANA-AM335X ..........................................................................................26

© PHYTEC Embedded Pvt. Ltd 2013 4

Conventions, Abbreviations, and Acronyms

Conventions

The conventions used in this manual are as follows:

• Signals that are preceded by a “/” character are designated as active low signals.

Their active state is when they are driven low, or are driving low; for example

: /RESET.

• Tables show the default setting or jumper position in

bold, teal

text.

• Text in blue indicates a hyperlink, either internal or external to the document. Click

these links to quickly jump to the applicable URL, part, chapter, table, or figure.

• References made to the phyCORE-Connector always refer to the high density

Samtec connectors on the underside of the RANA Board System on Module.

Abbreviations and Acronyms

Many acronyms and abbreviations are used throughout this manual. Use the table below to navigate unfamiliar terms used in this document.

Table i- 1. Abbreviations and Acronyms Used in This Manual

Abbreviation

Definition

BSP

Board Support Package (Software delivered with the Development Kit including an operating system (Windows or Linux) preinstalled on the module and Development Tools).

CB

Carrier Board; used in reference to the PCM-953/RANA Board Carrier

Board

D flip-flop DFF

EMB

EMI

GPI

GPIO

GPO

IRAM

J

JP

External memory bus

Electromagnetic Interference

General purpose input

General purpose input and output

General purpose output

Internal RAM; the internal static RAM on the TI AM335x processor

Solder jumper; these types of jumpers require solder equipment to remove and place

Solderless jumper; these types of jumpers can be removed and placed by hand with no special tools

PCB

PDI

PEB

PMIC

Printed circuit board

PHYTEC Display Interface; defined to connect PHYTEC display adapter boards or custom adapters

PHYTEC Extension Board

Power Management Integrated Circuit

© PHYTEC Embedded Pvt. Ltd 2013 5

PoE

PoP

PoR

Power over Ethernet

Package on Package

Power-on reset

RTC Real-time clock

SMT Surface mount technology

Table i-1. Abbreviations and Acronyms Used in This Manual

Abbreviation Definition

SOM System on Module; used in reference to the PCL-051/RANA Board

System on Module

Technical Reference Manual TRM

VBAT SOM battery supply input

Different types of signals are brought out at the phyCORE-Connector. The following table lists the abbreviations used to specify the type of a signal.

Table i- 2. Types of Signals

Type of Signal

Power

Ref-Voltage

USB-Power

Description

Supply voltage

Reference voltage

USB voltage

Abbreviation

PWR

REF

USB

Input

Output

Input with pull-up

Digital input

Digital output

IN

OUT

Input with pull-up (jumper or opencollector output)

IPU

Input/output Bidirectional input/output IO

5V Input with pulldown

5V tolerant input with pull-down 5V_PD

LVDS Differential line pairs 100 Ohm

LVDS level

LVDS

Differential 90 Ohm Differential line pairs 90 Ohm DIFF90

Differential 100 Ohm Differential line pairs 100 Ohm

Analog Analog input or output

DIFF100

Analog

© PHYTEC Embedded Pvt. Ltd 2013 6

Preface

This RANA Board Hardware Manual describes the System on Module's design and functions. Precise specifications for the TI AM335x processor can be found in the processor datasheet and/or user's manual.

In this hardware manual and in the schematics, active low signals are denoted by a "/" preceding the signal name, for example: /RD. A "0" represents a logic-zero or low-level signal, while a "1" represents a logic one or high-level signal.

Declaration of Electro Magnetic Conformity of the PHYTEC RANA Board

PHYTEC System on Modules (SOMs) are designed for installation in electrical appliances or, combined with the PHYTEC Carrier Board, can be used as dedicated Evaluation

Boards (for use as a test and prototype platform for hardware/software development) in laboratory environments.

CAUTION:

PHYTEC products lacking protective enclosures are subject to damage by ESD and, hence, may only be unpacked, handled or operated in environments in which sufficient precautionary measures have been taken in respect to ESD-dangers. It is also necessary that only appropriately trained personnel (such as electricians, technicians and engineers) handle and/or operate these products. Moreover, PHYTEC products should not be operated without protection circuitry if connections to the product's pin header rows are longer than 3 m.

PHYTEC products fulfil the norms of the European Union's Directive for Electro Magnetic

Conformity only in accordance to the descriptions and rules of usage indicated in this hardware manual (particularly in respect to the pin header row connectors, power connector and serial interface to a host-PC).

Implementation of PHYTEC products into target devices, as well as user modifications and extensions of PHYTEC products, is subject to renewed establishment of conformity to, and certification of, Electro Magnetic Directives. Users should ensure conformance following any modifications to the products as well as implementation of the products into target systems.

The RANA Board is one of a series of PHYTEC System on Modules that can be populated with different controllers and, hence, offers various functions and configurations. PHYTEC supports a variety of 8/16 and 32-bit controllers in two ways:

1. As the basis for Rapid Development Kits which serve as a reference and

Evaluation platform.

2. As insert-ready, fully functional phyCORE OEM modules, which can be

© PHYTEC Embedded Pvt. Ltd 2013 7

Embedded directly into the user's peripheral hardware design.

Implementation of an OEM-able SOM subassembly as the "core" of your embedded design allows you to focus on hardware peripherals and firmware without expending resources to "re-invent" microcontroller circuitry. Furthermore, much of the value of the phyCORE module lies in its layout and test.

Production-ready Board Support Packages (BSPs) and Design Services for our hardware further reduce development time and expenses. Take advantage of PHYTEC products to shorten time-to-market, reduce development costs, and avoid substantial design issues and risks. For more information go to: http://www.phytec.in/services/hardware.html

Product Change Management

In addition to our HW and SW offerings, the buyer will receive a free obsolescence maintenance service for the HW provided when purchasing a PHYTEC SOM.

Our Product Change Management Team of developers is continuously processing all incoming PCN's (Product Change Notifications) from vendors and distributors concerning parts which are being used in our products. Possible impacts to the functionality of our products, due to changes of functionality or obsolesce of a certain part, are evaluated in order to take the right measures in purchasing or within our HW/SW design.

Our general philosophy here is: We never discontinue a product as long as there is demand for it.

Therefore a set of methods has been established to fulfill our philosophy:

Avoidance strategies

• Avoid changes by evaluating longevity of a part during design-in phase.

• Ensure availability of equivalent second source parts.

• Maintain close contact with part vendors for awareness of roadmap strategies.

Change management in case of functional changes

• Avoid impacts on Product functionality by choosing equivalent replacement parts.

• Avoid impacts on Product functionality by compensating changes through HW redesign or backward compatibility

SW maintenance

• Provide early change notifications concerning functional relevant changes of our

Products.

Change management in rare event of an obsolete and non replaceable part

• Ensure long term availability by stocking parts through last time buy management,

according to product forecasts.

• Offer long term frame contract to customers.

We refrain from providing detailed, part-specific information within this manual, which is

© PHYTEC Embedded Pvt. Ltd 2013 8

subject to changes, due to ongoing part maintenance for our products.

1 Introduction

Figure 1- 1. RANA Board

The RANA Board for phyCORE-AM335x is a low-cost, feature-rich software development platform supporting the TI AM335x processor families. At the core of the RANA board is the PCL-051/phyCORE-AM335x System On Module (SOM) in a direct solder form factor, containing the AM335x processor, SDRAM, NAND Flash, power regulation, supervision, transceivers, and other core functions required to support the RANA AM335x Board.

Surrounding the SOM is the PBA-CD-03/RANA Carrier Board, adding power input, buttons, connectors, signal breakout amongst other things.

The PCL-051 System On Module is a connector-less, BGA style variant of the PCM-

051/phyCORE-AM335x SOM. Unlike traditional PHYTEC SOM products that support high density connectors, the PCL-051 SOM is directly soldered down to its Carrier Board using

PHYTEC's Direct Solder Connect technology. This solution offers an ultra-low cost Single

Board Computer for the AM335x processor, while maintaining most of the advantages of the SOM concept.

Adding the phyCORE-AM335x SOM into your own design is as simple as ordering the connectored version (PCM-051) and making use of our RANA Carrier Board (PBA-CD-03),

© PHYTEC Embedded Pvt. Ltd 2013 9

or RDK Carrier Board (PCM-953) reference schematics. A summary of the RANA Board features, along with a block diagram are presented below.

1.1 RANA Board Features

phyCORE-AM335x System On Module

Board power over:

- Wall Adapter Input

High Speed USB Host Connectors

10/100 Ethernet RJ-45 Jack

Micro SD Card Slot

RS-232 Console Connectivity

Boot Selection Jumpers (NAND or SD Card )

1x Reset Buttons

120-pin, 2mm header socket for easy access to AM335x processor signals

1.2 Block Diagram

Figure 1- 2. RANA Board Block Diagram

© PHYTEC Embedded Pvt. Ltd 2013 10

2 PCL-051/phyCORE-AM335x System on Module

This chapter gives a brief introduction to the PCL-051/phyCORE-AM335x System on

Module (SOM), highlighting its benefits and features. For more detailed information, please refer to the Hardware Manual for the modular, connectored version of the SOM (PCM-051) by clicking here .

The phyCORE-

AM335x belongs to PHYTEC’s phyCORE System on Module (SOM) family.

The phyCORE SOMs represent the continuous development of PHYTEC SOM technology. Like its mini-, micro-, and nano MODULE predecessors, the phyCORE boards integrate all core elements of a microcontroller system on a subminiature board and are designed in a manner that ensures their easy expansion and embedding in peripheral hardware developments.

As independent research indicates that approximately 70% of all EMI (Electro Magnetic

Interference) problems stem from insufficient supply voltage grounding of electronic components in high frequency environments, the phyCORE board design features an increased pin package. The increased pin package allows dedication of approximately

20% of all connector pins on the phyCORE boards to ground. This improves EMI and EMC characteristics and makes it easier to design complex applications meeting EMI and EMC guidelines using phyCORE boards even in high noise environments. phyCORE boards achieve their small size through modern SMD technology and multilayer design. In accordance with the complexity of the module, 0402-packaged SMD components and laser-drilled Microwave are used on the boards, providing phyCORE users with access to this cutting edge miniaturization technology for integration into their own design.

The PCM-051, connectored version of the phyCORE-AM335x is a sub-miniature (41 x 51 mm) insert-ready SOM populated with AM335x processor. Its universal design enables its insertion into a wide range of embedded applications. All processor signals and ports extend from the processor to high-density pitch (0.5 mm) connectors aligning two sides of the board. This allows the SOM to be plugged like a "big chip" into a target application.

The PCL-051, connector less version of the phyCORE-AM335x populating the RANA

Board is identical to the connectored version, with the exception of the connection interface. Instead of two high density connectors aligning the edges of the board, the PCL-

051 solders directly down to its Carrier Board with a BGA style footprint.

Precise specifications for the processor populating the board can be found in the applicable processor user's manual and datasheet. The descriptions in this manual are based on the AM335x processor. No description of compatible processor derivative

© PHYTEC Embedded Pvt. Ltd 2013 11

functions is included, as such functions are not relevant for the basic functioning of the

RANA Board.

2.1 phyCORE-AM335x Features

Sub-miniature (41 mm x 51 mm) System on Module (SOM) subassembly in low EMI design, achieved through advanced SMD technology

Populated with the TI AM335x (Cortex-A8) processor

600 MHz (up to 1GHz) core clock frequency

Boot from NAND Flash

Controller signals and ports extend to two BGA-style connection interfaces aligning two sides of the board, enabling it to be soldered directly into the target application

Single supply voltage of 3.3 V (max.1 A)

All controller required supplies generated on board

Improved interference safety achieved through multi-layer PCB technology and dedicated ground pins

128 MB (up to 2 GB) on-board NAND Flash

128 MB (up to 1 GB)DDR3 SDRAM

Six UARTs

Dual USB OTG 2.0 High-Speed Controller with PHY

One 10/100 MBit Ethernet interfaces with internal L2-Switch and IEEE1588 PTP for

Real time Ethernet (available as RMII TTL signals or 10/100 differential pairs)

One I2C interfaces with SMBUS support

Display interface with 24 data bits

Multichannel Audio Serial Ports

One 8-channel, analog to digital (ADC) inputs

JTAG

4-bit Secure Digital Host interface (SD/MMC)

Real-Time Clock

-40 to +85 degree Celsius operating temperature range

© PHYTEC Embedded Pvt. Ltd 2013 12

3 Power

3.1 Wall Power (X2)

Wall power X2 provides the necessary board voltages.

A suitable +5V DC +- 5% / 1A or greater wall power adapter should be used with a center positive contact. An appropriate power supply can be ordered with the kit at the time you place your order.

CAUTION:

Do not use a laboratory adapter to supply power to the Carrier Board! Power spikes during power-on could destroy the phyCORE module mounted on the Carrier Board. Do not change jumper settings while the Carrier Board is supplied with power.

4 Ethernet (X17)

The 10/100 ETH0 interface, derived from the TI AM335x processor RMII1 signals, is accessible at an RJ-45 connector at X17.LEDs are integrated on the connector for indication of LINK (green) and SPEED (yellow).

The Ethernet PHY on the SOM supports the HP Auto-MDIX function, eliminating the need for considerations of a direct connect LAN cable or cross-over patch cable. The transceivers detect the TX and RX signals of the connected devices and automatically configure their RX and TX pins accordingly.

5 RS-232 Console (X7)

The RA ( Right Angle ) connector X7 provides connectivity to the RANA (UART) signals at

RS-232 level. This interface does not include the RANA UART0_RTS and UART0_CTS signals for flow control. This connection is provided primarily for console access, but could be reconfigured for other purposes if needed.

A standard straight-through serial cable connected to a PC is required to access this console port. This port has the benefit of providing access to Barebox and to early Linux boot log message, as opposed to the console access provided over the USB port, which provides neither. Use appropriate serial communications software such as minicom for

Linux, or putty for Windows. Configure the port for 115200,8,N,1 (8 data bits, no handshake, 1 stop bit). Below Table gives a detailed description of the signals at X8.

© PHYTEC Embedded Pvt. Ltd 2013 13

Table 5- 1. Connector X7 Pin Descriptions

Pin Signal

1

2

3

4

N/C

UART0_TXD_RS232

UART0_RXD_RS232

GND

I/O Description

- Not connected

O UART0 transmit

I UART0 receive

- GND

6 USB Connectivity

6.1 USB Host (X35)

The USB0 & USB1 interface signals are routed to the connector of X35 (Dual USB A-

Standard).The USB interface of the RANA processor complies with USB 2.0 HS specification and supports dual role device configuration, due to its USB-A style connector,

The USB interfaces on the RANA board are equipped with ESD protection. Both the interfaces are provided 5V supply that is current limited by U4 (TPS2051B). It supports connection of different USB devices such as mass storage device, keyboard, and mouse.

The USER can also have an OTG configuration for the both USB interfaces if required through the jumper X31.

7 SD Card (X12)

The RANA board provides a Micro SD card slot at X12 for connection to the RANA's

MMC0 interface. The interface is powered by an instant-on 3.3 V power supply and has card detect support (CDET) via the RANA processor X64.A18 signal.

In addition to mass storage usage, the processor can boot from this interface. As the default boot mode of the phyCORE-RANA SOM, SD boot is selected by closing 3+4 pins of JP5.

7.1 Inserting and Removing an SD Card

Insert a micro SD Card into slot X12, label up and pins facing down. After aligning the card with the connector, push to insert. The card will make a clicking sound and latch into the connector. To eject the card, push the card in to release. The connector will click and the card will be safe to remove. To avoid damaging the connector do not attempt to pull the card directly out without first pushing inward to release the lock mechanism.

© PHYTEC Embedded Pvt. Ltd 2013 14

8 System Reset Button (S4)

The RANA Board is equipped with a system reset button at S4. Pressing the button will toggle the nRESET_IN signal low and generate a manual system reset driving RESETn on the phyCORE-AM335x low.

The system reset signal, nRESET_IN, is available on the Expansion connector (see

Chapter 13 for more information) and can be used to reset various other peripheral devices. Refer to the PCM-051/phyCORE-AM335x Hardware Manual for details on the

RESETn signal.

CAUTION:

When running Linux a proper system shutdown should be performed, or reboot executed instead of pressing the reset button. Pressing the reset button (or cutting power) without properly shutting down can cause file system errors and is not advised. Issue a poweroff or reboot command at the Linux prompt to avoid file system damage. Only use the reset button when not running Linux, or if the system freezes up.

9 Board Power LED

’s

The RANA board is populated with two Power LED’s D6 & D10 with VCC5V and VCC3V3 respectively to ensure the proper supplies on board.

10 Boot Selection (JP5)

Jumper JP5 provides a way to override the default boot option configured on the RANA

SOM.

Figure 10- 1. Jumper Numbering Scheme

Figure 10-1 shows the jumper pin numbering scheme. Pin 1 on the board is marked with a cut in rectangle on the PCB silk screen. It is also visibly marked with a clipped corner on the component outline.

Table 10-1 shows the required jumper positions for configuring the desired boot device.

Use jumper wires to connect the pins of JP5 based on the settings described.

By default JP5 is open, configuring the RANA for NAND boot.

© PHYTEC Embedded Pvt. Ltd 2013 15

Table 10- 1. Jumper Settings and Descriptions

Jumper Setting

JP5

OPEN

1+2,3+4

3+4

Boot Device

NAND

NOR ( Optional )

MMC0

11 Real-Time Clock Options (RTC)

There are three options for an RTC on the RANA-AM335x.

11.1 PMIC RTC

The Power Management IC at U4 includes an integrated RTC. This RTC includes alarm and time keeping functions. The RTC is supplied by the main system power when it is on, and by the backup battery voltage VBAT_IN_4RTC, if present, when the main system power is off and the jumper J10 has been moved from its default position of (1+2) to position (2+3).

11.2 AM335x RTC

The AM335x processor also includes an integrated RTC. However, the RTC integrated in the AM335x uses significantly more power than the RTC in the PMIC. Because of this power disadvantage, the SOM has not been designed to support the AM335x RTC with backup power.

11.3 External RTC

The AM335x processor SOM also includes External RTC IC (RV-4162-C7). This RTC is

Provided with External battery Backup and also given option for the USER to place own battery at JP4.

12 JTAG

The JTAG edge card connector X3 provides an easy means of debugging the phyCORE

AM335x in your target system via an external JTAG probe.

Note:

The JTAG connector X3 only populated with the order. All JTAG signals are accessible from the carrier board. See Below mentioned table for details on the JTAG signal Pin assignment.

Table 12-1. JTAG Signal Map

© PHYTEC Embedded Pvt. Ltd 2013 16

Signal

X_TDO

X_TMS

X_TCK

X_nTRST

X_TDI

Connector Pin

X3-6

X3-2

X3-4

X3-10

X3-7

I

I

Typ e

O

O

O

Description

JTAG test data output

JTAG test mode select

JTAG test clock input

JTAG test reset

JTAG test data input

13 Expansion Connectors (X19, X20)

Two 2x30 2mm Expansion connectors (X19 and X20) provide easy access to many of the phyCORE-AM335x signals. All processor signals on the Expansion connector are 3.3 V. As an accessory, add-on expansion boards such as LCD and WiFi are made available through PHYTEC to connect to the Expansion connectors.

Most of the signals routed to the expansion connector have been configured for a given pin muxed function. Using these signals are alternate functions requires BSP modifications.

Tables detailing signal mapping of the Expansion Connectors are provided below. These tables list only the primary function intended on the RANA Board, but can be reconfigured for many other purposes. Refer to the AM335x Technical Reference manual on available operation modes.

Table 13- 1. Power Signal Map

Signal

VCC_5V0

Expansion Connector Pin

X19-2, X19-4 ,X20-2

VCC_3V3 X19-1, X19-3 ,X20-1

VDIG1_1P8V X19-55

X19-52 X_USB0_VBU

S

X_USB1_VBU

S

X19-49

VBAT

GND

X19-56

X19-57, X19-59, X19-58, X19-

60, X20-59, X20-60

Description

5V power from wall source

3.3V voltage domain

Optional 1.8V from SOM

5V power from USB connector

5V power from USB connector

Battery Power for RTC

Ground

© PHYTEC Embedded Pvt. Ltd 2013 17

Table 13-2. System Signal Map

Signal Expansion Board Pin Typ e

nRESET_IN X20-58 O

Description

nRESET_OUT X20-46 O

System reset signal; can be used to reset external devices.

System reset out signal from SOM; can be used to reset external devices.

CKLOUT1; free for external use X_CLKOUT1 X19-9 O

Table 13-3. I2C Signal Map

The Inter-Integrated Circuit (I2C) interface is a two-wire, bi-directional serial bus that provides a simple and efficient method for data exchange among devices. The AM335x contains three identical and independent I2C modules. Even though the signals of all three

I2C modules are available on the phyCORE connector

Signal Type

Description

X_I2C0_SDA

Expansion Board

Pin

X19-51 I/O

X_I2C0_SCL X19-53 I/O

I2C0_SDA clock (open drain with pull-up resistor on the SOM)

I2C1_SCL data (open drain with pull-up resistor on the SOM)

Table 13-4. UART Signal Map

This device contains 6 instantiations of the UART/IrDA (UARTIRDAOCP) peripheral.

There are six UART modules called UART0

– UART5. UART0 provides wakeup capability.

Only UART 1 provides full modem control signals. All UARTs support IrDA and CIR modes and RTS/CTS flow control (subject to pin muxing configuration).

Signal

Description

X_UART2_RX

Exp. Board

Pin

X20-3

Typ e

I UART 2 receive data

X_UART2_TX

X_UART1_TXD

X_UART1_RXD

X_UART1_RTS

X20-4

X20-53

X20-51

X20-52

X_UART1_CTS

X_UART3_RX

X_UART3_TX

X_GPIO1_8

X_GPIO1_9

X20-54

X20-55

X20-56

X20.5

X20.6

I

I

I

I

I

I UART 2 transmit data

O UART 1 transmit data

I UART 1 receive data

O UART 1 request to send

UART 1 clear to send

UART 3 recieve data

UART 3 transmit data

UART 4 recieve data

UART 4 transmit data

© PHYTEC Embedded Pvt. Ltd 2013 18

Table 13- 5. ADC Signal Map

The phyCORE-AM335x provides eight analog input signals. Below Table has lists the functions assigned to the analog input signals.

Note:

To support the display touch-control feature of the Rana-AM335x Board, the touch-control function has been assigned to the four analog input signals X_AIN0 to X_AIN3 in the BSP delivered with the module. In order to otherwise utilize these signals, the software must be changed.

Signal Expansion Board

Pin

Type

Description

X_AIN0

X_AIN1

X_AIN2

X_AIN3

X_AIN4

X_AIN5

X_AIN6

X_AIN7

X20-29

X20-30

X20-31

X20-33

X20-37

X20-32

X20-35

X20-34

Analog

Analog

Analog

Analog

Analog

ADC input0; free for external use

ADC input1; free for external use

ADC input2; free for external use

ADC input3; free for external use

ADC input4; free for external use

Analog ADC input5; free for external use

Analog ADC input6; free for external use

Analog ADC input7; free for external use

Table 13-6. NAND (GPMC) Signal Map

Signal

X_GPMC_BE0n_

CLE

Expansion Board

Pin

X19-31

X_GPMC_ADVn_

ALE

X_GPMC_OEn_R

En

X_GPMC_WAIT/_

P_MII1_COL

X_GPMC_AD0

X19-34

X_GPMC_WEn X19-36

X19-38

X_P_MII1_TXEN X19.23

X19.35

X19-42

Type

Description

O

O

O

O

I

O

I/O

General Purpose Memory

Controller interface byte enable 0 / command latch enable

General Purpose Memory

Controller interface address valid / address latch enable

General Purpose Memory

Controller write enable

General Purpose Memory

Controller output enable / read enable

General Purpose Memory

Controller GPMC_WPn write protect

General Purpose Memory

Controller External wait signal

General Purpose Memory

Controller interface Address/Data

© PHYTEC Embedded Pvt. Ltd 2013 19

Table 13-7. LCD Signal Map

The Rana-AM335x provides a configurable parallel display interface with up to 24 data bits and backlight and touch-screen control.

The 24-bit integrated LCD Interface Display Driver (LIDD) of the AM335x is directly connected to the Rana-AM335x Connector. The location of the applicable interface signals can be found in the table below. In addition, signal X_ECAP0_IN_PWM0_OUT can be used as PWM output to control the display brightness.

Signal

X_LCD_D0

Exp. Board Pin Type

X20-21 O

Description

LCD data bit 0

X_LCD_D1

X_LCD_D2

X20-20

X20-25

O

O

LCD data bit 1

LCD data bit 2

X_LCD_D3

X_LCD_D4

X_LCD_D5

X_LCD_D6

X_LCD_D7

X_LCD_D8

X_LCD_D9

X_LCD_D10

X_LCD_D11

X20-26

X20-24

X20-22

X20-9

X20-10

X20-14

X20-7

X20-8

X20-17

O

O

O

O

O

O

O

O

O

LCD data bit 3

LCD data bit 4

LCD data bit 5

LCD data bit 6

LCD data bit 7

LCD data bit 8

LCD data bit 9

LCD data bit 10

LCD data bit 11

X_LCD_D12

X_LCD_D13

X_LCD_D14

X_LCD_D15

X_LCD_D16

X_LCD_D17

X_LCD_D18

X_LCD_D19

X_LCD_D20

X_LCD_D21

X_LCD_D22

X_LCD_D23

X_LCD_PCLK

X_LCD_AC_BIAS_EN

X_LVDS_DISP_BACKLIG

HT_PWM

X_LCD_VSYNC

X_LCD_HSYNC

X20-16

X20-18

X20-11

X20-12

X19-24

X19-22

X19-26

X19-28

X19-27

X19-32

X19-30

X19_29

X20-23

X20-13

X20-27

X20-19

X20-15

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

LCD data bit 12

LCD data bit 13

LCD data bit 14

LCD data bit 15

LCD data bit 16

LCD data bit 17

LCD data bit 18

LCD data bit 19

LCD data bit 20

LCD data bit 21

LCD data bit 22

LCD data bit 23

LCD Pixel Clock

LCD Bias enable chip select

PWM output, can be used for display brightness control

LCD Vertical synchronization

LCD Horizontal synchronization

© PHYTEC Embedded Pvt. Ltd 2013 20

Touch Screen Controller

The AM335x processor includes an integrated touch screen controller for connection to a resistive touch panel such as is typically integrated in a LCD panel.The AM335x’s eight analog signals, AIN[7:0], are routed to the primary phyCORE connector, X3. Some or all of these can be connected to a resistive touch panel. The Rana AM335x board connects four of these signals to a touch screen integrated in a LCD display. These signals are mapped as follows:

AIN0 = TOUCH_X+

AIN1 = TOUCH_X-

AIN2 = TOUCH_Y+

AIN3 = TOUCH_Y-

Table 13-8. AIN [3:0] Signal Locations

Signal Expansion Board

Pin

X_AIN0 X20-29

Type

Analog

Description

X_AIN1 X20-30

X_AIN2 X20-31

X_AIN3 X20-33

Analog

Analog

Analog

AM335x

(TOUCH_X+) analog input

AM335x analog input (TOUCH_X-

)

AM335x

(TOUCH_Y+) analog input

AM335x analog input (TOUCH_Y-

)

Table 13- 9. Multichannel Audio Serial Ports (McASP) Signal Map

Signal

X_McASP0_AXR0

Expansion Board Pin Typ e

X19-11

Description

I/O serial data

X_McASP0_FSX X19-12

X_McASP0_AHCLKX X19-7

X_McASP0_AXR1 X19-10

X_McASP0_ACLKX X19-17

I/O

I/O

I/O

I/O frame synchronization transmit high frequency clock serial data transmit bit clock

Table 13- 10. General Purpose I/O's (GPIO's) Signal Map

Signal

X_GPIO1_31

Expansion Board

Pin

X19-5

Type Description

I/O Gpio1_31

© PHYTEC Embedded Pvt. Ltd 2013 21

X_GPIO1_30

X_MMC2_CLK/_P_MDIO_MDCLK

X_MMC2_CMD/_P_MDIO_DATA

X_CLKOUT1

X_RGMII2_RD0

X_RGMII2_RD1

X_RGMII2_RD2

X_RGMII2_RCLK

X_RGMII2_TCLK

X_RGMII2_TCTL

X_RGMII2_TD1

X_RGMII2_RD3

X_RGMII2_INT

X_RGMII2_TD0

X_RGMII2_TD2

X_RGMII2_TD3

X_RGMII2_RCTL

X_GPIO3_18

X_INTR1

X_MII1_RCTL/_GPIO3_4

X_MCASP0_AXR1

X_MCASP0_FSX

X_GPIO3_17

X_MCASP0_AHCLKX

X_MCASP0_ACLKX

X_MCASP0_AXR0

X_GPIO3_19

X19-6

X19-7

X19-8

X19-9

X19-10

X19-11

X19-12

X19-13

X19-14

X19-15

X19-16

X19-17

X19-18

X19-19

X19-20

X19-21

X19-25

X19-33

X19-43

X19-46

X20-36

X20-38

X20-39

X20-40

X20-42

X20-44

X20-45

I/O Gpio1_30

I/O gpio2_1

I/O gpio2_0

I/O gpio0_19

I/O gpio1_27

O

O gpio1_26 gpio1_25

I/O gpio1_23

I/O gpio1_22

I/O gpio1_16

I/O gpio1_20

I/O gpio1_24

I/O gpio1_28

I/O gpio1_21

I/O gpio1_19

I/O gpio1_18

I/O gpio1_17

I/O gpio3_18

I/O gpio0_20

I/O gpio3_4

I/O gpio3_20

I/O gpio3_15

I/O gpio3_17

I gpio3_21

I gpio3_14

I/O gpio3_16

I gpio3_19

Table 13- 11. Ethernet (RGMII) Signal Map

The AM335x Ethernet2 interface signals can connect to any industry-standard Ethernet transceiver or they can be used for other purposes. The AM335x processor supports MII, RMII and

RGMII modes on this interface. It does not support GMII mode. It is strongly recommended to place the Ethernet PHY on the Carrier Board close to the pins of the SOM's Ethernet interface to achieve a trace length of less than 100 mm. The Ethernet2 interface signals are available on the

Rana-AM335x connector on the pins listed in the below Table

Signal

X_RGMII2_RD0

X_RGMII2_RD1

Expansio n Board

Pin

X19-10

X19-11

I

I

Typ e

Description

RGMII receive data bit 0

RGMII receive data bit 1

© PHYTEC Embedded Pvt. Ltd 2013 22

X_RGMII2_RD2

X_RGMII2_RCLK

X_RGMII2_TCLK

X_RGMII2_TCTL

X_RGMII2_TD1

X_RGMII2_RD3

X_RGMII2_TD0

X_RGMII2_TD2

X_RGMII2_TD3

X_RGMII2_RCTL

X19-12

X19-13

X19-14

X19-15

X19-16

X19-17

X19-19

X19-20

X19-21

X19-25

I

I

RGMII receive data bit 2

RGMII receive clock

O RGMII transmit clock

O RGMII transmit control

O RGMII transmit data bit 1

I RGMII receive data bit 3

O RGMII transmit data bit 0

O RGMII transmit data bit 2

O RGMII transmit data bit 3

I RGMII receive control

Table 13- 12. USB Signals Map

The Rana-AM335x provides two high speed USB Host interfaces which use the AM335x embedded HS USB-OTG PHY. The applicable interface signals can be found on the Rana-

AM335x Connector as shown in Table.

Signal

Type Description

X_USB1_CE

Expansion Board

Pin

X19-45 O USB1 Phy charge enable

X_USB1_ID

X_USB0_CE

X_USB1_VBUS

X19-47

X19-48

X19-49

I

O

I

USB1 OTG identification

USB0 Phy charge enable

USB1 VBUS (input only for voltage sensing)

X_USB0_ID

X_USB0_VBUS

X19-50

X19-52

I

I

USB1 OTG identification

USB0 VBUS (input only for voltage sensing)

Table 13-13. SPI Signal Map

The Serial Peripheral Interface (SPI) is a four-wire, bidirectional synchronous serial bus that provides a simple and efficient method for data exchange among devices. The

AM335x includes two SPI modules. These modules are Master/Slave configurable and each support up to two devices. The interface signals of the first module (SPI0) are identified on the phyCORE-Connector. If there is a SPI Flash installed on the SOM, it connects to SPI0_CS0

Signal Expansion Board

Pin

Type Description

X_SPI0_MISO

X_SPI0_MOSI

X20-48

X20-47

I/O SPI0 Master In Slave Out

I/O SPI0 Master out slave in

X_SPIO_CS0

X_SPI0_CLK

X20-49

X20_50

I/O SPI0 CHIP SELECT

I/O SPI0 CLOCK

© PHYTEC Embedded Pvt. Ltd 2013 23

Table 13-14. CAN Signal Map

The Controller Area Network (CAN) is a serial communications protocol which efficiently supports distributed real time control with a high level of security. The AM335x includes two CAN interfaces, DCAN0 and DCAN1. These support bitrates up to 1 MBit/s and are

Compliant to the CAN 2.0B protocol specification.

Signal

Type Description

X_MII1_TXD3

Expansion Board

Pin

X20-41 O dcan0_tx

Transmitter)

(CAN0

X_MII1_TXD2

X_GPIO1_8

X_GPIO1_9

X20-43

X20-05

X20_06

I

O

I dcan0_rx (CAN0 Receiver) dcan1_tx

Transmitter)

(CAN1 dcan1_rx (CAN0 Receiver)

14 Technical Specifications

Table 14- 1. Technical Specifications

Dimensions 100 x 72mm

Weight 64.2g / 2.26oz typ.

Storage Temperature -40 °C to +125 °C

Operating Temperature -40°C to + 85 °C (Industrial)

Humidity 95% r.F. not condensed

Operating Voltage +5VDC +- 5%

Power Consumption 2.05W typ.; Linux booted from uSD card, running ping test

15 Revision History

Table 15- 1. Revision History

Date Version Number

08/11/2013 Hardware Manual PBA-CD-

03

Changes in this Manual

Preliminary documentation.

Describes the Rana-AM335x

With phyCORE-AM335x SOM.

© PHYTEC Embedded Pvt. Ltd 2013 24

16 PLACEMENT DIAGRAMS

Figure 16- 2. Placement Diagram of Rana AM335x

© PHYTEC Embedded Pvt. Ltd 2013 25

17 Physical Dimensions Diagram of Rana-AM335x

The physical dimensions of the Rana-AM335x is of Pico-ITX(100 x 720mm) form factor as shown in Figure 17-1.

Figure 17- 3. Physical Dimensions

© PHYTEC Embedded Pvt. Ltd 2013 26

Get the dialog going ...

... and stay in touch

India

PHYTEC Embedded Pvt.Ltd.

#16/9C, 3rd Floor, 3rd Main

8th Block, Opp. Police Station

Kormangala, Bangalore-560095

Tel.: +91-80-40867046-49

www.phytec.in

Germany

PHYTEC Messtechnik GmbH

Robert-Koch-Straße 39

D-55129 Mainz

Tel.: +49 6131 9221-32

Fax: +49 6131 9221-33

www.phytec.de

www.phytec.eu

America

PHYTEC America LLC

203 Parfitt Way SW, Suite G100

Bainbridge Island, WA 98110

Tel.: +1 206 780-9047

Fax: +1 206 780-9135

www.phytec.com

France

PHYTEC France SARL

17, place St. Etienne

F-72140 Sillé le Guillaume

Tel.: +33 2 43 29 22 33

Fax: +33 2 43 29 22 34

www.phytec.fr

..................................We are looking forward to hear from you!..................................

© PHYTEC Embedded Pvt. Ltd 2013 27

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
