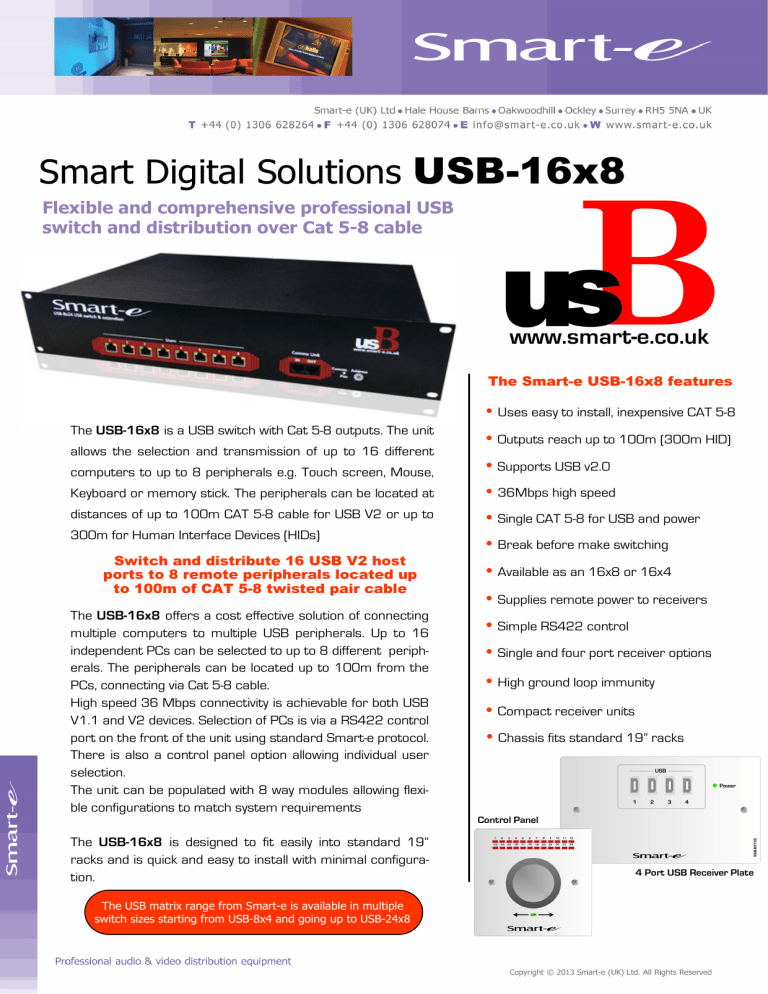

Smart Digital Solutions USB-16x8
Flexible and comprehensive professional USB
switch and distribution over Cat 5-8 cable
The Smart-e USB-16x8 features
•
Uses easy to install, inexpensive CAT 5-8
•
Outputs reach up to 100m (300m HID)
computers to up to 8 peripherals e.g. Touch screen, Mouse,
•
Supports USB v2.0
Keyboard or memory stick. The peripherals can be located at
•
36Mbps high speed
distances of up to 100m CAT 5-8 cable for USB V2 or up to
•
Single CAT 5-8 for USB and power
•
Break before make switching
•
Available as an 16x8 or 16x4
•
Supplies remote power to receivers
•
Simple RS422 control
•
Single and four port receiver options
•
High ground loop immunity
•
Compact receiver units
•
Chassis fits standard 19” racks
The USB-16x8 is a USB switch with Cat 5-8 outputs. The unit
allows the selection and transmission of up to 16 different
300m for Human Interface Devices (HIDs)
Switch and distribute 16 USB V2 host
ports to 8 remote peripherals located up
to 100m of CAT 5-8 twisted pair cable
The USB-16x8 offers a cost effective solution of connecting
multiple computers to multiple USB peripherals. Up to 16
independent PCs can be selected to up to 8 different peripherals. The peripherals can be located up to 100m from the
PCs, connecting via Cat 5-8 cable.
High speed 36 Mbps connectivity is achievable for both USB
V1.1 and V2 devices. Selection of PCs is via a RS422 control
port on the front of the unit using standard Smart-e protocol.
There is also a control panel option allowing individual user
selection.
The unit can be populated with 8 way modules allowing flexible configurations to match system requirements
Control Panel
The USB-16x8 is designed to fit easily into standard 19”
racks and is quick and easy to install with minimal configuration.
The USB matrix range from Smart-e is available in multiple
switch sizes starting from USB-8x4 and going up to USB-24x8
4 Port USB Receiver Plate
Power
USB
Version
V1.1 & V2
Voltage
90-230V
Maximum speed
High speed 36Mbps
Connector
IEC
Connector transmitter
Type B
Max current
1A A/S
Connector receiver
Type A
Frequency
50/60Hz
Dimensions
Control
Height
2U (89mm)
Control signal
RS422
Width
19”
Control connector
RJ45
Depth
300mm
Control speed
9600baud
Weight
5Kg
Control type
Multi-drop
RECEIVER
USB-RX100
Format
Ports
Speed
Connector
Range
USB 2/1.1
4
Max 36Mbps
Type A
Up to 100m
