Trendnet TV-H110 camera housing

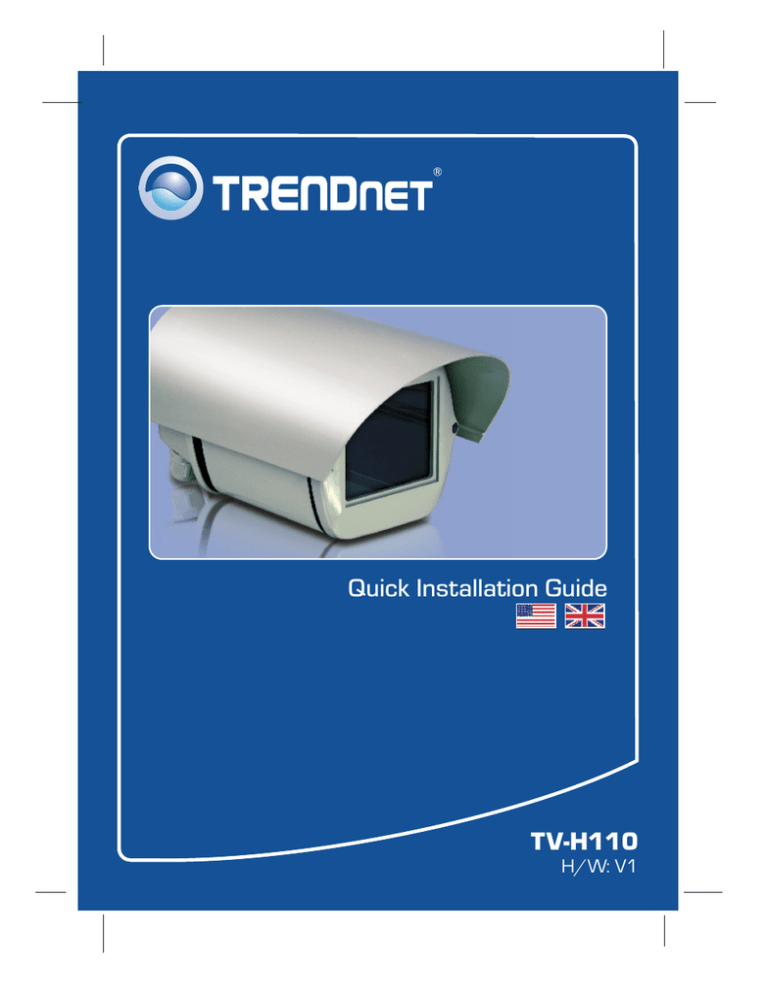

Quick Installation Guide
TV-H110
H/W: V1
Table of Contents
English ...................................................................................................... 1
1. Before You Start ................................................................................ 1
2. Hardware Installation ......................................................................... 2
Troubleshooting ........................................................................................ 13
Version 10.15.2008
1. Before you start
Package Contents
TV-H110
?
Quick Installation Guide
?
?
Mounting Bracket
?
Allen Wrench (5mm)
?
Screws, washers and wall mount kit
?
IR Shelter
?
Power Adapter (12V, 1.5A)
Installation Requirements
The following items below are not included. Users must provide the items
themselves. Make sure to have each item on hand before installation.
Internet Camera Server (e.g. TV-IP110, TV-IP110W, TV-IP212,
?
TV-IP212W, TV-IP312, TV-IP312W)
?
Dry Wall or Wood surface
?
Wire Stripper
?
Phillips Screwdriver
?
Utility Knife
?
Electrical Tape
?
8P8C Modular Plug/RJ-45 connector (for wired Internet camera server)
*Note: You must know how to terminate a network cable with an RJ-45
connector in order to install a wired internet camera server into the TV-H110.
If you do not know how to terminate a network cable with an RJ-45 connector,
please consult a network professional.
1
English
2. Hardware Installation
Note: Configure your Internet Camera Server to match your network before
installing the device.
Hardware Installation
1. Remove the screws from the back
of the camera enclosure. Save
these screws. You will need to use
these screws later.
2. Slide out the back end of the
enclosure.
3. Unscrew the circuit board from the
metal bracket. Save these screws.
You will need to use these screws
later.
2
English
4. Unscrew the metal bracket from
the TV-H110. Save this screw. You
will need to use this screw later.
5. Use the following screw to mount
the Internet Camera Server to the
metal bracket.
6. Connect the IR shelter to the
Internet Camera Server
(TV-IP312/TV-IP312W only).
7. Take the Internet Camera Server's
power adapter and cut about 4
inches from the end of the power
connector using the wire cutter.
Note: This is the AC adapter that is
included with your Internet Camera
Server.
3
English
8. Take a utility knife and cut along
the middle to split the cable into
two strands.
9. Use a wire stripper to remove the
insulation to expose the copper
wiring.
10. Run the Internet Camera Server's
power adapter and RJ-45
Ethernet cable from the base to
the top of the mounting arm.
Make sure the end of the RJ-45
Ethernet cable that is run through
the top of the TV-H110 is
unterminated.
11. Run the TV-H110's power jumper
cable from the top to the base of
the camera housing.
12. Connect the power jumper cable
to the TV-H110's power adapter.
4
English
13. Remove one of the caps from the
enclosure.
14. Insert the unterminated end of the
Ethernet cable through the cap.
15. Terminate the Ethernet cable.
16. Insert the Ethernet cable through
the hole. Then screw in the cap
securely.
17. Remove an unused cap from the
enclosure.
5
English
18. Insert the Internet Camera
Server's power adapter through
the cap.
19. Insert the Internet Camera
Server's power adapter cable
through the hole. Then screw in
the cap securely.
20. Connect the two ends of the
power adapter back by twisting
the copper wiring. Make sure you
do not cross the copper wires.
21. Use electrical tape to seal the
cables back together. Make sure
to seal the individual strands
separately.
22. Screw the metal bracket back into
the Internet Camera Server.
6
English
23. Screw the circuit board back to
the metal bracket.
24. Connect the power adapter to the
Internet Camera server.
25. Connect the Ethernet cable to the
Internet Camera server.
26. Slide the back end of the
enclosure back in.
27. Secure the screws into the back
of the camera enclosure.
7
English
Installing External Antenna to Wireless Internet
Camera
Note: Before installation, you need the following products:
TEW-ASAK (v2.0R), TEW-L406 or TEW-L412 and an External Antenna
(TEW-AO14D).
1. Remove the antenna from the back
of your wireless Internet Camera
Server.
2. Run the TEW-ASAK from the base
to the top of the mounting arm.
3. Follow steps 1-6 in the Hardware
Installation section above.
4. Remove one of the caps from the
enclosure.
8
English
5. Insert the TEW-ASAK through the
cap.
6. Insert the TEW-ASAK through the
hole. Then screw in the cap
securely.
7. Please follow the previous section
for installing the power adapter to
the Internet Camera Server.
8. Screw the metal bracket back in to
the Internet Camera Server.
9. Screw the circuit board back to the
metal bracket.
9
English
10. Connect the TEW-ASAK and the
power adapter to the Internet
Camera Server.
11. Slide the back end of the
enclosure back in.
12. Secure the screws into the back
of the camera enclosure.
13. Follow the directions in the
QIG for the TEW-ASAK to
connect the surge arrestor to
your outdoor antenna
(e.g. TEW-AO14D).
10
English
Mounting the Camera Housing
1. Place the mounting bracket against
the wall and mark each of the four
holes with a pencil.
2. Drill holes for the screws at each
marked position. Make sure the
drill bit matches the size of the
provided white screws.
3. Insert the screws into the holes.
4. Use the bracket screws to mount
the mounting bracket to the TVH110. Use the provided Allen
wrench to secure the mounting
bracket.
11
English
5. Adjust the mounting bracket to the
desired position. Then use the
provided Allen wrench and turn it
clockwise to secure position.
6. Align the Wall Mount bracket with
the screws, and then use the
provided nuts and washers to
secure it.
Your installation is now complete.
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet
12
English
Troubleshooting
Q1: After I put my Internet Camera Server in the enclosure, the image is distorted.
What should I do?
A1: First, make sure that you have adjusted the focus on your camera. Second,
mount the TV-H110 so that it's not in direct view of the sun. Third, if you are using
a day/night camera with an auto iris lens, make sure to push the camera all the
may to the front so that the IR shelter is touching the glass.
Q2: Where is the Ethernet cable? The TV-H110 does not come with one?
A2: An Ethernet cable should be provided with your Internet Camera Server. If an
Ethernet is not provided with your Internet Camera Server, you need to purchase
an Ethernet cable.
Q3: My Ethernet cable will not fit through the cap. What should I do?
A3: You must first run the Ethernet cable unterminated. Once the Ethernet cable
is run through the cap and the TV-H110, then terminate the Ethernet cable with an
RJ-45 jack.
Q4: My antenna cable will not fit through the cap. What should I do?
A4: You must use the TEW-ASAK with the TEW-L406/TEW-L412. See Installing
External Antenna to Wireless Internet Camera in section 2 for more instructions.
If you still encounter problems or have any questions regarding the TV-H110, please
contact TRENDnet's Technical Support Department.
