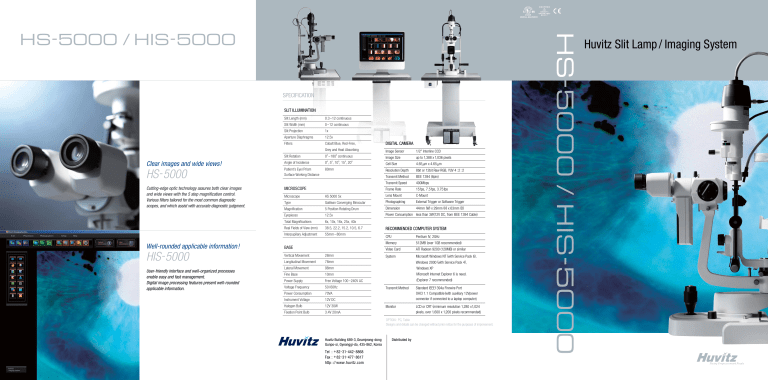

HS -5000 / HIS -5000
SPECIFICATION
SLIT ILLUMINATION
Slit Length (mm)
0.3~12 continuous
Slit Width (mm)
0~12 continuous
Slit Projection
1x
Aperture Diaphragms
12.5x
Cobalt Blue, Red-Free,
DIGITAL CAMERA
Grey and Heat Absorbing
Image Sensor
Slit Rotation
~180°continuous
0°
Image Size
up to 1,388 x 1,036 pixels
Clear images and wide views!
Angle of Incidence
0°
, 5°
, 10°
, 15°
, 20°
Cell Size
4.65μm x 4.65μm
HS- 5000
Patient’s Eye/Prism
Surface Working Distance
80mm
Resolution Depth
8bit or 12bit Raw RGB, YUV 4 : 2 : 2
Transmit Method
IEEE 1394 (6pin)
Transmit Speed
400Mbps
Cutting-edge optic technology assures both clear images
and wide views with the 5 step magnification control.
Various filters tailored for the most common diagnostic
scopes, and which assist with accurate diagnostic judgment.
MICROSCOPE
Frame Rate
15fps, 7.5fps, 3.75fps
Filters
1/2” Interline CCD
Microscope
HS 5000 5x
Lens Mount
C-Mount
Type
Galilean Converging Binocular
Photographing
External Trigger or Software Trigger
Magnification
5 Position Rotating Drum
Dimension
44mm (W) x 29mm (H) x 63mm (D)
Eyepieces
12.5x
Power Consumption less than 3W(12V DC, from IEEE 1394 Cable)
Total Magnifications
6x, 10x, 16x, 25x, 40x
Real Fields of View (mm)
38.5, 22.2, 15.2, 10.5, 6.7
Interpupilary Adjustment
55mm~80mm
RECOMMENDED COMPUTER SYSTEM
CPU
Pentium IV, 2GHz
Memory
512MB (over 1GB recommended)
Video Card
ATI Radeon 9200 (128MB) or similar
System
Well-rounded applicable information!
BASE
HIS- 5000
Vertical Movement
28mm
Longitudinal Movement
78mm
Microsoft Windows NT (with Service Pack 6),
Windows 2000 (with Service Pack 4),
Lateral Movement
98mm
Windows XP
Fine Base
10mm
Microsoft Internet Explorer 6 is need.
Power Supply
Free Voltage 100~240V AC
(Explorer 7 recommended)
Voltage Frequency
50/60Hz
Power Consumption
70VA
Instrument Voltage
12V DC
Halogen Bulb
12V 30W
Fixation Point Bulb
3.4V 20mA
User-friendly interface and well-organized processes
enable easy and fast management.
Digital image processing features present well-rounded
applicable information.
Transmit Method
Standard IEEE1394a Firewire Port
OHCI 1.1 Compatible(with auxiliary 12Vpower
connector if connected to a laptop computer)
Monitor
LCD or CRT (minimum resolution 1,280 x1,024
pixels, over 1,600 x 1,200 pixels recommended)
OPTION : PC, Table
Designs and details can be changed without prior notice for the purposes of improvement.
Huvitz Building 689-3, Geumjeong-dong
Gunpo-si, Gyeonggi-do, 435-862, Korea
Tel : + 82 - 31- 442 - 8868
Fax : + 82 - 31- 477 - 8617
http : // www.huvitz.com
Distributed by
HS-5000 / HIS-5000
HS-5000 / HIS-5000
Huvitz Slit Lamp / Imaging System
Find the difference by looking through the Huvitz Slit Lamp.
- Experience the advanced diagnostic solution.
A perfect match -The integration of the high-end Slit Lamp HS-5000 & the Imaging System HIS-5000.
HS-5000 & HIS-5000 meet professional requirements for accurate diagnoses with the utmost
convenience of data recording and management. The integrated system provides a new solution,
satisfying multi-tasking performance for diagnosis, data recording and management.
HS-5000 / Slit Lamp
HS-5000 gives you the most precise observation.
HIS-5000 / Imaging System
Intuitive and user-friendly information management and processing.
Illumination system brings extremely bright and vivid vision.
Easy and user-friendly patient information management.
As a light source, a 12V, 30W high luminance halogen lamp gives you the highest
vividness and the purist image.
MS Access Database-based system allows you to search and easily
manage diagnosed information, data and history of patients.
Magnification Control System that can be used in various observations.
Intuitive user interface.
We use a drum style, five-step magnification control system.
You can get each field of the magnified clinical image, from low to high, very easily
by just rotating the drum.
Intuitive tree-structured user interface allows easy access to and updates
of patient information without any complicated clicking.
Real time quick image saving
The faster and more stable IEEE 1394 interface method applied digital camera.
HS-5000 can achieve a maximum resolution of 1.45 M pixel with the IEEE 1394
interface method, which conducts image data faster and with more stability
compared with the normal USB interface method.
High performance progressive scan CCD camera provides quick image
capture of diagnosed images in real time.
Powerful image processing
Great convenience with various magnifications and wide observation range.
With Live Tool graphic library, all the images such as JPG, TIFF, RAW and
many more formats can be adjusted for brightness, contrast, color
channel, saturation, inversion, sharpness, red-free, etc.
Microscope can be operated easily and accurately.
Image manipulation for maximum diagnosis.
HS-5000 gives you vivid images and a wide observation range with the
global standard Galilean Converging Binocular optical system.
(6x :38.5mm, 10x :22.2mm, 16x :15.2mm, 25x :10.5mm, 40x :6.7mm)
[ Compare ]
The selected images can be magnified, reduced and rotated with various
graphic effects for accurate comparison and diagnosis.
[ Overlay ]
Correlative animation of images captured in different time frames allows
you identify metastasis of symptoms.
[ Slide Show ]
All selected images can be shown in a slide show, which can be used for
presentations.
[ Reference ]
Images of same symptoms can be registered or searched for the further
reference.
[ Report Generation ]
Automatic patients’ report export function in MS Words format.
[ Print ]
Easy single-click printing of current images.
Integrated control handle, easily operated one-handed.
The integrated control handle is simple to control.
For finer movement there is a trigger button mounted on the joystick.
Images can be stored simultaneously if the HS-5000 is connected to imaging devices.
Enlargement of clinical field by using various filters.
Easily operated yellow filter for Fluoresceine
The Interior mounted yellow filter is easily operated by pushing a knob when you
use Fluoresceine solution.
(Filters : Cobalt Blue, Red-Free, Heat Absorption, Grey, Yellow Filters)
