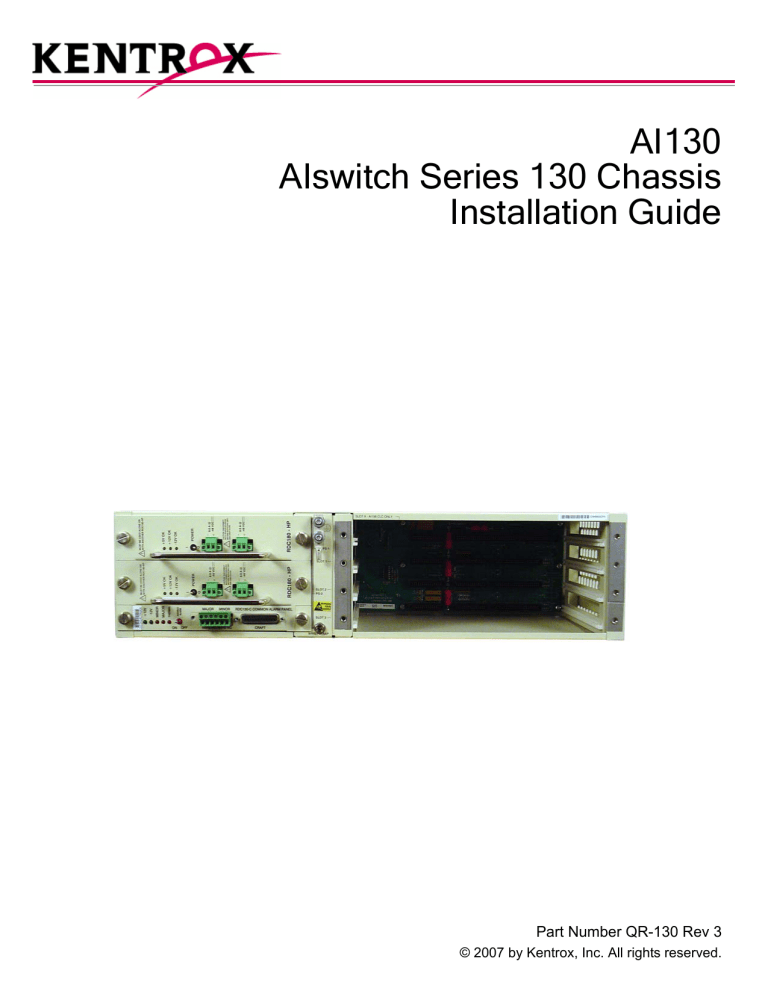

AIswitch Series 130 Chassis
Installation Guide
Part Number QR-130 Rev 3
© 2007 by Kentrox, Inc. All rights reserved.
Copyright © 2007 by Kentrox, Inc. All Rights Reserved. The material discussed in this publication
is the proprietary property of Kentrox, Inc. Kentrox retains all rights to reproduction and
distribution of this publication.
Kentrox is a registered trademark of Kentrox, Inc. Applied Innovation, Applied Innovation Inc., the
AI logo, and other names are the intellectual property of Kentrox. All other product names are
trademarks or registered trademarks of their respective owners.
Information published here is current as of this document’s date of publication, but is subject to
change without notice. You may verify product information by contacting our headquarters in
Oregon. Kentrox is an Equal Opportunity/Affirmative Action employer.
Kentrox, Inc.
5800 Innovation Dr.
Dublin, Ohio USA 43016-3271
Toll Free: (800) 247-9482
International: +1 (614) 798-2000
Fax: +1 (614) 798-1770
20010 NW Tanasbourne Dr.
Hillsboro, Oregon USA 97124-7104
Toll Free: (800) 733-5511
Direct: (503) 643-1681
AI130
AIswitch Series 130 Chassis
Installation Guide
This installation guide explains how to install an AI130 AIswitch series 130 chassis.
Guide to this document
Product Components
Cautions and Warnings
Customer Assistance
Required Items
Installation
Calculating Power Consumption and Heat Dissipation
Technical Specifications
1
Product Components
Product Components
Front Panel Components
Figure 1 Front Panel Components
2
Cautions and Warnings
Cautions and Warnings
Grounding and Electrical Safety
CAUTION: AI equipment and its peripherals contain electrostatic sensitive
components. Proper handling, shipping, and storage precautions must
be exercised:
z
You must remove and install cards in a static-free environment. Wear
an antistatic wrist strap that is plugged into the AI equipment so you
are grounded at the same point as the equipment.
z
Do not remove cards from their antistatic plastic bags until you are
ready to install them into the chassis.
z
Immediately after you remove a card from the chassis, you must
insert it into its antistatic bag.
z
When the cards are not in use, keep them in their antistatic plastic
bags.
z
Do not ship or store cards near strong electrostatic, electromagnetic,
or radioactive fields.
Installation
CAUTION: For AI equipment to operate safely and correctly, there must be a safety
ground strap between the equipment ground bolts and the office ground.
Environment
CAUTION: In the event that AI130 has been subjected to adverse environmental
conditions, a service inspection of AI130 should be made to ensure safe
operation.
Lithium Batteries
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions.
CAUTION: Il y a risque d'explosion si la batterie est remplacée par une batterie de
type incorrect. Mettre au rebut les batteries usagées conformément aux
instructions.
3
Cautions and Warnings
FCC
The Federal Communications Commission has set limits for emitted radio
interference, and AI130 is constructed with this electromagnetic interference (EMI)
limitation in mind. AI130 is classified under FCC regulations as a Class A device, that
is, a device for use in commercial environments and not in residential areas. This
device has been tested and shown to comply with the following FCC rule: Part 15
Subpart J. Operation of this equipment in a residential area may cause interference to
radio and TV reception, requiring the user to take whatever steps are necessary to
correct the interference.
Information is available from the FCC describing possible corrective actions. To
maintain low EMI levels, we suggest that you use only metal connectors and shielded
cable grounded to the frame.
Specifications are subject to change without notice.
4
Customer Assistance
Customer Assistance
Kentrox offers technical support 24 hours a day, seven days a week.
Before you contact Kentrox for assistance, please have the following information
available:
z
The type of hardware and software you are using
z
The error number and exact wording of any messages that appeared on your
screen
z
What happened and what you were doing when the problem occurred
z
How you tried to solve the problem
Web Site Support
Support is available 24 hours a day using our Web site at:
http://www.kentrox.com
Email Support
Email support is available 24 hours a day. When you use email support, please be
sure to include the details of your problem within the email.
To contact Technical Support, send email to:
techsupport@aiinet.com
Phone Support
Phone support is available. When you call Kentrox for support, please be sure you
are at your computer and have the details of your problem available.
To contact Technical Support, call (866) 480-3571.
Kentrox Product Documentation
To order documentation, please contact your sales representative at
(800) 247-9482 or +1 (614) 798-2000.
You can also access and view the most current versions of Kentrox product
documentation on our Web site at:
http://www.kentrox.com
5
Required Items
Required Items
Tools
z
#2 Phillips screwdriver
z
3/64 in. (2.5 mm) slotted screwdriver
z
Crimping tool 1/4 in. (6.3 mm) capacity
z
Wire cutter
z
Wire stripper
z
PC with terminal emulation software such as Procomm (optional, used for
configuration)
Materials
6
z
Wire for input power connections (14 AWG, copper conductor)
z
Wire for optional external alarm devices (28 to 16 AWG)
z
Wire for ground connection (10 AWG, copper conductor)
z
Ground lugs for rack or other earth ground
Installation
Installation
Step 1: Attach Mounting Flanges
Attach the mounting flanges to fit a 19-inch or 23-inch rack. You can also attach the
flanges in three locations providing multiple alignment options to the rack. Figure 2
displays a 23-inch configuration.
Figure 2 Mounting Flanges Attached for 23-inch Configuration
7
Installation
Step 2: Attach AI130 to Rack
Install the mounting screws into the mounting holes and tighten firmly. The switch
requires a minimum of two screws per side.
Note: No minimum clearance required above or below the chassis.
Figure 3 AI130 Installed in Rack
8
Installation
Step 3: Attach Chassis Ground
Connect the AI130 chassis ground to a suitable ground such as the frame ground of
the rack system or to a reliable earth ground.
CAUTION: The chassis ground must be connected to the same earthing electrode
conductor as the DC supply system or to a bonding jumper (from an
earthing terminal or bus) connected to the earthing electrode of the DC
supply system.
The chassis must be located in the same immediate area (such as
adjacent cabinets) as other equipment connected to the same DC power
system and earthing electrode conductor. The DC system cannot be
earthed elsewhere.
The DC power source must be located in the same premises as the
chassis.
No switching or disconnecting devices can be between the earthed
conductor of the DC source and the earthing electrode conductor.
Figure 4 Attach Chassis Ground
9
Installation
Step 4: Connect Input Power
Turn the power supplies off. Connect the input power feed to the power supply
connector A. Be careful to observe polarity. If using a redundant input power feed,
connect the other input power cable to connector B.
If using a redundant -48 DC power supply (RDC180-HP), connect the input power in
the same manner as the first power supply.
If using only one -48 VDC power supply, it can be plugged into either power supply
slot. For safety and for efficient cooling, cover the unused slot with a blank cover (part
number RDC180-BC).
If using an AC power supply (AI325-AC), plug the furnished power cord into the
connector on the power supply.
WARNING: Turn off both power feeds before connecting wires.
CAUTION: For safety and to ensure proper cooling, cover all unused power supply
slots with a blank cover (part number RDC180-BC).
Figure 5 Connect Input Power
10
Installation
Step 5: (optional) Connect External Alarm Devices
Connect the external alarm signaling devices to the alarm relay contacts. The
normally-opened or normally-closed outputs can be used to trigger external alarm
devices.
WARNING: Turn off the power feed before connecting wires.
Figure 6 Connect External Alarm Devices
11
Installation
Step 6: Install Line Card
CAUTION: Personnel handling cards must wear an antistatic wrist strap and follow
electrostatic procedures.
CAUTION: Installing a card into the incorrect slot may damage the card.
CAUTION: For safety and to ensure proper cooling, cover all unused card slots with
a blank cover (part number AI180-BC).
See the figure below for slot assignments. To install the line card into the chassis:
1. Position the card so the components are face up.
2. Align the card with the card guides of the chassis.
3. Gently slide the card into the chassis.
4. Firmly press the faceplate of the card until the internal connectors engage.
5. Tighten the two thumbscrews to secure the card to the chassis.
Figure 7 Slots for Line Cards
Step 7: Turn On Power Supplies
Place the ON/OFF switch on the power supplies to the ON position. The +5V, +12V,
and -12V indicators should illuminate green indicating proper operation.
Step 8: (optional) Enter IP Address in AI198
Entering the IP address allows the AI130 system to be configured remotely. For
complete configuration information, refer to the AI198 Common Logic Controller
System Manager/User’s Guide, part number 198UM.
1. Set the terminal emulation software on the PC/terminal emulator for 9600 baud,
no parity, eight data bits, one stop bit, XON/XOFF flow control.
12
Installation
2. Using a terminal cable, connect the PC/terminal to the CRAFT port of AI130.
Press ENTER.
3. At the login prompt, enter ai. This is the default login.
4. At the password prompt, enter ai. This is the default password.
5. At the system prompt, enter menu. The Main Menu appears.
6. At the prompt, enter 1. Menu 1 appears.
13
Installation
7. At the prompt, enter 12. Menu 1.12 appears.
a. At the prompt, enter 1, and the AI198 IP address. The new address appears.
b. Example: 1,123.45.678.90
c. At the prompt, enter 2, and the AI198 router address. The new address
appears.
d. At the prompt, enter 3, and the AI198 subnet mask. The new address
appears.
e. Save the configuration by entering 20 at each prompt until the Main Menu
appears. Then enter 21 to exit.
Step 9: (optional) Configure IP Address on a Line Card in
Standalone Mode
Configuring the IP address on a line card in standalone mode allows the card to be
accessed remotely. For complete configuration information, refer to the user
documentation of the specific card.
Connecting
1. Set the terminal emulation software on the PC/terminal emulator for 9600 baud,
no parity, eight data bits, one stop bit, no flow control.
2. Using a terminal cable, connect the PC/terminal to asynchronous port 1 on AI296
or AI232, to the CRAFT port on AIfocus or AIwan, or to the CONSOLE port on
AIconnect, AIextend, or AIfirewall. Press ENTER.
3. At the login prompt, enter ai. This is the default login.
4. At the password prompt, enter ai. This is the default password.
5. Continue with the directions for the specific card (below).
14
Installation
AI232, AI296, or AIwan
1. At the prompt, enter ip
init.
2. Follow the onscreen prompts to enter the IP address as well as a primary and
backup router.
Note: The device must be reset before the changes take effect.
AIfocus
To set the IP address:
z
At the system prompt, enter set-ip and the IP address.
Example: set-ip 123.45.255.90
To set the IP address and subnet mask:
z
At the system prompt, enter set-ip-conf, the IP address, and the subnet mask.
Example: set-ip-conf 123.45.255.90 255.255.0.0
Note: For changes to take effect, wait for the updated configuration stored
message to appear and then reboot.
AIconnect, AIextend, or AIfirewall
At the prompt, enter config interface ethernet
address, the IP address, and the subnet mask.
0/,
the port being configured, ip
Example: config interface ethernet 0/2 ip address 123.45.255.90 255.255.0.0
Note: The changes take effect as soon as you press ENTER.
15
Calculating Power Consumption and Heat Dissipation
Calculating Power Consumption and Heat Dissipation
16
Calculating Power Consumption and Heat Dissipation
Calculating Current Draw
Use this procedure to calculate the actual current that AI130 draws from the DC
power source. Calculations are based on the Total Chassis Power Consumption
(Watts), a value developed in Table 3. For multi-chassis systems, perform the
calculation for each chassis and then sum the chassis totals to find the total system
current. This total current is used by the site engineer to determine power plant
capacity requirements.
Calculating Actual DC Current Draw
To find the actual DC current draw of AI130:
Calculating Actual AC Current Draw
To find the actual AC current draw of AI130:
17
Technical Specifications
Technical Specifications
Specification
Description
Card Slots
4 slots - supports one AI198 card and up to three line cards
Weight
25 lb (11.25 kg), approximately, fully loaded
Size
Height: 5.22 in. (13.26 cm)
Width: 21 in. (53.34 cm)
Depth: 9.76 in. (29.79 cm)
Mounting
Mounts in a standard 23-inch rack
Clearance
Requirements
No clearance is required above or below the chassis
Operating
Environment
(Ambient)
Temperature: 41° to 104°F (5° to 40°C)
Relative Humidity: 5% to 85%
Power Supplies
AI130 can use either of the following power supplies:
RDC180-HP Power Supply (may use two):
Input Voltage: -48 VDC, nominal (Range: -42.5 to -57.5 VDC)
Input Current: 7.1 A, maximum at 48 VDC; 8.5 A, maximum at 40 VDC
AI325-AC Power Supply:
Input Voltage: 120/240 VAC, nominal (Range: 102 to 264 VAC)
Frequency: 50/60 Hz, nominal (Range: 47 to 63 Hz)
Input Current: 7 A, maximum at 102 VAC
Circuit Fuse
(Power Supply)
10 A, typical, external fused supply
(Unit internal fusing is not user accessible)
Relay Contact
Rating
RDC130-C Common Alarm Panel: 2 A at 28 VDC
Compliance and
Certification
Meets Telcordia Network Element Building Standards (NEBS) Level 3
functionality
Safety
Equipment for use in a restricted access location only
18
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
