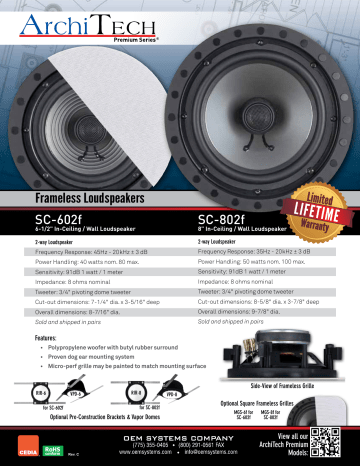

ArchiTech Premium
Frameless Loudspeakers
SC-602f
SC-802f
2-way Loudspeaker
2-way Loudspeaker
Frequency Response: 45Hz - 20kHz ± 3 dB
Frequency Response: 35Hz - 20kHz ± 3 dB
Power Handling: 40 watts nom. 80 max.
Power Handling: 50 watts nom. 100 max.
Sensitivity: 91dB 1 watt / 1 meter
Sensitivity: 91dB 1 watt / 1 meter
Impedance: 8 ohms nominal
Impedance: 8 ohms nominal
Tweeter: 3/4" pivoting dome tweeter
Tweeter: 3/4" pivoting dome tweeter
Cut-out dimensions: 7-1/4" dia. x 3-5/16" deep
Cut-out dimensions: 8-5/8" dia. x 3-7/8" deep
Overall dimensions: 8-7/16" dia.
Overall dimensions: 9-7/8" dia.
Sold and shipped in pairs
Sold and shipped in pairs
6-1/2" In-Ceiling / Wall Loudspeaker
8" In-Ceiling / Wall Loudspeaker
Features:
• Polypropylenewooferwithbutylrubbersurround
• Provendogearmountingsystem
• Micro-perfgrillemaybepaintedtomatchmountingsurface
RIR-6
VPD-6
RIR-8
for SC-802f
for SC-602f
Optional Pre-Construction Brackets & Vapor Domes
®
Rev. C
Side-View of Frameless Grille
VPD-8
Optional Square Frameless Grilles
MGS-6f for
SC-602f
MGS-8f for
SC-802f
View all our
ArchiTech Premium
Models:
Frameless Loudspeakers
SC-62f
6-1/2" 2-way Single Point In-Ceiling Loudspeaker
Specifications
Frequency Response: 45Hz - 20kHz ± 3 dB
Power Handling: 50 watts nom. 100 max. both channels combined
Sensitivity: 91dB 1 watt / 1 meter
Impedance: 8 ohms nominal
Tweeter: Dual (left & right) 3/4" Mylar ferro-fluid cooled dome tweeters
Cut-out dimensions: 7-1/4" dia. x 3-5/16" deep
Overall dimensions: 8-7/16" dia.
Sold and Shipped Individually
Features:
• Polypropylenewooferwithbutylrubbersurround
• High-temperatureAluminumvoicecoils
• Magnetic,frameless,micro-perforated,
vibration-freegrille
• Provendogearmountingsystem
Optional Pre-Construction
Brackets & Vapor Domes
®
Rev. C
Side-View of Frameless Grille
Optional Square Frameless Grilles
RIR-6
VPD-6
MGS-6f
View all our
ArchiTech Premium
Models:
Frameless Loudspeakers
SC-602LCRSf
6-1/2" 2-way 15 Degree Angled Loudspeaker
Specifications
Frequency Response: 45Hz - 20kHz ± 3 dB
Power Handling: 40 watts nom. 80 max.
Sensitivity: 91dB 1 watt / 1 meter
Impedance: 8 ohms nominal
Tweeter: 3/4" textile soft dome pivoting tweeter
Cut-out dimensions: 8-5/8" Round x 4-3/16" Deep
Overall dimensions: 9-7/8" Round
Sold and Shipped Individually
Features:
• Polypropylenewooferswithbutylrubbersurrounds
• Magnetic,frameless,micro-perforated,vibration-freegrille
• Basedonaugmenteddispersiondesign
• Ferro-fluidcooledtweeter
• ProvenMountingSystem
• 12dB/octavecrossover
Optional Pre-Construction
Brackets & Vapor Domes
®
Rev. C
Optional Square Frameless Grilles
RIR-8
VPD-8
MGS-8f
View all our
ArchiTech Premium
Models:
Frameless Loudspeakers
SE-525LCRSf
Dual 5-1/4" 2-way In-Wall Loudspeaker
Specifications
Frequency Response: 45Hz - 20kHz ± 3 dB
Power Handling: 50 watts nom. 150 max.
Sensitivity: 91dB 1 watt / 1 meter
Impedance: 8 ohms nominal
Tweeter: 1" pivoting mylar soft dome tweeter
Cut-out dimensions: 7-15/16" W x 14-7/16" H x 3-1/4" Deep
Overall dimensions: 9" W x 15-3/4" H
Sold and Shipped Individually
Features:
• Polypropylenewooferswithbutylrubbersurrounds
Side View
• Industryleadingsuperiorclamp-ringmountingsystem
• Far-forwardwoofermountwithpole-mountedtweeter
• Hightemperaturepolyimidevoicecoils
• Magnetic,frameless,micro-perforated,
vibration-freegrille
• OrientVerticallyorHorizontally
Optional Pre-Construction Bracket
RIB-LCR
• IRKnockouts
®
Rev. C
View all our
ArchiTech Premium
Models:
SC-502E
SC-602E
5-1/4" 2-way Loudspeaker
6-1/2" 2-way Loudspeaker
Frequency Response: 50Hz - 20kHz ± 3 dB
Frequency Response: 45Hz - 20kHz ± 3 dB
Power Handling: 30 watts nom. 60 max.
Power Handling: 40 watts nom. 80 max.
Sensitivity: 91dB 1 watt / 1 meter
Sensitivity: 91dB 1 watt / 1 meter
Impedance: 8 ohms nominal
Impedance: 8 ohms nominal
Tweeter: 3/4" pivoting, dome tweeter
Tweeter: 3/4" pivoting, dome tweeter
Cut-out dimensions: 6-1/2" dia. x 2-3/8" deep
Cut-out dimensions: 7-3/8" dia. x 2-7/8" deep
Overall dimensions: 7-1/2" dia.
Overall dimensions: 8-3/8" dia.
Sold and shipped in pairs
Sold and shipped in BULK 4-packs (2 pairs)
5-1/4" In-Ceiling Loudspeaker
6-1/2" In-Ceiling Loudspeaker
Features:
• Polypropylenewooferwithbutylrubbersurround
• Provendogearmountingsystem
Supplied with
grille, baffle
& frame
• FrameandGrillesmaybepaintedtomatchmountingsurface
VPD-5
RIR-5
RIR-6
VPD-6
for SC-602E
for SC-502E
Optional Pre-Construction Brackets & Vapor Domes
®
Rev. C
View all our
ArchiTech Premium
Models:
SE-691E
5-1/4" In-Wall
2-way Loudspeaker
SE-791E
SE-891E
6-1/2" In-Wall
2-way Loudspeaker
Poly Woofer with Butyl Rubber Surround
Silk, Soft-Dome, Pivoting Tweeter
Frequency Response
Power Handling
Sensitivity
Impedance
8" In-Wall
2-way Loudspeaker
SE-691E
SE-791E
SE-891E
5-1/4"
6-1/2"
8"
Woofer Size
1"
1"
1"
50 - 20K
45 - 20K
35 - 20K
Hz ± 3 dB
30 / 60
40 / 80
60 / 120
watts nom. / max.
91
91
91
dB 1 watt / 1 meter
8
8
8
Overall Dimensions
6-5/8" x 9-1/4"
8-5/8" x 12-1/8"
10-1/2" x 14-1/2"
Width x Height
Cut-Out Dimensions
5-9/16" x 8-1/4"
7-3/8" x 10-7/8"
9" x 13"
Width x Height
2-3/8"
3-1/8"
2-15/16"
Loudspeaker Depth
ohms
Optional Pre-Construction Brackets:
Features:
• Industryleadingsuperiorclamp-ringmountingsystem
• FrameandGrillesmaybepaintedto
matchmountingsurface
• Soldandshippedinpairs
RIR-6914
RIB-7
for
SE-791E
for SE-691E
RIB-82
for
SE-891E
Additional SE-791E & SE-891E Features:
• IRKnockout
• Poly-switchoverdriveprotection
Supplied with grille, baffle & frame
• 12dB/octavecrossover
®
Rev. C
View all our
ArchiTech Premium
Models:
