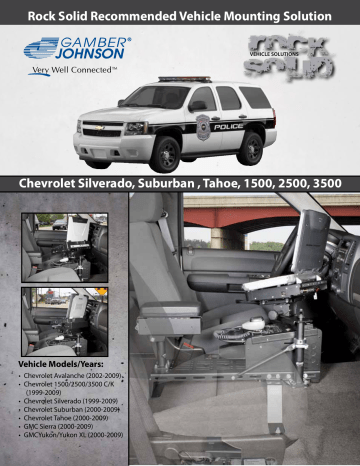

Rock Solid Recommended Vehicle Mounting Solution
Vehicle Solutions
Chevrolet Silverado, Suburban , Tahoe, 1500, 2500, 3500
Vehicle Models/Years:
• Chevrolet Avalanche (2002-2009)
• Chevrolet 1500/2500/3500 C/K
(1999-2009)
• Chevrolet Silverado (1999-2009)
• Chevrolet Suburban (2000-2009)
• Chevrolet Tahoe (2000-2009)
• GMC Sierra (2000-2009)
• GMCYukon/Yukon XL (2000-2009)
Rock Solid Solutions
Chevrolet Silverado, Suburban , Tahoe, 1500, 2500, 3500 - Console System
Rugged Docking Stations and Vehicle Mounts
Solution Components:
1. Leg Kit
(Item No. 7160-0160)
Leg Kit is a no-drill solution and attaches to the
passenger side seat studs. 2. 29” Top Plate
(Item No. 7160-0085)
Top plate allows console box to be offset
towards the passenger for added space .
6
8
9
5
3
3. 13” Console Box
(Item No. MCS-EPIC13)
The two-piece flexible design allows for multiple
height/angle combinations based on radio
requirements. Rounded edges designed for
passenger safety and gives a sleek appearance.
4. Side Extension Mounting Plate
(Item No. 7160-0117)
Provides off-set mounting surface
5. Pole System
(Item No. DS-LOWER-7 & QADJ-UPPER-M5)
Pole system includes the lower tube and the
upper pole. Combined they allow the user to
ergonomically position the computer to fit them
best.
6. Motion Attachment
(Item No. QUAD-MOTION TS3)
Motion Attachment has tilt capabilities up to 30°
forward/30° backward and can swivel up to 60°
right/60° left on two different pivot points and
can slide up to 3.5” forward/backward.
7
2
4
1
Gamber-Johnson is the leading manufacturer of quality, rugged docking
stations and vehicle mounts. Gamber-Johnson is a certified docking station
manufacturer for Panasonic, General Dynamics Itronix and DRS. The solution
shown is the recommended solution, however the components can be
mixed and matched so you can design the solution that fits your specific
requirements. Visit Gamber-Johnson’s website at www.gamberjohnson.com to
view the complete line of vehicle mounts, console boxes and docking stations.
Click here to
add logo
Street Address
City, State, Zip
(800) 222-4444
Email Address
Website
7. Support Brace
(Item No. LAC-02)
Support Brace provides additional mount
system support in rugged driving conditions
and reduces mounting system vibration. 8. Armrest
(Item No. 7160-0006)
Gamber-Johnson offers a variety of armrests to
suite the users specific needs including a printer
armrest for a Pentax Printer (shown).
9. Accessories
Gamber-Johnson offers a variety of accessories
for their console box line including cup holders,
LED lights, mic clips, cigarette adapter kits and
power distribution blocks. (Item No shown:
3130-0361, 7160-0063, MCS-CUPHOLD2)
This document, including images, may not be reproduced partly or
fully without the expressed written consent of Gamber-Johnson’s
Marketing Department. © Copyright 2009 Gamber-Johnson, LLC
