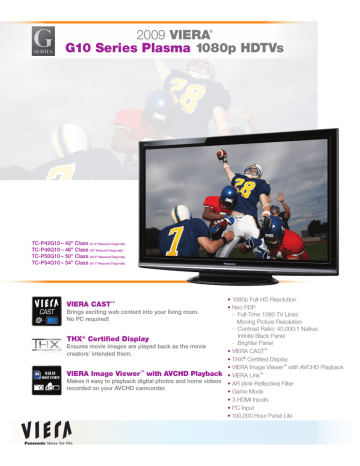

2009 viera
G10 Series Plasma 1080p HDTVs
®
TC-P42G10 – 42" Class (41.6" Measured Diagonally)
TC-P46G10 – 46" Class (46" Measured Diagonally)
TC-P50G10 – 50" Class (49.9" Measured Diagonally)
TC-P54G10 – 54" Class (54.1" Measured Diagonally)
VIERA CAST™
Brings exciting web content into your living room.
No PC required!
THX® Certified Display
Ensures movie images are played back as the movie
creators’ intended them.
VIERA Image Viewer™ with AVCHD Playback
Makes it easy to playback digital photos and home videos
recorded on your AVCHD camcorder.
• 1080p Full-HD Resolution
• Neo PDP
- Full-Time 1080 TV Lines
Moving Picture Resolution
- Contrast Ratio: 40,000:1 Native;
Infinite Black Panel
- Brighter Panel
• VIERA CAST™
• THX ® Certified Display
• VIERA Image Viewer™ with AVCHD Playback
• VIERA Link™
• AR (Anti-Reflective) Filter
• Game Mode
• 3 HDMI Inputs
• PC Input
• 100,000 Hour Panel Life
2009 viera G10 Series Plasma 1080p HDTVs Specifications
®
TC-P42G10
TC-P46G10
TC-P50G10
TC-P54G10
Screen Size Diagonal (inches)
41.6
46.0
49.9
54.1
Aspect Ratio
16:9
16:9
16:9
16:9
Number of Pixels
2,073,600 (1,920 x 1,080)
2,073,600 (1,920 x 1,080)
2,073,600 (1,920 x 1,080)
2,073,600 (1,920 x 1,080)
Pixel Pitch (mm)
0.480 x 0.480 mm
0.531 x 0.531 mm
0.576 x 0.576 mm
0.624 x 0.624 mm
1080 lines
1080 lines
1080 lines
1080 lines
Native: 40,000:1; Infinite Black Panel
Native: 40,000:1; Infinite Black Panel
Native: 40,000:1; Infinite Black Panel
Native: 40,000:1; Infinite Black Panel
5,120 equivalent
5,120 equivalent
5,120 equivalent
5,120 equivalent
Y
Y
Y
Y
Y
Normal, Zoom, Full, Just, H-fill for TV/AV modes
4:3, Full for PC mode
G12 Progressive 1080p HD NeoPDP
Y
Normal, Zoom, Full, Just, H-fill for TV/AV modes
4:3, Full for PC mode
G12 Progressive 1080p HD NeoPDP
Y
Normal, Zoom, Full, Just, H-fill for TV/AV modes
4:3, Full for PC mode
G12 Progressive 1080p HD NeoPDP
Y
Normal, Zoom, Full, Just, H-fill for TV/AV modes
4:3, Full for PC mode
G12 Progressive 1080p HD NeoPDP
VIDEO
Moving Picture Resolution
Contrast Ratio
Shades of Gradation
HDTV Display Capability (1080p, 1080i, 720p)
EDTV Display Capability (480p)
Aspect Control
Panel
Screen Coating (Filter)
AR (Anti-Reflective) Filter
AR (Anti-Reflective) Filter
AR (Anti-Reflective) Filter
AR (Anti-Reflective) Filter
Progressive Scan
Y
Y
Y
Y
600 Hz Sub-field Drive
Y
Y
Y
Y
24p Playback (2 : 3)
Deep Color
x.v.Color™
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
THX® Mode
Motion Adaptive 3D Y/C Digital Comb Filter
3D Color Management
Sub Pixel Control
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Motion Pattern Noise Reduction
Y
Y
Y
Y
Full-range x 2 (L, R)
2
20 W ( 10% THD )
(6 ohms, 150 Hz - 16 kHz)
Y
Full-range x 2 (L, R)
2
20 W ( 10% THD )
(6 ohms, 150 Hz - 16 kHz)
Y
Full-range x 2 (L, R)
2
20 W ( 10% THD )
(6 ohms, 150 Hz - 16 kHz)
Y
Full-range x 2 (L, R)
2
20 W ( 10% THD )
(6 ohms, 150 Hz - 16 kHz)
Y
AUDIO
Speakers
Number of Speakers
Audio Output
Surround Sound
JACKS
Integrated ATSC Tuner
Y
Y
Y
Y
VIERA Image Viewer™
Y (AVCHD/MPEG2/JPEG playback)
Y (AVCHD/MPEG2/JPEG playback)
Y (AVCHD/MPEG2/JPEG playback)
Y (AVCHD/MPEG2/JPEG playback)
3 (1 side)
3 (1 side)
3 (1 side)
3 (1 side)
HDMI Input
Analog Audio Input ( for HDMI/DVI)
Composite Video Input
S-Video Input
Y
Y
Y
Y
2 (1 side)
2 (1 side)
2 (1 side)
2 (1 side)
1
Audio Input (for Video)
PC Input
Audio Input (for PC)
1
1
1
2 (1 side)
2 (1 side)
2 (1 side)
2 (1 side)
Mini D-sub 15-pin x 1 (rear)
Mini D-sub 15-pin x 1 (rear)
Mini D-sub 15-pin x 1 (rear)
Mini D-sub 15-pin x 1 (rear)
Stereo M3 ( 3.5 mm) Jack
Stereo M3 ( 3.5 mm) Jack
Stereo M3 ( 3.5 mm) Jack
Stereo M3 ( 3.5 mm) Jack
Component Video Input (Y, PB, PR)
2
2
2
2
Audio Input (for Component Video)
2
2
2
2
LAN Port
1
1
1
1
Analog Audio Output
1
1
1
1
Digital Audio Output (Optical)
1
1
1
1
Y (with Network Camera)
Y (with Network Camera)
Y (with Network Camera)
Y (with Network Camera)
CONVENIENCE
VIERA Link
™
VIERA CAST™ (IPTV)
Y
Y
Y
Y
Remote Controller
IR
IR
IR
IR
VIERA® Tools
Y
Y
Y
Y
Game Mode
Y
Y
Y
Y
Pixel Orbiter (Anti-Image Retention)
Y
Y
Y
Y
Trilingual Menu (English/Spanish/French)
Y
Y
Y
Y
V-Chip Program Lock Out
Y
Y
Y
Y
Built-In Closed Caption Decoder
Y
Y
Y
Y
Off - Timers
Y
Y
Y
Y
Video Input Label
Y
Y
Y
Y
Video Picture Memory
Y
Y
Y
Y
AC 120 V, 60Hz
GENERAL
Power Supply
AC 120 V, 60Hz
AC 120 V, 60Hz
AC 120 V, 60Hz
Rated Power Consumption
490 W
531 W
589 W
Standby Power Consumption
0.2 W
0.2 W
0.2 W
Y
Y
Y
Y
ATSC/QAM/NTSC
ATSC/QAM/NTSC
ATSC/QAM/NTSC
ATSC/QAM/NTSC
27.8" (704 mm)
40.6" (1,029 mm)
13.2" (334 mm)
30.2" (767 mm)
44.6" (1,132 mm)
15.8" (401 mm)
32.1" (814 mm)
48.0" (1,218 mm)
15.8" (401 mm)
On Mode Average Power Consumption
Energy Star
Receiving System
Dimensions with stand
Height [inches (mm)]
Width [inches (mm)]
Depth [inches (mm)]
Dimensions W/O stand
Height [inches (mm)]
26.1" (661 mm)
28.5" (722 mm)
30.3" (769 mm)
32.8" (832 mm)
Width [inches (mm)]
40.6" (1,029 mm)
44.6" (1,132 mm)
48.0" (1,218 mm)
51.7" (1,313 mm)
4.3" (107 mm)
Depth [inches (mm)]
Weight with stand [lbs (kg)]
Weight W/O stand [lbs (kg)]
Operating Temperature
Safety Standard
Carton Dimensions
Height [inches (mm)]
Width [inches (mm)]
Depth [inches (mm)]
Gross Weight [lbs (kg)]
Swivel Angle
Optional Wall-mounting Bracket Model Numbers
( Angled )
Optional Wall-mounting Bracket Model Numbers
( Vertical )
UPC
4.2" (106 mm)
4.2" (106 mm)
4.2" (106 mm)
59.6 lbs. (27.0 kg)
68.4 lbs. (31.0 kg)
75.0 lbs. (34.0 kg)
55.2 lbs. (25.0 kg)
64.0 lbs. (29.0 kg)
70.6 lbs. (32.0 kg)
32°F - 104°F (0°C - 40°C)
32°F - 104°F (0°C - 40°C)
32°F - 104°F (0°C - 40°C)
32°F - 104°F (0°C - 40°C)
UL6500/C-UL
UL6500/C-UL
UL6500/C-UL
UL6500/C-UL
30.4" (771 mm)
32.8" (833 mm)
34.6" (878 mm)
45.6" (1,156 mm)
49.5" (1,255 mm)
53.0" (1,345 mm)
11.2" (284 mm)
11.2" (284 mm)
11.2" (284 mm)
72.8 lbs. (33.0 kg)
83.8 lbs. (38.0 kg)
90.4 lbs. (41.0 kg)
—
—
—
—
TY-WK4P1RW
TY-WK4P1RW
TY-WK4P1RW
TY-WK4P1RW
—
—
—
—
037988-242474
037988-242467
037988-242450
037988-242443
Notice: VIERA Link™ is a new name for EZ Sync.™ Not all VIERA Link™ features are usable with earlier VIERA Link™ and EZ Sync™ compatible products. Design and specification are subject to change without notice. All pictures are simulated.
Infinite Black Panel = 2,000,000:1 Dynamic Contrast Ratio
