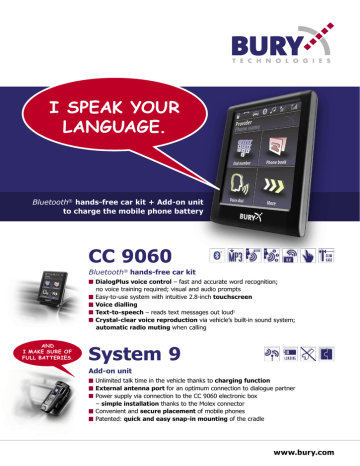

I SPEAK YOUR
LANGUAGE.
Bluetooth® hands-free car kit + Add-on unit
to charge the mobile phone battery
CC 9060
Bluetooth® hands-free car kit
DialogPlus voice control – fast and accurate word recognition;
no voice training required; visual and audio prompts
Easy-to-use system with intuitive 2.8-inch touchscreen
Voice dialling
Text-to-speech – reads text messages out loud1
Crystal-clear voice reproduction via vehicle’s built-in sound system;
automatic radio muting when calling
AND
I MAKE SURE OF
FULL BATTERIES.
System 9
Add-on unit
Unlimited talk time in the vehicle thanks to charging function
External antenna port for an optimum connection to dialogue partner
Power supply via connection to the CC 9060 electronic box
– simple installation thanks to the Molex connector
Convenient and secure placement of mobile phones
Patented: quick and easy snap-in mounting of the cradle
www.bury.com
Further details:
CC 9060 + System 9
Bluetooth® connection between
CC 9060 and mobile
36-66 mm
Scope of delivery:
Phone specific activeCradle
Display +
mounting pad
Electronic box
External
microphone
activeCradle universal
Switch box
Simple installation thanks to Molex connector
Multiple Call Handling – swap and hold
calls, conference with up to 7 participants1
MP3 playback from mobile phone over
car’s hi-fi system1,2
Automatic call answering available
Display shows contacts, call log,
reception quality, handset model and name
of network provider, etc.1
Can store multiple numbers for one
contact
Maximum capacity: 10 handsets,
1000 text messages, 150 voice tags,
15,000 contacts
Light sensor automatically switches
between day and night mode
basePlate for CC 9060
ChargingCable
(for more than
220 mobile phones)
Phone specific activeCradle available3 for:
APPLE
BLACKBERRY
HP
HTC
MOTOROLA
MOTOROLA
MOTOROLA
Nokia
SAMSUNG
Siemens
SONY ERICSSON
The scope of the functions may vary according to mobile phone,
network provider and software version.
AUX cable or CAR MP3/CD Adapter needed (accessory)
1
iPhone
8100 Series, 8300 Series, 8800 Series
iPAQ HW 6510, iPAQ HW 6515, iPAQ HW 6910, iPAQ HW 6915
MDA Compact, MDA Compact II, MDA Compact III, Touch
L2 (V280), L6 (V270), L7(V8)
V3 RAZR, RAZR2 V8/V9m, RAZR2 V9
C 390
E50, E51, E60, E70, N73, N91, N95, 3109c, 3110c, 6021, 6120 Classic, 6151, 6230, 6230i, 6233,
6234, 6280, 6300(Picollo), 6301,6500 Classic, 6820
SGH-D600
S75, M75
K510i, K530i, K550i, W610i, K610i, V630i, K750i, K800i, D750i, W800i, W810i, W700i, W880i,
W890i
Display colour scheme can be matched to the car
interior. For example:
HP
HTC
HTC
HTC
MOTOROLA
MOTOROLA
MOTOROLA
MOTOROLA
MOTOROLA
MOTOROLA
Nokia
THE RUN-DOWN
Nokia
Nokia
1. Bluetooth® connection between mobile
phone and CC 9060 – comfortable
for the user, but taxing on the mobile
phone’s battery
2. The solution – System 9
3. Simply connect the basePlate
to the CC 9060 electronic box
4. Install the activeCradle charging cradle
5. Make your phone calls with superb
reception and full batteries
Nokia
PALM
PALM
PANASONIC
PHILIPS
SAGEM
SAMSUNG
SAMSUNG
SHARP
Siemens
SONY ERICSSON
SONY ERICSSON
TOSHIBA
3
Plane, Graphite
7100g, 7100r, 7100t, 7100v, 7100x, 7290, 7250, 7105t, 8700, 8707, 7210, 7230, 7280, 8100, 7130,
8300, 8800
iPAQ HW 6510, iPAQ HW 6515, H6340, iPAQ HW 6910, iPAQ HW 6915
SDA, SDA Music, Qtek 8020, i-mate SP3i, SDA II, MDA Compact, i-mate JAM, Qtek S100, VPA
Compact, Qtek8310, SPV M5000, XDA Mini, MDA IV, Qtek9100; HTC Breeze, SPV M500, MDA
Compact II, Hermes, Tytn, XDA Trion, MDA Vario II, MDA Compact III, VPA Compact GPS,
HTC Kaiser v1615, Xphone II, MTeoR, HP iPAQ 514
SPV C500, SPV C600, Qtek 8010, i-mate SP3, SPV C700
MDA II, XDA IIi, Qtek 2020, SPV M1000, MDA III, SDA IIs, Qtek 9090, SPV M2000, i-mate PDA2K,
XDA II, XDA IIs, XDA III
i880
L2 (V280), L6 (V270), L7(V8), V3xx
V3 RAZR (12 cm)
V3 RAZR (100 cm)
V500, V525, V550, V551, V600, V620, E398, E550, E1070, U6, V635, A835
Symbol MC35 smartphone
6233, 6234, 6280, E50, E61, N70, N71, N72, N73, N80, N91, N92, 6103, 6131, 6270, 6280, N90,
3109c, 3110c, 6300, 6125, 6288, 3250, 5200, N93, 7370, E65, E90, N95, 6120
6260, 6630
3230, 3650, 6021, 6230, 6230i, 6310, 6310i, 6600, 6670, 6680, 6681, 6810, 6820, 6820a, 6822,
8800, 9300, 9500, N-GAGE, 2610, 9300i, E60, E70, 7380, 7710, 8910, 8801
6500, 7900
Treo 500v(Otto)
Treo 650, Treo 700w, Treo 700p, 750 (Zevon, Knight Rider, Camino)
X70
Fisio 820, Fisio 825
MyX8
SGH-D500, SGH-D600, SGH-D720, SGH-A930, SGH-D307
SGH A701/ SGH i601
GX15, GX25, GX30
CX 75, M 75, S 55, S 65, SK 65, SX 1, S65v, SXG65, SXG75, SP65
K750i, D750i, W800i, K510i, K800i, K790i, K610i, W810i, V630i, K600i, W700i, W850i, M600i,
K530i, K550i, P990i, K810i, W600i, W610i, W880i, W900i, W950i, Z520i, Z530i
K700i, P910i, S700i, T39m, T68, T68i, T68m, T610, T616, T630, Z600, Z1010, V800, R520m
TS 921
Revised 08/2008. For detailed information about available products go to www.bury.com or contact our hotline.
BURY GmbH & Co. KG, Robert-Koch-Str. 1-7, D-32584 Löhne | Hotline Tel.: +49 (0)1805 - 84 24 68*, Hotline Fax: +49 (0)1805 - 84 23 29* | E-Mail: [email protected]
*0,14 €/min. from Deutsche Telekom AG landlines
www.bury.com
Subject to alterations and errors excepted.
ASUS
BLACKBERRY
50-02-0346-3 _ 2008-08-06
ChargingCable (accessories for activeCradle universal) available3 for:
