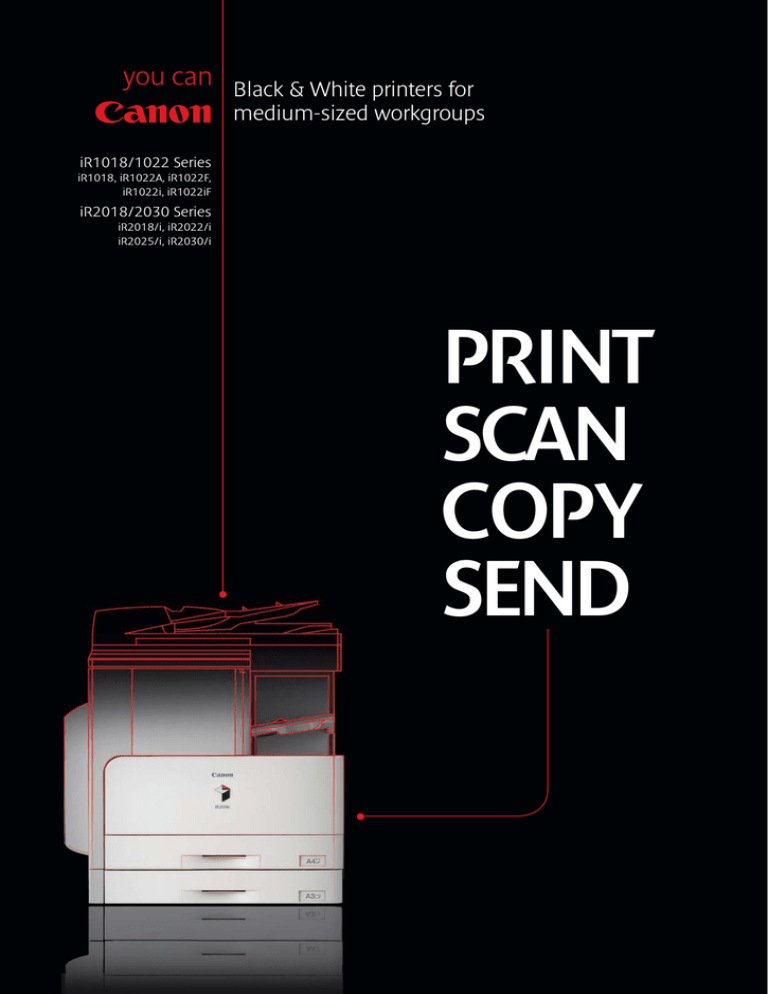

Black & White printers for
medium-sized workgroups
iR1018/1022 Series
iR1018, iR1022A, iR1022F,
iR1022i, iR1022iF
iR2018/2030 Series
iR2018/i, iR2022/i
iR2025/i, iR2030/i
PRINT
SCAN
COPY
SEND
Business never looked better
in black & white
Big impact, small size. Now you can ensure your business
communications create a big impression – with only a little effort. Both the
Canon iR1018/1022 and iR2018/2030 Series combine the skills of many
devices into small space-saving multifunctional units, giving you high
quality printing, scanning, copying and sending.
COPY SCAN PRINT SEND
DO MORE FOR LESS
By connecting these intelligent
all-in-one devices to your
network, you can add powerful
communication tools to your
business. From entry-level
everyday black & white A4 printers
to more sophisticated document
and publishing capabilities up to
A3, you’ll find what you’re looking
for with these two great ranges.
ENVIRONMENTALLY FRIENDLY
These highly energy efficient
products have a stand-by power
consumption as low as 3.5w
ENHANCE YOUR PRODUCTIVITY
WITH COLOUR I-SEND
Colour i-Send scans and converts
hardcopies into electronic files for
distribution across public telephone
lines, the Internet, or a local area
network.
WHY USE COLOUR I-SEND?
• Time saving: send to multidestinations and destination types
in one go.
• Enhanced quality: documents can
be sent in colour, an improvement
over traditional fax transmission.
• Increased flexibility as documents
can be emailed directly from the
device.
• Quick and reliable: both internet
and traditional phone lines can
be used.
• Cost & space efficient.
• internet faxes incur no extra
charge and there is no need for
additional fax/scanner purchase.
• Cost effective: no more high
courier bills.
Canon iR1018/1022 – Communicate with incredible speed
Entry level pricing,
high quality A4 printing
Sitting comfortably on your desk, Canon iR1018/22 printers will
help you print, copy and fax desktop communications quickly in
black and white, plus you can scan and send in glorious colour too.
FAST, EFFECTIVE, PRODUCTIVE
Canon iR1018/22 printers meet
the specific requirements of small
business or workgroups needing
compact, cost-effective power.
You can print 18-22 pages per
minute and also scan and send
information directly from the device
in a variety of formats.
PLUG AND PLAY
To save you time and increase
productivity, all these devices come
network ready*.
WHY CHOOSE A4?
• Ideal when space is at a premium.
• When you need the versatility of
an A3 device e.g.
- Scan and send
- Fax
- iFax
- Collate and staple
* The iR1018, iR1022A & iR1022F come
with UFRII and require a network adaptor.
The iR1022i & iR1022iF come with UFRII & PCL
and network adaptor as standard.
SAVE SPACE, AND
THE ENVIRONMENT TOO
A compact footprint means you
don’t have to use valuable floor
space for different devices, you
get everything you need in one
small desktop model. As part of
Canon’s commitment to reducing
environmental impact, these
models automatically go into
energy-saving sleep mode when the
device is not in use – and can power
back up in seconds as soon as they
are needed.
STANDY-BY POWER
CONSUMPTION: 4.65 W
WHY BUY CANON GENUINE
CONSUMABLES?
Only Canon genuine consumables
can guarantee optimal device
performance and the highest quality
output.
COPY SCAN PRINT SEND
C-EXV18 Toner
iR1018
iR1022A
iR1022F
Business has never looked
better in black & white –
especially with our
genuine toner.
• Print/copy at up to 18ppm
• Print/copy at up to 22ppm
• Sits comfortably on your desk
• Automatic Document
Feeder (ADF)
• Print/copy/fax at up
to 22ppm
• Automatic Document
Feeder (ADF)
• Built-in modem for
speedy faxing
iR1018
18ppm
iR1022A
22ppm
iR1022F
22ppm
iR1022i
22ppm
iR1022iF
22ppm
ND
SE
AN
SC
F
FA
X
T
IN
AD
PR
CO
PY
• Store up to 200 fax numbers
STANDARD
iR1022i
iR1022iF
• Print/copy/scan/send at
up to 22ppm
• Print/copy/scan/fax/send
at up to 22ppm
• Automatic Document
Feeder (ADF)
• Automatic Document
Feeder (ADF)
• Scan colour documents
• Scan colour documents
• Email scanned documents
directly to recipient
• Email scanned documents
directly to recipient
• PCL Printing
• PCL Printing
COPY SCAN PRINT SEND
iR 2022/i
Business has never looked
better in black & white
– especially with our
genuine toner.
• Print/copy/fax/send at
up to 18ppm
• Remote fleet control with
iWMC and RUI
• Print up to A3
• Simple network integration
• Additional finishing and
paper capacity options
iR 2025/i
iR 2030/i
• Print/copy/fax/send at
up to 25ppm
• Print/copy/fax/send at
up to 30ppm
• Remote fleet control with
iWMC and RUI
• Additional finishing and
paper capacity options
• Additional finishing and
paper capacity options
• Remote fleet control with
iWMC and RUI
• Easy-to-use interface and
touch-screen
• Easy-to-use interface and
touch-screen
18ppm
iR 2018i
18ppm
iR 2022
22ppm
iR 2022i
22ppm
iR 2025
25ppm
iR 2025i
25ppm
iR 2030
30ppm
iR 2030i
30ppm
STANDARD
OPTIONAL
SE
SC
FA
X
F
AD
IN
PR
CO
iR 2018
ND
iR 2018/i
AN
C-EXV14 Toner
T
Picture shown is i-model
PY
Picture shown is i-model
• Optional Card Reader for
secure access control
COPY SCAN PRINT SEND
Canon iR2018/2030 – Get your message across in style
Add a little sophistication to your black & white A3 documents
The Canon iR2018/30 series has been created to deliver
fantastic value printing, scanning and copying for up to A3, and
publishing capabilities if you require them. All of which enables
you to manage cost, productivity, quality of output and your
impact on the environment.
SIMPLE, PROFESSIONAL,
VERSATILE
Create high quality professionallooking black & white documents
with ease, at up to 1,200 dpi
(with URFII lite), with simple
finishing options such as doublesided printing and stapling.
PLUG AND PLAY
To save you time and increase
productivity, all these devices come
network ready.
WHY BUY A3?
• Ideal for printing large excel
spreadsheets
• Ideal for copying large documents
EASY ADMINISTRATION WITH
CENTRAL MANAGEMENT
All devices in this range can be
easily connected to your IT network,
enabling you to take advantage
of intelligent software solutions.
For example, iW Management
Console (iWMC), helps you
manage, monitor and control
multiple networked devices from
a single point of control. Plus,
Remote User Interface (RUI),
gives users easy access and
management of any print device
connected to your network, direct
from all connected PCs.
STANDY-BY POWER
CONSUMPTION: 3.5 W
• Ideal for scanning large
documents and converting them
to PDF for electronic storage
• Ideal for increased productivity
with the staple and sort functions
COPY SCAN PRINT SEND
Specifications iR1018/iR1022 Series
Type
Maximum Original Size
Copy Sizes
Resolution
Copy/Print Speed
Magnification
First copy time
Warm-Up Time
Multiple Copies/Prints
Double-Sided
Paper weight
Cassette
Paper Capacity (80g/m²)
Standard
Optional
CPU
Memory
Interface
Power Supply
Power Consumption(W)
Dimensions (WxDxH)
Weight
SEND FUNCTION 1
Scan Speed with DADF
Scan Resolution
Destinations
Address book
File Format
Desktop
A4
Cassette: A4, Stack Bypass: A5 – A4, Envelopes
Copying: 600dpi x 600dpi, 1200dpi equivalent x 600dpi
Printing: 1200dpi equivalent x 600dpi (PCL, UFRII LT) 256 Gradations
A4: 18cpm (1018), 22cpm (iR1022A/22F/22i/22iF)
Zoom: 50-200%, Fixed: 50%, 70%,100%, 141%, 200%
8.0 sec or less (1018), 12.0 sec or less (iR1022A/22F/22i/22iF)
Less than 13.5 sec.for iR1018J/18/22A/22F
less than 16 sec. for iR1022i/22iF
1 to 99 sheets
Automatic stackless
Cassette: 64 to 90g/m², Stack Bypass: 56 to 128g/m²
Double-Sided: 64 to 80g/m²
A4
500 sheets x 1 cassette, Stack Bypass: 100 sheets
500 sheets x 1 cassette, Max.Total paper capacity: 1,100 sheets
Canon Custom Processor, 192MHz
64MB (iR1018J), 128MB (iR1018/22A/22F), 256MB (iR1022i/22iF)
iR1018/22A/22F Ethernet (100Base-TX/10Base-T) optional, USB2.0
iR1022i/iF
Ethernet (100Base-TX/10Base-T), USB2.0
220V AC to 240V AC ±10% (50/60Hz)
954W max.
520 x 457 x 378 mm (18)
520 x 457 x 453 mm (iR1022A/22F/22i/22iF)
Approx. 22.0kg (18)
Approx. 24.1kg (iR1022A/22F/22i/22iF)
BW: 20ipm A4 300dpi, Colour: 6ipm A4 300dpi
BW: 200x100dpi, 200dpi, 200x400dpi, 300dpi, 400dpi, 600dpi
Colour: 100dpi, 150dpi, 200dpi, 300dpi (JPEG)
300dpi (High compression PDF)
E-Mail/Internet FAX (SMTP), PC (SMB,FTP), iWDM Gateway
Local (Max.200)
Single: (BW) TIFF, PDF – (Colour) JPEG, High compression PDF
Multi: (BW) TIFF, PDF – (Colour) High compression PDF
PRINTER FUNCTION
PDL
Resolution
Memory
CPU
PCL Fonts
Supported OS
Interface (Standard)
Network Protocol
DADF 2
Paper size
Paper weight
Max. Number of originals
Document Scanning
speed (max.)
Copy
Scan
OTHER ACCESSORIES
UFRII LT (Standard for iR1018/22A/22F/22i/22iF), PCL 5e/6
(Standard for iR1022i/22iF)
1200dpi equivalent x 600dpi (PCL, UFRII LT),
1200dpi x 1200dpi (UFRII LT with PCL option)
128MB (iR1018/22A/22F),
256MB (iR1022i/22iF)
Canon Custom Processor, 192MHz (Uses Main Unit CPU)
Roman113 (including Barcode Fonts)
PCL: Windows 98/Me/2000/XP/2003 Server
UFRII LT: Windows 98/Me/2000/XP/2003Server,
Mac OS 10.2.8-10.4.3
iR1018/22A/22F Ethernet (100Base-TX/10Base-T) optional, USB2.0
iR1022i/iF
Ethernet (100Base-TX/10Base-T), USB2.0
TCP/IP (LPD/RAW/ Port 9100)
A4R, A5R, A5
50 g/m² to 105 g/m²
A5R to A4: 50 sheets (80 g/m²)
iR1022A/1022F/1022i/1022iF: A4 20 ipm
BW: 20ipm A4 300dpi, Colour: 6ipm A4 300dpi
iR1018/22 Plain Pedestal, Cassette Feeding Unit, Cassette, Card ReaderE1, Card Reader Attachment, Network Kit (Standard for iR1022i/22iF),
PCL Kit (Standard for iR1022i/22iF)
Some images are simulated for clarity of reproduction. All data is based on Canon’s standard testing methods. This leaflet
and the specifications of the product have been developed prior to the date of product launch. Final specifications are subject
to change without notice. ™ and ®: All company and/or product names are trademarks and/or registered trademarks of
their respective manufacturers in their markets and/or countries. Canon Recommends you use Canon Media for the best
results. Please check media(paper) compatibility list to see which variety of paper/media is recommended. Environmentally
considerate production methods ensure that Canon complies with the European WEEE** directives. Lead and hazardous
substances are prohibited from the manufacturing process. In addition the machine conforms to the International Energy
Star Program.
1 Standard for iR1022i/22iF only
2 Standard for iR1022A/22F/22i/22iF
Specifications iR2018/2030 Series
Type
Maximum Original Size
Copy Sizes
Resolution
Copy/Print Speed
Magnification
First copy time
Warm-Up Time
Multiple Copies/Prints
Double-Sided
Paper weight
Cassette
Paper Capacity
Standard
Multi Stack Bypass
Optional
Max.Total paper capacity
CPU
Memory
Interface
Power Supply
Power Consumption(W)
Dimensions (WxDxH)
Weight
Desktop
A3, 297 x 432mm
Cassette: A5 – A3, Stack Bypass: A5R-A3, Envelopes
Copying: 600dpi x 600dpi, 1200dpi equivalent x 600dpi
Printing: 1200dpi equivalent x 600dpi(PCL, UFRII LT),
1200dpi x 1200dpi (UFRII LT), 256 Gradations
A4: 18cpm(iR2018/i), 22cpm(iR2022/i), 25cpm(iR2025/i)
30cpm(iR2030/i), A3: 15cpm for iR2018/18i/22/22i/25/30/i
Zoom: 50-200%, Fixed: 50%,70%,100%,141%,200%
6.9 sec
Approx. 26 seconds (Approx 14 seconds for iR2018/22)
1 to 99 sheets
Optional Automatic stackless (Standard for iR2025/30/i)
Cassette: 64 to 90g/m², Stack Bypass: 64 to 128g/m²
Double-Sided: 64 to 90g/m²
Universal: A5 to A3
Standard
250 sheets x 2 cassettes (80g/m², 500 sheets) for iR2022/22i/25/30/i
250 sheets x 1 cassettes (80g/m², 250 sheets) for iR2018/i
80 sheets (80g/m²) for A5R to A4, 50 sheets for A3 (80g/m²)
250 sheets x 2 cassettes (500 sheets) for iR2022/25/30/i
250 sheets x 3 cassettes (750 sheets) for iR2018/i
250 sheets x 1 cassette for iR2018/i
1,080 sheets
Canon Custom Processor, 192MHz
256MB (128MB for iR2018/22)
Ethernet (100Base-TX/10Base-T), USB2.0
220V AC to 240V AC±10% (50/60Hz)
1.5KW max.
622 x 638 x 665.4mm (iR2022), 622 x 676 x 757 mm
(iR2022i/25i/30i), 622 x 638 x 665.4 mm (iR2025/30)
622 x 638 x 580.4mm (iR2018), 622 x 676 x 672 mm (iR2018i)
Approx. 53.0 kg (iR2022i/25i/30i), Approx. 47.0 kg (iR2025/30)
Approx. 47.0 kg (iR2018i), Approx. 41.0 kg (iR2018)
DADF-P23
Paper size
Paper weight
Max. Number of originals
Document Scanning
speed (max.)
Copy
Scan
Dimensions (WxDxH)
Weight
CASSETTE FEEDING
MODULE-P1/Q1
Type
Paper Weight
Paper Capacity
Dimensions(W x D x H)
Weight
FINISHER-U2
Number of trays
Tray capacity
With Optional Tray
Staple position
Staple capacity
Weight
INNER 2 WAY TRAY-E2
Tray capacity
FUNCTION 1
SEND
Scan Speed with DADF
Scan Resolution
Destinations
Address book
File Format
Pull Scan
PRINTER FUNCTION 2
PDL
Resolution
Memory
CPU
PCL Fonts
Supported OS
Interface(Standard)
Network Protocol
BW: 20ipm A4 300dpi, Colour: 6ipm A4 300dpi
BW: 100dpi, 150dpi, 200x100dpi, 200dpi, 200x400dpi, 300dpi,
400dpi, 600dpi, Colour: 100dpi, 150dpi, 200dpi, 300dpi
E-Mail/Internet FAX(SMTP), PC(SMB,FTP), iWDM Gateway
Local(Max.500)
Single: JPEG, TIFF, PDF / Multi: TIFF, PDF
Network TWAIN driver (75-300dpi)
(standard for all models)
UFRII LT, PCL 5e, PCL 6
1200dpi equivalent x 600dpi(PCL, UFRII LT), 1200dpi x 1200dpi(UFRII LT)
(PCL Kit-V1 required for iR2018/22 and PCL Kit-W1 required for iR2025/30)
256MB (iR2018/22 – 128MB standard, 256MB optional with PCL
Kit-V1(Uses Main unit RAM))
Canon Custom Processor 192MHz (Uses Main unit CPU)
Roman113 (including Barcode Fonts) (For iR2018/22 only available
with PCL Kit-V1)
PCL: Windows 98/Me/2000/XP/2003 Server/Vista, UFRII LT:
Windows 98/Me/2000/XP/2003 Server/Vista, Mac OSX 10.2.8 or later
Ethernet(100Base-TX/10Base-T), USB 2.0
TCP/IP(LPD/RAW/Port9100)
Canon Inc.
www.canon.com
Canon Europa N.V.
www.canon-europe.com
English Edition 0116W148
© Canon Europa N.V., 2007 (0907)
Canon (UK) Ltd
Woodhatch, Reigate
Surrey RH2 8BF
Telephone No. 08000 353535
Fax No. 01737 220 022
www. canon.co.uk
Weight
OTHER ACCESSORIES
A3-A5R
52 g/m² to 105 g/m²
A5R to A4: 50sheets (80 g/m²)
A3: 25sheets (80 g/m²)
A4 20 ipm
BW: 20ipm A4 300dpi, Colour: 6ipm A4 300dpi
565 x 489.4 x 122 mm
Approx.7.0kg
Front-loading adjustable drawers
64 to 90g/m²
P1: 250 sheets(80 g/m²) x 1 cassettes for iR2018/i
Q1: 250 sheets (80 g/m²) x 2 cassettes for iR2022/25/30/i
P1 and Q1: 250 sheets (80 g/m²) x 3 cassettes for iR2018/i
P1: 580.3 x 569.3 X 116.8 mm
Q1: 580.3 x 569.3 X 201.8 mm
P1: Approx.6.0kg, Q1: Approx.12.0kg
One stack tray + Optional Tray (Inner)
Standard: A4/A5/A5R :770 sheets or 100mm
A4R/A3: 380 sheets or 50mm
TrayA: A4/A5/A5R 200 sheets, A4R/A3: 150 sheets
TrayB: A4/A5/A5R 200 sheets, A4R/A3: 150 sheets
Corner
A4: 50 sheets, A3/A4R: 30 sheets
Approx.10.0kg
TrayA: A4 100 sheets, Other 50 sheets, TrayB: A4 250 sheets
Other 100 sheets
Approx.1.5kg
PCL Printer Kit-W1, Fax Panel-B1 (Optional for iR2018/22, standard
on other models), Barcode Printing Kit-B1, Colour Send Kit-L1 (Not for
iR2018/22), Super G3 FAX Board-AA1, Duplex Unit-B1, iR2016/20 Plain
Pedestal High (for 2cassettes configuration), iR2016/20 Plain Pedestal
Low (for 4cassettes configuration), FL Cassette-AC1, PLATEN COVER Type
J, Staple Cartridge-J1, Stamp Ink Cartridge-C1, Additional Finisher Tray-C1
(Optional for Finisher-U2), Card Reader-E1, Card Reader Attachment-D1,
Power Supply Kit-Q1(Required for Finisher-U2 and Cassette Feeding
Module-Q1), Signal Converter For NEXUS
Some images are simulated for clarity of reproduction. All data is based on Canon’s standard testing methods. This leaflet
and the specifications of the product have been developed prior to the date of product launch. Final specifications are subject
to change without notice. ™ and ®: All company and/or product names are trademarks and/or registered trademarks of their
respective manufacturers in their markets and/or countries. Canon Recommends you use Canon Media for the best results.
Please check media(paper) compatibility list to see which variety of paper/media is recommended. Environmentally considerate
production methods ensure that Canon complies with the European WEEE** directives. Lead and hazardous substances are
prohibited from the manufacturing process. In addition the machine conforms to the International Energy Star Program.
1 Standard for iR2018i/22i/25i/30i – not available for iR2018/22 models.
2 UFRIILT Standard for iR2025/30, UFRIILT/PCL standard for 2018i/22i/25i/30i
3 Standard for iR2018i/22i/25i/30i
Canon Ireland
Arean Road
Sandyford Industrial Estate
Dublin 18, Ireland
Telephone No. 01-205 2400
Fax No. 01-295 8141
www.canon.ie
Canon’s GENUINE logo means
quality all-round performance
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
