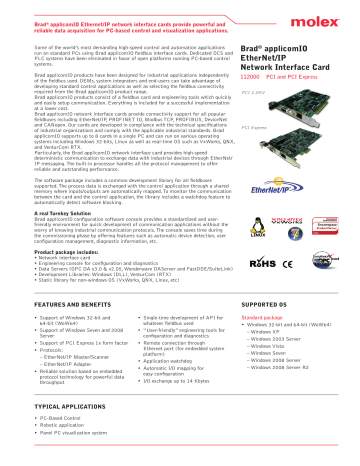

Brad® applicomIO EtherNet/IP Network Interface Card

Brad® applicomIO EtherNet/IP Network Interface Card
Brad® applicomIO Ethernet/IP network interface cards provide powerful and
reliable data acquisition for PC-based control and visualization applications.
Some of the world’s most demanding high-speed control and automation applications
run on standard PCs using Brad applicomIO fieldbus interface cards. Dedicated DCS and
PLC systems have been eliminated in favor of open platforms running PC-based control
systems.
Brad® applicomIO
EtherNet/IP
Network Interface Card
Brad applicomIO products have been designed for industrial applications independently
112000 PCI and PCI Express
of the fieldbus used. OEMs, system integrators and end-users can take advantage of
developing standard control applications as well as selecting the fieldbus connectivity
required from the Brad applicomIO product range.
PCI 3.3/5V
Brad applicomIO products consist of a fieldbus card and engineering tools which quickly
and easily setup communication. Everything is included for a successful implementation
at a lower cost.
Brad applicomIO network interface cards provide connectivity support for all popular
fieldbuses including EtherNet/IP, PROFINET IO, Modbus TCP, PROFIBUS, DeviceNet
and CANopen. Our cards are developed in compliance with the technical specifications
PCI Express
of industrial organizations and comply with the applicable industrial standards. Brad
applicomIO supports up to 8 cards in a single PC and can run on various operating
systems including Windows 32-bits, Linux as well as real-time OS such as VxWorks, QNX,
and VenturCom RTX.
Particularly, the Brad applicomIO network interface card provides high-speed
deterministic communication to exchange data with industrial devices through EtherNet/
IP messaging. The built-in processor handles all the protocol management to offer
reliable and outstanding performance.
The software package includes a common development library for all fieldbuses
supported. The process data is exchanged with the control application through a shared
memory where inputs/outputs are automatically mapped. To monitor the communication
between the card and the control application, the library includes a watchdog feature to
automatically detect software blocking.
A real Turnkey Solution
Brad applicomIO configuration software console provides a standardized and userfriendly environment for quick development of communication applications without the
worry of knowing industrial communication protocols. The console saves time during
the commissioning phase by offering features such as automatic device detection, user
configuration management, diagnostic information, etc.
Product package includes:
• Network interface card
• Engineering console for configuration and diagnostics
• Data Servers (OPC DA v3.0 & v2.05, Wonderware DAServer and FastDDE/SuiteLink)
• Development Libraries: Windows (DLL), VenturCom (RTX)
• Static library for non-windows OS (VxWorks, QNX, Linux, etc)
FEATURES AND BENEFITS
• Support of Windows 32-bit and
64-bit (WoW64)
•Support of Windows Seven and 2008
Server
• Support of PCI Express 1x form factor
• Protocols:
– EtherNet/IP Master/Scanner
– EtherNet/IP Adapter
• Reliable solution based on embedded
protocol technology for powerful data
throughput
TYPICAL APPLICATIONS
• PC-Based Control
• Robotic application
• Panel PC visualization system
SUPPORTED OS
• Single-time development of API for
whatever fieldbus used
• “User-friendly” engineering tools for
configuration and diagnostics
• Remote connection through
Ethernet port (for embedded system
platform)
• Application watchdog
• Automatic I/O mapping for
easy configuration
• I/O exchange up to 14 Kbytes
Standard package
• Windows 32-bit and 64-bit (WoW64)
– Windows XP
– Windows 2003 Server
– Windows Vista
– Windows Seven
– Windows 2008 Server
– Windows 2008 Server R2
SPECIFICATIONS
Technical Data
• Bus interface:
PCI rev 2.2, 32-bit, 33 MHz,
PCI Universal 3.3V/5V keying, PCI-X
compatible PCI Express 1x
• Processor: AMD SC520 - 133 MHz
• Memory:
SDRAM: 16 Mbytes
Flash: 4 Mbytes
• Interruption: Hardware Plug&Play
• DPRAM Address:
Hardware Plug&Play
(32 Kbytes used per card)
• Dimensions (L x W):
168mm x 107mm (6.61” x 4.21”)
• Consumption: 5.5 W
• Operating Temperature:
0ºC (32ºF) up to +65ºC (149ºF)
• Storage Temperature:
-40ºC (-40ºF) up to +85ºC (185ºF)
• Discrete Input: 1x Opto-coupled
• Discrete Output:
1x “WatchDog” (dry contact)
• EMC Compliance:
N55022 Class B, EN61000-6-2,
EN61000-3-2, EN61000-3-3
• RoHS Compliance:
YES
Communication Port
• Port type:
Ethernet port IEEE 802.3 for
industrial applications
• Connector type: BaseT (RJ45)
• Speed: 10/100 Mbps (Auto-negotiation)
• LED indicators:
4 LEDs - TX, RX, Link, 100 Mbps
• Remote Access:
Also usable for remote and diagnostic
configuration
Protocol
• EtherNet/IP - Explicit Msg and Implicit
Msg (I/O Control)
• I/O Master/Scanner and Slave according
to EtherNet/IP specifications
• Up to 128 simultaneous CIP based
connections
• EtherNet/IP Devices supported:
Rockwell I/O (FlexIO, CompactLogix,
etc) through EDS files.
• IP address settings configurable via
the console or DHCP/BOOTP server
• Client DNS Supported
• ODVA Conformance Tested
Brad® applicomIO
EtherNet/IP
Network Interface Card
112000 PCI and PCI Express
SOFTWARE TOOLS
Brad® applicomIO software tools enable fast
integration of the fieldbus into your control
application. Independently from the fieldbus
used, the console remains the same.
Configuration console
ORDERING INFORMATION
Order No.
Engineering No.
Product Description
112000-5030
DRL-EIP-PCU
PCU-ETHIO Ethernet card for EtherNet/IP Scanner/Adapter, PCI 3.3/ 5V
112000-5033
DRL-EIP-PCIE
PCIE-ETHIO Ethernet card for EtherNet/IP Scanner/Adapter, PCI Express 1x
Device Properties
Online Actions
Diagnostic and
Test tools
www.molex.com/link/applicomio_ethernet_ip.html
Order No. 987650-6905
Printed in EUR/CB/2012.04
©2012, Molex
