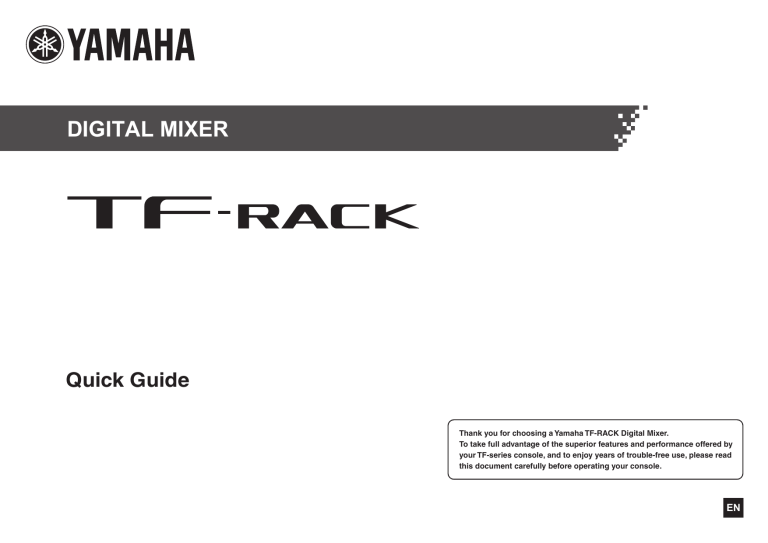

DIGITAL MIXER

Quick Guide

Thank you for choosing a Yamaha TF-RACK Digital Mixer.

To take full advantage of the superior features and performance offered by your TF-series console, and to enjoy years of trouble-free use, please read this document carefully before operating your console.

EN

Contents

1. PRECAUTIONS ........................................................................................... 5

2. Introduction ................................................................................................ 7

2-1 Intended user ...................................................................................... 7

2-2 Intended usage ................................................................................... 7

2-3 Included items .................................................................................... 7

2-4 Documentation .................................................................................... 7

2-5 Information about software and firmware ........................................... 7

2-6 Nomenclature used in this document ................................................. 7

3. Workflow overview ..................................................................................... 8

4. Panels........................................................................................................ 10

4-1 Front panel ........................................................................................ 10

4-2 Rear panel ........................................................................................ 11

5. Connections ............................................................................................. 12

6. Controls and functions ............................................................................ 13

6-1 FADER BANK section ....................................................................... 13

6-2 iPad connector .................................................................................. 13

6-3 USB connector .................................................................................. 13

6-4 MUTE section .................................................................................... 13

6-5 TAP key ............................................................................................. 14

6-6 [CLEAR CUE] key ............................................................................. 14

6-7 USER DEFINED KEYS section .......................................................... 14

6-8 PHONES section ............................................................................... 14

6-9 USER DEFINED KNOBS section ...................................................... 14

6-10 Display section ................................................................................. 14

7. Displaying the configuration screens .................................................... 16

8. Setup ......................................................................................................... 18

8-1 Setting the internal clock .................................................................. 18

8-2 Initialization (factory reset) ................................................................ 18

8-3 Removing the handles ...................................................................... 19

8-4 Rack-mounting the unit ..................................................................... 19

8-5 Installing an NY card ........................................................................ 20

2

TF-RACK Quick Guide

9. TF-RACK Troubleshooting ....................................................................... 21

10. Specifications ......................................................................................... 22

The above warning is located on the top of the unit.

L’avertissement ci-dessus est situé sur le dessus de l’unité.

Explanation of Graphical Symbols

Explication des symboles

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

L’éclair avec une flèche à l’intérieur d’un triangle

équilatéral est destiné à attirer l’attention de l’utilisateur sur la présence d’une « tension dangereuse

» non isolée à l’intérieur de l’appareil, pouvant

être suffisamment élevée pour constituer un risque d’électrocution.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the product.

Le point d’exclamation à l’intérieur d’un triangle

équilatéral est destiné à attirer l’attention de l’utilisateur sur la présence d’instructions importantes sur l’emploi ou la maintenance

(réparation) de l’appareil dans la documentation fournie.

IMPORTANT SAFETY

INSTRUCTIONS

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the manufacturer.

12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

UL60065_03:

PRÉCAUTIONS

CONCERNANT LA

SÉCURITÉ

1 Lire ces instructions.

2 Conserver ces instructions.

3 Tenir compte de tous les avertissements.

4 Suivre toutes les instructions.

5 Ne pas utiliser ce produit à proximité d’eau.

6 Nettoyer uniquement avec un chiffon propre et sec.

7 Ne pas bloquer les orifices de ventilation. Installer l’appareil conformément aux instructions du fabricant.

8 Ne pas installer l’appareil à proximité d’une source de chaleur comme un radiateur, une bouche de chaleur, un poêle ou tout autre appareil (y compris un amplificateur) produisant de la chaleur.

9 Ne pas modifier le système de sécurité de la fiche polarisée ou de la fiche de terre. Une fiche polarisée dispose de deux broches dont une est plus large que l’autre. Une fiche de terre dispose de deux broches et d’une troisième pour le raccordement à la terre. Cette broche plus large ou cette troisième broche est destinée à assurer la sécurité de l’utilisateur. Si la fiche équipant l’appareil n’est pas compatible avec les prises de courant disponibles, faire remplacer les prises par un électricien.

10 Acheminer les cordons d’alimentation de sorte qu’ils ne soient pas piétinés ni coincés, en faisant tout spécialement attention aux fiches, prises de courant et au point de sortie de l’appareil.

11 Utiliser exclusivement les fixations et accessoires spécifiés par le fabricant.

12 Utiliser exclusivement le chariot, le stand, le trépied, le support ou la table recommandés par le fabricant ou vendus avec cet appareil.

Si l’appareil est posé sur un chariot, déplacer le chariot avec précaution pour éviter tout risque de chute et de blessure.

13 Débrancher l’appareil en cas d’orage ou lorsqu’il doit rester hors service pendant une période prolongée.

14 Confier toute réparation à un personnel qualifié. Faire réparer l’appareil s’il a subi tout dommage, par exemple si la fiche ou le cordon d’alimentation est endommagé, si du liquide a coulé ou des objets sont tombés à l’intérieur de l’appareil, si l’appareil a été exposé à la pluie ou à de l’humidité, si l’appareil ne fonctionne pas normalement ou est tombé.

AVERTISSEMENT

POUR RÉDUIRE LES RISQUES D’INCENDIE OU DE DÉCHARGE

ÉLECTRIQUE, N’EXPOSEZ PAS CET APPAREIL À LA PLUIE OU À

L’HUMIDITÉ.

UL60065_03:

TF-RACK Quick Guide

3

FCC INFORMATION (U.S.A.)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS

UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the

FCC, to use the product.

2. IMPORTANT:

When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3. NOTE:

This product has been tested and found to comply with the requirements listed in FCC

Regulations, Part 15 for Class “B” digital devices.

Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices.

Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch

(circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/ reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact

Yamaha Corporation of America, Electronic Service

Division, 6600 Orangethorpe Ave, Buena Park,

CA90620

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

* This applies only to products distributed by

YAMAHA CORPORATION OF AMERICA.

(class B)

4

TF-RACK Quick Guide

COMPLIANCE INFORMATION STATEMENT

(DECLARATION OF CONFORMITY PROCEDURE)

Responsible Party : Yamaha Corporation of America

Address : 6600 Orangethorpe Ave., Buena

Park, Calif. 90620

Telephone : 714-522-9011

Type of Equipment : DIGITAL MIXER

Model Name : TF-RACK

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received including interference that may cause undesired operation.

See user manual instructions if interference to radio reception is suspected.

* This applies only to products distributed by

YAMAHA CORPORATION OF AMERICA

(FCC DoC)

In Finland: Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan.

In Norway: Apparatet må tilkoples jordet stikkontakt.

In Sweden: Apparaten skall anslutas till jordat uttag.

(class I hokuo)

ADVARSEL!

Lithiumbatteri—Eksplosionsfare ved fejlagtig håndtering.

Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandoren.

VARNING

Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.

VAROITUS

Paristo voi räjähtää, jos se on virheellisesti asennettu.

Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

(lithium caution)

이 기기는 가정용(B급) 전자파적합기기로서 주로

가정에서 사용하는 것을 목적으로 하며, 모든

지역에서 사용할 수 있습니다.

(class b korea)

NEDERLAND / THE NETHERLANDS

• Dit apparaat bevat een lithium batterij voor geheugen back-up.

• This apparatus contains a lithium battery for memory back-up.

• Raadpleeg uw leverancier over de verwijdering van de batterij op het moment dat u het apparaat ann het einde van de levensduur of gelieve dan contact op te nemen met de vertegenwoordiging van Yamaha in uw land.

• For the removal of the battery at the moment of the disposal at the end of life please consult your retailer or

Yamaha representative office in your country.

• Gooi de batterij niet weg, maar lever hem in als KCA.

• Do not throw away the battery. Instead, hand it in as small chemical waste.

(lithium disposal)

This product contains a battery that contains perchlorate material.

Perchlorate Material—special handling may apply,

See www.dtsc.ca.gov/hazardouswaste/perchlorate.

* This applies only to products distributed by

YAMAHA CORPORATION OF AMERICA.

(Perchlorate)

IMPORTANT NOTICE

FOR THE UNITED KINGDOM

Connecting the Plug and Cord

WARNING: THIS APPARATUS MUST BE EARTHED

IMPORTANT. The wires in this mains lead are coloured in accordance with the following code:

GREEN-AND-YELLOW : EARTH

BLUE : NEUTRAL

: LIVE BROWN

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured GREEN-and-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or colored

GREEN or GREEN-and-YELLOW.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured

BLACK.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured

BLACK.

(3 wires)

PLEASE READ CAREFULLY

BEFORE PROCEEDING

Please keep this manual in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:

Power supply/power cord

• Do not place the power cord near heat sources such as heaters or radiators, and do not excessively bend or otherwise damage the cord, place heavy objects on it, or place it in a position where anyone could walk on, trip over, or roll anything over it.

• Only use the voltage specified as correct for the device. The required voltage is printed on the name plate of the device.

• Use only the supplied power cord/plug.

If you intend to use the device in an area other than in the one you purchased, the included power cord may not be compatible. Please check with your Yamaha dealer.

• Check the electric plug periodically and remove any dirt or dust which may have accumulated on it.

• When setting up the device, make sure that the AC outlet you are using is easily accessible. If some trouble or malfunction occurs, immediately turn off the power switch and disconnect the plug from the outlet. Even when the power switch is turned off, as long as the power cord is not unplugged from the wall AC outlet, the device will not be disconnected from the power source.

• Remove the electric plug from the outlet when the device is not to be used for extended periods of time, or during electrical storms.

• Be sure to connect to an appropriate outlet with a protective grounding connection.

Do not open

• This device contains no user-serviceable parts. Do not open the device or attempt to disassemble the internal parts or modify them in any way. If it should appear to be malfunctioning, discontinue use immediately and have it inspected by qualified Yamaha service personnel.

Water warning

• Do not expose the device to rain, use it near water or in damp or wet conditions, or place on it any containers (such as vases, bottles or glasses) containing liquids which might spill into any openings. If any liquid such as water seeps into the device, turn off the power immediately and unplug the power cord from the AC outlet. Then have the device inspected by qualified Yamaha service personnel.

• Never insert or remove an electric plug with wet hands.

Hearing loss

• Avoid setting all equalizer controls and faders to their maximum. Depending on the condition of the connected devices, doing so may result in feedback that can cause hearing loss and damage the speakers.

• Do not use headphones for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician.

• When turning on the AC power in your audio system, always turn on the power amplifier LAST, to avoid hearing loss and speaker damage. When turning the power off, the power amplifier should be turned off FIRST for the same reason.

Fire warning

• Do not place any burning items or open flames near the device, since they may cause a fire.

If you notice any abnormality

• If any of the following problems occur, immediately turn off the power switch and disconnect the electric plug from the outlet.

- The power cord or plug becomes frayed or damaged.

- Unusual smells or smoke are emitted.

- Some object has been dropped into the device.

- There is a sudden loss of sound during use of the device.

- Cracks or other visible damage appear on the device.

Then have the device inspected or repaired by qualified

Yamaha service personnel.

• If this device should be dropped or damaged, immediately turn off the power switch, disconnect the electric plug from the outlet, and have the device inspected by qualified

Yamaha service personnel.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or other property.

1. PRECAUTIONS

These precautions include, but are not limited to, the following:

Power supply/power cord

• When removing the electric plug from the device or an outlet, always hold the plug itself and not the cord. Pulling by the cord can damage it.

Location

• Do not place the device in an unstable position where it might accidentally fall over and cause injuries.

• Do not block the vents. This device has ventilation holes at the rear to prevent the internal temperature from becoming too high. In particular, do not place the device on its side or upside down. Inadequate ventilation can result in overheating, possibly causing damage to the device(s), or even fire.

• When installing the device:

- Do not cover it with any cloth.

- Do not install it on a carpet or rug.

- Make sure the top surface faces up; do not install on its sides or upside down.

- Do not use the device in a confined, poorly-ventilated location.

Inadequate ventilation can result in overheating, possibly causing damage to the device(s), or even fire. If this device is to be used in a small space other than an EIA-standard rack, make sure that there is adequate space around the device: at least 10cm above, 10cm at the sides and 20cm behind.

• Do not place the device in a location where it may come into contact with corrosive gases or salt air. Doing so may result in malfunction.

• Before moving the device, remove all connected cables.

• If the device is mounted in an EIA standard rack, carefully

read the section "Rack-mounting the unit" on page 19.

Inadequate ventilation can result in overheating, possibly causing damage to the device(s), malfunction, or even fire.

Connections

• Before connecting the device to other devices, turn off the power for all devices. Also, before turning the power of all devices on or off, make sure that all volume levels are set to the minimum. Failing to do so may result in electric shock, hearing loss, or equipment damage.

Maintenance

• Remove the power plug from the AC outlet when cleaning the device.

PA-7 1/2

TF-RACK Quick Guide

5

PRECAUTIONS

Handling caution

• Do not insert your fingers or hands in any gaps or openings on the device (vents, panel, etc.).

• Avoid inserting or dropping foreign objects (paper, plastic, metal, etc.) into any gaps or openings on the device (vents, panel, etc.) If this happens, immediately turn off the power, unplug the power cord from the AC outlet, and have the device inspected by qualified Yamaha service personnel.

• Do not rest your weight on the device or place heavy objects on it, and avoid use excessive force on the buttons, switches or connectors to prevent injuries.

• Avoid pulling the connected cables to prevent injuries.

Backup battery

• Do not replace the backup battery by yourself. Doing so may cause an explosion and/or damage to the device(s).

When the backup battery needs to be replaced, “Low

Battery” or “No Battery” will appear on the display. In this case, contact your Yamaha dealer and have qualified

Yamaha service personnel replace the backup battery.

Yamaha cannot be held responsible for damage caused by improper use or modifications to the device, or data that is lost or destroyed.

PA-7 2/2

NOTICE

To avoid the possibility of malfunction/ damage to the product, damage to data, or damage to other property, follow the notices below.

Handling and maintenance

• Do not use the device in the vicinity of a TV, radio, AV equipment, mobile phone, or other electric devices.

Otherwise, the device, TV, or radio may generate noise.

• Do not expose the device to excessive dust or vibration, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day), in order to prevent the possibility of panel disfiguration, unstable operation, or damage to the internal components.

• Do not place vinyl, plastic or rubber objects on the device, since this might discolor the panel.

When cleaning the device, use a dry and soft cloth. Do not use paint thinners, solvents, cleaning fluids, or chemicalimpregnated wiping cloths.

• Condensation can occur in the device due to rapid, drastic changes in ambient temperature—when the device is

6

TF-RACK Quick Guide moved from one location to another, or air conditioning is turned on or off, for example. Using the device while condensation is present can cause damage. If there is reason to believe that condensation might have occurred, leave the device for several hours without turning on the power until the condensation has completely dried out.

• The rubber feet included in this package can be attached to the speaker to prevent slippage when it is to be used on a slippery surface.

• Always turn the power off when the device is not in use.

Saving data

• This device has a built-in backup battery that maintains data in internal memory even when the device’s power is switched off.

The backup battery will eventually become depleted, however, and when that happens the contents of the internal memory will be lost.* To prevent loss of data be sure to replace the backup battery before it becomes fully depleted. When the remaining capacity of the backup battery becomes so low that it needs to be replaced a “Low Battery” or “No Battery” message will appear on the display during operation or when the device is powered on. If either of these messages appears do not turn off the power and immediately transfer any data you want to save to a computer or other external storage device, then have qualified Yamaha service personnel replace the backup battery. The average life of the internal backup battery is approximately 5 years, depending on operating conditions.

* Data items maintained in the internal memory by the backup battery are as follows:

• Internal clock information

Data items other than those described above are stored in memory that does not require backup power, and will be retained even if the backup battery fails.

Connectors

• XLR-type connectors are wired as follows (IEC60268 standard): pin 1: ground, pin 2: hot (+), and pin 3: cold (-).

Information

• Copying of the commercially available musical data including but not limited to MIDI data and/or audio data is strictly prohibited except for your personal use.

• The illustrations and LCD screens as shown in this manual are for instructional purposes only.

• Steinberg Media Technologies GmbH and Yamaha

Corporation make no representations or warranties with regard to the use of the software and documentation and cannot be held responsible for the results of the use of this manual and the software.

• Windows is a registered trademark of Microsoft®

Corporation in the United States and other countries.

• Apple, iPad and iPod are trademarks of Apple Inc., registered in the U.S. and other countries.

• iOS is a trademark or registered trademark of Cisco in the

U.S. and other countries and is used under license.

• Steinberg and Nuendo are registered trademarks of

Steinberg Media Technologies GmbH.

• The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.

• Software may be revised and updated without prior notice.

European Models

Purchaser/User Information specified in EN55103-2:2009.

Conforms to Environments: E1, E2, E3 and E4

Information for users on collection and disposal of old equipment:

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

For business users in the European Union:

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union:

This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

(weee_eu_en_02)

2-1 Intended user

This product was designed for users who are familiar with using analog mixers as part of a PA system.

2-2 Intended usage

This product was designed to be installed in a rack mount and used in a variety of locations, such as shops and event spaces, to mix multiple audio sources, such as live band instruments or audio devices used at corporate events.

2-3 Included items

• Power cord

• Quick Guide (this document)

• Rubber feet (×4)

• Nuendo Live (DAW software)

2-4 Documentation

Quick Guide (this document)

This document primarily explains panel controls, functions, and basic operation of the product.

Reference Manual (PDF; downloadable from the website)

This document primarily explains details about functions, production operation, and effects parameters.

The Reference Manual covers the TF5/TF3/TF1 consoles as well as the TF-RACK (hereafter referred to as the "TF series") and is available on the Yamaha Pro

Audio website.

http://www.yamahaproaudio.com/

Using the Reference Manual

The Reference Manual is an electronic file in PDF format. You can read this document on a computer.

Use Adobe® Acrobat Reader DC® to read this book on screen, search for words very quickly, print specific pages, or click links to display sections of special interest. The ability to search for words, or to follow links directly to relevant sections in the document, are helpful attributes of this electronic file format. We encourage you to take advantage of these benefits.

You can download the latest Adobe Acrobat Reader

DC application from the website listed below.

http://www.adobe.com/

2-5 Information about software and firmware

Software

Your TF-series mixer can be used with a variety of utility software.

• TF Editor

This application enables you to set up and operate the unit from a connected computer. You can also use the application to back up mixer settings or set mixer parameters without connecting the unit.

• TF StageMix

This app allows you to use your iPad and a Wi-Fi connection to remote control the unit.

• MonitorMix

This app allows you to use your mobile device and a

Wi-Fi connection to adjust the TF-series mixer’s monitor mix remotely.

• Yamaha Steinberg USB Driver (Windows only)

This driver software is required when connecting the mixer to your computer. It supports up to 34 channels of audio input and 34 channels of audio output.

Information about the software described here is available on the Yamaha Pro Audio website.

http://www.yamahaproaudio.com/

Information about downloading, installing and setting up the software described here is available on the website listed above. In addition, refer to the installation guide that is included with each program.

2. Introduction

Firmware

The firmware contained in your TF-series mixer can be updated to take advantage of new features, feature improvements, and bug fixes.

Details about updating the firmware are available online.

http://www.yamahaproaudio.com/

For information about updating and setting up the mixer, please refer to the firmware update guide available on the website.

2-6 Nomenclature used in this document

In this document, switch-type controls on the panel are called “keys.”

Controls located on the panel are enclosed in [square brackets] (e.g., the [CUE] key) to distinguish them from virtual buttons and knobs displayed on screen.

For certain controls, the name of the section appears before the brackets (e.g., FADER BANK [INPUT] key).

The model number, serial number, power requirements, etc., may be found on or near the name plate, which is at the top of the unit. You should note this serial number in the space provided below and retain this manual as a permanent record of your purchase to aid identification in the event of theft.

Model No.

Serial No.

TF-RACK Quick Guide

7

3. Workflow overview

Here’s a brief overview of how to start using the TF-RACK.

1

Connect

Connect the instruments and mics.

Connect output devices such as powered speakers.

Connect the included power cord to the AC IN connector.

2

Use Presets to Set Up Each Channel

Step1

Select a channel.

Display section

Step2

Press the Library key ( and recall a Preset.

) to access the Library

C

-30

-11

C

-28

30%

C

-26

30%

L15

-40

30%

R15

-40

30%

C

-48

-18

R10

-30

30%

L63

-26

0%

Library key ( )

Step3

Adjust the channel’s parameters.

Adjust the input gain, EQ, compressor, and gate.

These can be adjusted from the OVERVIEW screen

or the individual configuration screens (page 16).

Power switch

AC IN connector

When your connections are finished, turn on the power.

NOTICE

• To ensure that the state is saved properly, wait at least 10 seconds after performing the last operation before turning the product off.

This product regularly saves the state of its workspace so that it can return to the previous state when the product is turned on.

• After turning the unit off, wait for at least 6 seconds before turning it on again. Rapidly turning the unit off and on in succession can cause it to malfunction.

Input gain adjustment

(INPUT screen)

> Repeat steps 1 to 3 and set up each channel.

NOTE

You can set up channels without using Presets. For details about the available features and parameters, refer to the Reference Manual.

8

TF-RACK Quick Guide

3

Adjust the Mix

Do a sound check and adjust the overall mix.

• Adjusting each channel using the FADER section on

the OVERVIEW screen (page 16)

• Adjusting SEND TO AUX for the level sent to AUX for

each channel (page 16)

• Muting all input channels or effects (page 13)

• Turning effects on and off, adjusting the overall level

of effects "FX1/FX2" (page 16)

4

Save Your Settings

You can save your entire mix setup as a Scene.

Scenes can be recalled later as needed.

(SCENE window page 17)

You can also save individual channel setups by overwriting existing Presets or by saving them as new

Presets in the Library screen.

Workflow overview

What is a “Preset”?

A Preset is a file stored in the Library ( ) that contains channel settings such as the type of input (instrument or mic), equalizer and compression settings, etc. The default

Presets contain settings for various types of instruments, so you can use them as a starting point when setting up a channel.

You can edit Presets and save them as new

Presets.

What is a “Scene”?

A Scene is a file that contains all the settings for every channel in your mix.

HINT

Using USER DEFINED KEYS

Saving a Scene

MUTE

When the device is in the default state, USER DEFINED KEYS

(page 14) are configured as “Direct Scene Recall” keys. You

can save a Scene by pressing and holding down one of the

USER DEFINED KEYS, and recall a Scene by pressing one of the

USER DEFINED KEYS.

Recalling a Scene

TF-RACK Quick Guide

9

4. Panels

4-1 Front panel

⑩ ① ②

⑪ ④ ⑤ ⑥

1

FADER BANK section

2

iPad connector

3

USB connector

4

MUTE section

5

TAP key

6

CLEAR CUE key

7

USER DEFINED KEYS section

8

PHONES section

10

TF-RACK Quick Guide

9

USER DEFINED KNOBS section

0

Display section

a

Ventilation holes

To prevent overheating, do not block the ventilation holes.

Panels

4-2 Rear panel

① ② ③

⑩ ⑨

1

OMNI OUT jacks

Analog signal output jacks. Jacks 1–8 are male XLR-

3-32 type connectors; jacks 9–16 are TRS phone connectors. These jacks are used to output AUX/

MATRIX channels and STEREO channels. Nominal output level is +4 dBu. You can select which signal is output on the OMNI OUT screen.

2

ST IN jacks

Stereo input jacks that can be used for connecting a

CD player or other line level device. These jacks are unbalanced female RCA jacks. Nominal input level is

-10 dBV.

3

INPUT jacks

Combination jacks that support both XLR and TRS phone connectors. Use these jacks to connect mics and instruments. Nominal input level is -62 dBu to

+10 dBu. The head amp setting for each jack is saved in memory.

⑧ ⑦

4

NETWORK connector

RJ-45 jack used to connect the unit to a computer or smart device via an Ethernet cable (CAT5e or higher recommended). Use STP (Shielded Twisted Pair) cable to prevent electromagnetic interference.

5

USB TO HOST connector

USB connector used to connect the unit to a computer, allowing the unit to function as an audio interface.

Supports input and output for up to 34 channels of up to 48 kHz, 24-bit audio. When using with a computer running Microsoft Windows, the Yamaha Steinberg

USB Driver is required. When using a Mac, Core Audio is used and therefore no extra drivers are required.

6

FOOT SW jack

Used for connecting an optional FC5 foot switch. You can use the connected foot switch as an effect bypass switch, a mute switch, or use it to tap the delay time.

⑥ ⑤ ④

7

Expansion slot

Allows you to install an NY card, such as the NY64-D Audio

Interface Card. (Installing an NY card → page 20)

8

Exhaust holes

The unit contains a built-in cooling fan. These holes are used to expel air from the unit. To prevent overheating or malfunction, do not block the exhaust holes.

9

Power switch

When the switch is in the position, the power is on.

When the switch is in the position, the power is off.

0

AC IN connector

Connect the included power cord. When connecting to a power outlet, first connect the power cord to the console, then connect the power cord to the power outlet.

CAUTION

• Make sure the unit is turned off before connecting or disconnecting the power cord.

• Disconnect the power cord from the outlet when the unit

will not be used for extended periods of time (page 8).

TF-RACK Quick Guide

11

5. Connections

Connecting outputs

Powered speakers

(front speakers)

Powered speakers

(floor monitors)

Connecting inputs

CD player

Wireless mic receiver

Mic

Default signal routing for each output jack

OMNI OUT 1

OMNI OUT 2

OMNI OUT 6

OMNI OUT 7

OMNI OUT 8

OMNI OUT 9

OMNI OUT 10

OMNI OUT 14

OMNI OUT 15

OMNI OUT 16

:

:

AUX1 OUT

AUX2 OUT

AUX6 OUT

STEREO L OUT

:

STEREO R OUT

AUX9 OUT

AUX10 OUT

:

AUX14 OUT

MONITOR L OUT

MONITOR R OUT

Each OMNI OUT jack is configured by default to output a bus. You can change the bus that is output on the

SETUP → OMNI OUT PATCH screen.

The OMNI OUT jacks can be configured to output the following signals.

AUX1–AUX20, MATRIX1–4, STEREO L, STEREO R, SUB,

MONITOR L, MONITOR R, NO ASSIGN (no output signal assigned).

12

TF-RACK Quick Guide

Computer

(DAW software)

FC5 (optional)

Default signal routing for each channel

CHANNEL

CH 1

:

CH 16

CH 17

:

CH 32

ST IN 1L

ST IN 1R

ST IN 2L

ST IN 2R

TF-RACK

INPUT 1

:

INPUT 16

INPUT 1

:

INPUT 16

PLAYBACK L

PLAYBACK R

ST IN L

ST IN R

Default signal routing for each channel is shown above.

To change the signal routing, use the INPUT screen (page

16).

USB 2.0

HINT

What if I’m using condenser mics?

Phantom power must be supplied to condenser mics.

Some direct boxes also need phantom power. When using phantom power, first set “+48V Master” on the SETUP screen to on, then turn phantom power on or off for each channel on the corresponding channel’s INPUT screen.

Make sure you turn phantom power off if it is not needed.

For more details, refer to the Reference Manual.

Why can’t I hear anything?

• Is the fader that corresponds to the desired INPUT jack raised?

• Does the input select for each channel match each

INPUT jack?

• Is the channel’s head amp gain set too low?

• Is the channel's mute turned on?

• Is the channel muted?

This section briefly introduces the console’s features.

NOTE

For details about the available features and parameters, refer to the Reference Manual.

6-1

FADER BANK section

Allows you to change the fader bank displayed in the

OVERVIEW screen.

The keys light to indicate which fader bank is currently selected.

6-2

iPad connector

Allows you to connect an iOS device or a USB storage device.

To connect an iOS device, use the dedicated cable that was included with the device. This connector allows you to use audio files on your iOS device as background music.

When a USB storage device is connected, you can use the device to play audio files or record the mixer’s output directly and save it as an audio file (format: WAV).

NOTE

When using a USB storage device for recording, use a hard disk drive or other high-speed device. (USB memory drives are not guaranteed to function properly.)

For information about compatible iOS devices, visit the

Yamaha pro audio website.

http://www.yamahaproaudio.com/

6-3

USB connector

Used for connecting USB memory drives.

6. Controls and functions

„ „

Some USB memory drives offer a write-protect feature which prevents accidental data erasure. If you save important data on a USB memory drive, we recommend using the drive’s write-protect feature to protect your data from being erased. Conversely, make sure the drive’s write-protect feature is turned off before trying to save data to the drive.

NOTE

The ACCESS indicator is displayed in the upper right of the screen while data is being accessed (read, written, erased, etc.). While this indicator is displayed, do not turn off the unit or disconnect the USB memory drive. The unit, the drive, and data stored on the drive could become damaged.

6-4

MUTE section

Used to mute all channels in a mute group.

1

[INPUT] key

Displays input channels.

2

[GROUP] key

Displays group channels.

3

[OUTPUT] key

Displays output channels.

4

[CUSTOM] key

Displays the channels assigned to the custom fader bank.

You can connect a USB memory drive and read/write data from/to the drive.

Supported formats for USB memory drives

Drives formatted using FAT32 are supported.

1 [INPUT] key

Allows you to mute all channels at once. The key lights when the mute group is muted.

2 [FX] key

Allows you to mute the FX module. Insertion effects for channels in AUX9/10–AUX19/20 are bypassed. The key lights when the mute group is muted.

HINT

You can remove certain input and FX channels from the mute group by turning MUTE SAFE on for the desired channels.

TF-RACK Quick Guide

13

Controls and functions

6-5

TAP key

6-8

PHONES section

Allows you to tap and set the delay time or modulation speed used for effects on FX1/FX2 and AUX9/10–

AUX19/20.

The key flashes in time with the tempo. The tempo you tap on the [TAP] key is applied to effects that have “Sync” set to “On”.

You can set the [TAP] key flashing to "Off" in the SETUP screen.

6-6

[CLEAR CUE] key

Turns off the CUE for all channels.

The key lights when the CUE is turned on.

6-7

USER DEFINED KEYS section

These keys can be customized to control the desired function.

Various functions are assigned by default, such as Direct

Scene Recall.

You can assign parameters to each knob in the SETUP screen.

1 [PHONES] jack

This is the headphones jack used to monitor signals selected for MONITOR or CUE.

2 [LEVEL] knob

Controls the level of the [PHONES] jack output.

6-9

USER DEFINED KNOBS section

These knobs allow you to adjust the parameters that you've assigned to them.

You can assign parameters to each knob in the SETUP screen.

6-10

Display section

Allows to you control the console by touching the touchscreen. You can also use the knobs to perform fine adjustments. You can dive further into various features by pressing the keys to display contextual menus.

1 Display

You can use familiar touchscreen operations, such as touch, double-touch, sliding, swiping, pinching in, and pinching out.

2

Library key ( )

Displays the Library screen, from which you can recall

Presets.

3

Home key ( )

Returns the display to the OVERVIEW screen. You can switch between the FADER section and the CH STRIP section by pressing the home key while the OVERVIEW screen is displayed.

4 Menu key ( )

Displays the menu for the current operation. The key lights when a menu is available.

5 [TOUCH AND TURN] knob

Allows you to control the parameter of the feature selected on the display.

For information about how to control the parameters,

see page 15.

6

[SHIFT] key

Provides additional functionality, such as allowing you to switch between the F (frequency) and G (gain) parameters of the EQ handle.

14

TF-RACK Quick Guide

Operating the display

• Changing screens

The screen switches when you touch an on-screen button.

You can touch an area of the screen to select that area, then touch it again to switch to the configuration screen for that area. If an area is displayed in pink when selected, the area contains a parameter that can be controlled with the [TOUCH

AND TURN] knob.

To return to the OVERVIEW screen, press the Home key ( ).

Controls and functions

• Scrolling

In the OVERVIEW screen, you can slide the screen left and right to view different channels.

When a scroll bar is displayed, you can slide the screen up and down to view more content. To scroll quickly, simply use a swiping gesture.

Using the [TOUCH AND TURN] knob to control parameters

As shown below, touch the parameter you want to control (1) and then turn the [TOUCH AND TURN] knob as desired (2). A pink selection area is displayed around the selected parameter.

In the OVERVIEW screen, touch an area of the screen to adjust the parameter in that area. In this case, a pink selection area is displayed around the selected area.

[TOUCH AND TURN] knob

• Adjusting the Q (steepness) of the EQ

When in manual mode on the EQ screen, select one of the handles and pinch in or out to adjust the Q.

You can switch between the FADER section and the

CH STRIP section by pressing the home key while the OVERVIEW screen is displayed.

NOTE

This functionality is not available when multiple parameters can be controlled by one knob (i.e., 1-knob mode). Use the button at the top of the screen to switch to manual mode.

HINT

What is “1-knob” mode?

1-knob mode allows you to control multiple EQ or compressor parameters by simply turning the [TOUCH AND TURN] knob.

When 1-knob mode is enabled, parameters cannot be adjusted individually. You can turn 1-knob mode on and off from the EQ and compressor screens.

TF-RACK Quick Guide

15

7. Displaying the configuration screens

To return to the OVERVIEW screen, press the Home key ( ) below the display.

The OVERVIEW screen can display the CH STRIP section and the FADER section. When the OVERVIEW screen is first displayed, the FADER section is displayed.

You can switch between the FADER section and the CH STRIP section by pressing the Home key ( ) while the OVERVIEW screen is displayed.

In the example shown here, we will explain how to switch to the different screens from the input channel screen. For details or information about other screens, refer to the Reference Manual.

INPUT

Allows you to change input channel settings.

OVERVIEW CH STRIP section

Provides an overall view of the mixer. From here you can move to the different screens.

EQ

Controls the EQ for each channel.

GATE

Allows you to configure the noise gate for each channel.

FX1/FX2

Used to select effects and edit their parameters.

ASSIGN

Allows you to turn Recall Safe and Mute Safe on and off, assign the channel to a DCA, and adjust the SUB bus send level.

OVERVIEW FADER section

Displays the fader level for each channel.

16

TF-RACK Quick Guide

COMP

Allows you to configure the compressor for each channel.

SEND TO AUX

Allows you to set each channel's AUX bus send levels.

CH VIEW

Provides an overall view of a channel's settings.

You can adjust settings on this screen or switch to the dedicated screen for each setting.

You can view the following screens by touching the buttons in the OVERVIEW screen. To return to the OVERVIEW screen, press the Home key ( ) below the display.

METER

Displays the input and output level.

OVERVIEW

Displaying the configuration screens

CUE/MONITOR/OSCILLATOR

Used to manage CUE/monitor source and control oscillators.

LOGIN

Allows you to select the user, change account settings, and use the console lock feature.

SCENE

Used to recall previously saved mixer setups.

CH VIEW

Provides an overall view of a channel's settings.

You can adjust settings on this screen or switch to the dedicated screen for each setting. You can also edit the Channel Name on this screen.

For information about each screen, see page

16.

INPUT/OUTPUT/TITLE LIST

Allows you to record directly to a computer or USB storage device, play back audio files, manage titles, etc.

SETUP

Used to configure general mixer settings, OMNI

OUT settings, recall safe settings, assign userdefined keys and knobs, configure custom fader banks, and set up other preferences.

If a Tio1608-D is connected to the NY64-D, settings for the Tio1608-D are also available on this screen.

TF-RACK Quick Guide

17

8. Setup

This section explains how to set up the TF series console the first time you turn it on.

8-1 Setting the internal clock

Set the console’s internal clock, including the date, time, and format. The date and time set here is used as a timestamp when saving Scenes.

1

Touch the SETUP icon .

The SETUP screen is displayed.

2

Touch the TIME button.

The screen for setting the time is displayed.

4

When finished, touch [OK].

5

Press the Home key ( ).

The OVERVIEW screen is displayed.

NOTE

In addition to the internal clock, you can configure the following system-related items. For details, refer to the

Reference Manual.

• AUX bus signal type

• Network settings

• OMNI OUT settings

• Recall Safe channels

• Settings related to controlling the Tio1608-D that is connected to the NY64-D

8-2 Initialization (factory reset)

In the event that an internal memory error occurs or you have forgotten your password and cannot operate the console, you can use the following procedure to initialize the console.

NOTE

All information that you have stored in the unit will be erased when you initialize the unit. Note that the following items will not be erased.

• Network settings

• Internal clock settings

• Input/Output Port Trim on the maintenance screen

• Fader/Channel Color calibration on the maintenance screen

Use caution when performing this procedure.

1

Turn on the console while holding down the

Home key ( ).

2

When the maintenance screen appears, press the

Initialize All Memories button.

All settings will be restored to the factory defaults.

3

Slide the desired fields up and down to set the date and time.

18

TF-RACK Quick Guide

8-3 Removing the handles

You can remove the handles if they are not needed.

The procedure is the same for the left and right handle.

The right side is shown here.

1

Remove the 3 screws that secure the bracket, and remove the bracket.

2

Remove the 2 screws that secure the handle, and remove the handle.

Setup

3

Use the 3 screws removed in step 1 to re-attach the bracket.

NOTE

When re-attaching the bracket, be sure to use the 3 screws that were original used to secure the bracket.

8-4 Rack-mounting the unit

Rack-mounting the unit requires 3 U of space.

Precautions when rackmounting

This unit is rated for operation at ambient temperatures ranging from 0 to 40 °C. If you install this unit in a poorly ventilated rack along with other devices, the ambient temperature inside the rack may rise, resulting in inefficient performance. Be sure to follow the guidelines below to prevent overheating.

• When mounting this unit in a rack with devices such as power amplifiers that generate a significant amount of heat, leave more than 1 U of space between this unit and other equipment. Also, either leave the open spaces uncovered or install appropriate ventilating panels to minimize the possibility of heat buildup.

• To ensure sufficient airflow, leave the rear of the rack open and position it at least 10 cm from walls or other surfaces.

If the rear of the rack cannot be left open, install a commercially available fan or similar ventilation product to secure sufficient airflow. If you have installed a fan kit, there may be cases in which closing the rear of the rack will produce a greater cooling effect.

Refer to the rack and/or fan unit manual for details.

TF-RACK Quick Guide

19

Setup

8-5 Installing an NY card

Before installing an NY card in the expansion slot, confirm that the card is compatible with TF-series consoles.

For information about compatible cards, visit the Yamaha pro audio website.

http://www.yamahaproaudio.com/

3

Align the sides of the NY card with the guide rails inside the expansion slot, and then insert the NY card.

Make sure you insert the card fully, so that the connection terminal on the NY card is firmly connected to the connection terminal inside the slot.

3

Insert a flat-head screwdriver or similar tool into the notch at the bottom of the NY card, and pull out the card slightly.

1

Confirm that the unit is turned off.

CAUTION

Inserting or removing a card while the unit is turned on may cause electrical shock and damage to the device.

Notch

2

Remove the screws that secure the slot cover, and then remove the cover.

The screws will be used to secure the NY card. The slot cover will not be used while the card is installed; store it in a safe place for later use.

Slot cover

Make sure the sides of the NY card with the guide rails of the device you are installing it in.

4

Use the screws you removed in step 2 to secure the

NY card.

Do not use the console without using the screws to secure the

NY card.

Using the console without securing the card may cause damage to the product and malfunctions.

NOTE

When connecting a Tio1608-D, refer to the Tio1608-D Owner’s

Manual.

4

Hold the NY card by its panel, and slowly pull the card out of the console.

5

Attach the slot cover (removed when you installed the card) and use the screws to secure it.

Do not use the console without attaching the slot cover.

Using the console without attaching the slot cover may cause damage to the product and malfunctions.

Removing the NY card

1

Confirm that the unit is turned off.

CAUTION

Inserting or removing a card while the unit is turned on may cause electrical shock and damage to the device.

2

Remove the screws that secure the NY card.

20

TF-RACK Quick Guide

9. TF-RACK Troubleshooting

Problems and Causes

No sound

The input source (input port) settings for the input channel are incorrect.

The corresponding channel is turned off.

The fader level for the corresponding channel is turned down.

Phantom power is not being supplied (when using a condenser mic).

The mute is on.

Too much gate is being applied.

Sound level is too low

The gain is too low.

Too much gate or compression is being applied.

Sound is distorted

The gain is too high.

The audio being input is too high.

Solutions

Check the input source (input port) settings on the INPUT screen.

Use the FADER section in the OVERVIEW screen or the CH VIEW screen to turn the channel on.

Use the FADER section in the OVERVIEW screen or the CH VIEW screen to turn up the fader level.

Set "+48V Master" on the SETUP screen to on, and then turn on phantom power on the corresponding INPUT screen.

Check the MUTE keys.

Check the settings on the GATE screen.

Adjust the gain on the INPUT screen.

Check the settings on the GATE or COMP screens.

Adjust the gain on the INPUT screen.

Lower the volume of the audio source.

No audio heard from portable audio player connected to iPad connector

The input source for ST IN 1 is not correct.

The connected portable audio player is not compatible with the console.

Set the INPUT source to "PLAYBACK".

For information about compatible portable audio players, refer to the Reference Manual. For the latest information, visit the

Yamaha pro audio website.

No audio heard from the computer directly connected to the unit

The console and computer are not assigned to the same subnet mask.

If using Static IP address provisioning, set the console to the same subnet mask as the computer.

If using DHCP provisioning, connect the console and the computer to a network router, and make sure the computer is configured to receive its network settings automatically (i.e., from a DHCP server).

Cannot find the USB driver for Mac

The console utilizes Core Audio drivers; no additional drivers are needed.

You do not need to install USB drivers when connecting the unit to a Mac. You can use the unit without installing any special drivers.

Cannot input audio from Tio1608-D

The NY64-D is not installed correctly in the expansion slot.

The console is not connected correctly to the Dante network.

Settings related to the Tio1608-D are not correct.

Dante patch settings are not configured.

Make sure the NY64-D is installed correctly.

Make sure the console is connected correctly to the Dante network.

Make sure the UNIT ID switch, QUICK CONFIG switch, and DIP switches on the rear panel of the Tio1608-D are in the correct positions.

When using Quick Config:

Make sure the QUICK CONFIG switch on the Tio1608-D is in the "on" position.

Make sure the Quick Config button on the console's SLOT SETUP screen is turned on.

When not using Quick Config:

Use Dante Controller to configure the Dante patch settings.

When using Quick Config: Enable Quick Config and then restart the unit and the Tio1608-D.

When not using Quick Config: Use Dante Controller to configure the devices.

Dante Device Configuration for the Tio1608-D or NY64-D is incorrect.

Cannot control Tio1608-D headamp from console (but audio input/output is functioning)

The unit's HA Control is turned off.

Turn on the HA button on the unit's SLOT SETUP screen.

More than two consoles or R Remote applications are connected.

Make sure there are only two consoles or R Remote applications on the Dante network that can control the Tio1608-D headamp and then restart the Tio1608-D.

Input source (input port) settings are not set to "SLOT".

Set the INPUT SELECT on the console's INPUT screen to SLOT.

TF-RACK Quick Guide

21

10. Specifications

Sampling Frequency

*1

Signal Delays

Frequency Response

Total Harmonic

Distortion

*2

Hum & Noise

*3

Dynamic Range

[email protected] kHz

*4

Dimensions (W x H x D)

Net Weight

Power Requirements

(wattage)

Power Requirements

(voltage and hertz)

Temperature Range

Included Accessories

Internal clock: 48 kHz; Dante clock: 48 kHz, 44.1 kHz (when using NY64-D)

Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz

+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT

Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600

Ω, INPUT to OMNI OUT, Input Gain=Min.

–128 dBu typ., Equivalent Input Noise, Input Gain=Max.,

–85 dBu, Residual output noise, ST master off

110 dB typ., DA Converter,

108 dB typ., INPUT to OMNI OUT, Input Gain=Min.

–100 dB, adjacent INPUT/OMNI OUT channels, Input Gain=Min.

480 mm × 132 mm × 409 mm, 9.2 kg (18.9" x 5.2" x 16.1", 20.3lb)

85 W

100–240 V 50/60 Hz

Operating temperature range: 0–40 °C

Storage temperature range: -20–60 °C

Quick Guide, power cord, rubber feet, Nuendo Live (DAW software)

*1. Pull-up/down function is not supported.

*2. Total Harmonic Distortion is measured with a –18 dB/octave [email protected] kHz.

*3. Hum & Noise are measured with an A-Weight filter.

*4. Crosstalk is measured with a –30 dB/octave [email protected] kHz.

* The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the Yamaha website then download the manual file.

http://yamahaproaudio.com

Source code distribution

For three years after the final factory shipment, you may request from Yamaha the source code for any portions of the product which are licensed under the GNU General Public

License/GNU Lesser General Public License/RealNetworks Public Source License by writing to the following address:

10-1 Nakazawa-cho, Naka-ku, Hamamatsu, 430-8650, JAPAN

Pro Audio Department, Yamaha Corporation

The source code will be provided at no charge; however, we may require you to reimburse Yamaha for the cost of delivering the source code to you. The source code can be downloaded by visiting the following URL: http://www.yamahaproaudio.com/

• Note that we shall bear no responsibility whatsoever for any damage arising from changes (additions/deletions) made to the software for this product by a third party other than

Yamaha (or party authorized by Yamaha).

• Note that re-use of source code released to the public domain by Yamaha is not guaranteed. Yamaha shall not bear any responsibility whatsoever for the source code.

22

TF-RACK Quick Guide

TF-RACK

430

480

Specifications

Unit: mm

TF-RACK Quick Guide

23

24

TF-RACK Quick Guide

TF-RACK Quick Guide

25

ADDRESS LIST

NORTH AMERICA

CANADA

Yamaha Canada Music Ltd.

135 Milner Avenue, Toronto, Ontario,

M1S 3R1, Canada

Tel: +1-416-298-1311

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Avenue, Buena Park, CA

90620,U.S.A.

Tel: +1-714-522-9011

CENTRAL & SOUTH AMERICA

MEXICO

Yamaha de México, S.A. de C.V.

Av. Insurgentes Sur 1647 Piso 9, Col. San

José Insurgentes, Delegación Benito Juárez,

México, D.F., C.P. 03900

Tel: +52-55-5804-0600

BRAZIL

Yamaha Musical do Brasil Ltda.

Rua Fidêncio Ramos, 302 – Cj 52 e 54 – Torre

B – Vila Olímpia – CEP 04551-010 – São

Paulo/SP, Brazil

Tel: +55-11-3704-1377

ARGENTINA

Yamaha Music Latin America, S.A.,

Sucursal Argentina

Olga Cossettini 1553, Piso 4 Norte, Madero

Este-C1107CEK, Buenos Aires, Argentina

Tel: +54-11-4119-7000

VENEZUELA

Yamaha Musical de Venezuela, C.A.

AV. Manzanares, C.C. Manzanares Plaza, Piso

4, Oficina 0401, Baruta, Caracas, Venezuela

Tel: +58-212-943-1877

PANAMA AND OTHER LATIN

AMERICAN COUNTRIES/

CARIBBEAN COUNTRIES

Yamaha Music Latin America, S.A.

Edif. Torre Banco General, Piso 7,

Urbanización Marbella, Calle 47 y Aquilino de la Guardia, Ciudad de Panamá, República de Panamá

Tel: +507-269-5311

EUROPE

THE UNITED KINGDOM/IRELAND

Yamaha Music Europe GmbH (UK)

Sherbourne Drive, Tilbrook, Milton Keynes,

MK7 8BL, U.K.

Tel: +44-1908-366700

GERMANY

Yamaha Music Europe GmbH

Siemensstrasse 22-34, 25462 Rellingen,

Germany

Tel: +49-4101-303-0

SWITZERLAND/LIECHTENSTEIN

Yamaha Music Europe GmbH, Rellingen,

Branch Switzerland in Zürich

Seefeldstrasse 94, 8008 Zürich, Switzerland

Tel: +41-44-3878080

AUSTRIA/BULGARIA

Yamaha Music Europe GmbH Branch

Austria

Schleiergasse 20, 1100 Wien, Austria

Tel: +43-1-60203900

CZECH REPUBLIC/HUNGARY/

ROMANIA/SLOVAKIA/SLOVENIA

Yamaha Music Europe GmbH

Branch Austria

Schleiergasse 20, 1100 Wien, Austria

Tel: +43-1-60203900

POLAND/LITHUANIA/LATVIA/

ESTONIA

Yamaha Music Europe GmbH

Sp.z o.o. Oddzial w Polsce

ul. Wrotkowa 14, 02-553 Warsaw, Poland

Tel: +48-22-880-08-88

MALTA

Olimpus Music Ltd.

Valletta Road, Mosta MST9010, Malta

Tel: +356-2133-2093

NETHERLANDS/BELGIUM/

LUXEMBOURG

Yamaha Music Europe Branch Benelux

Clarissenhof 5b, 4133 AB Vianen, The

Netherlands

Tel: +31-347-358040

PA42

FRANCE

Yamaha Music Europe

7 rue Ambroise Croizat, Zone d'activités de

Pariest, 77183 Croissy-Beaubourg, France

Tel: +33-1-6461-4000

ITALY

Yamaha Music Europe GmbH, Branch

Italy

Viale Italia 88, 20020, Lainate (Milano), Italy

Tel: +39-02-93577-1

SPAIN/PORTUGAL

Yamaha Music Europe GmbH Ibérica,

Sucursal en España

Ctra. de la Coruna km. 17,200, 28231

Las Rozas de Madrid, Spain

Tel: +34-91-639-88-88

GREECE

Philippos Nakas S.A. The Music House

19th klm. Leof. Lavriou 190 02 Peania –

Attiki, Greece

Tel: +30-210-6686168

SWEDEN/FINLAND/ICELAND

Yamaha Music Europe GmbH Germany filial Scandinavia

JA Wettergrensgata 1, 400 43 Göteborg,

Sweden

Tel: +46-31-89-34-00

DENMARK

Yamaha Music Denmark,

Fillial of Yamaha Music Europe GmbH,

Tyskland

Generatorvej 8C, ST. TH. , 2860 Søborg,

Denmark

Tel: +45-44-92-49-00

NORWAY

Yamaha Music Europe GmbH Germany -

Norwegian Branch

Grini Næringspark 1, 1332 Østerås, Norway

Tel: +47-6716-7800

RUSSIA

Yamaha Music (Russia) LLC.

Room 37, entrance 7, bld. 7, Kievskaya street,

Moscow, 121059, Russia

Tel: +7-495-626-5005

OTHER EUROPEAN COUNTRIES

Yamaha Music Europe GmbH

Siemensstrasse 22-34, 25462 Rellingen,

Germany

Tel: +49-4101-3030

AFRICA

Yamaha Music Gulf FZE

JAFZA-16, Office 512, P.O.Box 17328, Jebel

Ali FZE, Dubai, UAE

Tel: +971-4-801-1500

MIDDLE EAST

TURKEY

Yamaha Music Europe GmbH

Merkezi Almanya Türkiye İstanbul Şubesi

Maslak Meydan Sodak, Spring Giz Plaza

Bagimsiz Böl. No:3, Sariyer Istanbul, Turkey

Tel: +90-212-999-8010

CYPRUS

Yamaha Music Europe GmbH

Siemensstrasse 22-34, 25462 Rellingen,

Germany

Tel: +49-4101-303-0

OTHER COUNTRIES

Yamaha Music Gulf FZE

JAFZA-16, Office 512, P.O.Box 17328, Jebel

Ali FZE, Dubai, UAE

Tel: +971-4-801-1500

ASIA

THE PEOPLE’S REPUBLIC OF

CHINA

Yamaha Music & Electronics (China)

Co.,Ltd.

2F, Yunhedasha, 1818 Xinzha-lu, Jingan-qu,

Shanghai, China

Tel: +86-400-051-7700

INDIA

Yamaha Music India Private Limited

Spazedge Building, Ground Floor, Tower
