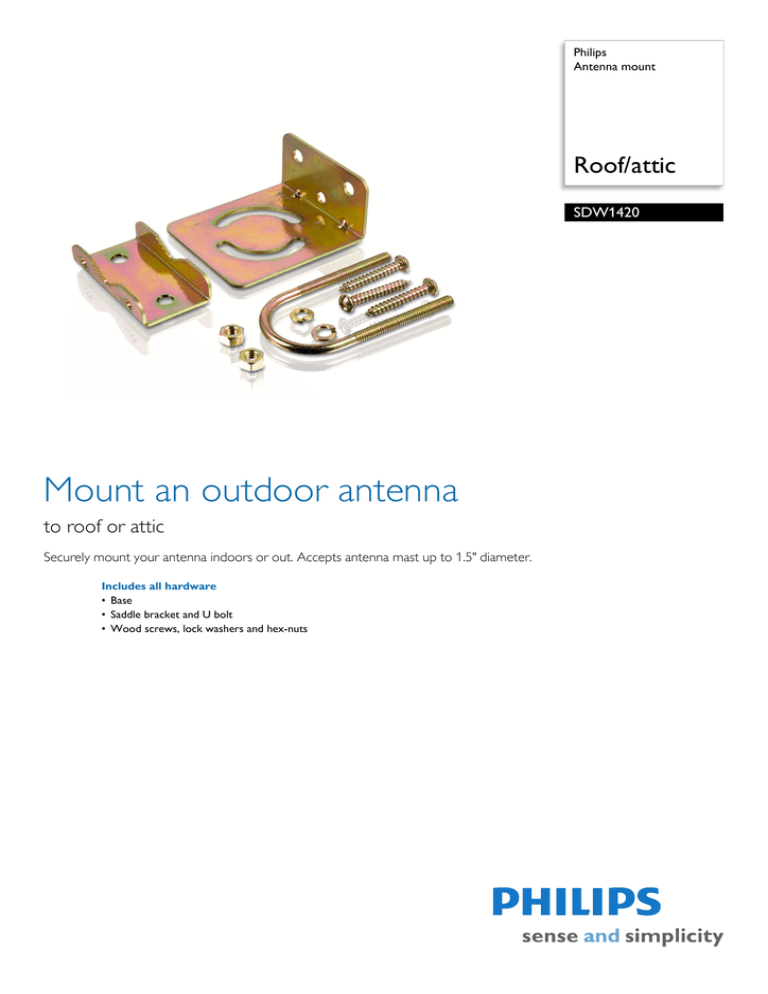

Philips
Antenna mount
Roof/attic
SDW1420
Mount an outdoor antenna
to roof or attic
Securely mount your antenna indoors or out. Accepts antenna mast up to 1.5" diameter.
Includes all hardware
• Base
• Saddle bracket and U bolt
• Wood screws, lock washers and hex-nuts
SDW1420/17
Antenna mount
Roof/attic
Specifications
Inner Carton
•
•
•
•
Gross weight: 2.5 lb
Inner carton (L x W x H): 9.6 x 7.7 x 4.7 inch
Nett weight: 2 lb
Tare weight: .5 lb
Outer Carton
• Gross weight: 16.35 lb
• Outer carton (L x W x H): 18.1 x 16.1 x 12 inch
Highlights
• Nett weight: 12 lb
• Tare weight: 4.35 lb
Packaging dimensions
• Packaging dimensions (W x H x D):
4.2 x 7.7 x 1.7 inch
• Gross weight: .55 lb
• Nett weight: .5 lb
• Tare weight: .05 lb
•
Issue date 2009-11-06
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 2.0.3
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 35218
UPC: 6 09585 14548 1
www.philips.com
Base
The base bolts to the roof or attic to keep the
antenna mast in place.
Saddle bracket and U bolt
Two pieces of hardware screw into the base bracket
to secure the antenna.
