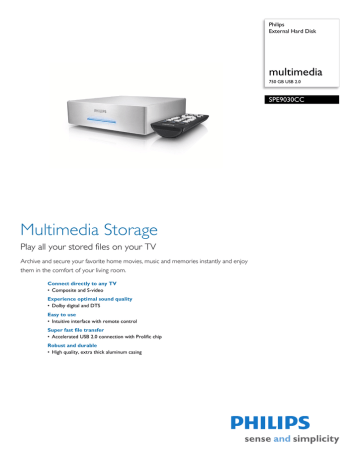

Philips SPE9030CC/10 Datasheet

Philips SPE9030CC/10 Datasheet
External Hard Disk
750 GB USB 2.0
Multimedia Storage
Play all your stored files on your TV
Archive and secure your favorite home movies, music and memories instantly and enjoy
them in the comfort of your living room.
Connect directly to any TV
• Composite and S-video
Experience optimal sound quality
• Dolby digital and DTS
Easy to use
• Intuitive interface with remote control
Super fast file transfer
• Accelerated USB 2.0 connection with Prolific chip
Robust and durable
• High quality, extra thick aluminum casing
External Hard Disk
multimedia 750 GB USB 2.0
Storage Media
Hard Disk Capacity: 500 GB
HDD Type: 3.5" HDD
Rotational speed: 7200 rpm
Transfer rate: 480 Mb/s
Access time (typical): 8.5 ms
Cache memory: 8 MB
Interface: Hi-Speed USB2.0 / AV - out
Audio Output - Analog: Audio L/R (cinch)
Audio Output - Digital: AC3 over S/PDIF (Optical)
Video Output - Analog: Composite video out, Svideo
USB cable
Quick start guide
AC Adapter
User Guide on CD-ROM
AV cable
Remote control
Outer Carton
EAN/UPC/GTIN: 87 12581 37384 9
Height: 320 mm
Length: 545 mm
Width: 235 mm
Gross weight: 10.96 kg
Net weight: 10.2 kg
Tare weight: 0.762 kg
Multimedia playback
• Audio formats: MP3, MPEG 4, WMA, AC3, WAV,
OGG Vorbis
• Picture formats: JPG
• Subtitles: SUB (microDVD format), SRT (SubRIP
format) SMI (SAMI), Embedded multiple subtitle
• Video formats: MPEG 1 (AVI, APG), MPEG 2 (AVI,
VOB), MPEG 4 (DivX, VOD), ISO, DivX Home
Theatre, Xvid
Product dimensions
System Requirements
• PC OS: Windows 2000, Windows XP, Windows
• Processor: Pentium 4 1 GHz, 128 MB RAM
Packaging Data
EAN/UPC/GTIN: 87 12581 37382 5
Height: 130 mm
Width: 215 mm
Length: 290 mm
Gross weight: 2.54 kg
Tare weight: 0.39 kg
Net weight: 2.15 kg
• Cable length: 0 cm
• Product dimensions (W x H x D):
16.7 x 4.5 x 16.7 cm
• Weight: 1.59 kg
Packaging dimensions
• Packaging dimensions (W x H x D):
21.5 x 13 x 29 cm
• Nett weight: 2.144 kg
• Gross weight: 2.54 kg
• Tare weight: .396 kg
Outer Carton
Outer carton (L x W x H): 54.5 x 23.5 x 32 cm
Nett weight: 8.576 kg
Gross weight: 11.16 kg
Tare weight: 2.584 kg
Issue date 2009-11-06
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 1.0.3
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 38501
EAN: 87 12581 40833 6
Extra thick aluminum casing
The high quality aluminum casing protects the hard
drive from wear and tear - protecting your data and
guaranteeing a long working life. It also insulates the
sound of the drive to ensure quiet operation.
Accelerated USB 2.0
The Hard Drive is equipped with USB 2.0 and a
Prolific chip for super fast file transfer.
Dolby digital and DTS
Get the most out of your stereo by playing your
digital music on it. The hard disk works with Dolby
Digital 5.1 so you can hear superb surround sound
from your digital music and video content.
Composite and S-video
Connect to your TV instantly via Composite or Svideo with plug and play simplicity. The connectors
are compatible with almost every TV and even work
with a scart adapter (not supplied with the product).
Interface with remote control
Get control of your multimedia content with the
Philips remote control. Its intuitive navigation allows
you to simply navigate through all your movies,
pictures and music.
