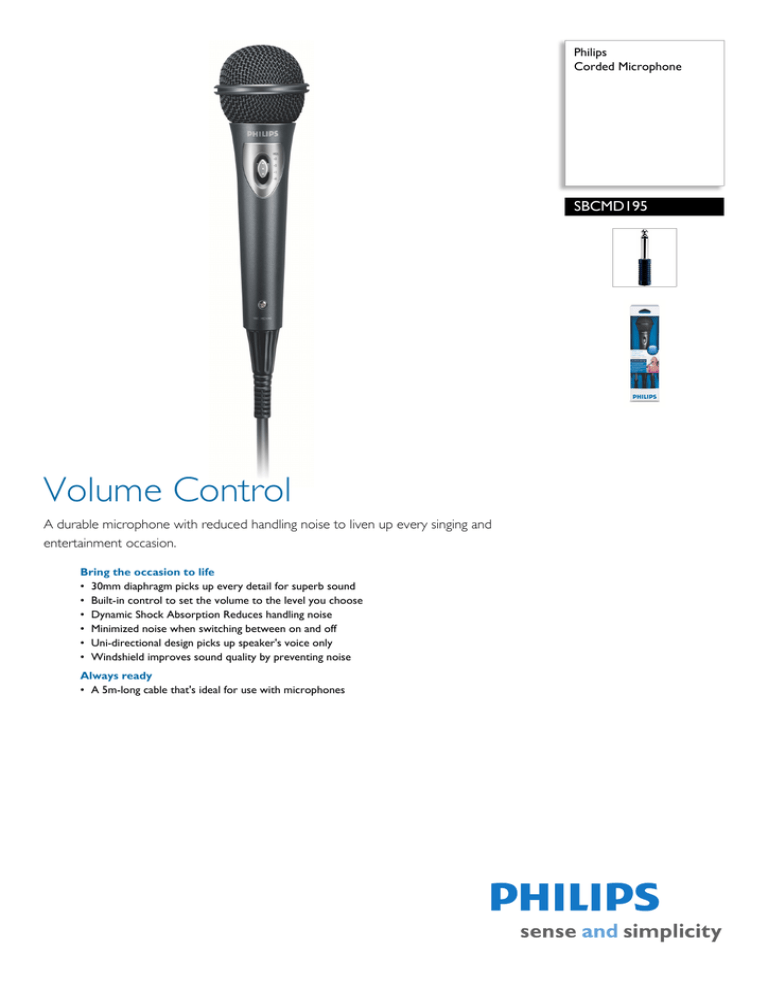

Philips SBCMD195/00 Datasheet

Philips SBCMD195/00 Datasheet
Corded Microphone
Volume Control
A durable microphone with reduced handling noise to liven up every singing and
entertainment occasion.
Bring the occasion to life
• 30mm diaphragm picks up every detail for superb sound
• Built-in control to set the volume to the level you choose
• Dynamic Shock Absorption Reduces handling noise
• Minimized noise when switching between on and off
• Uni-directional design picks up speaker's voice only
• Windshield improves sound quality by preventing noise
Always ready
• A 5m-long cable that's ideal for use with microphones
Corded Microphone
Product highlights
Frequency response: 50 - 15 000 Hz
Impedance: 600 ohm
Polar pattern: Uni directional
Sensitivity microphone: -72 dB +/- 3 dB
Type: Dynamic
• Cable length: 5 m
• Connector: 3.5 - 6.3 mm mono
Packaging dimensions
• Packaging dimensions (W x H x D):
8.5 x 30.7 x 6.6 cm
• Nett weight: .29 kg
• Gross weight: .38 kg
• Tare weight: .09 kg
Outer Carton
Outer carton (L x W x H): 56.5 x 33.5 x 35 cm
Nett weight: 7.6 kg
Gross weight: 12.3 kg
Tare weight: 4.7 kg
Inner Carton
Inner carton (L x W x H): 32 x 27.5 x 8 cm
Nett weight: 1 kg
Gross weight: 1.5 kg
Tare weight: .5 kg
30mm diaphragm
This large, sensitive diaphragm picks up every detail of
the human voice, and delivers faithful, crisp reporduction.
Built-in Volume Control
A handy slider control that sets the loudness to the level
you prefer.
Dynamic Shock Absorption
Dynamic shock absorption ensures that vibrations caused
during handling are not transferred to the active part of
the microphone. You clearly hear what's said - without
disturbing handling noise.
Low noise switch
You'll not hear any annoying 'clicks' when switching this
microphone on and off.
Uni-directional design
This microphone is most sensitive to sound coming from
the direction of the performer, and far less sensitive to
sound form all other directions. The result is clear voice
reproduction with little risk of feedback from speakers on
The integrated windshield prevents disturbing noises from
wind gusts or breathing too close to the microphone.
5m microphone cable
Give yourself extra freedom of movement when using
your microphone.
Issue date 2009-02-12
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 2.0.4
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 9082 100 00526
EAN: 87 10101 67952 5
