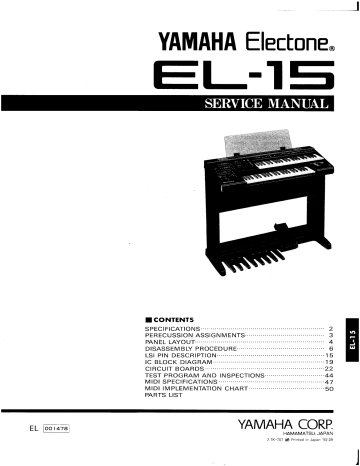

EL-15 - ydaccth no
YAMAHA Electone.
SERVICE MANUAL
Hl CONTENTS
SPECIFICATIONS --------=e=ee0000000eíieieereeeienee eee tetera eee 2
PERECUSSION ASSIGNMENTS a enerercacacenecnaarEnarEEEa rn 3
PANEL LAYOUT *nneconrerernacvonrrarenevenre care rave varerervoratcro recaen earn. 4
DISASSEMBLY PROCEDURE: -------=-=000000e0cire0caneeenneneerene 6
LS | PIN DESCRIPTION seras une 00000000 ana uen 000 a 000000000000 0000000 0000005 15
IC BLOCK DIAGRAM uecoracrenaconrannarenervnrcennovoneraravorrrrrevvarrece 19
CIRCUIT BOARDS --------+0e00e00000eneeienieareeeeeeerenecenec encon eee 29
TEST PROGRAM AND INSPECTIONS:---------e.e0re0e0eereeeneene. 44
MIDI SPECIFICATIONS ----------- PES 47
МЮ МРЫЕМЕМТАТЮМ СНАВТ еее. 50
PARTS LIST
EL YAMAHA CORP
HAMAMATSU, JAPAN
2.7K-707 @ Printed in Japan '92.09
EL-15
IMPORTANT NOTICE
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel.
It has been assumed that basic service procedures inherant to the industry, and more specifically Yamaha
Products, are already known and understood by the users, and have therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product
may result in personal injury, destruction of expensive components and failure of the
product to perform as specified. For these reasons, we advise all Yamaha product owners
that all service required should be performed by an authorized Yamaha Retailer or the
appointed service representative.
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute
authorization, certification or recognition of any applicable technical capabilities, or
establish a principle-agent relationship of any form.
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The
research, engineering, and service departments of Yamaha are continually striving to improve Yamaha
products. Modifications are, therefore, inevitable and specifications are subject to change without notice or
obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor’s Service
Division. |
WARNING: Static discharges can destroy expensive components. Discharge any static electricity your
body may have accumulated by grounding yourself to the ground buss in the unit (heavy
gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and parts replacement. Recheck all work before
you apply power to the unit.
WARNING: CHEMICAL CONTENT N OTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical
electronic and/or plastic (where applicable) components may also contain traces of chemicals found :
by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth
defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH
FOR ANY REASON WHAT SO EVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale
solder fumes or expose eyes to solder/flux vapor!. |
If you come in contact with solder or components located inside the enclosure of this product,
wash your hands before handling food.
и
EL-15
HB SPECIFICATIONS Il PERECUSSION ASSIGNMENTS
EL-15 e Lower Keyboard
KEYBOARD Keyboards Upper: 44 keys , Lower: 44 keys , Pedal: 13 keys
Touch Tone Initial (Upper, Lower;
preset for each voice)
VOICE Tone Generation | New AWM & FM s S
| Upper/Lower Keyboard Strings, Brass, Clarinet, Saxophone, Chorus, Organ, Piano, Guitar, TO "a. % ©
Vibraphone, Cosmic, Tutti [Upper] Harmonica, GC a CN % “os
[Lower] Horn; Volume %, % %, %, %
и #
Lead (Upper) Violin, Flute, Oboe, Trumpet; To Lower; Volume SI O <! E Y
Pedalboard - ContraBass, Elec. Bass, Organ Bass, Tuba; To Lower; Volume
Upper/Lower Flute Voice Upper: 16’, 8‘, 4’, 2‘, Attack 22%’,
Lower: 8’, 4’, 2’; Volume
MELODY ON CHORD MOC
SOLOSTYLE SoloStyle
EFFECT | Sustain Upper, Lower, Pedal
Tremolo/Chorus Flute Voice and Organ Select
Yibrato Preset -
RHYTHM Rhythms March, Country, Waltz 1, 2, Jazz Waltz, Bolero, Swing, Dixieland, q a © 8 < = > 7 7 т т A ‘ o о = * к = AS =
Bounce 1, 2, Reggae 1, 2, Slow Rock 1, 2, Tango 1, 2, Cha-cha, | SD $. % % % % % % Zon Ps en ho Te “e, MS, >, “By © 0 0, Y “Y %
Mambo, Rhumba, Beguine, Samba 1, 2, Bossanova 1, 2, — 00, ee o > Zo Vo." "a Bo AM sy, a, a, % %, A ZA > %
8 Beat 1,2, 16 Beat 1, 2; Volume | | | eo, ” % 2, ” nh 0 у > с, A “ey % о, 9 % %, % % “ % * %
Variations Fill-In, Intro. Ending, Lead In к %, 4 * % a, %, » %, %,
Others Start, Synchro Start, Tempo, Bar/Beat LED, Volume
KEYBOARD PERCUSSION On/Off: Lower, Pedal; 42 Sounds
ACCOMPANIMENT | Auto Bass Chord (A.B.C.) Single Finger, Fingered Chord, Custom A.B.C., Memory
Accompaniments Type: 1, 2
REGISTRATION MEMORY M (Memory), 1~ 5; Disable Button ® Pedalboard
BASIC REGISTRATION 1 ~ 5 {Including several different voices from the panel voices.)
REGISTRATION MENU/ORGAN SELECT Registration Menu: 26,
Organ Select: 13
LEFT FOOT SWITCH Rhythm Stop a $, 9
OTHER CONTROLS Power On/Off, Exp. Pedal, Pitch Control, Transpose, Master Volume % © ON
OTHER FITTINGS Matching Bench, Dust Cover, “ss » “ss $ % %, %
Music Stand, MIDI In/Out, % % у 2 7
Headphone Jack, ‘ 8 82 8:
Rhythm In (Phone; R/L), — и ОГ “m EEE Г
Aux Out (RCA; Mono)
OPTIONAL ACCESSORIES MDR-3 Music Disk Recorder, YHE-5 Headphones
SOUND SYSTEM Power Amplifiers 40W
Speakers 20cm (8”)x 1; Sem (2”)x1;
Monitor x 2
DIMENSIONS Width x Depth x Height 101 ст (393/47 )x 40cm (153/47) x 87 ст (34 1/4”)
WEIGHT 42.0kg (92 Ibs., 9 oz.) U
—
FINISH Simulated Mahogany Grain D: = = = = = s <P
%. Ys, % % Ps, %, %, %
œ © © © e Y QQ
% > 2 % % % %,
” > >. ” ” % » %
ee % %, | % %
7 bt, >, 7
EL-15
PANEL LAYOUT
7
O
EL-15
|
UPPER KEYBOARD VOICE
==
SUSTAIN
OOOO
YAMAHA Electone eL -15
=,
E20
==0
0
“=
UPPER FLUTE VOICE
— LOWER FLOTE VOIGE —
o
TREMOLO
900055652 ООО С)
REGISTRATION MENU ДАМ OFF = eme 1
1 та GREEN S DIGAN
ОСТ
A AUTO BASS сново ACCOMPANIMENT
o a o] о о
RED CUSTOM
SINCLE FINGERE ABC. MEMO SOLOSTYLE MOG TRANSPOSITION PITCH
ОС СОА)
MASTER VOLUME
+
| НННННННННН
REGISTRATION MENU
1 STRING ENSEMBLE
2 PIANC & STRINGS
A VIENNA WALTZ
4 MARCH
3 ERD
10 CARIBBEAN
‘1 POPS ORCHESTRA 2
12 STANDARD [MODERN WALTZ)
13 BOUNCE
REGISTRATION — METENERN ORGAN SELECT [ETN
13 POP ORGAN 2
POWER
7
1 ya ei
ino Xx
SINOHJGYIH
\
— IGN ——
LNO
66
EL-15
Hl DISASSEMBLY PROCEDURE
1. Opening The Panel
1-1. Remove the grille assembly. (Fig. 1)
— 1-2. Remove the five (5) screws marked (4a) and two (2) screws marked (52). These screws are located
on the underside of the keybed. (Fig. 3)
1-3. Lift the panel from the front and hold it with your hand. Use the stay which is provided with this unit
to hold the panel assembly. Insert the stay pin as shown in the illustration making sure that it can not
come off. (Fig. 2)
Stay
Grille assembly
(Fig. 1) (Fig. 2)
Ga—rel |s
(Fig. 3) (4) : Bind head tapping screw-P 4.0x16 ZMC2BL
(5) : Pan head screw 5.0 x 20 ZMC2BL
2. DM Circuit Board
2-1. Open the panel. (see procedure 1)
2-2. Remove the twelve (12) screws marked G3a), then remove the shield cover-L. (Fig. 4)
2-3. Remove the four (4) screws marked 33b), then the DM circuit board can be removed. (Fig. 4)
EL-15
Power Supply Unit
1. Open the panel. (see procedure 1)
-2. Remove the two (2) screws marked (30), and the screw marked (373), then remove the cover. (Fig. 4)
3
. Remove the four (4) screws marked (320) and the screw marked 335, then the power supply unit can
be removed. (Fig. 4)
. ANG Circuit Board
4-1. Open the panel. (see procedure 1)
4-2. Remove the ANG circuit board from the supports marked @3a>. (Fig. 4)
PRM Circuit Board
. Open the panel. (see procedure 1)
1
-2. U. S. and Canadian models only: Remove the four (4) screws marked (32¢), then remove the PRM
shield cover. (Fig. 4)
5-3. Remove the PRM circuit board from the supports marked @3b). (Fig. 4)
6. FU Circuit Board
(U. S. and Canadian models only)
6-1. Open the panel. (see procedure 1)
6-2. Remove the four (4) screws marked (32d), then remove the FU shield cover. (Fig. 4)
6-3. Remove the FU circuit board from the supports marked @3¢ . (Fig. 4)
Power Transformer
1. Open the panel. (see procedure 1) |
-2. Remove the four (4) screws marked (27), then the power transformer can be removed. (Fig. 4)
PRM shield cover
B3b) Shield cover-L (33b)C(30)PU cover (32b) Power transformer
{hws И ON ty dy
ATT rr
UE ; | E
3
МЕ
а Tas
OM) to
Power TT unit
&
(Fig. 4)
5
27) : Bind head screw 4.0x 14 ZMC2Y
ED : Bind head tapping screw-S 4.0x8 ZMC2Y
(32) : Bind head tapping screw-1 3.5x 10 ZMC2Y
(33) ‘Bind head tapping screw-S 3.0x 8 ZMC2Y
7”
EL-15
. MIDI Circuit Board
8-1. Open the panel. (see procedure 1)
8-2. Remove the two (2) screws marked (3 located on the underside of the keybed, then the MIDI circuit
board can be removed. (Fig. 4 and Fig. 5)
. ACC Circuit Board
9-1. Open the panel. (see procedure 1)
9-2. Remove the hexagonal nuts marked (4b) and the screw marked (8b located on the underside of the
keybed, then the ACC circuit board can be removed. (Fig. 4 and Fig. 6)
MIDI
ACC
8—3
(Fig. 5) | (5b)
(3) : Pan head tapping screw-2 3.0x 8 ZMC2BL
C4) Nut 12 x 14 x 2 MFZN2BL
5) : Pan head tapping screw-2 3.0 x 12 ZMC2BL
10. Lower Keyboard Assembly
10-1. Open the panel. (see procedure 1)
10-2. Remove the three (3) screws marked (11a) and four (4) screw marked (13a), then take the lower
keyboard assembly out of the unit with three (3) earth plates. (Fig. 7)
10-3. Remove the six (6) screws marked 486), then remove the earth plates from the keyboard assembly.
— (Fig. 7)
11. Upper Keyboard Assembly
11-1. Open the panel. (see procedure 1)
11-2. Remove the five (5) screws marked (13c), then remove the cord binder and GND wire. (Fig. 7)
11-3. Remove the four (4) screws marked (1b) and three (3) screws marked (13d, then the upper keyboard
assembly can be removed. (Fig. 7)
EL-15
12. Power Switch
12-1. Open the panel. (see procedure 1)
12-2. Remove the two (2) screws marked (12a), then remove the power switch. (Fig. 7)
12-3. Pull the button off the switch.
13. Monitor Speakers
13-1. Open the panel. {see procedure 1)
13-2. Remove the two (2) screws marked (25), then the left monitor speaker can be removed. (Fig. 7)
13-3. Remove the two (2) screws marked (20), then the right monitor speaker can be removed. (Fig. 7)
Earth plate
Power
switch
Lower keyboard assembly
Upper keyboard assembly
Left monitor speaker
Right monitor speaker
(Fig. 7)
(11D : Bind head tapping screw-P 4.0x 12 ZMC2Y
C12) : Bind head tapping screw-P 3.0x 10 ZMC2Y
(13) : Bind head tapping screw-S A3.0x8 ZMC2BL
14. MVR Circuit Board
14-1. Open the panel. (see procedure 1)
14-2. Take out the upper keyboard assembly of the unit. (see procedure 11)
14-3. Pull off the knob and then remove the hexagonal nut marked (A), then the MVR circuit board can
be removed. (Fig. 8 and Fig. 9)
(Fig. 8)
EL-15
15. CP1 Circuit Board
15-1. Open the panel. (see procedure 1)
15-2. Take out the upper keyboard assembly of the unit. (see procedure 11)
15-3. Remove the eight (8) screws marked (12d), then remove the center panel assembly. (Fig. 10)
15-4. Remove the six (6) screws marked (12e), then the CP1 circuit board can be removed. (Fig. 9)
16. CP2 Circuit Board
16-1. Open the panel. (see procedure 1)
16-2. Take out the upper keyboard assembly of the unit. (see procedure 11)
16-3. Remove the eight (8) screws marked (12d), then remove the center panel assembly. (Fig. 10)
16-4. Remove the six (6) screws marked (120), then the CP2 circuit board can be removed. (Fig. 9)
17. CP3 Circuit Board
17-1. Open the panel. (see procedure 1)
17-2. Take out the upper keyboard assembly of the unit. (see procedure 11)
17-3. Remove the eight (8) screws marked (12d), then remove the center panel assembly. (Fig. 10)
17-4. Remove the six (6) screws marked (25), then the CP3 circuit board can be removed. (Fig. 9)
— panel
CP1 CP2 CP3 MVR
(Fig. 9) (12> :Bind head tapping screw-P 3.0x 10 ZMC2Y
Left panel assembly
_ /
e Ar as T не
e >
ETA
©
(Fig. 10) (12) : Pan head tapping screw-P 3.0x 8 ZMC2Y
10
EL-15
11
18. PN1 Circuit Board
18-1. Open the panel. (see procedure 1) |
18-2. Remove the eleven (11) screws marked (12h), then remove the left panel assembly. (Fig. 10)
18-4. Remove the twenty four (24) screws marked (1215, then the PN1 circuit board can be removed.
(Fig. 11)
f E
-©- | i
=1¢ E P 1d x24
o-4o- © +
NN = —Ô—
e + © ©- © encens =
© PN
1 o e 6 e
e ©
eo & + UE
(Fig. 11) (12> : Pan head tapping screw-P 3.0x 8 ZMC2Y
19. Speakers
19-1. Remove the grille assembly. (Fig. 1)
19-2. Remove the four (4) screws marked (2j), then the woofer can be removed. (Fig. 12)
19-3. Remove the four (4) screws marked (13e), then the tweeter can be removed. (Fig. 12)
J2D
Speaker box
Woofer Tweeter
(Fig. 12)
(iz : Bind head screw 4.0x 16 ZMC2BL
(13) : Trus head tapping screw-1 3.5x 14 ZMCBL
EL-15
20. NW Circuit Board
20-1. Remove the grille assembly. (Fig. 1)
20-2. Remove the woofer. (see procedure 19-2) |
20-3. Remove the NW circuit board from the spacers marked C1b>. (Fig. 13)
LLL LLL SLL à ZZZZZZIZIIPZZZZZZZZIIIZZZZITIIIIZTZITZZZZIZZIZZZZZITITZITZZZZIZ.
г LAN
A, у”,
Ш BZ
0 7
7 7
7: I [7
7 7
/ Ш
AL ЛИДЕР ОРИОН rz
Speaker (woofer)
(Fig. 13)
21. Expression Pedal
21-1. Remove the three (3) screws marked CG), then the expression pedal assembly can be removed.
(Fig. 14)
— Expression pedal
(Fig. 14)
Ca) :Bind head tapping screw-P 4.0x 16 ZMC2Y
12
EL-15
22. Pedal Keyboard Assembly
22-1. Remove the expression pedal. (see procedure 21)
22-2. Remove the cap located on the left side board, then remove the PK cable. (Fig. 15 and Fig. 16)
22-3. To make it easier to remove the pedal keyboard, place a soft blanket or similar material on the floor,
place the left side board of the Electone on it - MAKING SURE THAT IT CAN NOT FALL.
22-4. Remove the three (3) screws marked CF) and the screw marked (1), then the pedal keyboard
| assembly can be removed. (Fig. 17)
Da PK cable
z
TSP cable
2
——Cap
(Fig. 15)
To)
yo
|
р |
Ld PK cable
SP cable
(Fig. 16) PK cable
(Fig. 17)
CFD :Bind head tapping screw-S 4.0 x 20 ZMC2Y
(1) : Bind head tapping screw-P ~~ 4.0x 14 ZMC2Y
13
23. Main Unit
23-1. Disconnect the SP cable and PK cable from the connectors located on the underside of the unit.
(Fig. 15 and Fig. 16) |
23-2. Remove the two (2) screws marked and two (2) screws marked (CD, then remove the main
unit. (Fig. 18 and Fig. 19)
CAUTION: CAREFULLY LIFT THE MAIN UNIT UP FROM THE SIDE BOARDS, TAKING CARENOT TO
PINCH YOUR FINGERS. (Fig. 20)
Main unit
(Fig. 18) | | (Fig. 19)
(Fig. 20)
: Bind head screw 5.0x12 BL (CD) :Bind head screw 5.0x 12 BL
24. Speaker Box
24-1. Remove the grille assembly. (Fig. 1)
24-2. Remove the main unit. (see procedure 23)
24-3. Remove the four (4) screws marked (D), After these screws have been removed, lift the speaker
box up and then slid it toward the back, then remove. (Fig. 21 and Fig. 22)
=,
TT IT
J
Speaker box
(Fig. 21)
CD) :Bind head screw 5.0x 12 BL
(Fig. 22)
14
EL-15
15
HI LSI PIN DESCRIPTION
* M37700SAFP (XI286A00) CPU
NO. | NAME | 1/0 FUNCTION NO. | NAME | 1/0 FUNCTION
1 [P70/ANQ| VO CMOS in/out port 7/Analog input 41 |P23/A19/D3| МО
2 |P67/TB2IN} 1/0 42 |P22/A18/D2| МО .
3 |P66/TB1IN| 1/0 (Timer BO-B2 in} 43 |P21/A17/01| 1/0 | | CMOS in/out port 2/Address bus/Data bus
4 |P65/TBOIN} 1/0 44 {P20/A16/00| МО
5 [P64/INT2| 1/0 | 7 CMOS in/out port 4 45 (P17/A15D15| VO
6 IPE3/INT1! 1/0 (Interrupt request in) 46 |P16/A14D14| 1/0
; |P62/INTO 9 т 47 [P15/A13D13| 1/0
P61/TA4IN |- 1 (Timer A4 in/out) 48 |P14/A12/D12] 1/0 ;(
9 IPBOTA40UT| 1/0 |) 49 |P13/A11011| 1/0 | ( CMOS in/out port 1/Address bus/Data bus
10 |P57/TA3IN | 1/0 50 |P12/A10/D10] 1/0
11 |P56/TA30UT| 1/0 51 |P11/A9/D9| I/O
12 |P55/TA2IN| 1/0 02 |P10/A8/D8| I/O |
13 |P54/TA20UT | 1/0 CMOS in/out port 4/Timer AO-A3 in/out 53 | PO7/A7 | 1/0 |)
14 |P53/TA1IN} 1/0 54 | PO6/A6 | I/O
| 2 Ind o 20 PO5/A5 | 1/0
PS1/TAOIN| М b6 |PO4/A4! 1/0 [Y
17 IP5OTAOQUT | 1/0 57 | PO3/A3 | 1/0 CMOS in/out port O/Address bus
18 P47 58 | PO2/A2 | 1/0
19 P46 59 | PO1/A1 | VO
20 P45 60 | POO/AO | 1O |)
21 P44 VO | ; CMOS in/out port 4 61 P87/TXD1| 1/0 (Data transmission)
22 P43 1/0 62 |P86/RXD1| 1/0 (Data reception)
23 | P42/6 | МО ($ output) 63 |P85/CLK1| 1/0 (Clock) :
24 |P41/RDY| 1/0 (Ready) 64 PBACTSI/ATS1! 1/0 CMOS in/out port 8/Clear to send/Request to sen
25 |P40/HOLD| 1/0 (Hold request) 65 |P83/TXDO| 1/0 (Data transmission)
26 BYTE | 8bit/16bit select 66 |P82/RXDO| I/O (Data reception)
27 | CNVSS | Chip mode select 67 |P81/CLKO| VO (Clock)
28 | RESET | Reset 68 IPSOCTSORTSO 1/0
29 XIN | 69 Vcc Power supply
30 | XOUT O Internal clock osc. in/out 70 | AVCC Analog power supply
31 E | Enable 71 VREF | Reference voltage
32 Vss Ground 72 | AVSS Analog ground
33 P33/HLDA| I/O (Hold acknowledge) 73 Vss Ground
34 |P32/ALE| VO CMOS in/out port 3/{Address latch enable) 74 |PTIANTADTAG| 1/0 (A/D trigger)
35 |P31/BHE! 1/0 (Byte high enable) 75 IP76/ADE6! 1/0
36 |P30/RW | 1/0 (Read/Write) 76 IP75/AD5! 1/0
37 |P27/A23/D7| МО 27 АЗ vo CMOS in/out port 7/Analog input
38 |P26/A22/D6| 1/0 78 |P73/A Й
39 |P25/A21/D5| 1/0 CMOS infout port 2/Address bus/Data bus 79 |P72/AD2| 1/0
40 P24/A20/04! 1/0 80 |P71/AD1} I/O
* HDESCOSYRH (XJ8SOBA00) CPU (SLAVE)
No | NAME | МО FUNCTION NO | NAME | 10 FUNCTION
1 P20 1/0 - 33 АО8 O
2 P21 1/0 34 Vss (Ground)
3 P22 1/0 35 AQ7 O
4 P23 1/0 Port 2 36 A06 O
5 P24 1/0 37 АО5 O Address bus
6 P25 1/0 38 A04 O
7 P26 1/0 39 AQ3 O
8 P27 1/0 40 АО2 O
10 63 | Interrupt request я 00 o |
11 P32 1/0 43 DO7 1/0
12 P33 1/0 44 DO6 1/0
13 P34 1/0 Port 3 45 DO5 1/0
14 P35 1/0 46 DO4 1/0 Data bus
15 P36 1/0 47 DO3 1/0 |
16 P37 1/0 48 DO? 1/0
17 POO | 49 DO1 1/0
18 PO1 | 50 DOO 1/0
19 PO? | 51 BA O Bus available
20 РОЗ | Port O 52 LIR_ O Load instruction register
21 PO4 | 53 R/W O Read/write control
22 POB | 54 WR O Write control
23 PO6 | 55 RD O Read control
24 PO7 | 56 E O Enable
25 VDD Power supply 57 Vss Ground
26 A15 O 58 XTAL Clock
27 A14 O 59 | EXTAL
28 A13 O 60 MPO |
29 | A12 | O |} Address bus 61 | mp1 | y || Mode program
30 A11 O 62 RES | Reset
31 A10 O 63 STBY | Stand-by mode signal
32 AO09 O 64 NMI | Non-maskable interrupt
e LC92018B-305 (XF998A00)
LSK1 (LED drive & Switch Scan)
PIN I NAME | 1/0 FUNCTION PIN| NAME | 1/0 FUNCTION
NO. NO.
11 L108 | O |) 51 RD | Read contro!
2 | L107 O 52 WR | Write control
3| L106 O 53! CLK1 | Clock 1
4 L105 O . 54 A23 O
5| L104 | о | ( LED drive 1 55| A22 | ©
6 L103 O 56 A21 O
71 L102 O 57 A20 O
8| L101 | © | 58 | A19 |10 | | Address bus
9 Vss Ground 59 A18 1/0
10 | $212 | 60 A17 1/0
11 5211 | 61 A16 1/0
12 | $210 | 62 AIS | For address data multiplex operation
13 | $209 i 63 ALE | Address latch enable
14 | S208 | 64 Vss Ground
15 | $207 | 65 D7 1/0 | |
16 | $206 | | | | Switch scan 66| D6 |I/0
17 | $205 | 67 D5 1/0
18 | S204 | 68 D4 1/0
19 | $203 | | 69 | D3 |yo| | Data bus
20 | $202 | 70 D2 1/0
21 | $201 | | |) 71 D1 1/0
22 | PD2A | O 72 Do 1/0 | |
23 | PD2B | O . 73 IRQ O Interrupt request
24 | PD2C | O Scan drive code 2 74 DRP O PK data request
25 | PD2D | О 75 KDP | PK key data
26 1 L210 | О 76 DRL O LK data request
27| L209 O 77 KDL | LK key data
28| L208 | O 78 DRU O UK data request
29 | L207 O 73| KDU | UK key data
30 | L206 O || 80 | CLK2 | Clock 2
31 | L205 | Q | | LED drive 2 81| s112 | |
32 | L204 O 82 | S111 |
33 | L203 O 83 | S110 |
34 | L202 O 84 | S109 | ,
35 | 1201 lO 85 | S108 | | | [ Switch scan 1
36 NC 86 | S107 |
37 NC 87 | 5106 |
38 NC 88 | S105 |
39 NC 89 VDD Power supply
40 Vss Ground 90 Vss Ground
41 VDD Power supply 91 S104 |
42 NC 92 | S103 |
43 NC 93 | S102 | Switch scan 1
44 NC 94 | S101 i
45 NC 95 | РОТА O |
46 NC 96 | PDIB O Scan drive code 1
47 NC 97 | PD1C | O
48 NC 98 | PDID | O
49 IC | Initial clear 99 | L110 O LED drive 1
50 CE | Chip enable 100| L109 | O
e TMC57817N (XJ825A00) MIX-P (Mixer)
PIN | NAME | 1/0 FUNCTION | EN | NAME | vo FUNCTION
NO. | NO.
1 MXI7 | 11 SYM | Synch pulse
2 MXI6 | 12 CDO O | Control data output
3 MXIS | 13 XCLK | CDI and CDO in/out clock
4 MXI4 | . CL 14 CD! | Contro! data input | |
5 | MXI3 | | Voice data input 15 | CAS | | Counter reset for CDI and CDO
6 MXI2 | 16 | MXOO O |
7 MXI1 | 17 MXO1 О .
8 MXIO 1 | 18 MXO? О | Voice data output
9 CLK | Master clock 19 MXO3 O
10 Vss Ground 20 VDD Power supply
EL-15
16
EL-15
+ YM2406 (XA804A00)
DFL (Digital Filter)
PIN | NAME | 1/0 FUNCTION PIN | NAME | 1/0 FUNCTION
| NO. | NO.
1 Vss Power supply ground 13 NC Y
2 TST | Test pin 14 NC
3 IC | Initial clear 15 NC
4 SI | 32 bit x 2 channel serial 16 NC
5 XCLK | CD transmission clock 17 NC ' Not used
6 SYW | Synchronization signal 18 NC
7 SO O 32 bit x 2 channel serial 19 NC
8 CLK | Clock (3.2MHz) , 20 NC
9 VDD Power supply {+ 5V) 21 NC J
10 NC 22 CDO O CD output
11 NC Not used 23 CRS | CD counter reset
12 NC 24 CDI ] CD input
* YM3028 (XE789A00) DAL2 (Digital Analog Converter Logic)
FINI NAME | 1/0 FUNCTION PIN' name [1/0 FUNCTION
NO. NO.
1 | DVon Power supply 13 | to Butt | O Analog output to buffer amp.
21 SYW | | Synchro puise 14 MP | Middie point 1/2 VoD bias
31 DGND Digital ground. 15 RC O Bias compensation
4 CLK | Clock 16 RB O Bias-R
5 | CRASH| O Not d 17 | AGND Analog ground
6| ZERO | O ot use | 18 | AVoD Analog power supply
71 OUT4 O 19 ¡LMT/EN | | Limiter enable
8 outs О Analog signal output 29 Ns | } Digital data input
10] OUT1I lO 22 SEL1 |! |
11| NS | Chip test 23| SEL2 | | } Data shift
121 COM | Analog input from buffer amp. 24 JC | Initia! clear
* YM3415-B (XE450B00) LEF (Effecter)
PIN PIN
NO NAME | О FUNCTION NO NAME | VO FUNCTION
1 VDD Power supply + 5V 21 | A7 O
3 21 | Serial data input 53 AB 9
Е 20s 9 } Serial data input oe A3 О Address bus
6 XCLK | Clock 26 A2 O
7 CDO O CD data output 27 A1 O
8 CD! | CD data input 28 AO O
9 CRS | CD counter reset 29 RA O DRAM contro!
10 WR | Write control 30 CAS O DRAM control
11 A/D | Address/data parameter select 31 WE O WE signal
12 PDO | 32 ОЕ O OE signal
13 PD 1 1/0 33 D3 1/0
14 PD? 1/0 34 D2 1/0
15 | РОЗ | Мо Data bús 35 | D1 | vo Data bus
16 PD4 1/0 36 DO 1/0
17 PD5 1/0 37 TST2 | Internal test
18 PD6 1/0 38 SYW | Synch pulse
19 PD7 1/0 39 CLK | Clock
20 Vss Ground 40 iC | Initial clear
17
* YM7131 (XH236A00) OPLZ (FM Tone Generator)
PIN
PIN
NO. NAME | 1/0 FUNCTION NO. NAME | 1/O FUNCTION
1 D7 1/0 15 CLK | Clock (6.4 MHz)
2 D6 1/0 16 CLKM O Clock (3.2 MHz)
3 D5 1/0 17 SYWi | Synch. signal
4 D4 1/0 Data bus 18 : SYWO O Synch. signal
5 D3 1/0 19 ОРО4 O
6 D2 1/0 20 ОРОЗ O MEL format signal output
7 D1 1/0 21 OPO? O
8 DO 1/0 22 OPO1 O
9 RD | Read control 23 A4 |
10 WR | Write control 24 A3 |
11 CS | Chip select 25 A? | Address bus
12 | TRD | External key on 26 A1 |
13 IC | Initial clear 27 AO |
14 Vss Ground 28 VDD Power supply
* YM7132 (XH235A00) OPWZ (AWM Tone Generator)
FIN | МАМЕ | 10 FUNCTION NO | NAME | 1/0 FUNCTION
1 | MELCK | O | Clock (3.2 MHz) 51 | MA19 | О
2 | CXOUT | O Clock (6.4 MHz) 52 | MA20 O
3 XTAL , 53 | MA21 O Wave memory address bus
4 | EXTAL Crystal osc. connection 54 | MA2? О |
5 CS | | Chip select 55 | MA23 | O
6 RD | Read control 56 BOE | Address bus open enable
7 WR | | Write control | 57 | MDO | 10
8 |SYNWR | МО | Register synch write control 58 MD 1 1/0
9 SY 1/O | SYW in/out control 59 MD? | VO
10 AO I | 60 | MD3 1/0
11 À 1 | 61 MD4 1/0 Wave memory data bus
12 A2 | CPU address bus 62 MD5 1/0
13 A3 | | 63 MD6 1/0
14 A4 | 64 | MD7 1/0
15 Vss Ground 65 MD8 1/0
16 DO МО 66 Vss Ground
17 D1 1/0 67 MD9 1/0
18 D2 1/0 68 | MD10 | 1/0
19 D3 1/0 69 | MD11 1/0
20 | D4 | vo || CPU data bus 70 MD12 | VO || Wave memory data bus
21 D5 1/0 71 | MD13 | 1/0
22 D6 1/0 72 | MD14 | 1/0
23 D7 1/0 73 | MD15 | 1/0
24 TE1 74 | NSIO | N-sys input O
25 TE2 75 | NSOO O N-sys output O
26 TEA2 76 | NSH | N-sys input 1
27 | TESE 77 | NSO1 O N-sys output 1
28 NC Not used (Test pin) 78 | KONIN | Key on, LFÓ on input
29 NC 79 [KONOUT! O | Key on, LFO on output
30 NC 80 SIO | | .
31 MAO О 81 Si 1 Serial data input
32 MA1 O 82 | CRS O | CD counter reset
33 MA2 O 83 | CDO O Control data
34 МАЗ O 84 SOO O
35 MA4 O | Wave memory address bus 85 501 O
36 MAS O 86 $02 О Serial data output?
37 MAG O 87 503 O
38 MA 7 O 88 | TEAL 1/0
39 | M8 lO 89 | TERE | vo || Test pin
40 VDo Power supply 90 VDD | Power supply
41 MA9 O | 91 | TENR 1/0
42 MA10 O 92 | TEAE 1/0
43 | MA11 | O 93 | TEAR | 1/0 | Test pin
44 | MA12 O 94 | TEOE 1/0
de NA о Wave memory address bus oe | Ten | | Test pin
47 | MA15 | O 97; IC | Initial clear
48 | MA16 O 98 IRQ O Interrupt request
43 | MA17 O 99 M/S | SYNWR in/out control
50 | MA18 O 100 | SYW 1/0 | Synch signal
18
EL-15
19
* YM3603 (XASOBA00)
KBS1 (Keyboard Scanner)
PIN PIN
NO. NAME | 1/0 FUNCTION NO. NAME | МО FUNCTION
1 VDD + 5V 22 KD O 8 bit key data. A start bit of “0”,
2 Ma | stop bit of “1” is added, and the
3 M3 | I LSB is sent.
4 M2 | Make point 23 DR Host data request. When KBS
5 M1 | detects the fall of DR, event data
6 MO | | transmission is enabled.
7 B4 | 24 DO O \
8 B3 | 25 D1 O
9 B2 | Break point 26 D2 O
10 B1 | 27 D3 O
11 BO | | 28 D4 O
12 TRS | Transfer (1)/2 make (O) select 29 D5 O
13 S21 | 2 make (1)/1 make (0) select 30 D6 O > Scan drive pulse
14 AVDD + 5 volts for analog circuit 31 D7 O
15 TST Test mode (0) select. When testing, 32 D8 O
the value of the shift register is 33 D9 O
| sent. 34 D10 O
16 Al | Analog voltage for AD conversion 35 D11 O
input. 36 D12 O J |
17 :DAC OUTI O DAC output 37 KI | Initial set
18 | A GND Analog circuit Gnd. 38 AEN | Outputs AD conversion data (1);
19 | GND GND stops (0)
20 EVR O Not used. 39 CK2 | Connector for 3.25MHz ceramic etc.
21 TXC | Clock for serial communication 40 CK1 | Connector for 3.25MHz ceramic etc.
(100K-500K)
Ш 1С BLOCK DIAGRAM
a» HD74HCO2FPTR (XLO91A00)
Quad 2 Input NOR
* HD74HCO4FPTR (XLO92A00)
Hex inverter
Quad 2 Input AND
e HD74HCOSFPTR (XLO93A00)
EL-15
* HD74HC14FPTR (XLO94A00) © HD74HC32FPTR (XLO95A00) o HD74HC74FPTR (XLO96A 00)
Hex Inverter Quad 2 Input OR Dual D-Type Flip-Fiop
INPUTS OUTPUTS
PR CLR CLK D Q a
L H x X M t
H L X X L H
L L x X H H
H H т H H L
H H + L L H
H H L X Qo Qo
* HD74HC138FPTR (XLO97A00) * HD74HC373FPTR (XLO98A00) * TC4050BP (1G001740)
3 to 8 Demultiplexer Octal 3-State D-Type Latch Hex Buffer/Converter
A (1 16) Vee CONTRO 1 20) VCC
A _—-
Select { В (72 B YO 15) YO 10 (2HG as) sa
— oe oe
ca Co YI 19) vi 20 (3H06 GDM18) sp
G2A (4)—42Av2>—(63) Y2 2D (445% = 5K17) 70
— — | output oeH¥ oe
Enable | G2B (5 G2BY3 12) v3 20 (5Ha alas) 70
G1 (6 С! уд 1) Ya за (ва aHí9 sa
— OE Joe
Output ( Y7 (7 Y7 Y5 10) vs 3D (7-06 SDH14) 60
v6
GND (8 9) v6 | | 40 (aHoG G DM13) 5D
DE H#H0E
40 (as HO Q}12) 50
смо (10 11) ENABLE
G
e NJM4558MT-1 (IG103520) e M5227FP (XF751A00) * M5283P (X1315A00)
* NIM4560M (T1) (XA862B00) 5-Band Graphic Equalizer VCA
* HA17358F (XK442A00) |
Dual Operational Amplifier
+DC Voltage
(8) Supply
Qutput A (1) Vee
Inverting
Output B GND
input A © Р
Non-Inverting /\ Inverting +Усс
input A © IY Input B
QUT
(5) Non-Inverting
—DC Voltage Supply (4) Input B
+iN
NF5
INS
20
EL-15
Bl TEST PROGRAM AND INSPECTIONS
1-2
3-3
Preparations
Power supply voltage
Before testing for specifications, confirm AC line voltage is the rated value + 10%. Then check that
DC power supply are as follows:
terminal voltage
+ 5V + 5V +0.25V
+ 15V + 15V +0.75V
— 15V — 15V + 0.75V
+ 51. +5V+0.25V
Controls
Unless specified, set the controls as follows:
POWER switch: ON
MASTER VOLUME control: MAX.
Expression pedal: MAX. {lowered position)
Voice level controls: MAX.
SUSTAIN: OFF
TREMOLO: OFF
HOW TO ENTER THE TEST PROGRAM
While pressing the [C # 2] and [F2] and [G # 2] keys on the lower keyboard, turn on the power switch.
When the system has entered the test program, press the DATA CONTROL button to activate the
appropriate test. | |
TEST PROGRAM AND INSPECTIONS
RAM TEST
When the REGISTRATION MENU 1 button is pressed, a RAM test will be performed. The test result
is indicated in the TEMPO display. :
OK LIL NG ———
MIDI TEST
After connecting the MIDI IN to the MIDI OUT via a MID! cable, press the REGISTRATION MENU 3
button to execute the test. The test result is indicated in the TEMPO display.
OK 0 NG ———
RHYTHM SOUND GENERATION |
Press the REGISTRATION MENU 5 button, then the various instruments will sound in succession.
Check that correct signal is output.
During this test pressing [FO] key on the lower keyboard shorten the sound output interval.
44
EL-15
3-4
(A)
(B)
(C)
3-5
3-6
45
KEYBOARD SOUND GENERATION
Each time the REGISTRATION MENU 7 button is pressed, the test tone will sound in the order of
LK, UK, LEAD, PK, REV, ACCOMPANIMENT, SSP. The sounding voice name is displayed in the TEM-
PO display.
PITCH
Check that the output pitch should be as follows (taking the pitch of LK as a reference).
test tone pitch
UK +2.4+1.0 cent
LK 0.0 cent
LEAD +6.0+1.0 cent
PK — 3.6+ 1.0 cent
ACC 0.0+1.0 cent
LEVEL ADJUSTMENT
Adjust VR1 on the ANG circuit board so that the output of LK becomes — 8.5 +0.5dBm at the AUX
OUT jack. Then check that the output level should be as follows:
test tone measured level measured level
at AUX OUT at HEADPHONES
LK —8.5+ 2dBm 19.0+2dBM
UK — 8.5 + 2аВт 19.0 + 2dBm
LEAD — 7.5 + 2dBm 20.0 + 2dBm
РК — 7.5 + 2аВт 20.0 + 2dBm
REV — 8.5+ 2dBm 19.0 + 2dBm
RHY 2.0Vp-p 60.0Vp-p
ACC — 5.5+ 2dBm ‚22.0 + 2аВт
SSP — 5.5 + 2dBm 22.0 + 2dBm
INPUT/OUTPUT LEVEL
When sine waves of 1kHz, —20.0dBm are applied to the RHYTHM IN(L,R) inputs, the specifications
and conditions of each output are as follows during this test.
AUX OUTI(L,R): sine wave, — 22.0+ 3dBm
HEADPHONESIL,R): sine wave, +5.5+ 2dBm
INITIAL TOUCH AND EXPRESSION PEDAL AND FOOT SWITCH TESTS
Pressing the REGISTRATION MENU 9 button will activate these tests.
(A) Play a scale on the upper and lower keyboards. Check that the value in the TEMPO display
changes from 00 to 7A (in other words, apply light touch and then heavier touch).
Operate the expression pedal throughout its range. Check that the number on the display changes
from 00 to 7F (in other words, starting from the raised position to the lowered position).
Check that the BAR BEAT indicator turn on when the foot switch is pressed.
(B)
(C)
LED TEST
Pressing the REGISTRATION MENU 11 button will activate this test.
Check that all LED indicators light. Press the button once more, then the all LEDs will turn off.
EL-15
3-7 SWITCH TEST
Pressing the REGISTRATION MENU 13 button will activate this test.
Press the panel switches consecutively, then the number indicated on the display will increase. The
value shows the number of the switch to be pressed. When all switches are pressed, the display will
shows “/[] [][]"". |
Pressing another REGISTRATION MENU button while pressing and holding the [C 42] and [F2] and
[G # 2] keys on the lower keyboard will activate the selected test.
4. NOISE LEVEL
Check that the noise level is less than — 50.0dBm. During t this check a low pass filter with cut-off
frequency of 12.7kHz, — 6dB/oct must be used.
5. POWER ON RESET
While pressing the REGISTRATION MENU 1 button, turn on the POWER switch, then the factory set-
tings will be restored. |
46
EL-15
Hl MIDI SPECIFICATIONS
M CHANNEL MESSAGES Dats: March1. '82
| | Version: 1.1
Code Function Transmitted Recognized Remarks
8nH, nnH (Note No.), 00H-7FH Note OFF x CH 1 UK
X CH 2 LK
x CH 3 PK
| X CH 15 Keyboard Percussion
9nH, nnH (Note No.), 00H Note OFF CH 1 CH 1 UK
01H-7FH Note ON CH 2 CH 2 LK
CH 3 CH 3 PK
x CH 15 Keyboard Percussion
BFH, 08H, OOH-7FH Expression Pedal CH 16 CH 16 CONTROL
CnH, nnH (Regist. No.) Program Change x CH 1 UK
| (Registration Memory) X CH 2 LK
| X CH3 PK
CH 16 CH 16 CONTROL
HSYSTEM REALTIME MESSAGES
Code Function Transmitted Recognized Remarks
F8H Clock O O Recognized in Ext. mode
FAH Start O O
FCH Stop O O
FEH Active Sensing O O
1. Electone common messages
HB BULK DUMP Related Messages
Code | Messages Transmitted Recognized
FOH, 43H, 70H, 70H, 00H, ....... (data)......., F7H | Bulk Dump data x O
01H Request-to-Send Voice Parameter data x O
02H Request-to-Receive Voice Parameter data x O
FOH, 43H, 70H, 70H, 10H, F7H Request-to-Send all RAM data x O
11H Request-to-Send Registration data X O
un FOH, 43H, 70H, 70H, 20H, F7H Request-to-Receive all RAM data X O
Г 21H Request-to-Receive Registration data X O
ыы FOH, 43H, 70H, 70H, 30H, F7H Request-to-Send Model ID data X O
FOH, 43H, 70H, 70H, 38H, 7FH, F7H Bulk Dump Acknowledge O X
OOH Ignore O X
47
EL-15
CONTROL CHANGE
Code Messages Transmitted Recognized
FOH, 43H, 70H, 70H, 40H, 48H, 7FH, F7H FILL IN 1 ON O O
OOH OFF O О
FOH, 43H, 70H, 70H, 40H, 4BH, 7FH, F7H INTRO./ENDING ON | O Oo
OOH OFF O O
FOH, 43H, 70H, 70H, 40H, 50H, TiH, ThH, F7H TEMPO O O
* 2 The rhythm start/stop function via the left footswitch is sent and received only by real time message.
EMDR STATUS
Code Messages Transmitted Recognized
FOH, 43H, 70H, 70H, 70H, 01H, F7H PLAY Start x ©
02H | Stop X O
O3H RECORD Start X O
04H | Stop X O
05H РЕ >> Start x O
06H | Stop ох O
O9H Rhythm Pointer Reset *3 X O
+ 3 Only rhythm pointer reset and fast forward messages are transmitted in the rewind function.
MOTHERS
Code Messages Transmitted | Recognized
FOH, 43H, 70H, 70H, 78H, SCH, NCH, F7H Bar signal | O | O
2. EL-15 common message
Code Messages Transmitted Recognized
FOH, 43H, 70H, 78H, 00H, ........ (data) ......., F7H | Bulk Dump data O O
01H Request-to-Send Voice Parameter data x O
02H Request-to-Receive Voice Parameter data x O
FOH, 43H, 70H, 78H, 10H, F7H Request-to-Send all RAM data X O
| 11H Request-to-Send Registration data X O
FOH, 43H, 70H, 78H, 20H, F7H Request-to-Receive all RAM data X O
| 21H Request-to-Receive Registration data X O
FOH, 43H, 70H, 78H, 41H,........(data).........F7H | Panel Switch Event data +2 O O
FOH, 43H, 70H, 78H, 42H, ........ (data)........ F7H Current Registration data O O
* 2 Refer to the “Table of Switch-Related MIDI Codes.”
48
EL-15
49
e Table of SW MID! codes [FOH, 43H, 70H, 78H, 41H, CODE, DATA, F7H]
Switch Code
Functions/Switches Code Data Remarks
Seiector Upper Flute Voice 00H O0H-1FH
Lower Flute Voice 01H OOH-OEH
UK Voice 02H - OOH-ODH SW no.
LK Voice O3H OOH-ODH
Lead Voice 06H 00H-04H
PK Voice 07H 00H-04H
Rhythm OBH 02H-10H
Volume Upper Flute Voice 10H OOH-7FH Volume data
Lower Flute Voice 11H OOH-7FH Volume data
UK Voice 12H OOH-7FH Volume data
LK Voice 13H 00H-7FH
Lead Voice 16H 00H-7FH
PK Voice 17H OOH-7FH
Rhythm 1AH OOH-7FH
To Lower Lead Voice 36H 00H-01H OOH=Off 01H=On
PK Voice 37H O0H-01H |
Sustain UK 50H 00H-01H OOH=Off 01H=On
| LK 51H OOH-01H
PK 52H OOH-01H
A.B.C. Mode 53H 00H-03H 00H=0ff 01H = Single Finger,
02H =Fingered 03H = Custom
Memory 54H 00H-01H OOH=0ff 01H=On
M.O.C./SoloStyle 55H OOH-02H 00H=OFF 01H=M.0.C.
02H = SoloStyle
Keyboard Percussion LK 58H 00H-01H O0H=0Off 01H=On
PK 5CH OOH-01H
Disable Disable 5FH OOH-01H OOH=Of 01H=On
Tremolo Tremolo 60H 00H-01 H 00H =Chorus 01H= Tremolo
‚ 3. Model-Specific messages
* 1 The logical addition of the coupler value for ON of the following five settings: 01-16” (Upper only), 02-8°, 04-4', 08-2°, 10-ATT2 2/3 (Upper only).
Code Messages Transmitted Recognized
FOH, 43H, 70H, nnH, OOH, F7H Model ID Data O X
OOH, ....... (data) ......., F7H | Bulk Dump data X O
01H, Request-to-Send Voice Parameter data x O
02H Request-to-Receive Voice Parameter data x O
FOH, 43H, 70H, nnH, 10H, F7H Request-to-Send all RAM data x O
11H Request-to-Send Registration data X O
FOH, 43H, 70H, nnH, 20H, F7H Request-to-Receive all RAM data X O
21H Request-to-Receive Registration data X O
“nnH” can be sentireceived by using $40.
4, Electone/Single Keyboard common messages
Code Messages Transmitted | Recognized
FOH, 43H, 73H, 01H, 02H, F7H Request for Internal Synchronous mode x O
O3H Request for External Synchronous mode X Oo
I MIDI IMPLEMENTATION CHART
EL-15
Date: March 1, '92
Version: 1.1
Function Transmitted Recognized Remarks
Basic Channel Default 1 1 UK
2 2 LK
3 3 PK
16 16 CONTROL
Changes * * * * * * * * ok ok kkk * * * * * * * * * * * * *
Mode Default Mode 3 Mode 3
Messages X X
Altered * * * * + + + * * * * * * X
Note Number 36-96 * 36-96 * *
True Voice * * * * * + * * + + * * *
Velocity Note ON 9nH, v=1-127 9nH, v=1-127
Note OFF 9nH, v=0 9nH, v=0, 8nH
After Touch Key X X
Channel X X
Pitch Bend X X
Control Change 1 X X Modulation wheel
4 X X 2nd Expression pedal
11 O Ox** Expression pedal
64 X X Sustain
Program Change 0-4, 112-116 0-4, 112-116
32-44, 64-76 32-44, 64-76
48-60 48-60
Range * * * * * * * * * * * * * * * * * * * * + * * + * *
System Exclusive O O
System Common Song Pos X X
Song Sel X X
Tune X X
System Real Time Clock O O * * *
Commands O O FAH, FCH
Aux Messages Local ON/OFF x X
All Notes OFF X X
Active Sense O O
Reset X X
Notes * CH1: 53-96, CH2: 41-84, CH3: 36-48
* * CH15 only: 36-127, Others: 36-96
* * + Recognized only in External mode
Mode 1: OMNI ON, POLY
Mode 3: OMNI OFF, POLY
Mode 2: OMNI ON, MONO
Mode 4: OMNI OFF, MONO
O: YES
x: NO
50
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
