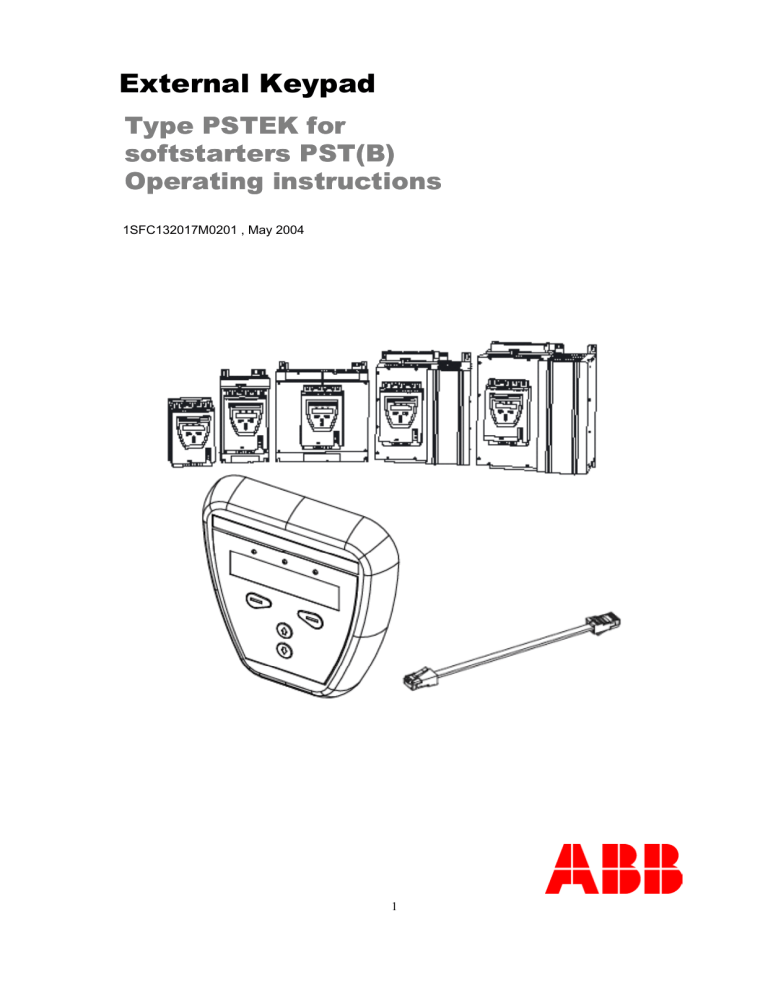

External Keypad

External Keypad
External Keypad
Type PSTEK for
softstarters PST(B)
Operating instructions
1SFC132017M0201 , May 2004
1
Contents
Chapter
Page
External keypad type PSTEK
2
Transferring of parameters
3
Technical data
4
External keypad type PSTEK
This instruction covers the usage of the external
keypad PSTEK for door mounting. It is an
optional extended Human Machine Interface
(HMI) suitable for PST and PSTB softstarters.
The kit includes all needed material for panel
mounting, three screws, drilling plan and a
3-meter // 9,8 feet cable handling both the serial
communication and power supply to the keypad.
The external keypad can also be used for
transferring parameters from one softstarter to
another during commissioning (temporarily
handheld). Note that IP66 cannot be achieved
when the keypad is not mounted.
When the external keypad is used, both keypads
will work in parallel but the softstarter keypad
has always the highest priority if the keys on
both units are pressed simultaneously.
For mounting– see the “Installation instruction”
enclosed with the keypad.
2
Transferring of parameters
To transfer(copy) parameters from one
softstarter to another, connect the keypad to
the chosen softstarter and follow the
sequence below.
Uploading of parameters
Enter the menu Transfer par . Select
To Keypad and confirm by pressing Select.
A text Load to keypad will be displayed.
Continue by pressing Execute and then Yes
when the text Are you sure is displayed.
Transfer OK will now be displayed if the
transmission was successful, otherwise
Transfer NOT OK.
Downloading of parameters
To download the parameters, connect the
keypad to the chosen softstarter and select
To Starter. A text Load to Start will be
displayed. Continue by pressing Execute and
then Yes when the text Are you sure is
displayed. Transfer OK will now be
displayed if the transmission was successful,
otherwise Transfer NOT OK.
Set the parameter Setting Ie and confirm by
pressing Next.
Menu
The parameters in the menu Service Settings
will not be transferred.
How to operate the keypad, see Chapter 6
“Human-Machine Interface (HMI)” in the
“Installation and commissioning manual”
enclosed with the softstarter.
W
NE
Transfer par
3
Technical data
Display
20 segment LCD
Signal indications LED’s
Power on
Protection
Fault
Green
Yellow
Red
Keys
2 for selection and 2 for navigation
Degree of protection
IP66 (when fixed mounted)
Marine approvals
Lloyds (pending)
Ambient temperatures
During operation
During storage
0…50 Degree C // 32…122 Degree F
-25….70 Degree C // -13…158 Degree F
Weight
0,4 Kg // 0,9 Ib
UL approval
UL type 1, UL type 4X Indoor (Pending)
ABB Automation Technologies AB,
CEWE - Control
S-721 61 Västerås, SWEDEN
Telephone
+46 21 32 07 00
TELEFAX
+46 21 12 60 01
4
