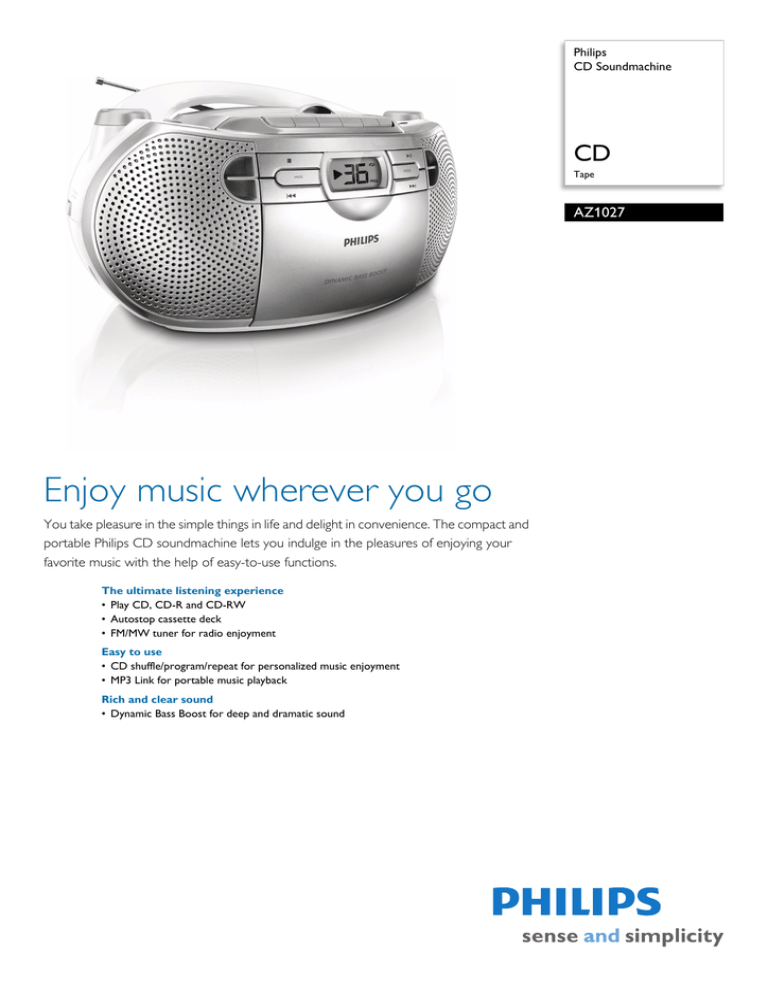

Philips AZ1027/73 Datasheet

Philips AZ1027/73 Datasheet
CD Soundmachine
Enjoy music wherever you go
You take pleasure in the simple things in life and delight in convenience. The compact and
portable Philips CD soundmachine lets you indulge in the pleasures of enjoying your
favorite music with the help of easy-to-use functions.
The ultimate listening experience
• Play CD, CD-R and CD-RW
• Autostop cassette deck
• FM/MW tuner for radio enjoyment
Easy to use
• CD shuffle/program/repeat for personalized music enjoyment
• MP3 Link for portable music playback
Rich and clear sound
• Dynamic Bass Boost for deep and dramatic sound
CD Soundmachine
CD Tape
Play CD, CD-R and CD-RW
CD shuffle/program/repeat
also extremely convenient as all you have to do
is to plug your portable MP3 player to the
audio system.
FM/MW tuner
Philips is known for making products which are
compatible with many discs available in the
market. This audio system lets you enjoy music
from CD,CD-R and CD-RW. A singe CD can
store up to 10 hours of music. CD-RW (CDRewritable Compatible) means that your audio
system can play both CD-Recordable (CD-R)
and CD-Rewritable (CD-RW) discs. CD-R
discs are recordable once and can be played on
any audio CD player while CD-RW discs can
be recorded and rewritten multiple times and
can only be played back on compatible audio
CD players.
The "Shuffle/Program/Repeat" function helps
you to get rid of the boredom of hearing your
music played in the same order all the time.
After loading your favorite songs to the player,
all you have to do is to select one of the modes
- "Shuffle", "Program" or "Repeat" for your
tunes to be played in different modes order.
Enjoy the different and unique music
experience every time you hook up to your
FM/MW (AM) stereo tuner
Dynamic Bass Boost
MP3 Link
Autostop cassette deck
Autostop cassette deck
The MP3 link connectivity allows direct
playback of MP3 content from portable media
players. Besides the benefit of enjoying your
favorite music in the superior sound quality
delivered by the audio system, the MP3 link is
Dynamic Bass Boost maximizes your music
enjoyment by emphasizing the bass content of
the music throughout the range of volume
settings - from low to high – at the touch of a
button! Bottom-end bass frequencies usually
get lost when the volume is set at a low level.
To counteract this, Dynamic Bass Boost can be
switched on to boost bass levels, so you can
enjoy consistent sound even when you turn
down the volume.
CD Soundmachine
CD Tape
Audio playback
• Playback media: CD, CD-R, CD-RW
• Disc playback modes: fast forward/backward, next/
previous track search, repeat/shuffle/program
• Number of decks: 1
• Cassette deck technology: mechanical
• Tuner bands: FM, MW
• Antenna: FM antenna
Sound enhancement: Dynamic Bass Boost
Sound system: stereo
Volume control: rotary (analogue)
Output power: 2 x 1 W RMS
• No. of built-in speakers: 2
• Speaker grille finishing: metal
Audio recording
• Tape recording enhancement: CD synchro start
• Recording media: tape
• Loader type: top
• Display type: LCD display
• MP3 Link: 3.5mm stereo line in
Battery type: C size (LR14)
Battery voltage: 1.5 V
Power supply: 220 - 240 V
Number of batteries: 6
• Cables/Connection: power cord
• Others: User Manual
• Warranty: Warranty Certificate
Gross weight: 2.4 kg
Packaging depth: 175 mm
Packaging height: 275 mm
Packaging width: 320 mm
Weight: 1.8 kg
Main unit depth: 243 mm
Main unit height: 146 mm
Main unit width: 291 mm
Issue date 2011-01-06
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 1.0.2
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 52709
EAN: 87 12581 48365 4
