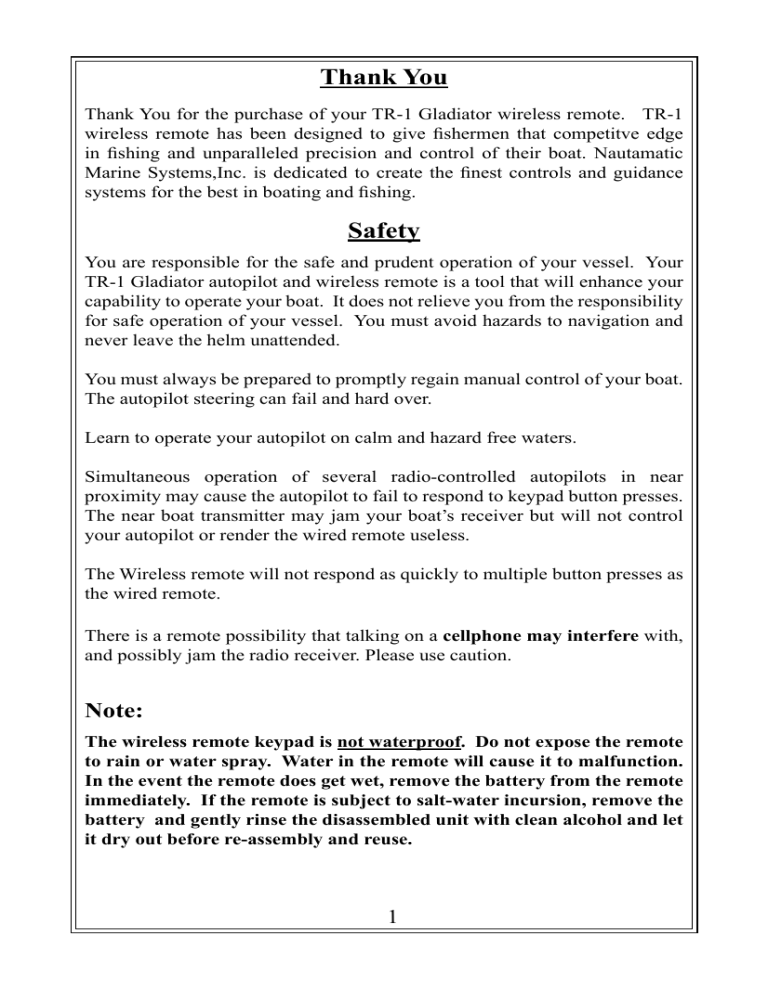

Thank You
Thank You for the purchase of your TR-1 Gladiator wireless remote. TR-1
wireless remote has been designed to give fishermen that competitve edge
in fishing and unparalleled precision and control of their boat. Nautamatic
Marine Systems,Inc. is dedicated to create the finest controls and guidance
systems for the best in boating and fishing.
Safety
You are responsible for the safe and prudent operation of your vessel. Your
TR-1 Gladiator autopilot and wireless remote is a tool that will enhance your
capability to operate your boat. It does not relieve you from the responsibility
for safe operation of your vessel. You must avoid hazards to navigation and
never leave the helm unattended.
You must always be prepared to promptly regain manual control of your boat.
The autopilot steering can fail and hard over.
Learn to operate your autopilot on calm and hazard free waters.
Simultaneous operation of several radio-controlled autopilots in near
proximity may cause the autopilot to fail to respond to keypad button presses.
The near boat transmitter may jam your boat’s receiver but will not control
your autopilot or render the wired remote useless.
The Wireless remote will not respond as quickly to multiple button presses as
the wired remote.
There is a remote possibility that talking on a cellphone may interfere with,
and possibly jam the radio receiver. Please use caution.
Note:
The wireless remote keypad is not waterproof. Do not expose the remote
to rain or water spray. Water in the remote will cause it to malfunction.
In the event the remote does get wet, remove the battery from the remote
immediately. If the remote is subject to salt-water incursion, remove the
battery and gently rinse the disassembled unit with clean alcohol and let
it dry out before re-assembly and reuse.
1
Wireless Kit Complete 120-2400-02
Item
Description
Part #
Qty.
1
2
3
120-2420-02
4
9
8
7
Wireless keypad transmitter
Neck Lanyard
Antenna
Antenna Base
#4-40 x 3/8 Php Screw
Receiver/cable assembly
#4-40 x 1 Oval head Screw
#4 x 1 Php Sheet Metal Screw
#4-40 x 1 Php Screw
2
1
1
1
1
1
2
2
2
6
10
#4 x 1 Oval Head Sheet Metal Screw
#4-40 Nut
310-0172-16
2
305-2401-00
240-2452-00
340-2451-00
310-0072-03
130-2410-00
310-0104-16
310-0072-13
310-0004-16
310-0041-02
2
4
Introduction
Thank you for purchasing this accessory for your TR-1 Autopilot.
Please read and understand this manual before installing and operating
this system.
The TR-1 wireless remote control is an add on system that provides
the two most often used functions of the standard TR-1 wired remote
in a compact wireless form. (Note: The wireless does not replace your
existing handheld. You will still need your wired handheld to tune your
autopilot or use the other functions of the autopilot.)
Keypad push-button functions
The buttons on the wireless keypad correspond to buttons on the wired
remote as indicated in the pictures below.
Left Straight
Arrow
(Turn Button)
Right Straight
Arrow
(Turn Button)
Left Straight
Arrow
(Turn Button)
3
Right Straight
Arrow
(Turn Button)
Installation Considerations
When installing the wireless remote system: 1) Mount the receiver
box and antenna away from sources of electronic interference such
as the autopilot hydraulic pump and the engines ignition systems. 2)
Mount the antenna in free space and in a direct line of sight to where
the keypad transmitter is expected to be used. Do not mount the
antenna in a corner or behind a bulkhead that may reflect or absorb
the radio signal from the remote.
Choose the locations for mounting the receiver and antenna such that
the cable lengths allow for proper connections. You may want to
temporarily mount the components with tape or tie-wraps and try out
system operation before hard mounting any parts.
Installation
1. Mount the receiver box. Use the screws provided, or use wire ties.
2. Mount the antenna using the screws provided.
3. Unplug the wired remote from the ECU wire #3, and plug in the
wire coming from the receiver box unit. See Fig.1
4. Plug the wired handheld into the second wire stub from the
receiver. See Fig.2
See Layout on
page 5.
Fig.1
Fig.2
4
Connect wire
To Connection
#3 At ECU
Connector
Wireless
Receiver
Installation Diagram
Electronic Control
Unit
Antenna
Handheld
(Wired)
5
Security Codes
Each keypad transmitter transmits its own unique identification
code when a button is pressed. The receiver computer must
be programmed to recognize your transmitter. Program the
receiver/transmitter pair by:
1) Turn the TR-1 Autopilot on.
2) Watch the LED on the receiver box, when it starts blinkingpress any button on the wireless keypad until the LED stops
blinking.
You will need to do this (once) anytime you change keypads.
Replacement Remote Keypads
You may purchase replacements by calling Nautamatic Marine
Systems, Inc.
1-800-588-7655
Inside the back cover of your keypad is written a 3 Character
code. This code is the security code that your receiver has been
trained to respond to. If you would like to keep this code, tell
the sales representative at the factory the code digits when you
order your new keypad. If you do not care about the code,
you will be sent a keypad with a randomly assigned code. You
can, of course, reprogram your receiver to recognize the new
keypad when you take it to your boat.
6
Changing Batteries
When the remote control system starts to respond erratically, the keypad remote may need battery replacement.
The wireless remote keypad is powered by a CR-2032 Button Lithium Cell Battery.
To access the battery for replacement, gently pry apart the two halves
of the keypad at the seam (fingernails will do for this) Once the unit
is open, remove the battery by sliding the battery out from beneath the
retainer. Replace with the same type of battery.
Battery
Caution:
The wireless remote keypad is not waterproof. Do not expose
the remote to rain or water spray. Water in the remote will
cause it to malfunction. In the event the remote does get
wet, remove the battery from the remote immediately. If
the remote is subject to salt-water incursion, remove the
battery and gently rinse the disassembled unit with clean
alcohol and let it dry out before re-assembly and reuse.
7
Nautamatic Marine Systems, Inc (NMSI)
Limited Warranty
Wireless
Nautamatic Marine Systems, Inc. or TR-1 Autopilots (collectively referred to as “The Warrantor”) will repair this product
with new or refurbished parts, free of charge, in the USA from the date of original purchase in the event of a defect in material or workmanship as follows:
For one (1) Year-Receiver/cable assembly and Antenna only
Wireless Keypad Transmitter has no warranty expressed or implied other than out of box failure.
You must report this out of box failure within seven (7) of purchase.
Batteries are not warranted.
For assistance in the USA or Canada in obtaining repairs contact:
Nautamatic Marine Systems, Inc.
3248 SE Ferry Slip Road
South Beach, OR 97366
Office:(541) 867-6751
Fax: (541) 867-6754
1-800-588-7655
If repair is needed, during the warranty period the purchaser will be required to furnish a sales receipt/proof of purchase
indicating date of purchase.
Also, the purchaser will be responsible for shipping the unit to the above address, also will be responsible for shipping
costs to return the repaired unit to the customer.
This warranty only covers failures due to defects in materials or workmanship which occur during normal use and does
not cover damage which occurs in shipment or failures which are caused by accident, misuse, abuse, neglect, mishandling, misapplication, faulty installation, improper maintenance, alteration, set-up adjustments, inadequate signal pick-up,
modification, power surge, commercial use of the product, water damage, or damage that is attributable to acts of God, or
service by anyone other than a NMSI factory service. This warranty does not apply to any damage to the NMSI product that
is the result of rust or corrosion. This warranty does not cover any NMSI product that has been altered or modified so as to
adversely affect its operation, performance of durability, or that has been altered or modified to change its intended use, This
warranty does not extend to repairs made necessary by normal wear or by the use of other parts or accessories, which in the
reasonable judgment of NMSI are either incompatible with the NMSI product or adversely affect its operation, Performance,
durability, or that has been altered or modified to change its intended use.
NMSI obligation under this warranty is strictly and exclusively limited to the repair or replacement of defective parts, and
NMSI does not assume or authorize anyone to assume for them any other obligation.
NMSI reserves the right to change or improve the design of any NMSI product without assuming any obligation to
modify any NMSI product previously manufactured.
Limits and Exclusions
NMSI assumes no responsibility for incidental, consequential or other damages, including, but not limited to expense for
gasoline, expense of transporting the NMSI product to an authorized dealer and expense of returning the NMSI product to
the owner, removal of the NMSI product from a boat and reinstallation, mechanics travel time, telephone, trailering or towing charges, rental of like product during the time warranty service is being performed, travel, lodging, loss of or damage to
person or property, loss of revenue, loss of use of the NMSI product, loss of time or inconvenience.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long
an implied warranty lasts, so the above exclusions or limitations may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
In the event that a warranty claim is required outside the continental United States or Canada, with the exception of
Alaska or Hawaii, there may be additional charges not covered under warranty based on local practices and conditions,
such as but not limited to, freight, insurance, taxes, license fees, import duties, any and all other financial charges, including
those levied by governments, states, territories and their respective agencies, which will be the responsibility of the retail
purchaser.
