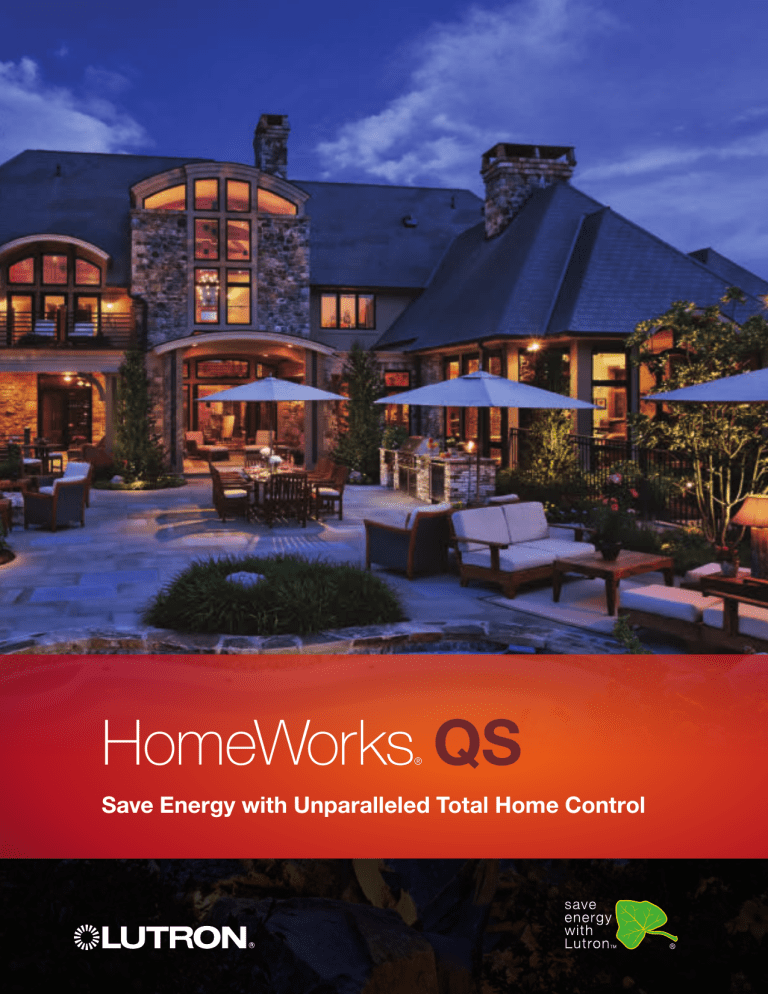

HomeWorks

®

QS

Save Energy with Unparalleled Total Home Control

Discover Total Home Control

Ideal for existing homes or new construction, HomeWorks

®

QS provides sophisticated control of your surroundings, every hour of the day.

HomeWorks QS,

designed for exclusive homes, seamlessly integrates the control of electric light and daylight, as well as integrates with audio/visual, security, and HVAC systems. And it does all of that while saving energy.

When you choose HomeWorks QS, you’re not only investing in a system that will redefine your way of living—you’re also making a conscious choice to lessen your impact on the environment.

We believe total home control can set the mood for a better life.

Let us show you how.

Light Control

Create just the right light for any activity or set moods in specific areas of your home—all at the touch of a button.

Shade Control

Use the sun to your advantage with automated shades. Convert harsh glare into soft, pleasing light, while preserving your view.

Temperature Control

Adjust heating or cooling systems any time of day, even while you’re away from home.

Appliance Control

Conveniently turn off standby power to small appliances, such as audio/visual equipment and computers.

Audio/Visual Control

Control audio/visual equipment from one convenient location.

Energy Control

Save energy throughout your home without sacrificing comfort or convenience.

Lutron

|

01

Experience the Benefits Room by Room

By customizing the system for the way you live, you’ll find the unmatched energy savings, convenience, ambiance, and security that comes with total home control.

Entry,

page 04

Save energy by setting back the temperature and lowering lights before you leave for the day. When you come home, brighten exterior lights with a single button touch.

Kitchen,

page 06

Use the “Energy” button on the dynamic keypad to dim lights, lower shades, and adjust temperature. Or adjust lights and shades to set the mood for a quiet dinner.

Butler’s Pantry,

page 08

Dim lights to save energy and create an atmosphere for entertaining. With HomeWorks

®

QS you can dim all types of lighting, including energy-saving LEDs and compact fluorescents (CFLs).

Breakfast Nook,

page 10

Conserve energy with automated shades while also increasing privacy and enhancing security.

Family Room,

page 12

Use temperature control to help save on heating and cooling costs throughout your home.

02

|

Lutron

04

|

Benefits of HomeWorks

®

QS Room by Room

24

|

Shade Styles and Fabrics

26

|

Control Styles and Colors

31

|

Glossary of Energy-saving Solutions

Wine Cellar,

page 14

Use the “All Off” button to ensure all lights in a room are off after an evening spent with friends. Create a lighting scene for specific events, such as hosting a wine tasting.

Great Room,

page 16

Integration with products such as an iPhone

®

mean you can adjust lights and shades—and save energy—even when you’re not home. With integration you can also conveniently control audio/visual equipment.

Bedroom,

page 18

Turn all of your house lights off with a single button touch from the comfort of your bed. You can create the ideal light for reading or watching TV, too.

Bathroom,

page 20

An occupancy/vacancy sensor automatically turns lights off when you leave the room, saving energy.

Other controls, such as dimmers and shades, let you create soft or task lighting, depending on your needs.

Terrace,

page 22

Dim outdoor lights for grilling or relaxing in your hot tub— and save energy—with a single button touch.

iPhone is a registered trademark of Apple

®

, Inc., registered in the U.S. and other countries.

coming home

Walking into a dark house is a thing of the past with HomeWorks

®

QS. When you arrive home in the evening all you’ll need to do is press a single button before you even get out of your car to brighten key entry points as well as specific exterior lights. You’ll always have a warm welcome home with HomeWorks QS.

04

|

Lutron

Use the “Away” button on a keypad to save energy by

setting back the temperature and adjusting lights and shades

when you won’t be home for a long period of time.

You can also save energy with the timeclock, which can

automatically dim landscape lighting

at night, and turn it off at sunrise.

Architectural seeTouch

®

keypad in

Bright Chrome

Energy-saving Solutions Used:

Dimming

Controllable window treatments

Temperature control

Scheduling

Lutron

|

05

in your kitchen

Your kitchen is the heart of your home. It’s the place where you start your day with an espresso and the morning paper or create your signature dish.

Here, you can brighten recessed ceiling fixtures and under-cabinet lights for cooking, then adjust island lights to a more subdued setting for dining.

06

|

Lutron

Rather than having six switches lined up on a wall,

eliminate wall clutter

with the dynamic keypad. Use it to adjust lights, shades,

HVAC, and audio/visual equipment from one convenient location. And with one touch of the “Energy” button, you can dim lights, lower shades, and reduce heating or cooling.

Dynamic keypad in White

Energy-saving Solutions Used:

Dimming

Controllable window treatments

Temperature control

“Energy” button

Lutron

|

07

in your butler’s pantry

Attention to detail is a must when getting ready for a party. Brighten lights in your work area while you prepare drinks and hors d’oeuvres, while keeping lights dim in other rooms until your guests arrive.

08

|

Lutron

Accessories such as receptacles, phone, and cable jacks come in a range of colors including warm earth tones, so it’s easy to

complement any room’s aesthetics.

Keypads are also available in the same color palettes.

And because you can dim all types of lighting with HomeWorks

®

QS, including energy-saving

LEDs and CFLs, you can create ambiance no matter what types of bulbs you use.

Maestro

®

dimmer in Desert Stone

Energy-saving Solutions Used:

High-efficacy light control

Lutron

|

09

in your breakfast nook

Being able to create varying levels and layers of light allows you to give each room—or spaces within larger rooms, such as your breakfast nook—its own look and feel. Having layers of light also allows you to showcase interior design— highlight artwork, architectural details, collections, or specific pieces of furniture.

10

|

Lutron

Automated shades are a convenient way of adding layers of light to a room, too, as well as an effortless way to conserve energy. Shades help

lower cooling costs in summer and heating costs in winter

, and can adjust based on natural light levels when used with the Radio Window

sensor.

Shades also help protect furnishings from harmful UV rays. (Our custom-made window treatments are available in a variety of styles, fabrics, and woven woods.)

Architectural seeTouch

®

keypad in

Antique Brass

Energy-saving Solutions Used:

Controllable window treatments

Radio Window sensor

Lutron

|

11

in your family room

Being able to adjust light is also about increasing your comfort level. Too much sunlight during the height of the day can be harsh and glaring. With one button press, you can lower shades to block the sun’s rays, while preserving the view outdoors.

12

|

Lutron

You can also have your shades programmed to adjust their height based on the time of day, so they’re always at the appropriate height to either let the sun in or block it out.

The perfect complement to light and shade control, temperature control helps you

save on heating and cooling costs.

Architectural seeTouch

®

keypad and seeTemp

®

wall control in Black

Energy-saving Solutions Used:

Controllable window treatments

Temperature control

Lutron

|

13

in your wine cellar

If your wine cellar is one of the main architectural features in your home, you’ll want to accentuate it with outstanding lighting. Press a button on the keypad located on the exterior of the room, then enter as the lights gradually rise, casting a warm glow and highlighting your extensive collection.

14

|

Lutron

Presentation matters.

You can create “scenes” with HomeWorks

®

QS—preset light and shade levels that you can recall at the touch of a button.

For example, press the “Tasting” button on your keypad, and lights and shades will adjust to create a presentation that’s every bit as exciting as the wine selection.

When the evening winds down, press the “All Off” button to ensure no lights are left on during the night.

Signature Series

seeTouch keypad in Antique Brass

®

Energy-saving Solutions Used:

“All Off” button

Lutron

|

15

in your great room

Your great room is the setting for enjoying the latest film noir, serving drinks before dinner, or shooting a round of pool on your custom-made table. Here, integrating

HomeWorks

®

QS with your entertainment system means you can conveniently control audio/visual equipment—and even your fireplace—with a button press.

16

|

Lutron

Integrate HomeWorks

®

QS with your

Android

, iPhone

®

, iPod touch

®

, or iPad

®

, and you can

easily check the status of your lights, shades, and HVAC

when you’re away from your home. Having total home control when you’re out of town or simply out for an evening provides a hassle-free way to save energy—from anywhere.

Energy-saving Solutions Used:

Dimming

Controllable window treatments

Temperature control iPhone, iPod touch, and iPad are trademarks of Apple

®

,

Inc., registered in the U.S. and other countries.

Android is a trademark of Google Inc.

Use of this trademark is subject to

Google Permissions.

Lutron

|

17

in your bedroom

The best way to start your morning is by waking up to a soft, gentle light.

What makes your morning even better is that you don’t have to get out of bed to control that light. With a HomeWorks

®

QS tabletop keypad on a bedside table, you can adjust lights—and shades—from the comfort of your bed.

18

|

Lutron

Before you retire for the night,

turn all the house lights off

with the “Goodnight” button. Not only can you control the lights that surround you, but also the lights halfway across your house—so you can rest assured no lights are left on, wasting energy.

And with an appliance control, you can completely turn off standby power to your

TV—which also wastes energy.

RF seeTouch

®

tabletop keypad in

Midnight

Energy-saving Solutions Used:

Appliance control

“All Off” button

Lutron

|

19

in your bathroom

Controls in your bathroom give you the ability to create a spa-like atmosphere—the perfect setting for a soothing shower or for softening the transition into your morning routine.

20

|

Lutron

A dimmer paired with an occupancy/ vacancy sensor is ideal for rooms where lights are often inadvertently left on, such as a bathroom. With a dimmer you can set the lights to turn on at a specific level and then adjust them accordingly. The sensor automatically turns lights on when you enter the room, then

turns them off when you leave.

GRAFIK T

dimmer in Clear Glass

Energy-saving Solutions Used:

GRAFIK T dimmer

Occupancy sensing

Lutron

|

21

on your terrace

Your terrace is simply an extension of the interior of your home—the place where you go to slow down and live in the moment. All the more reason the lighting in this area should be as versatile as it is in your interior rooms. Adjust lights for grilling on a warm summer evening or relaxing next to your firepit on cooler nights. Accent foundation plantings and water features, such as fountains.

22

|

Lutron

Carry the Pico

®

wireless control

with you for a convenient way to dim exterior lights, or create pathways of light throughout your property for increased safety and security—all with one touch.

4-button Pico wireless control with custom engraving in White

Energy-saving Solutions Used:

Dimming

Lutron

|

23

Shade Styles and Fabrics

Choose from roller, honeycomb, pleated, tensioned, and Roman shades,

Venetian and horizontal sheer blinds, and drapery systems.

Roller Shades

Our roller shades complement both traditional and contemporary designs and are available in different sizes to accommodate the needs of any room.

(Battery-powered options are available.)

Honeycomb Shades

Honeycomb shades add luxury to a space with their elegant textures, as well as depth, thanks to their cellular design—which also provides superior insulation.

(Battery-powered options are available.)

Pleated Shades

Pleated shades are a beautiful window treatment that gives a pleated form to roller shade fabric. These shades provide added dimension to a room with crisp, Z-shaped pleats.

Roman Shades with

CERUS

®

Safety Technology

Our Roman shades with CERUS (Cord Eliminating Roman Uptake

System) safety technology allow for more reliable, smoother, and virtually silent shade movement. CERUS eliminates the hazard posed to children by exposed inner cords.

24

|

Lutron

Our custom-made window treatments are available in a variety of fabrics, including sheer, translucent, blackout, and soft fabrics. We also offer woven woods (for Roman shades) and painted or stained wood, aluminum, or leather-wrapped (for Venetian blinds). In addition, we can make shades from your own material.

Venetian Blinds with Independent Lift and Tilt

Venetian blinds are an attractive and effective way to ensure privacy, while still allowing sunlight to filter into a space. Only

Lutron Venetians with Independent Lift and Tilt can offer precision alignment of both tilt and lift position between multiple shades.

Horizontal Sheer Blinds

These shades pair the soft elegance of a sheer with the precise control of a blind. Sheer layers also offer privacy, even when vanes are open.

Drapery Systems

Choose from traditional pinch pleat or ripplefold draperies or the Kirbé

®

vertical drapery system, which smoothly pulls fabric up and completely out of the way.

Tensioned Shades

Our tensioned shades provide solutions for skylights and angled windows. They reduce light gaps around fabric and maximize the view when opened by eliminating cable guides that are typical in skylight shades.

All shades provide quiet control and precise alignment.

Lutron

|

25

Control Styles and Colors

You can choose keypad colors and styles to complement a room’s look and feel, and to coordinate with the overall design of your home.

Keypad Button Configurations

All configurations are available in Architectural keypads with insert, Architectural keypads without an insert (shown below), and Designer keypads.

Style Options

Architectural

Square corners

Available in glass, architectural metal, and architectural matte faceplates (see page 27)

GRAFIK T

dimmer is also available in Satin Colors faceplates (see page 28)

®

Designer

Round corners

Available in designer gloss and

Satin Colors faceplates (see page 28)

Architectural seeTouch

®

keypads without insert (left) and with insert (right)

Designer seeTouch keypad

Maestro

® dimmer

Signature

Series

keypad

26

|

Lutron

Architrave

™ keypad*

GRAFIK T dimmer*

* Cannot be ganged with other architectural-style keypads

Grafik T cannot be ganged with other architectural-style keypads

Please note that colors and finishes are representative and not exact matches. To order a color sample please call Lutron Customer Service at 1.888.LUTRON1.

Glass Faceplates

Add drama and another level of dimension to a room with glass faceplates.

The translucence of the glass captures light, creating an elegant visual impact.

Glass

Clear Glass

Green Glapss**

** Not available for GRAFIK T

dimmer

Architectural Metals

Bright Brass (BB)

Satin Brass (SB)

Bright Chrome (BC)

Satin Chrome (SC)

Bright Nickel (BN)

Satin Nickel (SN)

Gold Plated (AU)

Antique Bronze (QZ)

Antique Brass (QB)

Clear Anodized

Aluminum (CLA)

Brass Anodized

Aluminum (BRA)

Black Anodized

Aluminum (BLA)

Architectural Matte

White (WH)

Light Almond (LA)

Almond (AL)

Beige (BE)

Ivory (IV)

Taupe (TP)

Gray (GR)

Sienna (SI)

Brown (BR)

Black (BL)

Lutron

|

27

Grafik T cannot be ganged with other architectural-style keypads

Control Styles and Colors

Designer Gloss*

White (WH)

Light Almond (LA)

Almond (AL)

Ivory (IV)

Gray (GR)

Brown (BR)

Black (BL)

* Not available for GRAFIK T

dimmer

Satin Colors

®

Snow (SN)

Biscuit (BI)

Eggshell (ES)

Limestone (LS)

Goldstone (GS)

Desert Stone (DS)

Stone (ST)

Mocha Stone (MS)

Bluestone (BG)

Greenbriar (GB)

Terracotta (TC)

Palladium (PD)

Taupe (TP)

Turquoise (TQ)

Plum (PL)

Hot (HT)

Merlot (MR)

Sienna (SI)

Midnight (MN)

Stainless Steel (SS) faceplate only

28

|

Lutron

glossary

Energy-saving Solutions

Dimming

incandescent or halogen bulbs by 25% saves 20% electricity. Dim more and you’ll save even more.

Full On Dim

LEDs and CFLs

already use less energy than standard bulbs, so dimming these highly efficient bulbs saves additional energy.

Full On Dim

Occupancy sensing

turns lights and standby power from electronic appliances off when a person leaves the space.

Occupied: On Vacant: Off

Controllable window treatments

reduce heating costs in winter and cooling costs in summer.

Shade Open Shade Closed

Temperature control

automatically sets back the temperature when heating or cooling a room, so you use less energy.

Raise Temp Lower Temp

Appliance control

turns off standby power to electronic appliances when you’re not using them.

Appliance On Appliance Off

The

“All Off” button

turns all lights off with a single touch.

Scene 1

All Off

Lights On

Scene 1

All Off

All Lights Off

7am: Dim 7pm: Off kWh kWh

More Energy Less Energy

Scheduling

can dim or turn off lights and standby power from electronic appliances when they’re not needed, as well as set back the temperature when not as much heating or cooling is needed.

The

“Energy” button

reduces energy use from lights, shades, and heating/cooling systems with a single touch.

Lutron

|

29

The Lutron difference

Since Lutron’s inception over 50 years ago, we have developed a peerless reputation for quality and service—and for putting you, the customer, first.

Because we have the highest confidence in the quality of our products, we back HomeWorks

®

QS with an 8-year warranty. And our technical specialists are available 24 hours a day, seven days a week at 1.800.523.9466.

When you invest in Lutron, your light levels will always be constant, thanks to our patented RTISS

(Real Time Illumination Stability System). Our products are designed and rigorously tested to survive extreme electrical conditions, such as power surges and lightning strikes. And with Clear Connect

®

RF technology— our latest advancement in reliable radio frequency communication—

HomeWorks QS is suitable for existing homes or new construction.

We’re also committed to saving energy. Since 1961, we’ve been designing industry-leading technology that saves energy and reduces greenhouse gas emissions. No matter where our products are installed, they save energy by reducing electrical consumption. Taken as a whole, Lutron light controls save nearly 10 billion kWh of electricity a year, while also reducing CO

2

emissions.

We are proud to be the provider of light controls for the White House, the Statue of Liberty, the Guggenheim Museum in Spain, Louis Vuitton

Stores, and many others.

To learn more about our company and our products, please visit

www.lutron.com/homeworksqs

or call

1.888.LUTRON1

.

www.lutron.com

World Headquarters 1.610.282.3800

Technical Support 1.800.523.9466 (Available 24/7)

Customer Service 1.888.LUTRON1 (1.888.588.7661)

© 12/2014 Lutron Electronics Co., Inc.

I

P/N 367-2004 REV F

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
