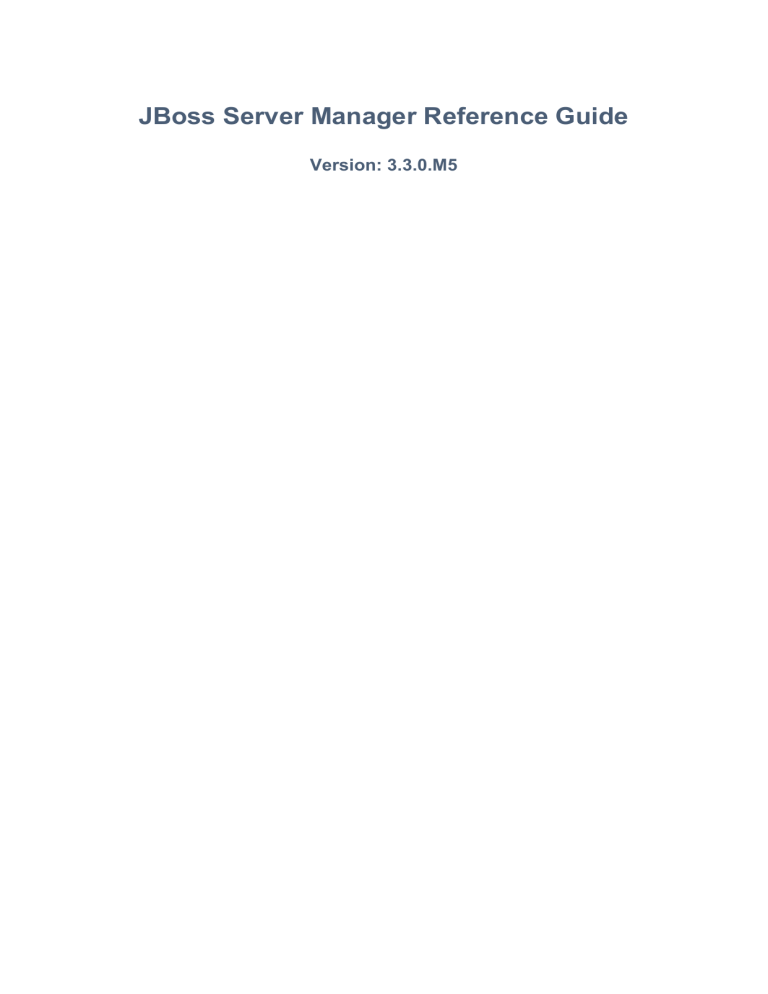

JBoss Server Manager Reference Guide

JBoss Server Manager Reference Guide

JBoss Server Manager Reference Guide

Version: 3.3.0.M5

1. Quick Start with JBoss Server .................................................................................... 1

1.1. Key Features of JBoss Server ............................................................................. 1

1.2. Starting JBoss Server ......................................................................................... 1

1.3. Stopping JBoss Server ........................................................................................ 2

1.4. Project Archiving ................................................................................................. 3

1.5. Deploying an Application to a Server ................................................................... 4

1.6. Publishing to JBoss Server ................................................................................. 8

2. Runtimes and Servers in the JBoss AS plugin .......................................................... 11

2.1. Runtimes .......................................................................................................... 11

2.1.1. Installing a new runtime .......................................................................... 11

2.1.2. Detecting an existing runtime .................................................................. 16

2.1.3. Duplicating a runtime configuration .......................................................... 23

2.2. Servers ............................................................................................................. 24

2.2.1. Creating a New Server ........................................................................... 25

3. JBoss Perspective ..................................................................................................... 29

3.1. The Servers view .............................................................................................. 29

3.1.1. Servers view Toolbar .............................................................................. 29

3.1.2. Servers view Structure ........................................................................... 30

3.1.3. Drag-n-Drop to Servers view ................................................................... 41

3.1.4. Server Log View .................................................................................... 42

3.1.5. Server Editor .......................................................................................... 43

3.1.6. Relevant Resources Links ...................................................................... 52

3.2. Project Archives View ....................................................................................... 52

3.2.1. Overview ............................................................................................... 53

3.2.2. Creating an Archive ................................................................................ 53

3.2.3. Archive Actions ...................................................................................... 62

3.2.4. Publishing to Server ............................................................................... 63

3.2.5. Relevant Resources Links ...................................................................... 64

4. Projects ...................................................................................................................... 65

4.1. Faceted Projects Overview ................................................................................ 65

4.2. Adding Facets to a Project ................................................................................ 65

4.3. Relevant Resources Links ................................................................................. 71

5. Deploying Modules .................................................................................................... 73

5.1. Deploying on the Package Explorer ................................................................... 73

5.1.1. Deploying with Run On Server Wizard ..................................................... 73

5.2. Deploying with Servers View ............................................................................. 74

5.2.1. Top part of Servers view ........................................................................ 75

5.2.2. Bottom part of Servers view .................................................................... 75

5.3. Deploying with Project Archives View ................................................................. 76

6. TPTP Support ............................................................................................................ 79

6.1. TPTP Profiling .................................................................................................. 79

6.2. Relevant Resources Links ................................................................................. 80

iii

iv

Chapter 1.

Quick Start with JBoss Server

This chapter covers the basics of working with the JBoss Server.

1.1. Key Features of JBoss Server

The table below lists the main features included in JBoss Server:

Table 1.1. Key Functionality for JBoss AS and Archive Tools

Feature

JBoss AS plugin

Benefit Chapter

Using WTP the JBoss AS plugin allows you to work with the server in run or debug mode. You can easily install runtimes and servers, copy the existing runtime configuration or configure it up to your needs.

Runtimes and servers

JBoss AS

Perspective

It provides easy management of an installed

JBoss Server and includes the standard

Console and Properties views and the specially added Project archives and Servers views.

JBoss AS perspective

Modules Deployment Provides a number of ways, using WTP and

JBoss Tools, to deploy either a project or a single file on the server.

Deploying modules

If you already have installed the JBoss server and runtime this document will show you how to configure, start and stop the server, as well as the deployment and archiving processes. Installing runtimes and servers is covered in more detail in

Chapter 2, Runtimes and Servers in the JBoss

AS plugin

.

To start working with JBoss AS, select the JBoss AS Perspective via Window

Show View

Other

Server

Servers.

1.2. Starting JBoss Server

Starting JBoss Server ™ is quite simple. You can control the server behavior with the help of a special toolbar in the Servers view where you can start it in a regular or debug mode, stop or

restart it and publish to the server.

1

Chapter 1. Quick Start with J...

Figure 1.1. Servers Toolbar

To launch the server click the green-with-white-arrow icon on the Servers view or right click server name in this view and select Start. If this view is not open, select Window

Show View

Other

Server

Servers.

Figure 1.2. Start JBoss Server

1.3. Stopping JBoss Server

To stop the server, click the Stop icon in the Servers view or right click the server name and select the Stop option.

Figure 1.3. Stop JBoss Server

When the server is stopped you will see Stopped state next to its name in the square brackets.

Learn more about the Servers view in

Section 3.1, “The Servers view”

.

2

Project Archiving

1.4. Project Archiving

JBoss Tools comes with our own archives tool. The Project Archives plugin consists primarily of a view to set up each packaging configuration (Window

Show View

Other

JBoss Tool

Project archives).

Right clicking in the Project archives view you can create a War, EJB War, EAR or JAR archive.

Figure 1.4. Archive Creating

Using the context menu on the item you can initiate a full build on an archive, edit,delete or publish it.

Figure 1.5. Context Menu on the Item

If you wish, you can assign a hotkey for the Build Project Archive action. A key binding can be added by selecting Window

Preferences

General

Keys.

3

Chapter 1. Quick Start with J...

4

Figure 1.6. Setting the Hotkey for Build Project Archive Action

To build a project archive, select the project in the Package Explorer view and execute the hotkey combination you assigned for this action.

More information about the Project Archives view can be found in

Section 3.2, “Project Archives

View”

.

1.5. Deploying an Application to a Server

There are two times to deploy your application:

• While creating it

• After it already exists

When you create a new project (Seam, JSF or Struts) with the New Project or Import Project wizards, they will include the Target Runtime and Target Server sections. You can deploy the application through the appropriate configuration in these sections.

Deploying an Application to a Server

Figure 1.7. Runtime and Server Sections in the New Project Wizard

5

Chapter 1. Quick Start with J...

Figure 1.8. Runtime and Server Sections in the Import Project Wizard

You can deploy an existing application to a server by right-clicking the target defined server in the

Servers view and then selecting Add and Remove Projects from the context menu.

6

Deploying an Application to a Server

Figure 1.9. Add and Remove Projects From the Context Menu.

If this application is not assigned to a server, it will be in the left-hand available projects list. Clicking on the Add > button will add it to the right-hand configured projects list and deploy the application to this server.

7

Chapter 1. Quick Start with J...

8

Figure 1.10. Modifying The Projects that are Configured on the Server

Note

It is now possible to deploy OSGI (Open Services Gateway initiative framework) projects to the JBoss Enterprise Application Platform 6 or JBoss Application Server

7.

1.6. Publishing to JBoss Server

The publishing of all the modules added to a Server is performed automatically when starting a

Server.

Automatically publishing changes made to the workspace is enabled by default, allowing the workspace to remain in sync with the publish folder. If you need to control when to publish the changes, just disable the automatic publish in the

Server Editor (see

Section 3.1.5, “Server Editor”

) and use the Publish to Server

( button which will incrementally publish the workspace.

)

Publishing to JBoss Server

This section has provided some basic information that will allow you to use the common features provided by the JBoss server. However, JBoss server includes a great deal more functionality, which will be discussed in subsequent chapters.

9

10

Chapter 2.

Runtimes and Servers in the JBoss

AS plugin

In this chapter we will discuss how to install runtimes and servers.

First of all it is necessary to mention that the JBoss AS plugin makes use of WTP. This includes starting and stopping servers in run or debug mode. It also includes targeting WTP projects, such as Dynamic Web Projects, to certain server runtimes in order to ensure that the proper JARs from a specific server are added to the project's classpath properly.

In order to get started creating, running and debugging J2EE applications, we should create our runtime and server instances.

2.1. Runtimes

In JBoss Tools, the main purpose of Server Runtimes is to point to a server installation somewhere on disk. In our case, this will be a JBoss installation. It can then be used for two primary purposes:

• Providing classpath additions to WTP projects that require them.

• For JBoss server at least, it provides the necessary information to allow the server to be started and stopped and provides information on which JARs to run and which configuration to use.

2.1.1. Installing a new runtime

You can install runtimes into Eclipse by selecting Window

Preferences menu and then selecting Server

Runtime Environments from the categories available on the left.

11

Chapter 2. Runtimes and Serve...

Figure 2.1. Installed Runtimes

12

Installing a new runtime

From this preference page you can see all declared runtimes along with their types. Here, it is possible to edit or remove existing runtimes, as well as add a new one.

To create a JBoss runtime click the Add button and choose the appropriate type of runtime from the JBoss Community category.

Figure 2.2. Adding a Runtime

13

Chapter 2. Runtimes and Serve...

Note:

Now there is a separation between .org servers (the JBoss Community category) and product server that comes with JBoss EAP in JBDS ( the JBoss Enterprise

Middleware category).

As you can see, JBoss Tools ™ provide its own adapters such as JBoss 3.2, 4.0, 4.2 and

5.0 as well. The last one comes a new safer incremental deployment feature, which prevents partial deployments to be picked up by the server. It means that scanning for auto-deployment is suspended while files are being copied to the deployment location and resumed when the copy is completed.

Note:

We recommend you use a fully supported JBoss Enterprise 6.0 server adapter.

You will also note a Deploy-Only Runtime type. This type does not provide a classpath for WTP projects. It is used solely by it's server type for the purpose of setting up a deploy directory for users who do not wish to make use of starting, stopping, or debugging their projects inside Eclipse.

14

Installing a new runtime

Figure 2.3. Adding a JBoss 5.0 Runtime

The following table describes all the available options of the current wizard page.

Table 2.1. Server Runtime Wizard Parameters

Name

Name

Home directory

JRE

Directory

Description

The name of a new Runtime for a chosen server. We suggest that you do not leave the default value for this field. It is better to give descriptive names that will help to distinguish one runtime from another.

The path to a directory where the runtime is installed.

The Java Runtime Environment.

The path to a directory where the configurations are installed.

15

Chapter 2. Runtimes and Serve...

Name

Configuration

Description

The list of configurations (all, default, minimal), which is updated as soon as you browse to a valid runtime installation folder.

As a result of having each runtime represent a specific configuration rather than the server installation as a whole, it is very likely you will create several different runtimes to test each of your configurations. So it becomes important to ensure your runtimes and later your servers, are given descriptive names that help you to remember which is which.

Click the Finish button to see your new runtime in the list.

Note:

If you edit the configuration of a runtime, the changes don't affect the settings of the servers that currently use the runtime. To apply the changes to them also, you should double left click on the server, select Overview

Runtime Environment, make sure that necessary configuration is chosen, click the Finish button and then

Save button.

2.1.2. Detecting an existing runtime

JBoss Tools features the ability to search, detect and add existing JBoss server runtimes installed on your system. If you don't have an existing runtime you can download one through the Download option or

Section 2.1.1, “Installing a new runtime”

will guide you through the creation process. To begin searching for your existing JBoss runtime select Window

Preferences

JBoss Tools

JBoss Runtimes.

16

Detecting an existing runtime

Figure 2.4. Preference page for JBoss Runtimes

17

Chapter 2. Runtimes and Serve...

The JBoss Tools Runtimes preference page is split into two different sections. One section defines

Paths to be searched for installed server runtimes, the other section defines the runtime detectors available when the paths in the previous section are checked.

The Add button in the Paths section opens a file system browser window. Select the directory you wish to have recursively searched for JBoss runtimes. The directory will be searched and all found servers will be displayed as a list in the Searching for runtimes dialog. From the returned list, choose the runtimes you wish to make available by clicking the box beside each runtime and clicking the OK button.

Note

Server runtime detection now recognizes the ESB runtime distributed as part of the JBoss Service-Oriented Architecture Platform.

Figure 2.5. JBoss Runtime search results

The path you searched is now added to a list in the JBoss Tools Runtime Detection dialog

Paths section. All the paths in this section will be automatically searched when a new workspace is created. If you wish for a path to be searched on startup then check the checkbox in the Every

start column associated with it.

18

Detecting an existing runtime

Figure 2.6. JBoss Runtime search results

19

Chapter 2. Runtimes and Serve...

If you don't have a runtime already downloaded, you can download a free community application server through the Download button.

Important

No official support is available for community application servers (this includes enterprise customers using JBoss Developer Studio).

Clicking on the Download button will display a new screen of available runtimes that can be downloaded. Highlight the server you wish to download and install, and click the OK button.

Figure 2.7. JBoss Runtime search results

A new dialog will appear asking you to specify an Install folder and Download folder; the option to Delete archive after installing is checked by default. Once you have specified the two paths above, click the OK button and the server will begin downloading.

20

Detecting an existing runtime

Figure 2.8. JBoss Runtime search results

Once the server has been downloaded and installed, you will notice that the path to the new server now appears in the Paths section of the JBoss Tools Runtime Detection dialog.

21

Chapter 2. Runtimes and Serve...

Figure 2.9. JBoss Runtime search results

22

Duplicating a runtime configuration

2.1.3. Duplicating a runtime configuration

While installing a new runtime you can copy the configuration from the existing one. To do this you should perform all the steps in

Section 2.1.1, “Installing a new runtime”

, with the exception of clicking the Finish button in the New Server Runtime Environment menu.

Make sure that you browse to a valid runtime folder and can see the list of configurations (all, default, minimal) in the Configuration section. Then choose appropriate Configuration from the list and click the Copy button.The next dialog should appear.

Figure 2.10. Copy the existing configuration

Change the name, click the Browse button and select your configuration location or leave as it is if you want it to be located together with other runtime configurations.

Figure 2.11. Copy the existing configuration

23

Chapter 2. Runtimes and Serve...

Click the OK button and you should see the next wizard with the newly copied configuration.

Figure 2.12. Runtime with copied configuration

Click the Finish button and you will see your new runtime in the list.

You can also change the configuration of existing runtime to a copied one in the same way by selecting Window

Preferences

Server

Runtime Environments and clicking the Edit button.

2.2. Servers

WTP servers are Eclipse-representations of a back end server installation. They are used to start or stop servers, deploy to servers, or debug code that will run on the server. They keep track of the modules (JARs, WARs, etc) you deploy to the server and also allow you to undeploy those modules (see

Section 5.1.1, “Deploying with Run On Server Wizard”

).

24

Creating a New Server

Servers can be started or stopped via the Servers view in your workbench. They are often backed by a runtime object representing that server's location.

2.2.1. Creating a New Server

There are many ways to get to the new server wizard. One way is to select File

New

Other...

Server. This should show the wizard like below.

Figure 2.13. Adding a JBoss Server

25

Chapter 2. Runtimes and Serve...

A server object keeps track of the command line arguments when starting or stopping and the runtimes keep track of the location of the installation. This means that each server instance must be backed by an appropriate runtime.

The New server wizard allows you to name the server via the Server name field, or you can use a generated default name.

You can select the appropriate runtime from the Server runtime environment combo box. If there is no runtime that matches your needs, press the Add... link nearby to bring up the wizard for

creating a new runtime (see

Figure 2.3, “Adding a JBoss 5.0 Runtime”

). To configure an existing

runtime, go to server preferences by pressing the Configure runtime environments... link.

If the server you want to create does not have any installed runtime yet, the combobox and the links are absent.

Figure 2.14. Installed Server Runtime Environments

26

Creating a New Server

In this case the next page of the wizard which has the same form as in

the previous section

and

will ask you to create the associated runtime.

After targeting your server to a runtime, the final screen in this wizard presents a summary of the selected options, giving you a chance to verify that you have selected the appropriate runtime.

Figure 2.15. Installed Server Runtime Environments

Click the Finish button to complete the process of the server creation.

27

Chapter 2. Runtimes and Serve...

Now that we have created our runtimes and servers, we can explore the services and tools provided by the JBoss Server Manager.

Important

It is not recommended to run two servers on the same host, at the same time as you may experience a conflict in ports. If a server is already running on the same host a warning will appear indicating this and will ask if you wish to Set the server

adapter to 'started', but do not launch or Launch a new instance anyway

Figure 2.16. Multiple server adaptors warning

28

Chapter 3.

JBoss Perspective

This chapter describes how to manage installed JBoss Servers ™ via the JBoss Perspective.

The Servers view will primarily be discussed.

The view

3.1. The Servers view

The Servers view is built on the Common Navigator Framework allowing extensions and is using label decorators that make the UI compact enough without loosing the vital information.

Let's have a detailed look at the Servers view and its constituent components.

Figure 3.1. The Servers view

3.1.1. Servers view Toolbar

In the right top corner of the Servers view there is a special toolbar which provides a quick access for starting a server (in the debug mode, run mode, or profile mode), restarting a server, stopping a server and a publishing to a server.

Figure 3.2. The Servers view Toolbar

In order to debug your applications or EJB's that are deployed to the server, the server must be started in debug mode. By starting the server in debug mode, Eclipse will allow you to set breakpoints on code in your workspace and step through the code.

The Publish to the server button will republish any modules where it has determined that the workspace is out of synchronization with the server. It will attempt to do an incremental publish if the module in question is capable of doing one.

29

Chapter 3. JBoss Perspective

3.1.2. Servers view Structure

The Servers view displays all defined servers as well as their current status (that is whether they are started or stopped) in square brackets next to the server name.

Figure 3.3. The Servers view

The following table lists possible server statuses.

Table 3.1. Server Publish Status

Status

Republish

Publishing...

Synchronized

Description

The status which allows you to see if changes are awaiting

The status which shows if changes are being updated

The status which allows you to see if changes are synchronized

You can control a server behavior as well as adjust a number of server preferences through the context menu.

30

Servers view Structure

Figure 3.4. Context Menu Commands

All available context menu commands are described in the following table.

Table 3.2. Server Properties through the Context Menu

Name

New Server

Open

Show In

Show In -> File

Browser

Delete

Start

Debug

Stop

Description

The option allows you to define a new server

The option opens the Server editor

This option provides easy access to the Console, Debug, Server Log or MBean Explorer views

This action uses the native OS file explorer to browse the deploy destination of a local server.

Standard option that allows you to delete the chosen server

This will start the server in a run mode

This will start the server in a debug mode

This will stop the server

31

Chapter 3. JBoss Perspective

Publish

Name

Add and Remove

Projects

Monitoring

Properties

Description

This will synchronize the publish information between the server and workspace

This option will publish a new project to the server (if it's type is supported)

Allows you to add ports to be monitored on the current server

Opens a window that allows you to adjust the current server preferences

Under the server element in the Servers view, you can see modules that are currently deployed to the server and some server extensions that provide additional information on the server.

The context menu for any module allows you to remove it from the server and force a full or incremental republish upon it.

Figure 3.5. Modules Action

3.1.2.1. Filesets

The Filesets category in the Servers view provides a way to filter files.

To add a new file filter, right-click the Filesets category and select the Create File Filter option.

The New File Filter wizard should appear.

32

Servers view Structure

Figure 3.6. Creating a New File Filter

The wizard asks you to enter the filter name and add includes and excludes patterns. The preview box underneath provides a list of files matched to the defined patterns (see the figures bellow).

In order to set up a default fileset relative to the fixed configuration of the server runtime, use the following variable:

${jboss_config}

, i. e. you should enter server/${jboss_config}/

in the Root Directory option. This allows you to modify the runtime's configuration and not have to manually update paths.

Figure 3.7. New File Filter Wizard

Notice, that the Browse button still returns an absolute path:

33

Chapter 3. JBoss Perspective

Figure 3.8. New File Filter Wizard

After the filter is created, you can explore it by expanding the Filesets category in the Servers view.

It is now possible to edit files directly from the Filesets category. Double clicking on a file from

Filesets opens up the editor automatically, or you can use the Edit File context menu command.

34

Servers view Structure

Figure 3.9. Direct Editing from the Filesets

To delete a file filter (or just a file) from the Filesets, right-click a file filter or file and select the

Delete File Filter or Delete File command.

Figure 3.10. Deleting the File from the Filesets

35

Chapter 3. JBoss Perspective

If you want to set filesets for some server types, select Window

Preferences and then select

Server

Default from the categories available on the left.

Figure 3.11. Deleting the File from the Filesets

On this preference page you can add a fileset to any server type or to all servers at once. To do this you should select the server type in the combo box and click the Add fileset... button. In the opened New File Filter wizard follow the steps described in

Section 3.1.2.1, “Filesets” [32]

and finally click the Apply button on the preference page.

The defined file filter will be automatically added to new servers during their creation.

36

Servers view Structure

3.1.2.2. XML Configuration

The XML Configuration category allows you to quickly browse to descriptor files in your server's deploy directory and check or change the values. Basically, XML Configuration includes XML

XPaths, where an XPath is a path used to access some specific part of an XML document.

Note:

This document assumes that you are familiar with XPath. If not, we highly suggested that you look through an appropriate manual or tutorial on the topic.

The XML Configuration category itself contains only a list of categories. Ports are provided by default and display many of the most commonly used ports in the JBoss Server

.

Figure 3.12. XML Configuration

By right-clicking on the XML Configuration node you can create a new category. Besides, context menu for XML Configuration category makes possible to disable it. You can disable any category in the bottom part of the Servers view. Look for them in the Inactive Categories afterwards to re-enable.

37

Chapter 3. JBoss Perspective

Figure 3.13. Adding New Category

By right-clicking on the Ports category, or any other category in XML Configuration, you can create a new XPath.

Figure 3.14. Adding New XPath

After that, the dialog shown below will appear.

38

Servers view Structure

Figure 3.15. Adding New XPath

The goal here is to get an end result where the XPath matches up with a necessary property.

With that in mind, let's look how it works. If the property you want to reach is the value of the name

attribute in the element

<mbean>

, then your XPath Patten should end with mbean

and your

Attribute Name should be name

, as demonstrated in the next figure.

...

<server>

...

<mbean code="org.jboss.ejb.EJBDeployer"

name="jboss.ejb:service=EJBDeployer" xmbean-dd="">

<!-- Inline XMBean Descriptor BEGIN -->

<xmbean>

<description>

The EJBDeployer responsible for ejb jar deployment</description>

...

</xmbean>

</mbean>

</server>

39

Chapter 3. JBoss Perspective

Figure 3.16. XPath Preview

Tip:

Notice when you type the fields autocomplete to help you locate exactly what XPath you're looking for.

If your desired field is the text of an element

<description>

, your XPath Patten should end with description

and Attribute Name field should be left blank. When finished, click the Preview button to see how many matches are found for that particular XPath.

40

Drag-n-Drop to Servers view

Figure 3.17. XPath Preview

3.1.3. Drag-n-Drop to Servers view

The Servers view supports drag-n-drop of deployable and runnable projects and resources.

Figure 3.18. Dragging to the Servers view

With drag-n-drop the following actions can be performed:

• Dragging a project to a server will deploy it to the server and run it by showing the main page in a browser.

41

Chapter 3. JBoss Perspective

• Dragging an

.xhtml

file from the

WebContent

folder will do the same and show the corresponding page in a browser.

• Dragging a deployable resource (i.e. a datasource

-ds.xml

file that has been made deployable) will simply deploy that resource directly to the server.

In short, the feature does the same thing as if you used the Run On Server or Add and Remove

Projects option in the context menu of the server.

3.1.4. Server Log View

You can monitor the current server behavior with the help of the Server Log. To open a server in the Server Log view you should right-click on the server and follow to Open in

Server Log.

The Server Log view shows relevant information to your server's startup, shutdown and publish processes. This allows you to keep an eye on what's going on (such as automatic incremental deployment if you have it enabled).

Figure 3.19. Event Log Actions

The Server Log view toolbar contains several icons that perform the following actions:

Table 3.3. Server Log Toolbar Icons

Name

Export Log

Clear Log Viewer

Delete Log

Open Log

Restore Log

Description

Allows you to export the log into a text file

This option clears the current server log

Click to delete the server log

Click to open the server log text file

Click to restore the server log

42

Server Editor

3.1.5. Server Editor

By double-clicking on any server, an window will appear allowing you to edit the servers settings.

Figure 3.20. Preferences Page for the Chosen Server

Tip:

On the figure you can see that the username and password fields are available.

If you get a SecurityException when trying to launch the server, it is most likely because your server is protected, which requires that you need to fill the username and password fields with appropriate values.

The Server Behaviour settings tab allows you to set how tool interaction with the server should be undertaken.

43

Chapter 3. JBoss Perspective

When you created the server, if you selected that it was a local server then you will notice that the option Server is externally managed. Assume server is started is unchecked and the combobox displays Local.

Figure 3.21. Server Behaviour - Local

If you created a remote server then you will see that the combo-box displays Remote System

Deployment. Also populated will be the Host and Remote Server Home settings.

You are also able to change a servers behaviour from Local to Remote System Deployment through this settings tab. In doing so you will see that the Host is not set by default, but the other fields contain default values.

Figure 3.22. Server Behaviour - Remote

You can select the Listen on all interfaces to allow remote web connections when using

JBoss Application Server 3 to 7 or JBoss Enterprise Application Platform 4 to 6. This option will force the server to launch with the option

-b 0.0.0.0

. This option will change the host address to 0.0.0.0, useful for testing web applications on your local machine. JMX commands and web browser activities will still use the host set in the General Information section.

Under the Publishing section it is possible to disable or enable the automatic publishing of the changes in the workspace.

In the Server editor you are able to edit the timeouts, reload behaviour and the server pollers.

44

Server Editor

Timeouts. The Timeouts section allows you to specify a time limit for the server to complete operations within. If an operation does not start or fails to finish before the times you specify, that operation will be cancelled to avoid server failure.

Figure 3.23. Timeouts

Application Reload Behavior. This section of the Server settings allows you to customize the reload behavior of your application, depending on server and module changes.

Figure 3.24. Application Reload Behavior

Server Pollers. Server pollers are set under the Server State Detectors section. Both Startup and Shutdown pollers can be set individually.

Note

By default, the Startup poller is set to Web Port. If you change the Startup poller to

Timeout Poller (which may be required if you are using the minimal configuration for your server), this will do no polling at all and will only set the server state to

"Started" after your startup timeout is reached.

Figure 3.25. Server Pollers

45

Chapter 3. JBoss Perspective

It should be pointed out that the server adapter tries to automatically detect the ports it needs for integrating with a JBoss Server by default. Sometimes it is necessary to override this automatic detection if you are using a custom configuration. The Server Ports section in the Server editor provides fields to customize port settings. Click the Configure... link to bring up the wizard for adjusting the settings for the ports.

Figure 3.26. Server Ports Preferences

Click the Edit XPath button for the chosen port to configure its XPath's values.

46

Server Editor

Figure 3.27. XPath Pattern for a Server Port

The Server editor window also allows you to modify the server's launch configuration. The settings is available by clicking the the Open launch configuration link. The resulting window provides tabs for setting command line arguments, main, classpaths and other things that are relevant to launching the server.

47

Chapter 3. JBoss Perspective

Figure 3.28. Launch Configuration Properties

The first tab shows the JBoss server arguments

Note:

Please note that the values in the Launch Configurations for JBoss Servers are strictly enforced in order to avoid inconsistencies between server's and their configured runtime.

For example, if you change the launch configuration program arguments to

"c myConfig"

but do not change the targeted runtime configuration, then your program arguments will be ignored. The configuration of the server runtime "wins" so to speak. This ensures consistency and if you change the location of the runtime, your launch configurations will automatically pick that up.

48

Server Editor

Values are not controlled by the server and its runtime setup will be passed on unaltered.

On the second tab you find the main class used for launching JBoss AS (the default is org.jboss.Main

). This value can be changed if necessary.

Until JBoss Tools 3.0.0.GA the servers classpath was read only, but that caused problems for users wanting to add their own JARs in the startup classpath. That is relevant if you need to patch the server, add a custom charset or other tweaks that require early access to the classpath.

Now all servers have a custom 'server runtime classpath container', which is there by default and point to the default JARs in JBoss. You can now adjust the classpath. Then just make sure this container is there if you want the classpath to be picked up.

49

Chapter 3. JBoss Perspective

Figure 3.29. Server Classpaths

If for some reason you have a launch configuration without this container, the Restore Default

Entries button should add it properly. Also, the Restore Default Entries button will remove any extra entries you added yourself.

Using Deployment tab you configure local deployment settings.

50

Server Editor

Figure 3.30. Deployment tab

Using the group of radio buttons in the Default Settings section a user can set where the application will be deployed to. By default it is deployed to the user's workspace folder,

[workspaceDirecotry]\.metadata\.plugins

. If you would like the application to be deployed to your JBoss server deploy folder select the Use the JBoss deploy folder option. The option to specify a custom deploy folder is also available.

51

Chapter 3. JBoss Perspective

Figure 3.31. Deployment tab - custom deploy folder

3.1.6. Relevant Resources Links

Find more about XPath in the

XPath Documentation

[http://www.w3.org/TR/xpath20/].

3.2. Project Archives View

Every application, whether Plain Old Java, J2EE, or some other language altogether, needs to be packaged in some way. In Java-related projects, many people use ANT.

Note:

Those who use ANT will appreciate how the Project Archives Ant task is now improved: it supports variables and gives more informative error/logging messages when something goes wrong.

But JBoss Tools

comes with our own Archives tool with simpler and less-verbose XML and a handy user interface. The Project Archives plugin consists primarily of the Project Archives view to set up each packaging configuration.

52

Overview

Let's look through all functionality that the Project Archives view provides.

3.2.1. Overview

The packaging configuration for each project is stored in the project's root folder in a file named

.packages

, which has a fairly simple XML structure. Modifying the file by hand is neither required nor recommended, as the UI is the only supported way to modify your packaging structure.

Figure 3.32. Archives View

A project's configuration contains archives. As you can see on the image above a project can contain more than one archive. Internal archives and filesets can be directly inside of an archive, or in a sub-folder of that archive.

In the upper right corner of the view you can see an icon which, when clicked, will build the selected top-level archive. Additionally, you can select Project

Build Packages when a project is selected in the Packages View to build all declared packages in that project's

.packages

file.

This will execute a full build on all declared archives.

3.2.2. Creating an Archive

When you open the Project archives view for the first time, it asks you to select the project for which you want to create an archive.

Figure 3.33. Archives View

53

Chapter 3. JBoss Perspective

When creating a new archive for selected project, you have some different options at your disposal. You need right-click inside the view and select New Archive to see your archive type options.

Figure 3.34. Create an Archive

Note:

If you see only JAR from the list of available archive types, you should verify whether AS Tools plugins are installed. EAR, EJB JAR and WAR options are contributed by the AS Tools independently from webtools and the virtual project model. So without them only the JAR option will show up.

JAR

is the standard archive type and does very little configuration, leaving most of the work up to you. You can customize the name, add folders, filesets and inner JARs to it.

The other types, for the most part, simply start off with a default setting, usually the JAR with some specific children based on an expected structure of the project. For example, if the project is a

Dynamic Web Project and you create a

WAR

archive, the archive will be created with a few filesets relevant to the known structure of the project.

Here is the first page of all New archive wizards. It is the same for any archive type and the only page in the New JAR wizard.

54

Creating an Archive

Figure 3.35. New WAR Wizard

The page is pretty simple. First it prompts you to set the name of your new archive and a destination.

The destination of an archive can be anywhere on the file system, anywhere in the workspace, inside another archive, or inside a folder declared inside an archive. Select the appropriate checkbox (either workspace or file system) to specify that the destination is related to either the workspace or filesystem. You can browse to workspace or filesystem destinations by clicking on their respective buttons. To select a destination inside some other archive, you'll need to click the

Workspace button. At the bottom of the list, you will see the archives that have been declared in the workspace.

55

Chapter 3. JBoss Perspective

Figure 3.36. Selecting the destination in the workspace

Also in the wizard for creating a new archive you can choose whether an archive to be compressed or exploded into a folder (without compression). You need just select proper checkbox in the

Archive type section.

If a build or incremental update fails Project Archives will show an error dialog:

Figure 3.37. Selecting the destination in the workspace

Click the Details button to view detailed information about the cause of the error.

In the Package Explorer you can view the created archive.

56

Creating an Archive

Figure 3.38. The Archive in the Package Explorer

If you use the exploded type of archiving, instead of a single file archive the result put into a folder is displayed in the Package Explorer.

57

Chapter 3. JBoss Perspective

Figure 3.39. The Exploded Archive in the Package Explorer

3.2.2.1. Creating a Folder

To create a folder right-click on an archive or folder you want your new folder to be a child of. The only piece of required information the folder name.

58

Creating an Archive

3.2.2.2. Creating a FileSet

To create a new fileset, right click on an available target location such as an archive, a nested archive, or a folder within an archive and select the New Fileset option.

The New Fileset wizard requires a destination (where the files will be located) and a root directory

(or where the files are coming from). The source can be anywhere in the workspace or from the filesystem at large.

Figure 3.40. Adding a New FileSet

Below that, the fileset requires only an Includes and excludes pattern. As you type in either of these fields, the preview viewer will list those files that are matched.

You can create a Fileset with flattening or without it. Look at the difference on the figure below.

59

Chapter 3. JBoss Perspective

Figure 3.41. The FileSet with flattening and without it

3.2.2.3. Creating User Library FileSet

If you make use of user libraries in your projects you can also refer to these from project archives and have all the JAR and ZIP files they refer included into the archive.

60

Creating an Archive

To add a new user libraries file set, right-click on the necessary archive and select the New User

Libraries FileSet option.

Figure 3.42. Adding New User Library Fileset

You can edit the existing user libraries as well using User Libraries Fileset Wizard. Right-click on the library fileset and select the Edit Fileset option.

Figure 3.43. Editing User Library Fileset

61

Chapter 3. JBoss Perspective

3.2.3. Archive Actions

Figure 3.44. Context Menu on the Item

There are a number of variable options in the context menu, but there are also several that come standard.

Table 3.4. Context Menu on the Item

Name

Build Archive (Full)

Description

This action is enabled only on top-level archives and initiates a full build on that archive

Edit Archive Standard action that brings up the wizard associated with that particular node type and allows the details to be changed

This option deletes the selected node Delete Archive

Publish To Server This action will publish to a declared server

Edit publish settings This option edits the archives publish settings

Note:

When editing an archive, it is also updated in all folders and other archives where it is nested.

62

Publishing to Server

3.2.4. Publishing to Server

Finally, you will need to publish your application to a server. This section describes how to do it with the help of the Archives View.

Figure 3.45. Context Menu on the Item

The dialog shown above appears after selecting the Publish To Server option. To publish once, select the server(s) that you want and click the Finish button. If you want the Publish to Server action on that particular Archive to always publish to that set of servers, then check the appropriate checkbox. To enable automatic publishing upon build events, check the last checkbox.

The automatic publishing feature is nice if, for example, your package's destination (where it is built) is a temporary folder and you want the archive published to several servers. If you only need your archive published to one server, it might be easier to have the archive's destination folder be the deploy folder of the server.

63

Chapter 3. JBoss Perspective

3.2.5. Relevant Resources Links

Refer to the

Ant manual

[http://ant.apache.org/manual/index.html] to find more on how to build your applications using Ant.

We also recommend that you watch this

movie

[http://docs.jboss.org/tools/movies/demos/ archiving/archiving.htm] which demonstrates the powerful archiving functionality in JBoss Tools ™ .

This chapter has covered the functionality provided by the JBoss AS perspective. The next chapter will explore working with different kinds of projects.

64

Chapter 4.

Projects

The most popular of the projects we deal with are the J2EE ones, such as Dynamic Web Project,

EJB Project, or EAR project. JBoss Tools ™ web projects include Struts, JSF and Seam projects.

These are referred to as faceted projects. This chapter will cover facets, which are used to provide a consistent structure and packaging features to any type of project.

4.1. Faceted Projects Overview

The idea behind faceted projects is that each project can accept units of functionality, or facets, which can be added or removed by the user. These facets either add to the project's classpath, enable a builder, or watch the project in some other fashion. Typically every project concerned has at least one facet when it is created. As an example, a Web project has a WebDoclet facet, or an EJB Project has an EJB Module facet as prerequisites.

WTP projects have been criticized for being over-engineered or too restrictive in their design. WTP projects are set up in a tree-relationship to each other, where one project can be a child of another.

For example, an EAR project may have a Web Project child, an EJB project child, or other types.

However, the benefit of this is that the structure of your projects is then known and packaging it up should be trivial. If your project is non-standard, or you feel too confined by such rigid structural requirements, you can still choose to package your project using the Archives plugin

(see

Section 3.2, “Project Archives View”

).

4.2. Adding Facets to a Project

This section will cover the facets added by JBoss Tools and show how you can configure them in a project by adding new ones or modifying existing facet configurations.

One way to configure the facets is doing it while organizing a new project. To demonstrate this create a new Dynamic Web Project by clicking on the Dynamic Web Project option in the Create

Projects section of JBoss Central.

Figure 4.1. New Dynamic Web Project

65

Chapter 4. Projects

Click the Next button and you will see a Dynamic Web Project page like on the figure below.

The first page of most WTP projects allows you to target a specific runtime, which represents a server's library location. It will also provide you the ability to add this project to an EAR project and select a preselected default set of facets, called a configuration, rather than manually select each required facet.

Selecting the runtime allows the project to install the proper classpaths to the project so it knows what code to compile against.

Figure 4.2. New Dynamic Web Project

Click the Modify button next to the Configuration section to open a wizard which allows you to modify the chosen configuration. The wizard is shown in the image below.

66

Adding Facets to a Project

Figure 4.3. Project Facets Wizard

Here part of the listed facets are those which are provided by WTP. Some of them are added by

JBoss Tools. They are:

• BIRT Charting Runtime Component

67

Chapter 4. Projects

• BIRT Reporting Runtime Component

• CDI (Contexts and Dependency Injection)

• CXF 2.x Web Services

• JAX-RS (REST Web Services)

• JAXB

• JBoss Portlets

• JBoss Web Services Core

• JPA

• Seam 2

On this wizard page you can enable or disable any facet as well as change its version. What you should note here is that some facets or facets versions may conflict with each other. In case of incompatibility you will be notified in the combobox underneath.

68

Adding Facets to a Project

Figure 4.4. Facet Constraints

When switching on the Runtimes tab on the right you will see the current server Runtime.

69

Chapter 4. Projects

Figure 4.5. Runtimes on the Project Facets Wizard

On this tab you can also create a new Server Runtime and make it primary by enabling it and then clicking the Make Primary button.

Clicking on the OK button will save the chosen configuration of the facets and return you to the

Dynamic Web Project wizard (see

Figure 4.2, “New Dynamic Web Project”

). Additional pages in the wizard are specific to either the project type or the facets selected.

70

Relevant Resources Links

If you need to configure the facets for an existing project, right click on the project, select

Properties and then select Project Facets. This will bring up the Project Facets wizard (see

Figure 4.3, “Project Facets Wizard”

), where you can create your own custom facets configuration.

4.3. Relevant Resources Links

More information on the WTP facets can be found in the

Eclipse help

[http://help.eclipse.org/ ganymede/index.jsp?topic=/org.eclipse.jst.j2ee.doc.user/topics/cfacets.html].

71

72

Chapter 5.

Deploying Modules

In this chapter it will be described how to deploy modules onto the server.

There are several ways to deploy to a server, provided by the Web Tools Platform (WTP) and some additional methods provided by JBoss Tools. These methods are described further in this chapter.

5.1. Deploying on the Package Explorer

On the package explorer it is possible to publish either a project to a server or just a single file.

Let's look at how to do this.

5.1.1. Deploying with Run On Server Wizard

The first WTP method is to right-click on a project, such as a Dynamic Web project, EJB project, or

EAR project and then select Run As

Run on Server. The resulting dialog allows you to select which supporting server the project can be published to.

Figure 5.1. Define a New Server

73

Chapter 5. Deploying Modules

Click the Next button to see add or remove projects page where you can choose projects to configure them on server.

Figure 5.2. Add or Remove Projects

This page of the wizard also allows to undeploy modules from the server. For that choose proper module(s) from the right and click the < Remove. The modules will be completely undeployed after restarting your server or republishing.

Generally, for the JBoss AS Server Adapters, publishing using this method will force a default, best-guess, packaging configuration for your project. This best-guess does not publish incrementally, but instead repackages your entire project into a

.war

,

.jar

, or

.ear

as appropriate and then copies that file into the proper deploy directory. For quicker smarter deployment, you will need to create archives using the Project Archives view (see

Section 3.2, “Project Archives

View”

) and customize packaging yourself.

5.2. Deploying with Servers View

As it has been already mentioned Servers view contains two parts: the top part that displays all defined servers and the bottom part which provides categories with additional information. Thus, in this section we suggest two more ways to deploy resources onto the server.

74

Top part of Servers view

5.2.1. Top part of Servers view

In the top part of the Servers view you should right click on a server and select the Add and

Remove menu item.

Figure 5.3. Add and Remove Projects

This will bring up a dialog (see

Figure 5.2, “Add or Remove Projects”

) that allows you to either

publish projects or modules to a server, or remove them from the server. If the selected module is a project like a Dynamic Web project, EJB project, or EAR project, it will be published as through Run

on Server wizard, with a best-guess full package. If, however, the selected element is an archive from the Project Archives view (see

Section 3.2, “Project Archives View”

), it will be published according to the rules of that module type.

5.2.2. Bottom part of Servers view

In the bottom part of Servers view there is a category called Modules which should display all currently-published modules on the server. Right-clicking on the desired module and selecting

Full Publish will force a full rebuild of the entire module.

75

Chapter 5. Deploying Modules

Figure 5.4. Full Publish

Here, Incremental Publish is meant to enable publishing of only those parts where changes have been made.

5.3. Deploying with Project Archives View

In the Project Archives View you can right-click on any declared archive and select the Publish

To Server element. For more on this subject, see

Section 3.2.4, “Publishing to Server”

in the

Project Archives View section.

Figure 5.5. Publish to Server

The only way to ensure an Incremental Build, such as changes to one

.jsp

,

.html

, or

.class

file, is to enable the builder for that project. This is done by either changing the global preferences for the Archives View, or by enabling project-specific preferences and ensuring the builder is on.

You can also use the "Finger touch" button for a quick restart of the project without restarting the server:

76

Deploying with Project Archives View

Figure 5.6. Finger Touch button

The "Finger" touches descriptors dependent on project (i.e. web.xml

for WAR, application.xml

for EAR, jboss-esb.xml

in ESB projects).

77

78

Chapter 6.

TPTP Support

This chapter provides an overview on how to enable TPTP Profiling for JBoss AS ™ adapters in

JBoss Tools ™ .

6.1. TPTP Profiling

To get TPTP profiling work on JBoss Application Server

you should do the following:

• Download

TPTP Runtime

[http://www.eclipse.org/tptp/home/downloads/] and install it, i. e. just add the content of

plugins/features

folders from downloaded directory to the same folders in your eclipse installation directory or use the Help

Install New Software command.

• Install JBoss TPTP Tools which provide TPTP support for JBoss AS servers (find the latest stable version of the JBoss TPTP profile feature at

http://www.jboss.org/tools/download/stable

).

And now all profile actions should work for you. To start JBoss AS

in profiling mode use Start

the server in profiling mode button or select Profile As

Profile on Server from the context menu of the project.

Figure 6.1. Start the Server in Profiling mode

To enable TPTP features in your workbench use Profiling and Logging Perspective that you can find in the list of proposed perspectives: Window

Open Perspective

Other...

79

Chapter 6. TPTP Support

Figure 6.2. Profiling and Logging Perspective

6.2. Relevant Resources Links

All additional information on TPTP (Test and Performance Tools Platform) can be found in the

Eclipse documentation

[http://www.eclipse.org/tptp/home/downloads/4.5.0/documents/quicktour/ quick_tour.html].

80

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
