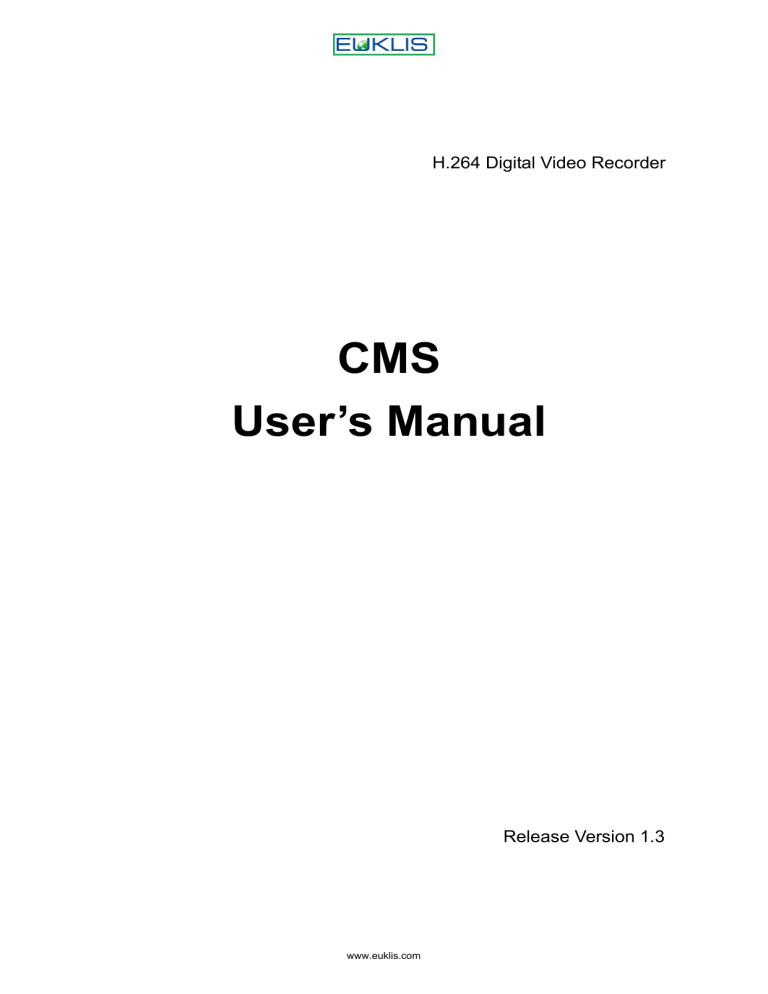

CMS User`s Manual

CMS User`s Manual

H.264 Digital Video Recorder

CMS

User

’s Manual

Release Version 1.3

www.euklis.com

INDEX

CMS ........................................................................................................................................... 1

User’s Manual ............................................................................................................................ 1

Chapter 1. Installation ................................................................................................................ 3

1-1.

System Requirements ................................................................................................ 3

1-2.

Installation .................................................................................................................. 3

Chapter 2. Operation.................................................................................................................. 5

2-1. Run CMS software ....................................................................................................... 5

2-2. CMS software login ...................................................................................................... 6

2-3. CMS Main screen ........................................................................................................ 6

2-4. Register DVR ............................................................................................................... 7

2-5. Connect/Disconnect DVR ............................................................................................ 8

2-6. Live connection ............................................................................................................ 8

2-7. Search ....................................................................................................................... 10

2-8. E-Map ........................................................................................................................ 11

2-9. PTZ ............................................................................................................................ 13

2-10. Alarm In/Out ............................................................................................................. 13

2-11. Event ........................................................................................................................ 14

2-12. Backup ..................................................................................................................... 15

2-13. DVR Setup ............................................................................................................... 15

2-14. DVR Upgrade .......................................................................................................... 16

2-15. CMS Options & Version ........................................................................................... 17

2-16. Screen capture ........................................................................................................ 19

Page 2 of 19 www.euklis.com

Chapter 1. Installation

1-1. System Requirements

CPU : Intel Pentium4, 2.4GHz or Higher

RAM : 512MB or higher

VGA : 1280x1024, 24bit or 32bit color or higher

1-2. Installation

Step 1. Run [CMSSetup.exe].

Step 2. Click [I Agree].

Page 3 of 19 www.euklis.com

Step 3. Click [Install].

Choose destination folder you want to install.

Step 4. Click [Close].

Page 4 of 19 www.euklis.com

Chapter 2. Operation

2-1. Run CMS software

There are two ways to run CMS software, choose any way you proper.

TIP

Windows Vista/7 User

User should run CMS software with Administrator authority in Windows Vista/7.

(Click right mouse button on CMS icon and select

“Run as administrator”)

1 st

way : CMS icon on desktop

You can find an icon of CMS on your Windows® desktop screen.

Double-click this icon to start CMS software.

2 nd

way : CMS software on Start menu

You can find CMS through Start>Program>DVR>CMS menu.

Page 5 of 19 www.euklis.com

2-2. CMS software login

Main Menu

Server list

You are stared on CMS then appear login window at the first.

You should input password then click the Login.

Default Password is

“1111”

You will run to CMS software at the next time while It will be remember password for you checked the Remember password item

2-3. CMS Main screen

Clock window

Event filter

Event window

Main Screen

Properties window

Control panel

Page 6 of 19 www.euklis.com

Status Bar

2-4. Register DVR

There are two way for Server registration.

1 st

way : Auto Registration

This way is available when DVR and CMS are in same network.

1. Click the Scan button [ ] in Server list window. The below window is open.

2. Click [Scan] button.

3. Double click the list.

4. Input the below values.

5. Click [OK].

2 nd

way : Manual registration

1. Click the Add icon [

] in Server list window. The below window is open.

2. Input the below values.

3. Click [OK].

Page 7 of 19 www.euklis.com

2-5. Connect/Disconnect DVR

Connect

1. Click the Connect icon [ ] to connect the registered DVR.

The DVR icon is changed from blue to yellow.

Disconnect

1. Click the Disconnect icon [ ] to disconnect the DVR.

TIP

Click the Connect All icon [ ] to connect the all registered DVRs.

2-6. Live connection

Camera view

Drag a camera icon [ ] like the below. The selected camera is displayed on view panel.

Stop searching at 1 channel search

Click right mouse button on searching channel in red. And select [Live -> Stop] from the menu.

Page 8 of 19 www.euklis.com

DVR view

Drag a group icon [ ] like the below. The selected cameras are displayed in on view panel.

View layout

Select a view layout button.

Full Screen

Normal View Special View Next/Previous

전환

▪ Normal view: 1, 4, 9, 16, 25, 36, 49, 64

▪ Special view: [3x3] 1+5, [4x4] 1+12, [4x4] 2+8, [4x4] 3+4, [5x5] 1+9, [5x5] 4+9

▪ Next / Previous : Show the next or previous cameras in the selected view layout.

▪ Full screen : Show the view layout as full screen without GUI.

Page 9 of 19 www.euklis.com

2-7. Search

Search mode

1. Select a DVR.

2. Click the Search icon[ ] and the control panel is changed to search mode like the below.

Playback

Calendar Time map

1. Select a date from calendar. (The date with recorded data is marked in red)

2. Select a time from time map.

Playback control

3. Search the recorded images with playback control.

Rev. Play

Fast Rev. Play

Fwd. Play

Fast Fwd. Play

Prev. Frame

Stop

Page 10 of 19 www.euklis.com

Next Frame

Pause

2-8. E-Map

Select the Map at View from menu, The

“Empty-Map” Tab is displayed.

Map View

Add Map

1. Click right mouse button on Map view.

2. Select a Ne Map from menu.

3. Input the map name in Name.

Map List

Preview

4. Find a map image by clicking the icon [

5. Click [OK].

]. The selected image is displayed in preview.

Page 11 of 19 www.euklis.com

Camera/AlarmIn/AlarmOut registration

User can drag a camera/alarm in/alarm out to map image like the below.

Camera view & Alarm In/Out control

If double click the camera on map, the camera image is displayed.

And if double click alarm in/our on map, user can control the alarm in/out.

Page 12 of 19 www.euklis.com

Map save

User can click the right mouse button on map view and save the map by selecting [Save Map

Group].

Map load

User can click the right mouse button on map view and load the map by selecting [Load Map

Group].

2-9. PTZ

User can use PTZ control by selecting the camera with PTZ on view panel. (The selected camera is marked in red.)

2-10. Alarm In/Out

User can control alarm in/out in alarm tab of Control window.

If Alarm In/Out is working, the color is changed to orange.

Page 13 of 19 www.euklis.com

2-11. Event

Event window show all events of the connected DVRs of Server list.

Event filter

Event list

Event show

Click the Event Start Icon [ ] DVR to display the event working status on event list.

Event hide

Click the Event Stop icon [ ] to hide the event working status on event list.

Event delete

Click the Event Clear icon [ ] to delete the event list.

Event search

User can search the specific event by using the event filter like Server, Channel, Live, Log

Event save

User can save the selected event by clicking the right mouse button on the event.

From popup menu, select [Save]. (CSV file format is open at Excel)

Page 14 of 19 www.euklis.com

2-12. Backup

User can backup the recorded data of DVR by clicking the right mouse button on the connected

DVR of Server list window. From popup menu, select [Backup]. performance.

2-13. DVR Setup

Click the Setup icon [ ] in Server list window on the connected DVR. And the setup window is displayed. User can change the setting valudes of the connected DVR.

Page 15 of 19 www.euklis.com

TIP

Click the exit button(X) of windwo to exit the setup windwo. And the beow message is displayed.

2-14. DVR Upgrade

Click the Upgrade Icon [ ] in Server list window on the connected DVR.

User can upgrade the kernel and firmware of the DVR from remote.

Find the path by clicking the icon for Kernel, Firmware upgrade and click [Start] button.

After upgrade, the connection is disconnected.

Page 16 of 19 www.euklis.com

2-15. CMS Options & Version

User can set user id, password and view layout of CMS.

Administrator password

Click Menu Option

– Account. You must same password input in Password and Confirm fields.

TIP

Please check [Automagic Login] for CMS auto login.

View layout

Click the Screen tab for view layout setup.

Page 17 of 19 www.euklis.com

Screen Type : DirectDraw is to use the Direct Draw of MS Direct X . It displays images with full performance of graphic card and is also good for image quality and speed.

GDI is to use GDI technique of MS. It is slower than DirectDraw but has good compatibility and stability.

Camera Name Color : Change the backgrould color of camera name on view panel.

Default Panel Layout : User can select a view layout for each monitor when multil minitors are used.

Version : Show CMS version information.

Click Menu

– Help – About for version information.

Page 18 of 19 www.euklis.com

2-16. Screen capture

BMP Capture

1. Select tha camera on view panel.

2. Click the right mouse button on the camera.

3. Select Save-BMP from popup menu.

4. The still image is saved like the below path.

Default Directory is c:\Progrram Files\DVR\CMS.

Default Filename is DVR name_CH _ year-mm-dd-hh-mm-ss.bmp.

AVI file Capture

1. Select tha camera on view panel.

2. Click the right mouse button on the camera.

3. Select Save-AVI from popup menu.

4. Click [OK]. The AVI file is saved.

Default Directory is c:\Progrram Files\DVR\CMS.

Default Filename is DVR name_CH _ year-mm-dd-hh-mm-ss.avi.

Page 19 of 19 www.euklis.com
