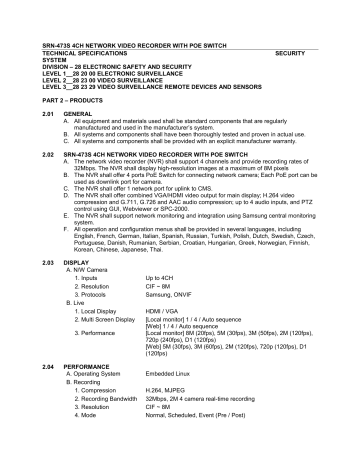

SRN-473S 4CH NETWORK VIDEO RECORDER WITH POE SWITCH
TECHNICAL SPECIFICATIONS
SYSTEM
DIVISION – 28 ELECTRONIC SAFETY AND SECURITY
LEVEL 1__28 20 00 ELECTRONIC SURVEILLANCE
LEVEL 2__28 23 00 VIDEO SURVEILLANCE
LEVEL 3__28 23 29 VIDEO SURVEILLANCE REMOTE DEVICES AND SENSORS
SECURITY
PART 2 – PRODUCTS
2.01
GENERAL
A. All equipment and materials used shall be standard components that are regularly
manufactured and used in the manufacturer’s system.
B. All systems and components shall have been thoroughly tested and proven in actual use.
C. All systems and components shall be provided with an explicit manufacturer warranty.
2.02
SRN-473S 4CH NETWORK VIDEO RECORDER WITH POE SWITCH
A. The network video recorder (NVR) shall support 4 channels and provide recording rates of
32Mbps. The NVR shall display high-resolution images at a maximum of 8M pixels
B. The NVR shall offer 4 ports PoE Switch for connecting network camera; Each PoE port can be
used as downlink port for camera.
C. The NVR shall offer 1 network port for uplink to CMS.
D. The NVR shall offer combined VGA/HDMI video output for main display; H.264 video
compression and G.711, G.726 and AAC audio compression; up to 4 audio inputs, and PTZ
control using GUI, Webviewer or SPC-2000.
E. The NVR shall support network monitoring and integration using Samsung central monitoring
system.
F. All operation and configuration menus shall be provided in several languages, including
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech,
Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish,
Korean, Chinese, Japanese, Thai.
2.03
DISPLAY
A. N/W Camera
1. Inputs
2. Resolution
3. Protocols
B. Live
1. Local Display
2. Multi Screen Display
3. Performance
2.04
PERFORMANCE
A. Operating System
B. Recording
1. Compression
2. Recording Bandwidth
3. Resolution
4. Mode
Up to 4CH
CIF ~ 8M
Samsung, ONVIF
HDMI / VGA
[Local monitor] 1 / 4 / Auto sequence
[Web] 1 / 4 / Auto sequence
[Local monitor] 8M (20fps), 5M (30fps), 3M (50fps), 2M (120fps),
720p (240fps), D1 (120fps)
[Web] 5M (30fps), 3M (60fps), 2M (120fps), 720p (120fps), D1
(120fps)
Embedded Linux
H.264, MJPEG
32Mbps, 2M 4 camera real-time recording
CIF ~ 8M
Normal, Scheduled, Event (Pre / Post)
Page 2 SRN-473S 4CH NETWORK VIDEO RECORDER WITH POE SWITCH
5. Event Trigger
6. Event Action
C. Search & Playback
1. Playback Bandwidth
2. Performance
3. Search Mode
4. Simultaneous
Playback
5. Resolution
6. Fish-eye Dewarping
7. Playback Control
D. Storage
1. Default Built-in
2. Internal
3. Max. Capacity
E. Back up
1. File Backup
2. Function
F. Sensor (Input/Output)
G. Audio
1. Input
2. Compression
3. Audio Communication
2.05
NETWORK
A. Protocol Support
B. DDNS
C. Transmission Bandwidth
D. Max. Remote Users
E. IP
F. Security
G. Language
H. OS
I. Web Browser
J. Viewer Software
1. Type
SRN-473S A&E 2015
Alarm input (2), Video loss, Camera event (Alarm in, MD, Video
analytics)
VA event (Tampering, Enter/Exit, Passing, (Dis)Appear, Face
detection, Audio detection)
E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
32Mbps
Max. 3 users
Date & Time (Calendar) / Event log list / Text Search (POS)
[Local monitor] Up to 4CH
[Web, CMS] Up to 4CH
CIF ~ 8M
Via Smartviewer
Fast/Slow Forward/Backward, Move one step up/down
2TB
1 SATA (Fixed)
Internal 4TB
BU/EXE (USB), JPG/AVI (Web, CMS)
Max. 4CH playback, Date-time/title display
2 / 1 (NO/NC 1ea)
4CH (Network)
G.711, G.726, AAC (16/48KHz)
2-way
TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP,
DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS,
DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S)
Samsung iPOLiS DDNS
Max. 64Mbps
Search 3 / Live unicast 10 / Live multicast 20
IPv4 / IPv6
IP address filtering, User access log, 802.1x authentication,
Encryption (ID/PW, Recording, Transmission, Back up)
English, French, German, Italian, Spanish, Russian, Turkish,
Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian,
Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean,
Chinese, Japanese, Thai
Window XP (Service pack 2 or above), Vista, 7, 8,
Mac OS X (10.6 or above)
Microsoft Internet Explorer (Updated Ver. 8 ~10, IE 9 or higher
recommended)
Mozilla Firefox (Ver. 19.x or above),
Google Chrome (Ver. 26.x or above),
Apple Safari (Ver. 6.0.3 or higher)
SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
Page 3 SRN-473S 4CH NETWORK VIDEO RECORDER WITH POE SWITCH
2. CMS Support
2.06
FUNCTIONS
A. Camera Setup
1. Register
2. Setup Items
B. Camera Control
1. PoE
C. Easy Configuration
D. PTZ
1. Control
2. Preset
E. Smart phone
1. OS
2. Control
F. System Control
2.07
INDICATOR / INTERFACE
A. Front
1. Indicator
2. USB
B. Connections
1. VGA/HDMI
2. Audio
3. Ethernet
4. Alarm
5. Reset
2.08
2.09
SYSTEM
A. Log List
GENERAL
A. Electrical
1. Input Voltage / Current
2. Power Consumption
3. PoE Budget
B. Environmental
SRN-473S A&E 2015
SDK / CGI (SUNAPI)
PnP mode, Manual mode
1) IP address, Add profile edit, Bitrate, Compression, GOP, Quality
2) Camera MD setup
3) Video setup (Simple focus, Brightness/Contrast, Flip/Mirror,
IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS, etc)
1) Monitor PoE power consumption
2) On/Off control for each PoE camera
3) Remote reset for each PoE camera
Setup Wizard (Date/Time, Network, Auto camera configuration)
Via GUI, Webviewer, SPC-2000
255
Android, iOS
Live (4CH) / Playback (1CH)
Mouse, IR Remote controller, Web, SPC-2000 (USB controller)
Power status LED 1ea
Alarm status LED 1ea
Record status LED 1ea
2ea (Front 2ea)
1ea / 1ea
Out 1ea (RCA, Line)
4ea (PoE/PoE+, 100Mbps)
- 2 PoE+ when 2 PoE ports aggregated to 1 port
- Each PoE port can be used as downlink port for camera / PoE
Hub
1ea (WAN, 100Mbps)
- WAN : Uplink to CMS
In 2ea (Terminal block) / Out 1ea (Terminal block)
Yes (Factory reset)
Max. 20000 (System log, Event log each)
54V DC / 1.67A
Max. 77W (NVR w / 1 x HDD, PoE on)
16W (NVR w / 1 x HDD, PoE off)
Max. 50W
Page 4 SRN-473S 4CH NETWORK VIDEO RECORDER WITH POE SWITCH
1. Operating
Temperature
2. Operating Humidity
C. Mechanical
1. Color / Material
2. Dimensions (WxHxD)
3. Weight
D. Accessories
1. IR Remote Controller
/ Mouse
2. Viewer CD / IB
3. Power Cord / Power
Adaptor
4. Terminal Block
2.10
CERTIFICATIONS
A. CE mark
B. FCC mark
2.11
WARRANTY
A. 3 years, parts and labor.
SRN-473S A&E 2015
+0°C ~ +40°C (+32°F ~ +104°F)
20% ~ 85% RH
Black / Metal
360.0 x 44.0 x 159.9mm (14.17" x 1.73" x 6.3") (1U)
1.6Kg (3.53 lb) (1TB HDD included)
Included / Included
Backup Viewer, Installation Manual / Included
Included / Included
Included
