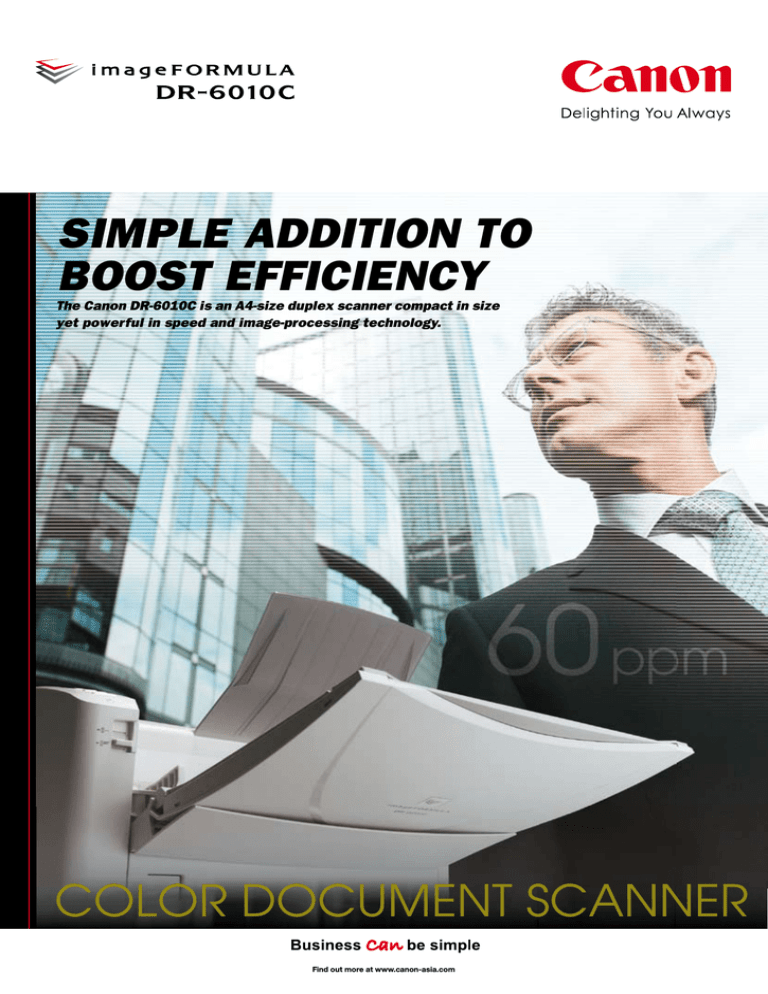

The Canon DR-6010C is an A4-size duplex scanner compact in size
yet powerful in speed and image-processing technology.
Find out more at
Quickly organize and manage your digital
documents at the speed your business requires
Built for businesses that need the benefits of transforming documents into highquality digital files quickly and effectively, the exemplary design of Canon's
DR-6010C speaks worlds for the ingenuity used in its creation. At the rate of
one page per second, in color or black-and-white, this document scanner is
capable of scanning in a fraction of the time required by traditional document
scanners. The reliable speed of the DR-6010C makes it an invaluable addition
to any fast-paced office environment.
Fast and Efficient Document Handling
Despite being small enough to fit on a desktop, the Canon DR-6010C is capable of meeting all busy office
requirements for document scanning quickly and effectively. The innovative design and cutting-edge
technology expertly accommodates a wide variety of document sizes and types, converting with ease stacks
of papers to digital format with exceptional speed and accuracy.
● High Speed Scanning
State-of-the-art 3-line CMOS contact image sensor technology
allows the DR-6010C remarkably accurate image replication at an
exceptional speed, equally fast with color and black-and-white 60
pages per minute and 120 images per minute (A4/LTR, 200 dpi,
portrait). Onboard JPEG compression also reduces the amount of
time previously needed to transfer data to a PC.
● Various Document Sizes
DR-6010C features a versatile dual paper path that allows
easy processing of diverse document types. The default U-turn
path is designed for handling pages of standard, A4/LTR-size
thickness, while the straight paper path can process thick
items even plastic ID cards. Also, the scanner can be switched
from automatic to manual sheet feeding to accommodate nonstandard paper types, including multi-sheet forms printed on
carbonless (NCR) paper.
● Ultrasonic Double-feed Detection
Double-feeds are caught with ultrasonic sensors that detect the gap
between overlapping pages. The sheets are then stopped from going
through the scanner, allowing the double feed to be corrected.
Fast, one-pass color scanning at the same speed
as in B&W. (A4/LTR, 200 dpi)
U-Turn Path
Straight Path
Two paper paths
of document
Ultrasonic Double Feed Detection
● Rapid Recovery System
While other scanners require the rescanning of an entire document in the event of a misfeed or paper
jam, the DR-6010C is equipped with a Rapid Recovery System that stops for the repositioning of a misfed
document so that scanning may resume from where it left off.
Advanced Scanner Functions
The most intricate of image details can be captured with exquisite
precision and clarity using DR-6010C's advanced efficiency-optimizing
image processing functions and 600 dpi high optical resolution.
● Shading Mechanism
The DR-6010C performs an automatic calibration process called 'shading'
prior to each scan to ensure consistent, uniform image quality.
Operating Features
User-friendly interface
Bundled Software
The CapturePerfect scanning application
gives you a wide array of file-saving
formats that make it easy to turn virtually
any document into a high-quality digital
image. CapturePerfect's file distribution options help boost your document
management productivity. Features include: OCR functionality, PDF
Encryption, file editing, Scan to Mail, Scan to Presentation, automatic file
name generation, MultiStream, and other productive features.
Kofax VirtualReScan Basic
Automatic shading mechanism
Leading image processing software, Kofax VRS Basic,
improves readability of multiple-size documents with
varying degrees of quality. Automatically straighten
skewed pages without character degradation, optimize
a document's brightness/contrast levels, and eliminate
background noise and speckling.
● Auto Color Detection
DR-6010C is equipped with Auto Color Detection to detect whether or not
a page contains color during the scanning of documents in a mixed batch.
Black-and-white images are scanned in black-and-white scanning mode,
and color pages in color scanning mode. This eliminates the need to separate
black-and-white and color documents prior to scanning while ensuring image
file sizes are kept smaller than if scanning the whole batch in color mode.
The industry's leading PDF file creation software for making PDF files.
Features robust tools including document sharing and security, file
commenting, and much more.
● Do-it-yourself Maintenance
● 3-Dimensional Color Space Correction
The 3-Dimensional Color Correction helps the DR-6010C achieve
unprecedented color accuracy, true to the original document, using an
onboard color conversion chip to pinpoint the exact RGB coordinates.
● Advanced Image Processing
This model offers a collection of invaluable image-processing functions
that optimize your document's readability and minimize the need
for reprocessing.
■ Auto Page Size Detection, Deskew, Skip Blank Page, Text Orientation
Recognition, Color Dropout (R/G/B Custom), Moire Reduction, Prevent
Bleed-Through / Remove Background, Punch Hole Removal, MultiStream,
and MORE.
● One-touch Job Buttons
Frequently-used scanning functions, such as Scan to E-mail, can be
programmed for speedy, one-touch execution. Three customizable Job
buttons on the scanner's face can be easily assigned for such routine jobs
using the Job Registration Tool.
To ensure the best-quality performance from your Canon document scanner, rollers
should be replaced every 250,000 scans. Luckily, the DR-6010C is designed with
user-replaceable parts so that no service technician is required; all you need is an
Exchange Roller Kit (sold separately).
● Energy-efficient
This device meets the ENERGY STAR Program guidelines for energy efficiency,
meaning it requires less energy and costs less to run. Settings also designate
when the device should enter Stand-by Mode.
● Barcode Decoding
A barcode module is a software option that allows the ISIS/TWAIN driver to
recognize scanner barcodes (sold separately).
DR-6010C Specifications
Desktop sheet-fed scanner
Document feeding
Automatic or manual sheet feeding
Document size
Width: 53 - 219 mm (2.08 - 8.6 in.)
Document thickness
ENERGY STAR and the ENERGY STAR mark are registered
U.S. trademarks.
Adobe, the Adobe logo, Acrobat and the Adobe PDF logo
are either registered trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
Length: 70 - 356 mm (2.76 - 14 in.); Long Document Mode: up to 1,000 mm (39.3 in.)
U-Turn Path Automatic feeding: 0.06 - 0.15 mm, 52 - 128 g/m2 (14 - 32 lb bond)
and weight
Manual Feeding: 0.05 - 0.2 mm, 42 - 157 g/m2 (11 - 40 lb bond)
Straight Path Automatic feeding: 0.06 - 0.15 mm, 52 - 128 g/m2 (14 - 32 lb bond)
Manual Feeding: 0.05 - 0.66 mm, 42 - 546 g/m (11 - 144 lb bond)
Business card size and thickness
Kofax, the Kofax Logo, and other Kofax Marks are
registered trademarks or trademarks of Kofax, Inc. in
the United States and other countries, and used under
authority from Kofax.
Other company names and product names appearing
in this brochure are the registered trademarks and/or
trademarks of their respective owners.
Size: 53.9 x 85.5 mm (2.12 x 3.37 in.)
Thickness: 0.76 ± 0.08 mm (0.03 ± 0.003 in.)
Feeding capacity
10 mm stack or 100 sheets of 80 g/m2 (20 lb bond)
Scanning element
3-line CMOS CIS
Light source
LED (red, green, and blue)
Scanning side
Scanning modes
Black and White, Error Diffusion, High-Speed Text Enhancement, Advanced Text Enhancement,
Advanced Text Enhancement II, 256-level Grayscale, 24-bit Color, Auto Color Detection
Scanning resolutions
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Scanning speed*
B&W 200 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
(A4/LTR, Portrait)
300 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
Grayscale 200 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
300 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
Color 200 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
300 dpi: 60 ppm (Simplex), 84 ipm (Duplex)
SCSI-III / Hi-Speed USB 2.0
Scanner driver
Useful functions
Job Function, Folio, Ultrasonic Double-Feed Detection, Rapid Recovery System, Moire Reduction,
Prevent Bleed Through / Remove Background, Punch Hole Removal, Color Dropout, Auto Page Size Detection,
Text Orientation Recognition, Skip Blank Page, Deskew, MultiStreamTM, Prescan, User Preferences
Power requirements
Power consumption
200V: 30W(Scanning), 2.2W(Sleep mode)
10 - 32.5oC (50 - 90.5oF), Humidity: 20 - 80% RH
Operating environment
Dimensions (W x D x H)
Feed trays closed: 318 x 278 x 185.5 mm (12.5 x 10.9 x 7.3 in.)
Approx. 6.5 kg (14.3 lb.)
Barcode Module, Exchange Roller Kit
*Scanning speed may vary depending on PC environment, scanner settings, and other factors.
Specifications are subject to change without notice.
