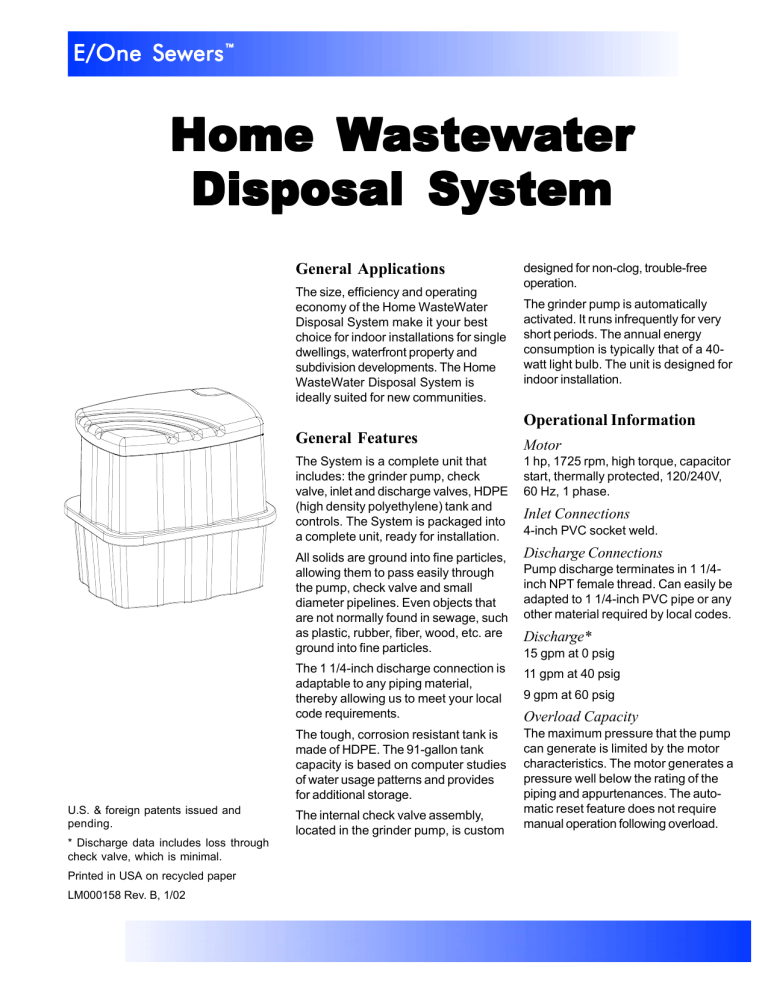

E/One Sewers ™
Home Wastewater
Disposal System
General Applications
The size, efficiency and operating
economy of the Home WasteWater
Disposal System make it your best
choice for indoor installations for single
dwellings, waterfront property and
subdivision developments. The Home
WasteWater Disposal System is
ideally suited for new communities.
designed for non-clog, trouble-free
operation.
The grinder pump is automatically
activated. It runs infrequently for very
short periods. The annual energy
consumption is typically that of a 40watt light bulb. The unit is designed for
indoor installation.
Operational Information
General Features
The System is a complete unit that
includes: the grinder pump, check
valve, inlet and discharge valves, HDPE
(high density polyethylene) tank and
controls. The System is packaged into
a complete unit, ready for installation.
All solids are ground into fine particles,
allowing them to pass easily through
the pump, check valve and small
diameter pipelines. Even objects that
are not normally found in sewage, such
as plastic, rubber, fiber, wood, etc. are
ground into fine particles.
U.S. & foreign patents issued and
pending.
* Discharge data includes loss through
check valve, which is minimal.
Printed in USA on recycled paper
LM000158 Rev. B, 1/02
Motor
1 hp, 1725 rpm, high torque, capacitor
start, thermally protected, 120/240V,
60 Hz, 1 phase.
Inlet Connections
4-inch PVC socket weld.
Discharge Connections
Pump discharge terminates in 1 1/4inch NPT female thread. Can easily be
adapted to 1 1/4-inch PVC pipe or any
other material required by local codes.
Discharge*
15 gpm at 0 psig
The 1 1/4-inch discharge connection is
adaptable to any piping material,
thereby allowing us to meet your local
code requirements.
11 gpm at 40 psig
The tough, corrosion resistant tank is
made of HDPE. The 91-gallon tank
capacity is based on computer studies
of water usage patterns and provides
for additional storage.
The maximum pressure that the pump
can generate is limited by the motor
characteristics. The motor generates a
pressure well below the rating of the
piping and appurtenances. The automatic reset feature does not require
manual operation following overload.
The internal check valve assembly,
located in the grinder pump, is custom
9 gpm at 60 psig
Overload Capacity
