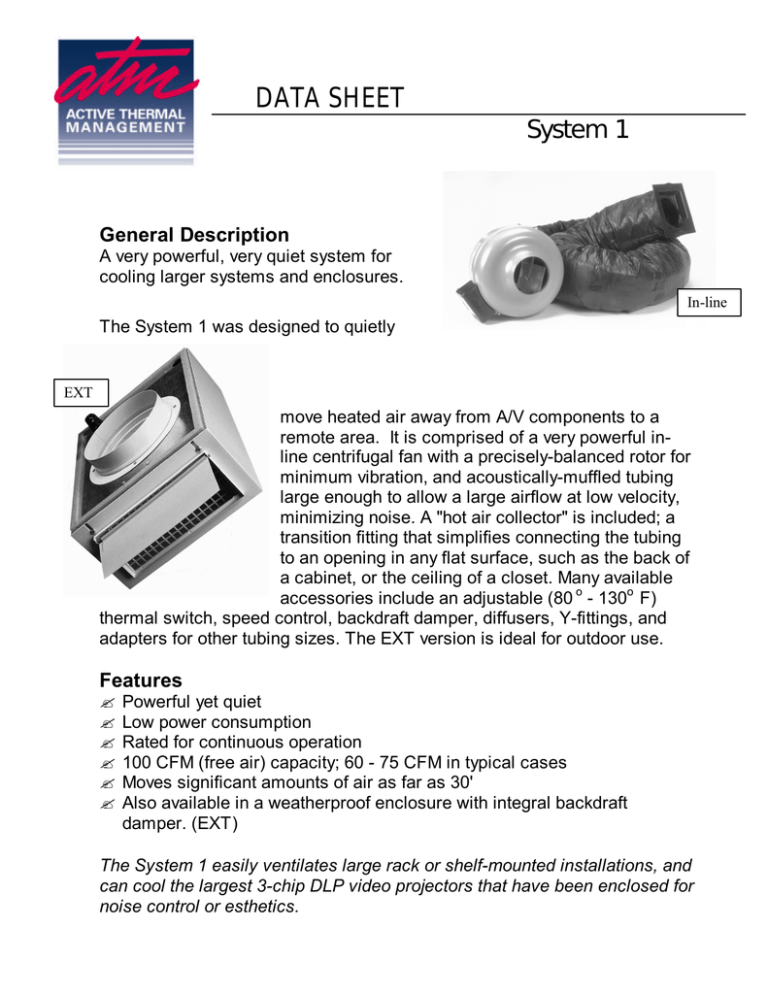

General Description
A very powerful, very quiet system for
cooling larger systems and enclosures.
In-line
The System 1 was designed to quietly
EXT
move heated air away from A/V components to a
remote area. It is comprised of a very powerful inline centrifugal fan with a precisely-balanced rotor for
minimum vibration, and acoustically-muffled tubing
large enough to allow a large airflow at low velocity,
minimizing noise. A "hot air collector" is included; a
transition fitting that simplifies connecting the tubing
to an opening in any flat surface, such as the back of
a cabinet, or the ceiling of a closet. Many available
accessories include an adjustable (80 o - 130o F)
thermal switch, speed control, backdraft damper, diffusers, Y-fittings, and
adapters for other tubing sizes. The EXT version is ideal for outdoor use.
Features
?
?
?
?
?
?
Powerful yet quiet
Low power consumption
Rated for continuous operation
100 CFM (free air) capacity; 60 - 75 CFM in typical cases
Moves significant amounts of air as far as 30'
Also available in a weatherproof enclosure with integral backdraft
damper. (EXT)
The System 1 easily ventilates large rack or shelf-mounted installations, and
can cool the largest 3-chip DLP video projectors that have been enclosed for
noise control or esthetics.
8.3"
1"
1"
9.5"
4"
4"
in-line
EXT
Specifications
Parameter
Value
Air flow - 0" SP
Air flow - 0.25" SP
Air flow - 0.5" SP
Tubing size
SPL
Power consumption
Operating temperature range
Agency approvals
Weight (in-line)
Weight (EXT)
Part number
Units
103
93
80
4" ID/6"OD
34 (with tubing attached)
55
0 - 140
UL, CSA
6.5/3
11/5
00-100-02
00-100-03
CFM
CFM
CFM
Both in-line & EXT
DBA
Watts
Degrees F
N/A
Lbs/kg
Lbs/kg
In-line
EXTerior
Accessories
Item
Speed control
Adjustable thermal switch
Decorative diffuser, white
Backdraft damper
8' tubing extension kit
4" Y-fitting
Part number
03-102-01
03-101-01
03-109-02
03-103-01
03-107-01
03-110-00
The ATM logo is a registered trademark of Active Thermal Management. All features and specifications
subject to change without notice.
25570 Rye Canyon Rd., Valencia, CA 91355
www.activethermal.com
(661) 294-7999; -1115 (f)
