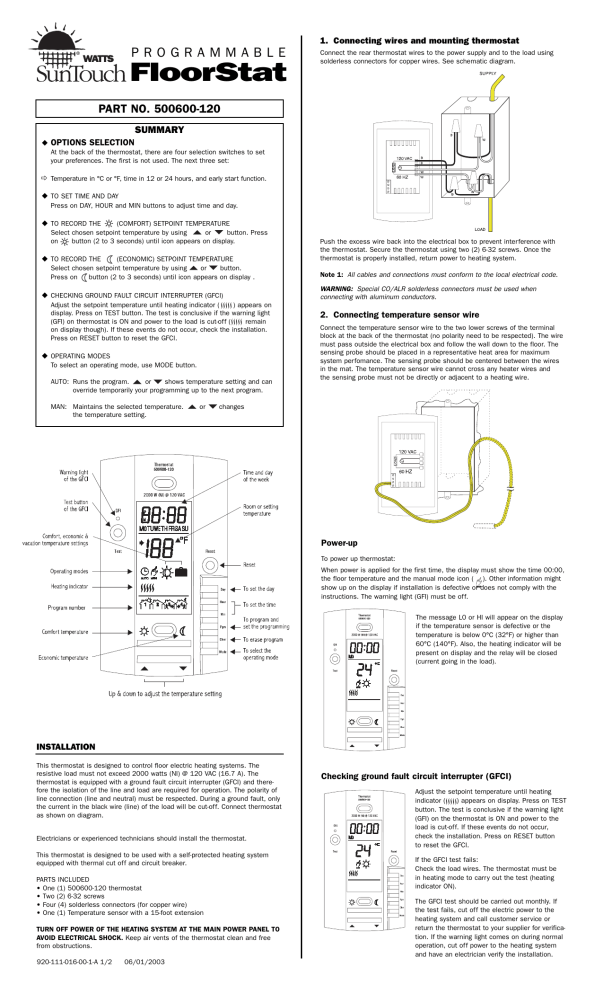

1. Connecting wires and mounting thermostat
PROGRAMMABLE
FloorStat
Connect the rear thermostat wires to the power supply and to the load using
solderless connectors for copper wires. See schematic diagram.
PART NO. 500600-120
SUMMARY
OPTIONS SELECTION
At the back of the thermostat, there are four selection switches to set
your preferences. The first is not used. The next three set:
Temperature in °C or °F, time in 12 or 24 hours, and early start function.
TO SET TIME AND DAY
Press on DAY, HOUR and MIN buttons to adjust time and day.
TO RECORD THE
(COMFORT) SETPOINT TEMPERATURE
Select chosen setpoint temperature by using
or
button. Press
on
button (2 to 3 seconds) until icon appears on display.
TO RECORD THE
(ECONOMIC) SETPOINT TEMPERATURE
Select chosen setpoint temperature by using
or
button.
Press on
button (2 to 3 seconds) until icon appears on display .
CHECKING GROUND FAULT CIRCUIT INTERRUPTER (GFCI)
Adjust the setpoint temperature until heating indicator (
) appears on
display. Press on TEST button. The test is conclusive if the warning light
(GFI) on thermostat is ON and power to the load is cut-off (
remain
on display though). If these events do not occur, check the installation.
Press on RESET button to reset the GFCI.
OPERATING MODES
To select an operating mode, use MODE button.
AUTO: Runs the program.
or
shows temperature setting and can
override temporarily your programming up to the next program.
MAN: Maintains the selected temperature.
the temperature setting.
or
Push the excess wire back into the electrical box to prevent interference with
the thermostat. Secure the thermostat using two (2) 6-32 screws. Once the
thermostat is properly installed, return power to heating system.
Note 1: All cables and connections must conform to the local electrical code.
WARNING: Special CO/ALR solderless connectors must be used when
connecting with aluminum conductors.
2. Connecting temperature sensor wire
Connect the temperature sensor wire to the two lower screws of the terminal
block at the back of the thermostat (no polarity need to be respected). The wire
must pass outside the electrical box and follow the wall down to the floor. The
sensing probe should be placed in a representative heat area for maximum
system perfomance. The sensing probe should be centered between the wires
in the mat. The temperature sensor wire cannot cross any heater wires and
the sensing probe must not be directly or adjacent to a heating wire.
changes
Power-up
To power up thermostat:
When power is applied for the first time, the display must show the time 00:00,
the floor temperature and the manual mode icon ( ). Other information might
show up on the display if installation is defective or does not comply with the
instructions. The warning light (GFI) must be off.
The message L0 or HI will appear on the display
if the temperature sensor is defective or the
temperature is below 0°C (32°F) or higher than
60°C (140°F). Also, the heating indicator will be
present on display and the relay will be closed
(current going in the load).
INSTALLATION
This thermostat is designed to control floor electric heating systems. The
resistive load must not exceed 2000 watts (NI) @ 120 VAC (16.7 A). The
thermostat is equipped with a ground fault circuit interrupter (GFCI) and therefore the isolation of the line and load are required for operation. The polarity of
line connection (line and neutral) must be respected. During a ground fault, only
the current in the black wire (line) of the load will be cut-off. Connect thermostat
as shown on diagram.
Electricians or experienced technicians should install the thermostat.
This thermostat is designed to be used with a self-protected heating system
equipped with thermal cut off and circuit breaker.
PARTS INCLUDED
• One (1) 500600-120 thermostat
• Two (2) 6-32 screws
• Four (4) solderless connectors (for copper wire)
• One (1) Temperature sensor with a 15-foot extension
TURN OFF POWER OF THE HEATING SYSTEM AT THE MAIN POWER PANEL TO
AVOID ELECTRICAL SHOCK. Keep air vents of the thermostat clean and free
from obstructions.
920-111-016-00-1-A 1/2
06/01/2003
Checking ground fault circuit interrupter (GFCI)
Adjust the setpoint temperature until heating
indicator (
) appears on display. Press on TEST
button. The test is conclusive if the warning light
(GFI) on the thermostat is ON and power to the
load is cut-off. If these events do not occur,
check the installation. Press on RESET button
to reset the GFCI.
If the GFCI test fails:
Check the load wires. The thermostat must be
in heating mode to carry out the test (heating
indicator ON).
The GFCI test should be carried out monthly. If
the test fails, cut off the electric power to the
heating system and call customer service or
return the thermostat to your supplier for verification. If the warning light comes on during normal
operation, cut off power to the heating system
and have an electrician verify the installation.
OPERATING MODES
(d) Example 2:
The 500600-120 have two (2) operating modes.
Comfort period: Monday to Friday from 6:15 AM to 8:15 AM
and from 5:00 PM to 10:00 PM.
MANUAL ( )
This mode allows you to maintain a constant temperature of the floor.
Schedule/Day
Mon.
Tues.
Fri.
Sat.
Sun.
Prog. 1
6:15 AM
6:15 AM
6:15 AM 6:15 AM
6:15 AM
7:30 AM
7:30 AM
1. To activate this mode, press on Mode button to display the
Prog. 2
8:15 AM
8:15 AM
8:15 AM 8:15 AM
8:15 AM
—
—
Prog. 3
5:00 PM
5:00 PM
5:00 PM 5:00 PM
5:00 PM
—
—
Prog. 4
10:00 PM 10:00 PM 10:00 PM 10:00 PM 10:00 PM 11:00 PM 11:00 PM
2. Set the desired temperature using the
pre-programmed
, or
, or
settings.
(To select the
AUTOMATIC (
setting, press on
and
icon.
buttons or select the
simultaneously.)
)
Wed.
Thurs.
NOTE: It is faster to program the same schedule for every day and then modify
the exception days.
This mode executes your own programming.
1. Press on PGM button to access the programming mode.
To activate this mode, press on Mode button to display the
icon.
The
or
icon indicates which temperature setting is used. Also, the icon of
the program number will be shown.
2. Press on Day button 3 seconds to select every day of the week.
Memory back-up
In the event of a power failure, an internal circuit will maintain the programming
and the time. But only the time could have to be set if power failure is more
than 2 hours.
3. Press on Hour and Min buttons to enter 6:15 AM Prog. 1, (
4. Press on PGM button to select Prog. 2 (
enter 8:15 AM.
).
) and Hour and Min buttons to
5. Repeat step 4 to enter Prog. 3 (5:00 PM) and Prog. 4 (10:00 PM).
NOTE: When making modifications, make sure you are in the right program.
Early start function
The thermostat is providing a built-in function enabling it to calculate the
optimum time to start the heating system to achieve the desired temperature
setting at the programmed time. This function could start the heating system
as early as 6 hours prior to the programmed time. To enable this function,
set the switch E.S. to “ON” at the back of the thermostat.
PROGRAMMING
Programming the time and day
1. Set the time using the Hour and Min buttons.
2. Set the day using the Day button.
The Comfort
, Economic
, and Vacation
settings respectively represent
the temperatures that you wish to have during the day
, at night , while
you are away at work , or while you are away for an extended period
.
To program your settings:
(a)
To program the Comfort temperature, select the desired degree using the
buttons and press the
button until the
icon is displayed
(approx. 3 seconds).
(b)
To program the Economic temperature, select the desired degree using the
buttons and press the
button until the
icon is displayed
(approx. 3 seconds).
(c)
To program the Vacation temperature, select the desired degree using the
buttons and press the
and
buttons simultaneously until the
icon is displayed (approx. 3 seconds).
Press the Mode button to exit this function and return to the normal
operating mode.
Schedule programming
The 500600-120 allows 4 setting changes for each day of the week. There are
no pre-set programs.The programs are tailored to perfectly adapt to your life
style. The principle is very simple. For each day, enter the time at which you
wake up (P1), the time you leave for work (P2), the time you arrive back home
(P3) and the time you go to bed (P4).
Program
6. Press on Day button until SA or SU is displayed.
7. Press on PGM button to select Prog. 1 (
enter 7:30 AM.
) and Hour and Min buttons to
8. Press on PGM button to select Prog. 2 (
erase it.
) and then Clear button to
9. Press on PGM button to select Prog. 3 (
erase it.
) and then Clear button to
10. Press on PGM button to select Prog. 4 (
buttons to enter 11:00 PM.
Programming the Comfort, Economic, and Vacation settings
(d)
To modify the Saturday and Sunday schedules:
Mode
Time
) and then Hour and Min
11. Press on Mode button to exit this function.
Temporary or permanent temperature bypass
This operation allows you to temporarily modify the floor temperature while you
are in the Automatic mode. Simply press on
or
buttons to select the
desired temperature, or the
or
button to select the Comfort or Econo
settings you have programmed.This temperature will be maintained until the
beginning of the next programmed schedule.
You can also switch to the Vacation setting for a prolonged absence by pressing
on
and at the same time.The display will show the
icon. In that case,
the derogation is permanent. To return to the normal operating mode, press on
Mode button.
If you wish to immediately return to the programmed settings, press on Mode
button twice.
CHARACTERISTICS
• Part No:
500600-120
• Supply:
120 VAC, 50/60 Hz
• Load:
16.7 A maximum (Resistive only)
• Power:
2000 watts (NI) @ 120 VAC
• Ground fault circuit interrupter (GFCI):
Class A (5 mA TRIP LEVEL)
• Approvals:
CSA / C, US
0° to 60°C (32° to 140°F)
5° to 40°C (40° to 104°F)
1
Wake-up time
• Display range:
2
Leaving time
• Setting range:
3
Return time
• Comfort default setting:
28°C (82°F)
• Econo default setting:
18°C (64°F)
• Storage:
–20° to 50 °C (–4° to 120°F)
4
Bed time
NOTE : For temperature increases (Prog. 1 and 3), allow at least 15 minutes
per °C. If you have lowered the temperature by 3°C during the night and you
wake up at 7 a.m., change the setting at 6:15 a.m.
For savings to be obtained, you must lower the temperature for a period of 2 to
3 times the delay required to bring the temperature back to your comfort level.
Example: If your system takes one hour to go from your saving temperature
level to your comfort temperature Ievel, it is useless to lower the temperature
for a period less than 3 hours.
(a) To Program your Schedule
1. Press on PGM button to access the programming mode.
2. Press on Day button to select the day to be programmed. You can select
all days of the week by pressing on Day button for 3 seconds.
3. Press on PGM button to select program 1, 2, 3, or 4.
4. Press on Hour and Min buttons to program the time.
5. When you have completed your programming, press on Mode button to exit
this function.
(b) To Erase a Program:
Select the program using PGM and Day buttons, and press on Clear button.
The time field displays --:-- when the program is inactive.
(c) Example 1: Comfort period from 7:00 a.m. to 10:30 p.m.
Economy period from 10:30 p.m. to 7:00 a.m.
Identical schedule for all days of the week.
1. Press on PGM button to access the programming mode.
WARRANTY
WATTS RADIANT, INC. ONE (1) YEAR LIMITED WARRANTY
This product is warranted against material defects and workmanship in normal
use for a period of one year, from the date of the original purchase from
authorized dealers. During this period, Watts Radiant, Inc. will repair or replace
the product with a new or of equivalent quality at Watts Radiant option, without
charge, any product proven defective in normal use.
Warranty does not cover transportation costs. Nor does it cover a product
subjected to misuse or accidental damage. This warranty does not cover the
cost of installation, removal or reinstallation.
This limited warranty is in lieu of all other warranties, obligations or liabilities
expressed or implied by the company. In no event shall Watts Radiant, Inc. be
liable for consequential or incidental damages resulting from installation of
this product. Some states or provinces do not allow limitations on how long
an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above exclusions or limitations may not apply to you.
This warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
The defective product and the original sale receipt must be returned to the
original dealer or shipped pre-paid, insured and addressed to:
Watts Radiant, Inc.
3131 W. Chestnut Expwy.
Springfield, MO 65802
2. Press on Day button 3 seconds to select every day of the week.
3. Press on Hour button to enter 7:00 a.m., Prog. 1 (
4. Press on PGM button again to select Prog. 2 (
Min buttons to enter 10:30 p.m.
5. Press on Mode button to exit this function.
920-111-016-00-1-A 2/2
06/01/2003
).
), and press on Hour and
If you have any questions concerning the installation or programming of this
product, please call our technical assistance at 417-864-6108.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
